Torque and Top Load Force Tester

TRQF CAP TORQUE-FORCE TESTER

Universal handheld torque tester for testing closure torque and top load on child resistant closures.

Universal handheld torque tester for testing closure torque and top load on child resistant closures.

Child_Resistant_Cap_Torque_Tester

Cap testing fitment – contains 2 parts:
1., A universal support that holds the cap fitments. Cap fitments are held by magnets for quick exchange.
2., Cap fitments: In any size up to D40 mm. with 12 serrations (useable with any number of serrations that is a multiple of 12).
Over 40 mm cap diameter or for special closures custom cap adapters are available.
Cap fitments are easy to change without any tool, as they are held by magnets.



SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers a wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.

Torque tester is shipped calibrated, with traceable calibration certificate.

Industries:  Pharmaceutical, Chemical, Packaging



Areas: Laboratory, Production



Applications:

Closure torque tests on Child Resistant closures – Release torque,  Bridge torque, Incremental torque, etc.

  • Measuring Torque and Top Load in one step
  • Small, handy, wireless
  • Wide range of tests
  • Torque-time and force-time graph drawing and saving
  • Range analysis
  • High storing capacity on the smartphone
  • Graph zooming and scrolling in the history
  • Adding comment to the results before saving
  • Free Android application
  • Included pc software
  • 3 years warranty

INCLUDED ACCESSORIES

1 cap fitment support + 1 cap fitment OR 1 neck adapter

SMARTPHONE REQUIREMENT

1 GB RAM, 1 GHz Processor, 4 GB ROM

ANDROID VERSION

Android 4.4 or higher

MEASURING RANGE

-10Nm – +10 Nm (cca +/- 88.5 lbfIn) / 30 kg

UNITS OF MEASUREMENT

LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V, kg, N, Lb

DISPLAYED VALUES

Actual, Max1, (Max2), torque-time graph

ACCURACY

+/- 0,5% F.S.

SAFE OVERLOAD

120%

MAXIMUM MEASURING FREQUENCY

200 Hz (5 ms) on each channel

RANGE ANALYSIS

Yes – In range / under range / over range, with Over Range Alarm function

CAPABLE CLOSURE TYPES

Any kind of serrated twist cap

MAXIMUM SAMPLE SIZE

Any

CALIBRATION KIT

available

OPERATION TIME

6 hours

DC SUPPLY

Micro USB

BLUETOOTH RANGE

20-40 m on air

INCLUDED SOFTWARE

Android application, Data manager for PC

MEMORY

Thousands of results (phone memory)
Maximum length of recordings: 5000 points

STORED DATA’S

Measurement number, peak results, date, time, graph, instrument serial number, comment, calibration date

RESISTANCE GRADE

IP 65

LANGUAGE

English

DIMENSIONS: FOOTPRINT / HEIGHT

D75 x 62 mm

NET WEIGHT

0.55

SHIPPING PACKAGING

Heavy duty waterproof case

SHIPPING DIMENSIONS

No

SHIPPING WEIGHT

No

COUNTRY OF MANUFACTURE

Hungary

WARRANTY

3 years

SmartLoadCell has 4 different measuring modes. Relevant modes for this application are continuous, single and double peak modes.

Child Resistant Cap Torque TesterSmartLoadCell application - double peak
Continuous modeSingle/Double peak mode

Results:

What to do with your results?

  • Add comments
  • Save
  • View from the history – graph can be zoomed and scrolled
  • Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable

On the PC: the included data manager program can:

  • convert results to csv-file (excel compatible)
  • display the results with graphs
  • statistical analysis of the results
  • create report from the individual results or from the statistical analyses

TPL TOP LOAD FORCE TESTER

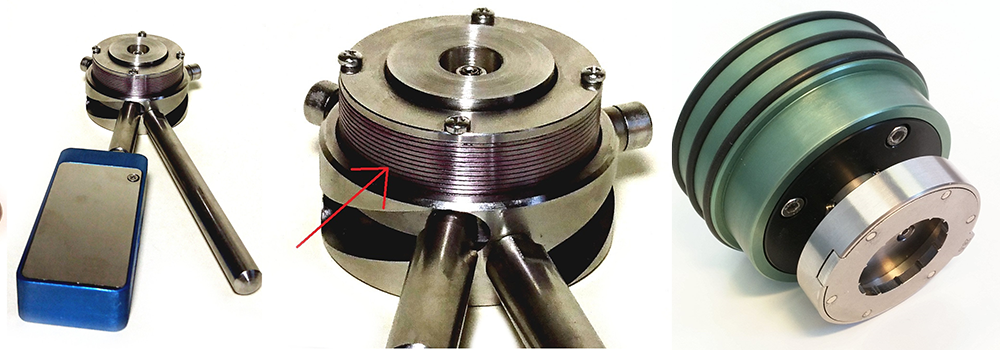

TPL1 Top Load Force meter makes it easy to check the capper head’s top load without disassembling it from the capper machine.

TPL1 Top Load Force meter makes it easy to check the capper head’s top load without disassembling it from the capper machine.

By moving the 2 handles the height of the TPL1 unit can be increased/decreased. So the capper head’s top load spring can be squeezed, and the force can be measured. The compression of the spring can be controlled on the mm-scaled rings on the tester, or digitally (by the TPL3 and TPL4 units).



SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.

Top Load tester is shipped calibrated, with trackable calibration certificate.

Industries: Beverage, Food, Pharmaceutical, Packaging



Areas: Maintanance



Applications:

Capper machine chuck Top Load testing (single peak mode)

  • Small, handy, wireless
  • Force-time graph drawing and saving
  • Range analysis
  • High storing capacity on the smartphone
  • Graph zooming and scrolling in the history
  • Adding comment to the results before saving
  • Free Android application
  • Included pc software
  • 3 years warranty

INCLUDED ACCESSORIES

SMARTPHONE REQUIREMENT

1 GB RAM, 1 GHz Processor, 4 GB ROM

ANDROID VERSION

Android 4.4 or higher

MEASURING RANGE

30 kg or 100 kg

UNITS OF MEASUREMENT

Kg, N, LbfIn

DISPLAYED VALUES

Actual, Max1 force-time graph

ACCURACY

0,25% F.S.

SAFE OVERLOAD

120%

MAXIMUM MEASURING FREQUENCY

400 Hz (2.5 ms)

RANGE ANALYSIS

Yes – In range / under range / over range, with Over Range Alarm function

CAPABLE CLOSURE TYPES

MAXIMUM SAMPLE SIZE

Any

CALIBRATION KIT

available

OPERATION TIME

10-12 hrs

DC SUPPLY

Micro USB

BLUETOOTH RANGE

20-40 m on air

INCLUDED SOFTWARE

Android application, Data manager for PC

MEMORY

Thousands of results (phone memory)
Maximum length of recordings: 5000 points

STORED DATA’S

Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date

RESISTANCE GRADE

IP65

LANGUAGE

English

DIMENSIONS: FOOTPRINT / HEIGHT

120x120x65 mm

NET WEIGHT

1 kg

SHIPPING PACKAGING

Heavy duty waterproof case

SHIPPING DIMENSIONS

No

SHIPPING WEIGHT

No

COUNTRY OF MANUFACTURE

Hungary

WARRANTY

3 years



Recommended measuring mode: Single peak mode

SmatLoadCell application



Results:

What to do with your results?

  • Add comments
  • Save
  • View from the history – graph can be zoomed and scrolled
  • Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable

 On the PC: the included data manager program can:

  • convert results to csv-file (excel compatible)
  • display the results with graphs
  • statistical analysis of the results
  • create report from the individual results or from the statistical analyses
CAT-S31

CAT S31 heavy duty smartphone with preinstalled SmartLoadCell application
