SM-S WIRELESS BLUETOOTH S-LOAD CELL

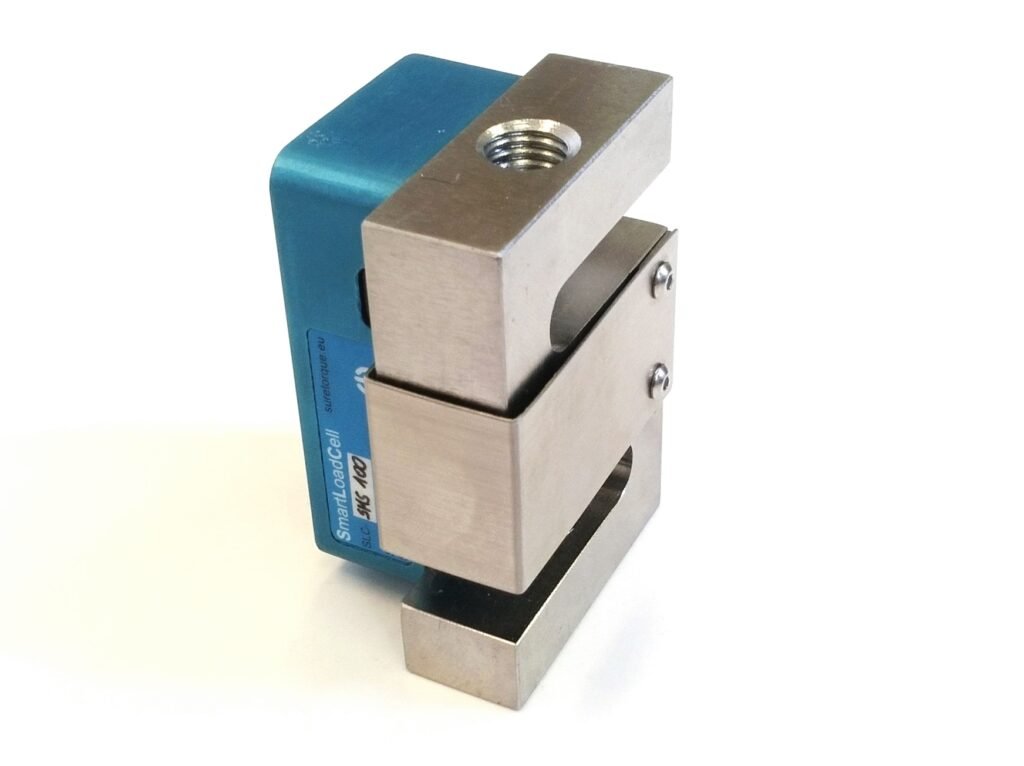

SmartLoadCell SM-S – Universal stainless steel tension-compression S-beam load cell with SmartLoadCell electronics.
SM-S WIRELESS BLUETOOTH S-LOAD CELL
SmartLoadCell SM-S – Universal stainless steel tension-compression S-beam load cell with SmartLoadCell electronics.
Available measuring ranges:
100 kg
200 kg
500 kg
1 Ton
2 Tons
5 Tons
10 Tons
Wireless bluetooth telemetry. SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.
Load cell is shipped calibrated, with traceable calibration certificate.
Tension and compression force measuring
Main industries: Materials handling, industry
Application area: laboratory, material testing, materials handling
We provide 2 different applications for the SmartLaodCells:
1., SmartLoadCell.apk – this application can connect to 1 SmartLoadCell module (1 or 2 channel ones too). Measurement graph is displayed real time and in the history too.
2., SmartLoadCell_MULTI – this application can be connected to maximum 7 SmartLoadCell modules (load cells). All load cells actual and maximum values can be monitored on the same screen. Graphs of the measurements can be viewed in the history.
- Small, handy, wireless
- Wide range of tests
- Force-time graph drawing and saving
- Range analysis
- Connectivity of up to 7 load cells / smartphone (with the SmartLoadCell_multi application)
- High storing capacity on the smartphone
- Graph zooming and scrolling in the history
- Adding comment to the results before saving
- Free Android application
- Included pc software
- 3 years warranty
INCLUDED ACCESSORIES | connecting thread size: |
SMARTPHONE REQUIREMENT | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
ANDROID VERSION | Android 4.4 or higher |
MEASURING RANGE | +/- 100, 500, 1.000, 2.000, 5.000, 10.000 kg |
UNITS OF MEASUREMENT | Kg, N, Lbf |
DISPLAYED VALUES | Actual, Max1, (Max2), force-time graph |
ACCURACY | +/- 0,05% F.S. |
SAFE OVERLOAD | 120% |
MAXIMUM MEASURING FREQUENCY | 400 Hz (2.5 ms) |
RANGE ANALYSIS | Yes – In range / under range / over range, with Over Range Alarm function |
CAPABLE CLOSURE TYPES | No |
MAXIMUM SAMPLE SIZE | No |
CALIBRATION KIT | not available |
OPERATION TIME | 12 hours |
DC SUPPLY | Micro USB |
BLUETOOTH RANGE | 20-40 m on air |
INCLUDED SOFTWARE | Android application, Data manager for PC |
MEMORY | Thousands of results (phone memory) |
STORED DATA’S | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
RESISTANCE GRADE | IP 65 |
LANGUAGE | English |
DIMENSIONS: FOOTPRINT / HEIGHT | 76x50x41 mm (100-1000 kg) |
NET WEIGHT | 0.55 kg (100-1000 kg) |
SHIPPING PACKAGING | Heavy duty waterproof case |
SHIPPING DIMENSIONS | No |
SHIPPING WEIGHT | 1 kg |
COUNTRY OF MANUFACTURE | Hungary |
WARRANTY | 3 years |
We provide 2 different applications for the SmartLoadCells:
|
|
SmartLoadCell_single application has 4 different measuring modes. Relevant modes for this application: | SmartLoadCell_multi application can connect to more, maximum 7 SmatLoadCells at the same time. R |
Results:
What to do with your results?
- Add comments
- Save
- View from the history – graph can be zoomed and scrolled
- Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- make statistical analysis of the results
- create report from the individual results or from the statistical analyses
CAT S31 heavy duty smartphone with preinstalled SmartLoadCell application
SmartLoadCell_Single application – v_1.10.2 – Required Android version: 4.4 or higher!
SmartLoadCell_single – Users manual – pdf
SmartLoadCell_single – Getting started (the first steps…) – pdf
SmartLoadCell_multi – application (required Android version: 4.4 or higher) – apk – version: 1.5
SmartLoadCell_multi – Users manual – pdf
