TRIO BAS ISOLATOR RABS AIR SAMPLER

TRIO.BAS™ Mini

This air sampler is especially for customers who usually make few number of tests.

TRIO.BAS™ Mono

This air sampler is for customers who make a large number of controls, in different environments (i.e. cleanroom), with a large staff rotation and that comply with the quality standards and QM/GMP.

TRIO.BAS™ Airbio

This air sampler is for customers who make a large number of controls, in different environments (i.e. cleanroom), with a large staff rotation and that comply with the quality standards and QM/GMP.

TRIO.BAS™ Duo

The two aspirating heads give the possibility to reduce sampling time / operate with different cultures at the same time / monitor at rest, in operation, at the end of shift.

TRIO.BAS™ Airbio Duo

The two aspirating heads give the possibility to reduce sampling time / operate with different cultures at the same time / monitor at rest, in operation, at the end of shift.

TRIO.BAS™ Trio

The three aspirating heads give the possibility to reduce sampling time / operate with different cultures at the same time / monitor at rest, in operation, at the end of shift.

TRIO.BAS™ Multistation

This Air sampler is for customers who make an average and high number of controls and that comply with the quality standards and QM GLP / GMP.

TRIO.BAS™ Isolator Rabs and Multiflex

This Air sampler is for customers who make an average and high number of controls and that comply with the quality standards and QM GLP / GMP.

Trio bas Isolator Rabs

Trio bas Isolator Rabs

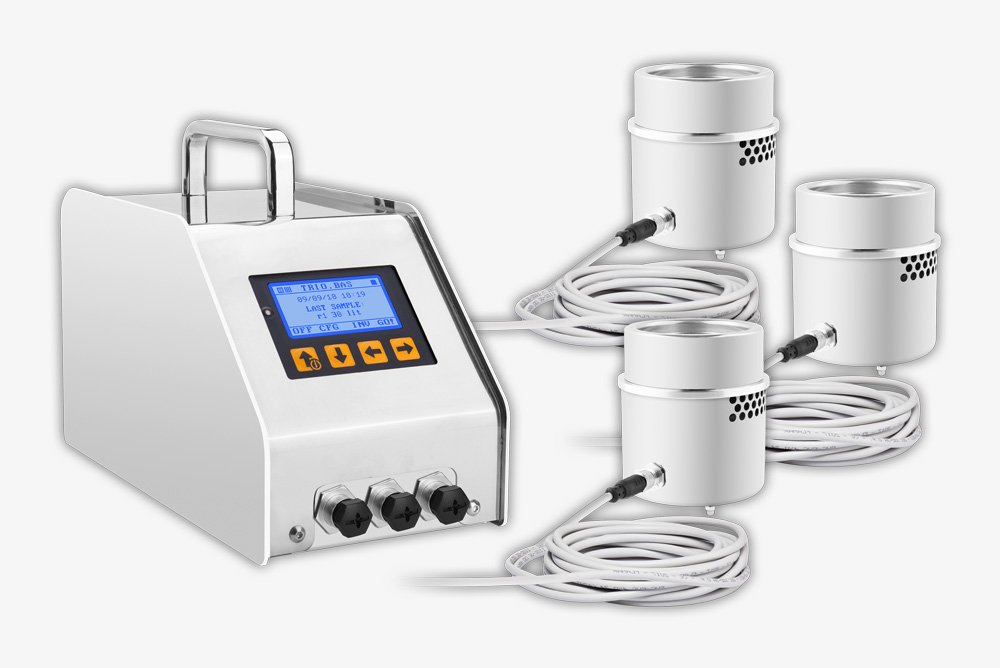

One external command unit fabricated completely in stainlees steel connected to 1 satellites with Bluetooth capability and cable for charging

  • The Trio bas RABS ISOLATOR and the satellites are fabricated in AISI 316 rated stainless steel.
  • This air sampler is especially dedicated to customers who make a large number of controls, in different environments, with a large staff rotation in compliance with the quality standards and QM/GMP.
  • Main customers are pharmaceuticals, cleanrooms and biotech industries.
  • A barcode module, thanks to the use of a scanner (barcode reader) with Bluetooth, automatically records the operator, place and plates used for the sampling. The data collected by the barcode reader are transmitted directly to the instrument. This solution is useful for those who already use culture plates with barcode or 2-D barcode (QR Quick Response Code).
  • The data is transferred via Bluetooth between the air sampler and a smartphone or tablet (Android version) and then to a PC or laptop.
  • The data may be transferred via cable, too. This is helpful for all companies that, due to internal policy, are not allowed to use wireless transfer.
  • It is possibile to work either in manual or automatic mode.
  • The battery is recharged by a power cable connected directly to the air sampler.
  • The 200 lts/min air flow reduces the operator time and the time sampling.
  • This air sampler allows monitoring of separated cleanrooms with a single external command unit. The risk of human contamination is reduced, because the satellite units are permanently inside each cleanroom.
  • The use of sterile “Daily Shift” aspirating heads reduces the risk of contamination.
  • The possibility to use 1/2/3 different aspirating heads allows to have 1/2/3 different culture media at the same time or the ability to sample BEFORE (at rest), DURING (in operation) and at the END of each processing cycle.

Trio bas Isolator Rabs

PERFORMANCES

AISI 316 rated stainless steel (command unit + satellite units)
Compliant according EN/ISO 14698-1, GMP and GLP
Stainless steel aspirating head with quick bayonet closure, identification number and stainless steel cover to prevent contamination
Volume of aspirated air: 100 or 200 l/m
Selected volumes from 30 to 2.000 litres and 17 preset programs
The aspirating chamber is suitable for 55 mm Contact plates or 90 mm Petri dishes
Auto calibration: power/flow electronic real time control
Power supply system: the instrument can be charged continuosly by AC powered source 110/240 Volt 50/60 Hz or by rechargeable batteries (inserted inside the air sampler)
Cycles battery autonomy: 60.000/70.000 litres
Language: English, French, German, Spanish, Italian
Manual and automatic passwords
Operative aspirating cycles: manual and automatic
Memorized data: up to 1.000 samples
Configuration users and places: 100
Delayed, remote, start, simultaneous or interval sampling
Bluetooth connection or use of cable for data transfer
Automatic next calibration reminder
Data integrity CFR 21 and GAMP5
CE mark
Continuous/trending analysis according to the USP
Dimension: 25x13x18h cm
Weight: 3.150 gr
Built in ISO 9001 premises

IDENTIFICATION CODES

CodeTRIO.BAS RABS ISOLATOR with 1 SATELLITE PACK (*)
268KTRIO.BAS™ RABS ISOLATOR 100 Contact with 1 Satellite PACK
269KTRIO.BAS™ RABS ISOLATOR 100 Petri with 1 Satellite PACK
270KTRIO.BAS™ RABS ISOLATOR 200 Contact with 1 Satellite PACK
271KTRIO.BAS™ RABS ISOLATOR 200 Petri with 1 Satellite PACK

(*) each PACK consists of: 1 TRIO.BAS™ RABS ISOLATOR with battery charger, 1 calibration certificate, 1 s/s satellite, 1 s/s aspirating head with s/s cover head, 1 cable connection (5 mt), 1 cable for data transfer, 1 robustus medium carrying case.

CodeSATELLITE UNIT PACK(*)
260KSATELLITE UNIT Contact PACK
261KSATELLITE UNIT Petri PACK
262KSATELLITE with HEPA FILTER Contact PACK
263KSATELLITE with HEPA FILTER Petri PACK
258KSATELLITE WALL with HEPA filter Contact PACK
259KSATELLITE WALL with HEPA filter Petri PACK

(*) each PACK consists of: 1 s/s satellite, 1 s/s aspirating head with s/s cover head, 1 cable connection (5 mt).
(**) second or third satellite to be added to basic sampler.

CodeSATELLITE ACCESSORIES
273S/S HOLDER for lid of Petri plates for satellite
266S/S RIGID TUBE connection for cable satellite – 170 mm
267S/S TUBE WALL connection for cable satellite
265CABLE CONNECTION between the satellite and the command unit – 1 set of 5 meters
266CABLE CONNECTION between the satellite and the command unit – 1 set of 20 meters
