Laboratory Refrigerators with Explosion-proof Interior Pro-Active

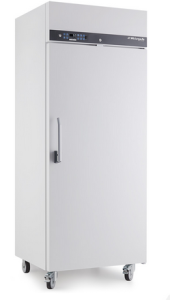

Laboratory Refrigerator LABEX® 720 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 5 shelves, height adjustable
- Castors
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Adjustable feet to compensate for uneven floors.
- Additional wire shelves on mountings or support rails
- Wire basket 60 x 65 x 10 cm with rails
- Aluminum tray 60 x 65 x 2.5 cm with rails
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM-Modul
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature probe PT 100 or PT 1000,
- 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 700 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumption | 237 Watts |
| Average consumption | 1.23 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 77 x 98 x 195,5 (w x d x h in cm) |
| Interior dimensions | 62 x 77 x 140 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 77 x 165 (w x d in cm) |
| Shelf dimensions | 59 x 65 (w x d in cm) |
| Max. loading capacity per shelf | 40 kg |
| Weight | 143 kg / 169 kg (net / gross) |
Downloads
Product Information
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.
Laboratory Refrigerator LABEX® 520 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 5 shelves, height adjustable
- Castors
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Adjustable feet to compensate for uneven floors.
- Additional wire shelves on mountings or support rails
- Additional drawers on telescopic runners (57 x 09 x 5,6 cm): max. 12 pieces
- Aluminum trays or baskets with support rails
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM-Modul
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature probe PT 100 or PT 1000,
- 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 500 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumption | 234 Watts |
| Average consumption | 1.2 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 77 x 76 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 57 x 140 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 77 x 144 (w x d in cm) |
| Shelf dimensions | 59 x 45 (w x d in cm) |
| Max. loading capacity per shelf | 40 kg |
| Weight | 126 kg / 149 kg (net / gross) |
Downloads
Product Information
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.

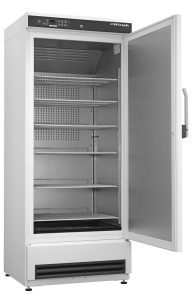

Laboratory Refrigerator LABEX® 468 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety (more Information)
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 6 shelves, height adjustable
Safety and Digital Documentation
- Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Castors
- Decorative frame for door
- 60 Hz cooling machine on request
- Additional wire shelf on rails or overlays
- Additional drawers on roller runners (57 x 43x 5.6 cm), Maximum number of drawers: 12 pcs. in total
- Additional length and cross dividers
- Aluminium trays or baskets with support rails
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including safety barriers and built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 460 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 170 Watts |
| Average consumption | 1.03 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 74 x 77.5 x 189 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 128 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 74 x 142 (w x d in cm) |
| Drawer inner dimensions | 57.3 x 43 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 59 x 50 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 24 kg / 40 kg |
| Weight | 120 kg / 134 kg (net / gross) |
Downloads
Product Information
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.
Laboratory Refrigerator LABEX® 465 PRO-ACTIVE - Zone 1
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 1) thanks to LABEX® Intrinsic Safety
PRO-ACTIVE control
- Permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 6 shelves, height adjustable
- Castors
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Decorative frame for door
- Additional wire shelf
- Conductive plastic drawer on roller runners (up to eleven drawers in total ).
- Additional length and cross dividers
- Aluminium tray or basket with support rails
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including safety barriers and built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 460 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power draft | 150 Watts |
| Average consumption | 0.76 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 74 x 76 x 176 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 138 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 74 x 140 (w x d in cm) |
| Drawer inner dimensions | 57 x 43 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 59 x 50 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 24 kg / 40 kg |
| Weight | 120 kg / 134 kg (net / gross) |
Downloads
Product Information
LABEX_465-Zone_1__E_PRO-ACTIVE_EN
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.
Laboratory Refrigerator LABEX® 340 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety (more Information)
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 2,6°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 2 drawers and 4 shelves, height adjustable
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Decorative frame for door
- Castors
- 60 Hz cooling machine on request
- Conductive plastic drawer on roller runners
- Additional wire shelves on mountings or support rails
- Additional length and cross dividers
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including safety barriers and built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 330 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumption | 128 Watts |
| Average consumption | 1.14 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 67 x 66 x 189 (w x d x h in cm) |
| Interior dimensions | 53 x 45 x 128 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 67 x 124 (w x d in cm) |
| Drawer inner dimensions | 50.4 x 32 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 52.7 x 39 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 16 kg / 40 kg |
| Weight | 95 kg / 109 kg (net / gross) |
Downloads
Product Information
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.

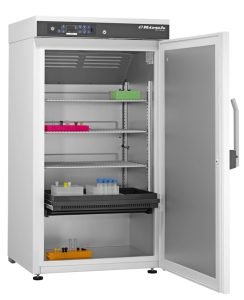

Laboratory Refrigerator LABEX® 288 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 0,74°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting
- Ergonomics door opener
- Flexible interior fittings
- 1 drawer and 3 shelves, height adjustable
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Glass door with lock
- Decorative frame for door
- Castors
- 60 Hz cooling machine on request
- Conductive plastic drawer on roller runners
- Additional wire shelves on mountings or support rails
- Additional length and cross dividers
- GSM module
- PC-KIT-NET (network-compatible version
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including safety barriers and built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 280 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumption | 100 Watts |
| Average consumption | 0.76 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 67 x 72 x 132 (w x d x h in cm) |
| Interior dimensions | 53 x 50 x 100 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 67 x 130 (w x d in cm) |
| Drawer inner dimensions | 50.4 x 32 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 52.7 x 39 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 16 kg / 40 kg |
| Weight | 75 kg / 87 kg (net / gross) |
Downloads
Product Information
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.
Laboratory Refrigerator LABEX® 105 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- Explosion proof interior (Zone 2) thanks to LABEX® Intrinsic Safety
PRO-ACTIVE control
- Permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
Ergonomics-Concept
- Automatic defrosting
- Flexible interior fittings
- 1 drawer and 2 shelves, height adjustable
Safety and Digital Documentation
- Meltwater tray for manual emptying due to explosion protection
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- LED temperature display for easy readability
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Glass door with lock
- Decorative frame
- Door fitting
- Additional drawers
- GSM-Module
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with 2 waxed paper strips
- Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 95 l |
| Temperature setting (approx.) | +2 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumption | 86 Watts |
| Average consumption | 0.43 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 54 x 54 x 82 (w x d x h in cm) |
| Interior dimensions | 44 x 43 x 47 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 54 x 106 (w x d in cm) |
| Drawer inner dimensions | 40.8 x 32 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 43 x 36 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 13 kg / 25 kg |
| Weight | 46 kg / 55 kg (net / gross) |
Downloads
Product Information
LABEX_105_PRO-ACTIVE_drawers_in_black
Operating Instructions
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
D1005_05.21_Operating_instructions_LABEX_version_2_en_GB.
20191004_Doc_Anleitung_Touch_1_9_ENG.
D606_12.18__PC-KIT-STICK_Kurzanleitung_EN.
Conformity Statement
The safety of our LABEX® models has been confirmed by means of the conformity statement issued by TÜV-SÜD.
