Laboratory Refrigerators Pro-Active

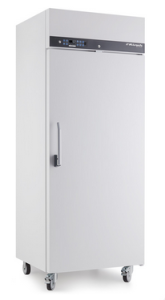

Laboratory Refrigerator LABO 720 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 5 shelves, height adjustable
- Castors
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Adjustable feet to compensate for uneven floors.
- Additional wire shelves on mountings or support rails
- 60 Hz cooling machine on request
- Aluminum trays or baskets with support rails
- LED light strip mounted on the side wall of the interior
- Meltwater tray for manual emptying
- Cooling machine with cold water connection
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM-Modul
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature probe PT 100 or PT 1000,
- 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 700 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 250 Watts |
| Average consumption | 1.46 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 77 x 98 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 77 x 140 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 77 x 165 (w x d in cm) |
| Shelf dimensions | 59 x 65 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 40 kg |
| Weight | 141 kg / 167 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

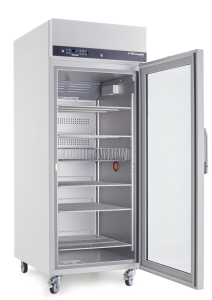

Laboratory Refrigerator LABO 720 CHROMAT PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,1°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 5 shelves, height adjustable
- Insulating glass door and interior light
- Built-in 3-way-socket
- Access port for cables and probes, diameter app. 7 cm
- Castors
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Adjustable feet to compensate for uneven floors.
- Additional wire shelves on mountings or support rails
- Additional length and cross dividers for drawers
- 60 Hz cooling machine on request
- Aluminum trays or baskets with support rails
- Meltwater tray for manual emptying
- Cooling machine with cold water connection
- GSM-Modul
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature probe PT 100 or PT 1000,
- 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 720 l |
| Temperature setting (approx.) | +4 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 250 Watts |
| Average consumption | 1.63 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 77 x 98 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 77 x 140 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 77 x 165 (w x d in cm) |
| Shelf dimensions | 59 x 65 (w x d in cm) |
| Max. loading capacity per shelf | 40 kg |
| Weight | 146 kg / 174 kg (net / gross) |
Downloads
Product Information
LABO_720_CHROMAT_PRO-ACTIVE_EN
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

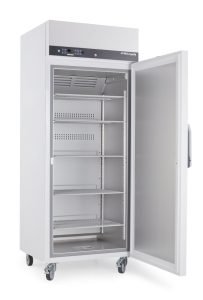

Laboratory Refrigerator LABO 520 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 5 shelves, height adjustable
- Castors
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Adjustable feet to compensate for uneven floors.
- Additional wire shelves on mountings or support rails
- 60 Hz cooling machine on request
- Additional drawers on telescopic runners (57,4 x 40 x 5,6 cm): max. 12 pieces
- Aluminum trays or baskets with support rails
- LED light strip mounted on the side wall of the interior
- Meltwater tray for manual emptying
- Cooling machine with cold water connection
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
- GSM-Modul
- PC-KIT-NET (Network capable version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature probe PT 100 or PT 1000,
- 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Specifications
| Capacity | 500 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 250 Watts |
| Average consumption | 1.40 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 77 x 76 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 57 x 140 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 74 x 144 (w x d in cm) |
| Shelf dimensions | 59 x 45 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 40 kg |
| Weight | 125 kg / 148 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

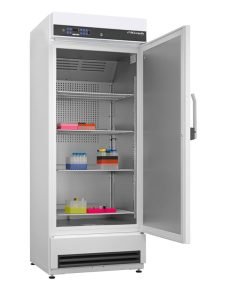

Laboratory Refrigerator LABO 468 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,0°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 4 shelves, height adjustable
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Castors
- Decorative frame for door
- 60 Hz cooling machine on request
- Additional wire shelf on rails or overlays
- Additional drawers on roller runners (57 x 43x 5.6 cm), Maximum number of drawers: 12 pcs. in total
- Additional length and cross dividers
- Aluminium trays or baskets with support rails
- LED light strip mounted on the side wall of the interior
- Meltwater tray for manual emptying
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 460 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 170 Watts |
| Average consumption | 1.00 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 74 x 77.5 x 189 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 128 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 74 x 142 (w x d in cm) |
| Shelf dimensions | 59 x 50 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 24 kg / 40 kg |
| Weight | 113 kg / 127 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

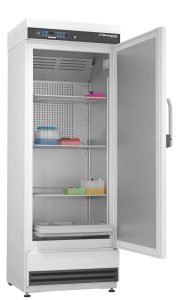

Laboratory Refrigerator LABO 340 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 0,5°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 1 drawer and 3 shelves, height adjustable
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Modification for operation in the clean room
- Glass door with lock
- Castors
- Decorative frame
- 60 Hz cooling machine on request
- Additional wire shelf on rails or overlays
- Additional drawers on roller runners, Maximum number of drawers: 12 pcs. in total
- Additional length and cross dividers
- LED light strip mounted on the side wall of the interior
- Meltwater tray for manual emptying
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 330 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 110 Watts |
| Average consumption | 0.65 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 67 x 66 x 189 (w x d x h in cm) |
| Interior dimensions | 53 x 45 x 128 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 67 x 124 (w x d in cm) |
| Drawer inner dimensions | 50.4 x 32 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 52.7 x 39 |
| Max. loading capacity per drawer/shelf | 16 kg / 40 kg |
| Weight | 90 kg / 104 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

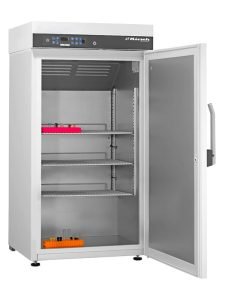

Laboratory Refrigerator LABO 288 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,01°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- Ergonomics door opener
- Flexible interior fittings
- 3 shelves, height adjustable
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Glass door with lock
- Castors
- Decorative frame
- 60 Hz cooling machine on request
- Additional wire shelf on rails or overlays
- Plastic-drawer on roller runners
- Aluminium-drawer on roller runners
- Stainless steel-drawer
- Additional length and cross dividers
- LED light strip mounted on the side wall of the interior
- Meltwater tray for manual emptying
- GSM module
- PC-KIT-NET (network-compatible version)
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Incorporated disc type pen-thermometer, 7-day recording time with recording discs (100 pack) and 5 felt tip pens
- Temperature sensor PT 100 or PT 1000 including built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 280 l |
| Temperature setting (approx.) | +0 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 88 Watts |
| Average consumption | 0.68 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 67 x 72 x 132 (w x d x h in cm) |
| Interior dimensions | 53 x 50 x 100 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 67 x 130 (w x d in cm) |
| Shelf dimensions | 52.7 x 39 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 40 kg |
| Weight | 71 kg / 83 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

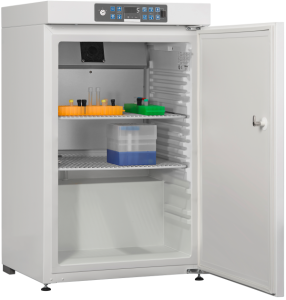

Laboratory Refrigerator LABO 126 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,5°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- Automatic defrosting & melt water evaporation
- 2 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers
- Can be installed into furniture
Safety and Digital Documentation
- Antifreeze
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Glass door (no longer DIN 13277 compliant)
- Decorative door frame for attaching on-site decorative panels
- Door coupling fitting
- Castors
- Additional wire shelf or drawer
- Additional length and cross dividers
- 60 Hz cooling machine on request
- Castor
- Meltwater tray for manual emptying
- Refrigerating machine fan, if static ventilation is not sufficient during installation or for operation at 60 Hz.
- GSM module
- PC-KIT-NET
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Temperature sensor PT 100 or PT 1000 including built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 120 l |
| Temperature setting (approx.) | +2 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 100 Watts |
| Average consumption | 0.61 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 54 x 53.5 x 88.8 (w x d x h in cm) |
| Interior dimensions | 44 x 42 x 67 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 54 x 106 (w x d in cm) |
| Shelf dimensions | 43 x 33 (w x d in cm) |
| Max. loading capacity per shelf | 25 kg |
| Weight | 49 kg / 58 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)

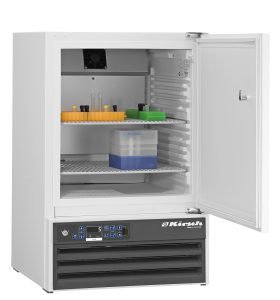

Laboratory Refrigerator LABO 100 PRO-ACTIVE
Description
Options
Specifications
Downloads
Description
Conformity
- DIN 13277
KIRSCH-Airflow-Concept
- The world’s smallest temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,76°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Quiet fan
Ergonomics-Concept
- High cooling performance when installed in furniture thanks to the actively ventilated cooling machine
- Automatic defrosting & melt water evaporation
- 2 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers
Safety and Digital Documentation
- Antifreeze
- Optical and acoustic alarm signal even in the event of a power failure
- Key switch against manipulation of the controller
- LED temperature display for easy readability
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via USB interface using a USB stick and KIRSCH-DATANET software
- Lockable door
Options
- Glass door with lock
- Adaptation for operation in clean room
- Tabletop
- Decorative door frame for attaching on-site decorative panels
- Door coupling fitting
- 60 Hz cooling machine on request
- Castor
- Wire shelf instead of drawer
- Meltwater tray for manual emptying
- GSM module
- PC-KIT-NET
- Pen-recording thermometer for placing loosely inside appliance with waxed paper strips
- Temperature sensor PT 100 or PT 1000 including built-in reference body (measurement bottle or refrigerating block)
Specifications
| Capacity | 95 l |
| Temperature setting (approx.) | +2 to +15 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 76 Watts |
| Average consumption | 0.64 KWh / 24 h |
| Overall dimensions (incl. distance from wall) | 54 x 54 x 82 (w x d x h in cm) |
| Interior dimensions | 44 x 43 x 47 (w x d x h in cm) |
| Overall dimensions with door opened at 90° | 54 x 106 (w x d in cm) |
| Drawer inner dimensions | 40.8 x 32 x 5.6 (w x d x h in cm) |
| Shelf dimensions | 43 x 33 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 13 kg / 25 kg |
| Weight | 44 kg / 53 kg (net / gross) |
Downloads
Product Information
Operating Instruction
Please note:
You will find the information about the refrigerant used in your unit on the type plate inside the unit (R134a or R600a)
