Blood Plasma Freezers Ultimate

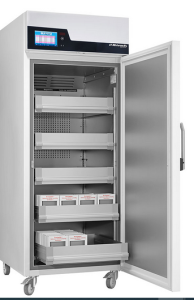

Blood Plasma Freezer FROSTER BL 730 ULTIMATE
Description
Options
Specifications
Downloads
Description
Conformity
- Medical Device Directive – DIN ISO 13485
- DIN 58375
ULTIMATE-Features
- Touch-Display (capacitive), elegant glass design
- Graphical display of the temperature curve and min/max temperature
- Access control with a log
KIRSCH-Airflow-Concept
- Minimum temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,68°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations (more information)
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Rapid freezing funtion
Ergonomics-Concept
- Rapid automatic defrosting & melt water evaporation
- Heated door frame
- Ergonomics door opener
- Flexible interior fittings
- 5 aluminium drawers on full extension runners, height adjustable
- Castors
Safety and Digital Documentation
- Electric door lock with alarm to prevent manipulation
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via network (PC-KIT-NET)and KIRSCH-DATANET software
Options
- Additional drawer made of aluminium with roller runners
- Adjustable feet to compensate for uneven floors
- Additional length and cross dividers
- Drawer made of stainless steel with cover plate instead of aluminum
- Drawer dividers for stainless steel drawer
- Wire shelf 59.7 x 65 cm with supports or rails
- Wire basket 60 x 65 x 10 cm with rails
- Aluminum sheet 60 x 65 x 2.5 cm with rails
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
Specifications
| Capacity | 700 l |
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 790 Watts |
| Average consumption | 11.1 KWh / 24 h |
| Overall dimensions incl. distance from wall | 77 x 97 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 77 x 140 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 77 x 166 (w x d in cm) |
| Drawer inner dimensions | 56 x 60.5 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 188 kg / 214 kg (net / gross) |
Downloads
Blood Plasma Freezer FROSTER BL 530 ULTIMATE
Description
Options
Specifications
Download
Description
Conformity
- Medical Device Directive – DIN ISO 13485
- DIN 58375
ULTIMATE-Features
- Touch-Display (capacitive), elegant glass design
- Graphical display of the temperature curve and min/max temperature
- Access control with a log
KIRSCH-Airflow-Concept
- Minimum temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,68°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations (more information)
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Rapid freezing funtion
Ergonomics-Concept
- Rapid automatic defrosting & melt water evaporation
- Heated door frame
- Ergonomics door opener
- Flexible interior fittings
- 5 aluminium drawers on full extension runners, height adjustable
- Castors
Safety and Digital Documentation
- Electric door lock with alarm to prevent manipulation
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via network (PC-KIT-NET)and KIRSCH-DATANET software
Options
- Additional drawer made of aluminum with roller runners
- Adjustable feet to compensate for uneven floors
- Additional length and cross dividers
- Drawer made of stainless steel with cover plate instead of aluminum
- Drawer dividers for stainless steel drawer
- Wire shelf 59.7 x 45 cm with supports or rails
- Wire basket 60 x 45 x 10 cm with rails
- Aluminum sheet 60 x 40 x 2.5 cm with rails
- Outer housing made of chrome-nickel steel 4301, longitudinally brushed
Specifications
| Capacity | 500 l |
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 740 Watts |
| Average consumption | 10.81 KWh / 24 h |
| Overall dimensions incl. distance from wall | 77 x 76 x 195.5 (w x d x h in cm) |
| Interior dimensions | 62 x 56 x 140 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 77 x 144 (w x d in cm) |
| Drawer inner dimensions | 56 x 39.5 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 168 kg / 191 kg (net / gross) |
Download
Blood Plasma Freezer FROSTER BL 330 ULTIMATE
Description
Options
Specifications
Download
Description
Conformity
- Medical Device Directive – DIN ISO 13485
- DIN 58375
ULTIMATE-Features
- Touch-Display (capacitive), elegant glass design
- Graphical display of the temperature curve and min/max temperature
- Access control with a log
KIRSCH-Airflow-Concept
- Minimum temperature deviations from the warmest to the coldest storage location thanks to PRO-ACTIVE control & KIRSCH-Airflow-Concept (ΔT= 1,47°C)
- PRO-ACTIVE control: permanent, proactive monitoring of performance data and alarms in the event of deviations (more information)
- Precise temperature control thanks to two PT-1000 temperature sensors
- Re-circulation air-cooling
- Rapid freezing funtion
Ergonomics-Concept
- Rapid automatic defrosting & melt water evaporation
- Heated door frame
- Ergonomics door opener
- Flexible interior fittings
- 4 aluminium drawers on full extension runners, height adjustable
- Castors
Safety and Digital Documentation
- Electric door lock with alarm to prevent manipulation
- Optical and acoustic alarm signal even in the event of a power failure
- Minimum / maximum temperature memory
- Potential-free contact for connection to remote warning systems
- Data documentation can be read out as standard via network (PC-KIT-NET) and KIRSCH-DATANET software
Options
- Additional drawer made of aluminum with roller runners
- Castors
- Additional length and cross dividers
- Drawer made of stainless steel with cover plate instead of aluminum
- Drawer dividers for stainless steel drawer
- Wire shelf 57 x 42 cm with supports or rails
- Wire basket 56.8 x 40 x 10 cm with rails
Specifications
| Capacity | 300 l |
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 550 Watts |
| Average consumption | 6.59 KWh / 24 h |
| Overall dimensions incl. distance from wall | 74 x 77 x 166 (w x d x h in cm) |
| Interior dimensions | 59 x 52 x 95 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 74 x 142 (w x d in cm) |
| Drawer inner dimensions | 54 x 37 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 120 kg / 135 kg (net / gross) |
