Electro Phoresis

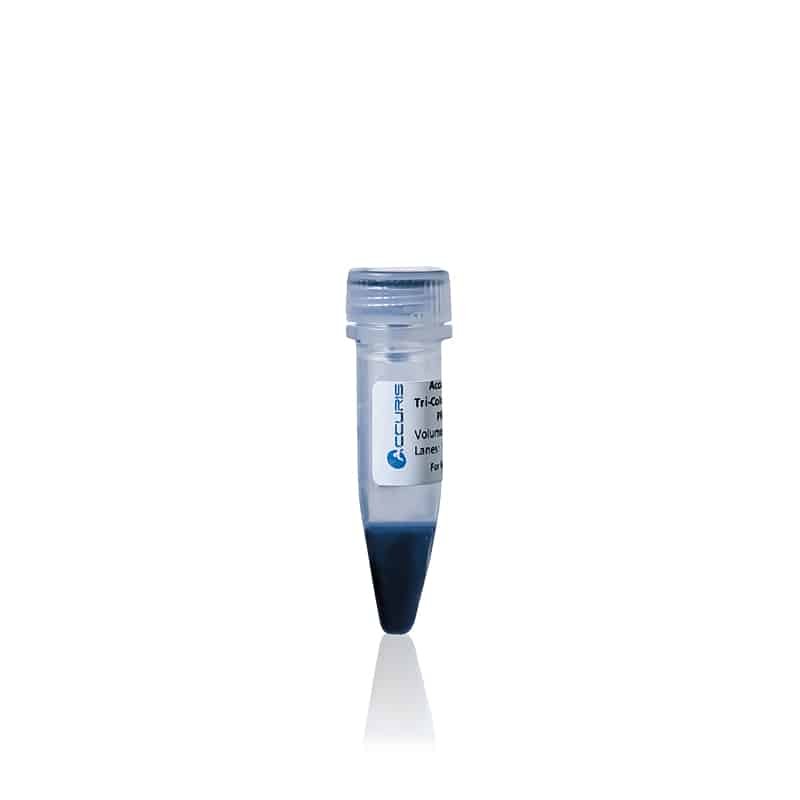

SmartCheck Protein Markers
Each package of SmartCheck™ markers includes 2 tubes of 250ul,
allowing less freeze-thaw cycles during product usage thereby
extending the shelf life.
The SmartCheck™ Tri-Color Regular Range Protein Markers are ready to
use standards with 13 pre-stained proteins covering a wide
range of molecular weights from 5 to 245 kDa.* Proteins are covalently
coupled with a blue chromophore with two alternate-colored reference
bands (one green and one red band at 25 kDa and 75 kDa respectively).
Tri-Color markers are ideal for western blotting applications, as the
enhanced green and red bands make it easy to identify the orientation
of the blot after transfer.
Hold your proteins to a higher standard with Accuris SmartCheck™ Protein Markers. Available in a Tri-Color format, these markers provide accurate reference points to determine protein size during electrophoresis. SmartCheck markers are compatible with Tris Glycine, Bis-Tris (MOPS) and Bis-Tris (MES) and can be used for western blotting with minimal washout.
Ready to use, just load and run
Covers a broad range from 5 – 245 kDa*
Enhanced bands provide quick reference points
500ul suitable for 100 lanes (5ul per lane)
| PR5013-TC | SmartCheck™ Tri-color Extended Range Plus Protein Marker, 13 bands 9-245 kDA, 2x250ul |

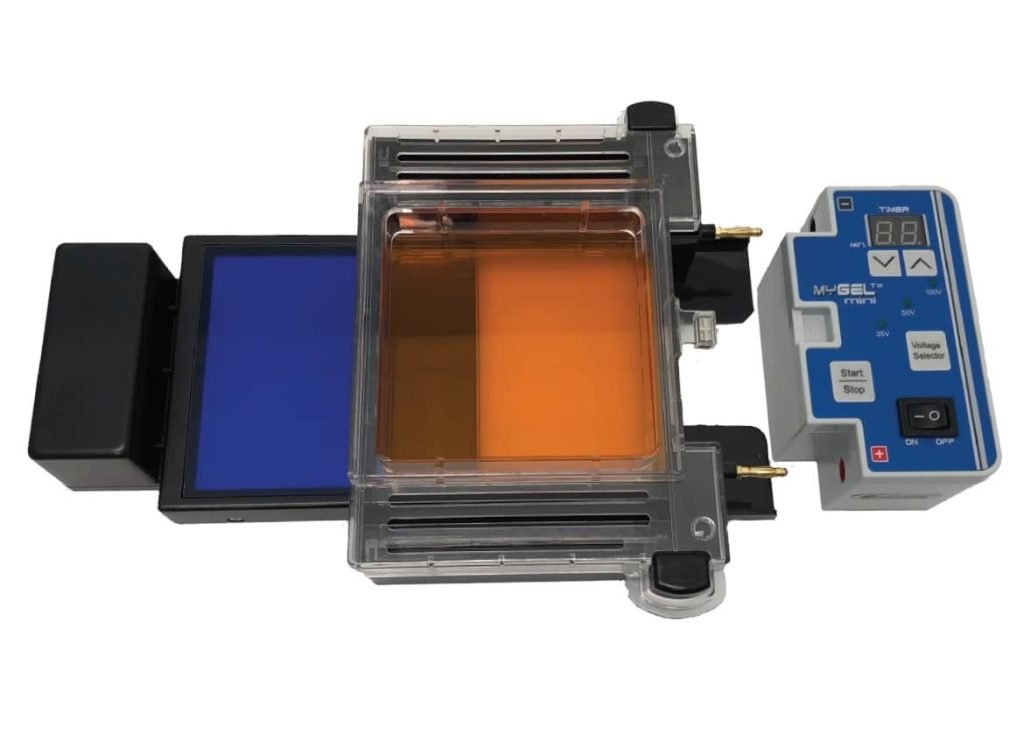

MyGel InstaView Systems
There are 2 myGel Instaview Systems Available:
E1201 InstaView Complete System with Power Supply
The myGel InstaView comes complete with everything needed to cast, run and view mini electrophoresis gels, including an integrated power supply. One large (10.5x10cm) or small (10.5x6cm) gel is accommodated by the gel tank. Gels are easily poured using the supplied trays, combs and leak-proof casting stand. The power supply connects directly into the gel tank – no more leads to contend with. The connection is guaranteed to be right, every time.
Output voltage can be adjusted to 35V, 50V or 100V and run time can be set for up to 99 minutes. A magnetic interlock between the gel tank and the lid prevents current from running through the system when the lid is not properly in place.
Once the myGel InstaView System is set up, simply slide the mini LED transilluminator into place under the tank and at any time turn it on to view the run in real time. An array of blue LEDs emits bright blue light at a wavelength of 465nm for optimal excitation of common green fluorescent stains such as SmartGlow™, SYBYR™ Green and Gel Green, without damaging DNA. An orange filter is incorporated into the lid for visualizing DNA bands without any additional equipment or special glasses. When it’s time to document results, place the included gel imaging enclosure over top of the myGel InstaView, and use the camera app on any smart phone to capture high resolution images without removing the gel from the tank.
Images are easily shared via email or text message or printed.
E1200 InstaView Gel Tank System – Connect your own power supply
For labs that prefer to use a separate power supply, the InstaView Gel Tank is the perfect choice for running, viewing and documenting electrophoretic separations. The InstaView Gel Tank accommodates one large (10.5x10cm) or one small (10.5x6cm) gel tray and is supplied with trays, combs and a leak-proof casting stand. The gel tank lid includes attached power leads which prevent the unit from operating without the lid properly in place. Any standard power supply can be connected, including the Accuris myVolt™ Mini and myVolt Touch. The InstaView Gel Tank is shaped to allow the mini LED transilluminator (included) to slide underneath. Blue light, at a wavelength of 465nm, provides excitation of common green fluorescent stains such as SmartGlow™, SYBR™ Green, and GelGreen. An orange filter is incorporated into the gel tank lid for visualizing the DNA in the gel box without any additional equipment or glasses. The transilluminator can be turned on at any time during a run to track progress, and automatically shuts off after 5 minutes.
After electrophoresis, simply place the included imaging enclosure over the InstaView Gel Tank to capture high resolution images with a smart phone. Images are easily printed or shared via email or text message.
Bundle Package: E1200-PSP
Our bundle package (order no. E1200-PSP) includes both the E1200 InstaView Tank System, and our popular E2301 MyVolt Touch Power Supply. This versatile power supply is ideal for basic DNA electrophoresis, and can also be used for PAGE protein separations.
Use the mini LED transilluminator as a stand alone instrument
An optional orange filter cover (cat # E1200-OC) is available to use with the mini transilluminator that comes with both E1201 and E1200 systems. This cover allows use of the small transilluminator separately from the gel tank, and can be positioned horizontally for general gel viewing or at an angle so DNA bands can be excised. We also offer orange filter glasses (cat # E4000-VG1) for convenient viewing of bands on the blue light transilluminator when the cover is not in place. These glasses block the strong blue light and also block 100% of harmful UV light.
| E1201 | myGel InstaView™ Complete Electrophoresis System with Blue LED Illuminator |
| E1201-E | myGel InstaView™ Complete Electrophoresis System with Blue LED Illuminator, 230V input |
| E1200 | myGel InstaView™ Gel Tank with Blue LED Illuminator |
| E1200-E | myGel InstaView™ Gel Tank with Blue LED Illuminator, 230V input |

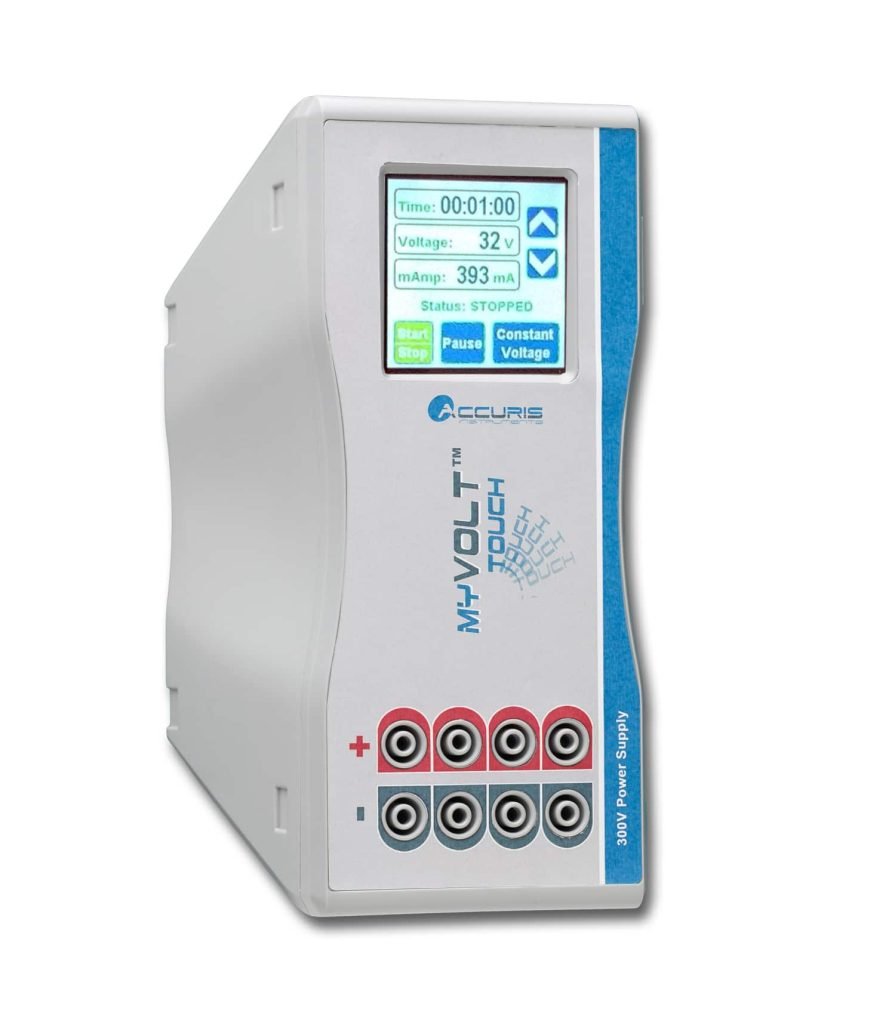

| E1200-PSP | myGel InstaView™ Package: E1200 and E2301 touch screen power supply |
| E1200-PSP-E | myGel InstaView™ Package: E1200 and E2301 touch screen power supply, 230V input |
| E1200-CS1 | Extra casting set for 10.5x10cm and 10.5x6cm gels. Includes stand, trays, E1101-COMB1 double-sided combs |
| E1101-COMB1 | Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set, pk of 2 |
| E1200-OC | Orange filter cover for mini LED transilluminator |
| E4000-VG1 | SmartView Viewing Glasses |

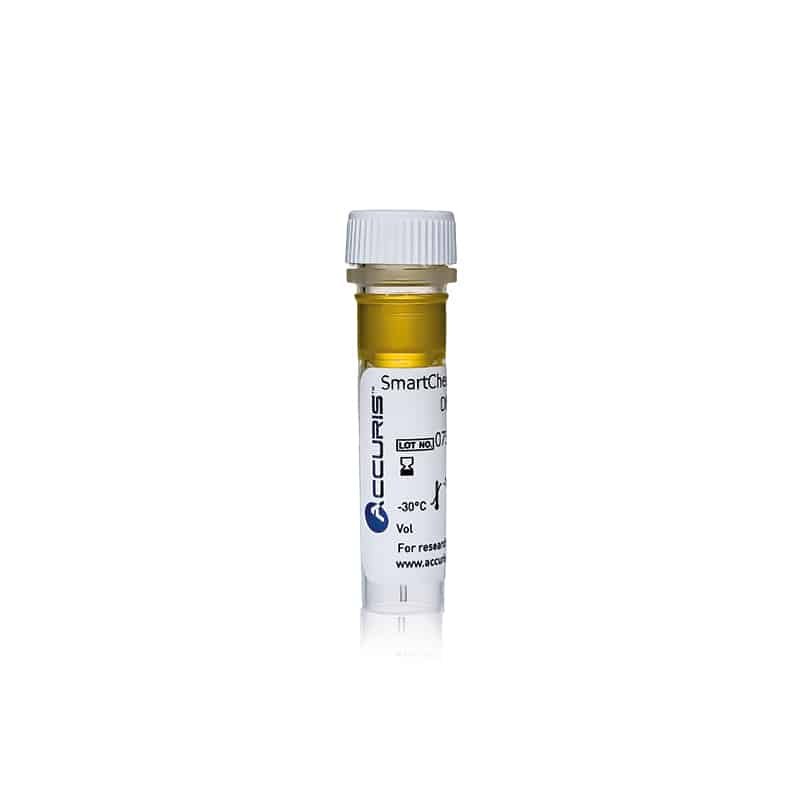

SmartCheck DNA Ladders
SmartCheck ladders are available in 3 size ranges – 50bp, 100bp and 1kb – to cover most common applications.
- Ready-to-use formulation includes loading buffer and tracking dye
- 500µl suitable for 100 lanes (5µl per lane)
- Higher intensity reference bands
- Ultra pure production allows economical ambient shipping
| Cat # | Description |
|---|---|
| PR4005-100 | Accuris SmartCheck™ 50bp DNA Ladder, 500µl / 100 lanes |
| PR4005-500 | Accuris SmartCheck™ 50bp DNA Ladder, 5 x 500µl / 500 lanes |
| PR4010-100 | Accuris SmartCheck™ 100bp DNA Ladder, 500µl / 100 lanes |
| PR4010-500 | Accuris SmartCheck™ 100bp DNA Ladder, 5 x 500µl / 500 lanes |
| PR4100-100 | Accuris SmartCheck™ 1kb DNA Ladder, 500µl / 100 lanes |
| PR4100-500 | Accuris SmartCheck™ 1kb DNA Ladder, 5 x 500µl / 500 lanes |
Technical Details
Protocol: Briefly vortex the tube and use 5µl per lane. Additional loading buffer is not required.
Concentration: 0.1 mg/ml
Tracking dye: bromophenol blue and xylene cyanol
Buffer formulation: 10mM Tris-HCl (pH 8.0), 5mM EDTA, 12.5% glycerol, 0.008% bromophenol blue, 0.008% xylene cyanol
Shipping and Storage: SmartCheck™ DNA Ladders are shipped at ambient temperature. On arrival, store at -20°C for optimum stability and long-term storage up to 15 months.
Production: SmartCheck™ ladders are produced from proprietary plasmids, digested to completion. A multistep chromatography method is used to ensure purity and DNA quality.
Quality Control: Each lot of SmartCheck™ DNA Ladders is tested with a spectrophotometer to confirm DNA concentration, as well as agarose electrophoresis to confirm band sharpness.

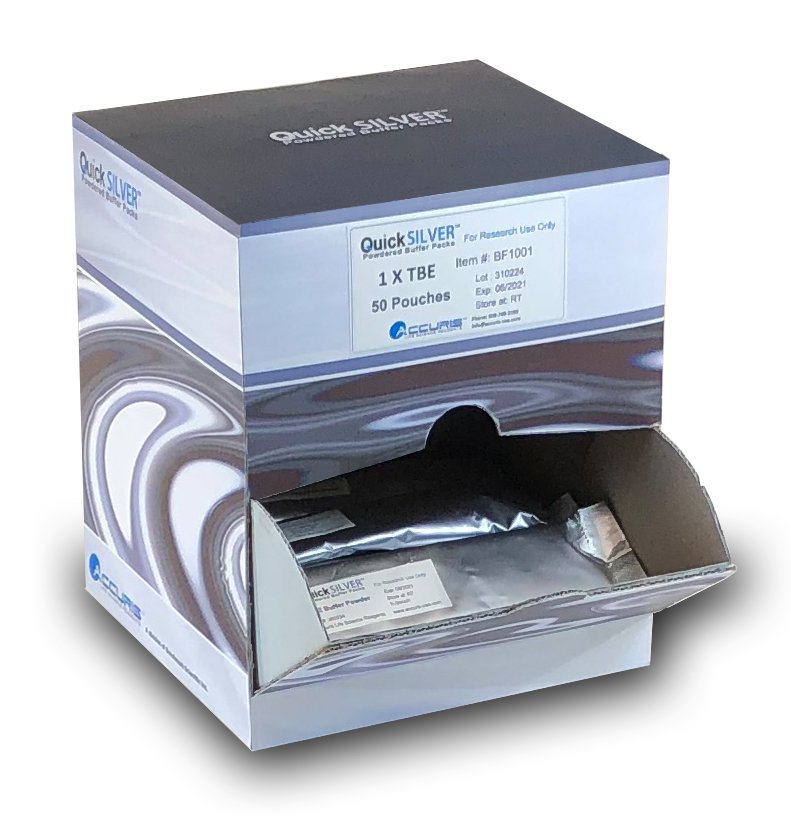

Quick Silver Powdered Buffer Packs
Nucleic Acid Electrophoresis Buffer
QuickSilver™ TAE (Tris-acetate-EDTA)
TAE is ideal for separation of large DNA fragments in agarose gels and is used as running buffer and in gel preparation.
TAE is the buffer of choice when recovering DNA from gels and when downstream processing involves enzymatic reactions. Final concentration of a 1X working solution is 40mM Tris, 20mM acetic acid, 1mM EDTA.
EB1000 QuickSilver TAE Buffer, 1X, 100 packs
Protein Electrophoresis Buffers
QuickSilver™ TGS (Tris-Glycine-SDS)
Tris-Glycine-SDS is one of the most common running buffers used for SDS-PAGE. A 1X solution contains 25mM Tris, 192mM Glycine and 0.1% SDS.
EB1100 QuickSilver Tris Glycine-SDS Buffer, 1X, 50 packs
Western Blotting, ELISA, Cell Culture, Chromatography
QuickSilver™ PBS and PBST
Because its osmolality and ion concentration closely mimic that of the human body, PBS is commonly used for cell culture applications, as well as HPLC and MS. PBST is a wash buffer and diluent for ELISA. The 1X PBS solution contains 137mN NaCl, 2.7mM KCl and 10mM phosphate. PBST is supplemented with 0.05% Tween-20.
EB1200 QuickSilver PBS Buffer, 1X, 100 packs
EB1201 QuickSilver PBST Buffer, 1X, 100 packs
QuickSilver™ TBS and TBST
TBS and TBST are used to maintain pH within a very narrow range for a variety of applications including western blotting and immunoassays. The final concentration of a 1X working solution is 137mM NaCl, 2.7mM KCl, 50mM Tris. In addition, 1X TBST contains 0.1% Tween-20.
EB1202 QuickSilver TBS buffer, 1X, 100 packs
EB1203 QuickSilver TBST buffer, 1X, 100 packs
Accuris QuickSilver™ Powdered Buffer Packs … Fresh buffer, when you need it.
- Premeasured pouches make 1 liter of 1X buffer solution
- Just empty pouch into water and stir – no diluting of stock solutions
- No pH adjustment necessary
- Quality and consistency guaranteed
- Nuclease and protease free
- Long shelf life
| Item No. | Description |
|---|---|
| EB1000 | QuickSilver TAE Buffer Powder, 100 pouches |
| EB1100 | QuickSilver Tris-Glycine-SDS Buffer Powder, 50 pouches |
| EB1200 | QuickSilver PBS Buffer Powder, 100 pouches |
| EB1201 | QuickSilver PBS-T Buffer Powder, 100 pouches |
| EB1202 | QuickSilver TBS Buffer Powder, 100 pouches |
| EB1203 | QuickSilver TBS-T Buffer Powder, 100 pouches |

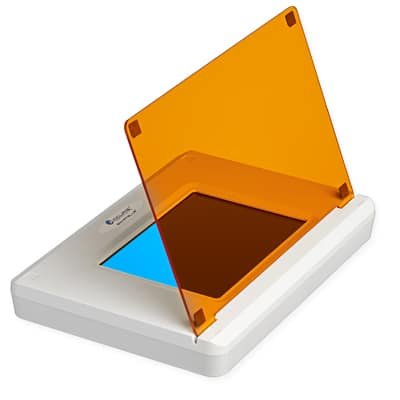

SmartBlue™ Blue Light Transilluminators
Accuris SmartBlue Transilluminators have been developed for viewing DNA gels stained with new, safe fluorescent dyes. These new dyes, such as SmartGlow, SYBR Green, Gel Green, have an excitation wavelength of 465-470nm (visible blue light), and are safer to use than Ethidium Bromide.
- Blue light, safe for nucleic acids
- Uniform illumination (UI Technology)
- Optimal wavelength (465nm) for common safe stains
- Adjustable position, amber filter covers
- Optional amber viewing glasses: E4000-VG1
Safer for samples, safer for you: Accuris SmartBlue Transilluminators are the perfect partner for the most common safe DNA stains. These instruments emit blue light at a wavelength of 465nm, perfect for excitation of most green fluorophors, including our Accuris’ SmartGlow™, SYBR Green, SYBR Safe, SYBR Gold, GelStar, GelGreen, to name a few. SmartBlue transilluminators can also works for excitation of EtBr (though fluorescence is not as bright as with UV), see our Technical Bulletin with sample images. Exposing DNA to blue wavelength does not cause molecular damage, and results in a much higher downstream cloning efficiency as compared to even short UV light exposures. In addition, the visible blue light is not damaging to the user’s skin and is less harmful to the eyes.*
Adjustable filter cover: Both the E4101 and E4000 transilluminators come with emission filter covers. These amber covers, which rest above the viewing surface and gel, filter out the blue light, allowing the fluorescing DNA bands to be seen clearly. The covers can be set to a flat position for general gel viewing or can be set at an angle to provide easy access to the gel for band excision. The E4000 has a two-position filter cover, and the E4101 features a hinged filter cover.
Optional amber viewing glasses: Our E4000-VG1 SmartBlue Plus Viewing Glasses offer efficient blocking of the blue light wavelength from the transilluminators, allowing clear visualization of the fluorescing DNA bands without the filter cover in place. These convenient glasses are recommended for users that are frequently excising DNA bands from gels. SmartBlue Plus glasses also block 100% of UV wavelength so they can also be used for viewing gels on a UV transilluminator.
UI technology, bright and clear images: The bright LED light plates and filter layer provides an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in stained gels. Images obtained using the SmartBlue Transilluminator are brighter and more balanced than those obtained using epi-illuminators which light from the sides.
Reliable, durable and long lasting: An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue Transilluminators. Unlike those in a UV transilluminator, the filters in the SmartBlue systems will not solarize and degrade in performance over time. Gel bands can be excised directly on the scratch resistant, glass viewing surfaces. To save energy, the power switch includes an automatic 5 minute shutoff. SmartBlue Transilluminators are covered by a 2 year warranty.
* The SmartBlue products use high intensity LED lights. Although the visible blue wavelength is significantly safer than UV light, it is recommended to not stare directly at the viewing surface without the amber cover in place.
Safer for samples, safer for you: Accuris SmartBlue Transilluminators are the perfect partner for the most common safe DNA stains. These instruments emit blue light at a wavelength of 465nm, perfect for excitation of most green fluorophors, including our Accuris’ SmartGlow™, SYBR Green, SYBR Safe, SYBR Gold, GelStar, GelGreen, to name a few. SmartBlue transilluminators can also works for excitation of EtBr (though fluorescence is not as bright as with UV), see our Technical Bulletin with sample images. Exposing DNA to blue wavelength does not cause molecular damage, and results in a much higher downstream cloning efficiency as compared to even short UV light exposures. In addition, the visible blue light is not damaging to the user’s skin and is less harmful to the eyes.*
Adjustable filter cover: Both the E4101 and E4000 transilluminators come with emission filter covers. These amber covers, which rest above the viewing surface and gel, filter out the blue light, allowing the fluorescing DNA bands to be seen clearly. The covers can be set to a flat position for general gel viewing or can be set at an angle to provide easy access to the gel for band excision. The E4000 has a two-position filter cover, and the E4101 features a hinged filter cover.
Optional amber viewing glasses: Our E4000-VG1 SmartBlue Plus Viewing Glasses offer efficient blocking of the blue light wavelength from the transilluminators, allowing clear visualization of the fluorescing DNA bands without the filter cover in place. These convenient glasses are recommended for users that are frequently excising DNA bands from gels. SmartBlue Plus glasses also block 100% of UV wavelength so they can also be used for viewing gels on a UV transilluminator.
UI technology, bright and clear images: The bright LED light plates and filter layer provides an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in stained gels. Images obtained using the SmartBlue Transilluminator are brighter and more balanced than those obtained using epi-illuminators which light from the sides.
Reliable, durable and long lasting: An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue Transilluminators. Unlike those in a UV transilluminator, the filters in the SmartBlue systems will not solarize and degrade in performance over time. Gel bands can be excised directly on the scratch resistant, glass viewing surfaces. To save energy, the power switch includes an automatic 5 minute shutoff. SmartBlue Transilluminators are covered by a 2 year warranty.
* The SmartBlue products use high intensity LED lights. Although the visible blue wavelength is significantly safer than UV light, it is recommended to not stare directly at the viewing surface without the amber cover in place.
| Item No. | Description |
|---|---|
| E4000 | SmartBlue Blue Light Transilluminator, includes amber cover 115V |
| E4000-E | SmartBlue Blue Light Transilluminator, includes amber cover 230V* |
| E4101 | SmartBlue Mini Blue Light Transilluminator, includes amber cover 115V |
| E4101-E | SmartBlue Mini Blue Light Transilluminator, includes amber cover, 230V* |
| E4000-VG1 | SmartBlue Plus Viewing Glasses |
| * When ordering 230V model, please specify EU, UK, or AU plug type |
Specifications
| Light Source: | High Intensity Blue LEDs |
| Emission Filter Cover: | Amber |
| Wavelength: | Peak at 465 nm |
| E4000 Viewing Surface: | 17 x 12 cm |
| E4000 Ext. Dimensions | 30.5 x 21.5 x 5 cm |
| E4101 Viewing Surface | 10.5 x 10.5 cm |
| E4101 Ext. Dimensions | 17 x 12 x 5 cm |
| Electrical: | 100 to 240V, 50-60Hz |
| E4000 Weight: | 1.2kg / 2.6lbs |
| E4101 Weight: | 0.34kg / 0.75lbs |
| Warranty: | 2 years |

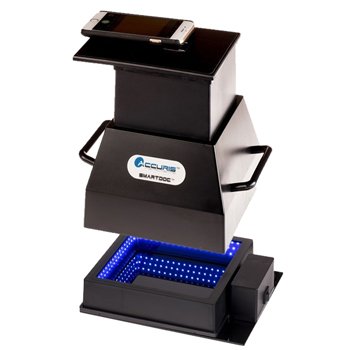

SmartDoc Imaging System
Introducing the SmartDoc 2.0 (Item no. E5001-SDB). This complete system has been developed for safely viewing nucleic acids in agarose gels and also for capturing quality digital images with a smart phone camera. Blue light is used instead of UV, which is safer for lab personnel and will not damage DNA samples.
The illumination base emits an intense blue light with a peak output of 460nm for optimum excitation of nucleic acids stained with green fluorescent dyes (SYBR® Green, SmartGlow™, GelStar™, GelGreen™, etc). The orange cover fits on top of the illumination base and acts as a filter to absorb blue light, allowing visualization of the fluorescing samples. The cover can also be set at an angle for gel access and cutting out DNA bands for further study.
Optional amber glasses are available (E4000-VG1 SmartBlue Viewing Glasses). These are ideal for users that are doing a lot of band excision work, as they eliminate the need for the orange cover allowing full access to the gels.
The SmartDoc™ imaging enclosure includes an orange photo filter for photography of the gels with a smart phone. An extending adapter can be inserted for full dimension imaging of gels up to 15 x 15 cm or removed for close up pictures. The enclosure can also be used directly on any other existing UV or blue light transilluminator. Additional filters are available for imaging gels on a UV transilluminator. Please see our “Filter and User Guide” to show which filter is best for different imaging applications.
Please see our Technical Bulletin showing sample gel images captured with an iPhone using the SmartDoc System.
The SmartDoc Imaging Enclosure can also be purchased separately (item no. E5000-SD) without the blue light illumination base. The enclosure by itself can be used on most existing UV transilluminators or blue light transilluminators for smart phone imaging.
- Imaging enclosure works with all common smart phones
- System includes blue light illumination base, orange viewing cover, and orange photo filter
- Ideal for common safe stains (SmartGlow™, SYBR Green, GelGreen™, etc.)
- Visible blue light will not damage DNA
- Gel viewing and gel access for DNA band cutting
- Optional amber viewing glasses, for band excising
- Imaging enclosure can also be used on existing transilluminators
| Item No. | |
|---|---|
| E5001-SDB* | SmartDoc Gel Imaging System with blue light illumination, 100-240V input |
| E5001-ORANGE | Orange photo filter (included with E5001-SDB) |
| E5001-590 | SmartDoc Photo Filter, 590nm for imaging EtBR on UV transilluminator |
| E5001-535 | SmartDoc Photo Filter, 535nm for imaging green stains on UV transilluminator |
| E4000-VG1 | SmartBlue Viewing Glasses |
| * includes US plug. For EU plug, please add “-E” to item no. |
| Maximum Gel Size: | 15 x 15cm |
| Excitation Source: | High Intensity Blue LED |
| Photo Filter: | Orange PMMA, 12mm Aperture |
| Viewing Cover: | Orange PMMA, 18 x 18 cm |
| Phone Compatibility: | iPhone™, Android™, etc. (Smart phones and tablets with a camera) |
| Dimensions (W x D x H): | 9 x 7.5 x 8.6 in / 23 x 19 x 22 cm |
| Weight: | 2.6 Lbs (1.2 kg) |
| Electrical: | 100V to 230V, 50Hz to 60Hz |
| Warranty: | 2 years |
| Weight | 11 Lbs |

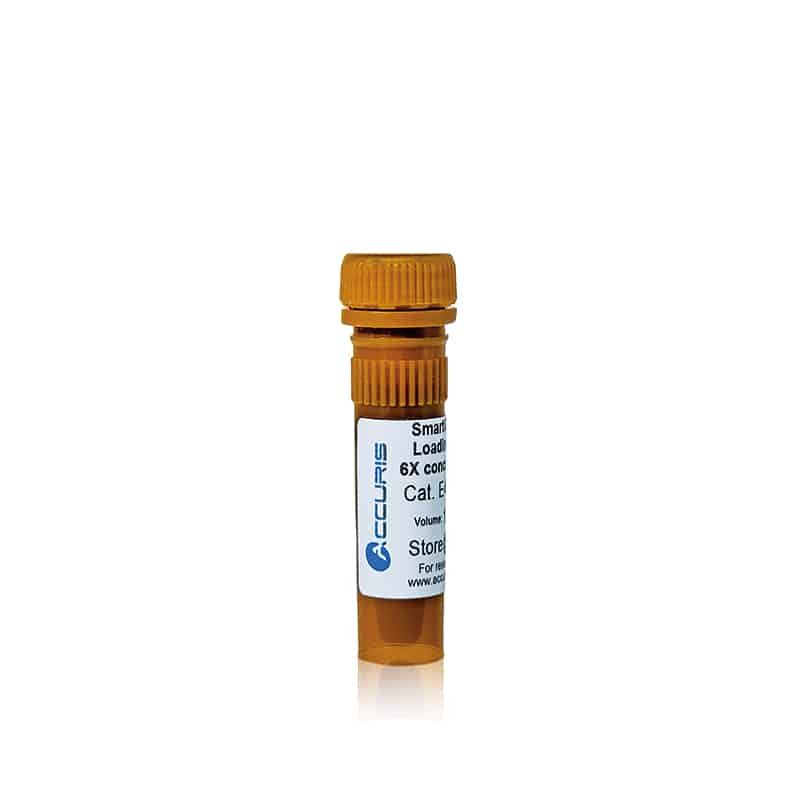

SmartGlow DNA Stains
SmartGlow PS (Pre Stain) can be used as a direct replacement for Ethidium Bromide in agarose and polyacrylamide gel electrophoresis. The stain emits green fluorescence when bound to dsDNA, ssDNA and RNA. SmartGlow PS exhibits excitation peaks at 290nm and 490nm, allowing it to be used with UV and blue light.
SmartGlow™ LD (Loading Dye) is supplied at 6X concentration and is added directly to the samples. No dye needs to be added to the gel or running buffer. After electrophoretic separation, view and document your results using a UV or blue light illuminator. SmartGlow™ LD emits green fluorescence when bound to dsDNA, ssDNA and RNA.
Ideal for excitation of nucleic acids with UV or visible blue light transilluminators. Unlike EtBR, SmartGlow is non mutagenic and does not require special methods of disposal
- Replaces hazardous EtBr
- Excitation by UV or blue light
- Non-mutagenic, environmentally safe
- Two types: PS (Pre-Stain) LD (Loading Dye)
Protocol for SmartGlow PS
- Prepare 100ml of agarose or polyacrylamide solution.
- Add 5ul of SmartGlow PS stain to the gel solution before pouring gels.
- For enhanced results, add SmartGlow PS to the running buffer at a ratio of 2.5ul to 5ul per 100ml. Adding SmartGlow PS to the running buffer will result in increased sensitivity and better detection of small quantities of nucleic acid.
- After electrophoresis is complete, view the gel using a UV or blue light illuminator
Protocol for SmartGlow LD
- Prepare agarose for polyacrylamide solution.
- Pour gels.
- Mix SmartGlow LD with samples and DNA markers at a 1:5 (dye to sample) dilution.
- After electrophoresis is complete, view the gel using a UV or blue light illuminator
| Item No. | Description: |
|---|---|
| E4500-PS | SmartGlow Pre-stain for nucleic acid gels, 1ml (20,000x) |
| E4500-LD | SmartGlow Loading dye with stain for nucleic acid gels, 1ml (6x) |
| E4000* | SmartBlue Transilluminator, includes amber filter cover,120V |
| For 230V with EU plug, please add (-E) to item no. |

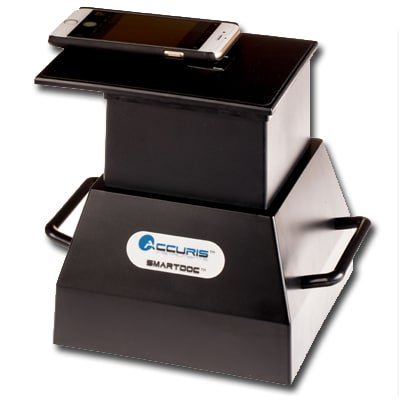

SmartDoc Imaging Enclosure
The SmartDoc Imaging Enclosure can be used on most existing UV or visible blue light transilluminators.
- Imaging enclosure works with all common smart phones
- 19 x 19cm base fits on most existing UV or blue transilluminators
- Includes orange photo filter for use with blue light
- Optional 535nm, 590nm, and UV blocking photo filters for use with UV transilluminators
| Item No. | Description: |
|---|---|
| E5001-SD | Accuris SmartDoc 2.0 Imaging Enclosure |
| E5001-SDB* | Accuris SmartDoc 2.0 System with Blue Light Illumination Base, 115V |
| E5000-MAT | SmartDoc UV Blocking Mat |
| E5001-535 | SmartDoc band pass filter, 535nm, for imaging green stains on UV transilluminator |
| E5001-590 | SmartDoc band pass filter, 590nm, for imaging EtBR on UV transilluminator |
| E5001-UVBLOCK | SmartDoc filter for blocking UV wavelength, optimized for E3100 transilluminator |
| E5001-ORANGE | SmartDoc Orange Photo filter, imaging Green Stains on Blue Light Illuminators |
| E5001-OC | Orange viewing Cover |
| Description: | |
| E4500-LD | SmartGlow Loading Dye with safe green stain, 1.0ml |
| E4500-PS | SmartGlow safe green pre stain, 1.0ml |
| 115V withs US plug For 230V with EU plug, please add (-E) |
MyVolt Touch Power Supply
The Accuris myVolt™Touch is a work horse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.
Touch Screen Control Panel
The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage or Amperage. In addition the run status is always displayed.
Bundle Package Available with InstaView Gel Tank System
The InstaView Gel Tank System is a perfect compliment to the myVolt Touch Power Supply, allowing real time visualization of nucleic acid separation and also smart phone imaging of results. The InstaView includes a blue LED transilluminator, amber filter cover, and smartphone imaging enclosure. See details at our InstaView web page.
| Item No. | Description: |
|---|---|
| E2301* | MyVolt Touch power supply, 300V, 400mA. Input: 100-240V, 50/60Hz, US plug* |
| * Add “-E” to part number to specify European type plug. | |
| E1200-PSP | Bundle Package: myVolt Touch + myGel InstaView™ Gel Tank with Blue LED Illuminator |
Touch screen control
Bright color display
Dual orientation, auto rotating display
High performance specifications
- Max Voltage 300V
- Max Amperage 400mA
- Max Wattage: 100W
| Output Setting: | Constant Voltage or Constant Current |
| Voltage Output: | 10-300V (1V increments) |
| Current Output: | 4 – 400mA (1 mA increments) |
| Max Wattage: | 100W |
| Output Terminals: | 4 pairs |
| Timer: | 1 min. – 20hrs |
| Safety: | No load, load change, overload detection |
| Display: | 2 x 2 in. color touchscreen |
| Weight: | 2.0 lbs / 0.9 kg |
| Dimensions: | 8.5 x 6.3 x 4.0 in 21.5x 15.5 x 9.75 cm |
| Electrical: | 100V to 230V, 50/60Hz |
MyGel Mini Electrophoresis System
| Item No. | Description: |
|---|---|
| E1101* | myGel Mini electrophoresis system, complete with E1101-CS1 and E1101-CS2, 115V |
| E1101-SK* | myGel Mini Starter Kit, 115V. Includes E1101, mini digital balance and 100g of LE agarose |
| *115V with US plug. For 230V with EU plug and transformer, please add (-E). MyGel Mini includes the below casting sets E1101-CS1 and E1102-CS2 | |
| E1101-CS1 | Casting set, for 10.5 x 6cm gels, includes two trays and two combs (22*/12 teeth) |
| E1101-COMB1 | Reversible combs, 22*/12 teeth, for E1101-CS1 casting set, pk 2 (multi-channel compatible) |
| E1101-CS2 | Casting set, for 5 x 6cm gels, includes four trays and two combs (18*/10 teeth) |
| E1101-COMB2 | Reversible combs, 18*/10 teeth, for E1101-CS2 casting set, pk 2 (multi-channel compatible) |
| *multichannel compatible |

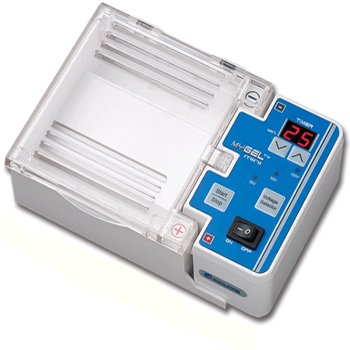

The Accuris myGel Mini electrophoresis system includes all of the equipment that you need to get up and running: gel tank, power supply and two casting sets. Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use.
- Complete system, includes gel box, power supply and casting sets
- Quick and easy gel casting, no tape, clamps or spacers required
- Compact design, footprint: 7 x 5.1 in.
| Output Voltage: | 35V, 50V or 100V |
| Timer: | 0-99 min. or Cont. |
| Safety: | Lid interlock |
| Max. Buffer (ml): | 230 |
| Gel Capacity: | One: 10.5 x 6cm Two: 5 x 6cm |
| Weight: | 1 lbs / 0.45 kg |
| Dimensions: | 7.5 x 5.1 x 2.1 in |
| Electrical: | 115V or 230V, 50-60Hz |

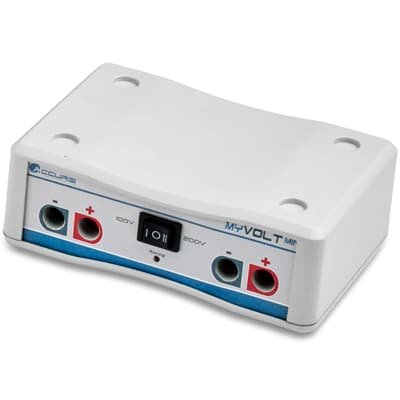

MyVolt Mini Power Supply
The Accuris myVolt Mini is a compact electrophoresis power supply ideal for basic, constant voltage applications. Users can select constant 100V or 200V output, and the current can reach a maximum of 200mA.
Two sets of output jacks are available to connect up to 2 gel rigs and these small power supplies can securely be stacked for use with additional gel rigs.
- Compact and simple
- Choose constant 100V or 200V output
- Two pairs of output terminals
| Item No. | Description: |
|---|---|
| E2100* | MyVolt Mini power supply, 110V / 200V output. Includes US plug. For EU plug, please add (-E) |
| * universal input voltage 100V to 240V AC. |
| Output Voltage: | 100V/200V constant |
| Current Output: | Max. 200mA |
| Max Wattage: | 40W |
| Output Terminals: | 2 pairs |
| Weight: | 0.9 lbs / 0.4 kg |
| Dimensions: | 6.25×4.5×2.3in 16×11.5×5.7cm |
| Electrical: | 100 – 240V, 50-60Hz |
UV Transilluminators
E3000 UV Transilluminator
The E3000 features a space-saving design, with a width of only 10.5 inches, to fit perfectly in any busy laboratory. However, the 16 x 19 cm UV viewing surface is sized to accommodate large gels or multiple smaller gels. The illuminated surface is comprised of a special black glass which is easy to clean, durable and scratch resistant.
An array of 4 high intensity UV bulbs coupled with an optimized filter provides even illumination across the viewing surface and allows detection of small sample quantities. The dual intensity switch can be used to lower the UV intensity to 50% to reduce DNA damage during long exposure times, or switch to high intensity (100%) for viewing weak fluorescent signals or for photo documentation.
E3100 UV Transilluminator
The E3100 has a surprisingly small footprint (smaller than a standard piece of paper), and modern design. The viewing surface – 16.5 x 13.5 cm filter glass – is large enough to accommodate a mid-sized gel or multiple smaller gels. The E3100 is perfectly suited for use with our SmartDoc ™ Imaging Enclosure and filters (sold separately) for gel imaging with a smartphone. Use filter E5001-UVBLOCK for best results when imaging SmartGlow, SYBR or ETBR stained gels.

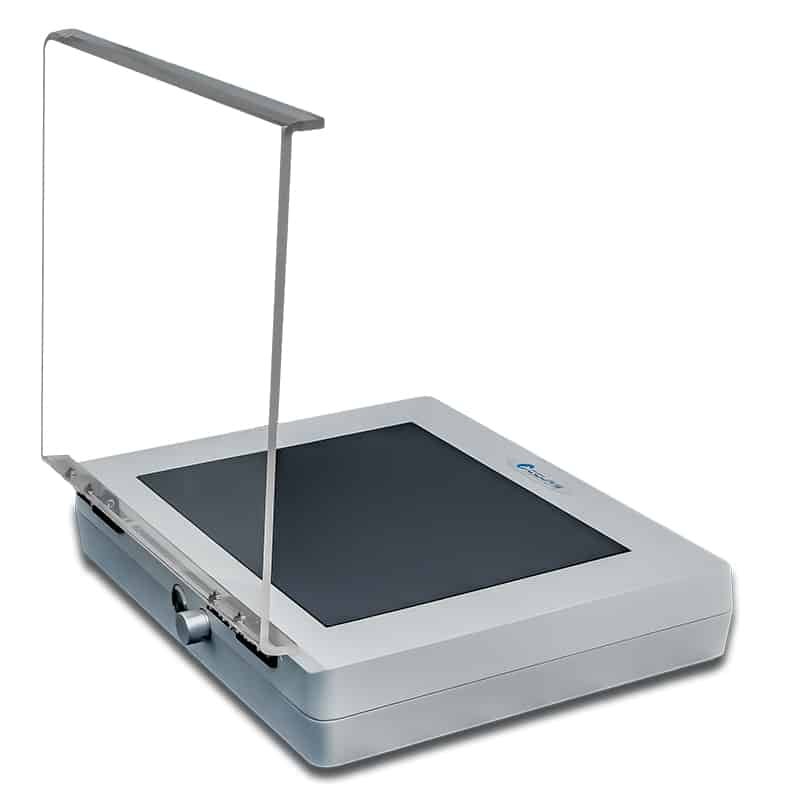

E3200 UV Transilluminator
The E3200 offers a large viewing surface of 21 x 26 cm to accommodate larger gels or multiple small gels. High powered, 14-Watt UV bulbs provide higher sensitivity, so the smallest bands of stained nucleic acids can be visualized. The E3200 also features a control knob for continuous adjustment of the UV intensity.
All Accuris UV Transilluminators incorporate scratch-resistant, UV filter glass. Peak output emission of 302nm is ideal for excitation of gels stained with Ethidium Bromide, SmartGlow™, SYBR® Green and other common gel stains.
Acrylic UV blocking covers allow safe viewing of samples, and friction hinges on the front edge allow positioning of the cover at an angle for gel access.
| Item No. | Description: |
|---|---|
| E3000* | Accuris™ UV Transilluminator, 16x19cm, Low/High Intensity, 115V |
| E3100* | Accuris™ Compact UV Transilluminator, 16.5×13.5cm, 115V |
| E3200* | Accuris™ UV Transilluminator, 21x26cm, Variable Intensity, 115V |
| E5001-SD | Accuris SmartDoc 2.0 Imaging Enclosure (fits E3000 and E3100) |
| E5001-535 | SmartDoc band pass filter, 535nm, for imaging green stains on UV transilluminator |
| E5001-590 | SmartDoc band pass filter, 590nm, for imaging EtBR on UV transilluminator |
| E5001-UVBLOCK | SmartDoc filter, blocks UV wavelength, optimized for use on E3100 transilluminator |
| E4000-VG1 | SmartBlue Plus Viewing Glasses |
| *115V units include a US plug. For 230V add “-E” to part number and specify plug type |
Accuris™ UV Transilluminators feature space-saving designs, to fit perfectly in any busy laboratory. Three models are available, with a range of intensity settings and viewing surface sizes. Choose your model depending on your application and the size or number of gels to analyze.
- 302nm midrange UV wavelength
- Scratch-resistant, UV filter glass
- Optimal for EtBr, SmartGlow™, and SYBR® Stain
- Hinged, UV-blocking safety cover
