AirSTAR CPPP Analyzer

AirSTAR CPPP Analyzer

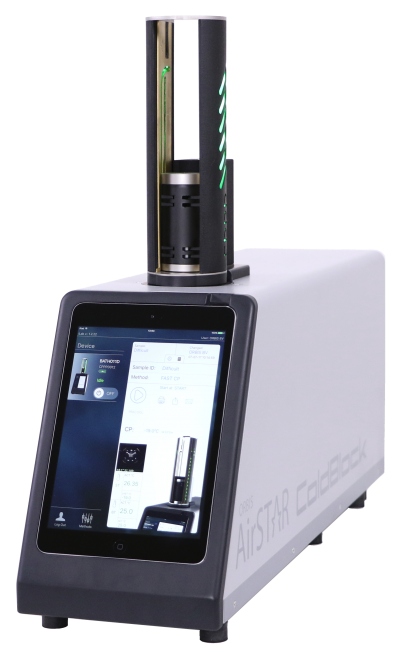

This fully automatic instrument for Cloud & Pour Point testing is based on ColdBlock, the exact same cooling unit that is also part of the AirSTAR CFPP Analyzer.

AirSTAR CPPP Analyzer



What is CPPP? Cloud Point is the temperature at which a cooled sample first shows a cloudy appearance because of wax forming, measured under conditions described in the methods ASTM D2500 and related methods.
Pour Point is the temperature at which a cooled sample first becomes semi solid and loses its flow characteristics, measured under conditions described in the ASTM D97, D6892 and related methods.



This fully automatic instrument for Cloud & Pour Point testing is based on ColdBlock, the exact same cooling unit that is also part of the AirSTAR CFPP Analyzer.
The CP/PP Head is a “2-in-1” tester for both Cloud Point and Pour Point testing. It is equipped with a smart HD camera to interpret sample behaviour and determine the test result. Pour point testing is based on the “tilting methods” ASTM D97, D5853 and D6892.



Cooling: The ColdBlock integrated cooling unit is friendly to environment, people and maintenance department. With the capacity to cool down to -105ºC, no external chillers are required. ColdBlock is completely liquid-free

Concept: AirSTAR CPPP is modular: ColdBlock and CPPP Head are modules that can be combined and used independently from one another. Imagine for instance two ColdBlocks and three CPPP Heads, where one Head is always clean and ready for start on either one of the two ColdBlocks.

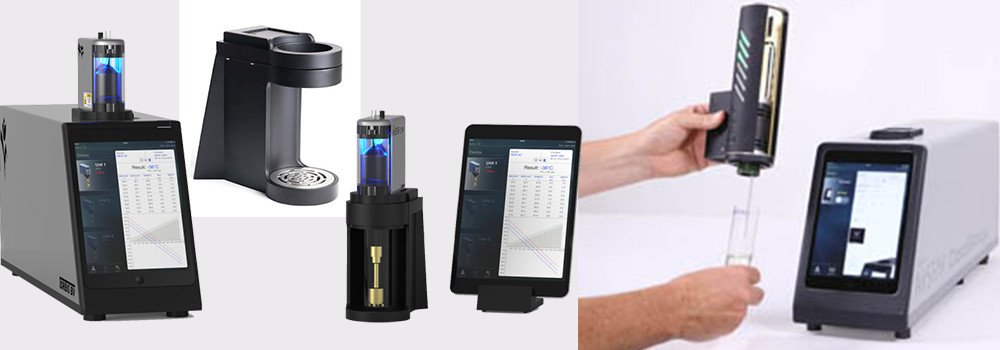

Innovation: AirSTAR CPPP is full of innovative technology that makes CPPP testing easier, faster, and more reliable. One example is the cable-free design. Users simply take out the CPPP Head from the ColdBlock and put it in the optional Docking station, and vice versa. All without having to (dis) connect any cables or hoses.

Results: AirSTAR CPPP strictly conforms to applicable ASTM, EN, IP and JIS methods, and results are reliable and precise. Results are stored on the iPad and printed on almost any printer. Other options: connect to Windows PC, send to LIMS and/or email results directly from the iPad.

CPPP Head features:

• One Head for both cloud point and pour point testing
• High resolution camera for accurate detection of cloud point and pour point
• Integrated microprocessor-controlled mechanism for lifting and tilting the jar
• Powercast® technology for wireless power to CPPP Head
• PT-100 with easy click-connection, built-in storage for calibration data & unique ID
• Easy assembling

The AirSTAR CPPP software application is designed for easy & flexible control. It offers extensive options for data recording and display, and many options to customize programs. Test results and progress animation are displayed real-time.


Features:

• Create linear and stepped cooling profiles
• Programmable warm-up of cooling bath before and after test
• Specify end-test conditions in program
• Monitor and record sample cooling rate data
• Define “Start at” temperature for each test
• Multiple users with variable access rights can be created by the administrator
• Connect multiple CPPP Heads to one ColdBlock
• Storage of images from each test interval
• Extensive storage capacity for results, programs, settings, user information and more (16Gb iPad)
• Connect with PC (Windows operated systems) for exchanging results and settings via FTP
• Data handling options such as: send results in XML to LIMS, make and email PDF
• Printing options such as: print PDF via AirPrint and Direct Printing on connected Kiosk printer
• Extensive options to calibrate bath jacket, PT-100 probe and electronics
