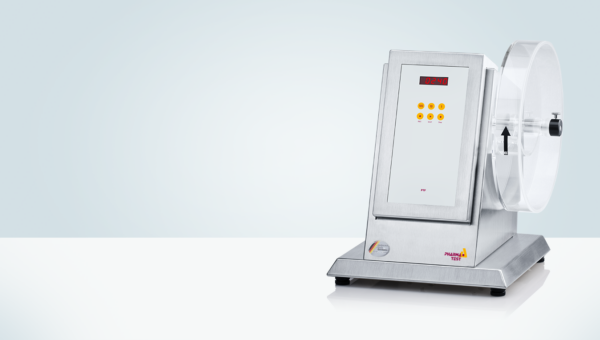

Single Drum Tablet Friability Testing Instruments
PTF 100 is a single drum tablet friability and abrasion test instrument. It is manufactured in compliance to the USP <1216>, EP <2.9.7> and JP <14> Pharmacopoeias. The instrument features an automated sample discharge at the end of a test and the possibility to connect an analytical balance.
>Fully USP <1216>, EP <2.9.7> and JP <14> compliant
>Determine friability and abrasion (optional) of uncoated tablets
>Programmable for number of drum revolutions or rotating time
>Connect a balance to determine the sample weight (optional, weight can be entered manually)
>Connect USB flash drive to copy methods and store test reports
>Integrated protocol printer (optional)
>User and method management system
>Drum is easy to open for loading and cleaning, alternatively use discharge opening for loading
>Graphical LCD screen showing actual and target settings
>Integrated protocol printer reduces bench space requirements
>Detailed result report including weight loss calculation and evaluation of the results
>Automated sample discharge at the end of a test run
>Dual operation mode: number of revolutions or rotation time
>Variable drum rotation speed or locked speed mode
>Determine the sample weight by balance to automatically calculate weight loss
>Programmable qualification interval timer reminds the user to perform instrument calibration
>Dedicated calibration programs and reports
>Copy methods between instruments by using a common USB flash drive
>Export test reports as text files
>IQ/OQ documents included free of charge
Parameter | Specification |
Number of Test Drums | 1, right side |
Drum Rotation Speed Range | 15 – 100rpm |
Speed Accuracy | ±1 rpm |
Number of Rotations | Adjustable 2 – 9999, switchable to time mode |
Testing Time | Adjustable 2 – 9999 seconds, switchable to rotations mode |
Method Management | Up to 256 test descriptions (methods) can be stored on the instrument |
User Management | Up to 32 users with selectable user right levels can be stored on the instrument |
Result Data Storage | Store copies of result reports by connecting a USB flash drive |
Display | LCD with color-changing backlight |
Keyboard | Keypad with function keys and click wheel |
Interfaces |
|
Instrument Housing | Polished stainless steel housing with plastic frame |
Power | 110/230 Volt, 50/60 Hz |
Instrument Dimensions | Approx. 50cm x 42cm x 47cm (width x depth x height) |
Packaging Dimensions | Approx. 60cm x 60cm x 50cm (width x depth x height) |
Net /Gross Weight | Approx. 16 / 21 kg |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>One friability drum made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>Comprehensive documentation included (PDF, hardcopies optional):
>>User manual
>>DQ/QC instrument compliance test certificate
>>IQ documentation
>>OQ documentation
>>Instrument logbook

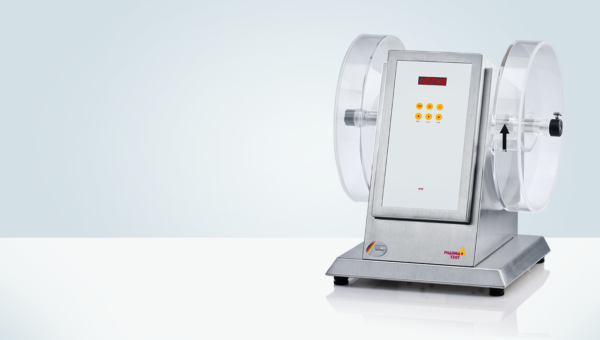

Double Drum Tablet Friability Testing Instruments
PTF 200 is a double drum tablet friability and abrasion test instrument. It is manufactured in compliance to the USP <1216>, EP <2.9.7> and JP <14> Pharmacopoeias. The instrument features an automated sample discharge at the end of a test and the possibility to connect an analytical balance.
>Fully USP <1216>, EP <2.9.7> and JP <14> compliant
>Determine friability and abrasion (optional) of uncoated tablets
>Programmable for number of drum revolutions or rotating time
>Connect a balance to determine the sample weight (optional, weight can be entered manually)
>Connect USB flash drive to copy methods and store test reports
>Integrated protocol printer (optional)
>User and method management system
>Drum is easy to open for loading and cleaning, alternatively use discharge opening for loading
>Graphical LCD screen showing actual and target settings
>Integrated protocol printer reduces bench space requirements
>Detailed result report including weight loss calculation and evaluation of the results
>Automated sample discharge at the end of a test run
>Dual operation mode: number of revolutions or rotation time
.Variable drum rotation speed or locked speed mode
>Determine the sample weight by balance to automatically calculate weight loss
>Programmable qualification interval timer reminds the user to perform instrument calibration
>Dedicated calibration programs and reports
>Copy methods between instruments by using a common USB flash drive
>Export test reports as text files
>IQ/OQ documents included free of charge
Parameter | Specification |
Number of Test Drums | 2, 1 right side, 1 left side |
Drum Rotation Speed Range | 15 – 100rpm |
Speed Accuracy | ±1 rpm |
Number of Rotations | Adjustable 2 – 9999, switchable to time mode |
Testing Time | Adjustable 2 – 9999 seconds, switchable to rotations mode |
Method Management | Up to 256 test descriptions (methods) can be stored on the instrument |
User Management | Up to 32 users with selectable user right levels can be stored on the instrument |
Result Data Storage | Store copies of result reports by connecting a USB flash drive |
Display | LCD with color-changing backlight |
Keyboard | Keypad with function keys and click wheel |
Interfaces |
|
Instrument Housing | Polished stainless steel housing with plastic frame |
Power | 110/230 Volt, 50/60 Hz |
Instrument Dimensions | Approx. 50cm x 42cm x 47cm (width x depth x height) |
Packaging Dimensions | Approx. 60cm x 60cm x 50cm (width x depth x height) |
Net /Gross Weight | Approx. 18 / 23 kg |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>Two friability drums made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>Comprehensive documentation included (PDF, hardcopies optional):
>>User manual
>>DQ/QC instrument compliance test certificate
>>IQ documentation
>>OQ documentation
>>Instrument logbook

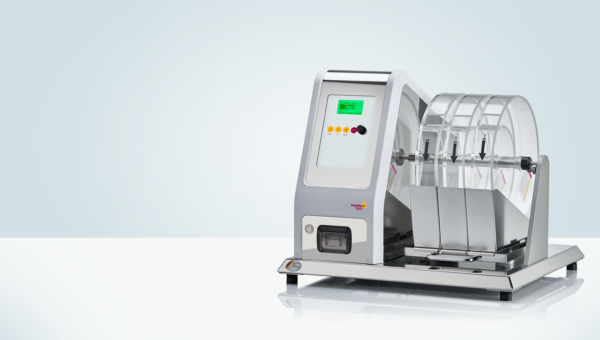

Triple Drum Tablet Friability Testing Instruments
PTF 300 is a triple drum tablet friability and abrasion test instrument. It is manufactured in compliance to the USP <1216>, EP <2.9.7> and JP <14> Pharmacopoeias. The instrument features an automated sample discharge at the end of a test and the possibility to connect an analytical balance.
>Fully USP <1216>, EP <2.9.7> and JP <14> compliant
>Determine friability and abrasion (optional) of uncoated tablets
>Programmable for number of drum revolutions or rotating time
>Connect a balance to determine the sample weight (optional, weight can be entered manually)
>Connect USB flash drive to copy methods and store test reports
>Integrated protocol printer
>User and method management system
>Drum is easy to open for loading and cleaning, alternatively use discharge opening for loading
>Graphical LCD screen showing actual and target settings
>Integrated protocol printer reduces bench space requirements
>Detailed result report including weight loss calculation and evaluation of the results
>Automated sample discharge at the end of a test run
>Dual operation mode: number of revolutions or rotation time
>Variable drum rotation speed or locked speed mode
>Determine the sample weight by balance to automatically calculate weight loss
>Programmable qualification interval timer reminds the user to perform instrument calibration
>Dedicated calibration programs and reports
>Copy methods between instruments by using a common USB flash drive
>Export test reports as text files
>IQ/OQ documents included free of charge
Parameter | Specification |
Number of Test Drums | 3, right side |
Drum Rotation Speed Range | 15 – 100rpm |
Speed Accuracy | ±1 rpm |
Number of Rotations | Adjustable 2 – 9999, switchable to time mode |
Testing Time | Adjustable 2 – 9999 seconds, switchable to rotations mode |
Method Management | Up to 256 test descriptions (methods) can be stored on the instrument |
User Management | Up to 32 users with selectable user right levels can be stored on the instrument |
Result Data Storage | Store copies of result reports by connecting a USB flash drive |
Display | LCD with color-changing backlight |
Keyboard | Keypad with function keys and click wheel |
Interfaces |
|
Instrument Housing | Polished stainless steel housing with plastic frame |
Power | 110/230 Volt, 50/60 Hz |
Instrument Dimensions | Approx. 50cm x 56cm x 47cm (width x depth x height) |
Packaging Dimensions | Approx. 60cm x 60cm x 50cm (width x depth x height) |
Net /Gross Weight | Approx. 22 / 25 kg |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>Three friability drums made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>Five rolls of printer paper for the integrated printer
>Comprehensive documentation included (PDF, hardcopies optional):
>>User manual
>>DQ/QC instrument compliance test certificate
>>IQ documentation
>>OQ documentation
>>Instrument logbook
Six Drum Tablet Friability Testing Instruments
PTF 600 is a six drum tablet friability and abrasion test instrument. It is manufactured in compliance to the USP <1216>, EP <2.9.7> and JP <14> Pharmacopoeias. The instrument features an automated sample discharge at the end of a test and the possibility to connect an analytical balance.
>Fully USP <1216>, EP <2.9.7> and JP <14> compliant
>Determine friability and abrasion (optional) of uncoated tablets
>Programmable for number of drum revolutions or rotating time
>Connect a balance to determine the sample weight (optional, weight can be entered manually)
>Connect USB flash drive to copy methods and store test reports
>Integrated protocol printer
>User and method management system
>Drum is easy to open for loading and cleaning, alternatively use discharge opening for loading
>Graphical LCD screen showing actual and target settings
>Integrated protocol printer reduces bench space requirements
>Detailed result report including weight loss calculation and evaluation of the results
>Automated sample discharge at the end of a test run
>Dual operation mode: number of revolutions or rotation time
>Variable drum rotation speed or locked speed mode
>Determine the sample weight by balance to automatically calculate weight loss
>Programmable qualification interval timer reminds the user to perform instrument calibration
>Dedicated calibration programs and reports
>Copy methods between instruments by using a common USB flash drive
>Export test reports as text files
>IQ/OQ documents included free of charge
Parameter | Specification |
Number of Test Drums | 6, right side |
Drum Rotation Speed Range | 15 – 100rpm |
Speed Accuracy | ±1 rpm |
Number of Rotations | Adjustable 2 – 9999, switchable to time mode |
Testing Time | Adjustable 2 – 9999 seconds, switchable to rotations mode |
Method Management | Up to 256 test descriptions (methods) can be stored on the instrument |
User Management | Up to 32 users with selectable user right levels can be stored on the instrument |
Result Data Storage | Store copies of result reports by connecting a USB flash drive |
Display | LCD with color-changing backlight |
Keyboard | Keypad with function keys and click wheel |
Interfaces |
|
Instrument Housing | Polished stainless steel housing with plastic frame |
Power | 110/230 Volt, 50/60 Hz |
Instrument Dimensions | Approx. 50cm x 75cm x 47cm (width x depth x height) |
Packaging Dimensions | Approx. 90cm x 90cm x 70cm (width x depth x height) |
Net /Gross Weight | Approx. 30 / 40 kg |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>Six friability drums made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>Five rolls of printer paper for the integrated printer
>Comprehensive documentation included (PDF, hardcopies optional):
>>User manual
>>DQ/QC instrument compliance test certificate
>>IQ documentation
>>OQ documentation
>>Instrument logbook
Tablet Friability Testing Instruments
The PTF 10E single-drum tablet friability test instrument with fixed speed is manufactured in compliance to the USP <1216>, EP <2.9.7> and other Pharmacopoeias. This version is available as single or dual drum instruments.
>1 friability drum made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>LED display informing of adjusted rotation speed and operating time (or number of revolutions)
>Programmable number of drum revolutions or rotating time
>All IQ, OQ, DQ/QC documentation included in the standard supply scope
>LED display showing actual and target settings
>GLP compliant stainless steel housing
>Dual operation mode adjustment; number of revolutions or rotation time
>Easy to operate and set-up
Parameter | Specification |
Display | LED Display |
Data Entry | Functional Keys |
Setting number of revolutions | 1 to 9999 |
Setting rotation timer | 1 to 9999 seconds |
Drum rotation speed PTF 10E/20E | Fixed to 25 rpm Accuracy ±1 rpm |
Bench Space Requirement | W 350.0 x D 400.0 mm |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>PTF 10E includes one friability drum as per USP <1216> and EP <2.9.7> monograph
>Comprehensive documentation folder including:
>>User manual
>>DQ/QC instrument compliance test certificate
>>User manual
>>QC/DQ testing certificate
>>IQ documentation
>>OQ documentation
>>Conformity declaration
>>CE/EMC declaration
>>Instrument logbook
Tablet Friability Testing Instruments
The PTF 20E double-drum tablet friability instrument with fixed speed is manufactured in compliance to the USP <1216>, EP <2.9.7> and other Pharmacopoeias. This version is available as single or dual drum instrument.
>2 friability drums made from Plexiglas (optional incl. anti-static coating), in compliance with the USP, EP and DAB pharmacopoeia
>LED display informing of adjusted rotation speed and operating time (or number of revolutions)
>Programmable number of drum revolutions or rotating time
>All IQ, OQ, DQ/QC documentation included in the standard supply scope
>LED display showing actual and target settings
>GLP compliant stainless steel housing
>Dual operation mode adjustment; number of revolutions or rotation time
>Easy to operate and set-up
Parameter | Specification |
Display | LED Display |
Data Entry | Functional Keys |
Setting number of revolutions | 1 to 9999 |
Setting rotation timer | 1 to 9999 seconds |
Drum rotation speed PTF 10E/20E | Fixed to 25 rpm Accuracy ±1 rpm |
Bench Space Requirement | W 350.0 x D 400.0 mm |
Certification | All components certified to USP / EP requirements |
CE / EMC Certification | All CE / EMC Certification provided |
Validation | All IQ & OQ documents included |
Included in the Standard Scope of Supply
>PTF 20E includes two friability drums, one on the right and one in the left side of the instrument
>Comprehensive documentation folder including:
>>User manual
>>DQ/QC instrument compliance test certificate
>>User manual
>>QC/DQ testing certificate
>>IQ documentation
>>OQ documentation
>>Conformity declaration
>>CE/EMC declaration
>>Instrument logbook
