CONTROL PANELS

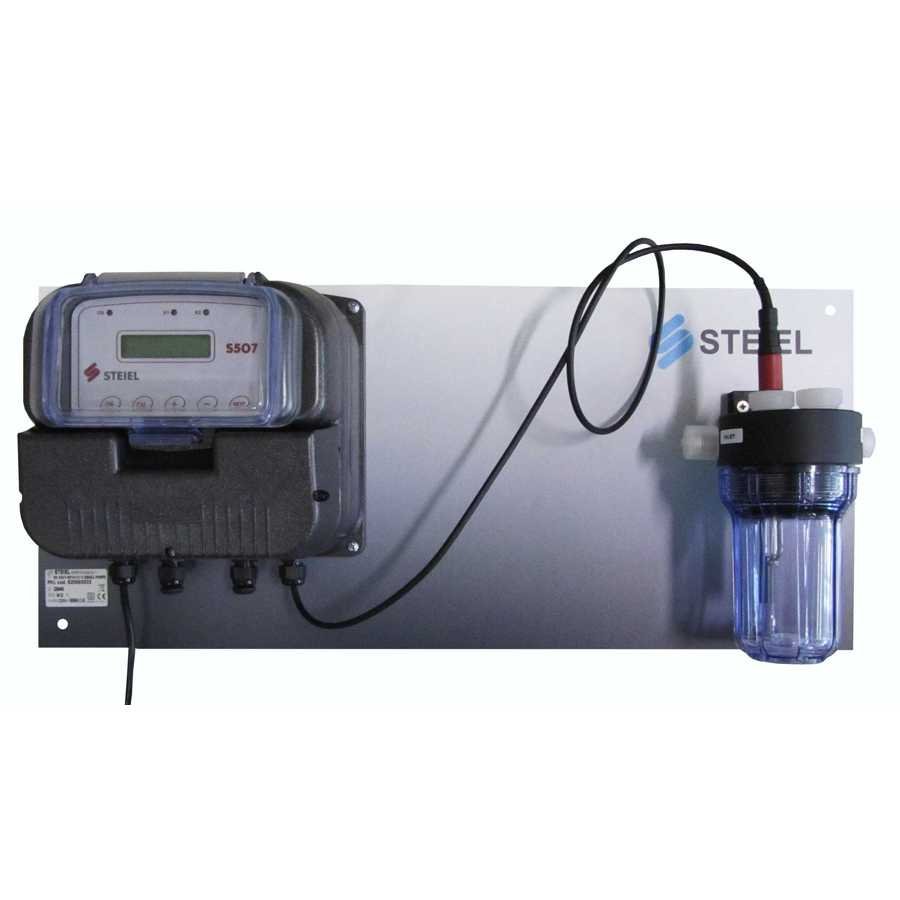

PNL S507 PH / REDOX – PANELS FOR PH OR REDOX MEASUREMENTS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
- anel with four holes for wall fixing
- Panel dimensions:
- 650 x 290 mm, without dosing pump
- 500 x 600 mm or 595 x 750 mm, with dosing pump
- Customizable graphics on request
- The model for pH measurement includes:
- S507-pH/RX/T instrument
- pH electrode with cable
- Electrode holder
- PT100 sensor (optional), for temperature measurement and thermo-compensation of pH readings
- pH buffer solutions for electrode calibration
- The model for measuring redox potential (ORP) includes:
- S507-pH/RX/T instrument
- Redox electrode with cable
- Electrode holder
- Electrode calibration solution
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

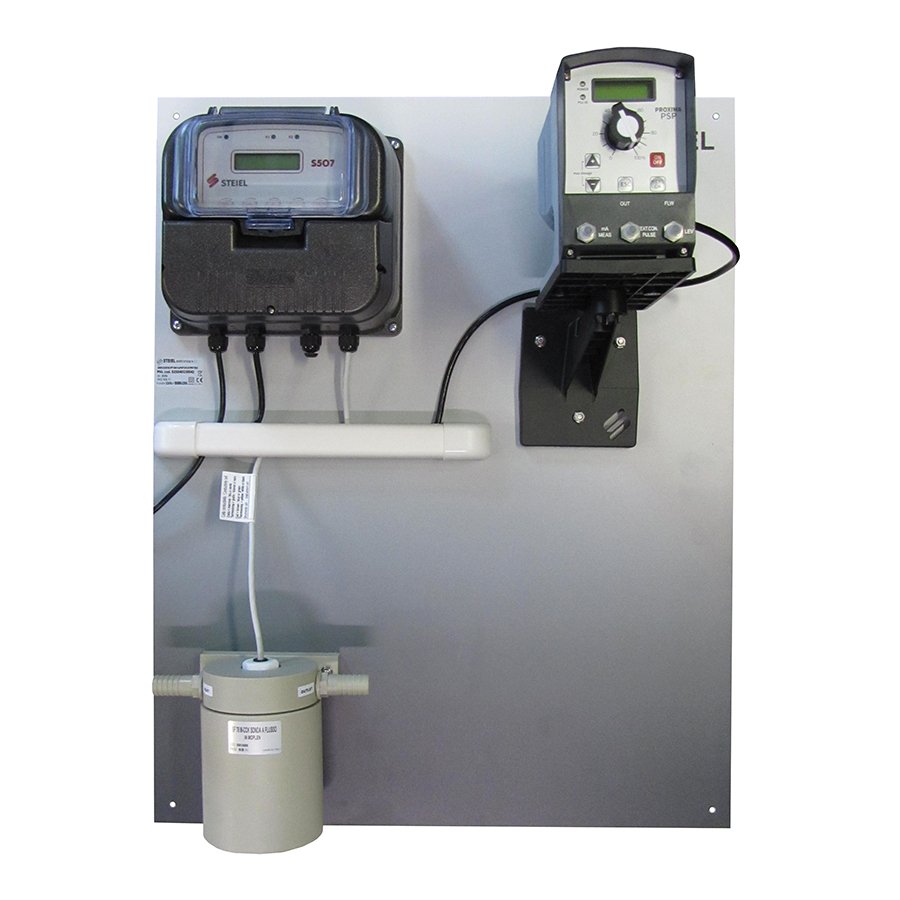

PNL S507-CCK – PANELS FOR CONDUCTIVITY MEASUREMENTS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
These models are dedicated to the measurement of the electrical conductivity of aqueous solutions, with a two-electrode cell from the CCK series.
- Panel with four holes for wall fixing
- Panel dimensions:
- 650 x 290 mm, without dosing pump
- 500 x 600 mm or 595 x 750 mm, with dosing pump
- Customizable graphics on request
- The basic system includes:
- S507-CO instrument with input for CCK cell and Pt100 sensor
- Two electrode CCK cell, with or without integrated temperature sensor for thermo-compensation of readings
- Probe holder
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

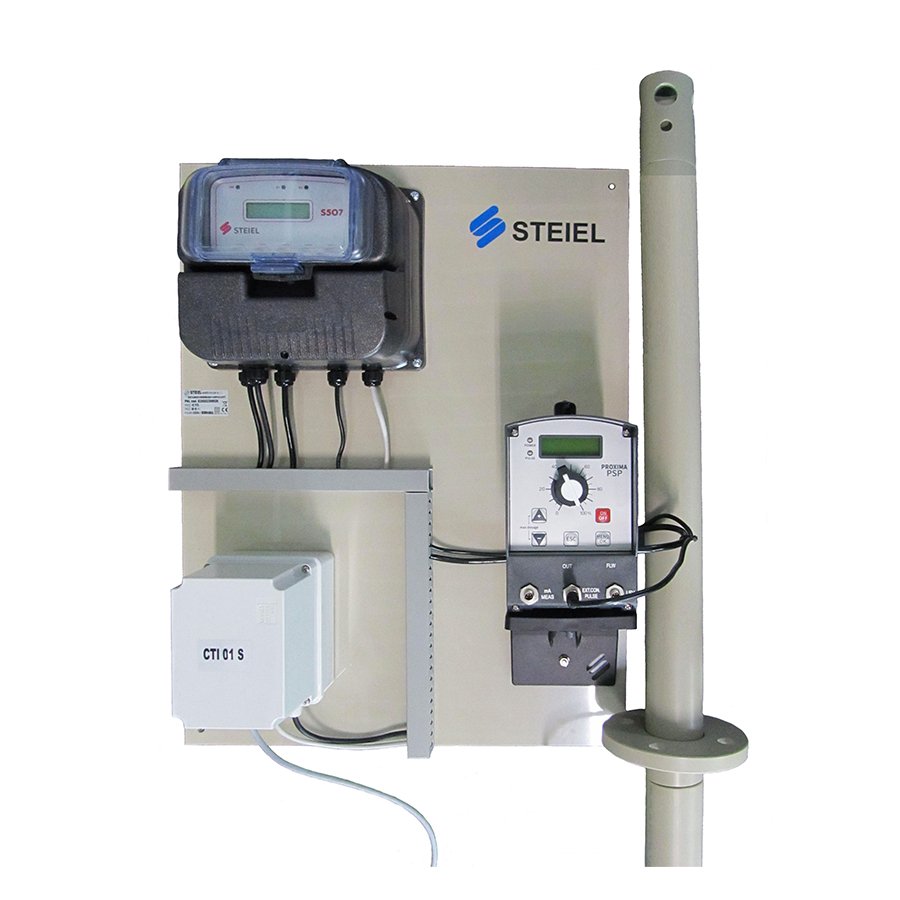

PNL S507-CMK – PANELS FOR INDUCTIVE CONDUCTIVITY MEASUREMENTS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
These models are dedicated to measuring the conductivity of aqueous solutions on a medium-high scale, with a CMK50 cell with an inductive principle, to be combined with a specific signal converter.
- Panel with four holes for wall fixing
- Panel dimensions:
- 500 x 600 mm, without dosing pump
- 595 x 750 mm, with dosing pump
- Customizable graphics on request
- The basic system includes:
- S507-IN instrument with 4-20 mA input
- CMK50 cell for inductive conductivity measurement
- Signal converter, with scale to be specified when ordering
- Outflow probe holder with glass or immersion
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

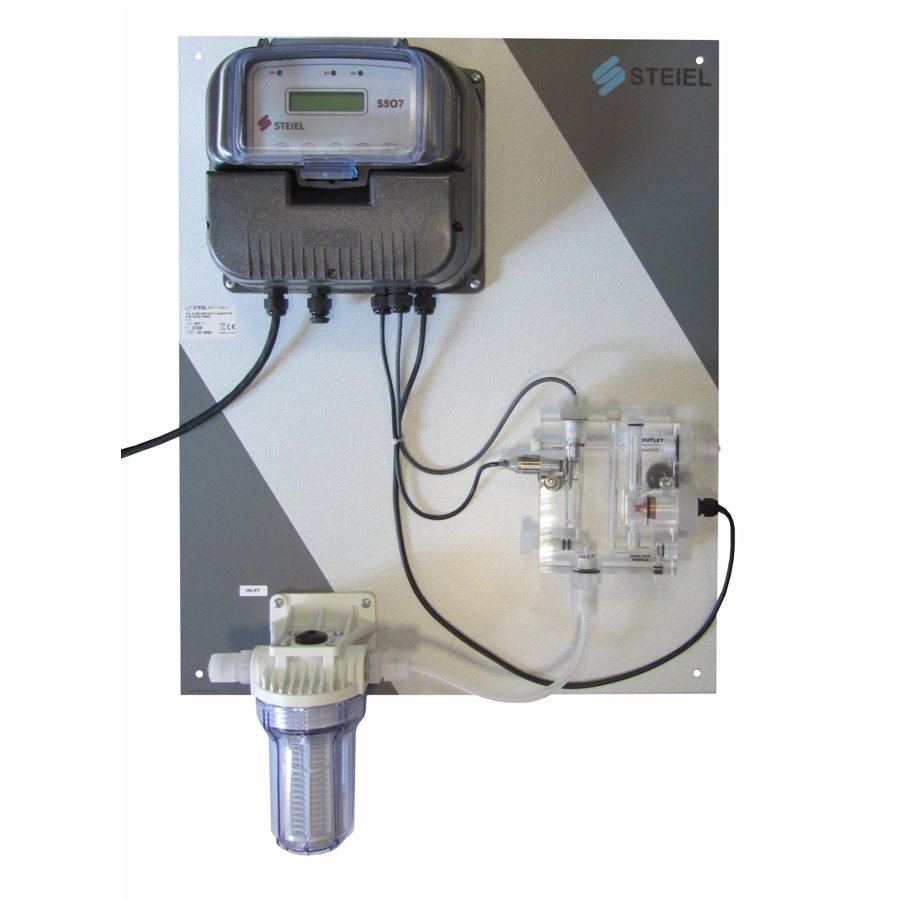

PNL S507-CLE – PANELS FOR WATER DISINFECTION, WITH CLE SERIES AMPEROMETRIC CELL
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
These models are dedicated to measuring the concentration of residual free chlorine (bromine or chlorine dioxide) with an open amperometric cell.
- Panel with four holes for wall fixing
- Panel dimensions:
- 650 x 290 mm, without dosing pump and without filter
- 500 x 600 mm, with filter and without dosing pump
- 595 x 750 mm, with dosing pump and filter
- Customizable graphics on request
- The basic system includes:
- S507-CLE instrument with input for open amperometric cell CLE11 / CLE12
- CLE11 / CLE12 cell for measuring the concentration of residual free chlorine (bromine or chlorine dioxide)
- Pt100 temperature probe (optional)
- Methacrylate flow probe holder with inlet flow regulation, proximity sensor, needle for sample water analysis
- Filter with mesh cartridge
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line
PNL S507-CLE – PANELS FOR WATER DISINFECTION, WITH CLE SERIES AMPEROMETRIC CELL
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
These models are dedicated to measuring the concentration of residual free chlorine (bromine or chlorine dioxide) with an open amperometric cell.
- Panel with four holes for wall fixing
- Panel dimensions:
- 650 x 290 mm, without dosing pump and without filter
- 500 x 600 mm, with filter and without dosing pump
- 595 x 750 mm, with dosing pump and filter
- Customizable graphics on request
- The basic system includes:
- S507-CLE instrument with input for open amperometric cell CLE11 / CLE12
- CLE11 / CLE12 cell for measuring the concentration of residual free chlorine (bromine or chlorine dioxide)
- Pt100 temperature probe (optional)
- Methacrylate flow probe holder with inlet flow regulation, proximity sensor, needle for sample water analysis
- Filter with mesh cartridge
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

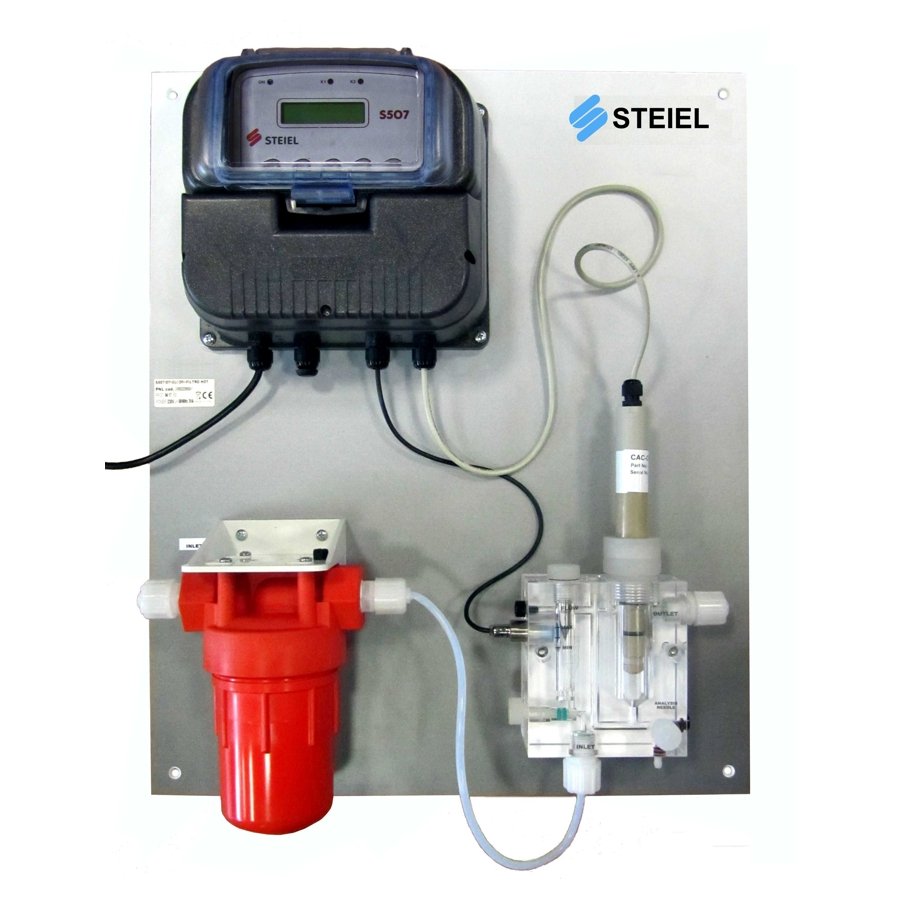

PNL S507-CAC-HT – PANELS FOR MEASURING CHLORINE OR CHLORINE DIOXIDE IN HOT WATER
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
More complex systems also include a dosing pump for regulation and/or a device for data recording/management.
These models are dedicated to the measurement of chlorine or chlorine dioxide in domestic hot water circuits, with an open amperometric cell with three electrodes.
The standard panel is equipped with a hot water filter; upon request, for applications with sample water recovery, a special panel with recovery pump, valves and pressure gauges is available.
- Panel with four holes for wall fixing
- Panel dimensions:
- 500 x 600 mm, without pump
- 595 x 750 mm, with pump
- Customizable graphics on request
- The basic system includes:
- S507-CAC instrument with input configured for the CAC-HT-B cell
- CAC-HT-B cell, open amperometric with three electrodes, with specific electrolyte;
thermo-compensated readings thanks to the integrated temperature sensor - Pt100 temperature probe, for temperature display
- Methacrylate flow probe holder with inlet flow regulation, proximity sensor and needle for sample water analysis
- Filter with steel mesh cartridge for hot water
- Depending on the application needs, the panel can be equipped with a dosing pump
- Working conditions: max. temperature 70 °C at 3 bar; max. 50 °C at 6 bar
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

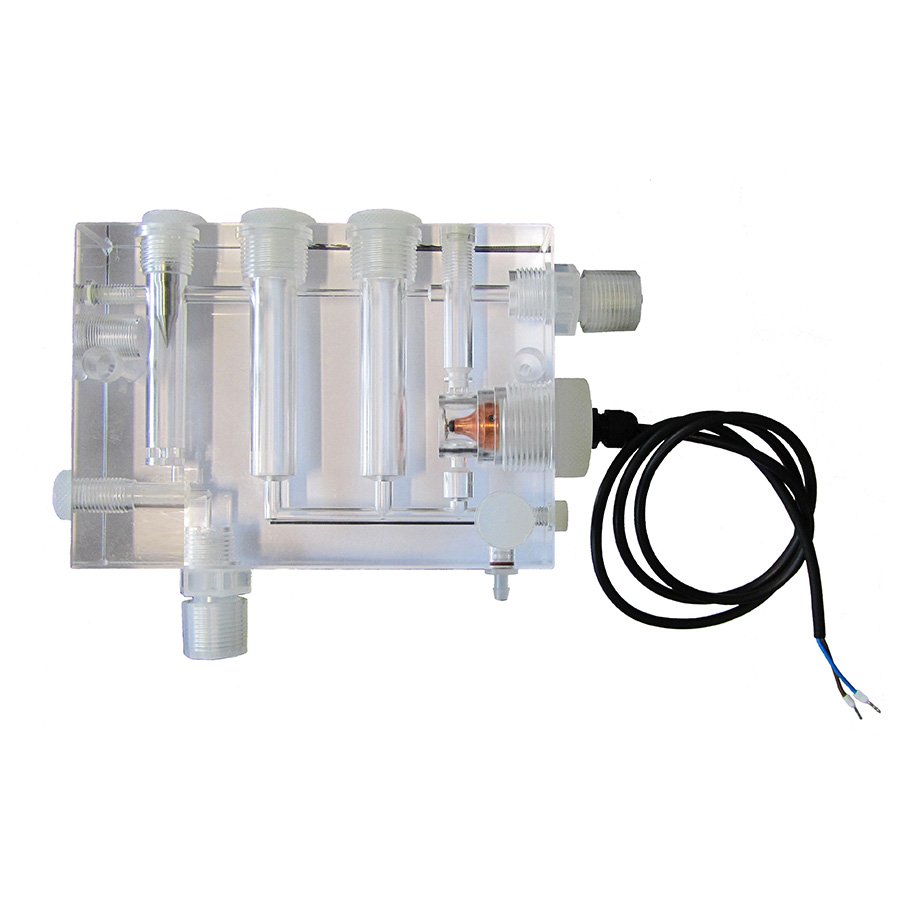

CLE SERIES – OPEN AMPEROMETRIC CELLS FOR MEASUREMENTS OF CHLORINE, BROMINE, CHLORINE DIOXIDE
The open amperometric cells quickly, accurately and non-selectively measure the concentration of disinfectant (chlorine, bromine, chlorine dioxide) in water.
The CLE11 and CLE12 models are two-electrode cells assembled in a probe holder, with housings for the proximity sensor and temperature probe, and equipped with an anti-passivation system for the copper electrode and regulation of the water flow in entrance.
The CLE16 model is a three-electrode probe, with a glass stem body, suitable for measurements in drinking water and swimming pools, even in the presence of saline electrolysis. To be installed in a special probe holder.
- Measurement range: 0 … 2.00 ppm (up to 5 ppm with saturation error)
- CLE11 / CLE12 models:
- Cell with two copper / platinum (Cu/Pt) electrodes, assembled in a methacrylate flow probe holder with housings for proximity sensor and temperature probe; connections for 6×8 mm tube and sampling pin
- The CLE12 version also has two housings for 12 mm diameter sensors (pH and redox electrodes)
- Anti-passivation system of the copper electrode
- Regulation of the inlet water flow
- Working conditions: recommended flow rate 40 … 50 l/h; max. temperature 40°C; max. pressure 3 bars; pH range 6 … 7.8
- Wall fixing
- Cells supplied complete with installation kit (valves, fittings and 5 meters of PE pipe)
- Model CLE16:
- Three electrode probe with glass stem body, 1 meter cable with M8 connector
- Working conditions: recommended flow rate 60 … 80 l/h; max. temperature 45°C; max. pressure 3 bars
- pH range 5 … 9 (cell working limits); 6 … 7.8 (recommended for chlorine disinfection)
- To be installed in a special probe holder, with proximity sensor and regulation of the inlet water flow

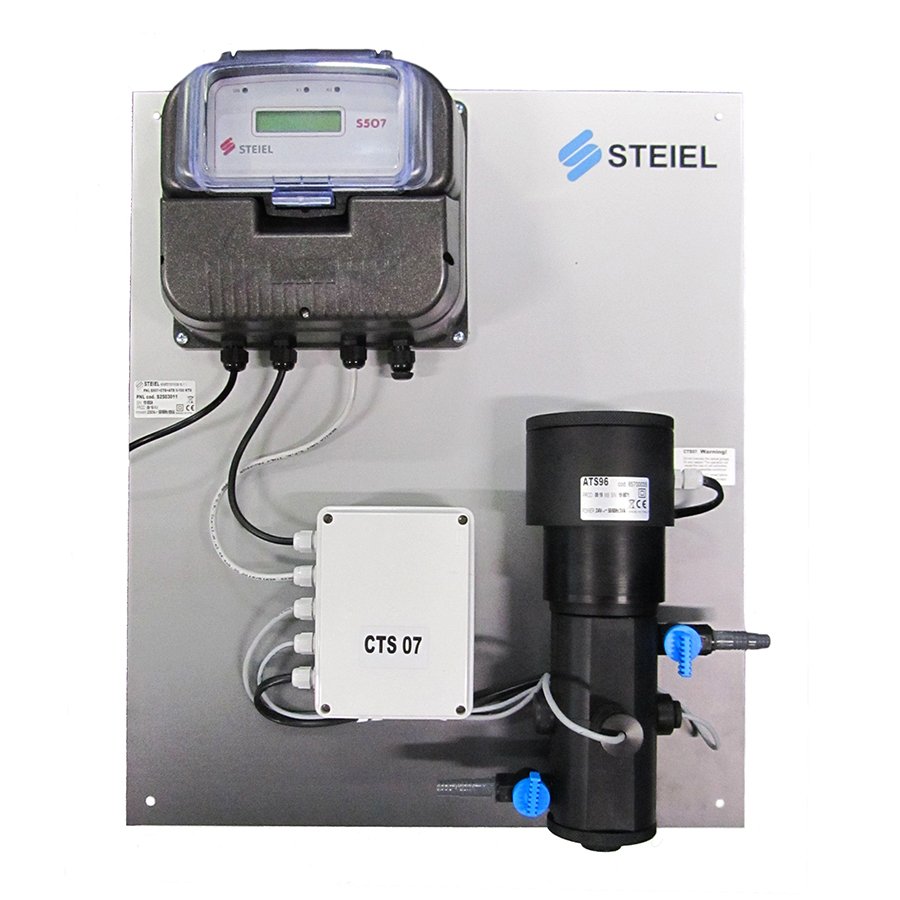

PNL S507-TURB – READY-TO-USE PANELS FOR TURBIDITY MEASUREMENTS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
These models ensure constant monitoring of water turbidity values, to ensure that the set quality and safety level is not exceeded.
The system complies with international standards ISO7027 and is available with an SS (side scattering) technology cell, for measurements on a nephelometric scale up to 100 NTU, or with an FS (forward scattering) type cell, for measurements up to 500 FTU.
- Panel with four holes for wall fixing
- Panel dimensions: 500 x 600 mm
- Customizable graphics on request
- The basic system includes:
- S507-TU instrument with input for CTS07 cell
- Turbidity cell CTS07, scale 0-100 NTU (on request, 0-500 FTU)
- Preamplifier
- Optional self-cleaning system
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

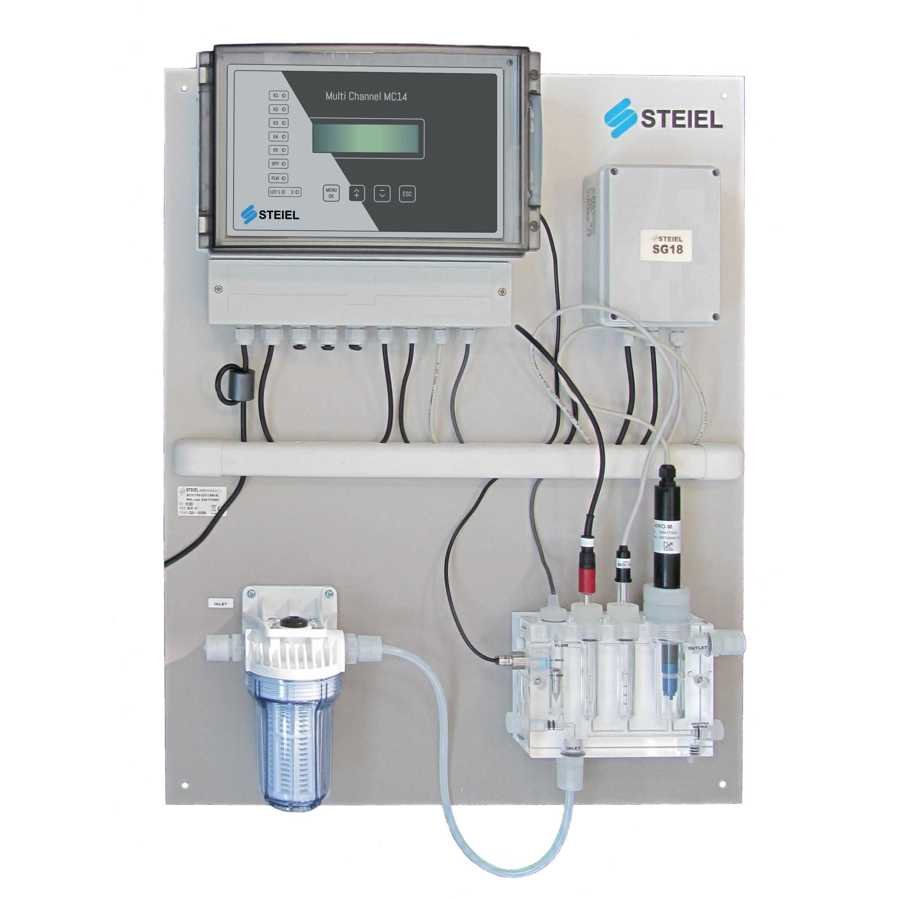

PNL MC14 – READY-TO-USE MULTI-PARAMETER STATIONS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
The multi-parameter stations with MC14 EVO control unit provide up to 5 measurement inputs, for complete water control.
Measurements of pH, redox potential (ORP), temperature, free chlorine, total chlorine, chlorine dioxide, bromine, hydrogen peroxide, peracetic acid, ozone, conductivity, turbidity.
For further details on the technical characteristics of the MC14 EVO control unit and measurement sensors, see the specific pages.
The fields of use of these systems are the most varied in the world of water treatment, depending on the configuration and combination required.
- Panel with four holes for wall fixing
- Panel dimensions:
- Without pumps: 500 x 600 mm or 595 x 750 mm, depending on configuration
- With pumps: 900 x 700 mm
- Customizable graphics on request
- The basic system includes:
- MC14 EVO control unit
- Measuring sensors, with relative probe holders
- Filter holder with washable mesh cartridge
- Calibration solutions
- Depending on application needs, the panels can also be equipped with dosing pumps
- Upon request, the RW14 remote control system is available, which allows remote management via RS232 serial line

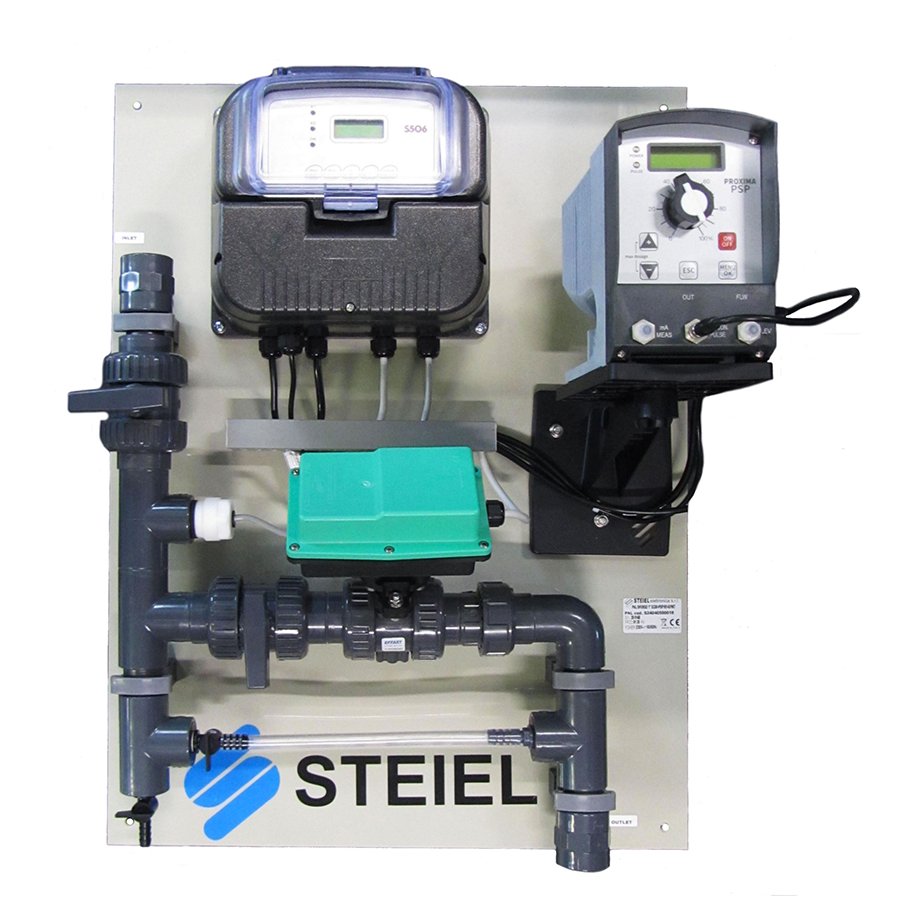

PANELS AND PANELS FOR THE AUTOMATIC PURGING OF EVAPORATIVE TOWERS
STEIEL offers a wide range of “turnkey” solutions, consisting of instrumentation and measurement sensors assembled on a panel.
The automatic purge systems for evaporative towers meet the needs of managing the salt concentration of the water in the evaporative tower/condenser circuits, in order to guarantee the optimization of water and chemical product consumption.
The basic configuration includes a control unit for managing the drain valve and the pump for dosing the biocide, a continuous reading conductometric measurement cell, a motorized valve and a pump for shock dosing of biocide.
Different solutions are available, assembled on a fiberglass panel or framework, with different types of dosing pump and dimensions of the hydraulic kit.
- Assembly on:
- PP panel, with four holes for wall fixing and customizable graphics on request
- with or without dosing pump: 495 x 660 mm
- with two dosing pumps: 900 x 700 mm
- Fiberglass cabinet, with door with transparent porthole and galvanized steel bottom plate (without dosing pump)
- Self-supporting painted metal frame, with wheels
- PP panel, with four holes for wall fixing and customizable graphics on request
- The basic system assembled on a panel includes:
- Conductivity measurement instrument, with input for two-electrode CCK cell and integrated temperature sensor, configured for tower purge
- Standard PTFE conductometer cell with K=1, 20 mS/cm scale and integrated PT100 sensor
- Standard 1″ hydraulic kit
- Motorized valve
- Dosing pump for shock dosing of biocide (second pump on request)
- Standard power supply 230 V~ (other options on request)
- Economic version available with PSP164 instrument pump

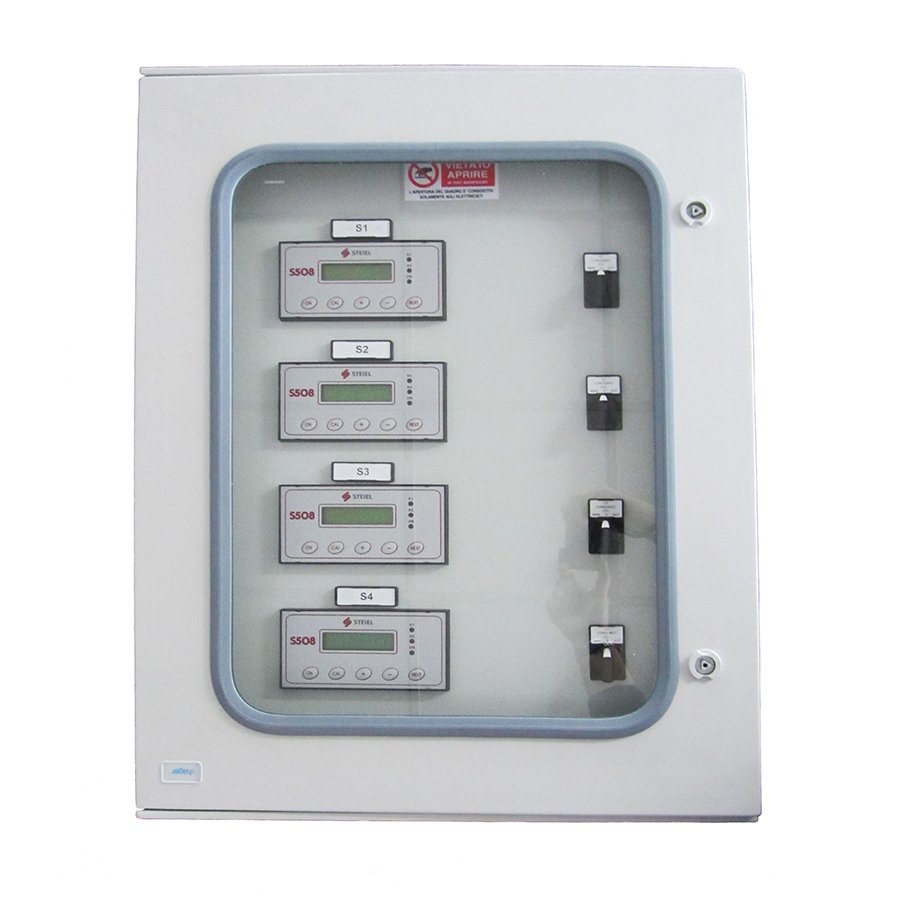

S508 PANELS – PANELS FOR INDUSTRIAL AUTOMATION
Systems designed for industrial automation, which allow you to control and optimize all process phases from a single station.
They are supplied assembled, wired and configured in accordance with customer specifications, accompanied by suitable technical documentation.
- Instruments housed in a fiberglass container, with transparent door and support terminal block
- Switchboards available in various sizes, depending on the configuration required
- Measuring instruments of the S508 series, with measurement sensors supplied
- Supplied with wiring diagram and certificate
- Upon request, the RW14 remote control system is available, which – connected via RS232 serial line to the individual units – allows remote management

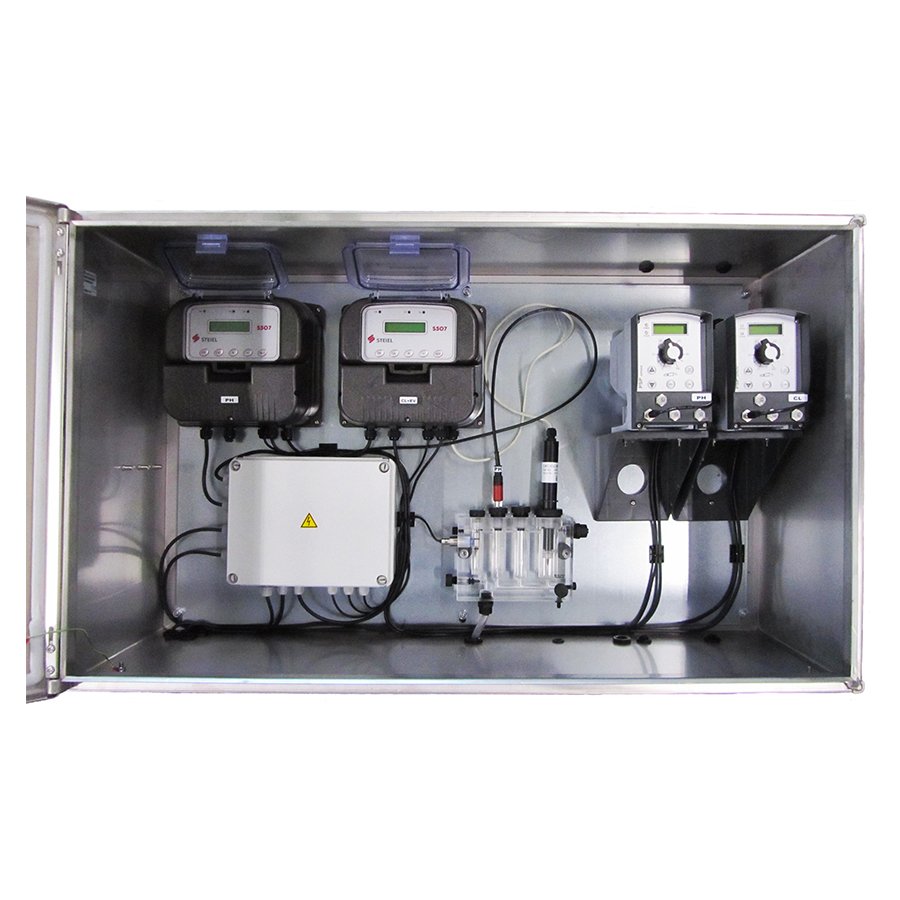

STEEL FRAMEWORKS FOR THE FOOD INDUSTRY
Stainless steel panels, suitable for the food industry and to protect instrumentation from humidity and splashes of water.
Available in different sizes and configurations, depending on the needs of the specific application. They can include one or more control instruments equipped with specific measurement sensors, dosing pumps and data recording/remote control systems.
They find application in the food industry, for example for the disinfection of fresh vegetable washing water, and in the pharmaceutical industry.
- Cabinets in AISI304 steel, with steel bottom plate and transparent door
- Available in various sizes, depending on the configuration required
- They can include:
- one or two measuring instruments from the S507 series
- measurement sensors mounted in a special probe holder
- dosing pumps
- remote control system
