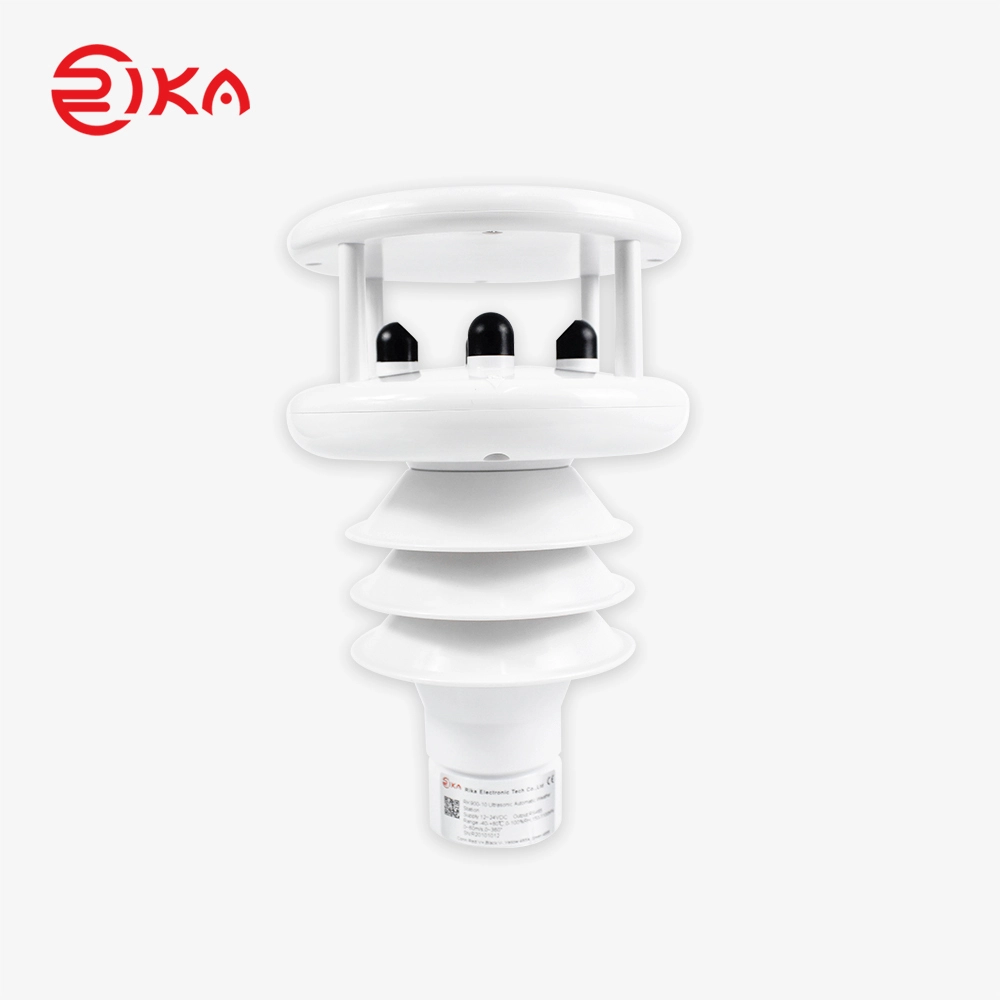

RK900-10 Ultrasonic Automatic Weather Sensor
PRODUCT DESCRIPTION
RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, Illuminance, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield,wind speed and direction of ultrasonic principle.24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.Different functional modules and measurement parameters can be combined according to user needs.
SPECIFICATIONS
Measure item | Principle | Range | Resolution | Accuracy |
Wind speed | Ultrasonic | 0-60m/s | 0.01m/s | ±2% |
Wind direction | Ultrasonic | 0-360º | 1° | ＜3° |
Atmospheric temperature | MEMS | -40-+80℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | MEMS | 0-100%RH | 0.1%RH | ±3%RH |
Atmospheric pressure | MEMS | 300-1100hPa | 0.1hpa | ±1hPa |
Precipitation | Radar | 0-200mm/hr. | 0.1mm | ±5%(@ wind speed≤5m/s) |
Solar radiation | Silicon-cell | 0-2000W/m2 | 0.1W/m2 | ±5%(@ vertical irradiation) |
Illuminance | Silicon-cell | 0-200000lux | 0.1lux | ±5%(@ vertical irradiation) |
Dust concentration (PM2.5/PM10) | Photoelectric scattering | 0-2000μg/m3 | 1μg/m3 | ±5% |
Noise | MEMS | 30-130dB | 0.1dB | ±3dB |
Visibility | Forward scattering | 20-10000m | 1m | ±15% |
GPS① | Longitude, Latitude, Speed,Heading, Real wind speed | |||
Electronic Compass② | Real wind direction | |||
Inclination measurement | Horizontal X-axis direction，Horizontal Y-axis direction,Vertical Z-axis direction | |||
Supply | 12-24VDC | |||
Output | RS485,RS232,SDI-12 | |||
Communication Protocol | Modbus-rtu(default),NMEA-0183,SDI-12 | |||
Data update cycle | 1s(default),other optional | |||
Power consumption | <3W,auto-heating power:6W | |||
Operating temperature | -40-+80℃ | |||
EMC | EN61000-6-3, EN61000-3-3 | |||
IP Rating | IP66 | |||
Main material | ASA, Aluminum alloy base(optional) | |||

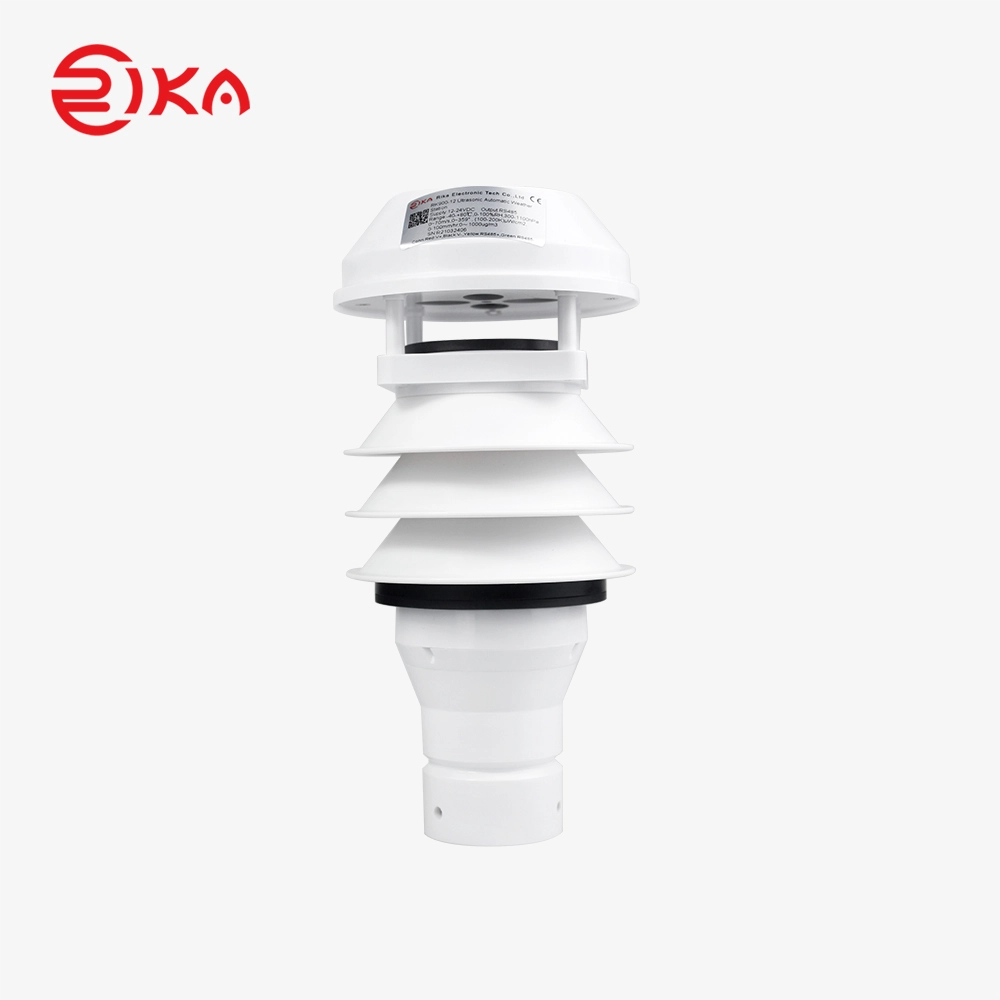

RK900-12 Ultrasonic Automatic Weather Instrument
PRODUCT DESCRIPTION
RK900-12 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure six major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall. RK900-12 user a low-power chip with a power consumption of only 1.7W, which is especially suitable for solar energy or battery-powered environment with high requirements on power consumption. As a result of the adoption of new technology and new process, the structure is more compact and compact. Solar radiation and solar illuminance detection module can also be selected, which is very suitable for supporting agricultural meteorological system. The outer shell is ASA engineering plastic.
SPECIFICATIONS
Item | Range | Resolution | Accuracy |
Wind speed | 0-70m/s | 0.1m/s | ±3%FS |
Wind direction | 0-359° | 1° | ±3° |
Atmospheric temperature | -40℃-+80℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 1%RH | ±3%RH |
Atmospheric pressure | 300-1100hPa | 0.1hPa | ±1hPa |
Rainfall | 0-200mm/hr | 0.1mm | ±5% |
Altitude | -500m-9000m | 1m | ±5% |
Solar radiation | 0-2000W/m² | 0.1 W/m² | ±5% |
Illumination | 0-200000lux | 0.1 lux | ±5% |
PM2.5,PM10 | 0-2000μg/m³ | 1μg/m³ | ±5%(PM2.5) |
Visibility | 10-10000m | 1m | ±15% |
Noise | 30-130 dB | 0.1dB | ±3dB |
ltem | Technical Specification | ||
Power supply | 12-24VDC | ||
Power consumption | <1.7W | ||
Output signal | RS232/RS485(Modbus or NMEA-183),SDI-12 | ||
Operating temperature | -20℃-+70℃ | ||
Ingress protection | IP65 | ||
Dimension | Φ110*(217-298)mm(Dimensions will vary depending on the parameters) | ||
Weight(unpacked) | 0.39kg | ||
Main material | ASA | ||

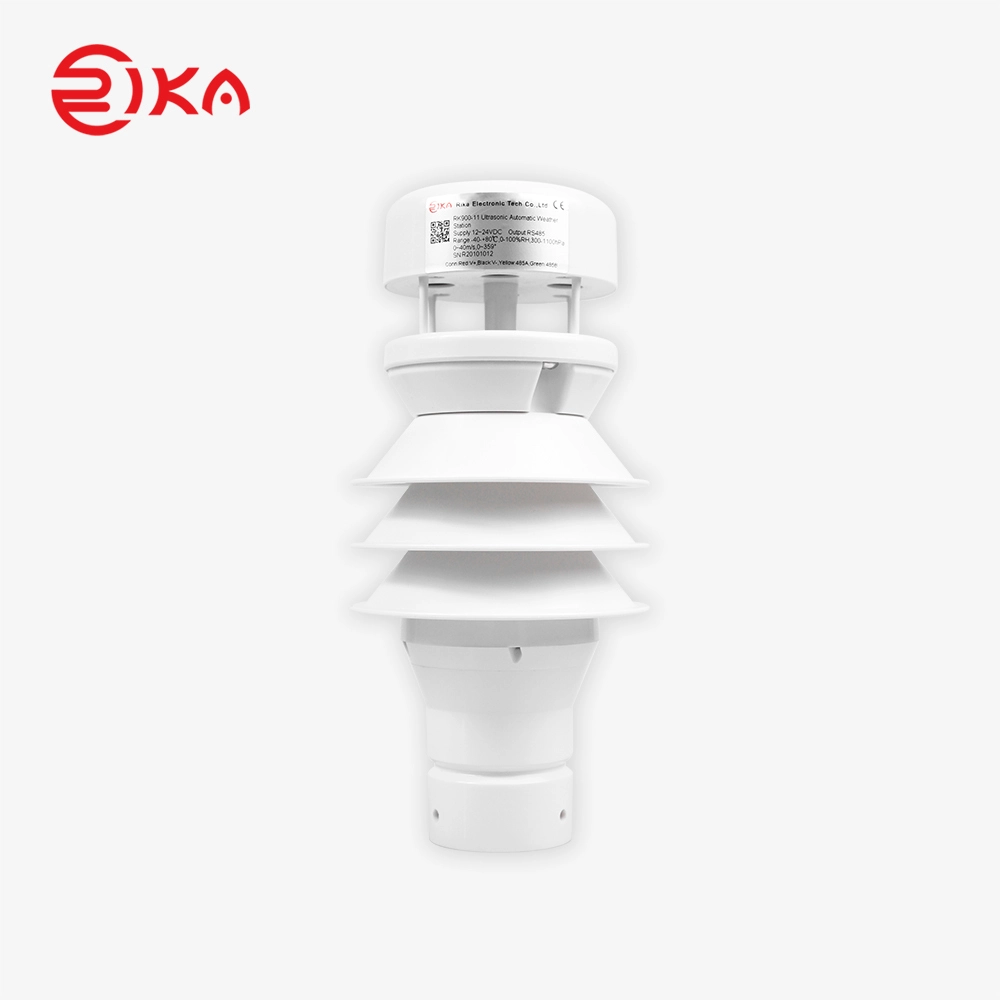

RK900-11 Automatic Weather Instrument Ultrasonic Weather Station
PRODUCT DESCRIPTION
The RK900-11 mini automatic weather station can simultaneously measure atmospheric temperature, humidity, air pressure, wind speed, wind direction, rainfall, solar radiation, illuminance, dust, visibility and other factors. The product uses low-power chips with a power consumption of only 1.7W, especially powered by solar energy or batteries. Due to the adoption of new technologies and processes, the structure is more compact and very suitable for agricultural meteorological systems. The outer shell is made of ASA engineering plastic and comes in two colors: black and white.
SPECIFICATIONS
Item | Technical Specification | ||
Range | Resolution | Accuracy | |
Wind speed | 0~40m/s | 0.1m/s | ±5% |
Wind direction | 0~359° | 1° | ±3° |
Atmospheric temperature | -40℃~+80℃ | 0.1℃ | ±1℃ |
Atmospheric humidity | 0~100% | 1% | ±3% |
Atmospheric pressure | 300~1100hPa | 0.1hPa | ±2hPa |
Rainfall | 0~200mm/hr. | 0.1mm | ±8%( @ wind speed≤5m/s ) |
Altitude | -500m~9000m | 1m | ±8% |
Irradiance | 0~2000W/m2 | 0.1W/m2 | ±5%( @ vertical light) |
Illumination | 0~200000lux | 0.1lux | ±5%( @ vertical light) |
PM2.5 | 0~2000μg/m3 | 1μg/m3 | ±5% |
PM10 | 0~2000μg/m3 | 1μg/m3 | ±8% |
Item | Technical Specification | ||
Power Supply | 7-30VDC | ||
Power consumption | 1.7W | ||
Output Signal | RS232/RS485(Modbus or NMEA-183), SDI-12 | ||
Operating Temperature | -20℃-+60℃ | ||
Ingress Protection | IP65 | ||
Dimension | Φ82mm×(108-240)mm (Dimensions will vary depending on the parameters) | ||
Weight(unpacked) | 0.38kg | ||
Main material | ASA(white or black optional) | ||

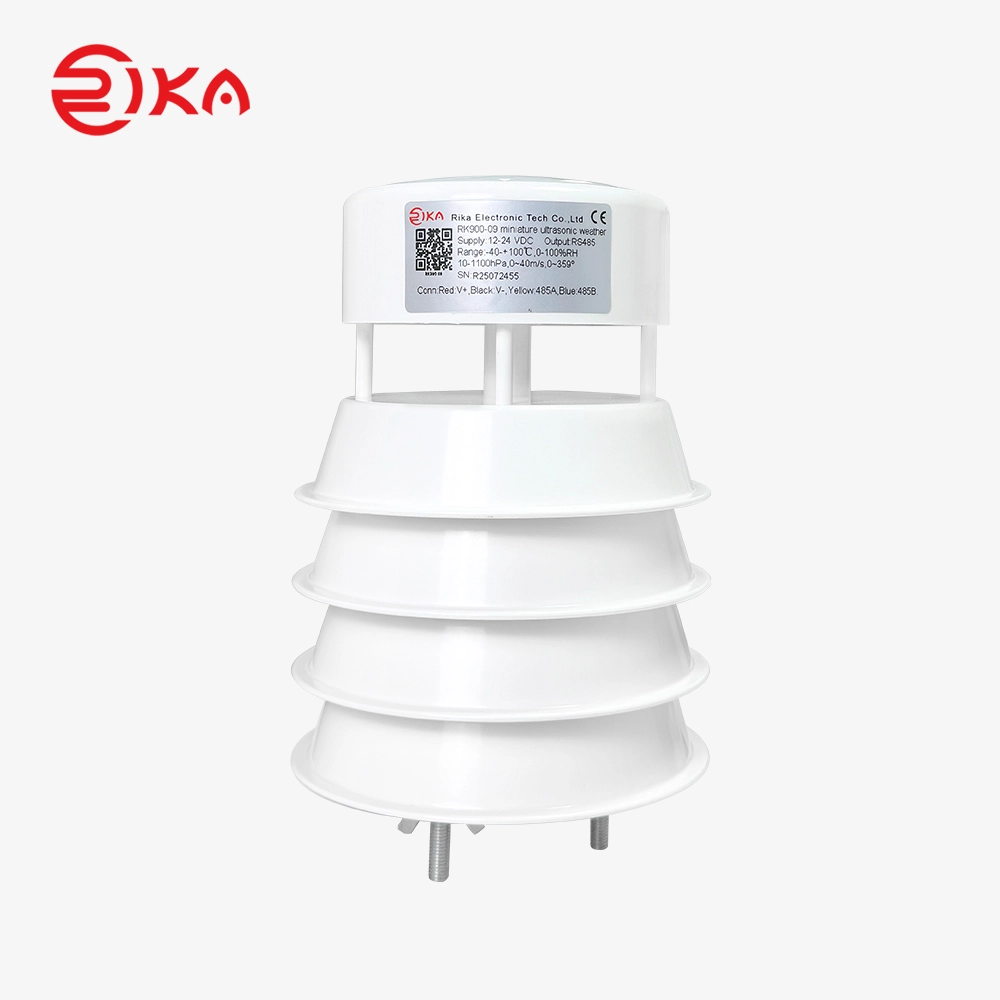

RK900-09 Miniature Ultrasonic Weather Station
PRODUCT DESCRIPTION
RK900-09 miniature ultrasonic weather station is a fully digital detection, high-precision sensor, which is integrated by the principle of ultrasonic wind speed and direction sensor, high-precision digital temperature, humidity, pressure sensor, can accurately and quickly detect wind speed, wind direction, atmospheric temperature, atmospheric humidity and Atmospheric pressure, built-in signal processing unit can output corresponding signals according to user needs, high-strength structure design can work reliably in harsh climate environment, can be widely used in meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation, etc.
SPECIFICATIONS
Measure item | Principle | Range | Resolution | Accuracy | |
Wind speed | Ultrasonic | 0-40m/s | 0.01m/s | ±0.5+2%FS | |
Wind direction | Ultrasonic | 0-359º | 1° | ±3° | |
Atmospheric temperature | MEMS | -40-+100℃ | 0.1℃ | ±0.5℃ | |
Atmospheric humidity | MEMS | 0-100%RH | 0.1%RH | ±3% | |
Atmospheric pressure | MEMS | 10-1100hPa | 0.1hpa | ±1.5hPa | |
Supply | 12VDC | ||||
Output | RS485 | ||||
Communication Protocol | Modbus-rtu | ||||
Power consumption | 0.6W | ||||
Operating temperature | -40-+80℃ | ||||
IP Rating | IP65 | ||||
Main material | ABS+ Aluminum alloy | ||||

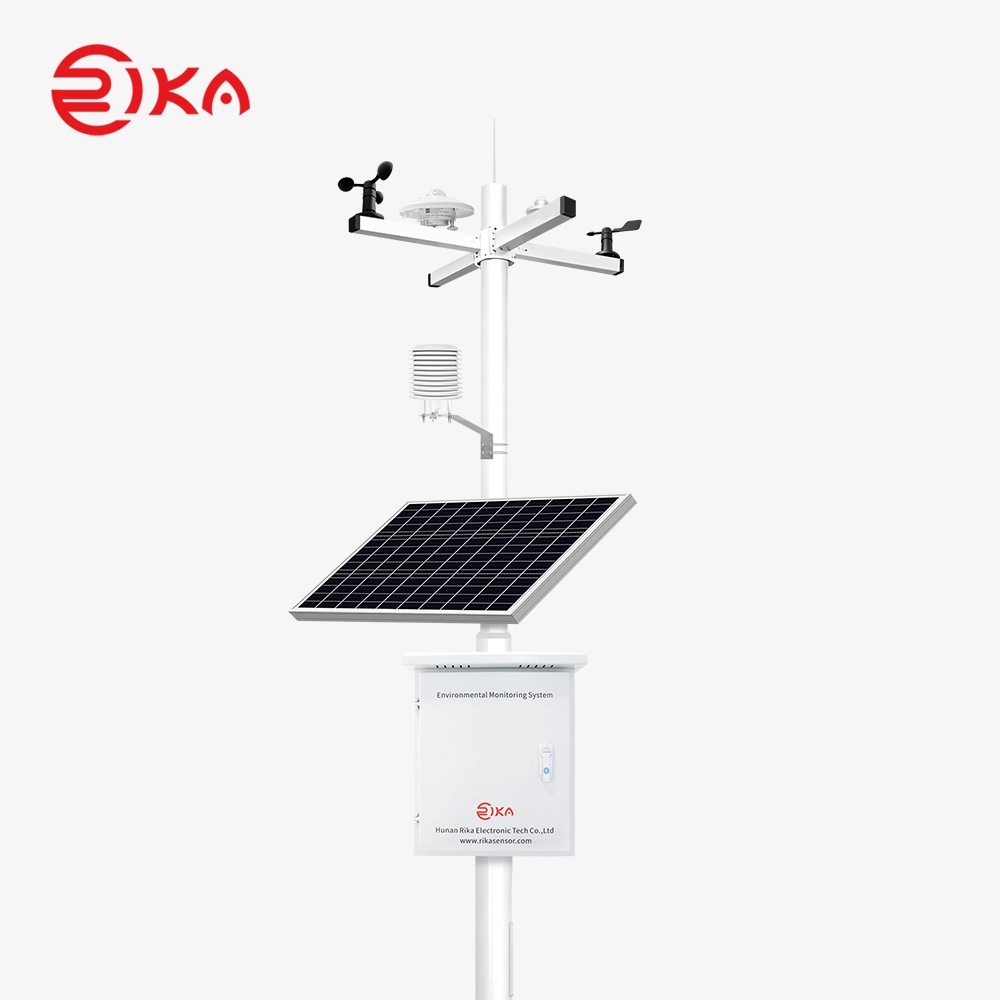

RK900-01 Automatic weather station for PV
PRODUCT DESCRIPTION
RK900-01 PV environment automatic weather station is an intelligent monitoring system specially designed for photovoltaic power stations. By integrating high-precision sensors and IoT technology, the key environmental parameters related to the operation of photovoltaic power station are collected and analyzed in real time, providing data support for the efficiency optimization and safety management of the power station.
System unit
Item | Details | Remarks |
Data logger | Meteorological data acquisition, computational analysis, display, storage and communication (4G/Ethernet/WIFI), 7″LCD, Support downloading historical data locally | Either-or |
Communication gateway | Rs485 gateway, 4g gateway, wifi gateway, and ethernet gateway optional | |
Sensors and cables | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, panel temperature, total solar radiation, scattered radiation, direct radiation, etc | Depends on user requirements |
Multilayer radiation shield (shutter box) | For install atmospheric temperature and humidity sensor | |
Protective box | For the installation of data loggers, solar charging controller, battery / power supply, etc | |
Solar energy power supply system | Including solar panels and bracket, solar charging controller, battery | Optional |
Vertical rod and mounting parts | Height: 2.5m, including lightning protection device, other height can be customized |

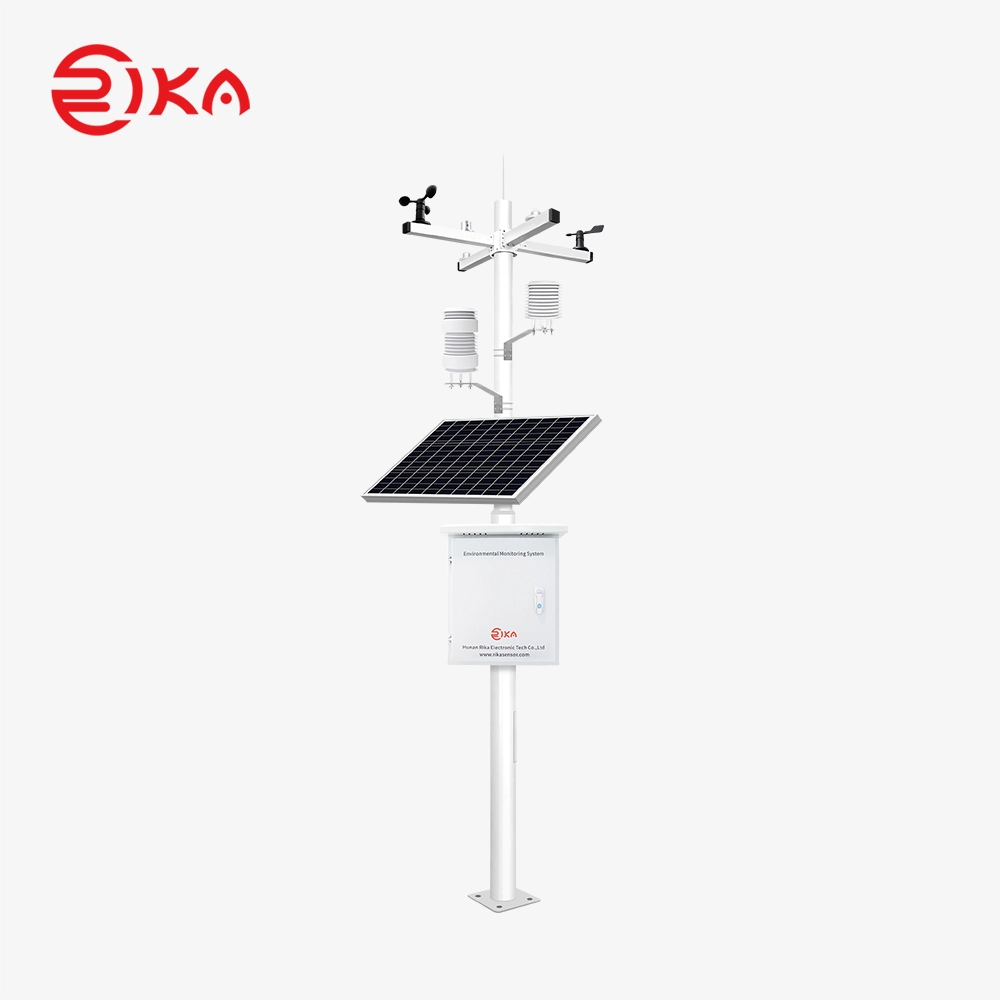

RK900-01 Agricultural Automatic Meteorological Station
PRODUCT DESCRIPTION
RK900-01 Agricultural Automatic Meteorological Station, designed for farmland, greenhouses, orchards and other agricultural scenes, aims to collect, store and transmit meteorological data in real time, provide accurate environmental monitoring support for agricultural production, help disaster warning, irrigation decision-making and crop management, and support precision agricultural management. The system has the characteristics of high precision, low power consumption, modular expansion, etc., to meet the needs of long-term and stable operation in the field, and the product has passed the testing and identification of China Agricultural Machinery Institute.
System unit
Item | Details | Remarks |
Data logger | Meteorological data acquisition, computational analysis, display, storage and communication (4G/Ethernet/WIFI), 7″LCD, Support downloading historical data locally | Either-or |
Communication gateway | Rs485 gateway, 4g gateway, wifi gateway, and ethernet gateway optional | |
Sensors and cables | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, panel temperature, total solar radiation, scattered radiation, direct radiation, etc | Depends on user requirements |
Multilayer radiation shield (shutter box) | For install atmospheric temperature and humidity sensor | |
Protective box | For the installation of data loggers, solar charging controller, battery / power supply, etc | |
Solar energy power supply system | Including solar panels and bracket, solar charging controller, battery | Optional |
Vertical rod and mounting parts | Height: 2.5m, including lightning protection device, other height can be customized |

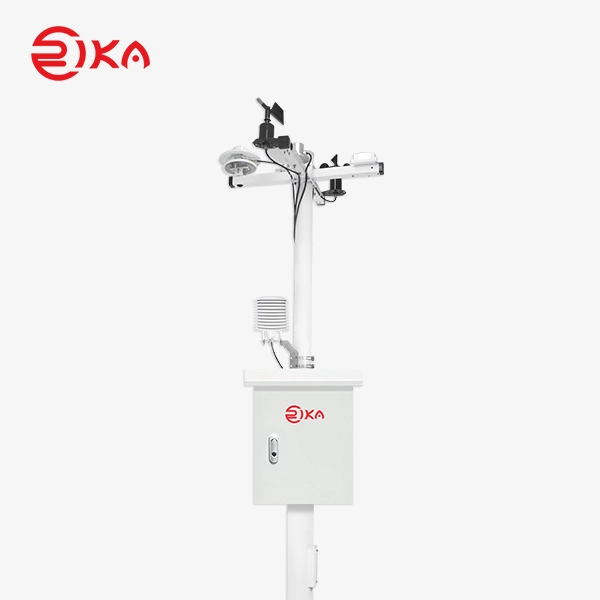

RK900-01 Automatic Weather Station Meteorological Monitoring Station
PRODUCT DESCRIPTION
RK900-01 Automatic Weather Station is used for atmospheric temperature, relative humidity, atmospheric pressure,wind speed & direction,solar radiation,light,rainfall,soil temperature and humidity parameters measurement.The station consists of various types of sensors, LCD screen, meteorological data collector, chassis, support and other parts.It can be widely used in meteorology, hydrology, agriculture, forestry, scientific research and other fields.
SPECIFICATIONS
Parts | Details | Note |
Data logger | Meteorological data collection, display, storage and communications | |
Sensors & cable | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user’s requirements) | |
Meteorological monitoring software | Use to real-time display, analysis and storage data on the PC | Attached |
Multi-plate radiation shield | Used to install the atmospheric temperature, atmospheric humidity and atmospheric pressure sensors | |
Tripod & accessories | Height: 2.5m typ.,304SS or | |
Protective box | Used to install data logger, solar charge controller and battery, stainless steel or steel with coating | |
110VAC/220VAC adapter | Optional when using AC power supply | |
RS232 cable | 2m | |
RS485 cable | 2m | |
USB to RS232 converter | Used to connect PC without RS232 serial port | |
RS232-RS485 converter | Signal Conversion for RS485 and RS232 | |
U disk | Used for data storage | optional |
GPRS module | Used for wireless data transmission, need to match with the local mobile communication network | optional |
WIFI module | Used for wireless data transmission, need for wireless networking | optional |
Ethernet module | Used for wireless data transmission, need for cable network | optional |
LED screen | Size and display content can be customized | optional |
Solar power supply system | Include photovoltaic panels(60W), solar charge controller, 38AH battery (Can’t be transported by air. Suggest users to bring their own) | optional |
Lightning protection device | Contain the lightning rod, connecting wires and grounding angle steel | optional |
Windbreak wire | Used for fixing 10m support rod | |
Base fixed steel cage | Used for fixing 10m support rod |
