Traffic Sensor

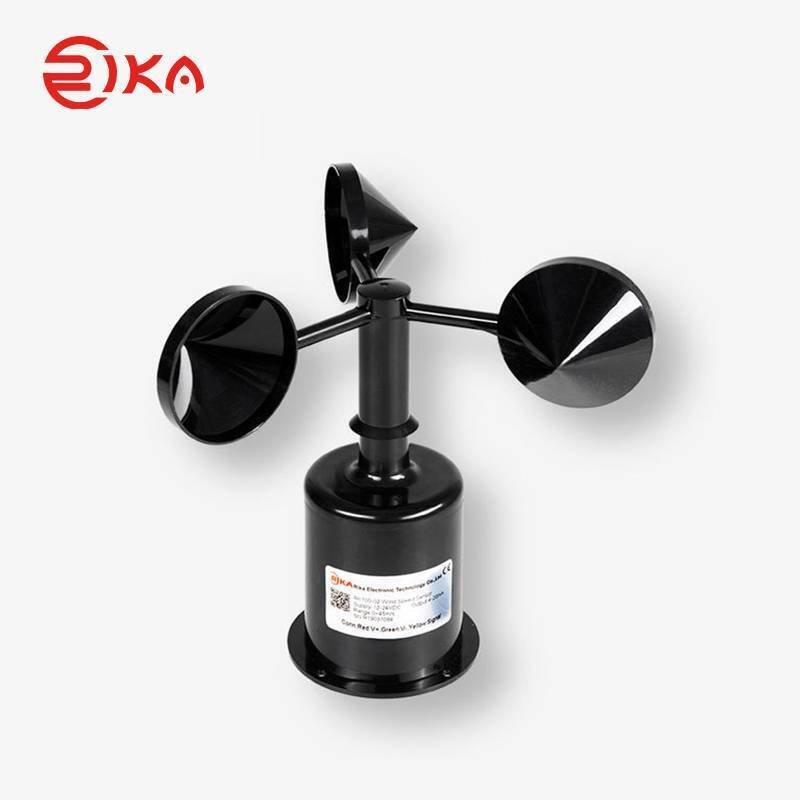

RK100-02 Plastic Wind Speed Sensor Wind Anemometer
PRODUCT DESCRIPTION
The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups of this wind sensor are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer sensor can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas. If you are looking for a professional wind speed sensor, can consider Rika RK100-02 cup anemometer wind sensor.
SPECIFICATIONS
Output | Pulses(PNP) | 4-20mA | 0-5V | RS485 |
Supply Voltage | 5V，12V-24V | 5V，12V-24V | 5V，12V-24V | 5V，12V-24V |
Load Capacity | >1kΩ,default:high level:5V | <500Ω(typ 250Ω) | > 1kΩ |
|
Range | 0-45m / s | 0-45m / s | 0-45m / s | 0-45m / s |
| Accuracy | ±(0.3+0.03V)m/s; (V is the current wind speed) | |||
Resolution | 0.1m/s | |||
Starting Threshold | <0.5m/s | |||
Limit wind speed | 50m/s | |||
Ingress Protection | IP65 | |||
Operating Temperature | -40℃〜+ 50℃ | |||
Cable Grade | Nominal voltage:300V ,Temperature grade:80℃ | |||
Weight(unpacked) | 170g | |||
Dimension | Cup rotor:ø179mm,Height:160mm | |||
Main material | Carbon fiber | |||
Storage Condition | 10℃-50℃@20%-90%RH | |||

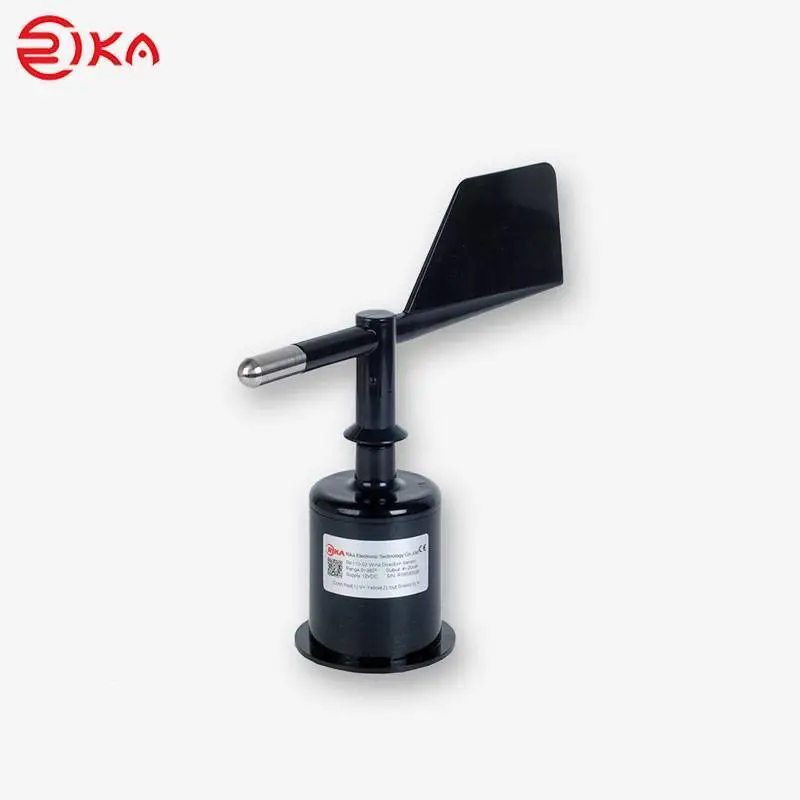

RK110-02 Wind Direction Sensor Wind Vane Sensor
PRODUCT DESCRIPTION
The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.
SPECIFICATIONS
Output | 4-20mA | 0-5V | RS485 |
Supply Voltage | 5V,12V-24V | 5V,12V,24V | 5V,12V-24V |
Load Capacity | <500Ω(typ 250Ω) | >1kΩ | |
Range | 0~360° | ||
Accuracy | ±3° | ||
Resolution | 1° | ||
Starting Threshold | <0.5m/s | ||
Limit wind speed | 50m/s | ||
Ingress Protection | IP65 | ||
Operating Temperature | -40℃~+50℃ | ||
Cable Grade | Nominal voltage: 300V, Temperature grade: 80℃ | ||
Weight(unpacked) | 195g | ||
Dimension | Turning Radius:147mm,Height:199mm | ||
Main material | Carbon fiber | ||
Storage Condition | 10℃-50℃@20%-90%RH | ||

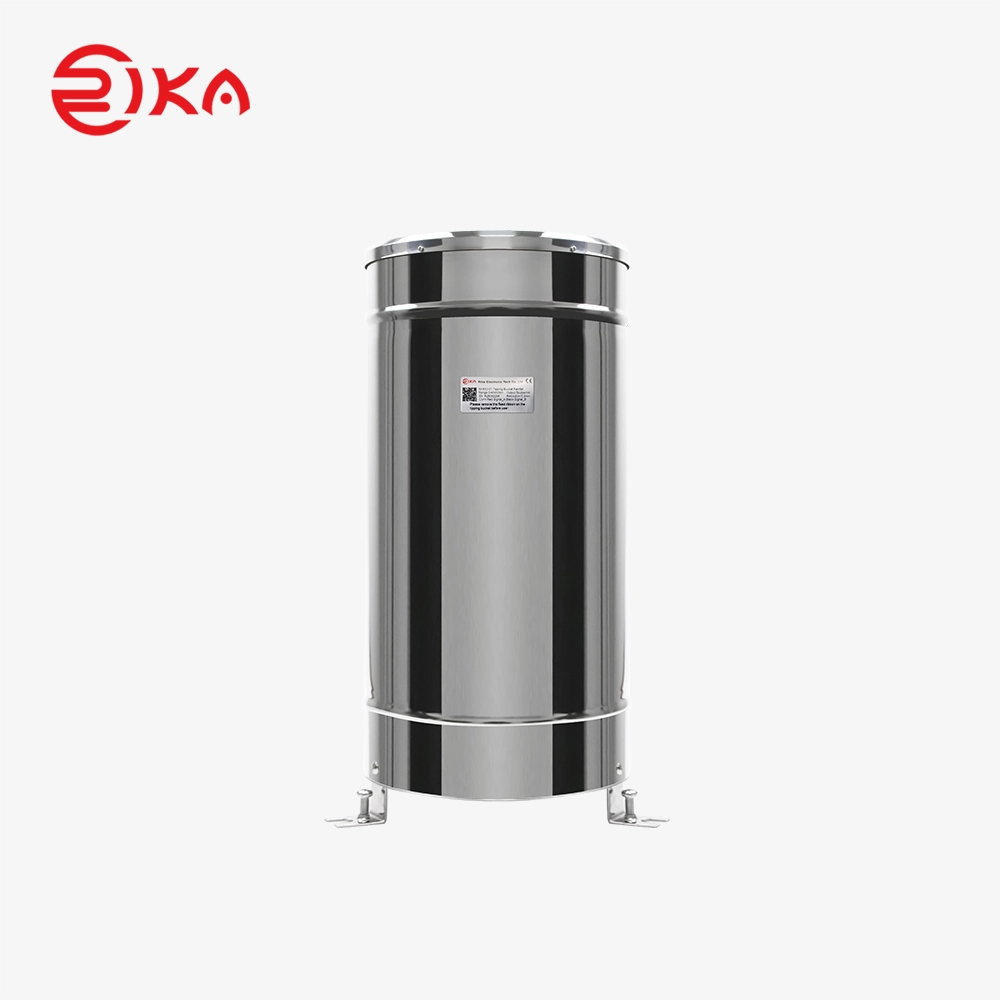

RK400-01 Metal Tipping Bucket Rainfall Sensor Rain Gauge
PRODUCT DESCRIPTION
The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.
SPECIFICATIONS
ltem | Technical Specification |
Rainfall collector | φ200mm,40-45° |
Measured rainfall intensity | Max:4mm/min |
Allow rainfall intensity | Max:10mm/min |
Resolution | 0.2mm |
Accuracy(2mm/min) | ±4%(Indoor static test,rain intensity of 2mm/min) |
Maximum load voltage | 30VDC(pulse output) |
Maximum load current | 20mA(pulse output) |
Output | Reed switch pulses,RS485(12-24VDC supply) |
Operating temperature(no freeze) | 0-70℃ |
Main material | Collector:304SS,tipping bucket:ABS |
Tipping bucket | Single |
Collector filter | Removable filter(prevent leaves and sundries) |
Bird spikes | Optional |
Heating(optional) | 200W@220V |
Weight(unpacked) | 3.5kg |

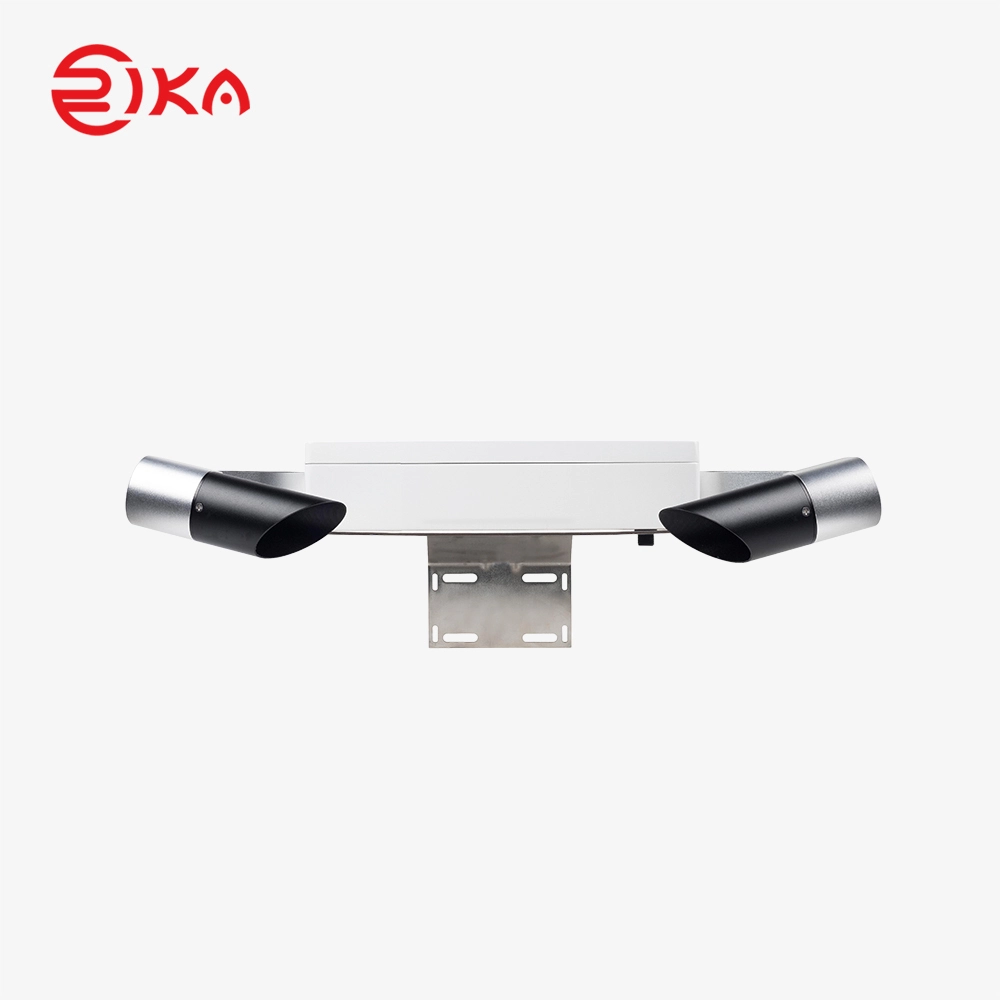

RK300-10 Visibility sensor Type A
PRODUCT DESCRIPTION
The forward scatter measurement principle and unique design ensure the output accurate and reliable inall weather conditions and will not be influenced by local lights sources, even the flash. With ameasurement range of 10m to 10km(Can be extended to 75km), the sensor is constructed from robustaluminum,suitable for use in road and aviation constructed from robust aluminum.Finished with a highquality powder coat, the sensor will provide years of reliable service. Heating of the optical windows andsensor hoods is provided as standard allowing use in the harshest of conditions. Both optical windowsare monitored for contamination and the visibility output is automatically compensated to reducemaintenance requirement.
SPECIFICATIONS
Item | Technical Specification |
Type | Type A |
Measurement Range | 10m-10km(Typ.) , |
Shell Material | Aluminum alloy |
Weight(unpacked) | 3kg |
Weather Phenomenon | optional |
Measurement elements | Identify four different types of precipitation: drizzle, light rain, moderate rain, and heavy rainIdentify |
Measurement principle | Forward scatter |
Resolution | 1m |
Accuracy | ±10%(10m-10km) |
Data update rate | 10s |
Supply | 12-24VDC |
Output | RS485,RS232 |
Power consumption | ≤5W |
Installation | Hoop installation |
Lifetime | >10 Years |
Operating temperature | -40℃-+50℃@0-100%RH( No condensation) |

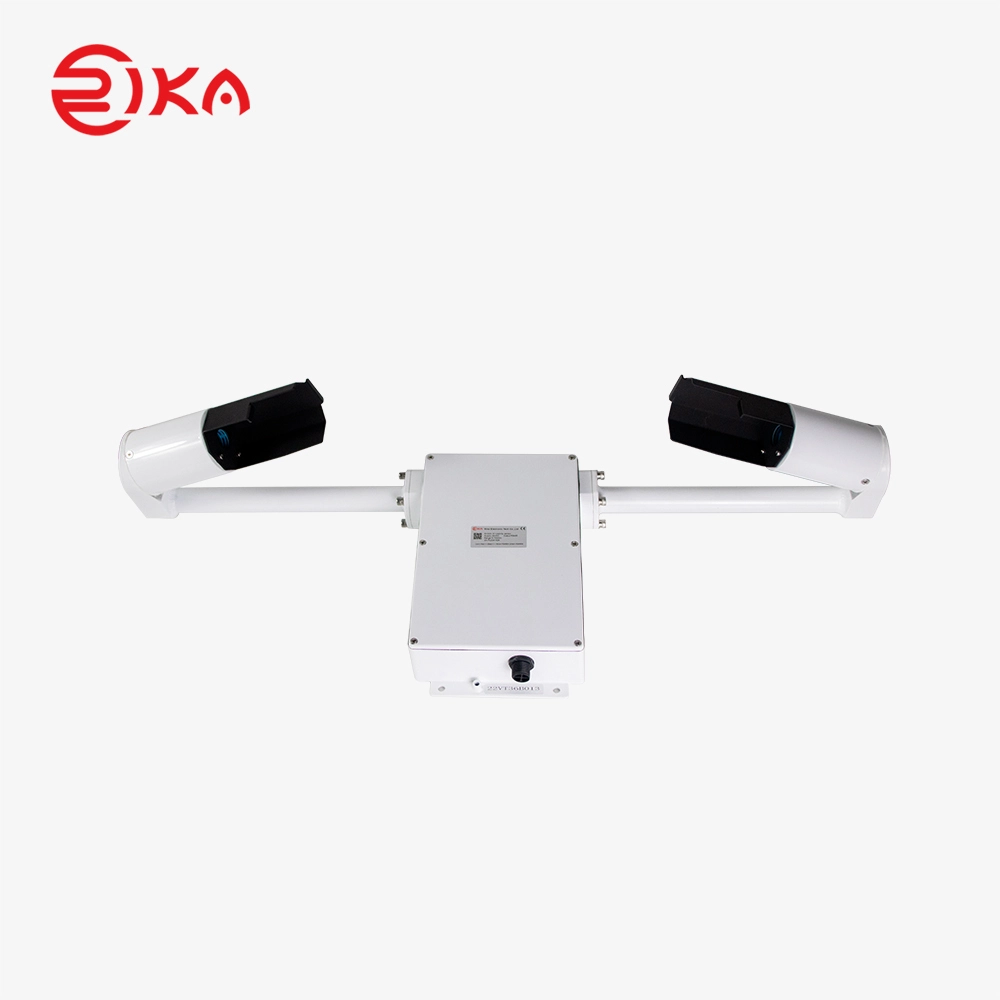

RK300-10 Visibility Sensor Type B
PRODUCT DESCRIPTION
The RK300-10 Type B Visibility Sensor, developed by Rika Sensor, is a professional atmospheric monitoring device optimized for fixed-range high-precision detection. Leveraging the forward scatter optical principle, it delivers stable, accurate visibility data and optional multi-dimensional weather phenomenon recognition, making it the preferred choice for meteorological observation, transportation infrastructure, and industrial environmental monitoring that demand consistent performance within the 10m–10km range. It provides high stability and sensitivity in harsh environments.
SPECIFICATIONS
Item | Technical Specification |
Type | Type B |
Measurement Range | 10m-10km |
Shell Material | Aluminum alloy |
Weight(unpacked) | 5.8kg |
Weather Phenomenon | optional |
Measurement elements | Identify four different types of precipitation: drizzle, light rain, moderate rain, and heavy rainIdentify |
Measurement principle | Forward scatter |
Resolution | 1m |
Accuracy | ±10%(10m-10km) |
Data update rate | 10s |
Supply | 12-24VDC |
Output | RS485,RS232 |
Power consumption | ≤5W |
Installation | Hoop installation |
Lifetime | >10 Years |
Operating temperature | -40℃-+50℃@0-100%RH( No condensation) |

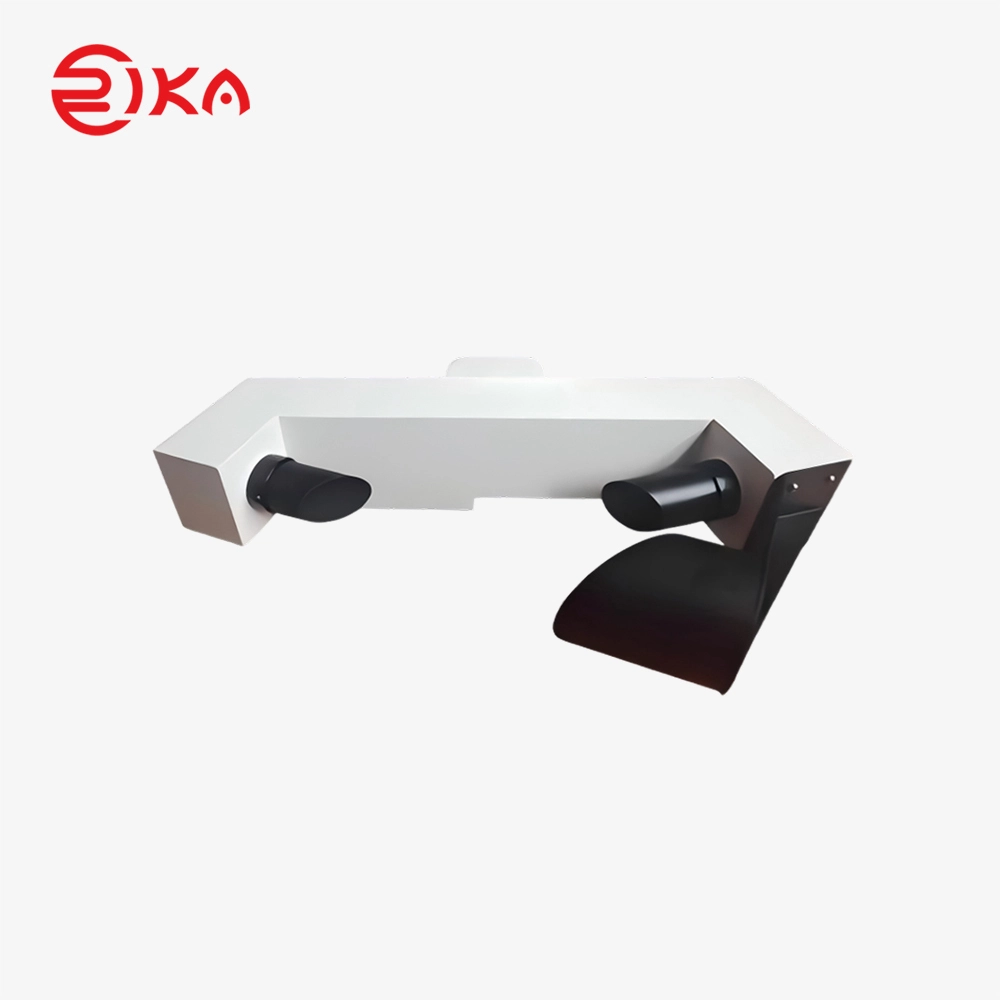

RK300-10 Visibility Sensor Type C
PRODUCT DESCRIPTION
Developed by Rika Sensor, the RK300-10 Type C Visibility Sensor is a heavy-duty atmospheric monitoring device engineered specifically for highly saline and humid environments. Built with a stainless steel shell and forward scatter measurement technology, it delivers reliable visibility data and integrated weather phenomenon detection, making it the ideal solution for coastal meteorology, port operations, and offshore infrastructure monitoring.
Forward scatter measurement:
Fog, rain, and salt spray can reduce visibility at coastal ports to tens of meters. The RK300-10 detects scattered light from suspended particles and calculates visibility every 10 seconds. Temperature compensation keeps readings stable, and RS485/RS232 outputs integrate directly into monitoring systems.
Stainless steel shell:
Coastal ports, offshore platforms, and tropical stations expose sensors to salt corrosion, condensation, and electrical interference. Reliable operation requires corrosion-resistant materials, sealed optics, humidity-tolerant electronics, and long-term stability under harsh conditions. Stainless-steel housing resists salt corrosion, sealed optics prevent condensation, and electronics operate reliably across high humidity and wide temperature ranges. Ensures stable visibility readings for ports, offshore platforms, and coastal monitoring.
SPECIFICATIONS
Item | Technical Specification |
Type | Type C |
Measurement Range | 10m-10km(Typ.),10m-30km |
Shell Material | Stainless steel (Suitable for highly saline and humid environment) |
Weight(unpacked) | 12kg |
Weather Phenomenon | / |
Measurement elements | Identify four different types of precipitation: drizzle, light rain, moderate rain, and heavy rain.Identify types of states such as rain, snow, thin fog (smoke), thick fog (smoke), etc.Measure the intensity of precipitation: Measurement range: 0-200mm/h Resolution: 0.1mm (rainfall) |
Measurement principle | Forward scatter |
Resolution | 1m |
Accuracy | ±10%(10m-10km) |
Data update rate | 10s |
Supply | 12-24VDC |
Output | RS485,RS232 |
Power consumption | ≤5W |
Installation | Hoop installation |
Lifetime | >10 Years |
Operating temperature | -40℃-+50℃@0-100%RH( No condensation) |

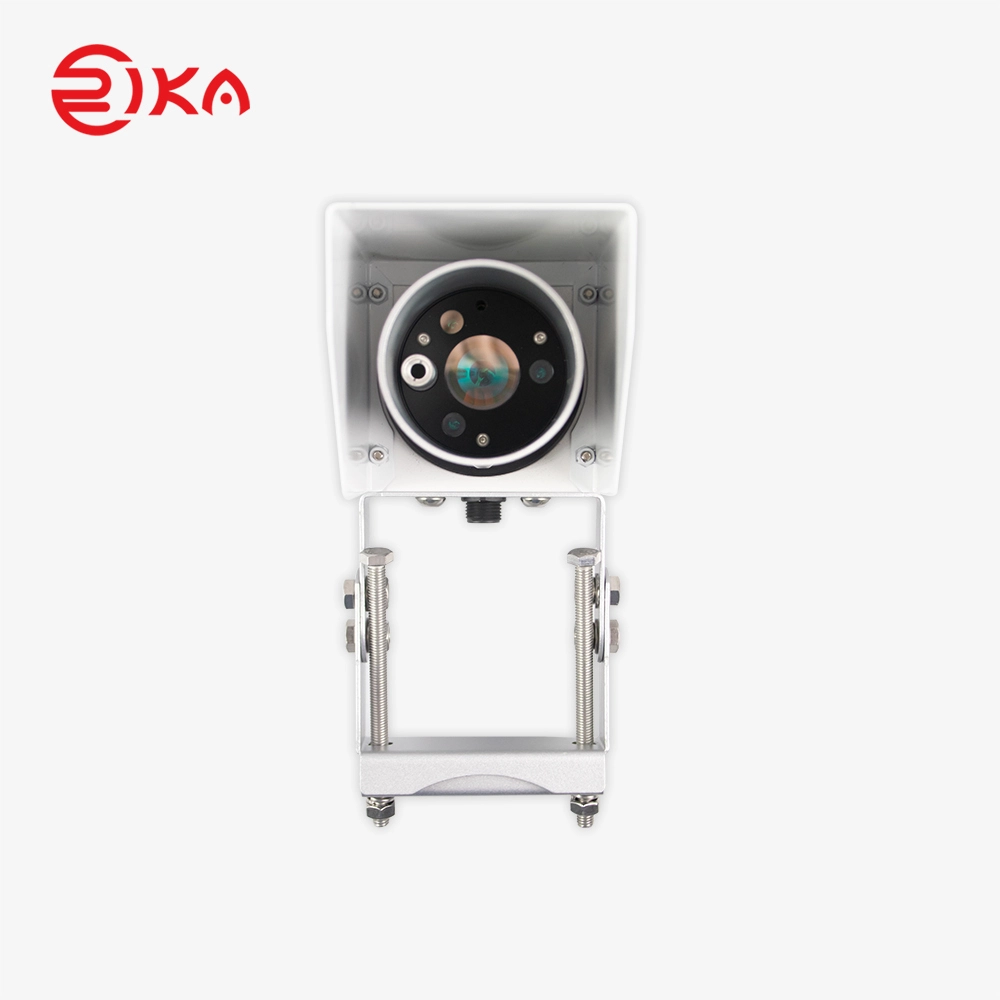

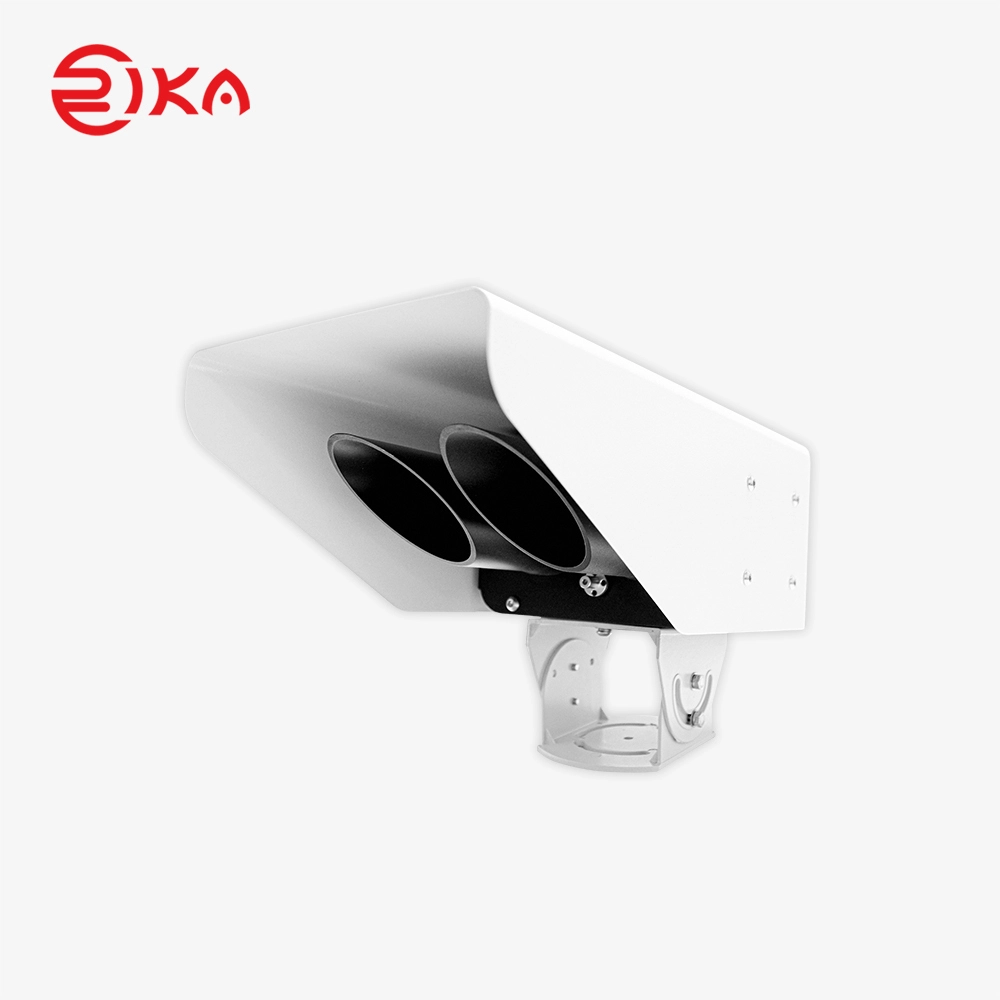

RK500-55 Type A road condition sensor
PRODUCT DESCRIPTION
The RK500-55 Type A is a high-performance non-contact road surface condition detector developed by Hunan Rika Electronic Tech Co., Ltd. It integrates advanced remote sensing and multispectral measurement technologies to monitor pavement conditions without physical contact—eliminating pavement damage (from embedded sensors) and traffic disruptions during installation. Distinguished by its longer measuring distance (2-15m) and wider ice/snow measurement range (0-10mm), Type A is ideal for scenarios requiring large-scale or long-distance road monitoring (e.g., highways, open road sections), while maintaining low maintenance, rugged environmental adaptability, and radiation-free safe operation.
SPECIFICATIONS
Item | Technical Specification | |
Type | Type A | Type B |
Measuring Distance | 2-15m | 2-8m |
Measuring Range | Ice:0.00—10mm | Ice:0—2mm |
Snow:0.00—10mm | Snow:0—2mm | |
Water:0.00—10mm | ||
Level of Grip:0.01—0.82 | ||
Road surface temperature:-40°℃ to+80℃(optional) | ||
Power supply | 12-24VDC | |
Measuring diameter | 25cm | |
Angle | 30-80° | |
Power consumption | 5W(Including lens heating) | |
Operating temperature | -40℃~+80℃ | |
Operating humidity | 0 to 100% | |
Accuracy | 0.1mm | |
Resolution | 0.01mm | |
Lens contamination detection | Automatic lens contamination level detection and compensation | |
Road surface | Concrete,asphalt pavement | |
Communication interface | RS485 | |
MTTF | 10 years | |
Safety | Infrared measuring technology,no radiation | |
RK500-55 Type B Non contact road condition sensor
PRODUCT DESCRIPTION
SPECIFICATIONS
Item | Technical Specification | |
Type | Type A | Type B |
Measuring Distance | 2-15m | 2-8m |
Measuring Range | Ice:0.00—10mm | Ice:0—2mm |
Snow:0.00—10mm | Snow:0—2mm | |
Water:0.00—10mm | ||
Level of Grip:0.01—0.82 | ||
Road surface temperature:-40°℃ to+80℃(optional) | ||
Power supply | 12-24VDC | |
Measuring diameter | 25cm | |
Angle | 30-80° | |
Power consumption | 5W(Including lens heating) | |
Operating temperature | -40℃~+80℃ | |
Operating humidity | 0 to 100% | |
Accuracy | 0.1mm | |
Resolution | 0.01mm | |
Lens contamination detection | Automatic lens contamination level detection and compensation | |
Road surface | Concrete,asphalt pavement | |
Communication interface | RS485 | |
MTTF | 10 years | |
Safety | Infrared measuring technology,no radiation | |

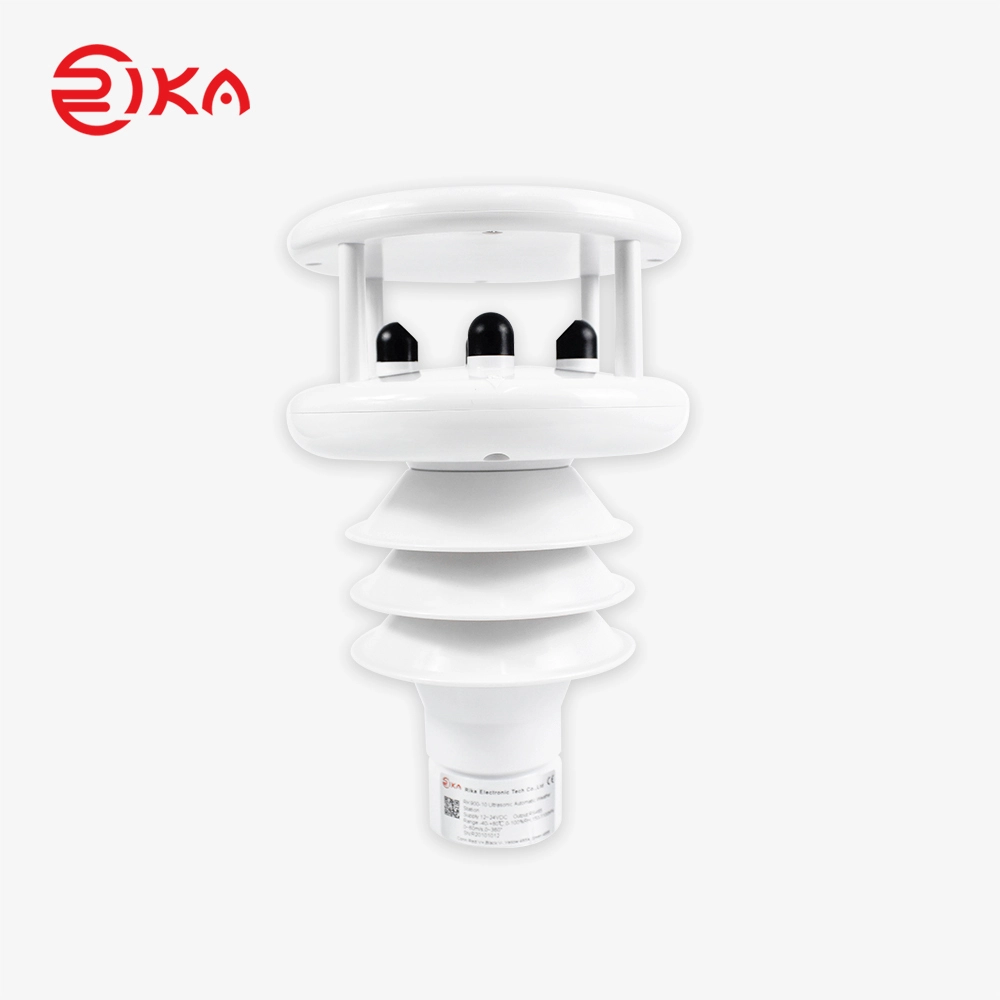

RK900-10 Ultrasonic Automatic Weather instrument
PRODUCT DESCRIPTION
RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, Illuminance, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield,wind speed and direction of ultrasonic principle.24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.Different functional modules and measurement parameters can be combined according to user needs.
SPECIFICATIONS
Measure item | Principle | Range | Resolution | Accuracy |
Wind speed | Ultrasonic | 0-60m/s | 0.01m/s | ±2% |
Wind direction | Ultrasonic | 0-360º | 1° | ＜3° |
Atmospheric temperature | MEMS | -40-+80℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | MEMS | 0-100%RH | 0.1%RH | ±3%RH |
Atmospheric pressure | MEMS | 300-1100hPa | 0.1hpa | ±1hPa |
Precipitation | Radar | 0-200mm/hr. | 0.1mm | ±5%(@ wind speed≤5m/s) |
Solar radiation | Silicon-cell | 0-2000W/m2 | 0.1W/m2 | ±5%(@ vertical irradiation) |
Illuminance | Silicon-cell | 0-200000lux | 0.1lux | ±5%(@ vertical irradiation) |
Dust concentration (PM2.5/PM10) | Photoelectric scattering | 0-2000μg/m3 | 1μg/m3 | ±5% |
Noise | MEMS | 30-130dB | 0.1dB | ±3dB |
Visibility | Forward scattering | 20-10000m | 1m | ±15% |
GPS① | Longitude, Latitude, Speed,Heading, Real wind speed | |||
Electronic Compass② | Real wind direction | |||
Inclination measurement | Horizontal X-axis direction，Horizontal Y-axis direction,Vertical Z-axis direction | |||
Supply | 12-24VDC | |||
Output | RS485,RS232,SDI-12 | |||
Communication Protocol | Modbus-rtu(default),NMEA-0183,SDI-12 | |||
Data update cycle | 1s(default),other optional | |||
Power consumption | <3W,auto-heating power:6W | |||
Operating temperature | -40-+80℃ | |||
EMC | EN61000-6-3, EN61000-3-3 | |||
IP Rating | IP66 | |||
Main material | ASA, Aluminum alloy base(optional) | |||
①,② Optional when installed on moving objects
