Data Logger

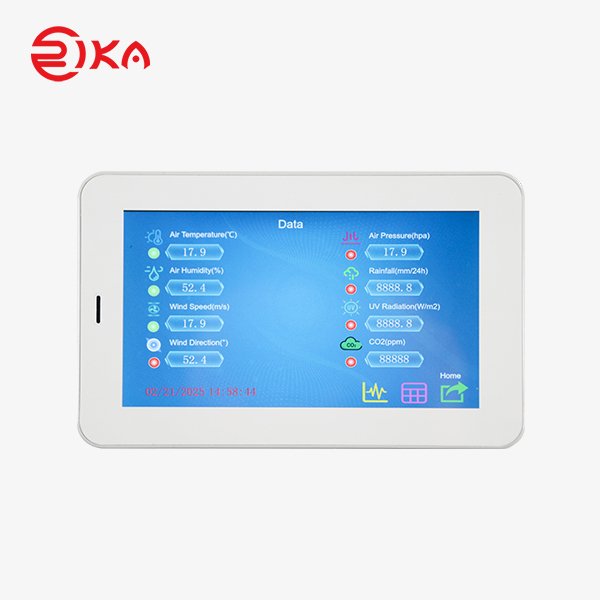

RK600-07C Data Logger of Automatic Weather Station
PRODUCT DESCRIPTION
RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.
SPECIFICATIONS
Item | Details |
Display | 7” color touch screen with backlight |
resolving power | 1024*600 |
Touch type | Resistive type |
Screen sleep | Support |
Backlight adjustable | Support |
Communication status indication | Support |
Internal storage | 4GB+512M |
Communication interface | COM1:RS232/COM2:RS485/COM3:RS485 |
network | Ethernet (standard), 4G, WIFI ,LoRaWan(optional) |
Communication protocol | Modbus-Rtu、Modbus-TCP、HTTP、MQTT |
Supply | DC12-24V, AC100-240V（adapter） |
Measurement parameters | 32 max |
Recording interval | 1-240min settable |
U_disk download | Support |
Relay output | customized |
Average consumption | <7W |
CPU | Quad core A7 processor |
Power protection | Equipped with surge protection and anti reverse protection |
Withstanding voltage | 500VAC |
Insulation impedance | Exceeding 50M Ω @ 500VDC |
working temperature | -10-+60℃ |
Storage environment | -20 ~70℃ |
CE | EN55022 & EN55024 |
Shell | 400*500*200mm, Support solar power supply |

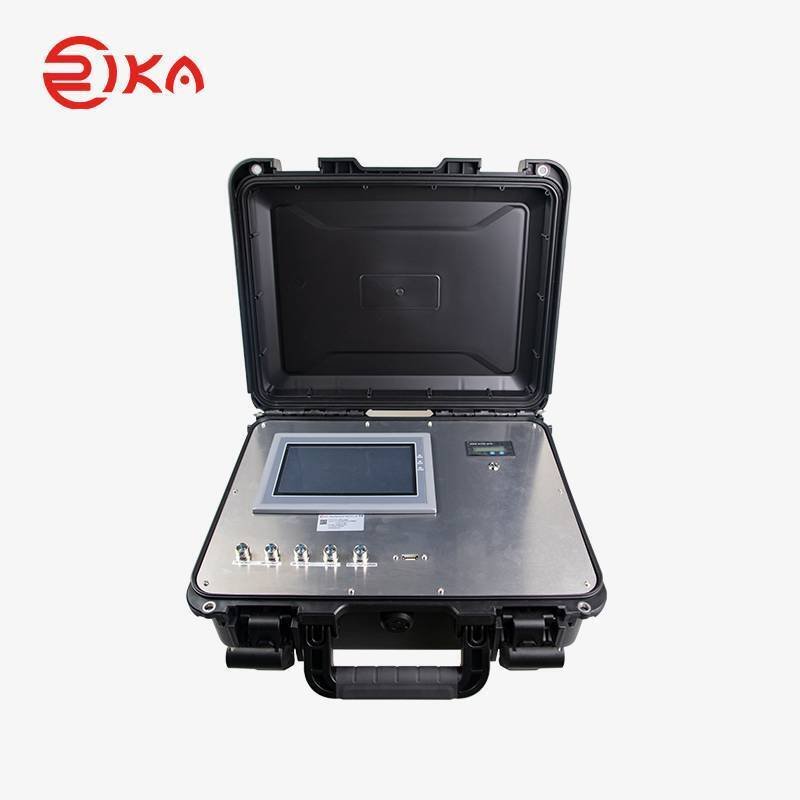

RK600-09 Portable Soil Moisture Measurement Recorder
PRODUCT DESCRIPTION
Portable Soil Moisture Measurement Recorder, has the functions of data collection, storage, transmission and management, and is the core component of automatic soil moisture measurement. Its main features are as follows: Firstly, it can connect 32 parameters at the same time. Secondly, it is able to touch screen setting and color LCD display. What’s more, it is capable of continuously and steadily monitor and display soil condition reliably for a long time with high efficiency and precision, providing important analysis data for agricultural planting. Finally, it can also communicate with the server through wired or wireless connection, and the communication protocol is available for secondary development.
SPECIFICATIONS
| ITEM | Technical Specifications |
| Display | 7” color backlit touchscreen |
| Operating system | Android4.0.3 |
| Screen sleep | Support |
| Backlight adjustable | Support |
| Communication status indication | Support |
| Internal memory | 64M, data is stored every hour, can be stored for 6 years; data is stored every 10 minutes, can be stored for 1 year; data is stored every 1 minute, can be stored for 3 months |
| Sensor interface | Waterproof connector |
Communication Interface | RS485, Ethernet, GPRS/2G/3G/4G, WIFI |
| LoRa (Optional) | |
| Zigbee (Optiona) | |
| Communication protocol | Modbus-Rtu |
| Power supply | Solar power, DC12-24V, AC100-240V |
| Built-in battery | 12.5VDC, 12AH |
| Monitoring parameters | 32 max. |
| Logging interval | 1-240 minutes can be set |
| U_ disk download | Support |
| Relay output | Customizable |
| Average power consumption | <3.5W |
| CPU | ARM Cortex-A8 (720MHZ) |
| Electrostatic discharge | Class 4, ±8kV |
| Operating temperature | -40-+75℃ |
| Shock | 10-25Hz (X,Y,Z 2g@30min) |
| FCC | Class A |
| CE | EN55022 & EN55024 |
| Product Size | 400*500*200mm, Support solar power |
| Protection class | IP55 |
