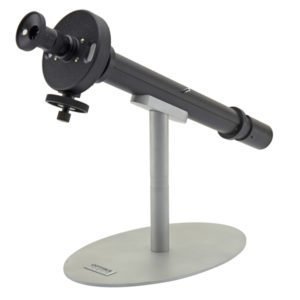

The POL-X polarimeter from Optika precisely determines the optical rotation of substances, quickly and easily. POL-X measures the optical rotation over the entire measuring range at the same high accuracy. It’s suitable for many applications, from routine measurements to demanding experiments for innovative projects. With this new polarimeter, Optika meets the requirements of the pharmaceutical, cosmetics, chemical and medical industries and creates an ideal tool for R&D applications.
POLARIMETRY & REFRACTOMETRY
POLARIMETERS
POL-X
Description
Specifications
Documents
Description
Specifications
Measuring range of optical rotation: ± 180°
Resolution: 1°
Accuracy: 0.05°
Magnification factor of the glass: 4x
Light source: Monochromatic LED, 1.2 W, ld = 590 nm (equivalent to sodium lamp)
Length of test tubes: 100 mm and 200 mm
Weight: 1.7 Kg
Overall dimensions: 450x180x320 mm
Accessories:
POL-1.2 – 100 mm polarimeter tube
POL-1.3 – 200 mm polarimeter tube
Documents
REFACTROMETERS

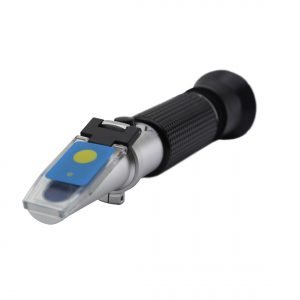

HR Series
HR -110N
Description
Specifications
Documents
Description
Hand Refractometer, 0-20% Brix, ATC, Built-in LED Illuminator
Recommended for fruit juice analysis.
Specifications
Hand Refractometer, 0-20% Brix, ATC, Built-in LED Illuminator.
Recommended for fruit juice analysis.
Measure range:
0-20% Brix.
Min. Div:
0.1% Brix.
Accuracy:
±0.10 Brix
Documents
HR-130N
Description
Specifications
Documents
Description
Hand Refractometer, 0-32% Brix, ATC, Built-in LED Illuminator
Recommended for the analysis of fruit juice and jam
Specifications
Hand Refractometer, 0-32% Brix, ATC, Built-in LED Illuminator
Recommended for the analysis of fruit juice and jam
Measure range:
0-32% Brix.
Min. Div:
0.2% Brix.
Accuracy:
±0.2 Brix
Documents
HR-140N
Description
Specifications
Documents
Description
Hand Refractometer, 0-32% Brix, ATC, Triple Scale, Built-in LED Illuminator
Recommended for wine analysis
Specifications
Hand Refractometer, 0-32% Brix, ATC, Triple Scale, Built-in LED Illuminator
Recommended for wine analysis
Measure range:
0-32% Brix.
Min. Div:
0.2% Brix.
Accuracy:
±0.2 Brix
Measure range:
0-140 °Oe
Min. Div:
1 °Oe
Accuracy:
±1 °Oe
Measure range:
0-27 KMW(Babo)
Min. Div:
0.2 KMW(Babo)
Accuracy:
±0.2 KMW(Babo)
Documents
HR-150N
Description
Specifications
Documents
Description
Hand Refractometer, 0-80% Brix, Double Scale, Built-in LED Illuminator
Recommended for fruit juice analysis
Specifications
Hand Refractometer, 0-80% Brix, Double Scale, Built-in LED Illuminator
Recommended for fruit juice analysis
Measure range:
0-80% Brix.
Min. Div:
0.5% Brix.
Accuracy:
±0.5 Brix
Documents
HR-160N
Description
Specifications
Documents
Description
Hand Refractometer for Urine and Protein, ATC, Built-in LED Illuminator
Recommended for clinical analysis
Specifications
Hand Refractometer for Urine and Protein, ATC, Built-in LED Illuminator
Recommended for clinical analysis
Measure range:
1.000-1.050 sg
Min. Div:
0.002 sg
Accuracy:
± 0.002 sg
Measure range:
1.3300 RI – 1.3600 RI
Min. Div:
0.0005 RI
Accuracy:
± 0.0005 RI
Measure range:
0-12 g/dl
Min. Div:
0.2 g/dl
Accuracy:
± 0.2 g/dl
Documents
HR-170N
Description
Specifications
Documents
Description
Hand Refractometer, ATC, Built-in LED Illuminator
Recommended for analyzing antifreeze and battery fluids
Specifications
Hand Refractometer for Battery and Antifreeze, ATC, Built-in LED Illuminator
Recommended for analyzing antifreeze and battery fluids
Measure range:
E: -60° F – 32° F
Min. Div:
10° F
Accuracy:
± 10°F
Measure range:
P: -50° F – 32° F
Min. Div:
10° F
Accuracy:
± 10°F
Measure range:
B: 1.15-1.30 sg
Min. Div:
0.01 sg
Accuracy:
± 0.1sg
Documents
HR-180N
Description
Specifications
Documents
Description
Hand Refractometer, ATC, Built-in LED Illuminator.
Recommended for liquor analysis.
Specifications
Hand Refractometer, ATC, Built-in LED Illuminator
Recommended for liquor analysis
Measure range:
0-25% Vol
Min. Div:
0.1% Vol
Accuracy:
±0.1 Vol
Measure range:
0-40% Brix
Min. Div:
0.2% Brix
Accuracy:
±0.2 Brix
Documents
HR-190N
Description
Specifications
Documents
Description
Hand Refractometer, 0-28% Salinity, ATC, Built-in LED Illuminator
Recommended for salinity analysis.
Specifications
Hand Refractometer, 0-28% Salinity, ATC, Built-in LED Illuminator
Recommended for salinity analysis.
Measure range:
0-28% Salinity
Min. Div:
0.2%
Accuracy:
±0.2%
Documents

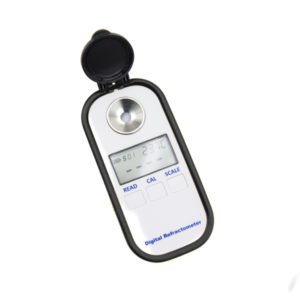

HRD Digital Refractometer
HRD-300N
Description
Specifications
Documents
Description
Digital Refractometer, Brix and Refractive Index.
Recommended for fruit juice analysis
Specifications
Digital Refractometer, Brix and Refractive Index
Recommended for fruit juice analysis
Measure range:
Brix 0-50%.
Min. Div:
0.10%
Accuracy:
±0.2 %
Measure range:
Reactive Index 1.3330-1.4200nD
Min. Div:
0.0001 nd
Accuracy:
± 0.0003 nD
Documents
HRD-400N
Description
Specifications
Documents
Description
Digital Refractometer, Brix, Salinity and Refractive Index
Recommended for salinity analysis.
Specifications
Measure range:
Brix 0-50%.
Min. Div:
± 0.1 %
Accuracy:
±0.2 %
Measure range:
Salinity 0.0-28.0%
Min. Div:
± 0.1%
Accuracy:
± 0.2 %
Measure range:
Reactive index 1.3330-1.4200 nD
Min. Div:
± 0.0001 nD
Accuracy:
± 0.0003 nD
Documents
HRD-500N
Description
Specifications
Documents
Description
Digital Refractometer for Urine, Serum Protein and Refractive Index
Recommended for clinical analysis.
Specifications
Measure range:
Urine SP.G 1.000-1050
Min. Div:
0.001
Accuracy:
±0.002
Measure range:
SERUM P. 0.12 g/dl
Min. Div:
0.1
Accuracy:
±0.2
Measure range:
Reactive index 1.3330-1.3900 nD
Min. Div:
±0.0001 nD
Accuracy:
±0.0003 nD
Documents

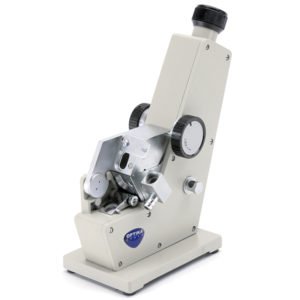

Abbe Refractometer
2WAJ
Description
Specifications
Documents
Description
This instrument measures the refractive index and mean dispersion values of transparent and translucent liquids or solids.
Refractive indices and mean dispersions are important optical constants of a substance and can be used to determine the optical performance, purity, concentration and dispersion etc. Therefore, the refractometer is an indispensable tool within a wide range of industries, such as petrological, pharmaceutical, chemical and sugar making industries, as well as in factories, colleges and in research institutes.
Specifications
Main prism:
Horizontal
Secondary prism:
Fitted on a hinge
Refraction index scale:
Nd 1.300 – 1.700
Precision:
Nd ± 0.0003
Division:
Nd 0.0005
Sugars scale:
0-95% from Nd 1.300 – 1.530
Precision:
0-50% = 0.2%; 51-95% = 0.1%
Division:
0,25%
Thermometer scale:
0°C – 70°C, div. 1°C
Weight:
4 Kg
Size:
140 x 100 x 235 mm
Documents
