Inspection & Industrial Microscopes
Professional Stereo Microscopes
SLX Series
SLX-1
Description
Specifications
Documents
Description
Cordless binocular stereomicroscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with turnable objective (2x-4x), FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use
Specifications
Head: Binocular, 45° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Achromatic 2x-4x with anti-fungus treatment.
Working distance: 100 mm.
Stand: High-grade, precision fixed with handle and focus.
Focusing: Rack and pinion focusing mechanism.
Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries (not included). Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Documents
SLX-2
Description
Specifications
Documents
Description
Cordless binocular stereozoom microscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with 0.7x…4.5x zoom, FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use
Specifications
Head: Binocular, 45° inclined; 360° rotating.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Working distance: 100 mm.
Stand: High-grade, precision fixed with handle and focus.
Focusing: Rack and pinion focusing mechanism.
Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries (not included). Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Documents
SLX-3
Description
Specifications
Documents
Description
Cordless trinocular stereozoom microscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with 0.7x…4.5x zoom, FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use
Specifications
Head: Trinocular (split ratio: 50/50), 45° inclined; 360° rotating.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Working distance: 100 mm.
Stand: High-grade, precision fixed with handle and focus.
Focusing: Rack and pinion focusing mechanism.
Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries (not included). Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Documents
SLX-4
Description
Specifications
Documents
Description
Binocular stereozoom microscope with extremely stable, long overhanging stand for observation of particularly large specimens. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Specifications
Head: Binocular, 45° inclined; 360° rotating.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Working distance: 100 mm.
Focusing: Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand.
Stand: Overhanging stand 420 mm high, 430 mm horizontal arm length, base 230×230 mm with following adjustments: heigh, longitudinal extension and head rotation angle (left-right).
Documents
SLX-5
Description
Specifications
Documents
Description
Trinocular stereozoom microscope with extremely stable, long overhanging stand for observation of particularly large specimens. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Specifications
Head: Trinocular, 45° inclined; 360° rotating.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Working distance: 100 mm.
Focusing: Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand.
Stand: Overhanging stand 420 mm high, 430 mm horizontal arm length, base 230×230 mm with following adjustments: heigh, longitudinal extension and head rotation angle (left-right).
Documents
SZ Series - Heads
SZX-B
Description
Specifications
Documents
Description
SZX Heads – Excellent Price/Performance Ratio For Any Laboratory.
Ideal for universities, experts & common routine lab requirements. 3D Greenough view for high resoluted images & large field depth. 22 mm field number and large working distance (up 110 mm). 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x. Simultaneous eyepiece & camera observation. Cost-effective solution for diversified applications.
Specifications
SZX Heads – Excellent Price/Performance Ratio For Any Laboratory
» Ideal for universities, experts & common routine lab requirements
» 3D Greenough view for high resoluted images & large field depth
» 22 mm field number and large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Simultaneous eyepiece & camera observation (on SZX-T)
» Cost-effective solution for diversified applications
Head: Binocular, 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/22 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1)
Working distance: 100 mm
Documents
SZX-T
Description
Specifications
Documents
Description
SZX Heads – Excellent Price/Performance Ratio For Any Laboratory. Ideal for universities, experts & common routine lab requirements, 3D Greenough view for high resoluted images & large field depth, 22 mm field number and large working distance (up 110 mm), 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x and cost-effective solution for diversified applications.
Specifications
SZX Heads – Excellent Price/Performance Ratio For Any Laboratory
» Ideal for universities, experts & common routine lab requirements
» 3D Greenough view for high resoluted images & large field depth
» 22 mm field number and large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Simultaneous eyepiece & camera observation (on SZX-T)
» Cost-effective solution for diversified applications
Head: Trinocular (split ratio: 50/50), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/22 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1)
Working distance: 100 mm.
Documents
SZX-BA
Description
Specifications
Documents
Description
SZX-A Heads – Advanced Analysis With High Power Magnification. Purposely designed for particularly performing zoom conditions, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and large working distance (up 110 mm), 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x and high magnification change from overview to tiny details.
Specifications
SZX-A Heads – Advanced Analysis With High Power Magnification
» Purposely designed for particularly performing zoom conditions
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x
» Simultaneous eyepiece & camera observation (on SZX-TA)
» High magnification change from overview to tiny details
Head: Binocular, 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.65x…5.5x (zoom factor 8.46:1).
Working distance: 102 mm
Documents
SZX-TA
Description
Specifications
Documents
Description
SZX-A Heads – Advanced Analysis With High Power Magnification. Purposely designed for particularly performing zoom conditions, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and large working distance (up 110 mm), 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x, simultaneous eyepiece & camera observation and high magnification change from overview to tiny details.
Specifications
SZX-A Heads – Advanced Analysis With High Power Magnification
» Purposely designed for particularly performing zoom conditions
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x
» Simultaneous eyepiece & camera observation (on SZX-TA)
» High magnification change from overview to tiny details
Head: Trinocular (split ratio: 50/50), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.65x…5.5x (zoom factor 8.46:1).
Working distance: 102 mm
Documents
SZO-B
Description
Specifications
Documents
Description
SZO Heads – Addressed For Extreme Reliability & Repeatability
» Ensuring the sharpest vision, high productivity, repetitive analysis
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and extra large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Multi-position click-stop – no need to move eyes from eyepieces
Specifications
SZO Heads – Addressed For Extreme Reliability & Repeatability
» Ensuring the sharpest vision, high productivity, repetitive analysis
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Simultaneous eyepiece & camera observation (on SZO-T)
» Multi-position click-stop – no need to move eyes from eyepieces
Head: Binocular, 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with retractable rubber cups.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop.
Working distance: 110 mm.
Documents
SZO-T
Description
Specifications
Documents
Description
SZO Heads – Addressed For Extreme Reliability & Repeatability. Ensuring the sharpest vision, high productivity, repetitive analysis, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and extra large working distance (up 110 mm), 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x, simultaneous eyepiece & camera observation and Multi-position click-stop – no need to move eyes from eyepieces.
Specifications
SZO Heads – Addressed For Extreme Reliability & Repeatability
» Ensuring the sharpest vision, high productivity, repetitive analysis
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Simultaneous eyepiece & camera observation (on SZO-T)
» Multi-position click-stop – no need to move eyes from eyepieces
Head: Trinocular (split ratio: 70/30), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with retractable rubber cups.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop.
Working distance: 110 mm.
Documents
SZ Series - Pillar Stands
SZ-ST1
Description
Specifications
Documents
Description
Extremely stable, ultra-slim and modern stand to be matched with a focusing system and stereozoom head. The 25 mm height makes this stand very effective in preventing fatigue during operation, increasing the ergonomy and the performance as a result. In case illumination is needed, choose from the wide choice of external illuminators available.
Specifications
Extremely stable, ultra-slim and modern stand to be matched with a focusing system and stereozoom head. The 25 mm height makes this stand very effective in preventing fatigue during operation, increasing the ergonomy and the performance as a result. In case illumination is needed, choose from the wide choice of
external illuminators available.
Width: 210 mm
Length: 270 mm
Thickness: 25 mm
Pillar diameter: 32 mm
Pillar height: 275 mm
Stage: 95 mm dia., black and white disc with sample clips
Incident illumination: None
Transmitted illumination: None
To be used in combination with a focusing mechanism (SZ-A1/A6)
Documents
SZ-ST2
Description
Specifications
Documents
Description
Specifications
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED³ incident light.
The impressive incident illumination generated by the exclusive X-LED³ swivelling illuminator (3.6 W) is combined with an extralarge, settable 12-LED X-LEDT1 disc (2 W, on SZ-ST2) or 60-LED X-LEDT3 disc (4 W, on SZ-ST3) for transmitted illumination.
Incident illumination: X-LED3 with white 3.6 W LED and brightness control. Color temperature: 6,300 K.
Transmitted illumination: 12-LED X-LEDT1 disc with white 2 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply.
Base dimensions: 270×210 mm.
Pillar dimensions: Ø32×280 mm.
Weight: 1.90 kg.
To be used in combination with a focusing mechanism (SZ-A1/A6)
Documents
SZ-ST3
Description
Specifications
Documents
Description
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED3 incident light. The impressive incident illumination generated by the exclusive X-LED3 swivelling illuminator (3.6 W) is combined with an extralarge, settable 60-LED X-LEDT3 disc (4 W) for transmitted illumination.
Specifications
Documents
SZ-ST7
Description
Specifications
Documents
Description
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and freely orientable, flexible double gooseneck X-LED3 incident light The impressive incident illumination generated by the exclusive X-LED3 lighting system located in two flexible gooseneck arms (3.6 W each, for a total of 7.2 W) is combined with an extra-large, settable 12-LED X-LEDT1 disc (2 W) for transmitted illumination.
Specifications
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and freely orientable, flexible double gooseneck X-LED³ incident light The impressive incident illumination generated by the exclusive X-LED³ lighting system located in two flexible gooseneck arms (3.6 W each, for a total of 7.2 W) is combined with an extra-large, settable 12-LED X-LEDT1 disc (2 W, on SZ-ST7) or 60-LED X-LEDT3 disc (4 W, on SZ-ST8) for transmitted illumination
Incident illumination: Two flexible X-LED³ gooseneck arms with white 3.6 W LED/each and brightness control. Illuminance: 170,000 lux (at 10 cm distance). Color temperature: 6,300 K.
Transmitted illumination: 12-LED X-LEDT1 disc with white 2 W LED and brightness control. Illuminance: 4,000 lux. Color temperature: 6,300 K. Multi-plug 100-240Vac/12Vdc external power supply.
Base dimensions: 270×210 mm.
Pillar dimensions: Ø32×280 mm.
Stage: 95 mm dia., translucent and black/white discs with sample clips
Weight: 2.40 kg.
To be used in combination with a focusing mechanism (SZ-A1/A6)
Documents
SZ-ST8
Description
Specifications
Documents
Description
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED3 incident light. The impressive incident illumination generated by the exclusive X-LED3 swivelling illuminator (3.6 W) is combined with an extralarge, settable 60-LED X-LEDT3 disc (4 W) for transmitted illumination.
Specifications
Top-class X-LEDT transmitted light, with geometrically arranged LEDs and freely orientable, flexible double gooseneck X-LED³ incident light The impressive incident illumination generated by the exclusive X-LED³ lighting system located in two flexible gooseneck arms (3.6 W each, for a total of 7.2 W) is combined with an extra-large, settable 12-LED X-LEDT1 disc (2 W, on SZ-ST7) or 60-LED X-LEDT3 disc (4 W, on SZ-ST8) for transmitted illumination
Incident illumination: Two flexible X-LED³ gooseneck arms with white 3.6 W LED/each and brightness control. Illuminance: 170,000 lux (at 10 cm distance). Color temperature: 6,300 K.
Transmitted illumination:
SZ-ST7: 60-LED X-LEDT3 disc with white 4 W LED and brightness control. Illuminance: 8,000 lux. Color temperature: 6,300 K. Multi-plug 100-240Vac/12Vdc external power supply.
Base dimensions: 270×210 mm.
Pillar dimensions: Ø32×280 mm.
Stage: 95 mm dia., translucent and black/white discs with sample clips.
Weight: 2.40 kg.
To be used in combination with a focusing mechanism (SZ-A1/A6)
Documents
SZ-OBL
Description
Specifications
Documents
Description
Extremely stable and modern stand, equipped with rotatable mirror and X-LED3 transmitted light. Ideal for observing low-contrast samples that cannot be stained. The X-LED3 light source with its high efficiency and no indirect heating is ideal for observing “live” specimens. Tiltable mirror with 2 faces, one smooth and one knurled, to get maximum contrast from your samples.
Specifications
Extremely stable and modern stand, equipped with rotatable mirror and X-LED3 transmitted light. Ideal for observing low-contrast samples that cannot be stained. The X-LED3 light source with its high efficiency and no indirect heating is ideal for observing “live” specimens. Tiltable mirror with 2 faces, one smooth and one knurled, to get maximum contrast from your samples.
Transmitted illumination:
X-LED3 disc frosted white and brightness control.
Illuminance: 8,000 lux. Color temperature: 6,300 K.
Multi-plug 100-240Vac/6Vdc external power supply.
Base dimensions: 270×210 mm.
Pillar dimensions: Ø32×280 mm.
Weight: 2.40 kg.
To be used in combination with a focusing mechanism (SZ-A1/A6)
Documents
SZ Series - Boom Stands / Flat Industrial Stands

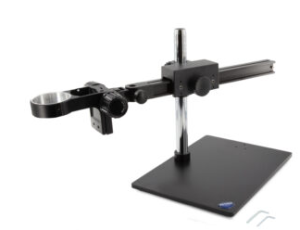

SZ-STL3X
Description
Specifications
Documents
Description
Extremely stable, long overhanging stand complete of head holder and coarse focusing system for observation of particularly large specimens to be matched with a stereozoom head. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of
external illuminators available.
Specifications
Extremely stable, long overhanging stand complete of head holder and coarse focusing system for observation of particularly large specimens to be matched with a stereozoom head. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Product Dimensions
Total height (mm): 380
Base height (mm): 20
Base width (mm): 380
Base depth (mm): 280
Horizontal arm (mm): 460 (overall)
Product Weight (kg): 7
Documents

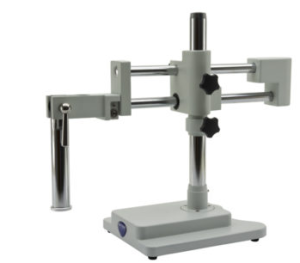

SZ-STL1
Description
Specifications
Documents
Description
Extremely stable, long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Specifications
Extremely stable, long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal and vertical ovements
are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Base dimensions: 230×230 mm
Pillar dimensions: Ø32×435 mm.
Horizontal arm: 415 mm
Maximum sample height: 400 mm
Swivelling movement: 360°
Weight: 14.00 kg
To be used in combination with a focusing mechanism (SZ-A1 or SZ-A6)
Documents
SZ-STL2
Description
Specifications
Documents
Description
xtremely stable, hinged and long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal
and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Specifications
Extremely stable, hinged and long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal
and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Base dimensions: 260×210 mm
Pillar dimensions: Ø32×425 mm
Horizontal arm: 515 mm
Maximum sample height: 440 mm
Swivelling movement: 360°
Tilting movement: 180°
Weight: 18.8 kg
To be used in combination with a focusing mechanism (SZ-A1 or SZ-A6)
Documents
SZ-STL5
Description
Specifications
Documents
Description
Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications. It comes complete of head holder with focusing system and all the supports for table clamp and wall mount. Small footprint is ensured when not in use, saving valuable space on the bench. Wall mount and table clamp included.
Specifications
Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications.
It comes complete of head holder with focusing system and all the supports for table clamp.
Small footprint is ensured when not in use, saving valuable space on the bench.
Documents
SZ-STL5LED
Description
Specifications
Documents
Description
Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications.It comes complete of the settable and exclusive X-LED3 incident illumination system, head holder with focusing system and all the supports for table clamp and wall mount (both included). Small footprint is ensured when not in use, saving valuable space on the bench. Multi-plug 100-240Vac/6Vdc external power supply. Head shown in picture not included.
Specifications
Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications.
It comes complete of the settable and exclusive X-LED³ incident illumination system, head holder with focusing system and all the supports for table clamp.
Small footprint is ensured when not in use, saving valuable space on the bench.
Multi-plug 100-240Vac/6Vdc external power supply.
Head not included.
Documents
ST-150
Description
Specifications
Documents
Description
Large, simple plain stand with head holder and focusing mechanism with pillar.
Specifications
Large, simple plain stand with head holder and focusing mechanism.
Pillar type.
Base size: 320×290 mm. Pillar size: Ø32×360 mm.
Documents
ST-152
Description
Specifications
Documents
Description
Large, simple plain stand with head holder and focusing mechanism with fixed arm.
Specifications
Large, simple plain stand with head holder and focusing mechanism.
Fixed arm type.
Base size: 320×280 mm. Fixed arm height: 360 mm.
Documents
SZ Series - Focusing Mechanisms
SZ-A1
Description
Specifications
Documents
Description
Entry-level coarse focusing to raise or lower the head to focus.
Coarse focusing system (76 mm head holder, 32 mm pillar) with adjustable tension for standard stereomicroscope requirements.
Specifications
Entry-level coarse focusing to raise or lower the head to focus.
Coarse focusing system (76 mm head holder, 32 mm pillar) with adjustable tension for standard stereomicroscope requirements.
Type: Coarse
Coarse total travel: 50 mm
Adjustable tension: Yes
Head holder internal diameter: 76 mm
Pillar diameter: 32 mm
Documents
SZ-A6
Description
Specifications
Documents
Description
Coaxial coarse and fine focusing results in easy, precise conditions.
Coaxial coarse and fine focusing system (76 mm head holder, 32 mm pillar) with 2 μm fine resolution and adjustable tension ideal for extremely precise fine adjustments and smooth movements.
Specifications
Coaxial coarse and fine focusing results in easy, precise conditions.
Coaxial coarse and fine focusing system (76 mm head holder, 32 mm pillar) with 2 μm fine resolution and adjustable tension ideal for extremely precise fine adjustments and smooth movements.
Type: Coaxial coarse and fine
Coarse total travel: 50 mm
Fine total travel (per single rotation): 0.2 mm.
Fine graduations: 100
Fine resolution: 2 μm
Adjustable tension: Yes
Head holder internal diameter: 76 mm
Pillar diameter: 32 mm
Documents
SZP Series - SZP heads
SZ-A6
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 6.25:1 zoom ratio and 80mm working distance.
Specifications
Head: Binocular, 360° rotating on all stands and 30° inclined.
Interpup. distance: Adjustable between 52 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-6 zoom body: Parfocal achromatic zoom 0.8x…5.0x (zoom factor 6.25:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-8
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 8:1 zoom ratio and 80mm working distance.
Specifications
Head: Binocular, 360° rotating on all stands and 30° inclined.
Interpup. distance: Adjustable between 52 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-8 zoom body: Parfocal achromatic zoom 0.8x…6.4x (zoom factor 8:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-10
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 10:1 zoom ratio and 80mm working distance
Specifications
Head: Binocular, 360° rotating on all stands and 30° inclined.
Interpup. distance: Adjustable between 52 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-10 zoom body: Parfocal achromatic zoom 0.8x…8.0x (zoom factor 10:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-6e
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 6.25:1 zoom ratio.
Specifications
Head: Ergonomical binocular, 360° rotating on all stands and freely inclinable from 0° to 35°.
Interpup. distance: Adjustable between 55 and 80 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-6e zoom body: Parfocal achromatic zoom 0.8x…5.0x (zoom factor 6.25:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-8e
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 8:1 zoom ratio.
Specifications
Head: Ergonomical binocular, 360° rotating on all stands and freely inclinable from 0° to 35°.
Interpup. distance: Adjustable between 55 and 80 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eye-point.
SZP-8e zoom body: Parfocal achromatic zoom 0.8x…6.4x (zoom factor 8:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-10e
Description
Specifications
Documents
Description
CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 10:1 zoom ratio.
Specifications
Head: Ergonomical binocular, 360° rotating on all stands and freely inclinable from 0° to 35°.
Interpup. distance: Adjustable between 55 and 80 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-10e zoom body: Parfocal achromatic zoom 0.8x…8.0x (zoom factor 10:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP-FL - Epi-Fluorescence Attachment
SZP-FL
Description
Specifications
Documents
Description
Attachment for fluorescence applications for SZP stereomicroscopes only.
Used in many applications like biology, botany, electronics, materials, forensics. Equipped with HBO 100W mercury lamp illuminator.
To be combined with any SZP model.
Specifications
Head: Ergonomical binocular, 360° rotating on all stands and freely inclinable from 0° to 35°.
Interpup. distance: Adjustable between 55 and 80 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/24 mm, high eye-point.
SZP-10e zoom body: Parfocal achromatic zoom 0.8x…8.0x (zoom factor 10:1).
Objective lens: Plan Achromatic 1x
Working distance: 80 mm
Optical system: Galilean (Parallel, infinity corrected)
Documents
SZP Stands
ST-155
Description
Specifications
Documents
Description
Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control. It comes complete of head holder and focusing mechanism.
Base size: 330×285 mm. Height: 38 mm. Fixed arm height: 340 mm.
Head not included.
Specifications
Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control. It comes complete of head holder and focusing mechanism.
Base size: 330×290 mm.
Height: 40 mm.
Fixed arm height: 340 mm.
Head not included.
Documents
ST-156
Description
Specifications
Documents
Description
Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control. It comes complete of head holder and coaxial coarse and fine focusing system. Base size: 330×285 mm. Height: 38 mm. Fixed arm height: 340 mm. Head not included.
Specifications
Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control.
It comes complete of head holder and coaxial coarse and fine focusing system.
Base size: 330×290 mm.
Height: 40 mm.
Fixed arm height: 340 mm.
Head not included.
Documents
CL Series
CLD-01
Description
Specifications
Documents
Description
Flexible and professional cold light illuminator with high power,
extra-efficiency 14W LED system, extremely bright and uniform.
Optical power: >1000 lumen.
Color temperature: pure white 6,300 K.
Brightness control potentiometer, external power supply.
Specifications
Flexible and professional cold light illuminator with high power, extra-efficiency 14W LED system, extremely bright and uniform.
Optical power: >1000 lumen.
Color temperature: pure white 6,300 K.
Brightness control potentiometer, external power supply.
CLD-01 Accessories
The output can be coupled to the following accessories:
CL-11.1: Double-arm optical fiber guide with focusing lenses. Arm length 500 mm.
CL-17.1: Polarizing filters (pair) for CL-11.1
CL-12: Ring optical fiber guide (length 700 mm).
Guide diameter 16 mm.
Diameter of the fixing ring: 55mm.
The circular end is suitable for all stereo series.
Documents
CL-11.1
Description
Specifications
Documents
Description
Double-arm guide for CLD-01, with focusing lenses. Arm length 500 mm. Each arm fitted with focusable lens adapter.
Specifications
Double-arm guide for CLD-01, with focusing lenses.
Arm length 500 mm. Each arm fitted with focusable lens adapter.
Illuminance (at 10 cm distance): 100.000 lux.
Optional accessory:
CL-17.1: Polarizing filters (pair) for CL-11.1
Documents
CL-12
Description
Specifications
Documents
Description
Ring optical fiber guide for CLD-01.
Lenght 700 mm, diameter 16 mm.
The circular end is suitable for all series, by using the three locking
screws. Diameter of the fixing ring: 55mm.
Illuminance (at 10 cm distance): 40.000 lux.
Specifications
Ring optical fiber guide for CLD-01.
Lenght 700 mm, diameter 16 mm.
The circular end is suitable for all series, by using the three locking
screws. Diameter of the fixing ring: 55mm.
Illuminance (at 10 cm distance): 40.000 lux.
Documents
CL-32
Description
Specifications
Documents
Description
Arm illuminator with magnetic fixing plate, USB powered.
Light sources: LED; With 2W high efficiency LED.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm;
Illuminance: 20,000 (on 5 cm diameter).
Specifications
Arm illuminator with magnetic fixing plate, USB powered.
Light sources: LED; With 2W high efficiency LED.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm;
Illuminance: 20,000 (on 5 cm diameter).
Documents
CL-33
Description
Specifications
Documents
Description
Pair of arm illuminators with magnetic fixing plates, metal base, USB.
Light sources: LED; With 2W high efficiency LEDs.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm (x2);
Illuminance: 20,000 (on 5 cm diameter) (x2).
Specifications
Pair of arm illuminators with magnetic fixing plates, metal base, USB.
Light sources: LED; With 2W high efficiency LEDs.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm (x2);
Illuminance: 20,000 (on 5 cm diameter) (x2).
Documents
CL-41
Description
Specifications
Documents
Description
Double-arm X-Led3 illuminator, with brightness control.
Light sources: With 3,6 W high efficiency X-LED3.
Specifications
Double-arm X-LED3 illuminator, with brightness control.
Light sources: With 3,6 W high efficiency X-LED3.
Color temperature: pure white 6,300 K;
Luminous flux: 400 lm each arm;
Illuminance: 170,000 lux (at 10 cm distance).
Multi-plug 100-240Vac/12Vdc external power supply.
Documents
CL-14
Description
Specifications
Documents
Description
56-LED ring light illuminator, with brightness control.
Compact, with 360° rotating ring connector.
Specifications
56-LED ring light illuminator, with brightness control.
Compact, with 360° rotating ring connector.
Illuminance (at 10 cm distance): >8,000 lux.
Suitable for LAB, SZM and SZO.
Documents
CL-16.1
Description
Specifications
Documents
Description
Professional lighting system including 144 LEDs (2W total power) for enhanced light uniformity and brightness.
The ring light illumination is divided into 4 different zones, individually adjustable for selectable light zones
Specifications
Professional lighting system including 144 LEDs (2W total power) for enhanced light uniformity and brightness.
The ring light illumination is divided into 4 different zones, individually adjustable for selectable light zones.
The separated, external control panel prevents interferences during use, whilst the sturdy metal structure makes it more durable and resistant.
Diameter of the fixing ring: 60mm.
Color temperature: pure white 6,300 K.
Illuminance: 6,000 lux (at 10 cm distance).
Documents
CL-18
Description
Specifications
Documents
Description
Professional lighting system including 96 LEDs for enhanced light uniformity and brightness, and built-in rotating polarizing filter and analyzer filters for complete polarization, ideal to reduce glares and reflections when viewing metallic parts. Provided with on-board intensity level adjustement
Specifications
Professional lighting system including 96 LEDs for enhanced light uniformity and brightness, and built-in rotating polarizing filter and analyzer filters for complete polarization, ideal to reduce glares and reflections when viewing metallic parts.
Provided with on-board intensity level adjustement.
Diameter of the fixing ring: 60mm.
Color temperature: pure white 6,300 K.
Illuminance: 9,000 lux (at 10 cm distance).
Documents
GEM Series
OPTIGEM-10
Description
Specifications
Documents
Description
Binocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield
illumination. Equipped also with 4 incident LED flexible arm and a diffusive LED disc for transmitted illumination.
The instrument can be easily tilted horizontally for immersion analysis.
Specifications
Observation mode: Brightfield, darkfield.
Heads: Binocular, 45° inclined, 360° rotating.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepiece tubes.
Eyepieces: WF10x/21 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
Working distance: 100 mm.
Specimen stage: Gemological stage, with clamp for holding gems.
Focusing: Rack and pinion mechanism controlled by a pair of knobs.
Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems.
Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control.
Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control.
Incident illumination: Equipped with a flexible gooseneck-arm 4LED illuminator. With brightness control.
Color temperature: Pure white 6,300 K
Documents
OPTIGEM-20
Description
Specifications
Documents
Description
Trinocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield
illumination. Equipped also with 4 incident LED flexible arm and a diffusive LED disc for transmitted illumination.
The instrument can be easily tilted horizontally for immersion analysis.
Specifications
Observation mode: Brightfield, darkfield.
Heads: Trinocular, 45° inclined, 360° rotating.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepiece tubes.
Eyepieces: WF10x/21 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
Working distance: 100 mm.
Specimen stage: Gemological stage, with clamp for holding gems.
Focusing: Rack and pinion mechanism controlled by a pair of knobs.
Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems.
Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control.
Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control.
Incident illumination: Equipped with a flexible gooseneck-arm 4LED illuminator. With brightness control.
Color temperature: Pure white 6,300 K
Documents
Industrial Microscopes
MET Series
B-383MET
Description
Specifications
Documents
Description
Brightfield upright microscope with IOS W-PLAN MET objectives and metallurgical attachment combining the exclusive X-LED³ lighting source both for incident and transmitted illumination. The NCG (no cover glass) objectives are especially designed for microscopy use without a cover slip ideal for metallographic samples and other opaque specimens.
Specifications
Observation mode: Brightfield, incident polarized light.
Epi-illumination and polarizing filters: X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Field and aperture diaphragms, polarizer & analyzer filters.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free):
IOS W-PLAN MET 5x/0.12
IOS W-PLAN MET 10x/0.25
IOS W-PLAN MET 20x/0.40
IOS W-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range. With tempered glass plate. Focusing: Coaxial coarse (adjustable tension) and fine focusing
mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Documents
B-510MET
Description
Specifications
Documents
Description
Advanced routine laboratory microscope with IOS W-PLAN MET objectives and metallurgical attachment with the exclusive X-LED³ lighting source for incident illumination only. The NCG (no cover glass) objectives are especially designed for microscopy use without a cover slip ideal for metallographic samples and other opaque specimens.
Specifications
Observation mode: Brightfield, simple polarized light, oblique illumination on incident light.
Epi-illumination and filters: X-LED8 with white 8 W LED (6.300 K) with brightness control. With aperture and field diaphragms, and oblique illumination system. With polarizer and analyzer. Multi-plug 100-240Vac/6Vdc external power supply.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free):
– IOS W-PLAN MET 5x/0.12
– IOS W-PLAN MET 10x/0.25
– IOS W-PLAN MET 20x/0.40
– IOS W-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Documents
B-510METR
Description
Specifications
Documents
Description
Advanced routine laboratory microscope with IOS W-PLAN MET objectives and metallurgical attachment with the exclusive X-LED³ lighting source for both transmitted and incident illumination. The NCG (no cover glass) objectives are especially designed for microscopy use without a cover slip ideal for metallographic samples and other opaque specimens.
Specifications
Observation mode: Brightfield on transmitted light. Brightfield, simple polarized light, oblique illumination on incident light.
Epi-illumination and polarizing filters: X-LED8 with white 8 W LED (6.300 K) with brightness control. With aperture and field diaphragms, and oblique illumination system. With polarizer and analyzer.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free):
– IOS W-PLAN MET 5x/0.12
– IOS W-PLAN MET 10x/0.25
– IOS W-PLAN MET 20x/0.40
– IOS W-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range. With tempered glass plate.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.
Transmitted illumination (Full Koehler type): X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Documents
B-1000MET
Description
Specifications
Documents
Description
The modular OPTIKA B-1000 is available with brightfield and darkfield incident light, helping you working in a comfortable way during extended periods of use and performing reliable, accurate and rapid diagnosis benefiting from modularity, which gives the chance to create customized configurations tailored on customer needs. Versatile, robust, durable and sturdy, B-1000 offers premium quality optics, the state-of-the-art, exclusive X-LED8 (8 W) illumination system, designed by OPTIKA and the Koehler diaphragm. Incident light through 100 W halogen lamp or 18 W LED illumination.
B-1000 gives multiple options as manual or motorized configuration.
Specifications
The modular OPTIKA B-1000 is available with brightfield and darkfield incident light, helping you working in a comfortable way during extended periods of use and performing reliable, accurate and rapid diagnosis benefiting from modularity, which gives the chance to create customized configurations tailored on customer needs. Versatile, robust, durable and sturdy, B-1000 offers premium quality optics, the state-of-the-art, exclusive X-LED8 (8 W) illumination system, designed by OPTIKA and the Koehler diaphragm. Incident light through 100 W halogen lamp or 18 W LED illumination.
B-1000 gives multiple options as manual or motorized configuration.
Documents
IM-300METLD
Description
Specifications
Documents
Description
Routine inverted LED microscope with IOS LWD U-PLAN MET objectives for material science and metallographic applications, combining a sturdy yet compact structure with dedicated components required in this field, like the NCG (no cover glass) objectives working without cover slide ideal for metallographic samples and other opaque specimens. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.
Specifications
Observation mode: Brightfield, simple polarized light on incident light.
Epi-illumination and polarizing filters: LED 12 V/50 W with brightness control. With aperture and field (centrable) diaphragms. With polarizer and analyzer.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD U-PLAN MET 5x/0.15
IOS LWD U-PLAN MET 10x/0.30
IOS LWD U-PLAN MET 20x/0.45
IOS LWD U-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with metal stage insert.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Documents
IM-5MET
Description
Specifications
Documents
Description
OPTIKA IM-5MET is a new inverted research microscope for metallography providing a high-end solution in the field of material science. Brightfield, darkfield, polarized light and DIC – Nomarski technique all-in-one for an extremely valuable instrument able to provide ergonomic handy controls and significant unique features, such as the highest F.O.V. available on an inverted microscope.
Specifications
Head: Trinocular (split ratio: 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/24 mm, high eyepoint, secured by screw and with retractable rubber cups.
Epi-illumination & filters: Halogen 12 V/100 W with brightness control. With field and aperture diaphragms, polarizer and analyzer filters.
Nosepiece: Quintuple ball bearings revolving nosepiece, reversed.
Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.
Specimen stage: Mechanical stage, 240×250 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Documents
IS Series
IS-01
Description
Specifications
Documents
Description
Inspection system
with pillar stand
and integrated HDMI camera
Specifications
OPTIKA IS-01 is a compact, all-in-one video microscope with integrated HDMI camera and built-in software.
Ideal for achieving up to 50X magnifications and performing measurements.
It’s recommended when repeatability is required thanks to the click-stop mechanism at different magnifications steps.
With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces.

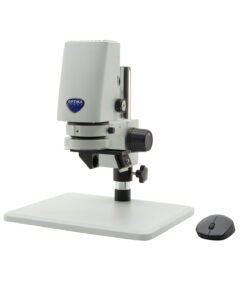

IS-01/IS-01SMD Main Body
Observation Method
Brightfield: Yes
Head
Construction material: Plastic mold / Aluminum gears
Objective
Optical system: 160 mm
Anti-fungus treatment: Yes
Objective Type: Achromatic
Zoom: type Parfocal achromatic
Working distance (mm): 110
Standard magnifications: 0.7x-5x
Zoom ratio: 7.14
Zoom click stops_ At 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x
Focusing System
Type: Coarse
Coarse total travel (mm): 50
Adjustable tension: Yes
Head holder internal diameter (mm): 76
Head
Type: Pillar
Pillar diameter (mm): 32
Resolution (MP): 2
Sensor type: CMOS
Sensor size: 1/2.8”
Sensor aspect ratio: 16/9
Full image size: 1920×1080
Pixel size (μm): 2.9×2.9
Frame rate: 60 fps (1920×1080)
S/N ratio (dB): >50
Dynamic range (dB): >50
Sensitivity (V/lux*s @550nm): 0.4
Exposure time (s): 0.02 – 1/10000
USB type: 2.0
Software: built-in
Incident Illumination
Type: LED
Light source power (W): 1
Illuminance (lux): 60000
Brightness control: Manual
Lifetime (hours): > 65000
Temperature (K): 6300
Max. required power (W): 3
Power Supply for Illumination
Type: External
Microscope connector: Jack, 2.1 mm
Power plug type: Multi-plug (EU, UK, US)
Input voltage: 110/240 Vac, 50/60 Hz
Output voltage: 12 Vdc
Additional Information
Maximum sample height (mm): 150
Product Dimensions
Total height (mm): 510
Total width (mm): 320
Total depth (mm): 260
Weight: 4.3 kg
Documents
IS-4K2
Description
Specifications
Documents
Description
Inspection system
with boom stand
and full HD autofocus camera
Specifications
Advanced inspection system suitable for intensive use, ideal for video inspection in quality control of electronics, mechanics, and other industrial applications.
IS-4K2 includes the real-time full HD auto-focus camera with relevant zooming capalibilities (optical zoom is 1x…18x).
Crystal clear 4K live view is shown trough a large HD monitor, with incredibly fast connection (30 fps). Its angle of view is fully adjustable and it enables instant focus in less than 1 sec. with no need to constantly adjust lens position. In addition, the working distance goes to infinity, making it the recommended solution to inspect multi-layered objects.
All functions are controlled directly from the screen via a wireless mouse.
Images and videos can be saved on the SD card and easily transferred on any device.
The system is completed by the SZ-STLX boom stand with a special joint to enable any rotation (transversal and longitudinal): the longitudinal movement is through the sliding of the horizontal rail (lockable); whilst also the overall height is both adjustable and lockable.
HDMI MONITOR
Type: LCD screen 360° rotating, freely inclinable for ergonomic vision
Size: 15.6”
Power supply: 5V / 4A
STAND (NEW SZ-STL3X)
Type: Coarse simple overhanging
Total height (mm): 380
Base height (mm): 20
Base width (mm): 380
Base depth (mm): 280
Horizontal arm (mm): 460 (overall)
Product Weight (kg): 7
Adjustable tension: Yes
Head holder internal diameter (mm): 76
Pillar diameter (mm): 32
Maximum sample height (mm):270 (from bench)
ACCESSORIES
Accessories Included: LED ringlight, HDMI cable (0,3m), Wireless Mouse, SD card and WiFi Adapter.
CAMERA
HDMI camera resolution (MP): 8
Camera resolution (n° of pixels: W x H): 3840×2160
HDMI signal output: Yes
WiFi signal output: Yes
Sensor size: 1/2.8”
Sensor technology: CMOS
Sensor type: SONY STARVIS
Optical zoom: 1x-18x
Rolling shutter: Yes
Autofocus: Yes
Image format: 16/9
Pixel size (mm): 1.45×1.45
Frame rate full resolution (fps): 30@3840×2160
Camera power: 12V / 3A
Dimensions (mm): 80 x 80 x 116
Weight (Kg): 0,68
Documents
IS-4K3
Description
Specifications
Documents
Description
Inspection system
with boom stand
and full HD autofocus camera
Specifications
Advanced inspection system suitable for intensive use, ideal for video inspection in quality control of electronics, mechanics, and other industrial applications.
IS-4K3 includes the real-time full HD auto-focus camera with relevant zooming capalibilities (optical zoom is 1x…18x).
Crystal clear 4K live view is shown trough a large HD monitor, with incredibly fast connection (30 fps). Its angle of view is fully adjustable and it enables instant focus in less than 1 sec. with no need to constantly adjust lens position. In addition, the working distance goes to infinity, making it the recommended solution to inspect multi-layered objects.
All functions are controlled directly from the screen via a wireless mouse.
Images and videos can be saved on the SD card and easily transferred on any device.
The system is completed by the table clamping SZ-STL5 highly versatile flexible arm stand, 360° rotating, ideal for high and large samples and on every bench thanks to its compact ootprint, saving valuable space on the bench.
HDMI MONITOR
Type: LCD screen 360° rotating, freely inclinable for ergonomic vision
Size: 15.6”
Power supply: 5V / 4A
STAND
Type: Coarse, Pantograph, with table
Coarse total travel (mm) 50
Adjustable tension Yes
Head holder internal diameter (mm) 76
Pillar diameter (mm) 35
Total height (mm) 327
Total width (mm) 300
Total depth (mm) 800
Horizontal arm (mm) 737
Product Weight (kg) 5.1
ACCESSORIES
Accessories Included: LED ringlight, HDMI cable (0,3m), Wireless Mouse, SD card and WiFi Adapter.
CAMERA
HDMI camera resolution (MP): 8
Camera resolution (n° of pixels: W x H): 3840×2160
HDMI signal output: Yes
WiFi signal output: Yes
Sensor size: 1/2.8”
Sensor technology: CMOS
Sensor type: SONY STARVIS
Optical zoom: 1x-18x
Rolling shutter: Yes
Autofocus: Yes
Image format: 16/9
Pixel size (mm): 1.45×1.45
Frame rate full resolution (fps): 30@3840×2160
Camera power: 12V / 3A
Dimensions (mm): 80 x 80 x 116
Weight (Kg): 0,68
Documents
C-HAF
Description
Specifications
Documents
Description
Full HD Real-time
Auto-Focus
Inspection Camera
Specifications
Real-time Full HD Auto-Focus Inspection Camera
OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable.
Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.) without the inconvenience of having to constantly re-adjust the lens focus.
Working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.
The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom.
All functions are controlled directly from the screen, with the support of mouse, and images and videos can be directly acquired on SD card (mouse and SD card are included).
Main functions are:
– Possibility to perform automatic or manual white balance, independently setting RGB parameters for a perfect color reproduction
– Choose between automatic or manual exposure
– With HDR function, a sequence of images is captured at different exposures, and they are combined into a single image
– Trigger function allows the connection with an external controller and the file acquisition is possible with a determined sequence
– Possibility to set horizontal and vertical lines, in different colors and positions, to generate a custom grid directly on the HDMI screen
OPTIKA C-HAF comes with fixing holes to be connected with “custom” supports or brackets.
It is available also combined with a boom stand (as IS-02) or a compact stand with table clamp or wall-mount (as IS-03).
Image Sensor: CMOS sensor Sony Exmor
Sensor dimensions: 1/2.8”
Effective pixels: 2 MP
Output: HDMI
Power: DC5V
Operation control: Remote control
Scanning: Progressive Scanning
White balance: Manual/Auto/OnePush
Exposure: Manual/Auto
Shutter speed : 1/50s(1/60s)-1/10000s
SNR: >50dB
Frame Rate: 1080p@60fps
Operating Temp: 0°C – 50°C
Weight: 500g
Optical Zoom 1x-14x
Digital Zoom 1x-6x
Working Distance: From 10cm to Infinity
Focusing System: Autofocus / Manual focus
Documents
