CUTTING MILL

CM50

Portable Cutting Mill CM50

Feed size: <60*80mm Final fineness: <100μm Speed: 500-4000rpm

Multi-functional Cutting Mill CM100M

Multi-functional Cutting Mill

Feed size: <60*80mm Final fineness: <100μm Speed: 500-4000rpm

Cutting-Mill-CM200

Cutting Mill CM200

Feed size: <60*80mm Final fineness: 0.1~20mm Speed:500~3000rpm

Portable Cutting Mill CM50

CM50

Portable Cutting Mill CM50 can perfectly process regular or irregular samples and it is an ideal machine for heavy-metal-free ROSH and WEEE test (e.g. rubber, plastics, garbage, circuit board, etc.)

Sample type: soft, hard, tough, fibrous

Typical sample: plastic, rubber, wood, circuit board etc.

Working Principle

Portable Cutting Mill processes the sample by the strong cutting and shear force. Samples are fed from the hopper and then fall into the grinding chamber. The samples are crushed many times through the shearing action between the rotor and cutting blades . Then the sample is crushed again through the shearing action between the rotor and sieves. Once the sample size is smaller than the aperture  of the sieve, they will enter into the receiving container.

Features and advantages

○ The maximum capacity is 60 ml.
○ Easy operation and cleaning.
○ The rotor and the sieve can be easily installed, removed & replaced.
○ The small volume cutting chamber can be cleaned easily and thoroughly.
○ The grinding set can avoid cross-contamination has heavy-metal-free material for choice to meet different laboratory requirements.
○ The grinding process is rapid and produces less heat.So it is suitable for grinding temperature sensitive materials.

Technical Data
Feed size<10mm
Final fineness0.3-4mm (Final fineness can be controlled by selection of different size of sieve)
Speed500-3000rpm,adjustable , digital display
Batch quantity60g
Sieves0.3、0.5、1.0、2.0mm
Rated power400W
Power supply220V,50Hz/60Hz
Instrument size200*305*238mm
Package size340*465*320mm
Net weight13kg

Portable cutting mill CM50
 Item No.
24.893.0001CM50,220V,50Hz ,stainless steel
24.893.0002CM50,220V,50Hz, steel without heavy metal contamination
Accessories
Rotor
01.893.0009Rotor,stainless steel
01.893.0010Rotor,steel without heavy metal contamination
Bottom sieves of stainless steel
01.893.0001round holes,0.3mm
01.893.0002round holes,0.5mm
01.893.0003round holes,1.0mm
01.893.0004round holes,2.0mm
Bottom sieves of  titanium  coating
01.893.0005round holes,0.3mm
01.893.0006round holes,0.5mm
01.893.0007round holes,1.0mm
01.893.0008round holes,2.0mm

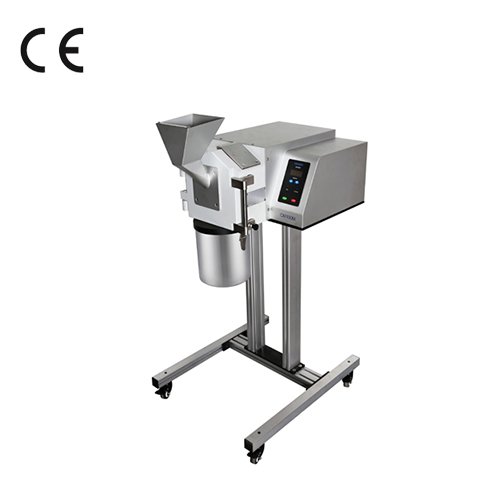

Multi-functional Cutting Mill CM100M

Multi-functional Cutting Mill CM100M

Multi-functional CM100M, which is a unique product from Grinder. It is suitable for various soft, tough, fibrous and hard dry samples. It can be used for batch processing and continuous coarse crushing and fine crushing.

Applications

M1 cutting type can handle fibrous, tough materials, such as tobacco, leather, circuit boards and so on;
M2 cross beater type can deal with the mid-hard, brittle materials (hardness no more than 6Mohs), such as slag, coke, soil and so on;
M3 rotor beater type can handle soft, food samples, such as cereals, feed and chemicals.

Working Principle

○ M1-cutting type:

The sample passes through the hopper into the grinding chamber and is cut by the shearing action between a rotor and a fixed cutting bar. When the sample size is smaller than the aperture on the sieve plate, the sample falls into the collecting bucket.

○ M2 -cross beater type:

M2  type  grinds the samples through beating,impacting. The sample enters the center of the chamber through the hopper. The sample is crushed between the impact plate and the gear of the embedded parts. Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container. The beater rotor draws a large amount of air through the hopper channel, thus accelerate the speed of the crushed sample departing from the crushing chamber.

○ M3- rotor beater type:

The sample enters the center of the chamber directly through the hopper. The sample is crushed between the rotor, embedded parts and sieve. Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container. The quick locking design of the mill door ensures the convenient and fast access to the crushing cavity, and also ensures the convenience of cleaning.

Features and advantages

○ Equipped with crushing dust collection device to prevent cross contamination.
○ It can be fixed on the floor and equipped with casters to move easily.
○ With quick locking device and motor braking, it has high safety performance.
○ The grinding process is rapid and produces less heat
○ Through three different grinding accessories to achieve different functions, which is suitable for wider range of samples.
○  The final fineness is up to 100 microns. The size of the sample is controlled by the bottom sieve and sieve with different sizes can be selected.
○  A large amount of sample can be processed continuously, ranging from a few kilograms to several hundred kilograms per hour.
○  All the three types can be equipped with small sample receiver and cyclone separator, which is convenient for sample collection, chamber cleaning and heat generation reduction.
Technical Data
Feed size<25mm
Final fineness<100μm
Speed500-4000rpm,continuously adjustable
Collector capacity0.25-30L
Peripheral speedM1:3.4-20.1m/s,M2:3.6-28.9m/s, M3:3.5-28.5m/s
Sieves
0.20、0.25、0.50、1.00、2.00、4.0、6.0、8.0、10.0mm
Collector 0.25L、0.5L、1L、3L、5L、30L
Grinding chamber materialstainless steel, 1.1740 steel, hardened steel
Rated Power1.5KW
Power supply220V,50Hz/60Hz
Instrument size (W*D*H)590*705*1400mm(M1)590*705*1230mm(M2/M3)
Package size (W*D*H)1300*900*700mm
Weight120Kg

Order Information

(The below is only partial information of items, for more details please contact  POWTEQ)

 Item No.
24.885.0001Multi-Functional Cutting Mill,220V,50/60Hz, incl.5L collecting bucket and stand frame (Please order grinding assembly,hopper(only for cutting type), rotor, bottom sieve separately)
    Assembly for Cutting mill CM100M1(please order bottom sieve, rotor and hopper separately)
01.885.0001stainless steel cutting assembly (including  cavity assembly,  cavity door, 3 stainless steel cutting bars)
01.885.0002grinding  assembly of without heavy-metal contamination(including cavity assembly,  cavity door, and 3 steel 1.1740 cutting bars)
Assembly for Cross Beater Mill CM100M2(including cross beater inner ring, cavity door,hopper,hopper lid,please order bottome sieve and rotor separately
 02.885.0001stainless steel
 02.885.0002hardened steel
 02.885.0003steel 1.1740
Assembly for Rotor Beater Mill CM100M3(please order bottom sieve, rotor and hopper separately)
 03.885.0001 360°retaining frame , cavity door, hopper,cavity inner ring,hopper lid, stainless steel
 03.885.0003 180°retaining frame , cavity door, hopper,cavity inner ring, hopper lid, stainless steel

Cutting Mill CM200

Multi-functional Cutting Mill CM100M

CM200 is an ideal machine for the sample pretreatment of heavy-metal-free RoHS and WEEE test . It is always used to process solid samples in batch or continuously,  For the long fiber and big volume sample it can process directly and do not need the pre-crush.

Application

○ Application fields:Electronics, environment, cement, agriculture, etc
○ Typical sample:rubber, plastics, garbage, circuit board, wood, paperboard, paper, spice, straw, leather, rubber, raw material, bone, animal feed, cable, plastic, electric wastes, non-metallic waste, grain, lignite, peat

Working Principle

The cutting mill processes the sample by the strong cutting and shear force. The sample to be processed falls into the cutting chamber via the hopper and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product into the collection bucket.

Features and advantages
○ Powerful size reduction, even of heterogeneous mixtures;
○ The speed is adjustable between 100-3000rpm,continuouslyadjustable;
○ Final fineness depends on bottom sieve;
○ Apply to the temperature sensitivity samples due to the quickly and less heat milling;
○ Wide range of collection system to meet various requirement;
○ Big screen touch panel, human interface, speed adjustment can be imported by the control panel;
○ The operation of CM series is quite simple and safe.
○ The electric safety switch can prevent the device from being started when the door is open.
○ The rotating knife, bottom sieve and hopper can be easily removed and re-installed,such designs greatly facilitate the cleaning of the grinding chamber.
