KNIFE MILL

Knife-Mill-HM300-2

Knife Mill HM300

Feed size:<130 mm Final fineness:< 300 μm Speed:500~4000rpm

HM100-1

Knife Mill HM100

Feed size: <40mm Final fineness:Final fineness Speed:2000~10000rpm

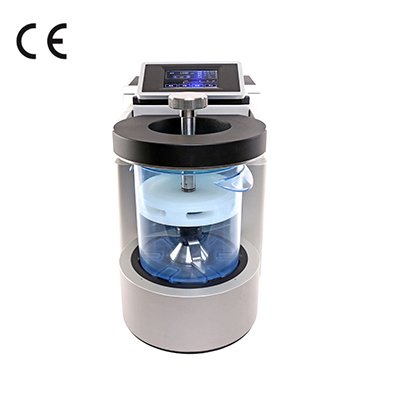

Knife Mill HM300

Knife-Mill-HM300-2

The knife mill HM300 is a newly designed product,which is especially suitable for grinding and homogenizing large amount of samples to the analysis level in a short time.

○  Sample type:
Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample
○  Application fields
Agriculture: grain, feed, etc
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: Chinese medicine, pills, etc
Food: dried melon, vegetables, frozen food, cocoa,candy, preserved fruit, meat
(*Especially suitable for large amount sample, such as: chicken bones, fresh fish, seafood, hazels,etc.)

Working Principle
The HM300 has four-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1.5KW, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples.

Features and advantages
○ 10 SOPs can be stored.
○ It allows to dry grinding and wet grinding.
○ 5 inch LED touch screen display, easy to operate.
○ With interval mode, regular mode and reverse mode.
○ Powerful brushless motor, the speed can be adjusted at the range of 500- 4000 rpm.
○ Designed with double-deck 4 pieces of straight blades to ensure higher grinding efficiency.
○ The mill designed with electromagnetic lock. It’s safe and reliable. The cover can not be opened during grinding process.
Technical Data
Feed size<130 mm
Final fineness< 300 μm
Motor speed500~4000rpm
Time setting00:00-99:59(min/s)
Batch quantity1-4.5L
Interval modeyes
Knivesstainless steel,titanium coating
Number of blades4
Rated power1.5KW
Power supply220V,50Hz
Instrument size(W*D*H)303*575*485mm
Package size(W*D*H)705*475*600mm

Knife Mill HM300
 Item No.
24.889.0001Knife Mill HM300,220 V, 50/60 Hz.(incl. 5L grinding container of autoclavable plastic, standard lid and knife of stainless steel)
Accessories of HM300
Grinding containers, 5L
01.889.0001autoclavable plastic,transparent and scratch-resistant, incl. knife holder
01.889.0002stainless steel,incl. knife holder
 Lids for grinding containers of autoclavabel plastic or PP
01.889.0010standard lid,scratch-resistant PP
01.889.0011standard lid,scratch-resistant PP, suitable for dry ice
01.889.0005Gravity lid,PP
01.889.0006Gravity lid,PP with overflow channels
Knives
01.889.0003knife of stainless steel
01.889.0004knife of titanium  coating for grinding without heavy -metal contamination
01.889.0009knife of stainless steel with serrated blades for grinding meat

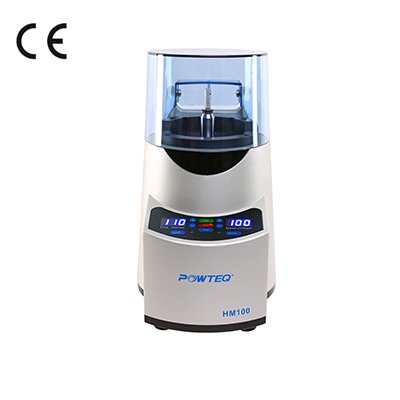

Knife Mill HM100

HM100-1

The knife mill HM100 is used to process the soft, medium-hard, brittle and fibrous sample. It is special for high water, oil or fat content sample.

○  Sample type:Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample
○  Application example:
Agriculture: grain, feed, etc
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: Chinese medicine, pills, etc
Food: dried melon, vegetables, frozen food,  candy, preserved fruit, meat

Working Principle

The HM100 has two-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1,100W, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples. The motor speed is electronically controlled and can be preset. The constant speed guarantees efficient and high-quality grinding homogenization. You just need 10 to 30 seconds to process samples that are usually hard to crush and get homogenized samples for analysis.

Features and advantages

○  The sample volume up to 700ml
○  Autoclavable container for choice
○  Grinding container in various material
○  Simple operation and quick start
○  Strong motor power 1.1KW, speed adjustable
○ Coarse grinding and fine grinding can be realized in one step
○ Three modes optional: interval mode, reverse mode and press-and-play mode

Technical Data
Feed size<40mm
Final finenessFinal fineness
Motor speed2000~10000rpm
Time setting0:01-9:59(min/s)
Batch quantity150-700ml
Interval modeyes
Knivesstainless steel、titanium alloy
Number of blades2
Rated power1.1KW
Power supply220V,50Hz/60Hz
Instrument size(W*D*H)260*343*454mm
Package size(W*D*H)466*516*630mm
Weight16kg

Knife Mill HM100
 Item No.
24.877.0001HM100, 220 V, 50/60 Hz,incl. 1L grinding container of autoclavable plastic, standard lid and knife of stainless steel
Accessories of HM100
Grinding containers, 1L
01.877.1005autoclavable plastic(transparent and scratch-resistant)
02.877.0002stainless steel
02.877.0011PP
02.877.0014PP,10pcs
02.877.0013Glass
 Lids for grinding containers of autoclavabel plastic or PP
02.877.0003standard lid,PP (for containers with above four kinds of materials)
02.877.0004Gravity lid,PP
02.877.0005Gravity lid,PP with overflow channels
02.877.0009Reduction lid ,PC, for chamber reduction to 300ml
02.877.0010Reduction lid ,PC, for chamber reduction to 500ml

Lids for grinding containers of stainless steel
02.877.0006gravity lid, PP
02.877.0007gravity lid, PP with overflow channels
Knives
01.877.0001knife of stainless steel
01.877.0002knife of titanium alloy for grinding without heavy -metal contamination
01.877.0003knife of stainless steel with serrated blades for grinding meat
