University | Polarization Microscopes

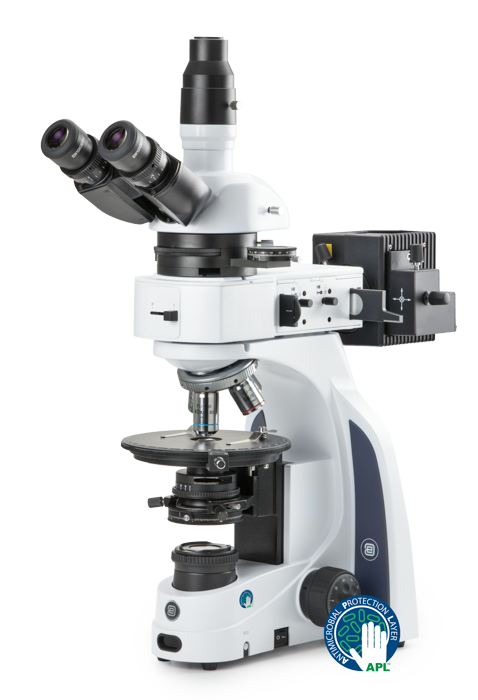

iScope Material Science (polarization)
The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long p
Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes
iScope for polarization
The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos indentification
iScope materials science (polarization)
Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes
iScope for polarization
The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos identification
Highlights
- EWF 10x/20 mm and EWF 10x/22 mm eyepieces
- Binocular and trinocular models
- Reversed quadruple revolving nosepiece
- Plan strain free infinity corrected objectives
- Ø 160 mm rotatable round stage
- Epi-illumination 50 W
- iCare sensor for energy saving
- Provided with APL (Antimicrobial Protection Layer)
- CSS – Cable Storage System
roductive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling
The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives
Highlights
- Monocular, binocular and trinocular models with WF10x/18 mm eyepiece(s)
- Models with integrated 5.0 MP CMOS camera
- Models for polarization applications
- Provided with APL (Antimicrobial Protection Layer)
- Revolving nosepiece with four achromatic objectives
- Models with integrated mechanical stage available
- Coaxial coarse and fine adjustments with rack stop
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- 1 W LED or NeoLED™ illumination
- Models without X-Y stage have internal power supply. No batteries
- Models with X-Y stage have rechargeable batteries and external charger/adapter
- Ergonomic stand
EYEPIECES
Polarization models are supplied with EWF 10x/22 mm or EWF 10x/20 mm (Ø 30 mm tubus) eyepieces, one eyepiece with crosshairs and one eyepiece with crosshairs and micrometer. Specific models for identifying asbestos have an HWF 12.5x/15 mm (Ø 30 mm tubus) eyepiece and an HWF 12.5x/15 mm eyepiece with Walton-Beckett scale
HEAD
- Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm
- Two ± 5 diopter adjustments
- A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular head has a 23.2 mm photo tube. This fits all C-mount adapters supplied with Euromex cameras
NOSEPIECE
Revolving quadruple reversed nosepiece on ball bearings
OBJECTIVES
Plan PLPOLi IOS1 | 5x/0.12 | 10x/0.25 | 20x/0.40 | S40x/0.65 | 60x/0.85 3 | S100x/1.25 3 |
Plan PLPOLRi IOS2 | 5x/0.12 | 10x/0.25 | 20x/0.40 | 50x/0.75 | S100x/0.80 3 |
1) Plan PLPOLi strain free infinity corrected objectives for polarization applications. Objectives 5x without cover glass correction and 10/20/S40/S60/S100x oil with 0.17mm cover glass correction. For transmitted polarization models
2) Plan PLPOLRi strain free infinity corrected objectives for polarization applications. No cover glass correction. For models with reflected illumination
3) Optional objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
360° Rotating Ø 160 mm graduated stage with two object clamps
An optional 30 x 40 mm X-Y mechanical stage is available
CONDENSER
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° – swing out – rotatable polarizer
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives.
The coarse adjustment is equipped with friction control
TRANSMITTED ILLUMINATION
- Intensity adjustable 3 W Köhler NeoLED™ illumination with internal 100-240 V power supply
- The larger aperture of NeoLED™ allows the optical systems of the iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits for choosing the NeoLED™ are the low energy consumption, no heating and a long operating lifetime
- The Köhler diaphragm provides homogeneous illumination and high contrast
- Polarisation models with transmitted light only are supplied with: 360° rotatable polarization filter, 360° rotatable analyzer with 180 increments and nonius for 0.2 degree readout, Bertrand lens (build-in), 1 λ first red and 1/4 λ retardation plate, a quartz wedge, 45 mm green and blue filters for lamp house
REFLECTED ILLUMINATION
(PLPOLRi models only)
- Equipped with a 50 W 12 V halogen epi-illumination and external 100-240 V power supply
- Supplied with 360° rotatable polarization filter, 360° rotatable analyzer with 180 increments and nonius for 0.2 degree readout, Bertrand lens (build-in), 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge, sliders with green/blue and white/neutral densitiy filter. 45 mm green and blue filters for lamp house
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy
The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage
CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types
PACKAGE CONTENT
Supplied with power cord, tension control tool, dust cover, spare fuse and user manual. All packed in polystyrene boxes

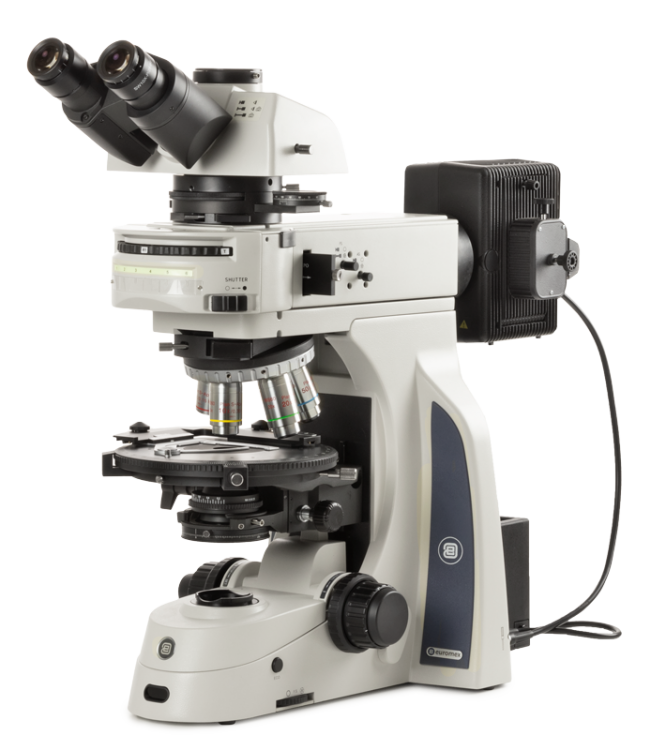

Delphi-X Observer polarization
Delphi-X Observer polarization
for materials science
State-of-the-art microscopes for advanced materials science applications
The ergonomic design and outstanding state-of-the-art objectives make the Delphi-X Observer the ideal microscope for advanced materials application. The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power
Highlights
- Brightfield and polarization
- 360° rotatable analyzer and polarizer
- Bertrand lens for conoscopic observation
- Enhanced infinity corrected EIS optical system
- High contrast objectives with minimal aberrations
- Plan (Semi-)Apo strain free EIS or Plan objectives
- Super wide field SWF 10x/25mm eyepieces
- 100 W halogen illumination
- Quintuple nosepiece
EYEPIECES
- Super wide field SWF 10x/25 mm, Ø 30 mm tubes
- Extended wide field EWF 10x/22 mm, Ø 30 mm tubes (optional)
Three extra eyepieces for transmitted illumination:
- Super wide field SWF 10x/25 eyepiece with crosshairs with micrometer scale for Ø 30 mm tubes
- Super wide field SWF 10x/25 eyepiece with crosshairs for Ø 30 mm tubes
- Super wide field SWF 10x/25 eyepiece with 20 x 20 grid for Ø 30 mm tubes
Three extra eyepieces for reflected illumination:
- Super wide field SWF 10x/22 eyepiece with crosshairs with micrometer scale for Ø 30 mm tubes
- Super wide field SWF 10x/22 eyepiece with crosshairs for Ø 30 mm tubes
- Super wide field SWF 10x/22 eyepiece with 20 x 20 grid for Ø 30 mm tubes
STANDARD HEAD
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces
ERGONOMIC TILTING HEAD
Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with a standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces
NOSEPIECE
Revolving quintuple reversed nosepiece on ball-bearings with centering screws for objectives
OBJECTIVES
The following infinity corrected EIS objectives are supplied with or available for the Delphi-X Observer™:
Plan Semi-apo PL-SAPOLRi (2) | 5x/0.15, | 10x/0.30, | 20x/0.45, | ||||
Plan Apo PL-APOLRi (2) | 50x/0.80, | 100x/0.90 (1) | |||||
Plan PL-POLi (BF/POL) (3) | 4x/0.10, | 10x/0.25, | 20x/0.40, | 40x/0.65, | 50x/0.95, (1) | 100x/1.25 (1) |
1) Optional
2) For models for polarization applications with incident illumination. No cover glass correction
3)For models for polarization applications without incident illumination. With 0.17 mm cover glass correction. All objectives are 60 mm parfocal and have a M25 x 0.7 mounting thread. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
ENHANCED INFINITY SYSTEM (EIS)
The enhanced infinity system (EIS) of the Delphi-X Observer™ consists of super wide field SFWF 10×25 mm eyepieces, high numerical aperture 45 mm parfocal objectives. This tube lens reduces the angle of the light rays passing through the optics and as a direct result significantly improves the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system
For all these reasons the Delphi-X Observer™ offers superior optical performance for the most demanding applications
STAGE
Diameter 190 mm circular stage. 360° Rotatable with Vernier and two object clamps and an optional 30 x 30 mm X-Y mechanical stage
CONDENSER
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 306° rotatable polarizer
FOCUSING
Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control. The focusing knobs can be switched from left to right according to the user’s preference
ILLUMINATION
The Delphi-X Observer materials science microscope for polarization applications is equipped with epi and diascopic intensity adjustable 100 W halogen illumination with internal 100-240 Vac power supply. The diascopic halogen illumination comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kinds of samples
POLARIZATION
Supplied with 360° rotatable polarization filter, analyzer, Bertrand lens, 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge
REFLECTED ILLUMINATION ATTACHMENT
Up to six observation modules can be placed in the rotating structure. Comes with brightfield and brightfield with ND filter positions
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool and holder make sure the right tool is always available
STORAGE
AE.9914-D
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and universal tool. All packed in a polystyrene box
