Education | Polarization Microscopes

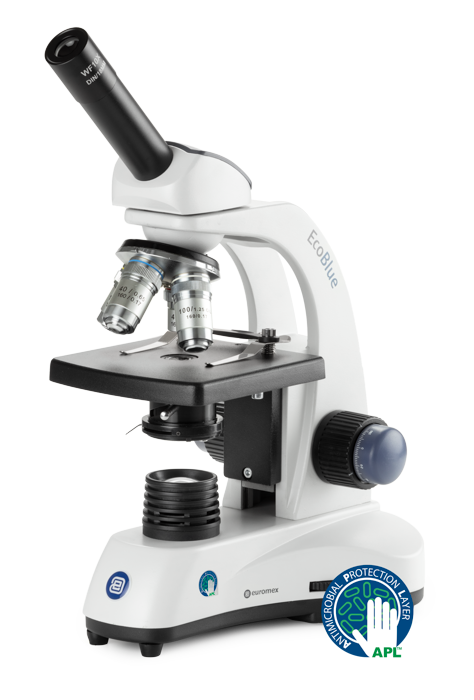

EcoBlue
The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling
The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives
Highlights
- Monocular, binocular and trinocular models with WF10x/18 mm eyepiece(s)
- Models with integrated 5.0 MP CMOS camera
- Models for polarization applications
- Provided with APL (Antimicrobial Protection Layer)
- Revolving nosepiece with four achromatic objectives
- Models with integrated mechanical stage available
- Coaxial coarse and fine adjustments with rack stop
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- 1 W LED or NeoLED™ illumination
- Models without X-Y stage have internal power supply. No batteries
- Models with X-Y stage have rechargeable batteries and external charger/adapter
- Ergonomic stand
EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer. The eyepieces of the binocular and trinocular models are supplied without pointer
HEAD
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable
• Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
• The EcoBlue can also be supplied with a discussion head
NOSEPIECE
• Revolving nosepiece for four objectives on ball bearings
• Models for polarization are supplied with swing-out analyzer
OBJECTIVES – 45 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• The HLED-S models for polarization are equipped with semi-plan objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
(Photo: EC.7004, EC.7010, EC.7020, EC.7040, EC.7060, EC.7000)
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective
STAGES
• Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available)
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps
CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment
ILLUMINATION
• Monocular models are supplied with an adjustable 1 W NeoLED™ illumination system
• Binocular and trinocular models are supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Models with plain stage without X-Y mechanical stage are supplied with integrated power supply, no recheargable batteries
• Models with an integrated XY mechanical stage are supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter
• The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum). With an integrated 100-240 V power supply, no recheargable batteries
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: AE.9918 – AE.9912
PACKAGING
• Supplied with power cord or mains adapter-charger, dust cover, spare fuse, user manual and 5 ml immersion oil for models with an S100x objective
• The EcoBlue models with external mains adapter and X-Y stage (EC.1x5x) are supplied with three rechargeable AA batteries
• All packed in a polystyrene box
DIGITAL MODELS
CAMERA
• All the EcoBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
• Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
• Delivered with the ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
• Warranty for the camera is 2 years
SOFTWARE
• Delivered with ImageFocus Plus for capturing of images and videos
• The capture and analysis ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats and videos in .avi format
• Images can be annotated and measurements can be performed on live or captured images
• Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
• A Mac OS version is also available
• Free updates can be downloaded from our website

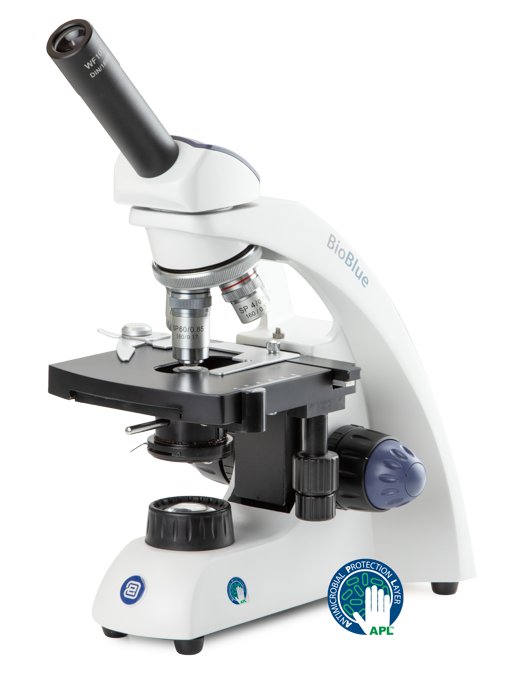

Bioblue
Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards
The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 µm precision positioning of the specimen
Highlights
- WF10x/18mm eyepiece(s)
- BioBlue EVO models with WF 10x/20 mm eyepieces and Köhler NeoLED™ illumination
- Digital and LCD models
- Models for polarization applications
- Provided with APL (Antimicrobial Protection Layer)
- Reversed nosepiece for four semi plan objectives
- Integrated X-Y mechanical stage
- Coaxial coarse and fine adjustments with rack stop
- Height adjustable abbe condenser with iris diaphragm and filter holder
- Monocular models with 1 W LED illumination
- Binocular and trinocular models supplied with 1 W NeoLED illumination for increased light output
- LED models with rechargeable AA batteries and integrated power supply
- Ergonomic stand
EYEPIECE(S)
- WF10x/18 mm Wide field
- Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
- Secured and with pointer for monocular models
- The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces
HEAD
- All heads are 360° rotatable and secured
- Monocular models with 45° inclined tubes
- Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
- Models with digital head are supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera
- Models supplied with a 7” LCD screen
- Optional discussion head available
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer
OBJECTIVES – 45 MM parfocal
- Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
- The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
(Photo: AE.5591, AE.5593, AE.5594, AE.5597, AE.5599, AE.5601)
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
- Total travel approximately 23 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustment is equipped with friction control
STAGE
- 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205
- These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps
- The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps
(Photo left: Rotatable stage for X-Y mechanical stage and polarizer on lamp house (AE.5155)
(Photo right: Optional polarization attachment with analyzer and slider)
POLARIZATION EQUIPMENT
The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp
POLARIZATION MODELS
- Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
- Equipped with analyzer, mounted in a slider under the head
- 360° Rotatable, graduated polarizer on the lamp house
- Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply
- Polarisation attachments for standard microscopes are available optionally
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
ILLUMINATION
- Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
- Monocular models are supplied with an adjustable 1W LED illumination
- The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum), rechargeable batteries with an integrated 100-240 V power supply. However 20 W halogen illumination is also available for polarization models on special request
- The EVO models are equipped with Köhler NeoLED™ illumination
- All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 Vac power supply for cordless operation. LCD versions do not run on batteries
DIGITAL MODELS
STORAGE AND TRANSPORTATION
from left to right: BB.4300 – AE.9918 – AE.9912
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
- Supplied with power cord, three rechargeable AA batteries, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective
- Polarisation models are supplied with a cross hair eyepiece for centering
- All packed in a polystyrene box
