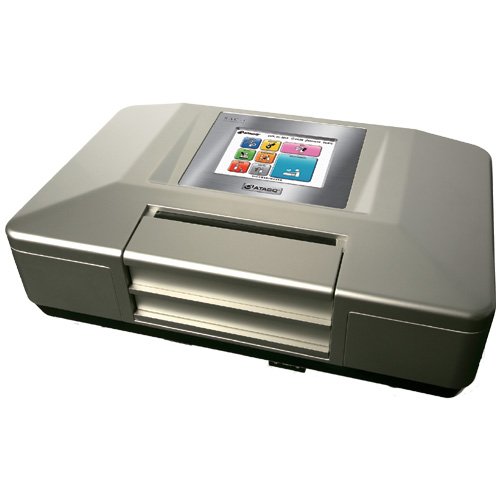

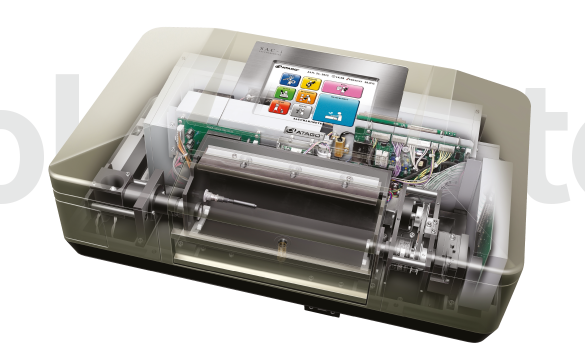

Automatic Polarimeter / Saccharimeter SAC-i
Automatic Polarimeter / Saccharimeter SAC-i – the product of our uncompromising pursuit of ultimate usability.
• FDA 21 CFR Part 11 Software Included in Standard Delivery
• Measurement stability in 12 seconds (4 seconds in the high-speed & consecutive measurement mode)
• Resolution of up to 3 decimal places
• Repeatability of ±0.003° Angle of Rotation and ±0.009°Z
• Up to 999 automatic consecutive measurements followed by average value display
• Sleep & timer feature to take measurement later at specified time
• Improved usability with the use of touch screen technology
• Connectivity to RX Digital Refractometers for automatic purity measurement
This SAC-i has been tested and approved by CONSECANA, the most
eminent authority on sugar and ethanol production in the State of São Paulo, Brazil.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i |
|---|---|
| Cat.No. | 5951 |
| Range | Angle of Rotation -89.9999 to +90.0000° or -360.0000 to +360.0000° International Sugar Scale -259.0000 to +259.0000° |
| Resolution | Angle of Rotation 0.0001° International Sugar Scale 0.0001°Z |
| Accuracy | ①Angle of Rotation： ±0.002° （-5.0 to +5.0°） ±0.005° （-45.0 to -5.0°, +5.0 to +45.0°） ②International Sugar Scale：±0.015°Z （-130.0 to +130.0°Z） Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.030°Z * Checked by reading a standard quartz plate |
| Temperature correction range for ISS | 10 to 40℃ |
|---|---|
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Dimensions & Weight | 60×36.5×21cm, 20.0kg |
| Included Accessories | PolariSoft(Software) |
| Output | Digital Printer DP-AD (sold separately), USB flash drive and PC – USB |

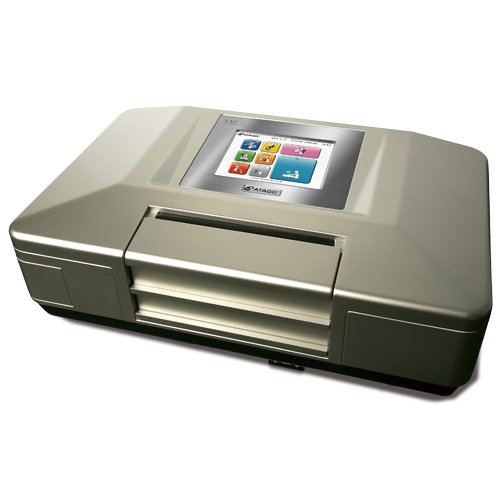

SAC-i Type A Temperature Control
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i Type A Temperature Control |
|---|---|
| Cat.No. | 5961 |
| Package Contents | • SAC-i • Jacketed flow tube with funnel (200mm – approximate volume 15mL) * Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately. |
|---|
SAC-i Type B without Temperature Control
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i Type B without Temperature Control |
|---|---|
| Cat.No. | 5962 |
| Package Contents | • SAC-i • Unjacketed flow tube with funnel (200mm – approximate volume 15mL |
|---|
SAC-i Type C Temperature Control
Both SAC-i packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C5, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i Type C Temperature Control |
|---|---|
| Cat.No. | 5963 |
| Package Contents | • SAC-i • Jacketed flow tube (100mm) • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD • Circulating Constant Temperature Bath 60-C5 |
|---|
SAC-i Type D without Temperature Control
Both SAC-i packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C4, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i Type D without Temperature Control |
|---|---|
| Cat.No. | 5964 |
| Package Contents | • SAC-i • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD |
|---|
Automatic Polarimeter / Saccharimeter SAC-i 589/882
It has become common that dark color – raw sugar samples are measured at 882nm without decolorization treatment.
SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | SAC-i 589/882 |
|---|---|
| Cat.No. | 5952 |
| Range | Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000° International Sugar Scale : -259.0000 to +259.0000°Z |
| Resolution | Angle of Rotation : 0.0001° International Sugar Scale : 0.0001°Z |
| Accuracy | 589nm ①Angle of Rotation：±0.002° (-5.0 to +5.0°) ±0.005° (-45.0 to -5.0°, +5.0 to +45.0°) ②International Sugar Scale：±0.015°Z (-130.0 to +130.0°Z) Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.030°Z * Checked by reading a standard quartz plate 882nm ①Angle of Rotation：±0.002° (-5.0 to +5.0°) ±0.005° (-19.3 to -5.0°, +5.0 to +19.3°) ②International Sugar Scale：±0.015°Z (-130.0 to +130.0 °Z) Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.070°Z * Checked by reading a standard quartz plate |
| Measurement Readings | Angle of Rotation International Sugar Scale Specific Rotation Concentration Purity User scale Angle of Rotation (Temperature Compensation of Quartz Plate) Temperature (°C / °F) |
|---|---|
| Temperature compensation | 10 to 40℃ |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) 882nm（infrared nearby） |
| Dimensions & Weight | 60×36.5×21cm, 20.0kg |
| Included Accessories | PolariSoft(Software) |
| Output | Digital Printer DP-AD (sold separately), Output method : RS-232C (9 pin D-Sub male connector) USB flash drive and PC – USB |
Automatic Polarimeter AP-300
The AP-300 fully automatic polarimeter measures a sample easily by setting the observation tube (filled with a liquid sample) in the sample chamber and pressing START. Digitally displayed measurement values are large and easy to read. The AP-300 generally used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories is the best for measuring the angle of rotation. In addition, the built in International Sugar Scale is used widely in sugar factories.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | AP-300 |
|---|---|
| Cat.No. | 5291 |
| Range | Angle of Rotation : -89.999 to +89.999° International Sugar Scale : -130.000 to +130.000°Z |
| Resolution | Angle of Rotation : 0.001° International Sugar Scale : 0.001°Z |
| Accuracy | Angle of Rotation Displayed value : ±0.01° (-35.00 to +35.00°) Relative precision : ±0.2% (-35.01° to -89.99° , +35.01° to +89.99°) International Sugar Scale Displayed value : ±0.03°Z (-101.00 to +101.00°Z) Relative precision : ±0.2% (-130.00 to -101.01°Z , +101.01 to +130.00°Z) (Checked by reading a standard Quartz Plate) |
| Measurement Readings | Angle of Rotation, International Sugar Scale Specific Optical Rotation Concentration and Purity |
|---|---|
| Temperature compensation | 18.0 to 30.0° for ISS |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Output | • Digital Printer DP-AD (Optional) • RS-232C |
| Dimensions & Weight | 48.5×28.5×17.5cm, 14.4kg |

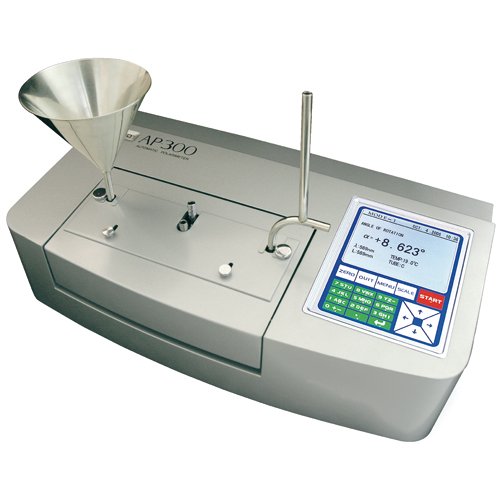

AP-300 Type A Temperature Control
ATAGO has prepared 2 different AP-300 packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The AP-300 comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the AP-300 is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | AP-300 Type A Temperature Control |
|---|---|
| Cat.No. | 5296 |
| Package Contents | • AP-300 • Jacketed flow tube with funnel (200mm – approximate volume 15mL) • Inner Lid (For Tube 200mm) * Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately. |
|---|
AP-300 Type B without Temperature
ATAGO has prepared 2 different AP-300 packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The AP-300 comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the AP-300 is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | AP-300 Type B without Temperature Control |
|---|---|
| Cat.No. | 5297 |
| Package Contents | • AP-300 • Unjacketed flow tube with funnel (200mm – approximate volume 15mL • Inner Lid (For Tube 200mm) |
|---|

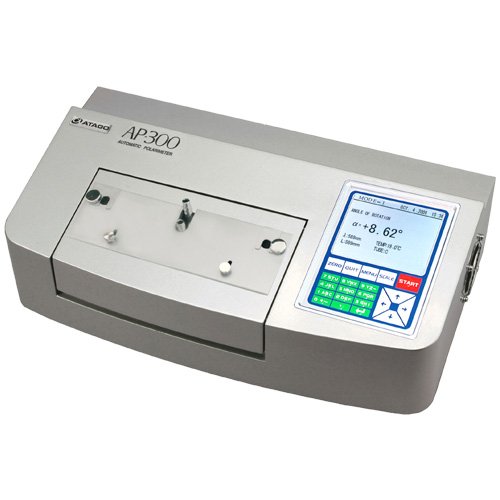

AP-300 Type C Temperature Control
Both AP-300 packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C5, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | AP-300 Type C Temperature Control |
|---|---|
| Cat.No. | 5294 |
| Package Contents | • AP-300 • Jacketed flow tube (100mm) • Inner Lid (For Tube 100mm) • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD • Circulating Constant Temperature Bath 60-C5 |
|---|

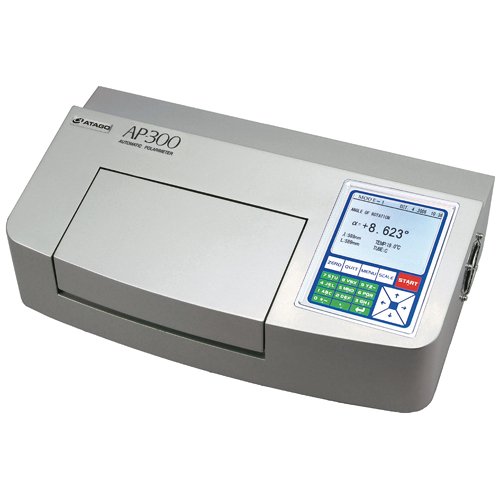

AP-300 Type D without Temperature Control
Both AP-300 packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C4, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
| Model | AP-300 Type D without Temperature Control |
|---|---|
| Cat.No. | 5295 |
| Package Contents | • AP-300 • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD |
|---|

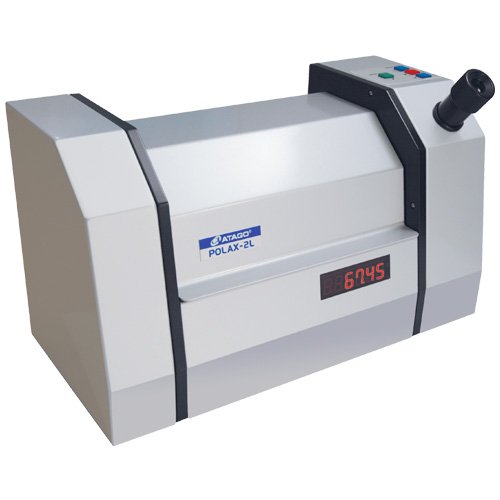

Polarimeter POLAX-2L
Polarimeter, which is known as an optical rotation meter, is an instrument to measure optical rotation of “optically active matter” such as saccharin, ascorbic acid and sodium glutamate.
| Model | POLAX-2L |
|---|---|
| Cat.No. | 5223 |
| Range | Angle of rotation : -179.95° to +180.00° International sugar scale : -130.0°Z to +130.0°Z |
| Resolution | Angle of rotation : 0.05° International sugar scale : 0.1°Z |
| Accuracy | Angle of rotation : ±0.10° International sugar scale : 0.3°Z |
| Temperature compensation | 5 to 40°C |
|---|---|
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Dimensions & Weight | 43×22×30cm, 10.3kg (Main Unit only) |
| Included Accessories | Observation tubes : 100mm tube and 200mm tube / each |

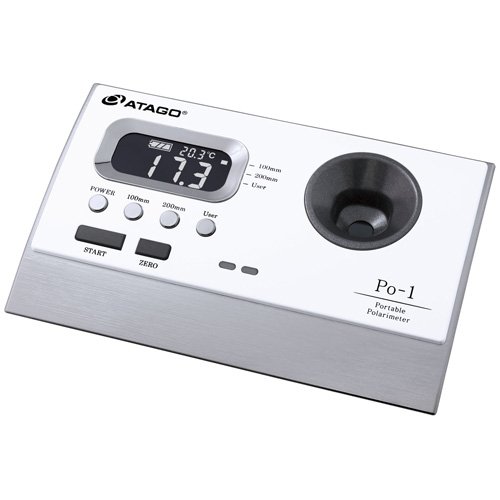

Portable Polarimeter Po-1
World’s Smallest and Speedy Portable Polarimeter.
No observation tube necessary. Only 3ml volume is required for measurements.
| Model | Po-1 |
|---|---|
| Cat.No. | 5050 |
| Measurement item | Angle of Rotation ※Angle of rotation conversion to 100mm and 200mm optical path length., Specific Rotation, Concentration,Temperature |
| Range | Angle of Rotation: These ranges are measured by the device’s 20mm light path. These are convertible to below ranges: -25.0 to +25.0° with a 100mm observation tube -50.0 to +50.0° with a 200mm observation tube Temperature:5.0 to 40.0℃ |
| Accuracy | Angle of Rotation(°): ±0.1°(at 20℃) |
| Wavelength | 589nm |
|---|---|
| Measurement Time | About 7 seconds |
| Power Supply | Size AAA alkaline battery × 4 |
| International Protection Class | IP67 |
| Dimensions & Weight | 160×101×38mm，325g (main unit only) |

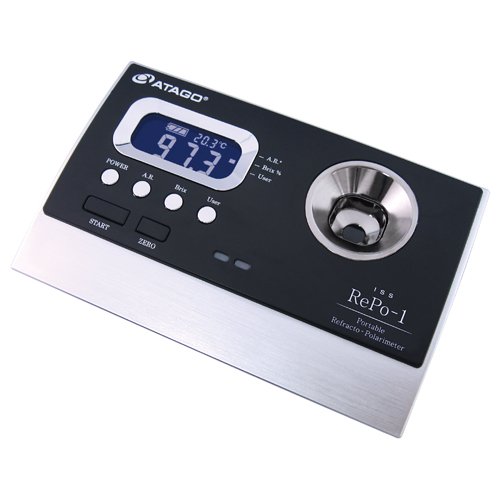

Portable Refracto-Polarimeter RePo-1
A fusion of index of refraction and angle of optical rotation making the invisible,visible.
Brix can only indicate the overall amount of dissolved solids in a solution. With REPO-1, it is possible to determine if a product has been adulterated by measuring the optical rotation. Announcing an All-in-One, refractometer and polarimeter hybrid unit. As little as 3mL sample, Repo-1 can measure both brix and optical rotation of the sample. With the press of a button, purity, international sugar scale, specific rotation, and concentration can be displayed. Users can also set an upper and lower measurement limit. An indicator light alerts the user if a measurement value is within the limits, allowing for optimal efficiency.“Could a Repo-1 be used in our field?” “How about for my unique application?”We look forward to hearing from you!
| Model | RePo-1 |
|---|---|
| Cat.No. | 5010 |
| Range | Angle of Rotation:-5.00 -5.00° *Convertible to -25.00°to +25.00°with a 100mm observation tube *Convertible to -50.00° to +50.00°with a 200mm observation tube International Sugar Scale: -130 to +130°Z Brix: 0 to 85% Temperature: 15.0 to 40.0℃ |
| Resolution | Angle of Rotation: 0.01° Brix: 0.1% International Sugar Scale: 0.1°Z Temperature: 0.1°C |
| Accuracy | Angle of Rotation: ±0.1°(20℃） International Sugar Scale:3°Z, Brix: ±0.2% Temperature: ±1℃ |
| Measurement Readings | Angle of rotation,International Sugar Scale,purity,Specific Rotation,Concentration,Brix,Temperature |
|---|---|
| Temperature compensation | Brix: 15 to 40℃, Purity: 18 to 40℃, International Sugar Scale: 18 to 40℃ |
| Light source | LED |
| Measurement Time | 12 seconds |
| Power Supply | Size AAA alkaline battery x 4 |
| International Protection Class | IP67 |

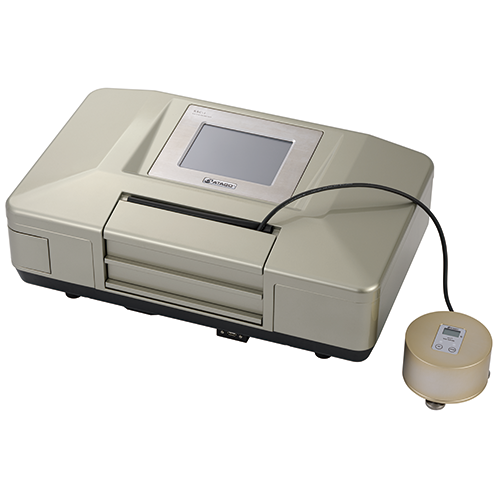

Polarimeter SAC-i w/ Temp Controller
A set of the SAC-i main unit and SAC Temp Controller (including accessories).
| Model | SAC-i w/ Temp Controller |
|---|---|
| Cat.No. | 5931 |
| Package Contents | ・SAC-i ・SAC Temp Controller |
|---|

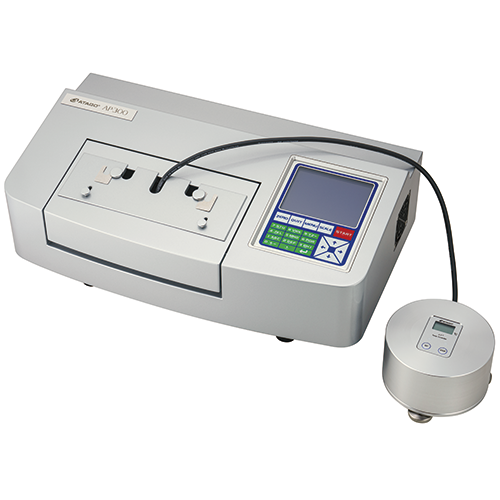

Polarimeter AP-300 w/ Temp Controller
A set of the AP-300 main unit and AP Temp Controller (including accessories).
| Model | AP-300 w/ Temp Controller |
|---|---|
| Cat.No. | 5293 |
| Package Contents | ・AP-300 ・AP Temp Controller ・Sample Chamber Cover ・Inner Lid (For Tube 100mm) |
|---|

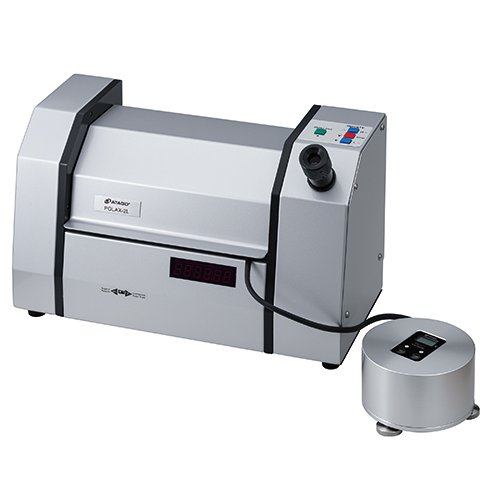

Polarimeter POLAX-2L w/ Temp Controller
A set of the POLAX-2L main unit and POLAX Temp Controller (including accessories).
| Model | POLAX-2L w/ Temp Controller |
|---|---|
| Cat.No. | 5224 |
| Package Contents | ・POLAX-2L ・POLAX Temp Controller |
|---|

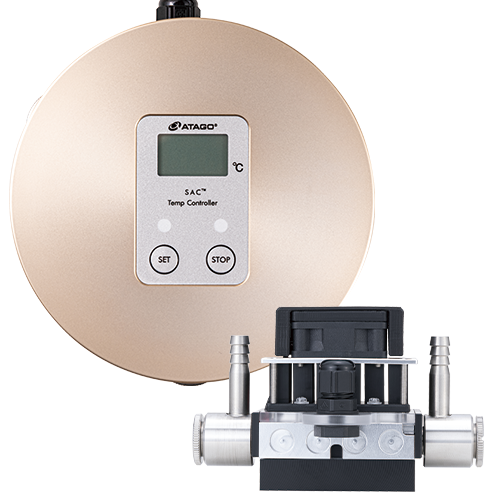

SAC Temp Controller
| Model | SAC Temp Controller |
|---|---|
| Cat.No. | 5900 |
| Resolution | 0.1°C |
| Temperature setting range | Constant temperature range 10°C～50°C (Lower limit environmental temperature -10 °C) |
|---|---|
| Power Supply | AC100-240V 50/60Hz |
| Constant-Temperature Accuracy | ±0.2°C |
| Dimensions & Weight | Temperature control section Temperature control part (upper and lower) weight about 240g observation tube weight about 170g Operation Unit: 130(W)x130(D)x82(H)mm Approx.1.2 kg |

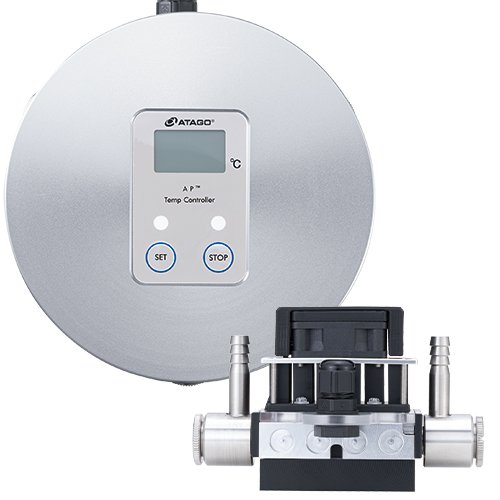

AP Temp Controller
| Model | AP Temp Controller |
|---|---|
| Cat.No. | 5901 |
| Resolution | 0.1°C |
| Temperature setting range | Constant temperature range 10°C～50°C (Lower limit environmental temperature -10 °C) |
|---|---|
| Power Supply | AC100-240V 50/60Hz |
| Constant-Temperature Accuracy | ±0.2°C |
| Dimensions & Weight | Temperature control section Temperature control part (upper and lower) weight about 240g observation tube weight about 170g Operation Unit: 130(W)x130(D)x82(H)mm Approx.1.2 kg |
POLAX Temp Controller
| Model | POLAX Temp Controller |
|---|---|
| Cat.No. | 5902 |
| Resolution | 0.1°C |
| Temperature setting range | Constant temperature range 10°C～50°C (Lower limit environmental temperature -10 °C) |
|---|---|
| Power Supply | AC100-240V 50/60Hz |
| Constant-Temperature Accuracy | ±0.2°C |
| Dimensions & Weight | Temperature control section : 121(W)x47(D)x73(H)mm Operation Unit : 130(W)x130(D)x82(H)mm Temperature control part + Operation Unit : Approx.1.43kg observation tube : Approx.170g |

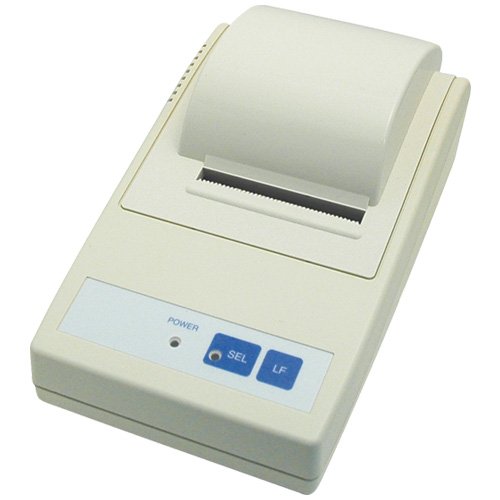

Digital printer DP-AD
| Model | DP-AD |
|---|---|
| Cat.No. | 3123 |
| Compatible models | AP-300 PMM-1000 RX-i series DD-7 SAC-i |
|---|---|
| Printing Method | Dot matrix printing |
| Power Supply | From AC adapter (Input voltage:AC100 to 240V) |
| Dimensions & Weight | 11×18×9cm, 470g (Main Uint only) |
| Power consumption | 7VA |

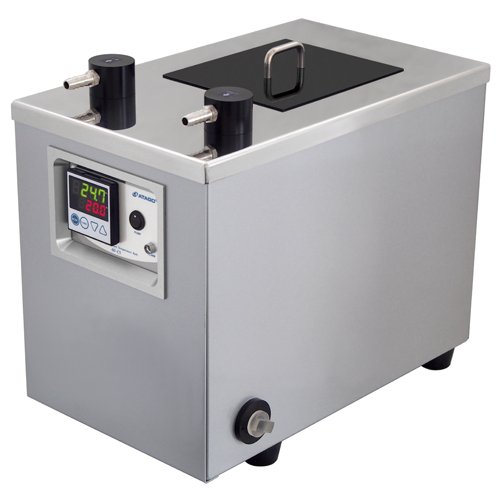

Circulating Constant Temperature Bath 60-C5
The 60-C5 is an external circulation type constant temperature water tank provided with a thermo-module. The temperature can be set in the range of 10 to 60°C and the unit is perfectly suited for connection with a refractometer.An upgraded version of the 60-C4 model, featuring an increased tank capacity of 1.0L and an improved resolution of 0.1℃ which makes it even easier to use.
| Model | 60-C5 |
|---|---|
| Cat.No. | 1923 |
| Resolution | 0.1℃ |
| Tank Capacity | 1.0 lit |
|---|---|
| Temperature Setting Range | 10 to 60°C (water) |
| Temp.control | PID control method using a thermo-module |
| Dimensions & Weight | 20.4×33.6×28.9cm, 9.0kg |
| Flow Rate | 6 lit / min |
