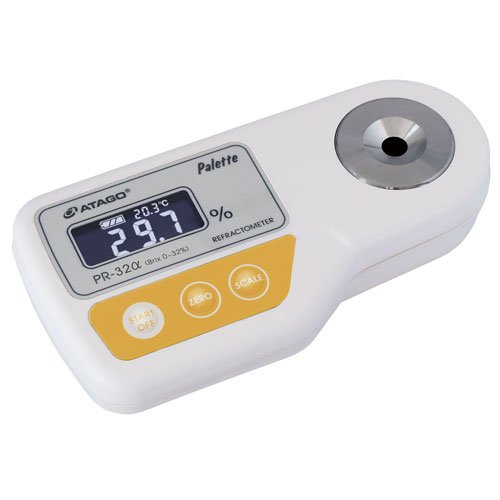

Digital Refractometer PR-32α (alpha)
This model is suitable for fruits juice, food and beverage as well as chemicals and industrial liquids such as cutting oil, cleaning liquid.The unit is programmed with the user-scale feature which allows to input the coefficient to display the concentrations direcly. Also, it is equipped with ELI function for the accurate measurements with confidence even at outside.
| Model | PR-32α |
|---|---|
| Cat.No. | 3405 |
| Range | Brix : 0.0 to 32.0% |
| Accuracy | ±0.1% |
| Temperature compensation | 5 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer PR-101α
This model is suitable for fruits juice, food and beverage as well as chemicals and industrial solutions such as cutting oil, cleaning liquid.The unit is programmed with the user-scale feature which allows to input the coefficient to display the concentrations direcly. Also, it is equipped with ELI function for the accurate measurements with confidence even at outside.
| Model | PR-101α |
|---|---|
| Cat.No. | 3442 |
| Range | Brix : 0.0 to 45.0% |
| Resolution | 0.1% |
| Accuracy | ±0.1% |
| Temperature compensation | 5 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |

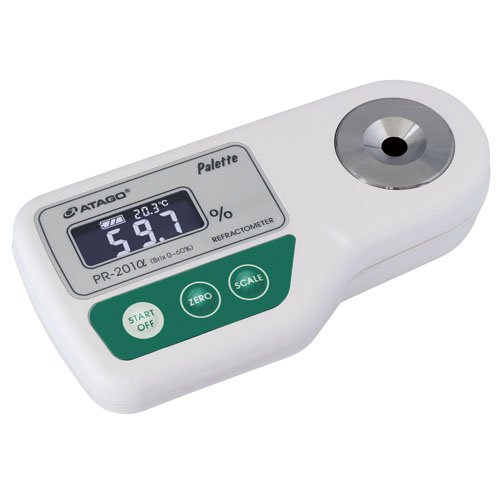

Digital Refractometer PR-201α
It is suitable for various samples up to Brix 60% including jams, concentrated juices and lubricant.The unit is programmed with the user-scale feature which allows to input the coefficient to display the concentrations direcly. Also, it is equipped with ELI function for the accurate measurements with confidence even at outside.
| Model | PR-201α |
|---|---|
| Cat.No. | 3452 |
| Range | Brix : 0.0 to 60.0% |
| Resolution | 0.1% |
| Accuracy | ±0.1% |
| Temperature compensation | 10 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |

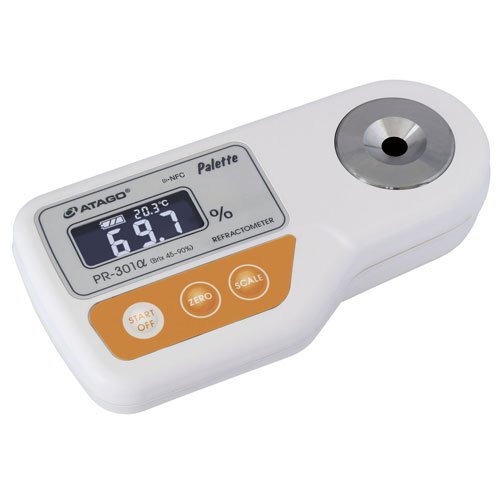

Digital Refractometer PR-301α
It is suitable for higher concentration like jellies, raw liquid sugar, etc.The unit is programmed with the user-scale feature which allows to input the coefficient to display the concentrations direcly. Also, it is equipped with ELI function for the accurate measurements with confidence even at outside.
| Model | PR-301α |
|---|---|
| Cat.No. | 3462 |
| Range | Brix : 45.0 to 90.0% |
| Resolution | 0.1% |
| Accuracy | ±0.1% |
| Temperature compensation | 10 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
| Included Accessories | Standard liquid LG |
Digital Refractometer PR-RI
It is suitable for measuring the refractive indices of liquid samples in pharmaceutical and chemical products.When the start key is pressed after placing some droplets of sample on the prism, the refractive index and temperature will be displayed.
| Model | PR-RI |
|---|---|
| Cat.No. | 3480 |
| Range | Refractive index : 1.3306 to 1.4436 Temperature 5 to 45°C |
| Resolution | 0.0001 |
| Accuracy | ±0.0002 (water at 20°C) |
| Ambient Temperature | 10 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer for Isopropyl alcohol PR-60PA
The concentration of isopropyl alcohol used for cleaning, wetting in printout and other uses can be measured with only a small quantity of sample and with a simple procedure.The temperature is automatically corrected and not necessary to worry about the temperature.
| Model | PR-60PA |
|---|---|
| Cat.No. | 3477 |
| Scale | Concentration of isopropyl alcohol |
| Range | 0.0 to 60.0% (W/W) |
| Resolution | 0.1% |
| Accuracy | 0 to 30%:±0.5% Around 40%:±0.8% Around 60%:±1.6% |
| Temperature compensation | 10 to 35°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer for a Water Solution of Hydrogen Peroxide PR-50HO
The concentration of a water solution of hydrogen peroxide used as a disinfecting solution for cartons for soft drinks and milk-based drinks can be measured with only a small quantity of sample and with a simple procedure.The temperature is automatically corrected and not necessary to worry about the temperature.
| Model | PR-50HO |
|---|---|
| Cat.No. | 3478 |
| Scale | Concentration of a water solution of hydrogen peroxide |
| Range | 0.0 to 50.0% (W/W) |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Temperature compensation | 5 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer for Ethyl Alcohol PET-109
The concentration of ethyl alcohol used for foods, cleaning, cooling and other purposes can be measured with only a small quantity of sample and with a simple procedure.The temperature is automatically corrected and not necessary to worry about the temperature.
| Model | PET-109 |
|---|---|
| Cat.No. | 3486 |
| Scale | Concentration of ethyl alcohol |
| Range | 0.0 to 45.0% (W/W) |
| Resolution | 0.1% |
| Accuracy | 0 to 30%:±0.5% Around 40%:±0.8% Around 45%:±1.2% |
| Temperature compensation | 10 to 35°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer for Salinity PR-100SA
The salinity per mill (‰) of seawater can be measured with only a small quantity of sample and with a simple procedure. The temperature is automatically corrected and not necessary to worry about the temperature.
| Model | PR-100SA |
|---|---|
| Cat.No. | 3488 |
| Scale | Concentration of salinity |
| Range | 0 to 100‰ |
| Resolution | 1‰ |
| Accuracy | ±2‰ |
| Temperature compensation | 5 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Digital Refractometer for Dimethylformamide PR-40DMF
The concentration of dimethylformamide used as a solvent for synthetic leather/fiber and gas refinement can be measured with only a small quantity of sample and with a simple procedure.The temperature is automatically corrected and not necessary to worry about the temperature.It requires no more cumbersome wiping and cleansing after each measurement.
| Model | PR-40DMF |
|---|---|
| Cat.No. | 3489 |
| Scale | Concentration of Dimethylformamide |
| Range | 0.0 to 40.0% (W/W) |
| Resolution | 0.1% |
| Accuracy | ±0.3% |
| Temperature compensation | 5 to 40°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |

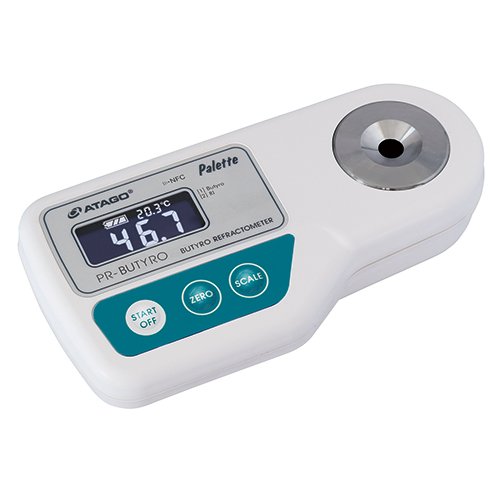

Digital Butyro Refractometer PR-BUTYRO
It requires no more cumbersome wiping and cleansing after each measurement.
| Model | PR-BUTYRO |
|---|---|
| Cat.No. | 3454 |
| Range | Butyro : 30.0 to 90.0 RI : 1.4450 to 1.4850 (Converted at 40°C) |
| Resolution | Butyro: 0.1 RI : 0.0001 |
| Accuracy | Butyro : ±0.5 (at 40°C) RI : ±0.0003 (at 40°C) |
| Temperature compensation | 10 to 50°C |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |

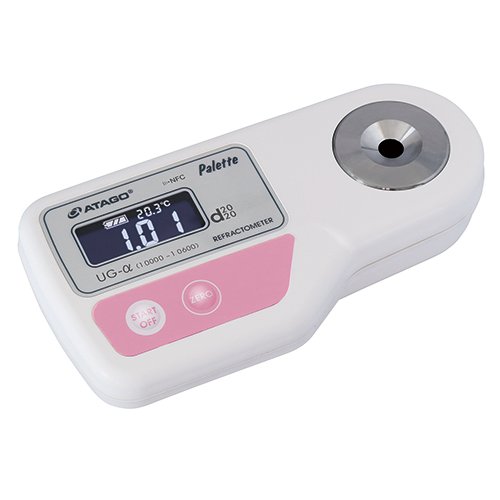

Digital Urine S. G. Refractometer UG-α
This new Digital Urine Specific Gravity Refractometer UG-α (alpha) is an upgraded version of the late UG-1.After pressing the START key, with the sample placed on the prism, the measurement values will be displayed within 3 seconds.
| Model | UG-α |
|---|---|
| Cat.No. | 3464 |
| Range | Urine S.G. : 1.0000 to 1.0600 |
| Resolution | 0.0001 |
| Accuracy | ±0.0010 |
| Temperature compensation | 10 to 35°C |
|---|---|
| Power Supply | 006P Dry battery (9V) |
| Dimensions & Weight | 17×9×4cm, 270g |
Accessories
Digital Wine Refractometer WM-7
The WM-7 with 7 scales is a pocket Digital Wine Refractometer designed to operate of under the strictest environmental conditions, especially areas of high humidity of production and to measure concentration of grape must, easily, speedily, and accurately.Measurement of grape must concentration can be taken by winegrowers, wine cooperatives,wineries, buyers for grape must and so on.The measurement accuracy is upgraded to Brix ± 0.1%. Equipped with a new technology “External-Light-Interference” (E. L.I.)* that enable you to take accurate measurements with ease and confidence near at a window or outside.*Patent Pending
| Model | WM-7 |
|---|---|
| Cat.No. | 3415 |
| Scale | Brix T.A. 1990 (Titre Alcoometrique established in 1990) T.A. 1971 (Titre Alcoometrique established in 1971) Oe (GER) Oe (Oechsle) KMW (or babo) Baume |
| Range | Brix (determined by ICUMSA) : 0.0 to 45.0% T.A. 1990 (Titre Alcoometrique established in 1990) : 0.0 to 26.0% T.A. 1971 (Titre Alcoometrique established in 1971) : 0.0 to 25.0% Oe (GER) (Oechsle used in Germany) : 0 to 240° Oe (Oechsle) : 0 to 240° KMW (or babo) : 0.0 to 40.0° Baume : 0.0 to 21.0° |
| Resolution | Brix (determined by ICUMSA) : 0.1% T.A. 1990 (Titre Alcoometrique established in 1990) : 0.1% T.A. 1971 (Titre Alcoometrique established in 1971) : 0.1% Oe (GER) (Oechsle used in Germany) : 1° Oe (Oechsle) : 1° KMW (or babo) : 0.1° Baume : 0.1° |
| Accuracy | Brix (determined by ICUMSA) : ± 0.1% T.A. 1990 (Titre Alcoometrique established in 1990) : ± 0.2% T.A. 1971 (Titre Alcoometrique established in 1971) : ± 0.2% Oe (GER) (Oechsle used in Germany) : ± 1° Oe (Oechsle) : ± 1° KMW (or babo) : ± 0.2° Baume : ± 0.2° |
| Temperature compensation | 5 to 40°C (Automatic Temperature Compensation) |
|---|---|
| Ambient Temperature | 5 to 40°C |
| Measurement Time | 3 seconds |
| Power Supply | 006P dry battery (9V) |
| International Protection Class | IP64 Dust-tight and Protected against splashing water. |
| Dimensions & Weight | 17×9×4cm, 270g (Main Unit only) |
Digital Plato Refractometer PR-Plato
The PR-Plato is designed for breweries to measure the specific gravity of sweet wort in degrees Plato. Taking measurements with the PR-Plato only requires a few drops of sample, and it provides accurate readings within 3 seconds!
| Model | PR-Plato |
|---|---|
| Cat.No. | 3429 |
| Range | 0.0 to 30.0% |
| Resolution | 0.1% |
| Accuracy | ±0.1°P |
| Temperature compensation | 5 to 40℃ |
|---|---|
| Power Supply | 006P dry battery (9V) |
| Dimensions & Weight | 17×9×4cm,270g |
