Cost-effective, user-friendly camera with low resolution (1.3 MP), high frame speed, CMOS sensor and USB2.0 connection, recommended for basic applications in education and home use.
CAMERAS & DIGITAL Solutions
Entry Level Microscope Cameras

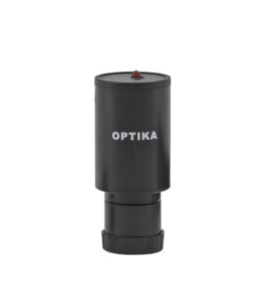

E Series - Eyepiece Camera
C-E2
Description
Specifications
Documents
Description
User-friendly eyepiece camera to be combined with any microscope
• Direct connection into the eyepiece tube instead of one of the eyepieces (23mm, 30mm & 30.5mm diameter)
• No additional adapters required
• Very useful for educational purposes
• Removable miniUSB cable
• Includes the user-friendly and intuitive OPTIKA Pro View & OPTIKA Lite View.
Specifications
Digital camera resolution: 2 MP
Analog camera resolution: NO
Signal output: USB 2.0
Audio Signal: NO
Sensor Size: 1\3.2”
Sensor technology: CMOS
Image format: 4\3
Full Image size: 1600 x 1200
Frame rate full resolution: 5 fps (1600×1200) / 7,5 fps (1280×1024) / 22fps (640×480)
Max Exposure time: –
ON board Memory: Auto
External Memory Card: NO
External camera power: PC USB
White Balance: Auto
Gain Control: Auto
Back light control: Auto
Exposure control: Auto
C-Mount connection: NO
CS-Mount connection: NO
Arm length: –
8mm objective: NO
Accessories included: 30 mm and 30.5 mm ring adapters for built-in 23mm eyepiece adapter, USB cable.
Documents
B-Series
C-B1
Description
Specifications
Documents
Description
Specifications
Cost-effective, user-friendly camera with low resolution (1.3 MP), high frame speed, CMOS sensor and USB2.0 connection, recommended for basic applications in education and home use.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included.
Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp 1.3 MP images
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-B3A
Description
Specifications
Documents
Description
Cost-effective, user-friendly camera with 3.1 MP resolution, CMOS sensor and USB2.0 connection, recommended for basic applications in education and home use.
Specifications
Cost-effective, user-friendly camera with 3.1 MP resolution, CMOS sensor and USB2.0 connection, recommended for basic applications in education and home use.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp 3.1 MP images
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-B5
Description
Specifications
Documents
Description
Cost-effective, user-friendly camera with 5.1 MP resolution, CMOS sensor and USB2.0 connection, recommended for basic/general applications in education and home use.
Specifications
Cost-effective, user-friendly camera with 5.1 MP resolution, CMOS sensor and USB2.0 connection, recommended for basic/general applications in education and home use.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp 5.1 MP images
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-B16
Description
Specifications
Documents
Description
High resolution, user-friendly camera with 16 MP, CMOS sensor and USB2.0 connection, recommended for basic/general applications in education and home use.
Specifications
High resolution, user-friendly camera with 16 MP, CMOS sensor and USB2.0 connection, recommended for basic/general applications in education and home use.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp, high resolution 16 MP images
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-B10+
Description
Specifications
Documents
Description
High speed, user-friendly camera with high resolution (10 MP), CMOS sensor and USB3.0 connection, recommended for basic/general applications in education and home use especially on moving specimens.
Specifications
High speed, user-friendly camera with high resolution (10 MP), CMOS sensor and USB3.0 connection, recommended for basic/general applications in education and home use especially on moving specimens.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp, high resolution 10 MP images
» USB3.0 for impressive high frame rate
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-B25+
Description
Specifications
Documents
Description
High speed, user-friendly camera with high resolution (25 MP), CMOS sensor and USB3.0 connection, recommended for basic/general applications in education and home use especially on moving specimens.
Specifications
High speed, user-friendly camera with high resolution (25 MP), CMOS sensor and USB3.0 connection, recommended for basic/general applications in education and home use especially on moving specimens.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» Crisp, high resolution 25MP images
» USB3.0 for impressive high frame rate
» Reliable color fidelity
» C-Mount projection lens and rings included
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
TABLET – TB Series

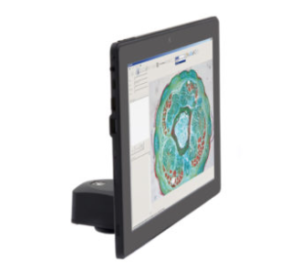

TB-3WA
Description
Specifications
Documents
Description

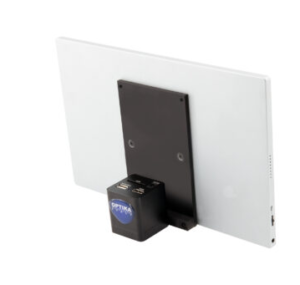

Exclusive, powerful Windows tablet PC combined to 3.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
Specifications
Exclusive, powerful Windows tablet PC combined to 3.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
The unique holding solution for open discussion is 360° rotating and tilting for any adjustement, whilst the large touch screen provides fast, responsive and smooth control.
At any time, the tablet PC can be easily detached to be used as a laptop (keyboard sold separately).
Non-stop operation is granted by the simultaneous camera and power connection for long-term use and class/lesson alternation.
Connectable also to all the trinocular tube of different brands using the projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software is always available to enable the latest updates.
» External digital camera connected to Windows tablet PC
» Large touch screen with fast, responsive and smooth control
» Easily detachable, can be used as a laptop (keyboard sold separately)
» A 2-in-1 solution that you can use like a PC, being Windows-based
» Simultaneous camera and power connection for long-term operation
» Powerful Intel processor ensuring top performance and speed
» High-resolution, vivid color graphic display
» Crisp 3.1 MP images
» High frame rate
» Reliable color fidelity
» C-mount connection (direct or via dedicated adapter, on any microscope)
» C-mount projection lens and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents

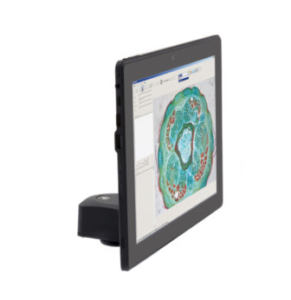

TB-5W
Description
Specifications
Documents
Description
Exclusive, powerful Windows tablet PC combined to 5.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
Specifications
Exclusive, powerful Windows tablet PC combined to 5.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
The unique holding solution for open discussion is 360° rotating and tilting for any adjustement, whilst the large touch screen provides fast, responsive and smooth control.
At any time, the tablet PC can be easily detached to be used as a laptop (keyboard sold separately).
Non-stop operation is granted by the simultaneous camera and power connection for long-term use and class/lesson alternation.
Connectable also to all the trinocular tube of different brands using the projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software is always available to enable the latest updates.
» External digital camera connected to Windows tablet PC
» Large touch screen with fast, responsive and smooth control
» Easily detachable, can be used as a laptop (keyboard sold separately)
» A 2-in-1 solution that you can use like a PC, being Windows-based
» Simultaneous camera and power connection for long-term operation
» Powerful Intel processor ensuring top performance and speed
» High-resolution, vivid color graphic display
» Crisp 5.1 MP images
» High frame rate
» Reliable color fidelity
» C-mount connection (direct or via dedicated adapter, on any microscope)
» C-mount projection lens and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
HB – Series

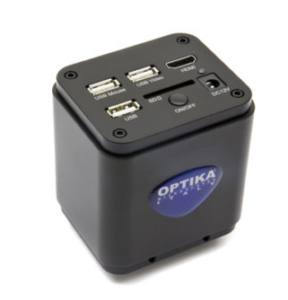

C-HB
Description
Specifications
Documents
Description
Cost-effective, entry-level HD camera with 1080p, 2 MP resolution, Sony CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card.
Specifications
Cost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.
It also supports excel storage.
Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
» Simple operation, built-in software
» Universal connection to any microscope brand
» Crisp Full HD images
» High frame rate
» Reliable color fidelity
» C-mount connection (via dedicated adapter, on any microscope)
» HDMI cable, mouse and SD card included
Documents

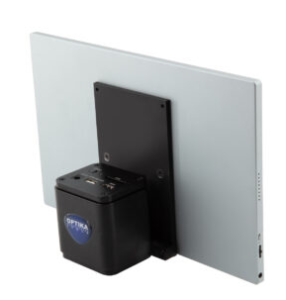

C-HBSC
Description
Specifications
Documents
Description

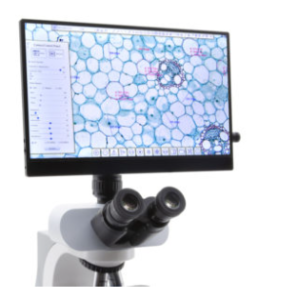

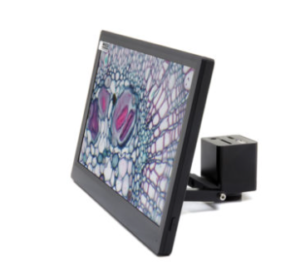

All-in-one, space saving package including 11.5″ Full HD monitor with tilting feature and user-friendly HD camera with 1080p, 2 MP resolution, Sony CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card.
Specifications
All-in-one, space saving package including 11.5″ full HD monitor with tilting feature and user-friendly HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.
It also supports excel storage.
Compact footprint, enabling screen tilting and adjustment to ensure correct posture and eliminate fatigue during observation.
Connection to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
» External digital camera connected to full HD monitor
» Large screen with fast, responsive and smooth control
» Simple operation, built-in software
» Universal connection to any microscope brand
» Vivid color graphic display
» Crisp Full HD images
» High frame rate
» Reliable color fidelity
» C-mount connection (via dedicated adapter, on any microscope)
» HDMI cable, mouse and SD card included
Documents
WIFI Cameras – WiFi Series
C-WF2
Description
Specifications
Documents
Description

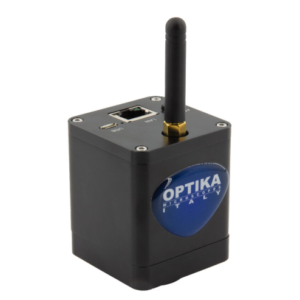

4Mp Wi-Fi camera with good resolution, CMOS sensor and USB/LAN/Wi-Fi connection, recommended for basic/general applications in education and home use. Work in a fully interactive, flexible and dynamic digital classroom and maximize the efficiency of learning processes.
Specifications
Wi-Fi camera with good resolution, CMOS sensor and Wi-Fi connection, recommended for basic/general applications in education and home use.
Work in a fully interactive, flexible and dynamic digital classroom and maximize the efficiency of learning processes.
Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Ideal for interactive, flexible and dynamic learning processes
» Simple, intuitive operation with powerful software
» Universal connection to any microscope brand
» Direct eyepiece & trino port connection
» 4 MP images
» USB/Wi-Fi (AP/STA) /Lan interface
» Direct Wi-Fi connection (no router is required)
» Image and video capturing function when used in Wi-Fi mode
» Reliable colour fidelity
» C-mount projection lens and rings included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux”
Documents
Professional Microscope Cameras
C-P Series
C-P3
Description
Specifications
Documents
Description
Professional yet very easy to use camera with 3.1 MP resolution, SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission. The compact and elegantly designed housing conceals the very latest in camera technology.
Specifications
Professional yet very easy to use camera with 3.1 MP resolution, SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Top-class SONY EXMOR sensor
» Universal connection to any microscope brand
» Crisp 3.1 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-P6 / CP6AR
Description
Specifications
Documents
Description
Professional yet very easy to use camera with 6.3 MP resolution, large SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission. The compact and elegantly designed housing conceals the very latest in camera technology.
Specifications
Professional yet very easy to use camera with 6.3 MP resolution, large SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
C-P6AR is equipped with AR glass for IR filter range (nm) 380-1050
» Simple operation, driver-free
» Top-class SONY EXMOR sensor
» Universal connection to any microscope brand
» Crisp 6.3 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-P8
Description
Specifications
Documents
Description
Professional high resolution (8.3 MP) yet very easy to use camera, with SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission. The compact and elegantly designed housing conceals the very latest in camera technology.
Specifications
Professional high resolution (8.3 MP) yet very easy to use camera, with SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Top-class SONY EXMOR sensor
» Universal connection to any microscope brand
» Crisp 8.3 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-P20
Description
Specifications
Documents
Description
Professional high resolution (20 MP) yet very easy to use camera, with large SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring rapid speed transmission. The compact and elegantly designed housing conceals the very latest in camera technology.
Specifications
Professional high resolution (8.3 MP) yet very easy to use camera, with SONY EXMOR CMOS sensor and USB3.0 connection, recommended for general scientific or industrial purposes requiring generous rapid speed transmission.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Top-class SONY EXMOR sensor
» Universal connection to any microscope brand
» Crisp 8.3 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-PGS Series
C-P5GS
Description
Specifications
Documents
Description
Professional yet very easy to use camera with 5 MP resolution, large SONY EXMOR CMOS sensor, USB3.0 connection and Global Shutter mode. Global Shutter mode can be easily thought of as a ‘Snapshot’ exposure mode, perfect for capturing images of moving objects and enabling ‘freeze frame’ capture of fast changing events, exposing each and every pixel simultaneously. In addition, the generous dynamic range gives a great response to light and dark simultaneously, being recommened for polarizing light applications
Specifications
Professional yet very easy to use camera with 5 MP resolution, large SONY EXMOR CMOS sensor, USB3.0 connection and Global Shutter mode. Global Shutter mode can be easily thought of as a ‘Snapshot’ exposure mode, perfect for capturing images of moving objects and enabling ‘freeze frame’ capture of fast changing events, exposing each and every pixel simultaneously.
In addition, the generous dynamic range gives a great response to light and dark simultaneously, being recommened for polarizing light applications.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Simple operation, driver-free
» Top-class SONY EXMOR sensor
» Universal connection to any microscope brand
» Crisp 5 MP images
» Global Shutter technology for “freeze frame” capture
» Generous dynamic range, recommened for polarizing light
» USB3.0 for impressive high frame rate
» Crystal-clear images, even for very short exposures
» Outstanding noise characteristics, even in low lighting conditions
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-WH5 Series
C-WH5
Description
Specifications
Documents
Description
Smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required. No software installation is required with image and video capturing on SD card when in HDMI mode. No router or external applications are required thanks to the quick and simple camera connection.
Specifications
Smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required.
No software installation is required with image and video capturing on SD card when in HDMI mode.
No router or external applications are required thanks to the quick and simple camera connection.
At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them. Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
» Simple, intuitive operation with powerful software
» Universal connection to any microscope brand
» Up to 5 MP images
» Dual output mode (HDMI/Wi-Fi)
» Reliable colour fidelity
» HDMI cable, mouse and SD card included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
C-WH5SC
Description
Specifications
Documents
Description
All-in-one, space saving package including 11.5″ full HD monitor with tilting feature and professional yet user-friendly FULL HD camera with 1080p.
Smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required. No software installation is required with image and video capturing on SD card when in HDMI mode. No router or external applications are required thanks to the quick and simple camera connection.
Specifications
All-in-one, space saving package including 11.5″ full HD monitor with tilting feature, smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required.
No software installation is required with image and video capturing on SD card when in HDMI mode.
No router or external applications are required thanks to the quick and simple camera connection.
At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
Documents
HA Models
C-HAF
Description
Specifications
Documents
Description
Real-time Full HD Auto-Focus Inspection Camera
OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable.
Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.) without the inconvenience of having to constantly re-adjust the lens focus.
Working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.
The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom.
All functions are controlled directly from the screen, with the support of mouse, and images and videos can be directly acquired on SD card (mouse and SD card are included).
Main functions are:
– Possibility to perform automatic or manual white balance, independently setting RGB parameters for a perfect color reproduction
– Choose between automatic or manual exposure
– With HDR function, a sequence of images is captured at different exposures, and they are combined into a single image
– Trigger function allows the connection with an external controller and the file acquisition is possible with a determined sequence
– Possibility to set horizontal and vertical lines, in different colors and positions, to generate a custom grid directly on the HDMI screen
OPTIKA C-HAF comes with fixing holes to be connected with “custom” supports or brackets.
It is available also combined with a boom stand (as IS-02) or a compact stand with table clamp or wall-mount (as IS-03).
Specifications
Image Sensor: CMOS sensor Sony Exmor
Sensor dimensions: 1/2.8”
Effective pixels: 2 MP
Output: HDMI
Power: DC5V
Operation control: Remote control
Scanning: Progressive Scanning
White balance: Manual/Auto/OnePush
Exposure: Manual/Auto
Shutter speed : 1/50s(1/60s)-1/10000s
SNR: >50dB
Frame Rate: 1080p@60fps
Operating Temp: 0°C – 50°C
Weight: 500g
Optical Zoom 1x-14x
Digital Zoom 1x-6x
Working Distance: From 10cm to Infinity
Focusing System: Autofocus / Manual focus
Documents
4K Series
C-HP4
Description
Specifications
Documents
Description
Professional ultra-high definition yet very easy to use 4K camera with 2160p, 8 MP resolution, large SONY CMOS sensor and HDMI connection to clearly reveal the sample’s finest details on-screen and perform measurements. No software installation is required with image and video capturing on SD card when in HDMI mode
Specifications
Professional ultra-high definition yet very easy to use 4K camera with 2160p, 8 MP resolution, large SONY CMOS sensor and HDMI connection to clearly reveal the sample’s finest details on-screen and perform measurements.
No software installation is required with image and video capturing on SD card when in HDMI mode.
At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
» Simple operation, built-in software
» Universal connection to any microscope brand
» Ultra HD 4K 2160p images and videos
» Dual output mode (HDMI/USB)
» High frame rate
» Reliable color fidelity
» C-mount connection (via dedicated adapter, on any microscope)
» HDMI cable, mouse and SD card included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
C-HUB4K (WiFi and LAN)
Description
Specifications
Documents
Description
Professional ultra-high definition yet very easy to use 4K camera with 2160p, 8 MP resolution, large SONY CMOS sensor and HDMI connection to clearly reveal the sample’s finest details on-screen and perform measurements. This camera allows connection via wifi and via lan cable.
No software installation is required with image and video capturing on SD card when in HDMI mode
Specifications
Professional ultra-high definition yet very easy to use 4K camera with 2160p, 8 MP resolution, large SONY CMOS sensor and HDMI connection to clearly reveal the sample’s finest details on-screen and perform measurements.
No software installation is required with image and video capturing on SD card when in HDMI mode.
At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
» Simple operation, built-in software
» Universal connection to any microscope brand
» Ultra HD 4K 2160p images and videos
» Dual output mode (HDMI/Ethernet)
» High frame rate
» Reliable color fidelity
» C-mount connection (via dedicated adapter, on any microscope)
» HDMI cable, mouse and SD card included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
High Level Microscope Cameras
CMOS, Rolling Shutter
C-P20CC
Description
Specifications
Documents
Description
Ultra-professional yet intuitive camera with incredibly high resolution (20 MP), cooled large SONY EXMOR CMOS color sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. The cooling system affects sensitivity and therefore image clarity. The high resolution makes these models interesting also for morphological imaging, patch clamping and network studies. The compact and elegantly designed housing conceals the very latest in camera technology.
Specifications
Ultra-professional yet intuitive camera with incredibly high resolution (20 MP), cooled large SONY EXMOR CMOS color sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. The cooling system affects sensitivity and therefore image clarity.
The high resolution makes these models interesting also for morphological imaging, patch clamping and network studies.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Recommended for special applications, including fluorescence
» Simple operation, driver-free
» Top-class, large SONY EXMOR sensor
» Cooling system for enhanced sensitivity
» Universal connection to any microscope brand
» Crisp 20 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
C-P20CM
Description
Specifications
Documents
Description
Ultra-professional yet intuitive camera with incredibly high resolution (20 MP), cooled large SONY EXMOR CMOS monochrome sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. The cooling system affects sensitivity and therefore image clarity. The monochrome sensor makes it perfect for fluorescence imaging. The high resolution makes these models interesting also for morphological imaging, patch clamping and network studies.
Specifications
Ultra-professional yet intuitive camera with incredibly high resolution (20 MP), cooled large SONY EXMOR CMOS monochrome sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. The cooling system affects sensitivity and therefore image clarity.
The monochrome sensor makes it perfect for fluorescence imaging.
The high resolution makes these models interesting also for morphological imaging, patch clamping and network studies.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Recommended for special applications, including fluorescence
» Simple operation, driver-free
» Top-class, large SONY EXMOR sensor
» Monochrome sensor and cooling system for impressive sensitivity
» Universal connection to any microscope brand
» Crisp 20 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
CMOS Global Shutter
C-P1CCGS
Description
Specifications
Documents
Description
Superb, stunning global shutter SONY EXMOR CMOS camera with low resolution (1.7 MP), cooled large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Main key-ponits are the global shutter featuring its sensitivity, which makes this series impressive both with fast-moving specimens and in low-light fluorescence, especially thanks to the cooling function.
Specifications
Superb, stunning global shutter SONY EXMOR CMOS camera with low resolution (1.7 MP), cooled large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Main key-ponits are the global shutter featuring its sensitivity, which makes this series impressive both with fast-moving specimens and in low-light fluorescence, especially thanks to the cooling function.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.”
» Recommended for special applications, including fluorescence
» Simple operation, driver-free
» Top-class, large SONY EXMOR sensor
» Cooling system for enhanced sensitivity
» Global shutter for impressive performance on moving samples
» Universal connection to any microscope brand
» Crisp 1.7 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux”
Documents
C-P1CMGS
Description
Specifications
Documents
Description
Superb, stunning global shutter SONY EXMOR CMOS camera with low resolution (1.7 MP), cooled large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Main key-ponits are the global shutter featuring its sensitivity, which makes this series impressive both with fast-moving specimens and in low-light fluorescence, especially thanks to the cooling function.
Specifications
Superb, stunning global shutter SONY EXMOR CMOS camera with low resolution (1.7 MP), cooled large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Main key-ponits are the global shutter featuring its sensitivity, which makes this series impressive both with fast-moving specimens and in low-light fluorescence, especially thanks to the cooling function. The monochrome sensor makes it perfect for fluorescence imaging.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
» Recommended for special applications, including fluorescence
» Simple operation, driver-free
» Top-class, large SONY EXMOR sensor
» Monochrome sensor and cooling system for impressive sensitivity
» Global shutter for impressive performance on moving samples
» Universal connection to any microscope brand
» Crisp 1.7 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
CCD Rolling Shutter
C-P6FL
Description
Specifications
Documents
Description
Top-class, easy to operate SONY EXVIEW CCD camera with high resolution (6 MP), large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Its particular sensitivity is relevantly important in low-light fluorescence, and if small changes in fluorescence need to be detected, determining how clear the image produced is. The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
Specifications
» Recommended for special applications, including fluorescence
» Simple operation, driver-free
» Top-class, large SONY EXVIEW CCD sensor
» Significant sensitivity for a non-cooled camera
» Universal connection to any microscope brand
» Crisp 6 MP images
» USB3.0 for impressive high frame rate
» Incredibly accurate colors
» USB cable and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView & LiteView for Windows
» OPTIKA LiteView for Mac OS or Linux
Documents
Tablets and All-in-One Digital Systems
TB-3WA
Description
Specifications
Documents
Description
Exclusive, powerful Windows tablet PC combined to 3.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
The unique holding solution for open discussion is 360° rotating and tilting for any adjustement, whilst the large touch screen provides fast, responsive and smooth control.
At any time, the tablet PC can be easily detached to be used as a laptop (keyboard sold separately).
Non-stop operation is granted by the simultaneous camera and power connection for long-term use and class/lesson alternation.
Connectable also to all the trinocular tube of different brands using the projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software is always available to enable the latest updates.
Specifications
» External digital camera connected to Windows tablet PC
» Large touch screen with fast, responsive and smooth control
» Easily detachable, can be used as a laptop (keyboard sold separately)
» A 2-in-1 solution that you can use like a PC, being Windows-based
» Simultaneous camera and power connection for long-term operation
» Powerful Intel processor ensuring top performance and speed
» High-resolution, vivid color graphic display
» Crisp 3.1 MP images
» High frame rate
» Reliable color fidelity
» C-mount connection (direct or via dedicated adapter, on any microscope)
» C-mount projection lens and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
TB-5W
Description
Specifications
Documents
Description
Exclusive, powerful Windows tablet PC combined to 5.1 MP camera, CMOS sensor, recommended for discussion groups and educational purposes thanks to the easy operation, space-saving features and unparalleled comfort.
The unique holding solution for open discussion is 360° rotating and tilting for any adjustement, whilst the large touch screen provides fast, responsive and smooth control.
At any time, the tablet PC can be easily detached to be used as a laptop (keyboard sold separately).
Non-stop operation is granted by the simultaneous camera and power connection for long-term use and class/lesson alternation.
Connectable also to all the trinocular tube of different brands using the projection lens included or additional focusable C-Mount adapter.
Downloadable, free of charge software is always available to enable the latest updates.
Specifications
» External digital camera connected to Windows tablet PC
» Large touch screen with fast, responsive and smooth control
» Easily detachable, can be used as a laptop (keyboard sold separately)
» A 2-in-1 solution that you can use like a PC, being Windows-based
» Simultaneous camera and power connection for long-term operation
» Powerful Intel processor ensuring top performance and speed
» High-resolution, vivid color graphic display
» Crisp 5.1 MP images
» High frame rate
» Reliable color fidelity
» C-mount connection (direct or via dedicated adapter, on any microscope)
» C-mount projection lens and calibration slide included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
TB-6Pro4k
Description
Specifications
Documents
Description
All-in-one 4K digital imaging system w/15,6″ touch screen monitor
Exclusive, powerful Windows Mini PC combined with 6 MP professional camera with CMOS sensor and to a stunning 15.6” 4K touch screen monitor.
Recommended for lab use thanks to its incomparable vision quality, easy operation, space-saving features and unparalleled comfort.
The unique holding solution for open discussion, whilst the large touch screen provides fast, responsive and smooth control, especially when used in combination with a stylus pen for touch screen monitors (not included).
At any time, the system can be easily detached to be used on different microscopes equipped with c-mount adapters (not included).
Downloadable, free of charge software is always available to enable the latest updates.
Specifications
» External digital camera connected to Windows Mini PC
» 15.6” touch screen monitor with fast, responsive and smooth control
» Easily detachable, can be used on different microscopes
» An all-in-one solution that you can use like a PC, being Windows-based
» Powerful Intel or AMD processor ensuring top performance and speed
» 4K resolution, vivid color graphic display
» Crisp 6 MP images
» High frame rate
» Reliable color fidelity
» C-mount connection (direct or via dedicated adapter, on any microscope)
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
C-HBSC
Description
Specifications
Documents
Description
All-in-one, space saving package including 11.5″ full HD monitor with tilting feature and user-friendly HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.
It also supports excel storage.
Compact footprint, enabling screen tilting and adjustment to ensure correct posture and eliminate fatigue during observation.
Connection to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
Specifications
» External digital camera connected to full HD monitor
» Large screen with fast, responsive and smooth control
» Simple operation, built-in software
» Universal connection to any microscope brand
» Vivid color graphic display
» Crisp Full HD images
» High frame rate
» Reliable color fidelity
» C-mount connection (via dedicated adapter, on any microscope)
» HDMI cable, mouse and SD card included
Documents
C-WH5SC
Description
Specifications
Documents
Description
All-in-one, space saving package including 11.5″ full HD monitor with tilting feature, smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required.
No software installation is required with image and video capturing on SD card when in HDMI mode.
No router or external applications are required thanks to the quick and simple camera connection.
At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.
The compact and elegantly designed housing conceals the very latest in camera technology.
Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.
Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).
Wireless mouse, SD card and built-in software included.
Specifications
» Large screen with fast, responsive and smooth control
» Simple, intuitive operation with powerful software
» Universal connection to any microscope brand
» Up to 5 MP images
» Dual output mode (HDMI/Wi-Fi)
» Reliable colour fidelity
» HDMI cable, mouse and SD card included
» Downloadable, free of charge software
» OPTIKA ProView for Windows
Documents
C-HP4SC
Description
Specifications
Documents
Description
All-in-one, space saving package including C-HP4 (8 Mp) camera combined to 15.6″ 4K monitor with tilting feature.
Smart and user-friendly dual output (HDMI & USB) camera with high resolution (up to 8 MP), high-grade SONY CMOS sensor and HDMI/USB connection, recommended for advanced routine operations and whenever measurements are required thanks to its incomparable vision quality, easy operation, space-saving features and unparalleled comfort.
No software installation is required with image and video capturing on SD card when in HDMI mode. No router or external applications are required thanks to the quick and simple camera connection.
The mounting system enables screen adjustment to ensure correct posture and eliminate fatigue during observation.
Specifications
All-in-one, space saving package including C-HP4 (8 Mp) camera combined to 15.6″ 4K monitor with tilting feature.
Smart and user-friendly dual output (HDMI & USB) camera with high resolution (up to 8 MP), high-grade SONY CMOS sensor and HDMI/USB connection, recommended for advanced routine operations and whenever measurements are required thanks to its incomparable vision quality, easy operation, space-saving features and unparalleled comfort.
No software installation is required with image and video capturing on SD card when in HDMI mode. No router or external applications are required thanks to the quick and simple camera connection.
The mounting system enables screen adjustment to ensure correct posture and eliminate fatigue during observation.
Documents
