| Main Unit Specifications | Main Unit Specifications | ||
|---|---|---|---|
| Model | 3905 | 3910 | 3920 |
| Light Source | Laser diode | ||
| Measuring Particle Size | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 (μm) | 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 (μm) | |
| Flow Rate | 1.0 CFM (28.3 LPM) | 1.77 CFM (50 LPM) | 3.5 CFM (100 LPM) |
| Counting Efficiency | 50±20% at 0.3μm | 50±20% at 0.5μm | |
| Concentration Limit | 500,000 particles/ft³ at 10% coincidence loss | 300,000 particles/ft³ at 10% coincidence loss | |
| Sampling Time | 6sec ~ 23hours 59min 59sec (configurable) | ||
| Interval Time | 6sec ~ 23hours 59min 59sec (configurable) | ||
| Zero Count Level | Less than 1 count / 5 minutes | ||
| Printer | Built-in thermal printer | ||
| Display | 6.4 inch color touch screen | ||
| Interface | Ethernet, USB, Memory card slot (MMC) | ||
| Data Storage | 10,000 data points | ||
| Security | Password authentication and management, secure data, and audit trails (meets 21 CFR Part 11 compliance) | ||
| Reports | ISO146441-1, GB/T16292-2010, FEDERAL STANDARD, BRITISH STANDARD, EU GMP | ||
| Standards | ISO 21501-4, JIS B9921, CE | ||
| Power | AC 100 – 240 V or Li-ion Battery | ||
| Dimensions | W 7.9 x D 7.9 x H 8.1 inch | ||
| Weight | 14.2 lbs (6.44 kg) | ||
| Warranty | 2 year | ||
| Environmental Sensor | Air Velocity, Temperature, Relative Humidity and Pressure | ||
| What’s included | Quick-start guide, AC adapter, zero filter, Isokinetic probe with 79 inch (2m) tubing, inlet nozzle, data processing software, memory card, 2 rolls of cleanroom-grade printer paper, 1 x Li-ion battery and calibration certificate | ||
Particle Counters
- Air Flow Testing Instruments
- Indoor Air Quality Monitors
- Dust Monitors
- Particle Counters
- Fume Hood Testing
- Portable Clean Environment
- Automotive Testing
- Sound and Vibration Meters
- Research Instruments
- Legacy

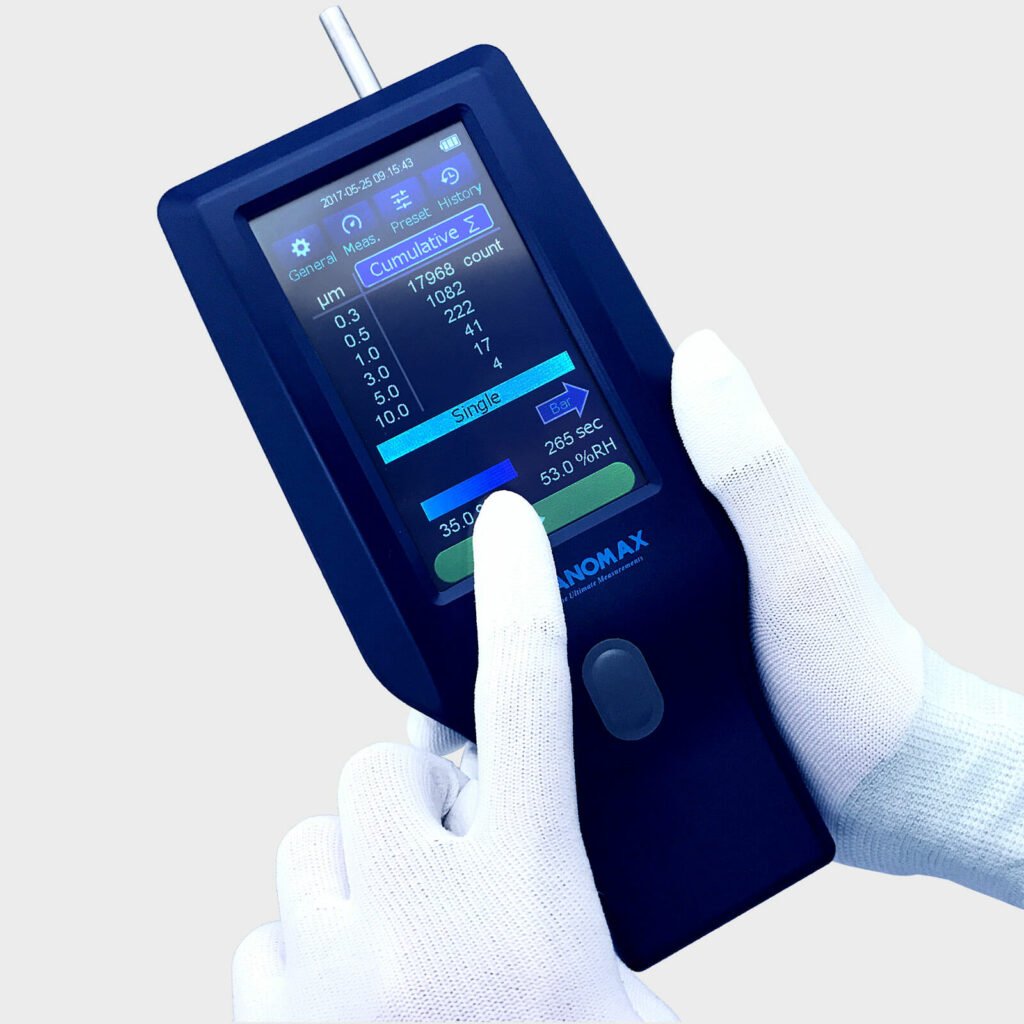

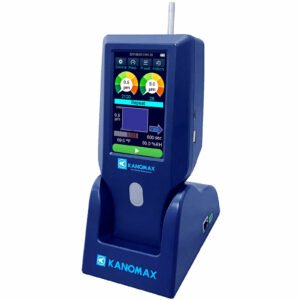

Handheld Particle Counters – Models 3888 and 3889
Description
Specifications
Downloads
Description
Handheld particle counters for accurate measuring and monitoring
The Kanomax Handheld Particle Counters, Models 3888 and 3889, are advanced tools designed for precision particle counting in various critical applications. They are ideal for environments such as cleanrooms, operating rooms, and for tasks like filter testing and Indoor Air Quality (IAQ) investigations. These models are recognized for their innovation, precision, and ability to meet the stringent demands of industries where particle monitoring is crucial.
Advanced Measurement Technology
Both models count airborne particles with exceptional accuracy and performance, featuring advanced technology that makes them standout instruments in their field.
User Interface
They are equipped with a large, full-color 4.3-inch LCD touchscreen, providing a user-friendly interface for easy data interaction and rapid interpretation of measurements.
Data Transfer and Management
These particle counters facilitate effortless data transfer to PCs and other devices, featuring an onboard USB input for downloading data logs (up to 10,000 records).
Compliance with Standards
The models comply with the ISO 21501-4 Standard and are RoHS compliant, ensuring they meet global standards for particle counting and environmental safety.
Model-Specific Features
Model 3888 displays 3 particle sizes (0.3, 0.5, 5.0μm), while Model 3889 displays 6 particle sizes (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm). Both models offer a minimum sensitivity of 0.3 microns and can store up to 10,000 measurements. They are compact, lightweight, and ergonomically designed for comfort during extended use.
Applications
These models are used for monitoring and verifying cleanrooms (ISO 14644: 2015 classification), monitoring surgical rooms, filter testing, IAQ investigation, and data center cleaning.
Technical Specifications
These models have a flow rate of 0.1CFM (2.83L/min), an accuracy of ±5% (compliant with JIS B9921 and ISO21501-4), a maximum measurable concentration of 10% for 2,000,000 particles/CF, and various other specd confirming their compliance and efficiency in particle counting.
Specifications
| Main Unit Specifications | |||
|---|---|---|---|
| Product | Handheld Particle Counter | ||
| Model | 3888 | 3889 | |
| Particle Measurement | Sizes | 3 channels (0.3, 0.5, 5.0μm) | 6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm) |
| Flow Rate | 0.1CFM (2.83L/min) Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4) | ||
| Maximum Measurable Concentration | 10% for 2,000,000 particles/CF (compliant with JIS B9921 and ISO21501-4) | ||
| Counting Efficiency | 50±20% (for PSL particles near the minimum measurable size) 100±10% (for PSL particles of 1.5 to 2 times as large as the minimum measurable size) (Compliant with JIS B9921 and ISO21501-4) | ||
| False Count | ≦1 particle/5 minutes (Compliant with JIS B9921 and ISO21501-4） | ||
| Size Resolution | ≦15% (for PSL particles near 0.3μm) (Compliant with JIS B9921 and ISO21501-4) | ||
| Display | 4.3 inch color LCD, Resistive touch panel | ||
| Communication | Standard | USB (Host: for printer and USB flash memory, Device: for PC) | |
| Stand (option) | RS485, Ethernet, and WiFi connection points in the base/stand | ||
| Recording Media | Media | Internal memory | |
| Number and Format | Up to 10,000 records in CSV format | ||
| Language | English, Japanese, Chinese, and Spanish | ||
| Power | Internal Supply | Li-ion rechargeable battery (Replaceable) | |
| External Supply | AC adapter – Input 100 to 240 V | ||
| Continuous Operation Time | 5 hours (Single measurement) | ||
| Operating Environment | Main Body | From 10 to 40 ℃, from 0 to 85%RH (With no condensation) | |
| Probe | From 0 to 50 ℃, from 2 to 98%RH (With no condensation) | ||
| Dimension | W213 X H100 X D55 mm | ||
| Weight | 650g | ||
| Hydrothermal Measurement (Available as an option for the 6- channel portable particle counter) | Measurement Range | (Temperature) From 0 to 50℃ (Humidity) From 2.0 to 98.0％RH | |
| Display Resolution | (Temperature) 0.1℃ (Humidity) 0.1％ | ||
| Humidity Accuracy | ±3.0% (30 to 85%RH), ±5% (other range of humidity) | ||
| Temperature Accuracy | ±0.5℃ | ||
| Response Time | Approximately 60 seconds or less (90％ response) | ||
Downloads

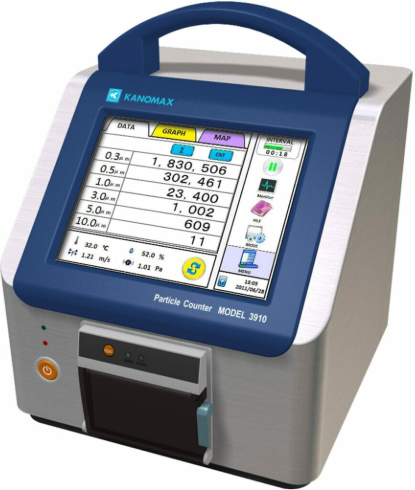

Portable Particle Counters – 3900 Series
Description
Specifications
Downloads
Description
Compact and advanced particle counting technology for cleanroom monitoring
The Kanomax Portable Particle Counters, encompassing Models 3905, 3910, and 3920, stand out as the smallest 6-channel portable particle counters in the industry, offering unparalleled versatility and precision. Each model is tailored to different flow rate requirements: the 3905 operates at 1.0 CFM (28.3 LPM), the 3910 at 1.77 CFM (50 LPM), and the 3920 at a robust 3.5 CFM (100 LPM).
High Sensitivity and User-Friendly Interfaces
Models 3905 and 3910 boast a 0.3-micron minimum sensitivity, making them highly effective for detecting even the smallest particles. The 3920, with a 0.5-micron minimum sensitivity, compensates with a higher flow rate. All models feature large color touch screens, offering streamlined and user-friendly interfaces. These interfaces are programmed with various standards, aiding users in the measurement and certification processes efficiently.
Enhanced Environmental Monitoring Capabilities
An optional Climomaster hot-wire environmental sensor can be integrated, providing additional functionality to measure air velocity, temperature, and humidity. This addition transforms the 3900 Series into comprehensive tools for cleanroom certification and environmental monitoring.
Portability and Compliance
Notably lightweight and compact, these counters are incredibly easy to transport, perfect for on-the-go professionals. Fully compliant with ISA 21501-4 calibration standards, they enable the certification of cleanrooms up to ISO Class 2. The multi-standard modes facilitate compliance with various cleanroom standards such as ISO 14644, FS 209E, BS 5295, and EC GMP, simplifying the certification process.
Built-in Printer and Extensive Data Logging
Each model in the 3900 Series includes a built-in printer and an onboard data logging memory capable of storing up to 10,000 records. This feature allows for immediate printout of data and efficient record-keeping, enhancing the ease of reporting and analysis.
Cleanroom-Friendly Design and Extended Features
The devices are encased in a stainless steel, cleanroom-friendly body. They also offer a range of options for enhanced functionality, including a differential pressure sensor and an optional second Li-Ion battery for extended operation time.
The Ultimate Choice in Cleanroom Measurement
With their diverse range of options, high sensitivity, and user-friendly features, the Kanomax Portable Particle Counters 3900 Series are the most powerful instruments for cleanroom measurement available on the market. They represent an ideal choice for professionals seeking accurate, portable, and versatile particle counting solutions.
Specifications
Downloads

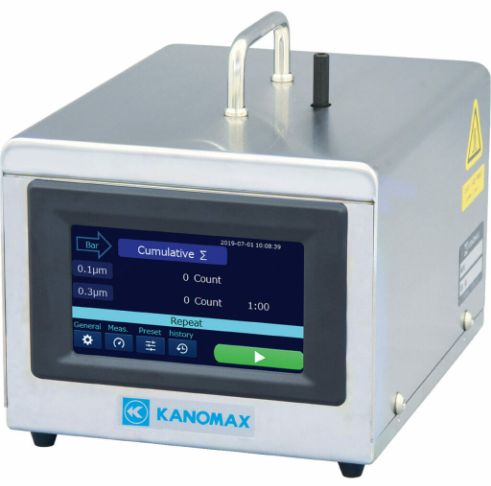

0.1 Micron Portable Particle Counter – Model 3950
Description
Specifications
Downloads
Description
The perfect 0.1 micron semiconductor manufacturing particle counter
This revolutionary 0.1-0.3 micron 2-channel semiconductor particle counter comes in one of the lightest form-factors available today; clocking in at only 7.5lbs (3.4kg). It is designed for high-end contamination control environments, such as semiconductor manufacturing facilities and cleanrooms, and can be used for standalone operation or integrated into an existing monitoring system to accommodate a vast array of applications.
Device operation is made easy with its built-in 4.3 inch LCD color touchscreen, ability to store up to 10,000 records, and USB data transfer capability.
Specifications
| Main Unit Specifications | ||
|---|---|---|
| Particle Measurement | Model | 3950 |
| Measuring Method | Light scattering | |
| Flow Rate | 0.1 CFM (2.83 LPM); Accuracy: ±5% (compliant with JIS B9921 and ISO21501-4) | |
| Sampling Time | From 6 seconds to 99 minutes and 59 seconds for 1 measurement cycle | |
| Interval Time | From 6 seconds to 99 minutes 59 seconds (interval between the start and the next start of the repeat measurements) | |
| Sampling Time | From 1 to 999 cycles or continuous measurements | |
| Location Classification | 99 locations | |
| Measuring Mode | Repeat, Single, Continuous, Calculation | |
| Measurement Display Time | From 1 to 10 seconds | |
| Measurement Display Types | Cumulative Σ, Differential Δ, and Bar graph | |
| Maximum Measurable Concentration | 10,000,000 particles/m3 at 10% coincidence loss (compliant with JIS B9921 and ISO21501-4) | |
| Counting Efficiency | 50±20% (for 0.1μm PSL particle) ; 100±10% (for 0.2μm PSL particles) (compliant with JIS B9921 and ISO21501-4) | |
| False Count | ≤1 particle/35 minutes | |
| Size Resolution | ≤15% for PSL particles near 0.3μm (compliant with JIS B9921 and ISO21501-4) | |
| Vacuum | Internal pump | |
| Display | 4.3 inch color LCD, resistive touch panel | |
| Communication | Standard | USB (Host: for printer and USB flash memory, Device: for PC） Ethernet, MODBUS (RS485 |
| Recording Media | Datalogging | Up to 10,000 records |
| Data Format | CSV format | |
| Language | English, Japanese | |
| Power | External supply | AC adaptor Input 100 to 240 V |
| Operating Environment | Main Body | From 15 to 35 °C, from 0 to 85%RH (with no condensation) |
| Dimensions | 6″W x 2.5″H x 9″D (W150 X H163 X D228 mm) | |
| Weight | 7.5lbs (3.4kg) | |
Downloads

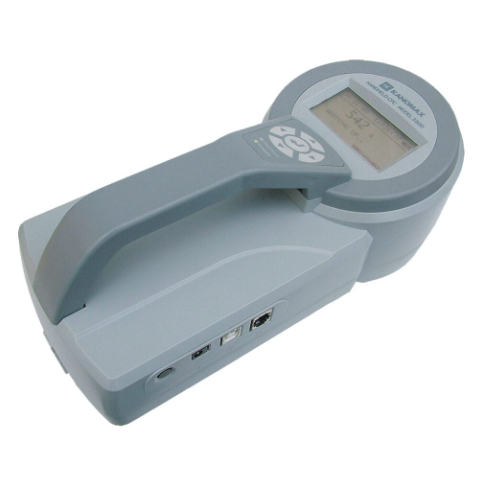

Handheld Condensation Particle Counter – Model 3800
Description
Specifications
Downloads
Description
The ultimate tool for precision particle detection
Elevate your air quality monitoring and particle detection capabilities with the Handheld Condensation Particle Counter Model 3800. Designed by Kanomax, this state-of-the-art instrument offers unparalleled accuracy and versatility for various applications, including aerosol research, filter testing, engine exhaust analysis, and indoor air quality investigations.
Exceptional Sensitivity
Detect particles as small as 0.01 micrometers with our advanced condensation technology. The Model 3800+ provides precise measurements, ensuring you capture even the tiniest particles.
Wide Measuring Range
Measure concentrations from 0 to 100,000 particles/cm³ with a high degree of accuracy (±10%). This broad range allows for comprehensive analysis in diverse environments.
User-Friendly Interface
The built-in LCD screen and intuitive interface make it easy to navigate through various modes and settings. Conduct repeat, program, or counter measurements with minimal effort.
Portable and Lightweight Design
Weighing just 3.75 lbs (1.7 kg) without batteries, the Model 3800 is both handy and lightweight, making it ideal for field use. Its compact dimensions (4.7 x 11.0 x 5.1 inches) ensure easy handling and portability.
Robust Data Logging
Store up to 10,000 samples on the device and manage your data effortlessly with the included Windows 10 compatible software. Transfer data easily via the USB interface for further analysis and reporting.
Versatile Power Supply
Operate the device using 6 AA batteries (Alkaline or Ni-MH) for up to 8 hours, or use the AC adapter for continuous power. This flexibility ensures that you can rely on the Model 3800+ in various settings and situations.
Comprehensive Accessory Package
The Model 3800 comes with a full set of standard accessories, including an operation manual, carrying case, AC adapter, zero filter, alcohol bottle, PC communication cable, data processing software, and a calibration certificate. Optional accessories like a thermal printer and printer cable are also available.
Specifications
| Main Unit Specifications | ||
|---|---|---|
| Measuring Particle Size | 0.010 to 1μm | |
| Concentration Range | 0 to 100,000 particles/cm3 (±10%) | |
| Counting Efficiency | 50nm: 100±20% (15nm: More than 50%) | |
| Zero Count Level | Less than 1 particle/cm3 | |
| Flow Rate | Aerosol Flow: 100cm3/min Total Flow: 700cm3/min | |
| Alcohol Supply | Type | Isopropyl Alcohol |
| Hours per Fill | 5 hours at 73°F (23°C) | |
| Absolute Pressure Sensor | 150 to 1,150 hPa | |
| Mode of Measurements | Repeat / Program / Counter | |
| Display | Built-in LCD | |
| Interface | USB, Printer Output Port | |
| Data Storage | 10,000 samples | |
| Power Supply | Type | AA Alkaline or Ni-MH Battery / AC Adapter (AC 100 – 240V) |
| Operating Time | 5 hours (by Alkaline Battery) / 8 hours (by Ni-MH Battery) | |
| Operating Temperature | Ambient Temperature range: 50 to 95°F (10 to 35°C) | |
| Dimensions | 4.7 (W) x 11.0 (H) x 5.1 (D) inches (120 (W) x 280 (H) x 130 (D) mm) | |
| Weight | 3.75lbs. (1.7kg) (without batteries) | |
| Warranty | 1 year | |
| Standard Accessories | Operation Manual, Carrying Case, AC Adapter, Zero Filter, Bottle for Alcohol, PC Community Cable, Data processing software, and Calibration certificate | |
| Optional Accessories | Thermal Printer, Printer Cable | |
Downloads

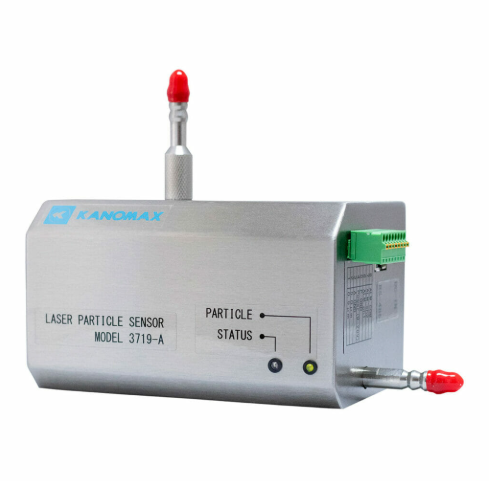

Remote Particle Sensors – Models 3718-A and 3719-A
Description
Specifications
Downloads
Description
Remote particle sensors with analog output

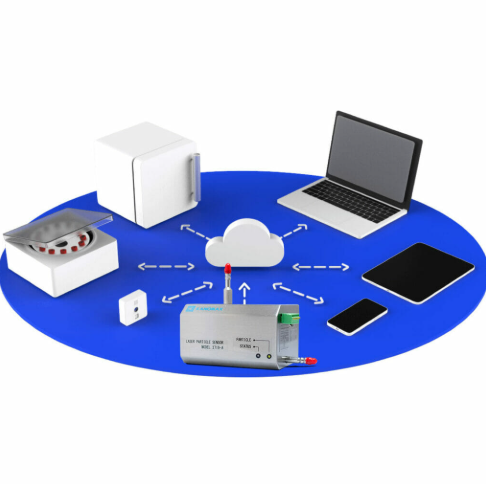

Kanomax Remote Particle Sensors with analog output are designed to fit into your existing monitoring system, or they can be used as a stand-alone unit to monitor a critical area when connected to an alarm or controller. With two models available, these 2-channel remote particle sensors are capable of Modbus communication via RS485 interface. 0.1 cfm and 1.0 cfm flow rate models are available, along with flexible 4-20mA analog output with the 1.0 cfm unit (only).
These particle sensors output particle counts, error statuses and alarm signals, and are able to connect to a PLC or data logger for facility monitoring applications. They can be easily added to a process or building automation system. Fully compliant with ISO21501-4 calibration standard and JIS B9921.
Specifications
| Main Unit Specifications | |
|---|---|
| Measuring Particle Size | 3718-A: 0.3µm and 0.5µm; 3719-A: 0.5µm and 5.0µm |
| Counting Efficiency | 50% +/- 20% at smallest particle channel |
| Coincidental Loss | Less than 10% at 500,000 particles/cf |
| Zero Count | Less than 1 count / 5 minutes |
| General Specifications | |
| Flow Rate | 1.0 cfm (28.3 l/min) |
| Light Source | Laser diode |
| Interfaces | RS485 (Modbus capability); Analog output (4-20mA) |
| Enclosure | Stainless steel |
| Power Supply | DC24V (over network hub) or 9 to 28V (AC adapter) |
| Output | Particle counts, error status, alarm output |
| Vacuum Source | External pump |
| Operating Environment | 10 to 30°C (50 to 86°F)/20 to 85%RH with no condensation |
| Dimensions | W 5.2 x D 3.7 x H 3.1 inch (133 x 95 x 80 mm) |
| Weight | 2.2 lbs (1.0 kg) |
| Standards | ISO21501-4, JIS B9921, CE-mark |
| Warranty | 3 year |
| Standard Accessories | User’s Manual – English (1), User’s Manual – Japanese (1), AC adapter (1), Zero filter (1), Adapter 1 (1), Adapter 2 (1), Tygon tube 1 (1), Setting software DVD – 3718/19-40 (1) |
Downloads

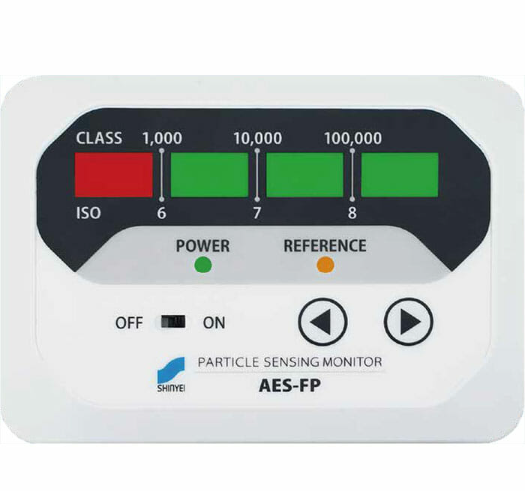

Aerosol Particle Monitor – AES-FPM Series
Description
Specifications
Downloads
Description
Detect particulates of 0.3 microns and larger; 4 models available
The best way to monitor the cleanliness level in the manufacturing process of precision parts and work environments, at a low cost.
The Kanomax Aerosol Particle Monitors feature easy-to-read displays, can connect to a network via ethernet, and offer simplified monitoring of particulates at multiple locations.
They have applications that include cleanroom monitoring and verification, semiconductor manufacturing, and food processing.
Specifications
| Main Specifications | |||||
|---|---|---|---|---|---|
| Model #(0.3μm)：AES-FPM | FPM-1 | FPM-2 | FPM-3 | FPM-4 | |
| Optical Source | Laser Diode | ||||
| Measurement Range | Class 1,000 to Class 100,000 (*1) | ||||
| Measurement Unit | pcs/㎥ (Default), pcs/cf, pcs/L (*2) | ||||
| Data Update Time | 1s | ||||
| Power | 12 to 24V (*3) | ||||
| Power Consumption (Max) | 600mA | ||||
| Operating Temperature | 0 to 40℃ | ||||
| Storage Temperature | -20 to 60℃ | ||||
| Operating Humidity | 30 to 80% RH | ||||
| Storage Humidity | Below 90% RH (no condensation) | ||||
| Output | LED Level Display | ◯ | ◯ | ◯ | ◯ |
| Reference LED | ◯ | ◯ | ◯ | ◯ | |
| Analog Voltage (1-5V) | ー | ー | ◯ | ー | |
| Digital (Interface) | ー | ◯ | ー | ◯ | |
| Alarm Output | ◯ | ◯ | ◯ | ◯ | |
| Temperature and Humidity Measurement (*4) | ー | ◯ | ー | ◯ | |
| Weight | Approx. 210g | ||||
| Applicable Wire Size | AWG26 to 20 | ||||
Downloads

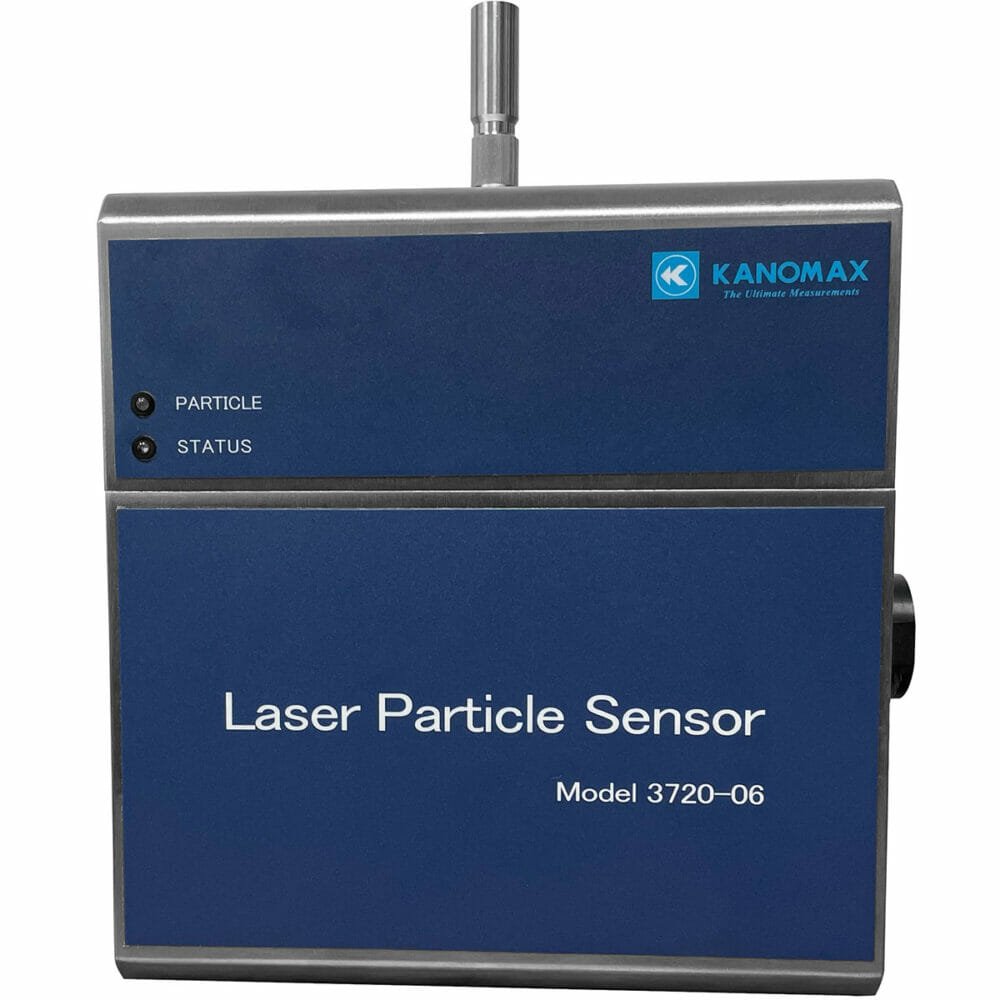

Laser Particle Sensor w/ Built-In Pump – Model 3720-06
Description
Specifications
Downloads
Description
Powerful particle sensor with built-in pump
The Kanomax Laser Particle Sensor Model 3720-06 is engineered to deliver reliable, high-performance particle monitoring that meets the rigorous standards of today’s most demanding applications. With advanced detection technology, seamless integration options, and smart data management, this sensor is a must-have for any facility concerned with airborne contamination control.
Built-in Pump for Easy Operation
One of the defining features of the Model 3720-06 is its integrated pump, which simplifies installation and ensures consistent, uninterrupted sampling. Unlike remote sensor heads that require external airflow systems, this all-in-one design reduces setup time and enables flexible deployment throughout your facility. Whether used as a standalone unit or incorporated into a larger building automation system, the built-in pump makes operation more efficient and reliable.
High-Flow Sampling with Accurate, Multi-Channel Detection
The Model 3720-06 is built for precision, operating at a flow rate of 1 CFM (28.3 L/min) to deliver fast and accurate particle measurements. It supports detection for standard particle sizes of 0.5 and 5.0 microns, with optional channels available for up to four simultaneous measurements, including sizes as small as 0.3 microns and as large as 10.0 microns. This flexible detection range makes it ideal for monitoring both clean and moderately controlled environments, with the accuracy and speed needed to maintain ISO and GMP compliance.
Advanced Data Storage and Connectivity
Data management is seamless with the Model 3720-06. The unit stores up to 5,000 data records, which can be easily transferred and managed via Ethernet, RS485, or analog outputs. With support for Modbus RTU and Modbus TCP/IP protocols, it integrates smoothly with PLCs, SCADA systems, and data loggers. This capability ensures continuous monitoring and historical tracking, providing the detailed insights needed for audits, reporting, and trend analysis in regulated environments.
Rugged Design, Flexible Power Options
Constructed with a durable stainless steel housing, the Model 3720-06 is built to last in high-demand industrial and cleanroom environments. It offers a wide range of power options, including standard DC input, AC adapter, and Power over Ethernet (PoE++), allowing for maximum flexibility based on your facility’s infrastructure. This adaptability ensures that you can maintain uptime and performance, no matter where or how the sensor is installed.
Calibration and Compliance You Can Trust
Kanomax engineered the Model 3720-06 with strict adherence to international standards, including ISO 21501-4 and JIS B9921. These certifications ensure consistent performance, precise particle sizing, and dependable counting efficiency—critical for compliance in industries where data integrity and validation are non-negotiable. Additionally, the sensor includes user-friendly configuration software for straightforward setup, making it easier than ever to ensure your monitoring system is aligned with global standards.
Specifications
| Main Unit Specifications | |
|---|---|
| Particle Size Distribution | Standard sizes: 0.5 and 5.0 microns Optional sizes: 0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 microns *Choose up to 4 channels when you place an order |
| Counting Efficiency | Compliant with ISO21501-4, JIS B 9921 |
| Flow Rate | 28.3L/min (1 CFM) |
| Optical Source | Laser diode |
| Counting Efficiency | Less than 1 count / 5 minutes |
| Max Detectable Concentration | 1,000,000CNT/ft3 |
| Setting Parameter | Sampling Time: 1 to 60 seconds |
| Output Range Setting (To be configured for each particle size) Count: 0-10CNT, 0-100CNT, 0-1,000CNT, 0-10,000CNT Concentration: 0-10CNT/cf, 0-100CNT/cf, 0-1,000CNT/cf, 0-1,000,000CNT/cf 0-353CNT/ m3, 0-3,530CNT/m3, 0-35,300CNT/m3, 0-35,300,000CNT/m3 | |
| Alarm Setting: 0%-100% | |
| Address Setting: 1-247 | |
| Error Output Setting: ON/OFF | |
| Sampling Pump | Built-in Pump |
| Interfaces | Ethernet, RS485, Analog Output (4-20mA) |
| Communication Protocols | Modbus RTU, Modbus TCP/IP |
| Power Supply | 1.) DC Power Supply: DC 15V-28V 2.) AC Adapter: AC 100-240V (50-60Hz), DC 24V 3.) Power over Ethernet: 802.3bt (PoE++) |
| Operating Environment | 10 to 30°C (50 to 86°F)/20 to 85%RH with no condensation |
| Storage Environment | Temperature: -10 to 50°C, Humidity: 95%RH or less (Non-condensing) |
| Dimensions | 180mm (W) × 110mm (D)× 190mm (H) |
| Weight | 3.4kg |
| Standard Accessories | User Manual, AC Adapter, Zero Filter |
| Optional Accessories | USB-RS485 Converter (Model 3716A-20), Converter Connecting Cable (Model 3716A-21), Isokinetic Probe (Model 3910-07 1CFM), IP65 Enclosure (Model 3720-23) |
Downloads
Cleanroom Monitoring System – Model CRMS
Description
Downloads
Description
Industry leading cleanroom monitoring solution
Cleanroom environments demand uncompromising standards in air quality and performance monitoring. The Kanomax Cleanroom Monitoring System (CRMS) is a fully integrated, turnkey solution designed to support continuous monitoring and compliance with regulatory requirements such as ISO 14644, GMP, and USP <797>/<800>. Built for cleanroom verification and real-time oversight, the CRMS ensures that your facility maintains peak performance with total visibility and control.
Turnkey Monitoring for Regulatory Compliance
The CRMS takes the complexity out of cleanroom compliance. Designed as a comprehensive, ready-to-deploy solution, it continuously monitors critical environmental parameters—including airborne particle counts, differential pressure, temperature, and humidity—to ensure ongoing adherence to ISO and GMP guidelines. Whether you’re setting up a new facility or upgrading your existing monitoring infrastructure, CRMS offers a streamlined path to meeting audit and certification requirements.
Modular Hardware with Trusted Technology Partners
What sets the Kanomax CRMS apart is its modular design and integration of premium components from leading technology providers. The system can be configured with either AirCare Automation or Elemental Machines hardware, depending on your facility’s specific needs:
AirCare Automation: Offers local server solutions and integrated FFU (fan filter unit) control, ideal for facilities that require robust onsite control and reliability.
Elemental Machines: Provides wireless sensor connectivity with a cloud-based server, perfect for teams that prioritize remote access, real-time notifications, and scalability.
This flexibility allows Kanomax to tailor each CRMS installation to the customer’s environment, whether it’s a pharmaceutical cleanroom, semiconductor fabrication facility, or research laboratory.
Scalable, Customizable, and Future-Ready
Every cleanroom is unique, and each Kanomax CRMS is built to accommodate that reality. The system can be scaled and customized to fit a single cleanroom zone or an entire multi-room facility. With options for PoE (Power over Ethernet), wireless sensor integration, and centralized data acquisition, the CRMS is adaptable for future expansions and technology upgrades. Users can easily view trends, generate compliance reports, and set alerts based on preset thresholds—all from an intuitive software interface.
Reliable Performance, Backed by Expertise
Kanomax brings decades of expertise in airflow and particle measurement to the design of the CRMS. The system is engineered for 24/7 reliability, with robust data integrity and industry-standard calibration support.
Downloads
