| Main Unit Specifications | ||
|---|---|---|
| Measurement Specifications | ||
| CO | Range | 0 to 500PPM |
| Accuracy | +/-3% of reading or +/-3PPM whichever is greater | |
| Resolution | 0.1PPM: 0-99PPM 1PPM: 100-500 PPM | |
| CO2 | Range | 0 to 5000PPM |
| Accuracy | +/-3% of reading or+/-50PPM whichever is greater | |
| Resolution | 1PPM | |
| Temperature | Range | – 4 to 140F (-20 to 60C) |
| Accuracy | +/- 1F (+/-0.5C) | |
| Resolution | 0.1F (0.1C ) | |
| Relative Humidity | Range | 2 to 98%RH |
| Accuracy | 2 to 80%RH: ±2%RH, 80 to 98%RH: ±3%RH | |
| Resolution | 0.1%RH | |
| General Specifications | ||
| Function | Normal Mode | Normal measuring (do not store and calculate the data.) relative humidity, CO, CO2, dew point, wet bulb temperature, absolute humidity and humidity ratio |
| Calculation Mode | Store the data, and calculate the maximum, minimum and average value. | |
| % OA Mode | Measure ventilation ratio (ask for ventilation ratio by calculating from temperature and CO2 value) | |
| Data Output Mode | Perform re-calculation of stored data and output of data to PC and Printer. | |
| Calibration Mode | Perform the calibration of CO and CO2. | |
| Output | Digital | RS232C |
| Analog (optional) | DC 0 to 1V | |
| Power Supply | Standard | 6x AA Batteries |
| Analog (optional) | DC 0 to 1V | |
| Dimensions | Unit | 3.4″ x 7.4″ x 1.6″ |
| Probe | Length: 12.5 inch / Diameter: 1.0 inch | |
| Weight | 1.2lbs (500g) | |
| What’s included | Meter, Operation manual, AA batteries, Probe stand, Probe, Calibration cap, Connection tube, Data processing software (DPS), RS-232C cable, Carrying case, NIST TRACEABLE CALIBRATION certificate. Optional Serial – USB adapter and AC adapter available. | |
Indoor Air Quality Monitors

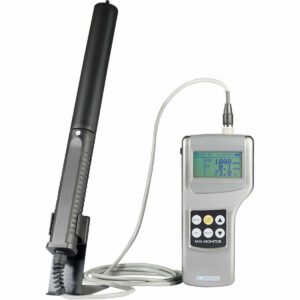

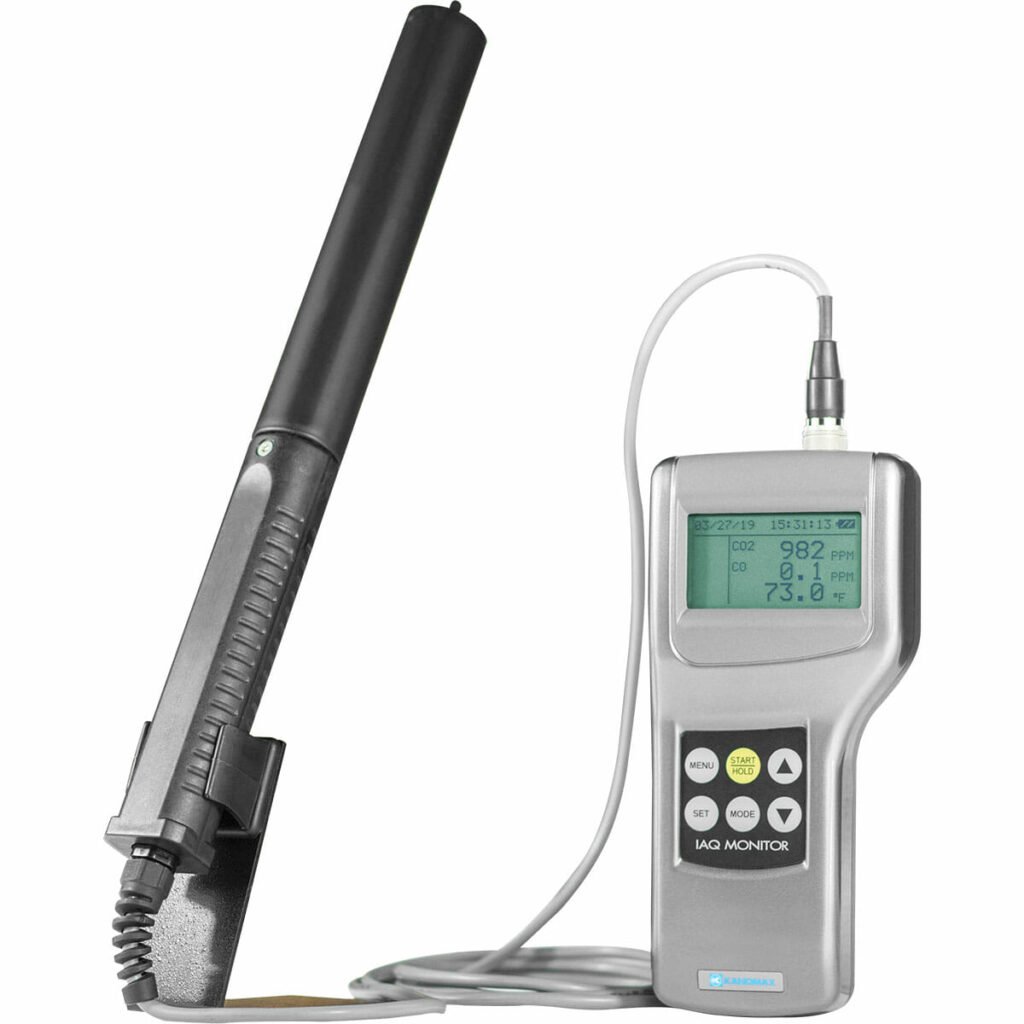

Indoor Air Quality Monitor - Model 2212
Description
Specifications
Downloads
Description
Handheld Indoor Air Quality Monitor capable of testing multiple parameters
The Kanomax Indoor Air Quality Monitor, Model 2212, is designed to streamline the complex process of monitoring indoor air quality (IAQ) in various settings. This advanced tool is your all-in-one solution, combining the functionality of several instruments into one convenient device, thus saving time and reducing the need for multiple devices.
Multi-Parameter Measurements
With the ability to measure CO, CO2, temperature, and relative humidity simultaneously, the Kanomax 2212 offers a comprehensive overview of your indoor environment.
Advanced Calculations
Beyond basic measurements, it calculates critical environmental factors including Dew Point, Wet Bulb Temperature, Absolute Humidity, Humidity Ratio, and the percentage of Outside Air, providing a complete analysis of the air quality.
User-Friendly Calibration
Calibration of the device is straightforward, allowing users to perform necessary adjustments with ease, ensuring consistent accuracy without professional assistance.
ASHRAE-Compliant Indoor Air Quality Monitor
The monitor meets ASHRAE Standard 62 guidelines by assessing CO2 levels and the rate of outside air exchange, aiding in the maintenance of optimal ventilation and indoor air quality.
Productivity Enhancement
By examining a building’s IAQ conditions, the Kanomax 2212 plays a crucial role in optimizing worker productivity through the maintenance of a healthy indoor environment.
Quick Start-up and High Accuracy
Engineered for rapid activation and precision, the device features high accuracy in measuring CO2 and CO concentrations, providing reliable data swiftly.
NIST Traceable Calibration Certificate*: Ensuring the reliability and accuracy of measurements, the monitor comes with a calibration certificate that is traceable to the National Institute of Standards and Technology (NIST).
Whether you’re a facility manager, HVAC technician, or health and safety specialist, the Kanomax Indoor Air Quality Monitor 2212 simplifies the task of ensuring a healthy indoor environment. Its easy-to-use interface, combined with its comprehensive measurement capabilities, makes it an invaluable tool for monitoring and improving indoor air quality effectively.
Specifications
Downloads

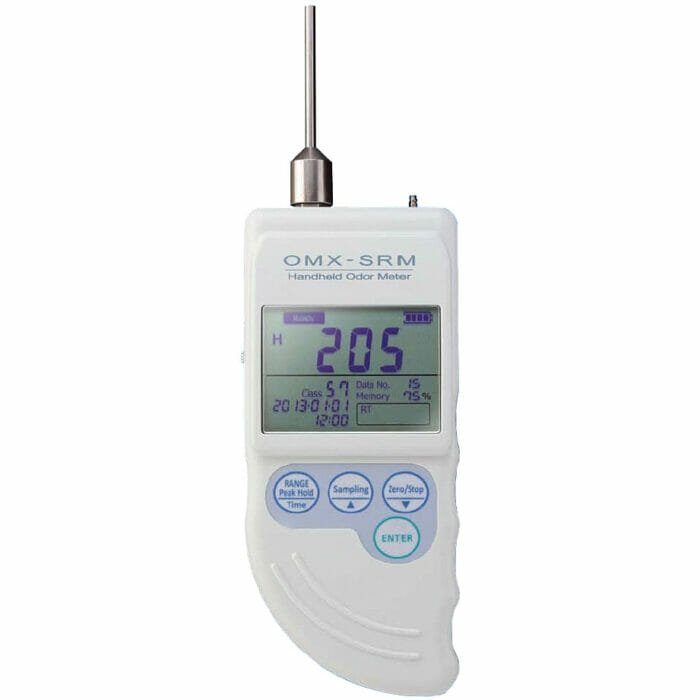

Handheld Odor Meters - OMX Series
Description
Specifications
Downloads
Description
Versatile handheld odor meters for environmental testing
The Kanomax OMX Series of handheld odor meters are expertly designed to address both residential and commercial odor testing needs. These compact and portable devices are particularly useful for “before and after” scenarios, such as those encountered in air purification services and cleaning processes. They offer an effective solution for identifying odor sources and assessing air quality improvements, making them an essential tool for environmental service providers.
Real-Time and Memory Sampling Modes
The OMX Series meters feature a real-time sampling mode that displays changes in odor levels continuously, allowing users to monitor air quality dynamically as conditions change. Additionally, the memory sampling mode provides robust data management by saving odor measurement data at a user-selected rate, accommodating up to 32,732 data points across 511 files. This dual-mode functionality enhances the flexibility and utility of the odor meters in various testing environments.
Long Battery Life and Advanced Data Handling
Designed for extended field use, these odor meters are equipped with a battery that supports up to 7 hours of continuous operation. This ensures uninterrupted performance during lengthy assessments or when conducting multiple site visits in a day. Furthermore, the integrated DPS (Data Processing Software) enhances data visualization, enabling users to analyze and interpret odor data graphically and in real-time, which is critical for effective monitoring and decision-making.
Odor Meters Provide Accurate Measurement and Classification
Kanomax OMX Series meters are calibrated to indicate the relative strength and classify odors numerically by comparing the odor concentration in the air against purified air benchmarks. This feature is crucial for quantifying odor levels and determining the efficacy of air treatment solutions. The design includes a separate intake and exhaust port, ensuring that each reading is accurate and unaffected by cross-contamination.
Tailored Applications for Diverse Needs
Each model in the OMX Series is tailored for specific applications: the OMX-SRM is ideal for locating odor sources in industrial settings such as factories, incinerators, and treatment facilities; the OMX-ADM is suited for evaluating deodorizing efforts in healthcare environments like hospitals and nursing homes; and the OMX-TDM focuses on measuring total volatile organic compounds (TVOCs) to monitor indoor air quality (IAQ) conditions.
Essential Tool for Odor Management and IAQ Monitoring
The Kanomax OMX Series odor meters are indispensable tools for professionals engaged in odor management and air quality assessment. Whether tracking down industrial odors, ensuring comfort in healthcare settings, or maintaining healthy indoor environments, these meters provide the accuracy, ease of use, and data capabilities needed to ensure optimal outcomes in odor control and air purification projects.
Specifications
| Main Unit Specifications | |
|---|---|
| Measurement Specifications | |
| Model | OMX-SRM |
| Object Gas | Ethanol, acetone, hydrogen, etc. |
| Odor Strength Level | 0 to 999 |
| Classification | Class 0 to 90 |
| Model | OMX-ADM |
| Object Gas | Hydrogen sulfide, methyl mercaptan, ammonia, etc. |
| Odor Strength Level | 0 to 999 |
| Classification | Odor intensity 2.5 to 5.0 |
| Model | OMX-TDM |
| Object Gas | TVOC (Toluene), etc. |
| Odor Strength Level | 0 to 9999 (µg/m3) |
| Classification | n/a |
| General Specifications | |
| Model | OMX-SRM |
| Detection Method | Two semiconductor gas sensors |
| Sampling Method | Continuous sampling with built-in air pump |
| Power Supply | 4 x AA batteries or AC adaptor |
| Memory Capacity | Up to 32732 data |
| Storage Temperature | 0 to 40 ºC (32 to 104 ºF) with no condensation |
| Operating Temperature | -10 to 50 ºC (14 to 122 ºF) with no condensation |
| Dimensions | W 74 x L 167.5 x H 35 mm |
| Weight | 0.5 lbs 250g |
| Warranty | 1 year |
| What’s Included | Meter, suction nozzle, AC adapter, AA batteries, USB cable, sir purifying unit, sctivated carbon (50cc/bag), replacement filter for air purifying unit, replacement filter for suction nozzle, operation manual |
Downloads
