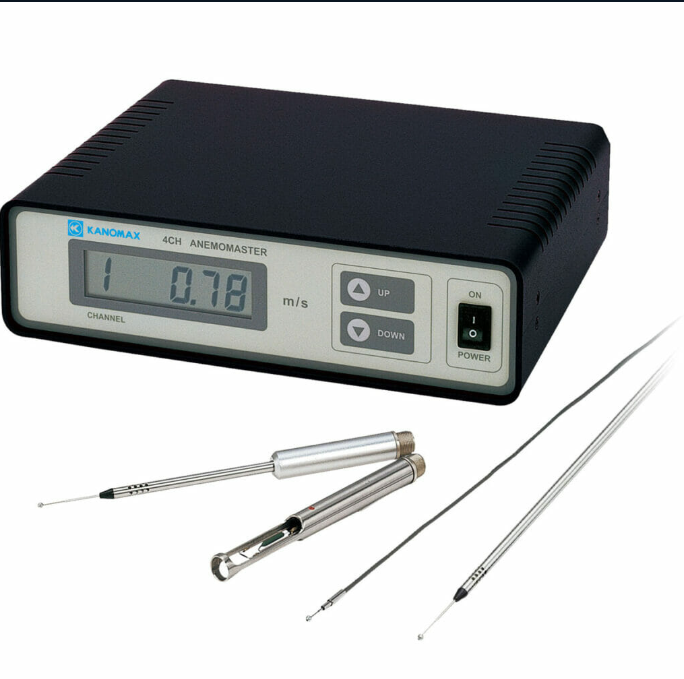

High precision research-grade anemometer
The Kanomax 4-channel Research-grade Anemometer is an airflow measuring instrument designed for high performance and precision. When coupled with our highly accurate probes this four-channel anemometer provides highly accurate and reliable data readings. It features a LCD display that displays the data from each channel.
| Main Unit Specifications | ||
|---|---|---|
| Display Resolution | 0.01 m/s (@ range of 0 to 9.99m/s) 0.1 m/s (@ 10 m/s or more) | |
| Response Time | Display: 0.3 second Sampling: 0.1 second Output: 0.1 second | |
| Analog Output | 0 to 5 V | |
| Interface | RS-232C | |
| Operation Temperature | 41 to 104°F (5 to 40°C) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Dimensions | D 7.8 x W 10.2 x H 2.8 inches (200 x 260 x 70 mm) | |
| Weight | 5.7 lbs (2.6 kg) | |
| Power Supply | AC 85 to 276 V, 50/60Hz | |
| What’s Included | Meter, operation manual, RS-232C cable, power cord, fuse | |
| 1570 Probes Specifications | ||
| Measurement Specifications | ||
| Air Velocity | Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s | |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Warranty | 1 year | |
| Standard Accessory | Probe, Data ROM, NIST Traceable Calibration Certificate | |
| Model | 0962-00 | 0963-00 | 0965-00 | 0965-01 | 0965-03 | 0965-04 | 0965-07 | 0965-08 | 0965-09 | 0965-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 50.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 50.0 | 0.1 to 50.0 |
| Airflow Directivity | Mono | Mono | Omni | Omni | Omni | Omni | Omni | Omni | Omni | Omni |
| Probe Type | Rod | Rod | Spherical | Spherical | Miniature | Miniature | Miniature | Miniature | Spherical | Spherical |
| Air Velocity | O | O | O | O | O | O | O | O | O | O |
| Acclimation Time (sec) | 1 | 1 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |

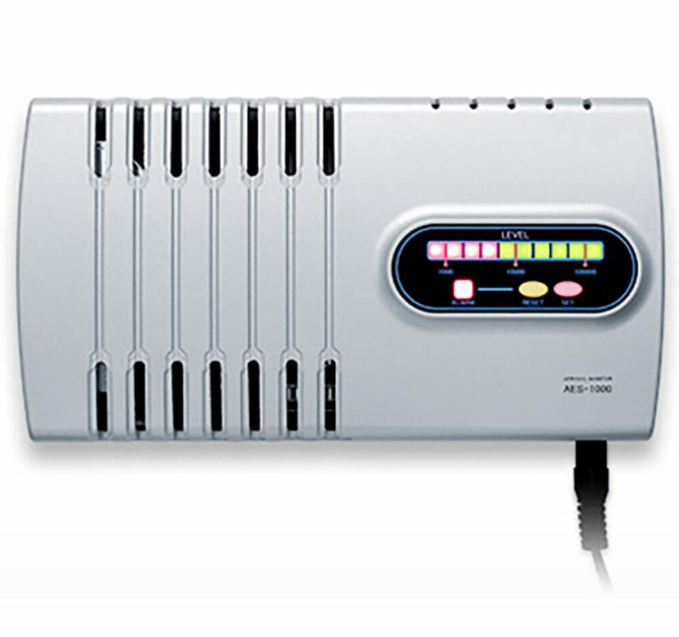

Detect particulates of 0.5 microns and larger
The Kanomax Aerosol Particle Monitor features an easy-to-read display, can connect to a network via ethernet, and offers simplified monitoring of particulates at multiple locations.
It has applications including cleanroom monitoring and verification, semiconductor manufacturing, and food processing.
| Main Unit Specifications | |
|---|---|
| Display | 10 x LED lights shows equivalent of Class 100 ~ Class 100,000 |
| Detection method | Light Scattering |
| Min. Detectable Size | 0.5 µm |
| Air Sampling Method | Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes |
| Cleanliness Class | From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000 |
| Alarm Display | Alarm LED light comes on when reaching to setting level |
| Alarm Output | TTL open collector output in sync with alarm display |
| Interface | Ethernet x 1 port |
| Power Supply | DC12 V +/-10% 500mA |
| Operating Condition | 0ºC~40ºC 30% RH~80% RH |
| Dimensions | 7.5 x 4.0 x 1.5 inches (192 x 102 x 37 mm) |
| Warranty | 1 year |
| Standard Accessories | Meter, AC adapter, Mounting plate, Operation manual |

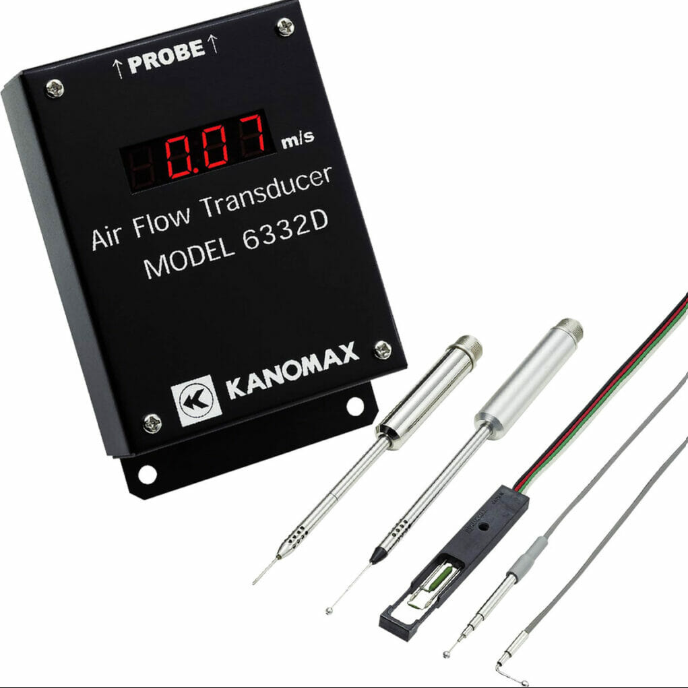

Airflow transducer with analog output and smart probe technology
The Kanomax Airflow Transducer – Models 6332/6332D comes equipped with analog output and smart probe technology, making it easy to integrate with other equipment. Smart probe technology lets you change probes without recalibrating the transducer. Multiple probe options are available separately, allowing you to choose the ones that meet your application needs. This instrument is ideal for applications involving the need to measure or monitor air velocity over a long duration. Model 6332D comes with a display, while Model 6332 does not have a display.
| Main Unit Specifications | ||
|---|---|---|
| General Specifications | ||
| Analog Output | Current output: DC 4~20mA (Max. load resistance: 250Ω) Voltage output: DC 0~5V | |
| Display Resolution (Model 6332D only) | 0.01m/s (Velocity Range: 0 to 2, 0 to 5, 0 to 10 m/s) 0.1m/s (Velocity Range: 0 to 25, 0 to 50 m/s) | |
| Response Time | Display: 0.3 second Sampling: 0.1 second Output: 0.1 second | |
| Power Supply | DC 12 to 24V | |
| Operating Temperature Range | 41 to 104 ºF (5 to 40 ºC) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Dimensions | 128(W)×78(D)×30(H) mm | |
| Weight | 0.7 lbs (320g) | |
| Warranty | 1 year | |
| What’s Included | Meter, Operation Manual | |
| Airflow Transducer Probes (See Table Below) | ||
| Measurement Specifications | ||
| Air Velocity | Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s | |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Warranty | 1 year | |
| What’s Included | Probe, Data ROM, NIST TRACEABLE CALIBRATION Certificate | |
| Model | 0962-00 | 0963-00 | 0965-00 | 0965-01 | 0965-03 | 0965-04 | 0965-07 | 0965-08 | 0965-09 | 0965-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 50.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 50.0 | 0.1 to 50.0 |
| Airflow Directivity | Mono | Mono | Omni | Omni | Omni | Omni | Omni | Omni | Omni | Omni |
| Probe Type | Rod | Rod | Spherical | Spherical | Miniature | Miniature | Miniature | Miniature | Spherical | Spherical |
| Air Velocity | O | O | O | O | O | O | O | O | O | O |
| Acclimation Time (sec) | 1 | 1 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |

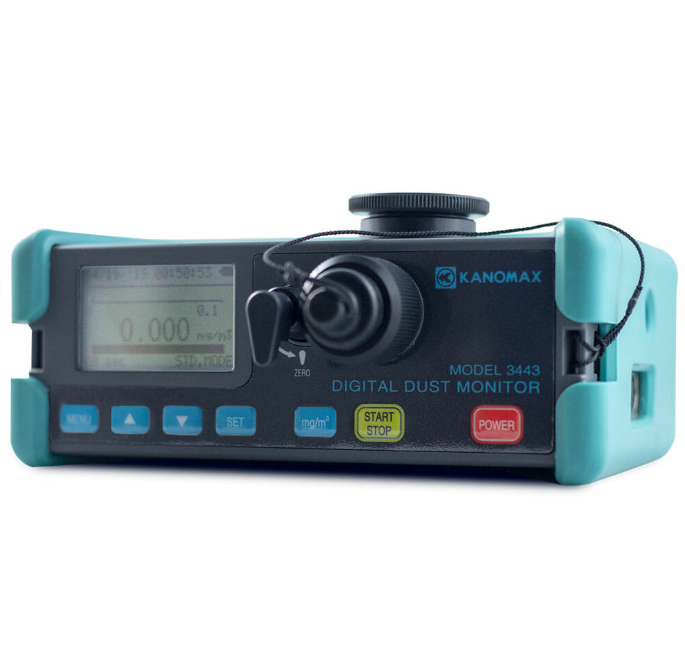

Monitor dust for industrial hygiene, health and safety
The Kanomax Digital Dust Monitor – Model 3443 measures aerosol concentrations corresponding to PM10. The intake isolates the aerosol sample so that the optics chamber is kept sterile for improved reliability and low maintenance. The unit measures 0.1 to 10µm particle size aerosol contaminants such as fumes, dust, smoke and mists. It is battery-operated, data-logging, light-scattering laser photometer that gives you real time aerosol mass readings. It is also suitable for clean office settings well as harsh industrial workplaces, construction and environmental sites, and outdoor applications.
| Main Unit Specifications | |
|---|---|
| Measuring Method | Light Scattering Method |
| Measuring Object | Airborne Particle Matter 0.1 to 10 µm |
| Measuring Range | 0.001 to 10.0 mg/m3 |
| Accuracy | +/- 10% of reading |
| General Specifications | |
| Light Source | Laser diode |
| Data Logging | 100,000 data and time stamped measurements |
| Interface | USB |
| Output | 0 to 1 V, Pulse, Alarm |
| Power Supply | 6 AA batteries or AC adapter |
| Dimensions | W 6.4″ x H 4.3″ x D 2.4″ (162 x 109 x 60mm) |
| Weight | 2.9 lbs. (1.3 kg) |
| Warranty | 1 year |
| What’s Included | Meter, Operation manual, Data processing software, USB cable, AC adapter, Rubber protector, LCD protective sheet, Shoulder strap, Filter, NIST TRACEABLE CALIBRATION certificate |

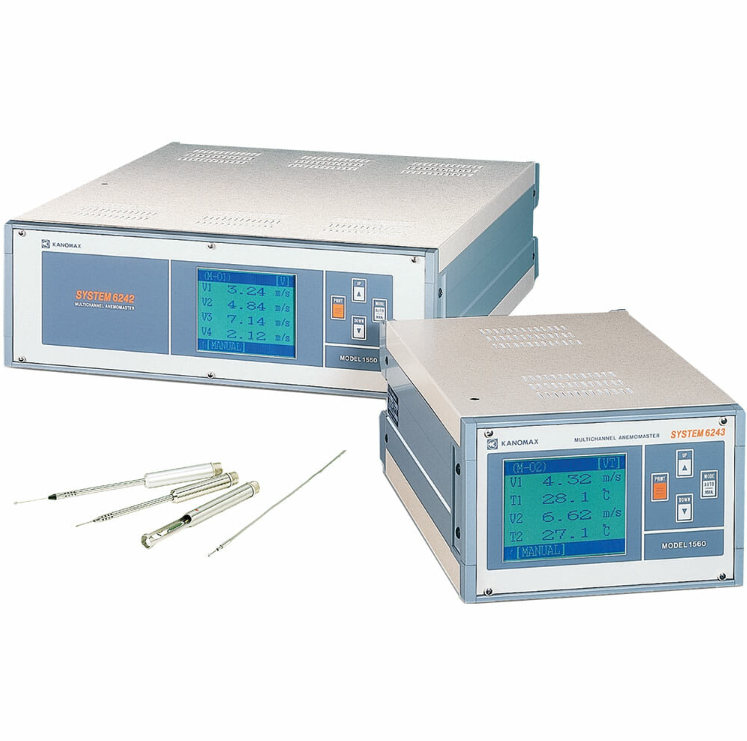

Multi-channel anemometer for monitoring up to 64 points
Kanomax Multi-Channel Anemometers are research-grade airflow measuring instruments designed for high performance and precision. When coupled with our highly accurate probes this four-channel anemometer provides highly accurate and reliable data readings. It features a LCD display that displays the data from each channel. The Our 1550 & 1560 models house module bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements. Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement. For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer.
| Main Unit Specifications | ||
|---|---|---|
| Model | 1550 | 1560 |
| Display Resolution | 0.01 m/s (@ range of 0 to 9.99m/s) 0.1 m/s (@ 10 m/s or more) 0.1°C (Temperature) 0.1% (Relative Humidity) | |
| Number of Module Slots | 16 | 6 |
| Analog Output | 0 to 5 V (with optional module) | |
| Interface | RS-232C | |
| Operation Temperature | 41 to 104°F (5 to 40°C) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Dimensions | 16.9″ x 19.6″ x 5.5″ (430 x 500 x 140 mm) | 8.9″ x 12.8″ x 5.5″ (226 x 325 x 140mm) |
| Weight | 22lbs (10kg) | 11lbs (5kg) |
| Power | AC 100V (50/60 Hz) | |
| Warranty | 1 year | |
| Standard Accessory | Meter, Operation Manual, RS-232C Cable, Power Cord, Fuse | |
| Optional Probe Specifications | |
|---|---|
| Air Velocity | |
| Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation |
| Warranty | 1 year |
| Standard Accessory | Probe, Data ROM, NIST Certificate |
| Model | 0962-00 | 0963-00 | 0965-00 | 0965-01 | 0965-03 | 0965-04 | 0965-07 | 0965-08 | 0965-09 | 0965-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 50.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 50.0 | 0.1 to 50.0 |
| Airflow Directivity | Mono | Mono | Omni | Omni | Omni | Omni | Omni | Omni | Omni | Omni |
| Probe Type | Rod | Rod | Spherical | Spherical | Miniature | Miniature | Miniature | Miniature | Spherical | Spherical |
| Air Velocity | O | O | O | O | O | O | O | O | O | O |
| Acclimation Time (sec) | 1 | 1 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Air Velocity | |
|---|---|
| Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s |
| Temperature | |
| Ranges | 0 to 100 °C |
| Accuracy | +/- 1 °C |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation |
| Warranty | 1 year |
| Standard Accessory | Probe, Data ROM, NIST Certificate |
| Model | 0962-21 | 0963-21 | 0965-21 |
|---|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 50.0 | 0.1 to 25.0 |
| Airflow Directivity | Mono | Mono | Omni |
| Probe Type | Rod | Rod | Spherical |
| Air Velocity | O | O | O |
| Air Temperature | O | O | O |
| Acclimation time (sec) | 1 | 1 | 7 |
| Air Velocity | |
|---|---|
| Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s |
| Temperature | |
| Ranges | 0 to 60 °C |
| Accuracy | +/- 1 °C |
| Relative Humidity | |
| Ranges | 5 to 95 %RH |
| Accuracy | +/- 3% (@ 5 to 80%RH) +/- 5% (@ 80 to 95 %RH) |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation |
| Warranty | 1 year |
| Standard Accessory | Probe, Data ROM, NIST Certificate |
| Model | 0963-31 | 0965-31 |
|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 25.0 |
| Airflow Directivity | Mono | Omni |
| Probe Type | Rod | Spherical |
| Air Velocity | O | O |
| Air Temperature | O | O |
| Relative Humidity | O | O |
| Acclimation time (sec) | 1 | 7 |

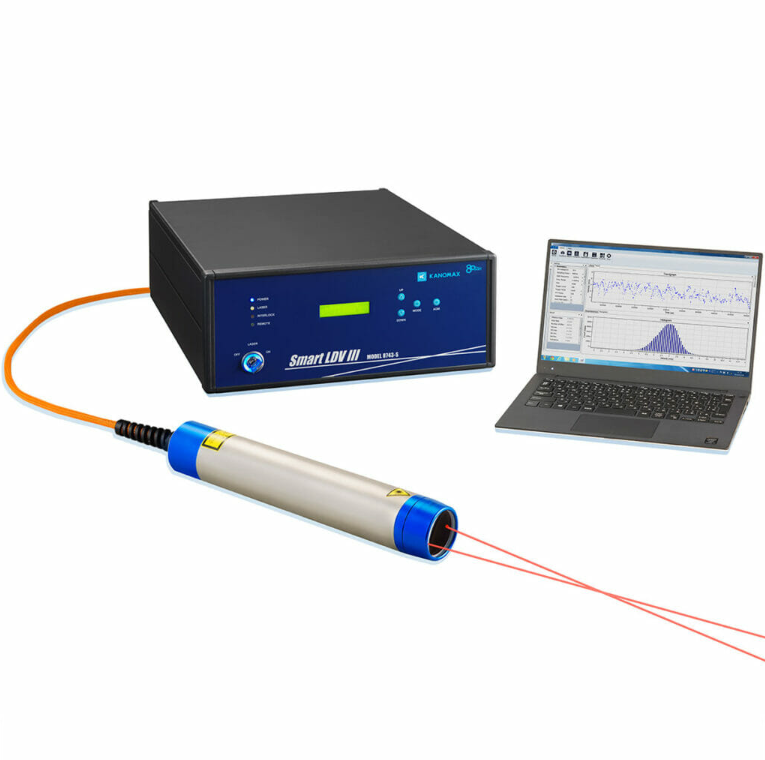

Simple and easy-to-operate Smart LDV (Laser Doppler Velocimeter)
A Laser Doppler Velocimeter (LDV) measures fluid velocity by utilizing coherence of laser light. It detects the Doppler shift frequency of the scattering light of particles in the fluid and calculates the velocity of the particles (fluid). With a LDV system, non-intrusive measurements without disturbing the measuring object, liquid or gas flow, are achieved. No calibration is necessary and reverse flow measurements at a high resolution is also possible. The LDV system provides the absolute value of the flow velocity with accuracy.
The Smart LDV III is a high quality Laser Doppler Velocimeter and compact in design. Absolute velocity measurement with high repeatability is realized with the Smart LDV III.
| Main Unit Specifications | |
|---|---|
| Velocity Range | -40 to 260 m/s (f = 400mm, Model 8743-S) |
| Laser Source | Laser Diode: λ=660nm, 60mW |
| Focal Distance | 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm |
| Focal Point Size | 0.13 mm x 1.3 mm (f=200mm) |
| Probe Size | 61 mm (Dimension) x 345 mm (length) |
| Shift Frequency | 0.01 to 10 MHz |
| Signal Processor Specifications | |
| Signal Processing System | 8 bits FFT (512, 256, 128 points) |
| Frequency Band | 1 kHz to 40 MHz (8 ranges) |
| Max Data Rate | 60,000 speed data/sec* |
| Validation | Burst Spectrum ratio |
| Interface | USB 3.0 |
| Software | |
| Max. number of data | 100,000 |
| Real time monitor | Burst waveformBurst spectrumVelocity histogram |
| Analysis function | Mean flow velocity, Turbulent intensity, Skewness factor, Flatness factor, Velocity histogram, Time-series display |
| Data output | CSV format |
| Supported Operating System | Windows 7/8/10(64 bit only) Japanese/English |

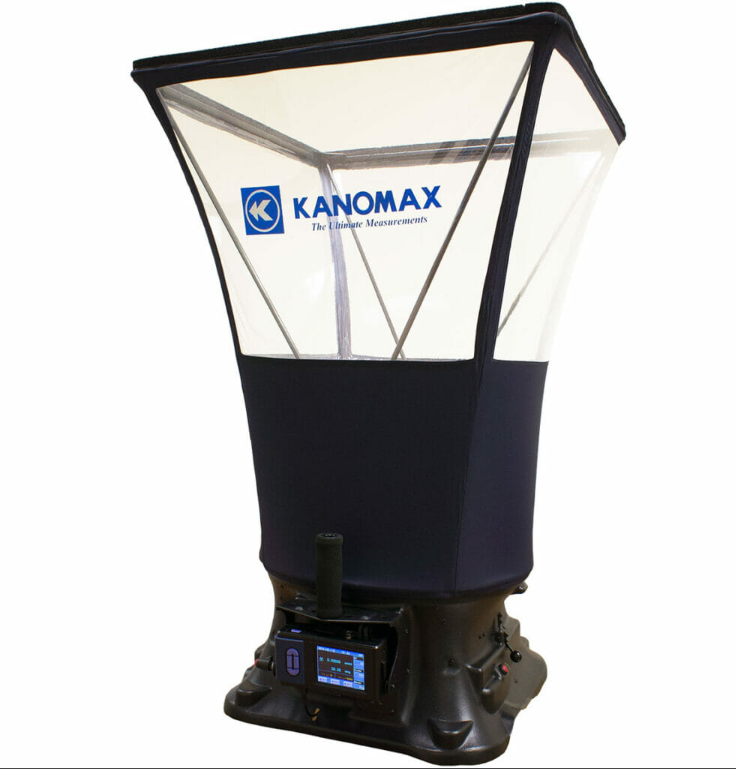

The most innovative Testing and Balance (TAB) instrument
The Kanomax TABmaster Airflow Capture Hood is an extremely lightweight and easy to handle balometer, and it’s perfect for your next HVAC test. It is equipped with professional-grade features that make this flow hood both versatile and accurate, as it simultaneously measures airflow, temperature and humidity. This unique balometer features bluetooth connectivity allowing integration with two mobile apps, Kanomax TAB Viewer and Building Start’s AirNAB (see Resources > Software and Programs), for easy data-recording and remote control. It’s the only tool you need for all your supply and return airflow measurements.
The Model 6715 is equipped with a removable, handheld micromanometer with Bluetooth® wireless capability, which stores up to 8,000 measurements. The micromanometer also has tilting capability, which allows for easy reading of the measurements while utilizing the extremely convenient, portable flow hood stand with a wheeled base. A single operator can run a full HVAC test without ever stepping on a ladder or recruiting a helper! The TABmaster™ is available in six different hood sizes to ensure that the transparent flow hood will fit your duct size perfectly! Pressure testing, gathering face velocity readings and in-duct airflow measurements are no longer a hassle for HVAC professionals with the TABmaster™ Model 6715.
| Main Unit Specifications | ||
|---|---|---|
| Airflow | Range | 23 to 2500 CFM (40 to 4250 m3/h) |
| Accuracy | +/-3% of READING +/- 8m3/h (>85m3/h) | |
| Resolution | 1 m3/h | |
| Temperature | Range | 32 to 122°F (0 to 50°C) |
| Accuracy | +/- 0.5°C | |
| Resolution | 0.1°C | |
| Humidity | Range | 0 to 100 %RH |
| Accuracy | +/- 3.0 %RH (10 to 90 %RH) | |
| Resolution | 0.1 %RH | |
| General Specifications | ||
| Standard Hood Dimensions | 2′ x 2′ (610x610mm) | |
| Available Hood Dimensions | 2′ x 4′ (610x1220mm)1′ x 4′ (305x1220mm) 3′ x 3′ (915x915mm) 3′ x 2′ (915x610mm) 20″x 20″ (500mm x 500mm) 2′ x 2′ with Straighteners | |
| Datalogging | Up to 8,000 Measurements | |
| Power Supply | 4 x AA batteries or AC Adapter | |
| Weight & Dimensions | 7.9 lbs (3.6 kg), Main body: 24″ x 24″ x 37″, Micromanometer: 3.4″ x 7.4″ x 1.6″ | |
| Standards | CE-mark | |
| Warranty | 1 year | |
| What’s included | Meter (Model 6700), standard hood (2 x 2ft), PC communication cable, data processing software, operational manual, carrying case, calibration certificate | |
