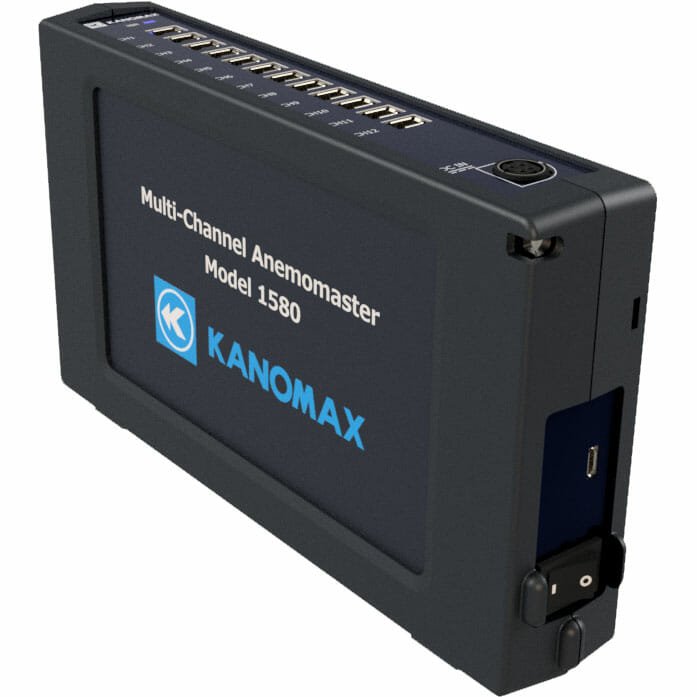

Multi-Channel Anemometer – Model 1580
Revolutionary 12-channel Multi-Channel Anemometer
Advanced Multi-Channel Anemometer
The Kanomax Multi-Channel Anemomaster Model 1580 stands as the pinnacle of airflow measurement technology, designed to deliver unmatched accuracy and responsiveness across multiple channels. This anemometer can measure up to 12 separate airflow channels simultaneously, making it an indispensable tool for environments where precision is paramount. The ability to gather comprehensive airflow data from multiple points ensures thorough environmental control and analysis, ideal for complex systems.
Compact and High-Performance Probes
With the industry’s most accurate and smallest miniature probes, the Model 1580 excels in environments where space and accuracy are crucial. These high-performance probes offer high heat resistance, enabling them to function optimally even in high-temperature conditions. This feature not only extends the durability of the probes but also guarantees consistent performance in demanding settings.
Temperature Measurement Capability
In addition to its superior airflow measurement capabilities, the Kanomax Model 1580 is equipped with temperature measurement functions. This integration allows for a more holistic approach to environmental monitoring, where both airflow and temperature are critical factors. By providing dual measurement options, the Model 1580 enhances its utility and application across various industries.
Ease of Multi-Point Measurement
The multi-point measurement capability of the Model 1580 simplifies the process of monitoring complex systems. This feature is particularly advantageous in semiconductor manufacturing and other technical fields where multiple data points are necessary for accurate analysis and control. The ease of use provided by this anemometer ensures efficient and effective monitoring and adjustments in real-time.
Ideal for Semiconductor Manufacturing
Specifically tailored for the semiconductor manufacturing industry, the Kanomax Model 1580 provides precise and reliable measurements critical for the production of semiconductors. Its advanced technology and multiple channel capacity make it perfect for assessing and managing the airflow in clean rooms and other controlled environments where even minor fluctuations in airflow can impact production quality.
Enhanced Operational Efficiency
By integrating the Kanomax Model 1580 into their systems, industries can achieve a higher level of operational efficiency and environmental control. The anemometer’s multi-channel measurement and high-accuracy probes provide essential data for optimizing processes and ensuring that environmental conditions meet stringent industry standards. This capability is crucial for maintaining product quality and operational stability in high-tech manufacturing and research facilities.
Main Unit Specifications
| Product | Multi-Channel Anemomaster | |
|---|---|---|
| Model | 1580-00 | |
| Number of Channels | Up to 12 channels | |
| Communication Function | Between PC | USB Micro-B |
| Between Probe | Serial communication (standard cable) | |
| Between Probe | Serial communication (connector) | |
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable | |
| Power Consumption | Up to 50W | |
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | |
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | |
| Dimensions | W220mm × D130mm × H40mm | |
| Weight | 0.6 kg | |
| Standard Accessories | AC Adapter (90W), Software (CD), Operation manual, USB cable, Rubber cap | |
| Warranty | 1 year | |
Analog Unit Specifications
| Product | Analog Unit | ||
|---|---|---|---|
| Model | 1592-00 | ||
| Number of Channels | 12 | ||
| Communication Function | Between units | Serial communication {connector} | |
| Analog Output | Voltage output | Range | 0 ～ 5 V |
| Output resistance | 1 kΩ | ||
| Current output | Range | 4 ～20 mA | |
| Load resistance | 250 Ω | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable | ||
| Power Consumption | 10W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Size | W220mm × D130mm × H40ｍｍ | ||
| Weight | 0.5kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs) | ||
| Warranty | 1 year | ||
Probe Specifications
| Model Number | Measurement Target | Directivity | Air Velocity | Wind Temperature | Humidity | Operating Temperature | Temperature Compensation Sensor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Range | Measurement Accuracy | Responsivity | Measurement Range | Measurement Accuracy | Measurement Range | Measurement Accuracy | |||||
| 0972-00 0973-00 | Wind Speed | Yes | 0.01~50.0m/s | The larger of ± 2% or ± 0.02 m/s of the displayed value | 1 Second | ー | ー | ー | ー | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
| 0975-00 | No | 0.01~25.0m/s | 3 Seconds | ||||||||
| 0975-09 0975-10 | 0.01~50.0m/s | ||||||||||
| ± 5% of displayed value at 0-120 ℃ | |||||||||||
| 0976-03 0976-04 0976-07 | 0.01~30.0m/s | The larger of ± 3% or ± 0.02 m / s of the displayed value | 0-120℃ | ||||||||
| 0976-13 0976-14 0976-17 | The larger of ± 2% or ± 0.02 m/s of the displayed value | 0-100℃ | ± 5% of displayed value at 0-100 ℃ | ||||||||
| 0976-05 | Air Velocity and Temperature | The larger of ± 3% or ± 0.02 m/s of the displayed value | 0～120℃ | ±0.5% | 0-120℃ | ± 5% of displayed value at 0-120 ℃ | |||||
| 0976-15 | 0～100℃ | 0-100℃ | ± 5% of displayed value at 0-100 ℃ | ||||||||
| 0975-21 | The larger of ± 2% or ± 0.02 m/s of the displayed value | ||||||||||
| 0975-31 | Air Velocity, Temperature and Humidity | 0.01~25.0m/s | 0～60℃ | 5～95%RH | 5～80% RH：3% RH 80～90% RH：5% RH | ||||||

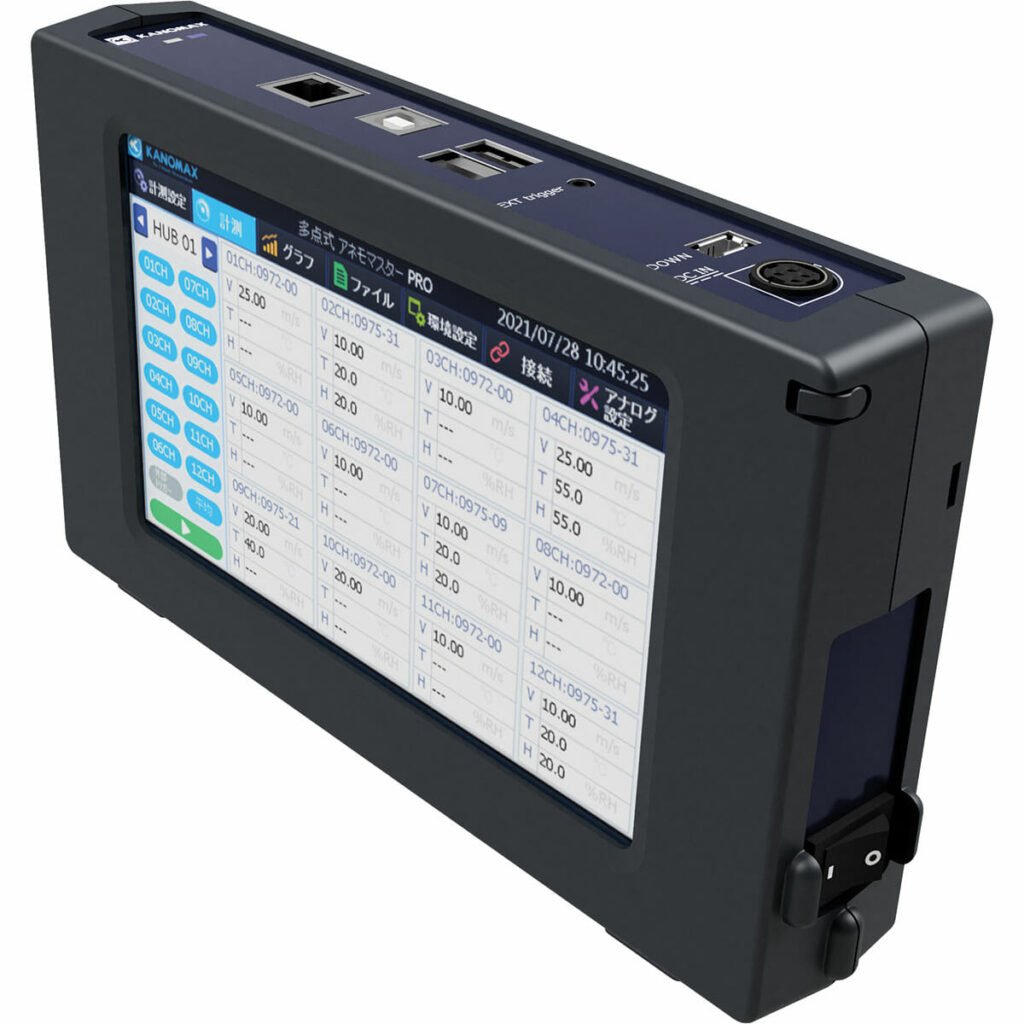

Multi-Channel Anemometer PRO – Model 1590
Flexible instrumentation that allows you to customize number of channels, measurement items, and sensor shape to your purpose.
Advanced Measurement Technology
The Kanomax Multi-Channel Anemometer PRO – Model 1590 epitomizes precision and responsiveness in airflow measurement technology. Recognized globally for its unparalleled accuracy across the entire air velocity range, including the delicate breeze speed range, this anemometer sets the standard for high-level environmental monitoring. Its capability to perform multipoint measurements on up to 144 channels using the industry’s smallest-level miniature probe ensures detailed and comprehensive data capture.
Enhanced Multi-Channel Anemometer Probes
With 15 types of compatible probes that boast the smallest class size in the industry, the Model 1590 offers exceptional versatility and high heat resistance, allowing for precise measurements even in the most challenging environments. These probes are designed to respond swiftly and accurately, with a micro air velocity limit of 0.01 m/s, facilitating highly accurate readings crucial for critical applications.
Superior Data Handling and Portability
The main unit of the Model 1590 is not only highly portable but also features an enhanced interface, which simplifies the process of simultaneous measurements across multiple points. This efficiency is augmented by the optional analog unit (Model 1592-00), which enables the recording of data on up to 12 channels per unit with selectable current or voltage outputs, facilitating extensive data collection ideal for use with data loggers.
Comprehensive Software and Connectivity
Included with the Model 1590 is a Windows-compatible measurement software, which allows for the simultaneous measurement of air velocity, temperature, and humidity. The software supports real-time graph displays and saves measurement data in a text format that can easily be imported into spreadsheet applications like Excel. Enhanced connectivity options include USB and LAN, with configuration settings adjustable via the main unit’s touch panel or remotely from a PC.
Scalability for Large-Scale Applications
This anemometer’s ability to handle up to 144 channels makes it exceptionally well-suited for large-scale system configurations. Its capability to measure expansive areas efficiently makes it a preferred choice for large-scale space applications, from industrial settings to vehicle testing, where portability and quick setup are essential.
Diverse Industrial Applications
The Kanomax Model 1590 is designed for a variety of demanding applications, including thermal management of automotive ECUs, electronic component heat evaluation, and indoor airflow management for semiconductor manufacturing equipment. It also serves as an indispensable tool for data center thermal management, providing crucial data to optimize the operational efficiency and safety of these facilities.
Main Unit Specifications
| Product | Multi-Channel Anemomaster PRO Main Unit | ||
|---|---|---|---|
| Model | 1590-00 | ||
| Display, Operation | 7-inch color LCD with touch panel | ||
| Communication Function | Data | USB Type-A: For USB memory | |
| Remote Measurement | Modbus (Ethernet, USB Serial) | ||
| Between Units | RS485 (Standard cable) | ||
| Recording Media | Medium | Built-in memory | |
| Format | CSV format | ||
| Recording Capacity | 8GB (One hub unit can measure 1000 sampling times, about 24500 times). | ||
| External Trigger Input | Pin jack terminal Φ2.5 audio jack (Edge detection at start) | ||
| Language | Japanese, English, Chinese | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable | ||
| Power Consumption | Up to 50W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.6 kg | ||
| Standard Accessories | AC Adapter (90W), Software (CD), Operation manual, USB cable, Rubber cap | ||
| Warranty | 1 year | ||
Hub Unit Specifications
| Product | Multi-Channel Anemomaster HUB Unit | ||
|---|---|---|---|
| Model | 1591-00 | ||
| Number of Channels | 12ch | ||
| Communication Function | Between Probes | Serial communication (standard cable) | |
| Between Probes | Serial communication (standard cable, connector) | ||
| Between Probes | RS485 (Standard cable) | ||
| Power Supply | DC12 ～ 24V | ||
| Power Consumption | Power supply conforms to the main unit | ||
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.5 kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs) | ||
| Warranty | 1 year | ||
Analog Unit Specifications
| Product | Analog Unit | ||
|---|---|---|---|
| Model | 1592-00 | ||
| Number of Channels | 12 | ||
| Communication Function | Between units | Serial communication {connector} | |
| Analog Output | Voltage output | Range | 0 ～ 5 V |
| Output resistance | 1 kΩ | ||
| Current output | Range | 4 ～20 mA | |
| Load resistance | 250 Ω | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable | ||
| Power Consumption | 10W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Size | W220mm × D130mm × H40ｍｍ | ||
| Weight | 0.5kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs) | ||
| Warranty | 1 year | ||
Probe Specifications
| Model Number | Measurement Target | Directivity | Air Velocity | Wind Temperature | Humidity | Operating Temperature | Temperature Compensation Sensor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Range | Measurement Accuracy | Responsivity | Measurement Range | Measurement Accuracy | Measurement Range | Measurement Accuracy | |||||
| 0972-00 0973-00 | Wind Speed | Yes | 0.01~50.0m/s | The larger of ± 2% or ± 0.02 m/s of the displayed value | 1 Second | ー | ー | ー | ー | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
| 0975-00 | No | 0.01~25.0m/s | 3 Seconds | ||||||||
| 0975-09 0975-10 | 0.01~50.0m/s | ||||||||||
| ± 5% of displayed value at 0-120 ℃ | |||||||||||
| 0976-03 0976-04 0976-07 | 0.01~30.0m/s | The larger of ± 3% or ± 0.02 m / s of the displayed value | 0-120℃ | ||||||||
| 0976-13 0976-14 0976-17 | The larger of ± 2% or ± 0.02 m/s of the displayed value | 0-100℃ | ± 5% of displayed value at 0-100 ℃ | ||||||||
| 0976-05 | Air Velocity and Temperature | The larger of ± 3% or ± 0.02 m/s of the displayed value | 0～120℃ | ±0.5% | 0-120℃ | ± 5% of displayed value at 0-120 ℃ | |||||
| 0976-15 | 0～100℃ | 0-100℃ | ± 5% of displayed value at 0-100 ℃ | ||||||||
| 0975-21 | The larger of ± 2% or ± 0.02 m/s of the displayed value | ||||||||||
| 0975-31 | Air Velocity, Temperature and Humidity | 0.01~25.0m/s | 0～60℃ | 5～95%RH | 5～80% RH：3% RH 80～90% RH：5% RH | ||||||

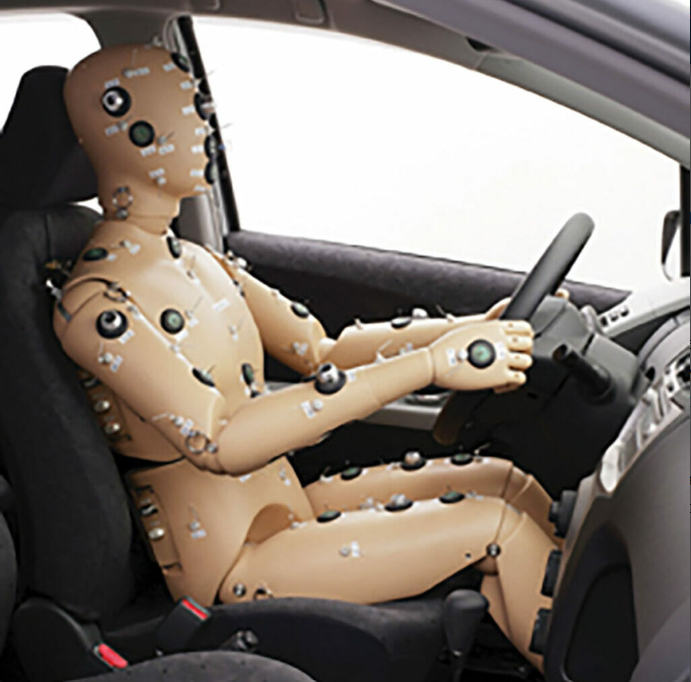

Amenity Manikin System
Amenity Manikin System for automobile cabin testing
The Kanomax Amenity Manikin System is an optimal solution for precise interior cabin comfort evaluation. The system measures parameters, such as air velocity, temperature, humidity, and radiant heat, which all relate to human comfort levels. One manikin may be equipped with more than 120 sensors, providing sophisticated measurements.
Simultaneously measure with up to four manikins. Communicate and transfer data wirelessly. Includes software for both real-time measurement and data retrieval. Export data to Microsoft Excel and save graphical data for review.
| Main Unit Specifications | |
|---|---|
| Height | approx. 170cm (5′ 7″) |
| Weight | 40kg (90lbs, including data processor) |
| Materials | Plastic (FRP) |
| Sensor Allocations by Part (Below is an average number of sensors. Can be customized) | ||||
|---|---|---|---|---|
| Sensor Type | Air Velocity | Temperature | Relative Humidity | Radiant Heat |
| Head | 4 | 12 | 1 | 3 |
| Upper Torso | 12 | 33 | 0 | 5 |
| Lower Torso | 20 | 33 | 1 | 4 |
| Total | 36 | 78 | 2 | 12 |
| Sensors Specifications | |
|---|---|
| Air Velocity | |
| Range | 0.1 to 5.0 m/s |
| Accuracy | 0.1 to 2.0 m/s 2 to 5 m/s +/- 0.05 m/s +/- 0.10 m/s |
| Temperature | |
| Range | -33 to 100 C |
| Accuracy | +/- 3 C |
| Humidity | |
| Range | 3 to 95 %RH |
| Accuracy | 3 to 30 %RH +/- 3 %RH 30 to 75 %RH +/- 2 %RH 75 to 95 %RH +/- 3%RH |
| Radiant Heat | |
| Wavelength | 0.3 to 40 um |
| Range | 0 to 1 kw/m2 |
| Accuracy | +/- 7 % |

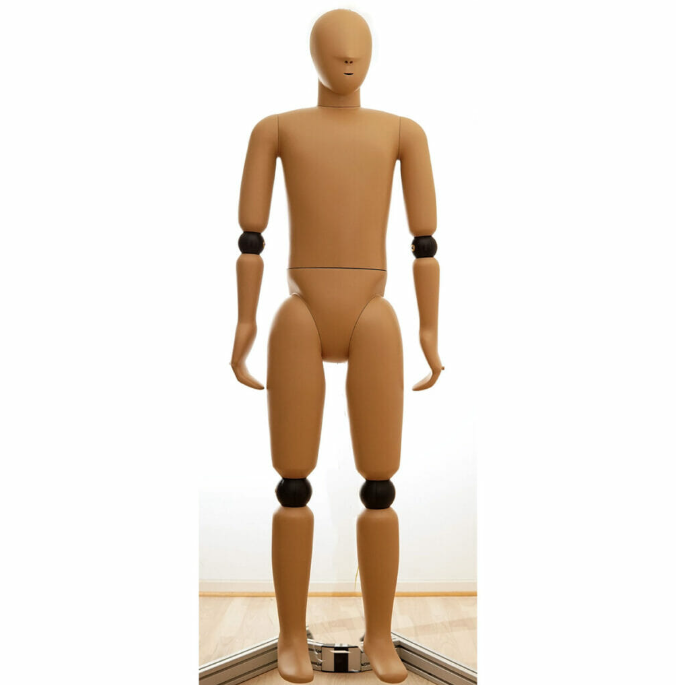

Thermal Manikin System
Unique design with high accuracy, easy operations and low cost of ownership
Accurately assessing thermal comfort and heat exchange is crucial in designing environments and products that interact with the human body. The PT Teknik Thermal Manikin System offers a sophisticated solution for simulating human thermal responses, providing reliable data for research and development across various industries. Kanomax USA has partnered with PT Teknik to bring their industry-leading Thermal Manikin System to the United States.
Advanced Thermal Simulation Technology
At the core of the PT Teknik Thermal Manikin System is state-of-the-art thermal wiring technology, enabling precise simulation of human heat production and loss. The manikin is divided into multiple independently controlled zones, allowing for detailed analysis of heat transfer and insulation properties. This level of control ensures that researchers can replicate and study complex thermal interactions in a controlled, repeatable manner.
Versatile Configurations for Diverse Applications
Designed with flexibility in mind, the manikin can be positioned in various postures—standing, sitting, or lying down—to suit different testing scenarios. Its modular construction allows for easy disassembly at the waist, facilitating transport and setup. Whether evaluating HVAC systems, vehicle cabin climates, or clothing insulation, the PT Teknik Thermal Manikin adapts to meet specific research needs.
Seamless Integration with Physiological Models
To enhance the realism of simulations, the manikin system can be coupled with the JOS-3 thermophysiological model. This integration enables the simulation of human thermal responses under varying environmental conditions, providing deeper insights into comfort levels and physiological impacts.
Broad Industry Applications
The PT Teknik Thermal Manikin System serves as a vital tool in multiple sectors:
- Built Environment & HVAC: Optimize heating, ventilation, and air conditioning systems for energy efficiency and occupant comfort.
- Automotive & Transportation: Assess and improve thermal conditions within vehicle cabins.
- Clothing & Wearables: Evaluate the thermal insulation and comfort of garments under various environmental conditions.
- Military & Protective Gear: Test and develop clothing designed for extreme temperatures and challenging environments.
Commitment to Quality and Support
With over three decades of experience, PT Teknik is dedicated to delivering high-quality, reliable thermal manikin systems. Each system is handcrafted to ensure precision and durability, backed by comprehensive customer support to assist with setup, operation, and data analysis.
| Main Specifications | |
|---|---|
| Parameters | Skin T Heat flux PMV PPD SET ET Teq Clo |
| Body Zones | 22 – 27 (or more on request) |
| Modes | Comfort mode Operative T PID fixed setpoint and fixed heat loss |
| Body Size | Male 175 cm, Female 168 cm, 20 kg |
| Power Supply | 100 / 240 V in, 24 V DC out |
| Heat Loss | Range 0 – 300 W/m2 Resolution 0.1 W/m2 Precision 1% |
| Temperature | Range 15 – 45 C Resolution 0.1 C Precision 0.1 C |
| *Body can be separated in the waist for easy transport | |

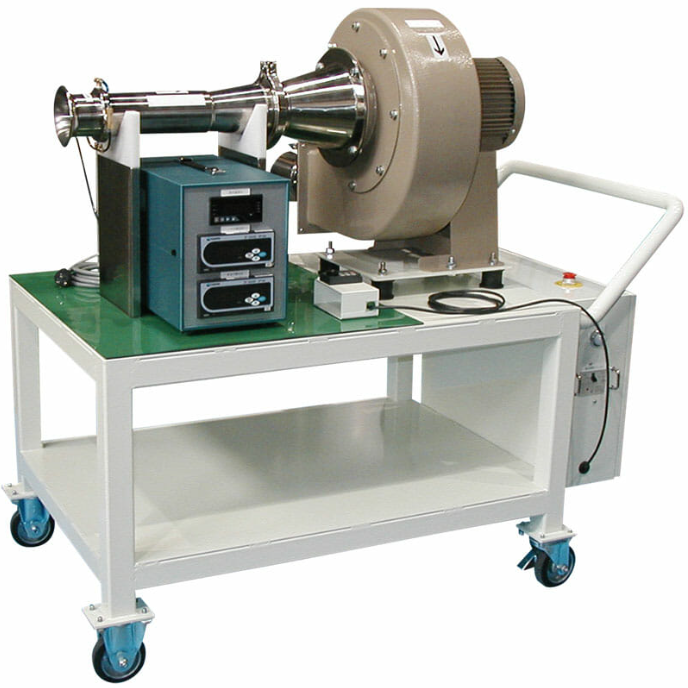

Cabin Leakage Tester
Interior cabin tester for efficient automobile manufacturing
The Kanomax Cabin Leakage Tester pressurizes or depressurizes the automobile vehicle cabin to measure the changes in cabin pressure. The control unit consists of a manometer and pressure transducers. The manometer detects the leakage flow, which is calculated by measuring the nozzle pressure relative to static pressure. The tester controls an adjustable fan to maintain static test pressure.
| Main Unit Specifications | |
|---|---|
| Airflow Ranges | 100 to 500 m3/hour |
| Maximum Static Pressure | 300 Pa |
| Nozzle Diameter | 41 or 69 mm |
| Power Supply | AC100V, 20A, Single phase |
| Standards | JIS D1622 JIS B 8330 |

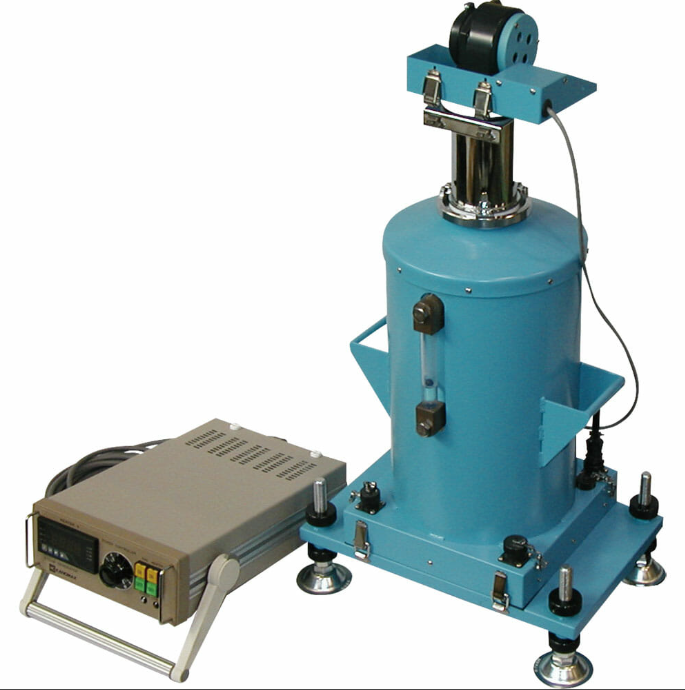

Steam Generator
A vital tool for de-mister testing
The Kanomax Steam Generator is specifically designed for automobile de-mister testing. This instrument fills the automobile cabin with steam to create a humid environment, increasing the fog that accumulates on the windshield. The de-mister can then be tested in accordance with JIS D 4502/4504-1994, ISO 3470-1989(E), EEC 661, and SAE J953 standards.
It generates up to 390g per hour, generates steam volume up to 1 gallon, and conducts tests in accordance with JIS D 4502/4504-1994, ISO 3470-1989(E), EEC 661, and SAE J953 standards.
| Main Unit Specifications | |
|---|---|
| Steam Generation | 65 to 390 g/hour |
| Heat Loss | Less than 75W |
| Steam Volume | 1 gallon (3.785 litters) |
| Heater Capacity | Up to 500W at AC100V |
| Nozzle | Inner diameter of 15 mm x 100 mmL |
| Fan Airflow | 0.05 to 0.1 m3/min at 49 Pa |
| Standards | JIS D 4502/4504-1994 ISO 3470-1989(E) EEC 661 SAE J953 |
