cloud-runner Mottling Meter Control of Paint Mottling
Description
Specification
Downloads
Description
- Measures under three angles to simulate different observing conditions
- Ideal tool for the production line: small, fast and easy to handle
- For flat and curved areas (radius larger than 50 cm)
- Scan length can be selected on the mottle meter from 10 to 100 cm
- Easy scroll wheel operation and large, multilingual display
- Full statistics with ability to save in selectable memories
- Docking station for data transfer to the PC and recharging the batteries of the mottling metersmart-chart software for flexible data analysis and professional documentation
Specification
- Measuring time
- < 4 sec.
- Memory
- 1000 readings
- Interface
- USB port
- Languages
- English French German Italian Japanese Portuguese Spanish
- Power supply
- rechargeable battery pack, approx. 1500 readings
- Weight
- 0.65 kg
- Weight
- 1.5 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 60 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 140 °F
- Relative humidity
- up to 85% at 35°C (95°F), non-condensing
- Dimensions: L x W x H
- 15 x 5.5 x 11 cm
- Dimensions: L x W x H
- 5.9 x 2.2 x 4.3 in
- Cloud Size
Md: 6 to 13 mm
Me: 11 to 24 mm
Mf: 19 to 42 mm
Mg: 33 to 72 mm
Mh: 57 to 126 mm
Mi: 100 to 200 mm
- Scan Length
- 10 to 100 cm, selectable in 1cm steps
- Repeatability (Std. Dev.)
- 5% or > 0.5
- Reproducibility (Std.Dev.)
- 8% or > 0.8
- Object Curvature
- radius > 500 mm
- Resolution
- 25 points/cm
- Light Source
- White Power LED
Downloads
haze-gard Transparency Transmission Haze Meter

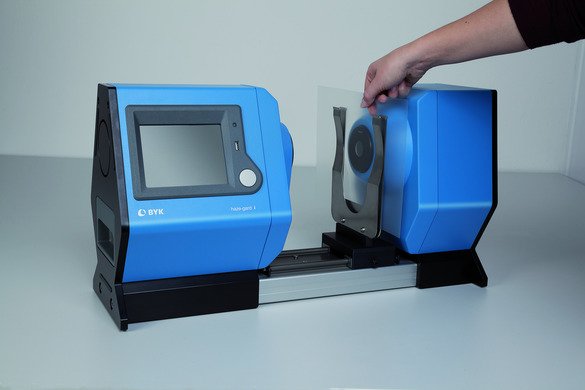

haze-gard i
Description
Specification
Downloads
Description
- Simultaneous measurement of haze and transmission according to
- ASTM D1003 – illuminants C and A (non-compensated method)
- ISO 13468 – illuminant D65 (compensation method)
- Open measurement compartment – quickly change and position small and large samples
- Reference beam, self-diagnosis and enclosed optics ensure precise and reliable readings – any time
- Automatic and long-term calibration allow easy and fast operation of the haze meter
- 10 year warranty on LED light source – long-term stable results for many years
- Versatile sample holders for films and sheets available
- Horzontal or vertical set-up – convenient sample handling for any application
- Foot switch for hands-free operation
- Large color touch display with symbols to select menu functions
- Complete statistics and colorful Pass/Fail analysis
- Direct data transfer via LAN, USB-port or via USB-stick
- Professional data documentation and analysis with smart-lab haze software
Specification
- Memory
- 5000 readings
- Interface
- LAN, USB 2.0, additional front USB-port for memeory stick
- Languages
- English French German Italian Spanish Chinese Japanese Russian
- Power supply
- 115/230 V self adapting
- Weight
- 18 kg
- Weight
- 40 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 50 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 122 °F
- Dimensions: L x W x H
- 62 x 22 x 33 cm
- Dimensions: L x W x H
- 24 x 8 x 13 in
- Illuminants
CIE-C, CIE-A (ASTM D1003)
CIE-D65 (ISO 13468, ISO 14782)
- Spectral Response
- CIE luminosity function y
- Geometry
- 0°/diffus
- Measurement Area
- 18 mm diameter
- Measurement Area
- 0.7 in diameter
- Sample Port
- 25.4 mm diameter
- Sample Port
- 1.0 in diameter
- Measurement Range
- 0 – 100 %
- Repeatability (Std. Dev.)
- ± 0.1 units
- Reproducibility (Std.Dev.)
- ± 0.4 units
Downloads
Manuals
Manual_haze-gard_i_293022980_E_1501
Manual_wave-scan_w_smart-chart_225025668_E_2005
Safety Instructions
Short Instructions

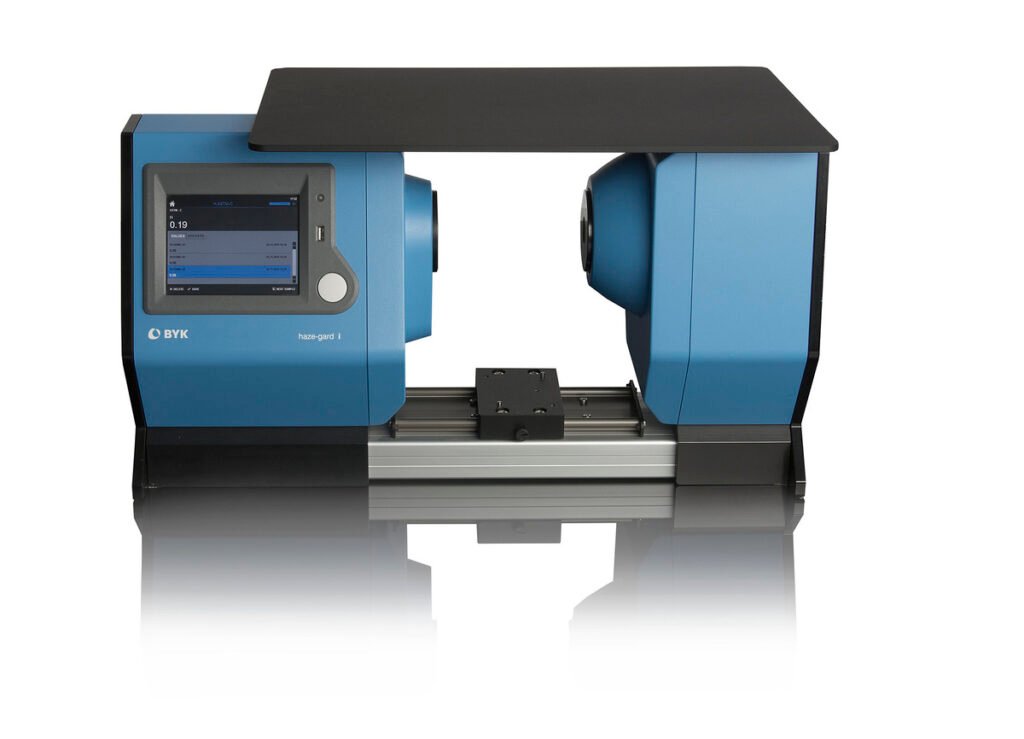

haze-gard i Pro
Description
Specification
Downloads
Description
Complete transparency control by taking only one reading:
- Total transmittance
- Transmission haze
- Clarity
Optimized for Haze levels < 3 % with close tolerance
- Simultaneous measurement of haze and transmission according to
- ASTM D1003 – illuminants C and A (non-compensated method)
- ISO 13468 – illuminant D65 (compensation method)
- Open measurement compartment – quickly change and position small and large samples
- Reference beam, self-diagnosis and enclosed optics ensure precise and reliable readings – any time
- Automatic and long-term calibration allow easy and fast operation of the haze meter
- 10 year warranty on LED light source – long-term stable results for many years
- Versatile sample holders for films and sheets available
- Horzontal or vertical set-up – convenient sample handling for any application
- Foot switch for hands-free operation
- Large color touch display with symbols to select menu functions
- Complete statistics and colorful Pass/Fail analysis
- Direct data transfer via LAN, USB-port or via USB-stick
- Professional data documentation and analysis with smart-lab haze software
Specification
- Memory
- 5000 readings
- Interface
- LAN, USB 2.0, additional front USB-port for memeory stick
- Languages
- English French German Italian Spanish Chinese Japanese Russian
- Power supply
- 115/230 V self adapting
- Weight
- 18 kg
- Weight
- 40 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 50 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 122 °F
- Dimensions: L x W x H
- 62 x 22 x 33 cm
- Dimensions: L x W x H
- 24 x 8 x 13 in
- Illuminants
CIE-C, CIE-A (ASTM D1003)
CIE-D65 (ISO 13468, ISO 14782)
- Spectral Response
- CIE luminosity function y
- Geometry
- 0°/diffus
- Measurement Area
- 18 mm diameter
- Measurement Area
- 0.7 in diameter
- Sample Port
- 25.4 mm diameter
- Sample Port
- 1.0 in diameter
- Measurement Range
- 0 – 100 %
- Repeatability (Std. Dev.)
- ± 0.1 units
- Reproducibility (Std.Dev.)
- ± 0.4 units
Downloads

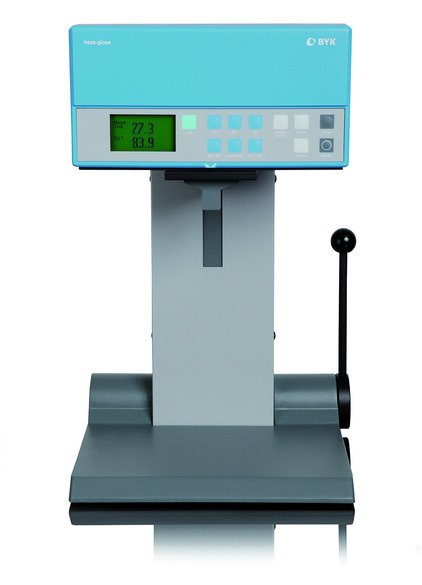

haze-gloss Gloss Meter Reference for Gloss & Haze Control
Description
Specification
Downloads
Description
- 20, 60 and 85°: from high to low gloss – always the specified angle available
- Reflection haze measurement for high gloss finishes
- For any material: paint, plastic or even mirror-like metals
- Reference beam, closed optics and self diagnosis ensure accurate quality control
- Long-term calibration and menu guided operation – simple and secure
- Foot switch and automatic measurement for fast sampling
- Illuminated target facilitates sample positioning
- Statistics with average, min/max and standard deviation
- Large storage capacity and data transfer from the hazemeter to a PC
- Create professional QC-reports with the included easy-link software
Specification
- Measuring Range
20°: 0 – 2000 GU
60°: 0 – 1000 GU
85°: 0 – 160 GU
- Repeatability
0 – 100 GU: ± 0.2 GU
100 – 2000 GU: ± 0.2 %
- Reproducibility
0 – 100 GU: ± 0.5 GU
100 – 2000 GU: ± 0.5 %
- Spectral sensitivity
- CIE standard observer for illuminant CIE-C
- Memory
- 9 x 600 values
- Interface
- serial RS 232
- Languages
- English German French Italian Spanish
- Power supply
- 115/230 V, 50/60 Hz, 50 VA
- Weight
- 14.3 kg
- Weight
- 31.5 lb
- Dimensions: L x W x H
- 40 x 33 x 52 cm
- Dimensions: L x W x H
- 15.7 x 13 x 20.5 in
- Geometry
- 20°, 60°, 85°
- Measuring Area
20°: 15 x 15 mm
60°: 15 x 27 mm
85°: 8 x 60 mm
- Measuring Area
20°: 0.6 x 0.6 in
60°: 0.6 x 1.0 in
85°: 0.3 x 2.4 in
- Measuring Range
10 – 2500 HU (Hlog)
- Repeatability
1 HU (measured on high gloss standard)
- Reproducibility
7 HU (measured on high gloss standard)
Downloads
Manuals
micro-gloss Single angle gloss meter
Description
Description
The micro-gloss has been the unsurpassed industry standard in gloss measurement for many years. The smart functions and intuitive menu operation make gloss measurement an easy task. Outstanding performance in temperature control and inter-instrument agreement guarantee always reliable QC.
- Intelligent gloss measurement with smart communication
- Excellent repeatability and inter-instrument agreement guaranteed
- Intelligent auto diagnosis guarantees always accurate readings
- Brilliant color display easy to read – easy to use
- Statistics, Pass/Fail and Memory – ideal for QC and checks in the field
- Continuous mode to check uniformity over large areas
- smart-chart software: instant QC reports with trend graph and Pass/Fail limits

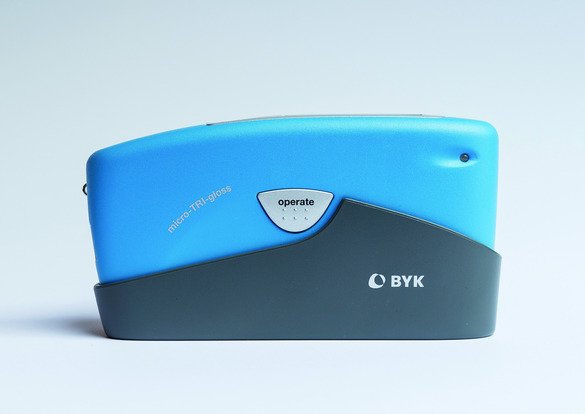

micro-TRI-gloss Three angle gloss meter
Description
Description
Three angle gloss meter – see gloss changes under the right angle. In order to obtain differences clearly over the whole range from matte to high gloss, three measurement geometries were specified in international glossmeter standards. Each geometry is optimized for a specific gloss range.
The micro-TRI-gloss combines 20°, 60° and 85° in one glossmeter – having three geometries in one unit allows you to be in compliance with international standards and to quickly recognize quality variations.
- 20, 60 and 85° in one: from high to low gloss – have the specified angle on hand
- For any material: paint, plastic or even mirror-like metals
- All angles measure at the same location, and the results appear simultaneously
- Intelligent gloss measurement with smart communication
- Excellent repeatability and inter-instrument agreement guaranteed
- Intelligent auto diagnosis guarantees always accurate readings
- Brilliant color display easy to read – easy to use
- Statistics, Pass/Fail and Memory – ideal for QC and checks in the field
- Continuous mode to check uniformity over large areas
- smart-chart software: instant QC reports with trend graph and Pass/Fail limits

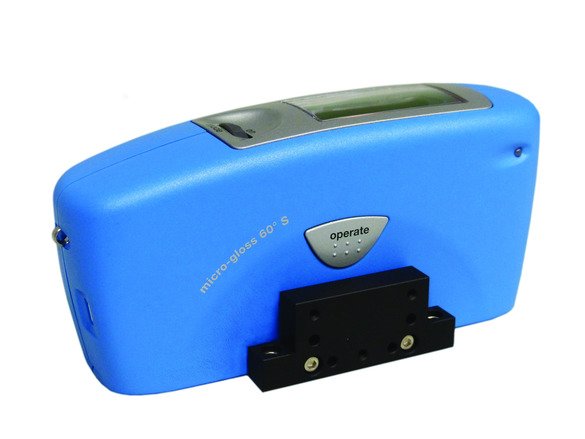

micro-gloss 60° robotic Gloss meter for automation
Description
Description
A stable running process is the key for uniform and consistent quality. The new micro-gloss robotic allows automatic appearance control. With the robust fixture it can be integrated into measuring systems like a xy-table. Thus, measurements are taken always on the same sample area, which ensures repeatable positioning and reliable results.
- Intelligent gloss measurement with smart communication
- Excellent repeatability and inter-instrument agreement guaranteed
- Intelligent auto diagnosis guarantees always accurate readings
- Brilliant color display easy to read – easy to use
- Statistics, Pass/Fail and Memory – ideal for QC and checks in the field
- Continuous mode to check uniformity over large areas

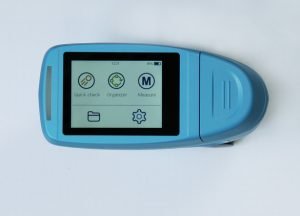

wave-scan OrangePeel Meter

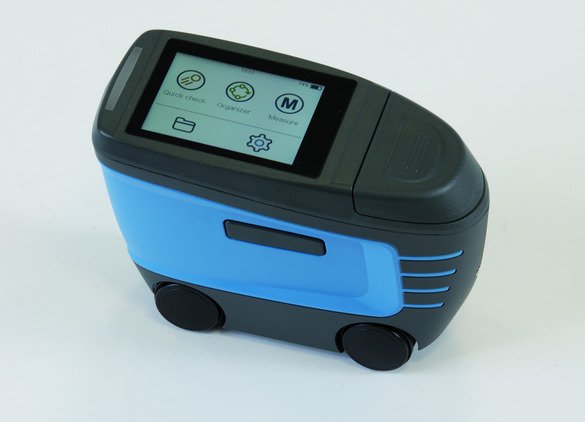

wave-scan 3 dual
Description
Specification
Downloads
Description
The next wave-scan generation
- Extra-large color touch display
- Capacitive display with state-of-the-art haptic touch
- Quick and easy operation with intuitive icon based menu
- Scales and scan lengths can be selected from menu
- Full statistics and data saving
- For flat and curved surfaces (radius larger than 50 cm)
- Classical LW, SW and customer specific scales
- Structure spectrum to analyze appearance changes for optimization
- Dullness and DOI measurement independent of the paint system
- Docking station for data transfer to the PC and recharging the batteries of the Orange Peel meter
- smart-chart software for professional data analysis and documentation
Specification
- Memory
- 10.000 readings in 1000 test series
- Interface
- USB port, WiFi optionally
- Display
- 2.8 in capacitive color touch display
- Languages
- English French German Spanish Italian Chinese Japanese Russian
- Power supply
- rechargeable Li-Ion battery pack, up to 1000 readings depending on usage
- Weight
- 0.7 kg
- Weight
- 1.55 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 60 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 140 °F
- Relative humidity
- up to 85 % at 35 °C (95 °F) non-condensing
- Dimensions: L x W x H
- 15 x 7 x 11 cm
- Dimensions: L x W x H
- 5.9 x 2.7 x 4.3 in
- Application
- High to semi gloss, du < 65, linear range
- Structure Spectrum
du: < 0.1 mm
Wa: 0.1 to 0.3 mm
Wb: 0.3 to 1 mm
Wc: 1 to 3 mm
Wd: 3 to 10 mm
We: 10 to 30 mm
- Repeatability (Std. Dev.)
- du < 40: 4% or > 0.4 du > 40: 6% or > 0.6
- Reproducibility (Std.Dev.)
- du < 40: 6% or > 0.6 du > 40: 8% or > 0.8
- Object Curvature
- radius > 50 cm
- Scan Length
- 5 / 10 / 20 cm
- Resolution
- 375 Points/cm
- Min. Sample Size
- 35 mm x 150 mm
- Light Source
- Laser diode, LED and IR-SLED
- Laser Energy
- < 390 µW (Laser class 1)
Downloads
Manuals
Manual-wave-scan-3_301200085_E_2011_Web
Manual_wave-scan_w_smart-chart_225025668_E_2005
Safety Instructions
Short Instructions

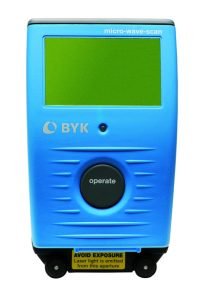

micro-wave-scan
Description
Specification
Downloads
Description
- For flat and curved surfaces (radius > 30 cm)
- Fits in the palm of your hand
- Classical LW, SW and customer specific scales
- Structure spectrum to analyze appearance changes for optimization
- Dullness and DOI measurement independent of the paint system
- Easy scroll wheel operation and large, multilingual display
- Scales and scan lengths can be selected from menu
- Full statistics and data saving
- Docking station for data transfer to the PC and recharging the batteries of the Orange Peel meter
- smart-chart software for data analysis and documentation
Specification
- Memory
- 2000 readings
- Interface
- USB port
- Languages
- English French German Italian Japanese Portuguese Spanish
- Power supply
- rechargeable battery pack or 2 AA batteries, approx. 1000 readings
- Weight
- 0.250 kg
- Weight
- 0.6 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 60 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 140 °F
- Relative humidity
- up to 85% at 35°C (95°F), non-condensing
- Dimensions: L x W x H
- 70 x 40 x 120 cm
- Dimensions: L x W x H
- 2.7 x 1.6 x 4.7 in
- Application
- High Gloss Surfaces (du < 40, linear range)
- Structure Spectrum
du: < 0.1 mm
Wa: 0.1 to 0.3 mm
Wb: 0.3 to 1 mm
Wc: 1 to 3 mm
Wd: 3 to 10 mm
- Repeatability (Std. Dev.)
- 8% or > 0.8
- Reproducibility (Std.Dev.)
- 12% or > 1.2
- Object Curvature
- radius > 300 mm
- Scan Length
- 20 cm (du, Wa…Wd, L, S, DOI) 10 cm (du, Wa…Wd, L, S, DOI) 5 cm (du, Wa…Wd, L, S, DOI) 0 cm (du, Wa, Wb, DOI)
- Resolution
- 375 points/cm
- Min. Sample Size
- 25 mm x 40 mm
- Measurement Area
- 4 mm x scan length
- Light Source
- Laser diode, LED
- Laser Energy
- < 1 mW (Laser class 2)
Downloads
Manuals
Manual_micro-wave-scan_262022432_E_1111
Manual_wave-scan_w_smart-chart_225025668_E_2005
Safety Instructions
Short Instructions
wave-scan 3
Description
Specification
Downloads
Description
The next wave-scan generation
- Extra-large color touch display
- Capacitive display with state-of-the-art haptic touch
- Quick and easy operation with intuitive icon based menu
- Scales and scan lengths can be selected from menu
- Full statistics and data saving
- For flat and curved surfaces (radius larger than 50 cm)
- Classical LW, SW and customer specific scales
- Structure spectrum to analyze appearance changes for optimization
- Dullness and DOI measurement independent of the paint system
- Docking station for data transfer to the PC and recharging the batteries of the Orange Peel meter
- smart-chart software for professional data analysis and documentation
Specification
- Memory
- 10.000 readings in 1000 test series
- Interface
- USB port, WiFi optionally
- Display
- 2.8 in capacitive color touch display
- Languages
- English French German Italian Spanish Chinese Japanese Russian
- Power supply
- rechargeable Li-Ion battery pack, up to 1000 readings depending on usage
- Weight
- 0.7 kg
- Weight
- 1.55 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 60 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 140 °F
- Relative humidity
- up to 85 % at 35 °C (95 °F) non-condensing
- Dimensions: L x W x H
- 15 x 7 x 11 cm
- Dimensions: L x W x H
- 5.9 x 2.7 x 4.3 in
- Application
- High gloss surfaces, du < 40, linear range
- Structure Spectrum
du: < 0.1 mm
Wa: 0.1 to 0.3 mm
Wb: 0.3 to 1 mm
Wc: 1 to 3 mm
Wd: 3 to 10 mm
We: 10 to 30 mm
- Repeatability (Std. Dev.)
- 4% or > 0.4
- Reproducibility (Std.Dev.)
- 6% or > 0.6
- Object Curvature
- radius > 50 cm
- Scan Length
- 5 / 10 / 20 cm
- Resolution
- 375 Points/cm
- Min. Sample Size
- 35 mm x 150 mm
- Light Source
- Laser diode, LED
- Laser Energy
- < 390 µW (Laser class 1)
Downloads
Manuals
Manual-wave-scan-3_301200085_E_2011_Web
Manual_wave-scan_w_smart-chart_225025668_E_2005
Safety Instructions
Short Instructions
Short_Instructions_wave-scan_3_301200083-2007_Web

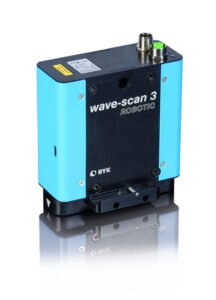

wave-scan 3 ROBOTIC
Description
Specification
Downloads
Description
- New Generation: with high speed computing and LAN interface
- Automatic, non-contact measurement at the line
- Distance to surface 15 ± 2mm
- Angle to perpendicular ± 2°
- Scan speed 50 to 150 mm/sec.
- The New Generation: State-of-the-art chip technology with high speed computing power
- New LAN interface – today´s industry standard
- New, flexible detachable mount – compatible to predecessor
- New smart-robotic: Interface software with integration of previous bykLINK functions and minimum migration effort
- For flat and curved surfaces (radius > 50 cm)
- Small and light weight sensor
- Classical LW, SW and customer specific scales
- Structure spectrum to analyze appearance changes for optimization
- Dullness and DOI measurement independent of the paint system
- smart-chart software for data analysis and documentation
Specification
- Interface
- LAN Ethernet and USB
- Power supply
- external power supply 9-24 VDC, max. 0.75 A
- Weight
- 0.55 kg
- Weight
- 1.2 lb
- Operating temperature
- 10 – 40 °C
- Storing temperature
- 0 – 60 °C
- Operating temperature
- 50 – 104 °F
- Storing temperature
- 32 – 140 °F
- Relative humidity
- up to 85% at 35°C (95°F) non-condensing
- Dimensions: L x W x H
- 11.2 x 6 x 13.1 cm
- Dimensions: L x W x H
- 4.4 x 2.4 x 5.2 in
- Application
- High Gloss Surfaces (du < 40, linear range)
- Structure Spectrum
du: < 0.1 mm
Wa: 0.1 to 0.3 mm
Wb: 0.3 to 1 mm
Wc: 1 to 3 mm
Wd: 3 to 10 mm
We: 10 to 30 mm
- Repeatability (Std. Dev.)
- 4% or > 0.4
- Reproducibility (Std.Dev.)
- 6% or > 0.6
- Object Curvature
- radius > 500 mm
- Scan Length
- 5 / 10 / 20 cm
- Resolution
- 375 points/cm
- Min. Sample Size
- 35 mm x 150 mm
- Light Source
- Laser diode, LED
- Laser Energy
- < 1 mW (Laser class 1)
- Angle to Surface
- perpendicular ± 2°
- Scan Speed
- 50 to 150 mm/sec
- Robotic requirements
- Vibration-free operation
- Distance to Surface
- 15 ± 2 mm
Downloads
Manuals
Manual_wave-scan_3_ROBOTIC_301200141-E-2010
Operating-Instructions-smart-robotic_300003099-E-2012
Safety Instructions
Short Instructions
Short_Instructions_wave-scan_3_301200083-2007_Web
