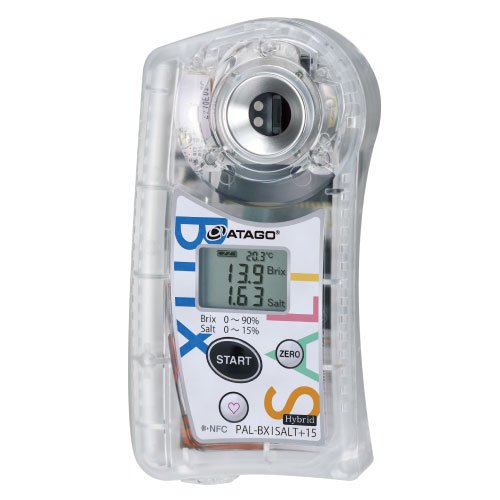

Brix-Salt Meter PAL-BX|SALT+15
This is a hybrid of refractometer and salt meter which has an optical prism is used to measure the concentration (Brix) and titanium electrode is used to measure the salt contents.
It enables to check the balance between concentration(Brix) and salt that is the decisive factor for taste in foods in general.
In addition, we pursued the elimination of the dilution which is required for salt measurement especially for the concentrated samples like sauce.
Now, the salt concentration of samples with high concentration such as sauce can be measured without dilution.
| Model | PAL-BX|SALT+15 |
|---|---|
| Cat.No. | 4920 |
| Scale | Brix Salt concentration |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 15.00％ |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
Brix-Salt Meter PAL-BX|SALT
This is a hybrid of refractometer and salt meter which has an optical prism is used to measure the concentration (Brix) and titanium electrode is used to measure the salt contents.
Furthermore, it equipped with an offset function to show the same value as other measurement methods.
| Model | PAL-BX|SALT |
|---|---|
| Cat.No. | 4921 |
| Scale | Brix Salt concentration |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 15.00％ |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
Brix-Salt Meter PAL-BX|SALT Mohr+15
The salt concentration is displayed in the same weight/volume ratio (g/100mL) as the titration method (Mohr method).
It is very convenient because it eliminates the process of “dilution”!
Dilution was a must process when measuring salinity for concentrated sample such as soy sauce, but the PAL-BX|SALT series has made it possible to measure without any dilution being required.
| Model | PAL-BX|SALT Mohr+15 |
|---|---|
| Cat.No. | 4929 |
| Scale | Brix Salt concentration % (g/100mL) |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 16.70％ |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 16.70%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |

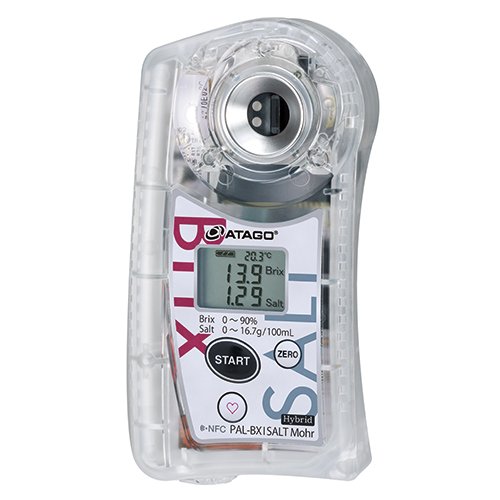

Brix-Salt Meter PAL-BX|SALT Mohr
The salt concentration is displayed in the same weight/volume ratio (g/100mL) as the titration method (Mohr method).
The PAL-BX|SALT series might show a different value with the Mohr method due to electric conductivity method is used.
To adjust this difference, the PAL-BX|SALT series has a off-set function which makes it possible to show a closer value with the Mohr method.
| Model | PAL-BX|SALT Mohr |
|---|---|
| Cat.No. | 4923 |
| Scale | Brix Salt concentration % (g/100mL) |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 16.70％ |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 16.70%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |

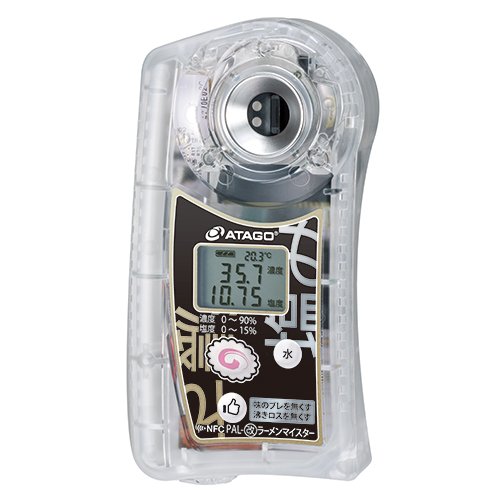

Ramen soup Brix-Salt Meter PAL-Ramen Meister
The PAL-Ramen Meister is a hybrid model that can measure the concentration and salt content of ramen soup, dashi, kaeshi and sauce all at once. After repeated experiments with ramen soup and sauce, we achieved to be able to obtain a stable value within 2 seconds even when it is hot. In addition, it is possible to measure the salt content of thick liquids such as sauce without dilution. By adding concentration management to the usual tasting, you can eliminate the fluctuation of the taste and prevent soup and utility cost being wasted.
| Model | PAL-Ramen Meister |
|---|---|
| Cat.No. | 4942 |
| Scale | Brix Salt concentration % (g/100g) |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 15.00％ |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) *In sucrose solution and sodium chloride solution (20°C) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
New Ramen Meister Set
①Manage the water being used for soup to improve the taste!
②Manage the brine/boiling water for noodle to improve the texture of noodle!
| Model | New Ramen Meister Set |
|---|---|
| Cat.No. | 4013 |
| Range | Brix : 0.00 to 90.0% Salt concentration : 0.00 to 15.00％ pH : 0.00 to 14.00 |
| Resolution | Brix : 0.1％ Salt concentration : 0.01％ pH : 0.01 |
| Accuracy | Brix : ±0.2％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) *In sucrose solution and sodium chloride solution (20°C) pH : ±0.10 |
| Set Contents | ・PAL-Ramen Meister ・pH Meter * with JORDAN for PAL(Silicon Cover) ・Standard calibration solution pH4.01, pH6.86, pH9.18 |

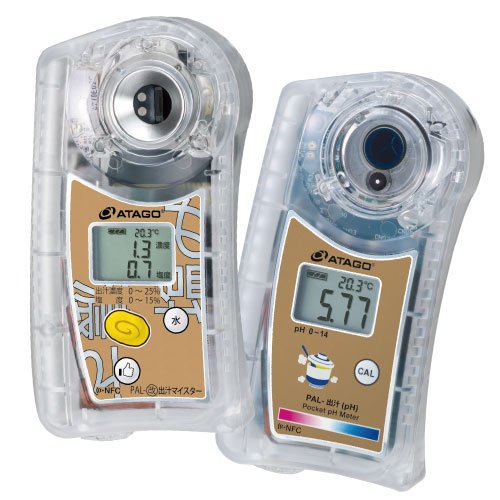

New DASHI Meister Set
Measure the salt content and concentration of dashi with one device
Dashi is made by boiling various ingredients such as kelp and bonito flakes, and is the basis of soups, soups, and rolled omelets. The experience and intuition of the craftsman are what matter when it comes to making dashi, but by measuring with the PAL-DASHI Meister, you can check the ambiguity of the taste, such as “just a little more” or “a little more,” numerically and get closer to the ideal taste.
| Model | New DASHI Meister Set |
|---|---|
| Cat.No. | 4014 |
| Range | Brix : 0.0 to 25.00% Salt concentration : 0.00 to 15.00％ pH : 0.00 to 14.00 |
| Resolution | Mode HH Brix : 0.1％ Salt concentration : 0.1％ Mode TT Brix : 0.01％ Salt concentration : 0.01％ pH : 0.01 |
| Accuracy | Mode HH Brix : ±0.2％ Displayed value : ±0.1％ (for salt concentration of 0.0 to 2.8%) Relative precision : ±5％ (for salt concentration of 2.9 to 9.9%) Relative precision : ±10％ (for salt concentration of 10.0 to 15.0%) ModeTT Brix : ±0.10％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) *In sucrose solution and sodium chloride solution (20°C) pH : ±0.10 |
| Set Contents | ・PAL-DASHI Meister ・pH Meter * with JORDAN for PAL(Silicon Cover) ・Standard calibration solution pH4.01, pH6.86, pH9.18 |

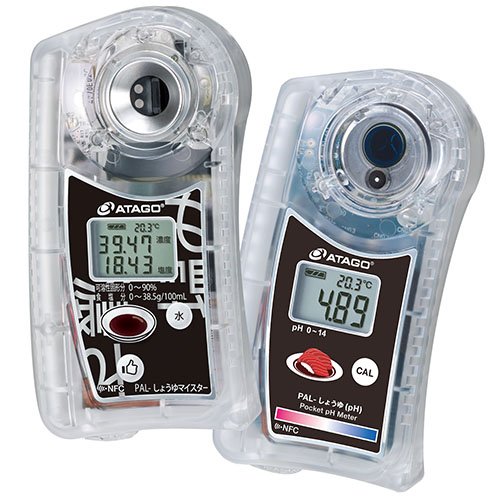

SOYsauce Meister
The PAL- SOYsauce Meister and pH meter set.
In addition to measuring the concentration (brix%) and salt content of soy sauce, it can also measure pH value.
| Model | SOYsauce Meister |
|---|---|
| Cat.No. | 4018 |
| Range | Brix : 0.0 – 90.00% Salt concentration : 0.00 – 16.50％ (g/100mL) pH : 0.00～14.00 |
| Resolution | Mode HH Brix : 0.1％ Salt concentration : 0.1％ Mode TT Brix : 0.01％ Salt concentration : 0.01％ pH : ±0.10 |
| Accuracy | Mode HH Brix : ±0.2％ Displayed value : ±0.1％ (for salt concentration of 0.0 – 2.8%) Relative precision : ±5％ (for salt concentration of 2.9 – 9.9%) Relative precision : ±10％ (for salt concentration of 10.0 – 15.0%) ModeTT Brix : ±0.20％ Displayed value : ±0.05％ (for salt concentration of 0.00 – 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 – 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 – 15.00%) *In sucrose solution and sodium chloride solution (20°C) pH : 0.01 |
| Set Contents | ・PAL-SOYsauce Meister ・PAL-pH * with JORDAN for PAL(Silicon Cover) ・Standard calibration solution pH4.01, pH6.86, pH9.18 |
Miso-soup Brix-Salt Meter PAL-MISOsoup Meister
| Model | PAL-MISOsoup Meister |
|---|---|
| Cat.No. | 4944 |
| Range | Miso soup concentration: 0.00-10.00% Salt concentration: 0.00-9.00% |
| Resolution | Mode HH Miso soup concentration: 0.1% Salt concentration: 0.1% (g/100g) Mode TT Miso soup concentration: 0.01% Salt concentration: 0.01% (g/100g) |
| Accuracy | Mode HH Miso soup concentration: ±0.2% Salinity concentration: ±0.1% (0.0-2.8%) Relative accuracy ±5% (2.9-9.0%) Mode TT Miso soup concentration: ±0.20% Salinity concentration: ±0.05% (0.00-0.99%) Relative accuracy ±5% (1.00-9.00%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | ModeHH : About 3 seconds ModeTT : About 8 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |

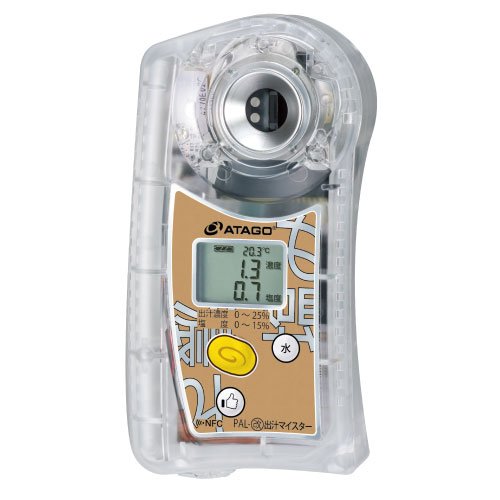

DASHI Brix-Salt Meter PAL-DASHI Meister
Measure the salt content and concentration of dashi with one device
Dashi is made by boiling various ingredients such as kelp and bonito flakes, and is the basis of soups, soups, and rolled omelets. The experience and intuition of the craftsman are what matter when it comes to making dashi, but by measuring with the PAL-DASHI Meister, you can check the ambiguity of the taste, such as “just a little more” or “a little more,” numerically and get closer to the ideal taste.
| Model | PAL-DASHI Meister |
|---|---|
| Cat.No. | 4943 |
| Scale | Brix Salt concentration % (g/100g) |
| Range | Brix : 0.0 to 25.00% Salt concentration : 0.00 to 15.00％ |
| Resolution | Mode HH Brix : 0.1％ Salt concentration : 0.1％ Mode TT Brix : 0.01％ Salt concentration : 0.01％ |
| Accuracy | Mode HH Brix : ±0.2％ Displayed value : ±0.1％ (for salt concentration of 0.0 to 2.8%) Relative precision : ±5％ (for salt concentration of 2.9 to 9.9%) Relative precision : ±10％ (for salt concentration of 10.0 to 15.0%) ModeTT Brix : ±0.10％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) *In sucrose solution and sodium chloride solution (20°C) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | ModeHH : About 3 seconds ModeTT : About 8 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |

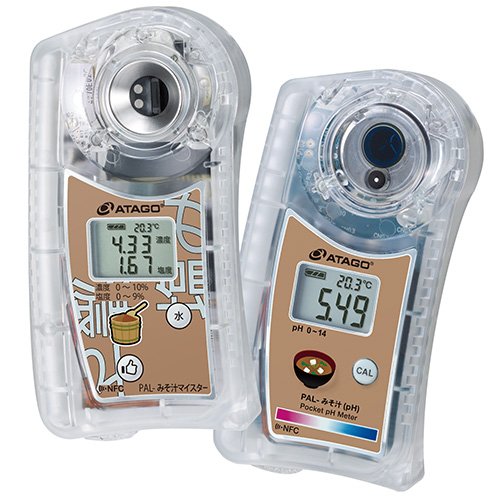

MISOsoup Meister Set
| Model | MISOsoup Meister Set |
|---|---|
| Cat.No. | 4019 |
| Range | Miso soup concentration: 0.00-10.00% Salt concentration: 0.00-9.00% pH : 0.00-14.00 |
| Resolution | Mode HH Miso soup concentration: 0.1% Salt concentration: 0.1% (g/100g) Mode TT Miso soup concentration: 0.01% Salt concentration: 0.01% (g/100g) pH : ±0.10 |
| Accuracy | Mode HH Miso soup concentration: ±0.2% Salinity concentration: ±0.1% (0.0-2.8%) Relative accuracy ±5% (2.9-9.0%) Mode TT Miso soup concentration: ±0.20% Salinity concentration: ±0.05% (0.00-0.99%) Relative accuracy ±5% (1.00-9.00%) pH:0.01 |
| Set Contents | ・PAL-MISOsoup Meister ・pH Meter * with JORDAN for PAL(Silicon Cover) ・Standard calibration solution pH4.01, pH6.86, pH9.18 |

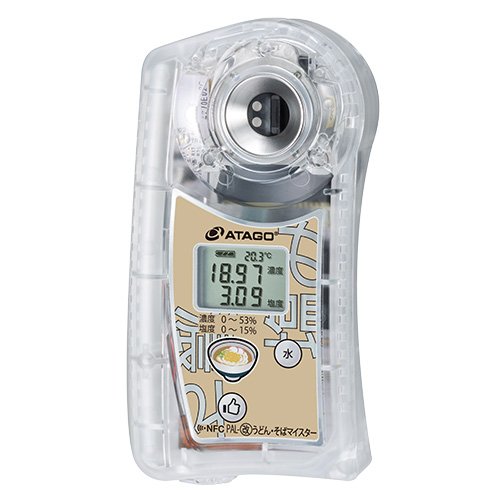

UDON&SOBA-soup Brix-Salt Meter PAL-UDON&SOBA Meister
| Model | PAL-UDON&SOBA Meister |
|---|---|
| Cat.No. | 4945 |
| Range | Brix : 0.0 to 25.00% Salt concentration : 0.00 to 15.00％ |
| Resolution | Mode HH Brix : 0.1％ Salt concentration : 0.1％ Mode TT Brix : 0.01％ Salt concentration : 0.01％ |
| Accuracy | Mode HH Brix : ±0.2％ Displayed value : ±0.1％ (for salt concentration of 0.0 to 2.8%) Relative precision : ±5％ (for salt concentration of 2.9 to 9.9%) Relative precision : ±10％ (for salt concentration of 10.0 to 15.0%) ModeTT Brix : ±0.10％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) |
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | ModeHH : About 3 seconds ModeTT : About 8 seconds |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |

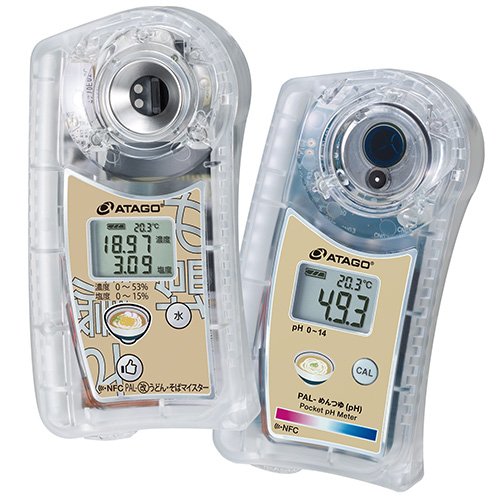

New UDON&SOBA Meister Set
| Model | New UDON&SOBA Meister Set |
|---|---|
| Cat.No. | 4015 |
| Range | Brix : 0.0 to 25.00% Salt concentration : 0.00 to 15.00％ pH : 0.0 to 14.0 |
| Resolution | Mode HH Brix : 0.1％ Salt concentration : 0.1％ Mode TT Brix : 0.01％ Salt concentration : 0.01％ pH : 0.01 |
| Accuracy | Mode HH Brix : ±0.2％ Displayed value : ±0.1％ (for salt concentration of 0.0 to 2.8%) Relative precision : ±5％ (for salt concentration of 2.9 to 9.9%) Relative precision : ±10％ (for salt concentration of 10.0 to 15.0%) ModeTT Brix : ±0.10％ Displayed value : ±0.05％ (for salt concentration of 0.00 to 0.99%) Relative precision : ±5％ (for salt concentration of 1.00 to 9.99%) Relative precision : ±10％ (for salt concentration of 10.00 to 15.00%) pH : ±0.10 |
| Set Contents | ・PAL-UDON&SOBA Meister ・pH Meter * with JORDAN for PAL(Silicon Cover) ・Standard calibration solution pH4.01, pH6.86, pH9.18 |
