Wind Sensor

ENVIRONMENTAL MONITORING & METEOROLOGICAL INSTRUMENTS

  • Wind Sensor
  • Weather Sensor
  • Wind Speed Sensor
  • Wind Direction Sensor

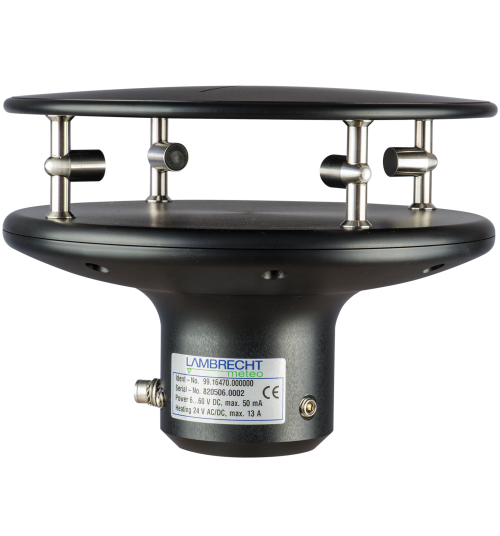

u [sonic] Ultrasonic wind sensor

THE NEW COMBINED ULTRASONIC SENSOR u [sonic] …

for wind direction and wind speed. The seawater-proof sensor is optimally heated and ideal for cold-climate locations. The device is connected via an 8-pin screw connector. The measured values ​​can be output via various interfaces, depending on the version.

ULTRASONIC ANEMOMETER – THE U [SONIC]

An ultrasonic anemometer or ultrasonic wind sensor (sometimes also an ultrasonic wind sensor) is used to record the wind speed and wind direction. In contrast to thermal wind measurement or wind measurement using cup star technology, the wind speed is recorded using ultrasound measurement The transit time of the ultrasonic waves in the moving air (wind) is recorded over two measuring sections at right angles to one another. With this so-called bidirectional transit time measurement, influences from temperature and humidity can be calculated out and a high accuracy of the wind measurement is by the ultrasonic achieved.

In general, very robust designs are possible for ultrasonic anemometers . In addition, they do not have any moving parts and there is therefore no wear and tear on ball bearings, as is the case with anemometers with a cup star (cup star anemometer). Ultrasonic wind transducers are also very low maintenance overall , they can be heated well and are therefore well suited for winter use. Due to the measurement technology used, ultrasonic wind sensors are very dynamic and can detect rapid changes in wind speed or wind direction.

u [ultrasonic] wind sensor features

  • no moving measuring elements
  • 2 parameters measurable
  • intelligent heating, depending on wind speed and direction
  • easy assembly, very service-friendly
  • professional meteorological applications
  • Onshore and offshore wind turbines
  • Ship weather stations
  • building technology
  • Traffic and industrial meteorology
  • Wind warning

METEO-LCD-IND · Digital display

METEO-LCD-IND digital display

is extremely versatile and flexible. The high-contrast display is adapted to the prevailing lighting conditions by dimming the lighting. The compactness has a very advantageous and cost-saving effect when it is installed in switch panels. The devices are very reliable and can, when connected in series, make all the values ​​determined from the 6 main parameters visible at the same time.



CS3 MeteoWare

CS3 MeteoWare

MeteoWare CS3 is a modular, scalable program package for recording and evaluating meteorological data. It can be scaled from a simple single-user system with a data logger to an application distributed via LAN / Internet with up to 999 users and up to 999 data loggers.

MeteoWare CS3 works with the data acquisition systems Ser [LOG], met [LOG], TROPOS, SYNMET and PreLOG. Also with the following serial wind and weather sensors: u [sonic], PREOS, EOLOS, WENTO, ARCO-SERIAL and the 8095 humidity / temperature sensor.

met [LOG] with met [APP] · data logger

met [LOG] with met [APP] data logger

The data logger met [LOG] and the browser app met [APP] bring your climate data quickly and easily to your network (LAN). For the uncomplicated commissioning of the serial LAMBRECHT meteo sensors, the met [LOG] has an auto-configuration via plug & play.



met [APP]

The browser app in the met [LOG] for easy visualization of the current climate data in your network. And platform-independent: on your laptop, tablet or smartphone.

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

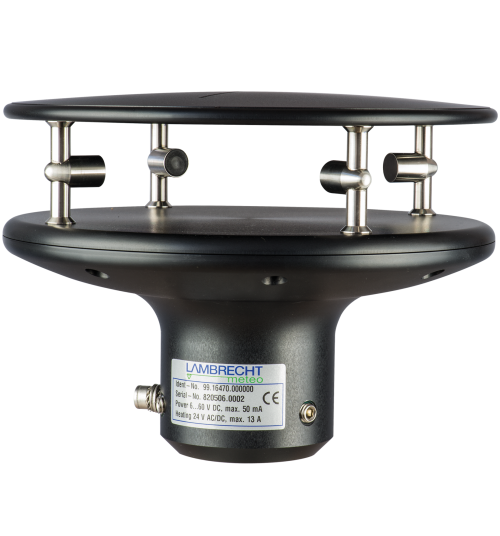

u [sonic] Modbus Ultrasonic wind sensor

COMBINED ULTRASONIC SENSOR u [sonic] MODBUS …

for wind direction and wind speed. The Modbus RTU interface simplifies the installation of the sensor and the integration into networks. The seawater-proof ultrasonic sensor is optimally heated and ideal for cold-climate locations. The connection of the u [sonic] Modbus is compatible with all meteorology sensors of the Modbus series.

u [sonic] modbus ultrasonic wind sensor features

  • no moving measuring elements
  • 2 parameters measurable
  • intelligent heating, depending on wind speed and direction
  • easy assembly, very service-friendly
  • professional meteorological applications
  • Building automation
  • Photovoltaic systems
  • Industrial meteorology
  •

met [LOG] with met [APP] · data logger

met [LOG] with met [APP] data logger

The data logger met [LOG] and the browser app met [APP] bring your climate data quickly and easily to your network (LAN). For the uncomplicated commissioning of the serial LAMBRECHT meteo sensors, the met [LOG] has an auto-configuration via plug & play.



met [APP]

The browser app in the met [LOG] for easy visualization of the current climate data in your network. And platform-independent: on your laptop, tablet or smartphone.

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

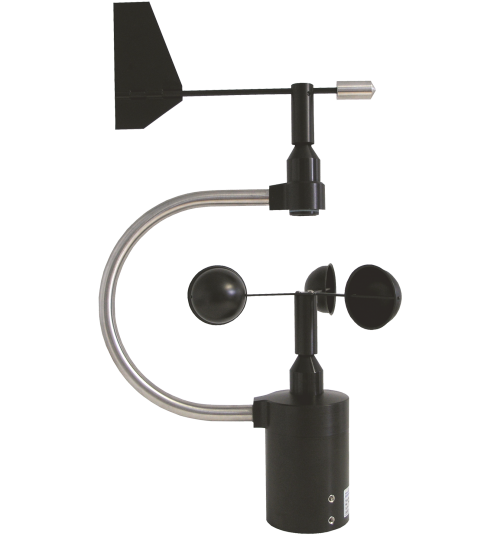

ARCO SERIAL Wind sensor

The sensors of the ARCO series are very robust, compact and extremely reliable. Thanks to their shock and vibration-tested construction, these sensors are particularly suitable for use under harsh environmental conditions. The housing and the measuring elements are made of seawater-resistant aluminum. The cup star, the wind vane and the housing are anodized.

ARCO SERIAL wind sensor features

  • high quality yet inexpensive solution
  • reliable wind measurements even under extreme weather conditions
  • seawater-resistant materials and special surfaces for long-term use
  • quick and easy mast mounting
  • robust industrial applications

METEO-LCD-IND · Digital display

METEO-LCD-IND digital display

is extremely versatile and flexible. The high-contrast display is adapted to the prevailing lighting conditions by dimming the lighting. The compactness has a very advantageous and cost-saving effect when it is installed in switch panels. The devices are very reliable and can, when connected in series, make all values ​​from the 6 main parameters visible at the same time.

  • large, graphics-capable, high-resolution display with background lighting
  • Adjustable contrast and brightness
  • low installation depth
  • Variant with waterproof front panel
  • galvanically separated supply and signal inputs
  • Instantaneous, mean and extreme values

met [LOG] with met [APP] · data logger

met [LOG] with met [APP] data logger

The data logger met [LOG] and the browser app met [APP] bring your climate data quickly and easily to your network (LAN). For the uncomplicated commissioning of the serial LAMBRECHT meteo sensors, the met [LOG] has an auto-configuration via plug & play.



met [APP]

The browser app in the met [LOG] for easy visualization of the current climate data in your network. And platform-independent: on your laptop, tablet or smartphone.

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

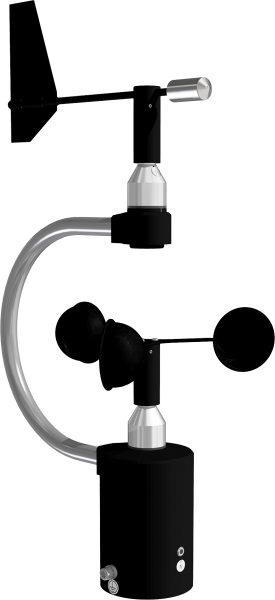

ARCO SDI-12 Wind sensor

All sensors of the ARCO series are very robust, compact and extremely reliable. Due to its low energy requirement, the ARCO SDI-12 is also particularly suitable for solar-powered weather stations.

We use corrosion-resistant materials for a long service life: The housing and the measuring elements are made of seawater-resistant aluminum and stainless steel. The cup star, the wind vane and the housing are anodized. The ARCO SDI-12 is a high quality, yet inexpensive solution.

ARCO SDI-12 wind sensor features

  • low power consumption: <4 mA at 12 VDC
  • particularly low start-up values: 0.3 m / s
  • quick and easy installation
  • Wind vane and 3-armed cup star changeable
  • SDI-12 protocol version 1.4
  • hydrological and agro-meteorological applications
  • solar powered weather stations

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

  • extensive sensor library
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls

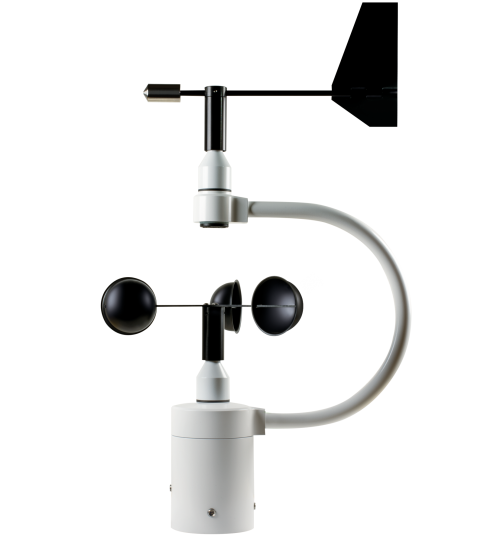

ARCO-NAV Wind sensor

THE CLASSIC COMBINATION SENSOR …

for off-shore applications. The robust design made of seawater-resistant materials and additional special paint guarantees high reliability and a long, fault-free service life. The measured wind values ​​are output serially every second as a NMEA protocol. This combination sensor is the first choice both under extreme weather conditions on the high seas and for applications close to the lake.

  • proven combination sensor design for universal use
  • Special paint for long-term offshore use
  • Best material quality and manufacturing precision for low start-up values ​​and a large measuring range
  • Wear-free recording of measured values ​​for the best accuracy and highest resolution of the measured values
  • serial interface with NMEA-0183 protocol
  • professional marine meteorology
  • Ship meteorology
  • Coastal surveillance
  • Crane systems
  • Buoys
  • Offshore wind turbines
  • other offshore applications as well as robust industrial applications

METEO-LCD-NAV · Digital ship display

METEO-LCD-NAV digital ship display

has passed the shock and vibration tests (according to BV 0440 and BV 0430) for use on ships on the high seas with flying colors. The indicator (14742) is multifunctional, flexible and compact. It is an essential part of the proven LAMBRECHT system solutions with SYNMET and various other sensors. The high-contrast graphic LCD, the low installation depth and the integration of several devices in a network are the most important properties of the high-quality display device.

  • Representation of specific ship parameters
  • Shock class A!
  • large multifunctional display with adjustable backlighting
  • Variant with waterproof front panel
  • galvanically separated supply and signal inputs
  • Instantaneous, mean and extreme values

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

  • extensive sensor library
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls

ARCO Modbus Wind sensor

The sensors of the ARCO series are very robust, compact and extremely reliable. Thanks to their shock and vibration-tested construction, these sensors are particularly suitable for use under harsh environmental conditions. The housing and the measuring elements are made of seawater-resistant aluminum. The cup star, the wind vane and the housing are anodized. The Modbus RTU interface simplifies the installation of the sensor and the integration into networks.

  • high quality yet inexpensive solution
  • reliable wind measurements even under extreme weather conditions
  • seawater-resistant materials and special surfaces for long-term use
  • quick and easy pole mounting, connection with just one cable
  •
  • professional meteorological applications
  • Building automation
  • Photovoltaic systems
  • Industrial meteorology

met [LOG] with met [APP] · data logger

met [LOG] with met [APP] data logger

The data logger met [LOG] and the browser app met [APP] bring your climate data quickly and easily to your network (LAN). For the uncomplicated commissioning of the serial LAMBRECHT meteo sensors, the met [LOG] has an auto-configuration via plug & play.

 met [APP]

The browser app in the met [LOG] for easy visualization of the current climate data in your network. And that platform-independent: on your laptop, tablet or smartphone.

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

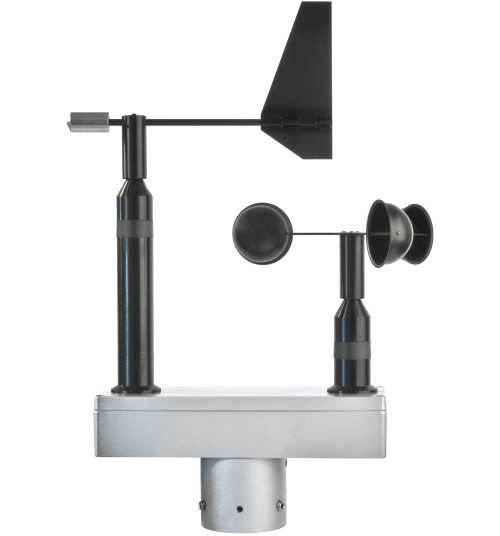

WENTO-MET Combined wind sensor

HARSH ENVIRONMENTAL CONDITIONS …

are no problem at all for this extremely robustly constructed wind direction and wind speed sensor! The high-quality design with integrated, electronically controlled heating enables reliable wind measurement even under extreme weather conditions. Special alloy and double high-performance bearings ensure maximum resilience and durability.

  • very wide measuring range
  • quick and easy pipe assembly, connection with just one cable
  • serial interface for direct connection to PC technology
  • contactless data acquisition
  • Industrial applications
  • Wind turbines
  • Building automation
  • Environmental measurement technology in all climate zones

METEO-LCD-NAV · Digital ship display

METEO-LCD-NAV digital ship display

has passed the shock and vibration tests (according to BV 0440 and BV 0430) for use on ships on the high seas with flying colors. The indicator (14742) is multifunctional, flexible and compact. It is an essential part of the proven LAMBRECHT system solutions with SYNMET and various other sensors. The high-contrast graphic LCD, the low installation depth and the integration of several devices in a network are the most important properties of the high-quality display device.



METEO-LCD-IND · Digital display

METEO-LCD-IND digital display

is extremely versatile and flexible. The high-contrast display is adapted to the prevailing lighting conditions by dimming the lighting. The compactness has a very advantageous and cost-saving effect when it is installed in switch panels. The devices are very reliable and can, when connected in series, make all values ​​from the 6 main parameters visible at the same time.

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

  • extensive sensor library
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls

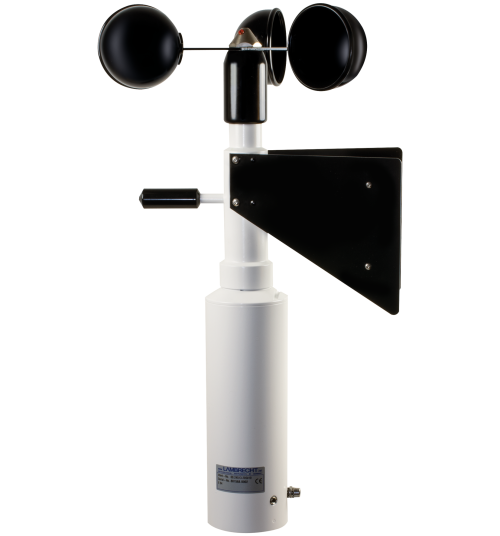

24512 Combined wind sensor

PRACTICE-OPTIMIZED COMBINATION SENSOR

for reliable wind data. The axes of the double blade wind vane and the cup star run independently of each other in precision ball bearings. This results in ease of movement, low wear and a long service life. The combination sensor 24512 ensures safety and great confidence in the measured results.

  • compact and robust
  • corrosion and seawater resistant
  • low start-up values
  • high measuring accuracy and linearity over the entire measuring range
  • easy construction
  • Container terminals
  • Industrial applications
  • classical meteorology (Swiss standard)
  • Weather measuring networks in extreme climates

METEO-LCD-NAV · Digital ship display

METEO-LCD-NAV digital ship display

has passed the shock and vibration tests (according to BV 0440 and BV 0430) for use on ships on the high seas with flying colors. The indicator (14742) is multifunctional, flexible and compact. It is an essential part of the proven LAMBRECHT system solutions with SYNMET and various other sensors. The high-contrast graphic LCD, the low installation depth and the integration of several devices in a network are the most important properties of the high-quality display device.

  • Representation of specific ship parameters
  • Shock class A!
  • large multifunctional display with adjustable backlighting
  • Variant with waterproof front panel
  • galvanically separated supply and signal inputs
  • Instantaneous, mean and extreme values

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

  • extensive sensor library
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls

24513 Combined ship wind sensor

MODERN ELECTRONICS …

paired with robust mechanics. Mechanical wear is reduced to a minimum. The measured wind values ​​are output serially every second as a NMEA protocol. This top sensor is the first choice both under extreme weather conditions on the high seas and in the countryside!

  • seawater resistant housing
  • IP 65
  • low start-up values
  • high measuring accuracy and linearity over the entire measuring range
  • NMEA 0183
  • high quality and durable construction
  • professional marine meteorology
  • Coastal surveillance
  • Offshore wind turbines
  • Oil rigs
  • Buoys
  • aggressive environmental conditions

METEO-LCD-NAV · Digital ship display

METEO-LCD-NAV digital ship display

has passed the shock and vibration tests (according to BV 0440 and BV 0430) for use on ships on the high seas with flying colors. The indicator (14742) is multifunctional, flexible and compact. It is an essential part of the proven LAMBRECHT system solutions with SYNMET and various other sensors. The high-contrast graphic LCD, the low installation depth and the integration of several devices in a network are the most important properties of the high-quality display device.

  • Representation of specific ship parameters
  • Shock class A!
  • large multifunctional display with adjustable backlighting
  • Variant with waterproof front panel
  • galvanically separated supply and signal inputs
  • Instantaneous, mean and extreme values

Ser [LOG] · data logger

Ser [LOG] data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a large number of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

  • extensive sensor library
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls
