Remote Airborne Particle Counters
ENVIRONMENTAL MONITORING & METEOROLOGICAL INSTRUMENTS

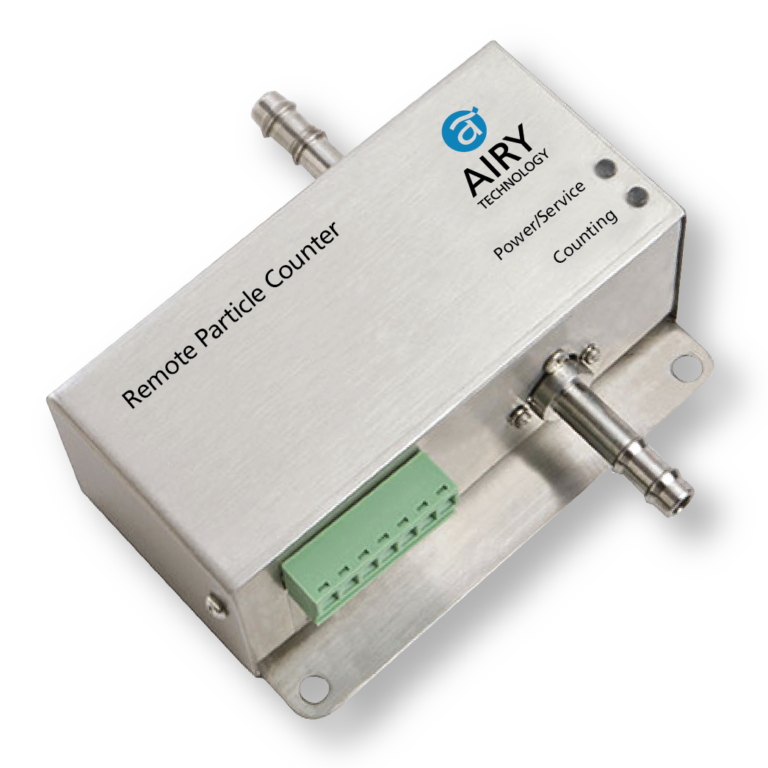

P230 Remote Airborne Particle Counters
The P230 is the smallest remote particle counter in the market and has easy mounting options.
P230 Remote Airborne Particle Counters
0.1 CFM (2.83 LPM)
The Airy Technology® P230 remote particle counter measures 0.3 μm and 0.5 μm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus™ RTU or ASCII.
The P230 is the smallest remote particle counter in the market and has easy mounting options.
The Airy Technology® P230 complies with ISO 21501-4 and includes a 1 year limited warranty.
| Measures 0.3 μm and 0.5 μm |
| 0.1 CFM (2.83 LPM) flow rate |
| Measures 2 channels of simultaneous data |
| Long life laser diode |
| Modbus™ RTU or ASCII outputs |
| Concentration limit of 2,000,000 per ft3 |
| Complies with ISO 21501-4 and JIS B9921 standards |
| Lightweight stainless steel enclosure |
| Easy to clean and wipe down |
| 1 year limited warranty |
| Channel Sizes | 0.3 μm and 0.5 μm |
| Counting Efficiency | 50% at 0.3 μm; 100% for particles > 0.45 μm (per JIS) |
| Concentration Limits | 2,000,000 particles / ft3 at 5% coincidence loss |
| Light Source | Long life laser diode |
| Zero Count Level | <1 count / 5 minutes (per JIS B9921) |
| Flow Rate | 0.1 CFM (2.83 LPM) |
| Flow Control | Critical orifice |
| Vacuum Requirements | External vacuum >15″ (38.1 cm) of Hg |
| Calibration | NIST traceable |
| Sample Probe/Tubing | Isokinetic sampling probe |
| Communication Interface | Modbus™ RTU or ASCII outputs (specified upon order) |
| Power | 9-30 VDC |
| Dimensions | (L x W x H) 1.8” x 3.7“ x 1.5” (4.5 cm x 9.3 cm x 3.8 cm) does not include probes |
| Weight | 0.62 lb (0.28 kg) |
| Standards | ISO 21501-4 and JIS B9921 |
| Warranty | 1 year limited warranty |
| Operating Conditions | 5° to 35°C 20% to 95%RH non-condensing |
| Storage Conditions | -20° to 50°C Up to 98%RH non-condensing |
| Optional Accessories | Isokinetic sampling probe, purge filter, data cable, vacuum and sample tubing |
P231 Remote Airborne Particle Counters
The Airy Technology® P230 complies with ISO 21501-4 and includes a 1 year limited warranty.
P231 Remote Airborne Particle Counters
1.0 CFM (28.3 LPM)
The Airy Technology® P231 remote particle counter measures 0.5 μm and 5.0 μm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus™ RTU or ASCII.
The P231 is the smallest remote particle counter in the market and has easy mounting options.
The Airy Technology® P230 complies with ISO 21501-4 and includes a 1 year limited warranty.
| World’s smallest 1 CFM remote particle counter |
| Measures 0.5 μm and 5.0 μm |
| 1.0 CFM (28.3 LPM) flow rate |
| Measures 2 channels of simultaneous data |
| Long life laser diode |
| Modbus™ RTU or ASCII outputs |
| Concentration limit of 500,000 per ft3 |
| Complies with ISO 21501-4 and JIS B9921 standards |
| Lightweight stainless steel enclosure |
| Easy to clean and wipe down |
| 1 year limited warranty |
| Channel Sizes | 0.5 μm and 5.0 μm |
| Counting Efficiency | 50% at 0.5 μm; 100% for particles > 0.75 μm (per JIS) |
| Concentration Limits | 500,000 particles / ft3 at 5% coincidence loss |
| Light Source | Long life laser diode |
| Zero Count Level | <1 count / 5 minutes (per JIS B9921) |
| Flow Rate | 1.0 CFM (28.3 LPM) |
| Flow Control | Critical orifice |
| Vacuum Requirements | External vacuum >15″ (38.1 cm) of Hg |
| Calibration | NIST traceable |
| Sample Probe/Tubing | Isokinetic sampling probe |
| Communication Interface | Modbus™ RTU or ASCII outputs (specified upon order) |
| Power | 9-30 VDC |
| Dimensions | (L x W x H) 1.8” x 3.7“ x 1.5” (4.5 cm x 9.3 cm x 3.8 cm) does not include probes |
| Weight | 0.62 lb (0.28 kg) |
| Standards | ISO 21501-4 and JIS B9921 |
| Warranty | 1 year limited warranty |
| Operating Conditions | 5° to 35°C 20% to 95%RH non-condensing |
| Storage Conditions | -20° to 50°C Up to 98%RH non-condensing |
| Optional Accessories | Isokinetic sampling probe, purge filter, data cable, vacuum and sample tubing |
P235 Remote Airborne Particle Counters
The Airy Technology® P235 complies with ISO 21501-4 and includes a 1 year limited warranty.
P235 Remote Airborne Particle Counters
0.1 CFM (2.83 LPM)
The Airy Technology® P235 remote particle counter measures 0.5 μm and 5.0 μm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus™ RTU or Modbus™ ASCII.
The P235 is the smallest remote particle counter in the market and has easy mounting options.
The Airy Technology® P235 complies with ISO 21501-4 and includes a 1 year limited warranty.
| Measures 0.5 μm and 5.0 μm |
| 0.1 CFM (2.83 LPM) flow rate |
| Measures 2 channels of simultaneous data |
| Long life laser diode |
| Modbus™ RTU or ASCII outputs |
| Concentration limit of 2,000,000 per ft³ |
| Complies with ISO 21501-4 and JIS B9921 standards |
| Lightweight stainless steel enclosure |
| Easy to clean and wipe down |
| 1 year limited warranty |
| Channel Sizes | 0.5 μm and 5.0 μm |
| Counting Efficiency | 50% at 0.5 μm; 100% for particles > 0.75 μm (per JIS) |
| Concentration Limits | 2,000,000 particles / ft3 at 5% coincidence loss |
| Light Source | Long life laser diode |
| Zero Count Level | <1 count / 5 minutes (per JIS B9921) |
| Flow Rate | 0.1 CFM (2.83 LPM) |
| Flow Control | Critical orifice |
| Vacuum Requirements | External vacuum >15″ (38.1 cm) of Hg |
| Calibration | NIST traceable |
| Sample Probe/Tubing | Isokinetic sampling probe |
| Communication Interface | Modbus™ RTU or ASCII outputs (specified upon order) |
| Power | 9-30 VDC |
| Dimensions | (L x W x H) 1.8” x 3.7“ x 1.5” (4.5 cm x 9.3 cm x 3.8 cm) does not include probes |
| Weight | 0.62 lb (0.28 kg) |
| Standards | ISO 21501-4 and JIS B9921 |
| Warranty | 1 year limited warranty |
| Operating Conditions | 5° to 35°C 20% to 95%RH non-condensing |
| Storage Conditions | -20° to 50°C Up to 98%RH non-condensing |
| Optional Accessories | Isokinetic sampling probe, purge filter, data cable, vacuum and sample tubing |
