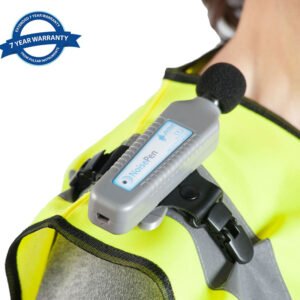

NoisePen Dosemeter – Personal Sound Exposure Meter
The NoisePen Personal Sound Exposure Meter has no cables, displays or controls, and needs no separate charger or reader unit, making it simple to use and the perfect solution for monitoring Noise at Work over a whole working day or week especially for shift workers, lone workers, confined-space workers and people working in remote areas. The NoisePen noise dosemeter is fully compliant with noise at work health and safety measurement standards around the world.
This great value, self-contained personal noise dosemeter can capture, record and calculate noise exposure data for a period of time over 30 hours. The NoisePen measures all the noise parameters you need for legally compliant occupational noise monitoring. This PSEM is a self-contained noise monitor ideally suited for workers ‘on the go’; it has no cables, displays or controls and several different mounting options are available.
The NoisePen does not require an additional Charger or Reader Unit – all interactions are done via USB to a PC and our outstanding powerful analysis and reporting software, Pulsar AnalyzerPlus:
- All noise measurement programming and key functions such as start-stop, set up and configuration of the device, download, view and store measurements are performed before or on completion of field measurements.
- Calibration of the NoisePen is also undertaken before taking a measurement with an acoustic calibrator and verified and logged via the software. The same process is carried out on return of the unit to your office.
- Schedule a timed measurement at a date and time of your choice. You can also repeat a selected measurement pattern over a period of 7 days without having to reset the NoisePen.
- Get a full map of Time History information to help you determine when key noise problems occur during a worker’s day.
- View all the essential data you need such LAeq, LEP,d, % Dose and TWA for compliance with occupational noise regulations
- The additional ‘C’ frequency weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
Save time and money too with this innovative device; just choose how many you want, the more you buy the more you save! Contact us directly for quotes of 6 or more NoisePens to get a discount.
NOTE: an acoustic calibrator is required for the field calibration and activation of the NoisePen. This is not included as standard.
Noise Dosemeter Features
- Portable, accurate personal sound exposure meter that is very easy to use
- Designed to capture individual exposure to noise for over 30 hours
- Meets international standards for noise exposure measurement IEC 61252:1993 and ANSI S1.25:1991 standards
- Accurate measurements over a large dynamic range 70-140dB(A)
- Measurements can be scheduled for up to 28 days in advance
- No separate reader or charger required – fully operational via USB to a PC
- Set up, start, stop, download and report processes via Pulsar AnalyzerPlus software
- Rechargeable in less than 4 hours
- Multiple wearable mounting options
Applications
Wearable device ideal for:
- Compliance with worldwide occupational or industrial Noise at Work Regulations (UK, EU, OSHA, MSHA)
- Ideal for lone workers, shift workers, those operating in several locations or in confined spaces
- Noise at work
- Industrial hygiene
Typical use is for employees who are exposed to different noisy machinery over a working day, those working alone, in vehicle cabins, those in difficult to reach environments (in factories, warehousing), or involved in shift work or with un-predictable work patterns.
| Specifications
Description Personal Sound Exposure Meter Accuracy Class 2 Applicable standards IEC 61252:1993 ANSI S1.25:1991 IEC 61000-6-1:2007(EMC) IEC 61000-6-3:2007(EMC) Microphone Removable Pre-polarised Electret ½” Class 2 Measurement range 70-140dB(A) 90dB(C) to 143dB(C) Peak Time Weightings ‘F’ (Fast), ‘S’ (Slow) or None Frequency weightings CH1 (Integrator): A CH2 (Peak), C & Z Integrators One integrator. Set up either: UK, EU, OSHA, HC & OSHA NC, OSHA HC & ACGIH, MSHA HC & MSHA EC or Custom Time History data Rates One second, one minute Languages English, French, German, Italian and Spanish as standard | Power/Batteries
Custom-made 1.2V Internal NiMH battery pack. Rechargeable via USB 5V Battery life Over 30 hours measuring Recharge in less than 4 hours (0% to 100%) Weight with battery: 82gms Size 124mm x 34mm x 28mm excl windshield Connections Mini-USB (supplied) to connect to PC or power supply Operating temperature 0-40°C Memory Enough memory to store 20 x 8hr shifts at storage of 1s for both Peak and integrator 160hrs at 1s storage rate) Measurement parameters Graph of Short LAeq, LCPeak or LZPeak Software Pulsar AnalyzerPlus for Windows 7 and above Warranty 12 months extendable to 7 years Accessories Acoustic Calibrator Kit cases NoisePen fixings Mains Power Supply |

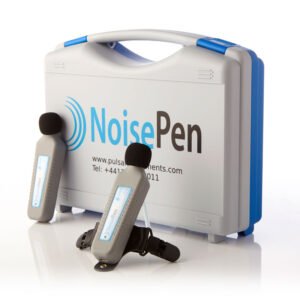

NoisePen Dosemeter Kit – Personal Sound Exposure Meter
The NoisePen Personal Sound Exposure Meter has no cables, displays or controls, and needs no separate charger or reader unit, making it simple to use and the perfect solution for monitoring Noise at Work over a whole working day or week especially for shift workers, lone workers, confined-space workers and people working in remote areas. The NoisePen noise dosemeter is fully compliant with noise at work health and safety measurement standards around the world.
This great value, self-contained personal noise dosemeter can capture, record and calculate noise exposure data for a period of time over 30 hours. The NoisePen measures all the noise parameters you need for legally compliant occupational noise monitoring. This PSEM is a self-contained noise monitor ideally suited for workers ‘on the go’; it has no cables, displays or controls and several different mounting options are available.
The NoisePen does not require an additional Charger or Reader Unit – all interactions are done via USB to a PC and our outstanding powerful analysis and reporting software, Pulsar AnalyzerPlus:
- All noise measurement programming and key functions such as start-stop, set up and configuration of the device, download, view and store measurements are performed before or on completion of field measurements.
- Calibration of the NoisePen is also undertaken before taking a measurement with an acoustic calibrator and verified and logged via the software. The same process is carried out on return of the unit to your office.
- Schedule a timed measurement at a date and time of your choice. You can also repeat a selected measurement pattern over a period of 7 days without having to reset the NoisePen.
- Get a full map of Time History information to help you determine when key noise problems occur during a worker’s day.
- View all the essential data you need such LAeq, LEP,d, % Dose and TWA for compliance with occupational noise regulations
- The additional ‘C’ frequency weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
Save time and money too with this innovative device; just choose how many you want, the more you buy the more you save! Contact us directly for quotes of 6 or more NoisePens to get a discount.
NOTE: an acoustic calibrator is required for the field calibration and activation of the NoisePen. This is not included as standard.
Noise Dosemeter Features
- Portable, accurate personal sound exposure meter that is very easy to use
- Designed to capture individual exposure to noise for over 30 hours
- Meets international standards for noise exposure measurement IEC 61252:1993 and ANSI S1.25:1991 standards
- Accurate measurements over a large dynamic range 70-140dB(A)
- Measurements can be scheduled for up to 28 days in advance
- No separate reader or charger required – fully operational via USB to a PC
- Set up, start, stop, download and report processes via Pulsar AnalyzerPlus software
- Rechargeable in less than 4 hours
- Multiple wearable mounting options
Applications
Wearable device ideal for:
- Compliance with worldwide occupational or industrial Noise at Work Regulations (UK, EU, OSHA, MSHA)
- Ideal for lone workers, shift workers, those operating in several locations or in confined spaces
- Noise at work
- Industrial hygiene
Typical use is for employees who are exposed to different noisy machinery over a working day, those working alone, in vehicle cabins, those in difficult to reach environments (in factories, warehousing), or involved in shift work or with un-predictable work patterns.

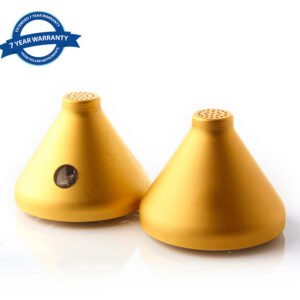

Intrinsically Safe Noise Dosemeter System
This Intrinsically Safe Noise Dosemeter System accurately assesses and captures the true noise exposure of employees working in potentially hazardous or explosive environments. Each badge within the Intrinsically Safe Noise Dosemeter System is coated with gold to make it inert, and each component has been checked that it meets the IS standards required in certifications such as ATEX. The IS dosemeters are ideal for use in the following industries where extra precautions must be taken: Mining, Oil & Gas, Petrochemical industry and premises where fine powders are present.
- Each IS dosemeter is a self-contained unit that has no cables, displays or controls, making it the perfect solution for noise dosimetry because units cannot be tampered with easily or damaged during measurements.
- The separate Reader unit communicates with the dosemeters and controls the programming, calibration, start-stopping, data logging, downloading and storing of measurements.
- All key measurement parameters can be viewed on the Reader’s large clear back lit LCD display screen.
- The Reader also contains an integral acoustic calibrator allowing the dosemeter to be calibrated before and after each noise measurement in accordance with international regulations
- The dosemeter automatically computes the daily Exposure for European legislation or the Time Weighted Average for US-based legislation.
- Full ‘Time History’ information allows you to determine when key noise problems occur during a worker’s day.
- The IS dosemeter collects all the data essential to meet compliance with occupational noise regulations at the touch of a button including LAeq, LEP,d, % Dose and TWA.
- Frequency weightings include ‘A’ weighted (range 70dB(A) to 130dB(A)). The additional ‘C’ frequency weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
- Our outstanding license-free software package, AnalyzerPlus, allows quickly analyse of data and production of compliant H&S reports at the touch of a button.
Features
- Intrinsically Safe Noise Dosemeter
- Meets ATEX, IECEx, EEx, FM
- Robust gold coated metal casing
- Shoulder mounted via a leather clip-on strap
- Measures noise exposure over a whole day, shift or week.
Applications
- Occupational noise surveys
- Hazardous and potentially explosive environments
- Mining, Oil & Gas, Petrochemical industry and premises where fine powders are present
- Noise dosimetry.

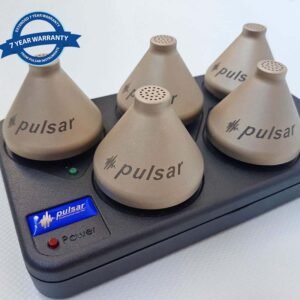

Charger Unit for 5 Dosemeters
Features
Everything you need for compliance with occupational noise regulations supplied in one user-friendly package:
- Compact, extremely robust and lightweight
- Portable, accurate and easy to use
- No cables or controls, reducing the risk of damage, misuse or tampering.
- Meets International Standard IEC 61252:1997 for Personal Sound Exposure Meters & ANSI S1.25:1991 Personal Noise Dosimeters
- Meets EN 61000-6-3 (2007), EN61000-6-1 (2007) EMC generic emission and immunity standards for residential, commercial and light industrial environments
- The ideal system for compliant assessment of workers’ industrial noise exposures
- Unique size and shape, innovative functional design
- Programmable for compliance with most worldwide regulations
- ‘Shake-to-wake’ function of dosemeters to extend battery life and operating time.
- Ergonomic Decibel Reader Unit with Integral Acoustic Calibrator
- Infra-red communication between Reader Unit and dosemeters
- Rechargeable Nickel Metal Hydride (NiMH) battery
- Outstanding Analysis & Reporting software supplied as standard (licence-free)
- 7-year warranty*
- Intrinsically safe dosemeter available on special request.
Applications
- Ideal for lone workers, shift workers or those operating in several locations
- Suitable where people are working with moving machinery, or in difficult to reach areas
Typical industries where the Model 22 Pulsar NoiseBadge is used include:
Manufacturing, Construction, Utilities (Gas, Water & Electricity), Local Authority & Government, Shipping, Entertainment & Leisure, Education & Higher Learning, Highway Maintenance, Haulage & Transport, Rail, Agriculture, Aviation, Public Transport, Emergency Services (Hospitals, Fire, Police), Chemical, Open Cast Mining, Printing and Catering.
| Specifications
Applicable Standards Model 22 NoiseBadge Dosemeter Measurement System IEC 61252:1993 Personal Sound Exposure Meters ANSI S1.25:1991 Personal Noise Dosimeter Model 22-R Reader Unit Internal Acoustic Calibrator to IEC 60942:2001 Class 2
Measurement Range (Typical) 70dB(A) to 130dB(A) RMS 120dB(C) to 140dB(C) Peak Measurement Functions
One-Minute Time History of:
For 3dB Exchange Rate
For 4dB & 5dB Exchange Rates
Weightings Frequency: ‘A’ for all RMS measurements. ‘C’ for Peak Sound Pressure
Dosemeter Configuration Independent User Configuration of: Exchange Rate: 3dB, 4dB or 5dB Criterion Level: 80dB, 85dB, 87dB, 90dB Criterion Time: 8hrs, 12hrs, 16hrs, 18hrs Threshold: None, 80dB, 85dB, 90dB Time Weighting: None, ‘S’ (Slow) Memory The Model 22-R Reader Unit can store the following measurement data: Up to 93 measurement of 8 hours duration Up to 64 measurements of 12 hours duration Up to 33 measurements of 24 hours duration | Power
Internal NiMH Battery with intelligent charging system Model 22-R Reader 2 x AA/LR6 with Auto Power Switch Off Chargers Units PS22 Mains Power Supply
Output Model 22 Dosemeter Measurement System Infrared to Model 22-R Reader Unit Model 22-R Reader USB 2.0 (which also provides power to the 22-R Reader)
Dimensions Microphone Apex Ø13.0mm, Base Ø47mm, Height 38mm Weight Model 22 doseBadge 45gms (1.6oz) Model 22-R Reader 400gms (14oz) Environmental Operating Temperature -10oC to +50oC Storage Temperature -20oC to +60oC Humidity up to 95% RH Non-Condensing
Software AnalyzerPlus supplied as standard
Ordering Codes The Model 22 Dosemeter System can be provided as a complete measurement system with the following order codes: Model 22-1 Dosemeter Measurement System with 1 dosemeter Model 22-2 Dosemeter Measurement System with 2 dosemeters Model 22-5 Dosemeter Measurement System with 5 dosemeters Model 22-10 Dosemeter Measurement System with 10 dosemeters The measurement kits contain the Model 22 dosemeters units and fixing mounts, a Model 22-R Reader Unit, CHR22 Charger Unit (where X = 2,5 or 10), PS 22 Power Supply, K3 Hard Attache Case, USB Cable, Software, Batteries, User Manuals & Certificates of Calibration. Warranty The Model 22 Dosemeter systems are supplied with a 24 month warranty. |
NoiseBadge Personal Noise Dosemeter System (Model 22)
Simply and accurately assess and capture noise dose and the true noise exposure of workers using the Pulsar NoiseBadge Personal Noise Dosemeter System. The UK Health and Safety Executive (HSE) recommends that employers should obtain a reliable estimate of employees’ exposures, and compare the exposure with the exposure action values and limit values. This dosimeter badge system is just the device to do this.
Features
Everything you need for compliance with occupational noise regulations supplied in one user-friendly package:
- Compact, extremely robust and lightweight
- Portable, accurate and easy to use
- No cables or controls, reducing the risk of damage, misuse or tampering.
- Meets International Standard IEC 61252:1997 for Personal Sound Exposure Meters & ANSI S1.25:1991 Personal Noise Dosimeters
- Meets EN 61000-6-3 (2007), EN61000-6-1 (2007) EMC generic emission and immunity standards for residential, commercial and light industrial environments
- The ideal system for compliant assessment of workers’ industrial noise exposures
- Unique size and shape, innovative functional design
- Programmable for compliance with most worldwide regulations
- ‘Shake-to-wake’ function of dosemeters to extend battery life and operating time.
- Ergonomic Decibel Reader Unit with Integral Acoustic Calibrator
- Infra-red communication between Reader Unit and dosemeters
- Rechargeable Nickel Metal Hydride (NiMH) battery
- Outstanding Analysis & Reporting software supplied as standard (licence-free)
- 7-year warranty*
- Intrinsically safe dosemeter available on special request.
Applications
- Ideal for lone workers, shift workers or those operating in several locations
- Suitable where people are working with moving machinery, or in difficult to reach areas
Typical industries where the Model 22 Pulsar NoiseBadge is used include:
Manufacturing, Construction, Utilities (Gas, Water & Electricity), Local Authority & Government, Shipping, Entertainment & Leisure, Education & Higher Learning, Highway Maintenance, Haulage & Transport, Rail, Agriculture, Aviation, Public Transport, Emergency Services (Hospitals, Fire, Police), Chemical, Open Cast Mining, Printing and Catering.
- The revolutionary dosimeter badge is a self-contained noise measurement device, also known as Personal Sound Exposure Meter (PSEM), that has no cables, displays or controls, making it the perfect solution for noise dosimetry, because units cannot be tampered with easily or damaged during measurements.
- A separate Decibel Reader unit communicates with the dosemeters and controls the programming, calibration, start-stopping, data logging, downloading and storing of measurements. All key measurement parameters can be viewed on its large clear backlit LCD display screen, which also displays a time history graph of worker’s daily noise exposure over an entire working day.
- The Reader contains an integral acoustic calibrator allowing the dosemeter to be calibrated prior to and following each noise measurement in accordance with international regulations; the dosemeter automatically achieves this by computing the Daily Exposure for European legislation or the Time Weighted Average for US-based legislation.
- Full ‘Time History’ information allows you to determine when key noise problems occur during a worker’s day.
- Collect all the data essential to meet compliance with occupational noise regulations at the touch of a button including LAeq, LEP,d, % Dose and TWA.
- Frequency weightings include ‘A’ weighted (range 70dB(A) to 130dB(A)). The additional ‘C’ frequency weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
- Our effective, user-friendly software package, AnalyzerPlus, allows users to quickly analyse and transform the raw data into informative report formats, simplifying a potentially complex and time-consuming process.
| Specifications
Applicable Standards Model 22 NoiseBadge Dosemeter Measurement System IEC 61252:1993 Personal Sound Exposure Meters ANSI S1.25:1991 Personal Noise Dosimeter Model 22-R Reader Unit Internal Acoustic Calibrator to IEC 60942:2001 Class 2
Measurement Range (Typical) 70dB(A) to 130dB(A) RMS 120dB(C) to 140dB(C) Peak Measurement Functions
One-Minute Time History of:
For 3dB Exchange Rate
For 4dB & 5dB Exchange Rates
Weightings Frequency: ‘A’ for all RMS measurements. ‘C’ for Peak Sound Pressure
Dosemeter Configuration Independent User Configuration of: Exchange Rate: 3dB, 4dB or 5dB Criterion Level: 80dB, 85dB, 87dB, 90dB Criterion Time: 8hrs, 12hrs, 16hrs, 18hrs Threshold: None, 80dB, 85dB, 90dB Time Weighting: None, ‘S’ (Slow) Memory The Model 22-R Reader Unit can store the following measurement data: Up to 93 measurement of 8 hours duration Up to 64 measurements of 12 hours duration Up to 33 measurements of 24 hours duration | Power
Internal NiMH Battery with intelligent charging system Model 22-R Reader 2 x AA/LR6 with Auto Power Switch Off Chargers Units PS22 Mains Power Supply
Output Model 22 Dosemeter Measurement System Infrared to Model 22-R Reader Unit Model 22-R Reader USB 2.0 (which also provides power to the 22-R Reader)
Dimensions Microphone Apex Ø13.0mm, Base Ø47mm, Height 38mm Weight Model 22 doseBadge 45gms (1.6oz) Model 22-R Reader 400gms (14oz) Environmental Operating Temperature -10oC to +50oC Storage Temperature -20oC to +60oC Humidity up to 95% RH Non-Condensing
Software AnalyzerPlus supplied as standard
Ordering Codes The Model 22 Dosemeter System can be provided as a complete measurement system with the following order codes: Model 22-1 Dosemeter Measurement System with 1 dosemeter Model 22-2 Dosemeter Measurement System with 2 dosemeters Model 22-5 Dosemeter Measurement System with 5 dosemeters Model 22-10 Dosemeter Measurement System with 10 dosemeters The measurement kits contain the Model 22 dosemeters units and fixing mounts, a Model 22-R Reader Unit, CHR22 Charger Unit (where X = 2,5 or 10), PS 22 Power Supply, K3 Hard Attache Case, USB Cable, Software, Batteries, User Manuals & Certificates of Calibration. Warranty The Model 22 Dosemeter systems are supplied with a 24 month warranty. |
Datasheet

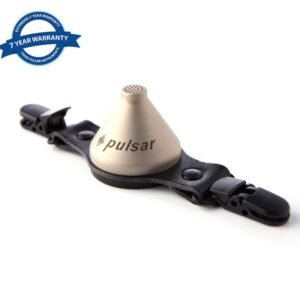

Individual Shoulder-Mounted Noise Dosemeter (Model 22)
The Model 22 noise dosemeter comes with leather mount and clips onto a worker’s clothing. Each badge includes data logging for Time History measurements enabling you to measure and store a person’s noise exposure throughout the working day or shift.
Each badge consists of an acoustic processor, rechargeable battery and microphone housed inside a robust metal case.
Meets international standards:
- ANSI S1.25:1991 Personal Noise Dosemeters
- IEC 61252:1993 Personal Sound Exposure Meters

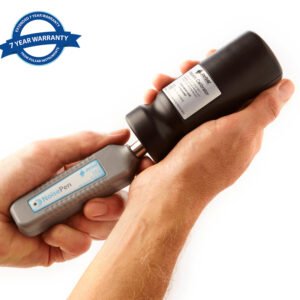

NoisePen Acoustic Calibrator (94dB)
The Class 2 Acoustic Calibrator for the NoisePen. The Model 106 has been tested and formally EU Pattern Approved under certificate PTB-1.61.4034842, as meeting all of the requirements of the latest International standard, IEC 60942: 2003. Fully meeting the requirements for the calibration of industrial sound level meters used in almost all Health and Safety applications.
The Model 106 isintended to calibrate and set the noise measurement sensitivity of the NoisePen (although the Model 106 can be used with any properly approved sound level meter that uses a standard measurement microphone).
This model gives a standardised tone and has sensors to correct for temperature, humidity, barometric pressure and battery voltage so that it remains stable and accurate under almost any conditions where it is likely to be used.
We have taken great care during the design process to ensure that the unit is comfortable to hold, robust and easy to use, whilst performing accurately throughout a wide range of temperature, humidity and pressure conditions.

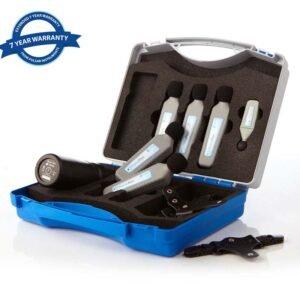

NoisePen Kit Carrying Case
A bespoke lightweight NoisePen kit carrying case designed specifically to hold your valuable noise measuring equipment and protect it from accidental harm.
Choose from one of two options depending on how many NoisePens you have.
- K6 Small Plastic Carry Case for up to 2 x NoisePen dosemeters
- K7 Small Plastic Carry Case for up to 5 x NoisePen dosemeters
Each case has space for an acoustic calibrator, NoisePen mounts and the NoisePens themselves.

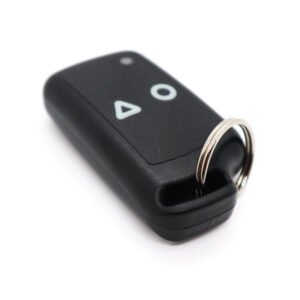

Remote Start Keyfob for NoiseBadge dosemeter
The Remote Start Keyfob for NoiseBadge dosemeter can be used instead of the Reader Unit to Start and Stop Pulsar NoiseBadge Dosemeters. The Start and Stop buttons on the Keyfob are used to send commands to the noise dosemeter.
When the Start or Stop buttons are pressed, the Status indicator will light to show that the button has been pressed. The Infrared signal is sent from the transmitter on the front of the Keyfob.
A Reader Unit is still required to calibrate and reset the individual dosemeters but the Keyfob can be more convenient to use, especially when there is a need to socially distance or where a persons shift differs to that of the health and safety officer, or the worker operates from a remote location.

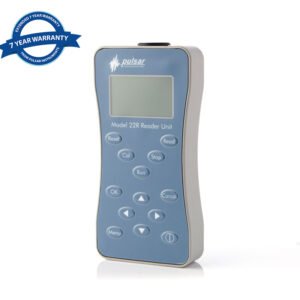

Dosemeter Reader Unit with Integral Acoustic Calibrator
The Reader and Calibrator Unit for the Pulsar Noise Dosemeter system controls the individual dosemeter badges. The Reader Unit communicates with the dosemeter via an infra-red link.
The Reader Unit is required to calibrate the dosemeters prior to measurement as per the requirements of the Noise at Work Regulations and HSE requirements. Once you have fitted the dosemeter onto a workers shoulder (or helmet using the helmet mount) you are ready to start the dosemeter via the infra-red link. Once the noise exposure measurements have been taken the dosemeter is stopped in the same way using the Reader Unit.
