PCRMAX ALPHA CYCLER

ALPHA CYCLER

PCRmax Alpha Cyclers

With the option for either single, dual or four block instruments throughput and scale are never a concern. The Alpha Cycler 1, 2 and 4 run an HD Quad Core Android tablet interface with features aimed to enhance the user experience and build quality to become the workhorse of any lab.

The PCRmax Alpha cyclers are developed to deliver not only the best quality data you can expect from PCRmax but also to innovate and exceed the high standards expected by the community.

PCRmax Alpha Cyclers​

Alpha Cycler 1 PCRmax

The PCRmax Alpha cyclers are developed to deliver not only the best quality data you can expect from PCRmax but also to innovate and exceed the high standards expected by the community.

Alpha Cycler software has features such as recently used programmes; allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins; with protected protocols as-well-as allowing users’ access to temperature logs after each run to monitor the state of the system.

The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically off their primer sequence and template source. Primer sequences or Tms are inputted, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay.


  • Remotely track the progress of runs
  • Send a health report for diagnosis by the technical support team
  • Be notified of any issues and potentially prevent system failures occuring.
  • Active Sample cooling – For sharper amplification and minimal non-specific amplification
  • Programme Wizard – Generate a protocol specific to your sequence, template source and amplicon length in seconds
  • Report generated on run conditions and state following completion of protocol
  • Gradient – Allowing for simplified temperature optimisation, no matter the block chosen
  • 96/384 well formats – Flexibility for any scale and user needs
  • USB connectivity – To retrieve system information and easily transfer protocols between systems
  • Android driven 7” tablet interface – Quad core speed and excellent connectivity and feel

Format: Single block
Block Options: 96 or 384 well format
Maximum heating rate: 3.4°C per second
Block temperature range:
10°C to 100°C (4°C final hold)
Block uniformity at 55°C:
 ± 0.3°C
Temperature accuracy at 55°C:
± 0.25°C
Gradient:
Yes (on all formats)
Maximum Gradient:
29°C
Minimum Gradient:
1°C
Maximum number of programs stored:
1000
Maximum fan noise:
50dB
Type:
 8 peltier elements
Adjustable heated lid temperature:
35°C to 115°C or off
Heated lid pressure:
Adjustable
Program interface:
7” inch HD Android Tablet
Data transfer:
 USB port
Auto re-start on power failure:
Yes
Dimensions (L x W x H) in mm:
430 x 260 x 200
Weight:
11.8kg
Voltage:
100-230, 50-60Hz
Power:
450W
Electricity used in a standard 2 step, 30 cycle program:
0.3 kWh

Alpha Track App: Track the progress of runs and health of your system remotely via your app.

The Alpha Track Application works in conjunctions with the Version 2 software on any Alpha Cycler to allow users to:

Alpha App Tracker
  • Remotely track the progress of runs
  • Send a health report for diagnosis by the technical support team
  • Be notified of any issues and potentially prevent system failures occuring.

Alpha Cycler 2 PCRmax

The PCRmax Alpha cyclers are developed to deliver not only the best quality data you can expect from PCRmax but also to innovate and exceed the high standards expected by the community.

Alpha Cycler software has features such as recently used programmes; allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins; with protected protocols as-well-as allowing users’ access to temperature logs after each run to monitor the state of the system.

The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically off their primer sequence and template source. Primer sequences or Tms are inputted, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay.


  • Scalable – Chose from any combination of 96 or 384 well blocks
  • Compact – Save precious labspace by condensing two truly independent blocks into one chassis with no networking issues or connectivity concerns
  • Active Sample cooling – For sharper amplification and minimal non-specific amplification
  • Programme Wizard – Generate a protocol specific to your sequence, template source and amplicon length in seconds
  • Gradient – Allowing for simplified temperature optimisation, no matter the block chosen
  • 96/384 well formats – Flexibility for any scale and user needs
  • USB connectivity – To retrieve system information and easily transfer protocols between systems
  • Android based operating system – making operation simple and lntuitive

Format: Dual block
Block Options: 96 or 384 well format (Options: both blocks 96 or all 384 or mixture of 96 and 384)
Maximum heating rate: 3.4°C per second
Block temperature range: 10°C to 100°C (4°C final hold)
Block uniformity at 55°C: ± 0.3°C
Temperature accuracy at 55°C: ± 0.25°C
Gradient: Yes (on 96 and 384 blocks)
Maximum Gradient: 29°C
Minimum Gradient: 1°C
Maximum number of programs stored: 1000
Maximum fan noise: 50dB single block running, 55db both blocks running
Type: 8 peltier elements
Adjustable heated lid temperature: 35°C to 115°C or off
Heated lid pressure: Adjustable
Program interface: 10” inch HD Android Touchscreen
Data transfer: USB port
Auto re-start on power failure: Yes
Dimensions (L x W x H) in mm: 470 x 535 x 330
Weight: 30kg
Voltage: 100-230, 50-60Hz
Power: 900W
Electricity used in a standard 2 step, 30 cycle program (single block running): c0.3 kWh



Alpha Track App: Track the progress of runs and health of your system remotely via your app.

The Alpha Track Application works in conjunctions with the Version 2 software on any Alpha Cycler to allow users to:

Alpha App Tracker
  • Remotely track the progress of runs
  • Send a health report for diagnosis by the technical support team
  • Be notified of any issues and potentially prevent system failures occuring.

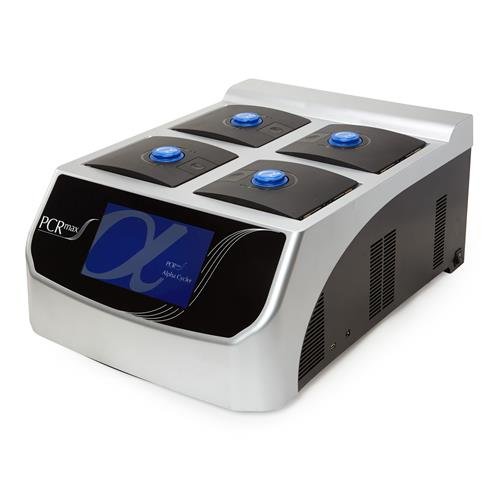

Alpha Cycler 4 PCRmax

The PCRmax Alpha cyclers are developed to deliver not only the best quality data you can expect from PCRmax but also to innovate and exceed the high standards expected by the community.

Alpha Cycler software has features such as recently used programmes; allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins; with protected protocols as-well-as allowing users’ access to temperature logs after each run to monitor the state of the system.

The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically off their primer sequence and template source. Primer sequences or Tms are inputted, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay.


  • Scalable – Chose from any combination of 96 or 384 well blocks
  • Compact – Save precious labspace by condensing four truly independent blocks into one chassis with no networking issues or connectivity concerns
  • Active Sample cooling – For sharper amplification and minimal non-specific amplification
  • Programme Wizard – Generate a protocol specific to your sequence, template source and amplicon length in seconds
  • Gradient – Allowing for simplified temperature optimisation, no matter the block chosen
  • Report generated on run conditions and state following completion of protocol
  • 96/384 well formats – Flexibility for any scale and user needs USB connectivity – To retrieve system information and easily transfer protocols between systems
  • Android driven 10” tablet interface – Quad core speed and excellent connectivity and feel

Format: Quad block
Block Options: 96 or 384 well format (Options: All 96 or all 384, 96 and 3 x 384, 2x 96 and 2x 384, or 3x 96 and 1x 384)
Maximum heating rate: 3.4°C per second
Block temperature range: 10°C to 100°C (4°C final hold)
Block uniformity at 55°C: ± 0.3°C
Temperature accuracy at 55°C: ± 0.25°C
Gradient: Yes (on 96 and 384 blocks)
Maximum Gradient: 29°C
Minimum Gradient: 1°C
Maximum number of programs stored: 1000
Maximum fan noise: 50dB single block running, 55-58db four blocks running
Type: 8 peltier elements
Adjustable heated lid temperature: 35°C to 115°C or off
Heated lid pressure: Adjustable
Program interface: 10” inch HD Android Touchscreen
Data transfer: USB port
Auto re-start on power failure: Yes
Dimensions (L x W x H) in mm: 700 x 535 x 330
Weight: 45kg
Voltage: 100-230, 50-60Hz
Power: 1600W
Electricity used in a standard 2 step, 30 cycle program (single block running): c0.3 kWh



Alpha Track App: Track the progress of runs and health of your system remotely via your app.

The Alpha Track Application works in conjunctions with the Version 2 software on any Alpha Cycler to allow users to:

Alpha App Tracker
  • Remotely track the progress of runs
  • Send a health report for diagnosis by the technical support team
  • Be notified of any issues and potentially prevent system failures occuring.
