- Measuring range: 1 to 20 % (depends on the type)
- Paperweight range: 80 to 500 g/m²
- Paper temperature range: 0 to +100°C / 32 to 212°F
- Environment temperature range: 0 to +70 °C / 32 to 158°F
- Power supply: 12 to 28 VDC or optional Power over Ethernet (PoE)
- Protection type: IP 65
- Scope of supply: MF-P-HTD sensor with mounted paper temperature sensor and paper control-roller set
The required interface must be ordered separately, following are available:
article no. 14436 Modbus TCP, article no. 14438 analog output (4-20mA), further interfaces on request
article no. 14300
Applications:
Sensor for online moisture measurement of paper and cardboard.
Includes infrared temperature sensor for measuring paper temperature and temperature compensation for moisture measurement.
A paper control-roller set made of stainless steel is mounted for the required distance regulation
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 14400 | PC software for MF-P-HTD Software for moisture calculation, sort calibration, measurement display and measurement data management. Required for the moisture value calculation with the MF-P-HTD Sensor. Modbus interface required! | |
| 14436 | Option Modbus TCP interface for MF-P-HTD | |
| 14438 | Option Analog output for MF-P-HTD | |
| 13762 | Laboratory analysis for creation of a calibration curve for PMSA or MF-P-HTD Creation of one calibration curve for a paper sheet . The paper sample must be provided by the customer. We need five A4 sheets per type. This article is only valid for one grammage. |
The humimeter RH5 paper moisture meter is a powerful moisture tester with sword probe (see picture) for humidity measurement in paper stacks. To determine humidity, the sword sensor only has to be inserted into the paper stack and left there for a short conditioning time.
Via the integrated datalog the measuring values can be stored on the humimeter RH5 paper moisture meter and additional data can be added. You also have the possibility to use the Autolog function. This function automatically saves measuring values in adjustable time intervals.
In order to prevent a damage of the sword sensor when using the humimeter RH5 paper moisture meter in heavy paper stacks, a sword sensor holder and a tool for removing the sword sensor holder are available optionally. Before inserting the humimeter RH5 paper moisture meter, the sword sensor holder is driven in the paper stack and enables a measurement without any falsification of the measuring value. For an easy removal of the sword sensor holder after drawing out the humimeter RH5 paper moisture meter, the tool for removing the sword sensor holder is used.
Simultaneously, the humimeter RH5 paper moisture meter also measures the material temperature and includes it in the calculation of the measuring result. The temperature range goes from -10 °C to +60 °C and can be set to °C or °F as required.
The calibrated measuring range of our humimeter RH5 paper moisture meter goes from 10 % to 100 % relative air humidity. Using the sword sensor in a paper stack, the air humidity equates to the paper moisture. Naturally, the humimeter RH5 paper moisture meter is also suited for determining the air humidity in a room.
A further option of the humimeter RH5 paper moisture meter is a serial USB interface for connecting the device to a PC. Via the delivered LogMemorizer software the measuring values can be read off the device, addition information can be added, and the data can be archived, exported and processed
For humimeter RH5 paper moisture meter with USB interface, we optionally offer a portable thermo printer for printing out the measuring values directly from the device without a PC.
humimeter RH5 paper moisture meter – YOUR BENEFITS
- quick and user-friendly paper moisture measurement in paper stack
- simple storage of the measuring values on the hand-held paper moisture meter
- optimal documentation of your quality
- Relative air humidity 0 to 100%, resolution 0.1% RH
- Calibration 10 to 90% +/-1.5%RH (at 25°C)
- Temperature can be set to °C or °F as required
- Temperature -10 to +60°C, resolution 0.1°C, 14 to 140°F
- Calibration +/- 0.3°C (at 25°C)
- Dew point -55 to +60°C, resolution 0.1°C, -67 to 140°F
- Hold function, manual saving of results
- Automatic data log for up to 10,000 logs with measuring point report
- Scope of supply: humimeter RH5 with rubber protection cover, wooden case and batteries
- Optional: humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, printer
Benefits
- Quick – cost saving – automatically documented
- Rapid adjustment
- A new and revolutionary powerful portable measuring instrument series for measuring using innovative sensor technology
- Easy data storage at the portable moisture meter
- Optimal documentation of your quality
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
- Bulk pack humimeter RH5: 10 % special discount for an order of a bulk pack of 10 units
Art.No.: 11494
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 12485 |  | humimeter USB data interface module VERSION FOR RECHARGEABLE BATTERIES with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 12627 |  | Bluetooth data communication module for all humimeter devices with serial interface RS232 |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 10072 |  | Calibration equipment for device with sword sensor for piles of paper |
| 10352 |  | Certified calibration ampoules – set of 5, 50% r.h. |
| 10005 |  | Certified calibration ampoules – set of 5. 2 x 35% r.h., 1 x 50% r.h., 2 x 80% r.h. |
| 10451 |  | Sword sensor holder for humimeter RH5 and RH6 |
| 10523 |  | Tool for removing sword sensor holder. For humimeter RH5 and RH6. Made of steel with wooden handle |
| 10403 | Factory calibration certificate Protokol documenting the adjustment at delivery for air humidity meters. | |
| 11131 | Checking the calibration of FS_3 series devices, RH and LF series |
The humimeter RH5.1 hand-held Paper hygrometer with sword probe is a powerful moisture tester with sword probe (see picture) for moisture measurement in paper stacks. To determine humidity, the sword sensor only has to be inserted into the paper stack and left there for a short conditioning time. The paper moisture tester will display results within a few seconds.
Via the integrated datalog the measuring results can be stored on the RH5.1 paper moisture tester and additional data can be added.
In order to prevent a damage of the sword sensor when using the RH5.1 paper moisture tester in heavy paper stacks, a sword sensor holder and a tool for removing the sword sensor holder are available optionally. Before inserting the probe, the sword sensor holder is driven in the paper stack and enables a measurement without any falsification of the measuring value. For an easy removal of the sword sensor holder after drawing out the RH5.1 Paper hygrometer with sword probe, the tool for removing the sword sensor holder is used.
Simultaneously, the paper moisture tester also measures the material temperature and includes it in the calculation of the measuring result. The temperature range goes from -10 °C to +60 °C and can be set to °C or °F as required.
The calibrated measuring range of our RH5.1 Paper hygrometer with sword probe goes from 10 % to 90 % relative air humidity. Using the sword sensor in a paper stack, the air humidity equates to the paper moisture. Naturally, the RH5.1 paper moisture tester is also suited for determining the air humidity in a room.
humimeter RH5.1 hand-held Paper hygrometer with sword probe – your benefits
- quick and user-friendly paper moisture measurement in paper stacks
- simple storage of the measuring values on the hand-held paper moisture tester
- optimal documentation of your quality
- Relative air humidity 0 to 100%, resolution 0.1% RH
- Calibration 10 to 90% +/- 2% RH (at 25°C)
- Temperature can be set to °C or °F as required
- Temperature -10 bis +60°C, resolution 0.1°C, 14 to 140°F
- Calibration +/- 0.3°C (at 25°C)
- Dew point -55 to +60°C, resolution 0.1°C, -67 to 140°F
- Hold function, manual saving of results
- Automatic data log for up to 10,000 logs with measuring point report
- Scope of supply: humimeter RH5 and batteries
Benefits
- Quick – cost saving – automatically documented
- Rapid adjustment
- A new and revolutionary powerful portable paper moisture tester using innovative sensor technology
- Easy data storage at the portable paper moisture tester
- Optimal documentation of your quality
- Menu languages: English, German, Italian, French, Spanish, Portuguese, Czech, Polish, Russian and International
- Bulk pack humimeter RH5.1: 10 % special discount for an order of a bulk pack of 10 units
The humimeter RH6 paper hygrometer is a powerful moisture tester with sword probe (see picture) for humidity measurement in paper stacks. To determine humidity, the sword sensor only has to be inserted into the paper stack and left there for a short conditioning time.
Via the integrated datalog the measuring values can be stored on the humimeter RH6 paper hygrometer and additional data can be added. You also have the possibility to use the Autolog function. This function automatically saves measuring values in adjustable time intervals.
In order to prevent a damage of the sword sensor when using the humimeter RH6 paper hygrometer in heavy paper stacks, a sword sensor holder and a tool for removing the sword sensor holder are available optionally. Before inserting the humimeter RH6 paper hygrometer, the sword sensor holder is driven in the paper stack and enables a measurement without any falsification of the measuring value. For an easy removal of the sword sensor holder after drawing out the humimeter RH6 paper hygrometer, the tool for removing the sword sensor holder is used.
Simultaneously, the humimeter RH6 paper hygrometer also measures the material temperature and includes it in the calculation of the measuring result. The temperature range goes from -10 °C to +60 °C and can be set to °C or °F as required.
The calibrated measuring range of our humimeter RH6 paper hygrometer goes from 10 % to 100 % relative air humidity. Using the sword sensor in a paper stack, the air humidity equates to the paper moisture. Naturally, the humimeter RH6 paper hygrometer is also suited for determining the air humidity in a room.
If required, the humimeter RH6 paper hygrometer can also determine the absolute air humidity or dew point temperature at the top of the sword sensor.
A further feature of the humimeter RH6 paper hygrometer is its integrated serial USB interface for connecting the device to a PC. Via the delivered LogMemorizer software the measuring values can be read off the device, addition information can be added, and the data can be archived, exported and processed.
humimeter RH6 paper hygrometer – YOUR BENEFITS
- Absolute air humidity 0 to 130 g/m³, resolution 0.1 g/m³
- Temperature compensated paper and wood equilibrium moisture content
- Calibration curves for determination of water content
- Calibration curves for customer calibration
- Inc. humimeter USB data interface module with LogMemorizer software for PC
- Relative air humidity 0 to 100%, resolution 0.1% rh
- Calibration 10 to 90% ±1.5% rh (at 25°C)
- Temperature can be set to °C or °F as required
- Temperature -10 to +60°C, resolution 0.1°C, 14 to 140°F
- Calibration ±0.3°C (at 25°C)
- Dew point -55 to +60°C, resolution 0.1°C, -67 to 140°F
- Absolute air humidity 0 to 130 g/m³, resolution 0.1g/m³
- Customer calibration function
- Hold function, manual saving of results
- Online function
- Automatic datalog for up to 10,000 logs with measuring point report, suppliers´ data can be recorded
- Sword sensor length 30 cm
- Scope of supply: humimeter RH6 with rubber protection cover,
humimeter USB data interface module with LogMemorizer measuring
data recording and analysing software on USB flash drive incl.
USB cable for PC, wooden case and batteries - Optional: printer
Benefits
- Temperature compensated paper and wood equilibrium moisture content,
calibration curves for determination of water content - Rapid adjustment
- A new and revolutionary powerful portable measuring instrument series
for measuring using innovative sensor technology - Easy data storage at the portable moisture meter
- Optimal documentation of your quality
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 12627 |  | Bluetooth data communication module for all humimeter devices with serial interface RS232 |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 10072 |  | Calibration equipment for device with sword sensor for piles of paper |
| 10352 |  | Certified calibration ampoules – set of 5, 50% r.h. |
| 10005 |  | Certified calibration ampoules – set of 5. 2 x 35% r.h., 1 x 50% r.h., 2 x 80% r.h. |
| 10451 |  | Sword sensor holder for humimeter RH5 and RH6 |
| 10523 |  | Tool for removing sword sensor holder. For humimeter RH5 and rh6. Made of steel with wooden handle |
| 10403 | Factory calibration certificate Protokol documenting the adjustment at delivery for air humidity meters. | |
| 11131 | Checking the calibration of FS_3 series devices, RH and LF series |
Paper moisture meter primarily for kraft paper, packaging paper and paperboard.
Simple handling of moisture tester
Quickly and highly accurate measurement using a non-destructive method!
Small, handy, applicable everywhere on site!
Quick and cost saving paper measurement
PDF-brochure P2 paper moisture meter
- Measuring range humidity 3 to 10% water content
- Resolution 0.1% water content
- Automatic temperature compensation
- Automatically switches off after approx.90 seconds or when the measuring range has been greatly exceeded.
- Display three-digital-LC-display
- Dimension 120 x60x26mm
- Weight approx 160g
- With wooden case, proof plate, case protection made of rubber and battery
Benefits
- Simple handling of moisture tester
- Quickly and highly accurate measurement using a non-destructive method
- Small, handy, applicable everywhere on site
- Quick and cost saving paper measurement
- High long-therm stability and repeat accuracy
Art.No.: 10001
Variant
P2 paper moisture meter without accessories
- without a wooden case
- without aproof plate
- without a case protectionmade of rubber
Art.No.: 12157
- Measuring range 1% to 15% water content, depending on the material
- Resolution: 0.1% water content
- Measuring depth: 20 mm
- Paper temperature: 0 to +50°C / 32 to 122°F
- Temperature can be set to °C or °F as required
- Automatic temperature compensation
- Measurement within seconds without prior treatment of samples
- Hold function, automatic datalog and manual saving of results for
- up to 10,000 logs with measuring point report
- Large, well-lit LC display
- Dimensions: 147 x 75 x 30 mm (incl. rubber protection), weight 265 g (incl. batteries)
- Scope of supply: humimeter PMP with rubber protection cover, wooden case, proof plate and batteries
Benefits
- Quick and highly accurate measurement using a non-destructive method
- Simple handling
- Small, handy, applicable everywhere on site
- Menu languages in English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish.
Art.No: 13770 humimeter PMP
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12297 | Entry of an existing characteristic curve in a FS_3 or humimeter device | |
| 11217 | Laboratory analysis testing for new material of our humimeter devices | |
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 10600 | Factory calibration certificate. Protocol documenting the calibration of material moisture meters before delivery |
- Fast and non-destructive measurement
- Measuring range: 6% to 40% absolute water content (material dependent)
- Resolution: 0,1% water content
- Pulp temperature: 0 to +50°C
- Selectable temperature in °C and °F
- Infrared temperature measurement
- Pulp – density range 450 – 900 kg/m³
- Can be used for sulphate and sulphite process
- For bleached and unbleached cellulose fibres
- 12 standard calibration curves (expandable)
- Automatic temperature compensation
- Manual memory for 10.000 measurements
- Dimensions: 575 x 75 x 46 mm
- Weight: 685g (with batteries)
- Measurement results within seconds
- Scope of supply: humimeter PMZ, handlebar, wooden case, rubber protection and batteries
- Optional: humimeter USB data interface module with LogMemorizer data logger and analysis software on USB stick, portable thermo-printer, bluetooth interface module
Benefits
- Quick and highly accurate measurement using a non-destructive method
- Simple handling
- Small, handy, applicable everywhere on site
- Menu languages in English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish.
Art.No: 14100 humimeter PMZ
Measurement and handling:
Turn on the measuring meter, select the correct characteristic (dependent on the fibre type) and insert the meter into the pile. The measured result is immediately shown on the display. This allows to measure large quantities of cellulose / pulp in a very short time without removing single layers from the piles.
The device has a memory for up to 10,000 readings as well as the option to record additional data, such as a charge number. The device automatically calculates the average value for each saved measurement series. The measuring device has two robust electrodes, which have to be inserted into the pile.
On the back of the device is a removable handle for easy use of the device.
The optionally available USB interface enables you to transfer the measured results to a PC and archive, evaluate, export or print them using the LogMemorizer PC software.
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12308 |  | Test block – For checking the calibration between two different points |
| 12627 |  | Bluetooth module, class 1, module for humimeter devices with USB interface and appropriate software |
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 10600 | Factory calibration certificate. Protocol documenting the calibration of material moisture meters before delivery |
- Measuring range: 1% to 25% water content
- Resolution: 0.1% water content
- Measuring depth: 50 mm
- Non-contact infrared temperature measurement with 90° optics
- Paper temperature for determination of water content: 0 to +80°C / 32 to 176°F
- Infrared temperature measurement –25 to +125°C / -13 to 257 °F
- Automatic temperature compensation
- Temperature can be set to °C or °F as required
- Measurement within seconds without prior treatment of samples
- Hold function, automatic datalog and manual saving of results for up to 10,000 measuring values with measuring point report
- Large, well-lit LC display
- Dimensions 254 x 138 x 70 mm (with rubber protection, weight 850 g
- Scope of supply: humimeter PM5, humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, rechargeable battery, plastic case with proof plate
Benefits
- Quick and highly accurate measurement using a non-destructive method
- Simple handling, small, handy, applicable everywhere on site
- Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish

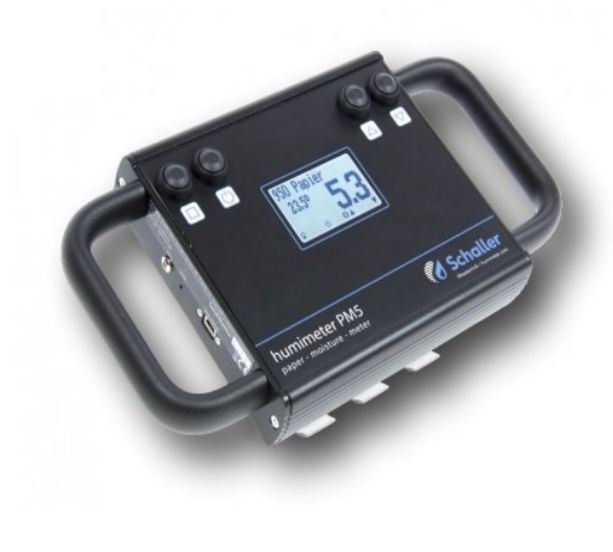

Article no. 13800 humimeter PM5
Paper moisture meter for determination of absolute water content at the paper roll with high measuring depth
- Infrared paperweb temperature measurement
- humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC
- Rechargeable batteries
- Accurate determination of paper roll temperature
- Higher accuracy of measuring results due to temperature compensation based on infrared temperature measurement
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12297 | Entry of an existing characteristic curve in a humimeter device | |
| 11217 | Laboratory analysis for preparation of a calibration curve for a new material for humimeter devices | |
| 12496 | Laboratory analysis for preparation of a calibration curve for a new material for humimeter PM5 and conversion of absolute water content into relative paper moisture (max. 0 – 100%). Please indicate required measuring range! | |
| 11733 |  | Thermo printer runs by battery, industrial model, portable Dimensions: 180 x 100 x 45 mm, weight: 0.4 kg |
| 10600 | Factory calibration certificate. Protocol documenting the calibration of material moisture meters before deliver | |
| 14098 | Spare parts set: 3 pieces of measuring bows for humimeter PM5 | |
| 12464 | Plug power supply unit USB; output: 5VDC, USB A connector; input: 90-250VAC, EU plug, -5 to +45°C |
The RH1 air thermo- hygrometer is an easy-to-use device for the rapid determination of the relative and absolute air humidity as the dew point temperature of the surrounding air.
In addition, by storing the device at wood or paper, the equilibrium moisture content (EMC) and the water content in the material can be determined. At the same time the current temperature – optionally in °C or °F – is displayed by each measurement.
The measuring range of the RH1 thermo- hygrometer is between 0 and 100% relative humidity at a resolution of 0.1%. The calibrated measurement range, in which the measurement is within the defined tolerance limits, ranges from 10% to 90% of the relative humidity, where the accuracy of ±1.5% of relative humidity (at 25 ° C) is reached.
The temperature measurement range is from -10 to +60 ° C or 14 to 140 ° F, at a resolution of 0.1 ° C. The accuracy is ± 0.4 ° C.
It is also possible to save the current readings manually or to save them automatically at defined intervals. The device can record up to 10,000 readings, which can be provided with additional information such as the location of measurement, batch number or supplier data.
On the request, the device is also available with the USB data interface for the connection to a PC. Using this interface with the supplied USB cable and included PC software “LogMemorizer” you can transfer your stored values to the PC, where you can edit, analyze and store the data.
If you opt for the RH1 with interface, you can print stored measurements directly from the device on the available separate printer without needing to transfer the data to your PC.
- Relative air humidity 0 to 100%, resolution 0,1%RH
- calibration 10 to 90% +-1,5%RH (at 25°C)
- Temperature can be set to °C and °F as required
- Temperature -10 to + 60°C,resolution 0,1°C, 14 to 140°F
- Calibration +-0,3°C (at 25°C)
- Dew point -55 to +60°C, resolution 0,1°C,-67 to 140°F
- Absolute air humidity 0 to 130 g/m³, resolution 0,1g/m³
- Equilibrium moisture content of wood – UGL: 2 to 30%, resolution 0,1%
- Calibration 5 to 15%, accuracy +-0,5% (at 25°C)
- Hold function, manual saving of results
- Automatic data log for 10.000 logs with measuring point report
- Supplier data and batch number can be recorded
- Sensor tube: sturdy105 x Ø12mm plastic tube
- Scope of supply: humimeter RH1 incl. rubber protection cover and batteries
- Optional:humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on CD incl. USB cable for PC, wooden case and printer
Benefits
- Very quick balancing
- Long stable humidity- and temperature sensors
- Easy data storage an the portable moisture meter
- Optimal documentation of your quality
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
article no. 11487 humimeter RH1 humidity measuring device
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on CD incl. USB cable for PC |
| 12485 |  | humimeter USB data interface module VERSION FOR RECHARGEABLE BATTERIES with LogMemorizer measuring data recording and analysing software on CD incl. USB cable |
| 13340 |  | Internal Bluetooth class 1: Integrated module class 1 (up to 100 metres) with LogMemorizer measuring data recording and analysing software on USB flash drive, for humimeter devices. Combinable with USB interface. |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 11988 |  | Wall mount assembled on RH1 |
| 10006 |  | Calibration equipment for tube sensor Dimensions: 7.5 x 6 x 2.5 cm, weight: 159 g |
| 10005 |  | Certified calibration ampoules – set of 5, 1 units of 35 % r.h., 3 unit of 50 % r.h., 1 unit of 80 % r.h Dimensions: 14 x 10 x 3 cm, weight: 100 g |
| 10352 |  | ed calibration ampoules – set of 5 units of 50 % r.h. Dimensions: 14 x 10 x 3 cm, weight: 100 g |
| 11911 |  | Wooden case for humimeter RH1 |
Temperature transmitter for laboratory- and climate control, drying, wood processing industry, food industry, humidity in constuctions, agriculture, printing and paper industry, animal feed industry, biotechnology an pharmaceutical industry.
| Art.No.: 12334 | Precision air temperature transmitter –20 to +60°C | |
| Power supply 24VDC (DC 15 to 29 V), Electronics temperature range -20 to +60°C, Calibration +/-0,2°C (at 25°C), Output temperature 4 to 20mA, (-20 to +60°C), Scaling: 0.2mA/°C | ||
| Art.Nr.: 10347 | T 85/120 Temperature transmitter -40°C to +120°C with sensor Temperatur transmitter tube made of stainless steel and feeder clamp | |
| Power supply: DC 24 V (DC 15 to 29 V). Temperature range: -20 °C to +85 °C. Calibration: +/-0.5 °C (at 25 °C). Output (temperature): 4 to 20 mA (-40 to +120 °C). Scaling: 0.1 mA/°C. With wall fixture. |
Benefits
- Long product life by using a strong industrial design
- High long-therm stability and repeat accuracy
- Low installation time
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 10006 |  | Calibration equipment for instrument for probe |
| 10352 | Certified calibration ampoules – set of 5, 50% r.h. | |
| 10005 |  | Certified calibration ampoules – set of 5. 2 x 35% r.h., 1 x 50% r.h., 2 x 80% r.h. |
| 10249 |  | Stainless steel sinter sensor cap |
| 12456 |  | Drip-catcher for LF-T transmitter |
| 12487 | Stainless steel lattice filter | |
| 10727 |  | Bronze sinter sensor cap |
| 10592 |  | calbe -temperature sensor |
| 12497 | Checking the calibration of devices from RLF, RLF-T, RLF-TS, LF-T series | |
| 10403 | Factory calibration certificate Protocol documenting the adjustment at delivery for air humidity meters | |
| 10550 | 5 meter connecting cable for sensor cable plug | |
| 12011 | Special request – flat rate for air humidity transmitters series per order – irrespective of the quantity ordered |
Moisture meter for the determination of moisture in waste paper / recycling paper and for the detection of moisture spots in recycling paper bales.
Measurement of compressed bales, roles and pulp possible. Measuring range of 1 to 50% water content, measuring depth 500mm. Furthermore it is possible to connect external sensors to the humimeter RP6.
Use the optionally available humidity and temperature sensor to measure environmental parameters and many other important paper key figures quickly and efficiently.
To measure loose paper or cardboard, use the optionally available 0.3 meter long insertion probe.
Measuring procedure:
Start your humimeter RP6 by pushing the black button on the handle of the device. Choose the right calibration curve (e.g. 350 recycling paper) and press the measuring plate against the waste paper bale. The display immediately shows the water content and temperature. Now additional information like supplier’s data and notes can be added. The measuring values can be stored at the humimeter RP6 and sent to a PC if required.
Furthermore the measuring results can be printed out on the spot via the optionally available portable thermo printer. For the determination of many other relevant process parameters, a humidity and temperature sensor can be connected.
- Measuring range: 1 to 50% water content (depending on the material)
- Resolution: 0.5% water content
- Measuring depth: max. 500mm
- Operation temperature: 0 to +50°C / 32 to 122°F
- Automatic temperature compensation
- Temperature can be set to °C und °F as required
- Measurement within seconds without prior treatment of samples
- Hold function, automatic datalog for up to 10,000 logs with measuring point report
- Interface for the connection of further external sensors
- Menu languages: English, German, Italian, French, Spanish, Russian, many others on request
- Protection class: IP64
- Scope of supply: humimeter RP6, humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, rechargeable batteries (Li-Ion 1950mAh) and plastic case
- Optional: portable thermo printer, humidity and temperature sensor, test medium
Benefits:
- Quickly and highly accurate measurement using a non-destructive method
- Digital displaying in “%” water content (weight percentage)
- Simple handling of moisture meter
- Pre-programmed calibration for different materials and bale densities
- Handy, applicable everywhere on site
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
Art.Nr.: 13300 humimeter RP6 moisture meter for recycling paper / waste paper
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 13340 | Internal Bluetooth class 1, integrated module class 1 (up to 100 metres) for humimeter devices. Combinable with USB interface. | |
| 13837 |  | Insertion probe with stainless steel probe of 0.3 meter length for recycling paper and corrugated board |
| 12004 |  | LF_TB 120 Precision moisture and temperature plug-in sensor for material moisture, sensor head 0.3 m stainless tube with steel sinter cap and 2 meter connection cable. Relative humidity 0 to 100%, calibration 10 to 90% r.h. +/- 1.5% r.h. (at 23°C), temperature range -20 to +100°C, calibration +/- 0.3°C (at 235°C), rapid conditioning |
| 10726 | Test medium for humimeter RP6 moisture meter for recycling paper | |
| 10600 | Test plate in wooden case for additional checking of humimeter RP6 (additionally to standard check via air value) |
Applications
At-line moisture analyser with PC software for determination of water content of single paper sheets
The PMSA is a laboratory instrument for the determination of absolute water content of single paper sheets. Contrary to the traditional kiln-drying method, the PMSA paper moisture analyser determines the water content within a few seconds. The PMSA can be used for analysing samples taken directly from the paper machine as well as for the incoming and exit control of paper sheets.
The analysis of the measuring results is effected on the PC – the intuitive software provides a user-friendly interface for the display of measuring values, calibration of further paper types and the management of measuring data. The state-of-the-art and long-term stable sensor technology guarantees precise measuring values and extremely high repeat accuracy. To ensure a maximum of accuracy, the system performs a self-calibration of the sensor before each measurement.
Measuring procedure / handling
After installing the PMSA software on your PC, connect the PMSA moisture sensor to the PC via USB cable. Select the paper type to measure in the software and click the start button. To ensure a maximum of accuracy, the system performs a self-calibration of the sensor before each measurement – this only takes several seconds.
When the self-calibration is completed, insert the paper sheet to measure. After a few seconds the determined water content is shown on the screen.
Now additional data like a batch number can be added and the measuring values can be saved in a database. The measuring data can also be exported (csv, html, xls) or printed out. Via the software, further paper types can be created and calibrated easily.
- Measuring range: 1 to 20 % absolute water content
- Resolution: 0.01%
- Grammage range: 30 to 800 g/m²
- Maximum paper thickness: 0.8 mm (higher range on request)
- Automatic temperature compensation
- Minimum paper size: 180 x 180 mm
- Temperature range: 10 to +40 °C / 50 to 104 °F
- Protection class: IP30
- Dimensions: 274 x 202 x 128 mm
- PC software in English and German
- Power supply and connection to PC: 5VDC (USB mini B connector)
- Scope of supply: PMSA moisture sensor incl. PMSA software on USB flash drive and USB cable
- PC not included
- Optional: weight scale for paper
Benefits
- Measurement within seconds
- Non-destructive measurement
- Simple handling
- For all types of paper sheets
- Long-term stable sensor technology
- Infrared temperature measurement (temperature compensated)
Art.No.: 13600 PMSA Single paper sheet moisture sensor
Required special software for display of measuring value, type calibration and measuring data management included
| Art. No. | Extended accessories |
|---|---|
| 12493 | paper grammage precision scale 240g / 0.001g; with PC interface incl. datalink |
| 13762 | Laboratory analysis for creation of calibration curve for PMSA |
Completely leak tight chamber which creates an atmosphere with a controllable relative humidity. This allows different materials to be adapted to the required conditions.
Features
- Analysis system for LF moisture transmitter
- Display shows moisture and target value
- Control range: 10 to 90% r.h.
- Resolution and setting step: 0.1% r.h.
- Power supply: 220 Volt
- Optional available with interface and date recording software
Benefits:
- Very quick balancing
- Chamber large volume
- Simple handling
- Large viewing window
- Samples can be individually suspended
article no. 11134
