Overhead shakers

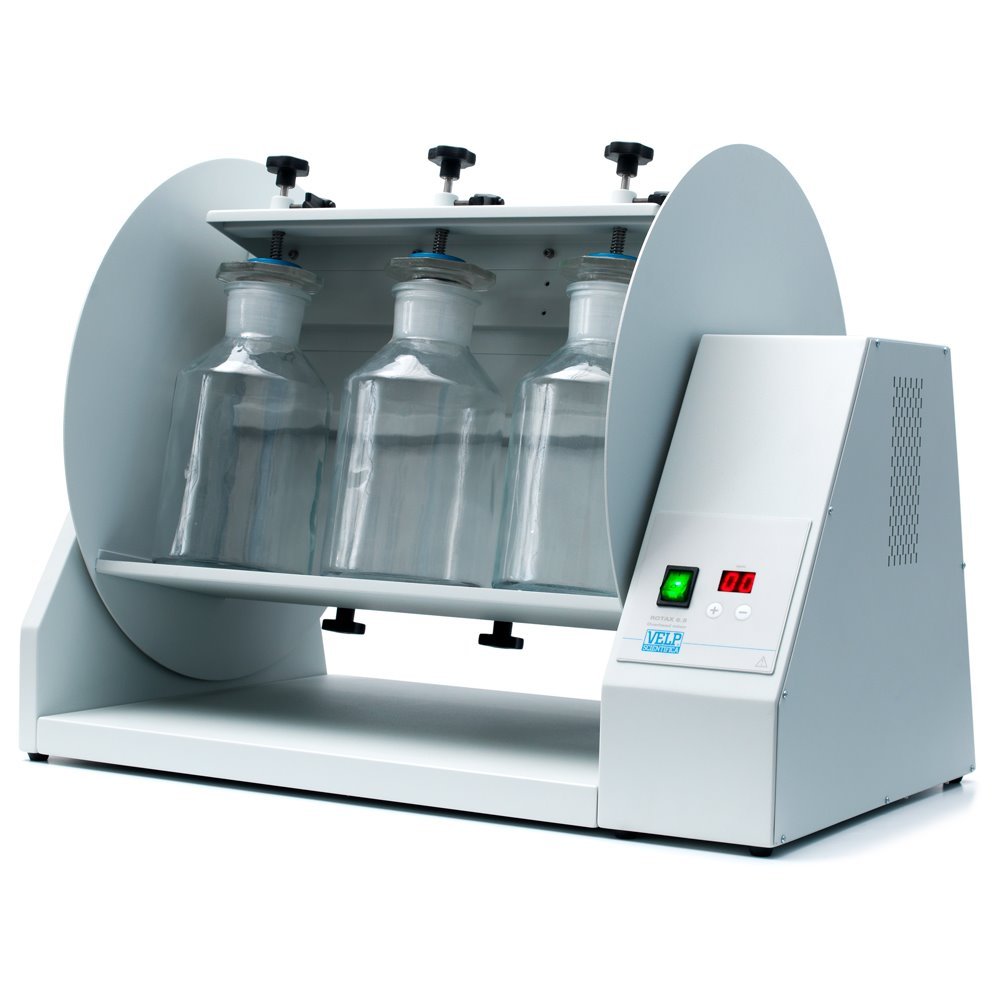

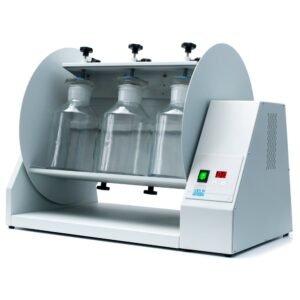

ROTAX 6.8 Overhead Mixer
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
Overhead mixer that offers excellent performance for all the applications where rotating, shaking and mixing are required.
Accurate and Safe
- Strong resistance to chemical and mechanical corrosion
- Rotation stops automatically if blocked
- Complies with UNI 10802 and DIN 38414 standards
- Electronic speed regulation up to 30 rpm
- LCD speed display
- Accepts 6 x 2 L or 8 x 1 L bottles (with adapter)
Recommended for:
- The evaluation of pollutants solubility in water, from sludge;
- The evaluation of sediments and solid wastes by waste treatment plants, wastewater treatment plants;
- Laboratories for waste analysis, laboratories for environmental analysis.
SPECIFICATION
| CONSTRUCTION MATERIAL: | epoxy painted metal structure |
| NUMBER OF BOTTLES SUPPORTED: | 6 bottles of 2-liter capacity 8 bottles of 1-liter capacity (with adapter) |
| DISPLAY: | LCD |
| BOTTLE MAXIMUM HEIGHT: | 1l bottle: 270 mm 2l bottle: 280 mm |
| BOTTLE MINIMUM HEIGHT: | 1l bottle: 200 mm 2l bottle: 220 mm |
| BOTTLE MAXIMUM DIAMETER: | 1l bottle: 110 m 2l bottle: 135 mm |
| POWER: | 100 W |
| POWER SUPPLY: | 115 V or 230 V / 50-60 Hz |
| WEIGHT: | 30 kg (66 lb) |
| DIMENSIONS (WXHXD): | 665x520x470 mm (26.2×20.5×18.5 in) |
| ELECTRONIC CONTROL OF SPEED ROTATION: | from 0 to 30 rpm |
| RESOLUTION: | 1 rpm |
