LabDry – Automatic system for the determination of water content with calibrated scale with PC interface, moisture measurement of all products according to DIN kiln-drying method. Measuring system with hand scanner, PC evaluation software and labelled aluminium bowls
Applications
LabDry – Automatic system for the determination of water content with calibrated scale with PC interface, moisture measurement of all products according to DIN kiln-drying method. Measuring system with hand scanner, PC evaluation software and labelled aluminium bowls
Handling:
With the LabDry system you can effect an automatic laboratory moisture analysis in a precise, rapid and easy way. The determination of water content is based on the standardised DIN kiln-drying method with a calculation based on the dry matter.
Fill the delivered barcode labelled aluminium bowl with the sample material and integrate the sample into the system via barcode scanner and analysing scale. Now the material moisture is determined by drying in the drying chamber (standard with laboratory moisture analysis). After the specified drying time, the sample is again recorded via analysing scale and barcode scanner. The system then automatically calculates and displays the material moisture.
By the automatic laboratory moisture analysis using barcodes, barcode scanner and analysing scale with PC interface, the risk of errors in the writing and reading of data is eliminated.
| Art. No. | Extended accessories |
|---|---|
| 12325 | Drying chamber 40 WITHOUT air circulation |
| 13742 | Drying chamber 56 (Binder ED56) WITHOUT air circulation (slow drying) for determination of water content according to kiln-drying method Useable space capacity 57 liters, for a maximum of 12 samples at the same time, with optionally available 2 additional drawers for 20 samples at the same time, temperature range: 5°C above room temperature up to 300°C, Dimensions outside: 560x565x625mm (BxTxH),Weight: 39kg |
| 12324 | Drying chamber 56 (Binder FD56) WITH air circulation for determination of water content according to norm kiln-drying method Useable space capacity 60 liters, for a maximum of 12 samples at the same time, with optionally available additional 2 drawers for 20 samples at the same time, Dimensions outside: 560x565x625mm (BxTxH), Weight: 40kg |
| 12322 | Drying chamber 115 (Binder FD115) WITH air circulation for determination of water content according to norm kiln-drying method Useable space capacity 116 liters, for a maximum of 21 samples at the same time, with optionally available additional 3 drawers for 42 samples at the same time, dimensions outside: 710x605x735mm (BxTxH), weight: 50kg |
| 12328 | Drying chamber 260 (Binder FD260) WITH air circulation for determination of water content according to norm kiln-drying method Useable space capacity 259 liters, for a maximum of 30 samples at the same time, with optionally available additional 6 drawers for 90 samples at the same time, Dimensions outside: 810x760x965mm (BxTxH), weight: 85kg |
| 12286 | Precision scale 1000g / 0.01g; with PC interface incl. datalink cable |
| 12499 | Precision scale 3500g / 0.01g; with PC interface incl. datalink cable with calibration permission and calibration certificate Dimensions: 206 x 335 x 85 mm, weight: 3.6 kg |
| 12198 | Set of 100 units of barcode labelled aluminium bowls 0.7 liter; 197x105x49mm |
| 12365 | Set of 20 units of barcode labelled aluminium bowls 2.2 liter; for coarse wood chips G100 |
| 12364 | Upgrading of LabDry software: customer-specific report page |
| 13208 | Weighing software FVS Analysing software for weighbridge, with integration of water content measuring values of humimeter BMA or LabDry, incl. installation and training via remote service |
| 12913 | Plug-in grate for drying chamber 115 liter (article no.12322), 1 unit |
Applications

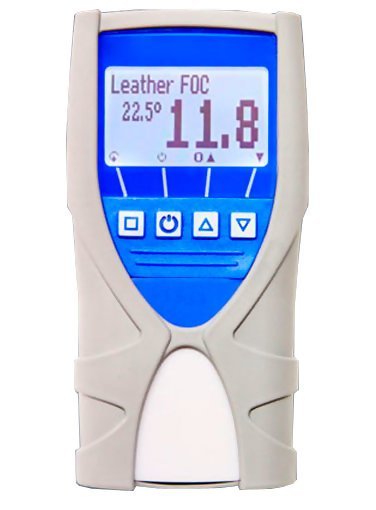

The humimeter LM6 leather moisture meter is a handheld moisture meter for measuring the moisture of leather in a nondestructive manner. It is well suited for all kinds of leather and various degrees of moisture – from wet to dry leather. The LM6 can be used during the whole leather manufacturing process in the tannery as well as in the leather trade or in leather processing companies.
Handling / measuring procedure
After selecting the appropriate calibration curve (depending on the leather density), press the humimeter LM6 on a leather pile with a thickness of at least 10mm. The display immediately shows the absolute leather moisture as well as the temperature. The measuring procedure does not destroy the leather surface in any way. By effecting various measurements in different areas of the leather hide, the average water content can be determined immediately
Benefit from the non-destructive measuring method and optimise your drying costs as well as servicing times by detecting eventual moisture fluctuations or moisture spots in time. The measuring values can be stored on the device, further information like batch number can be added. Via the optional USB interface the measuring values can be transferred to a PC, and via LogMemorizer ® PC software the data can be archived, exported, processed or printed out.
Accredited test laboratory:
In 2016 we established a test laboratory conforming to the requirements of the globally valid standard EN ISO/IEC17025:2005. In addition, the laboratory has been certified for the determination of water content according to EN ISO 4684: „Leather – Chemical tests – Determination of volatile matter“. The requirements necessary for obtaining and preserving the accreditation ensure maximum testing quality.
- Measuring range 3% to 65% water content
- Resolution: 0.1% water content; 0.5°C;
- Measuring depth 5 mm
- Operating temperature range: 0 to +40°C / 32 to 104°F
- Automatic temperature compensation
- Temperature can be set to °C or °F as required
- Measurement within seconds without prior treatment of samples
- Online function
- Hold function
- Manual saving of results, datalog for up to 10,000 logs with measuring point report
- Large, well-lit LC display
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
- Scope of supply: humimeter LM6 leather moisture meter with rubber protection cover and batteries,
wooden case and proof plate - Optional: humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, printer
Benefits
- Nondestructive measurement
- Large measuring range from 3% to 65% water content
- Measurement within seconds
- High accuracy due to temperature compensation
- Quick determination of the average
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
- Bulk pack: 10 % special discount for an order of a bulk pack of 5 units
article no. 12158 humimeter LM6 leather moisture meter
ATTENTION: Especially for small, packed or sewn products we recommend the humimeter RH5 (Category Paper/Board)
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer runs by battery,industrial model |
| 10600 | Factory calibration certificate Protocol documenting the calibration of material moisture meters before delivery
|
Applications
Non-destructive leather moisture meters for the measurement of finished leather products
Measuring procedure and handling:
After selecting the appropriate calibration curve (depending on the leather density), press the humimeter LM5 or LM6 on a leather pile with a thickness of at least 10mm. The display immediately shows the absolute leather moisture as well as the temperature. The measuring procedure does not destroy the leather surface in any way. By effecting various measurements in different areas of the leather hide, the average water content can be determined immediately.
Benefit from the non-destructive measuring method and optimise your drying costs as well as servicing times by detecting eventual moisture fluctuations or moisture spots in time. The measuring values can be stored on the device, further information like batch number can be added. Via the optional USB interface the measuring values can be transferred to a PC, and via LogMemorizer PC software the data can be archived, exported, processed or printed out
Accredited test laboratory:
In 2016 we established a test laboratory conforming to the requirements of the globally valid standard EN ISO/IEC17025:2005. In addition, the laboratory has been certified for the determination of water content according to EN ISO 4684: „Leather – Chemical tests – Determination of volatile matter“. The requirements necessary for obtaining and preserving the accreditation ensure maximum testing quality.
- Measuring range 3% to 20% water content,
- resolution 0.1% water content,
- measuring depth 5mm,
- minimum material thickness 10mm,
- temperature range: 0 to +40°C / 32 to 104°F
- Temperature can be set to °C or °F as required,
- automatic temperature compensation, measurement within seconds without prior treatment of samples, sample temperature measurement,
- Hold function, manual saving of results, datalog for up to 10,000 logs with measuring point report, large, well-lit LC display.
- Menu languages: English, German, Italian, French, Spanish, Russian
- Scope of supply: humimeter LM5 with rubber protection cover, wooden case, proof plate and batteries.
- Accessories – possible add-ons: humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, printer
- Customs tariff number: 90318080
- Dimensions: 147 x 75 x 30 mm
- Weight 265g (incl. batteries)
Benefits
- Nondestructive measurement
- Measurement within seconds
- High accuracy due to temperature compensation
- Quick determination of the average
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
article no. 13680 humimeter LM5 Portable leather moisture meter for finished leather products
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12278 | | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 | | Thermo printer runs by battery,industrial model |
| 10600 | Factory calibration certificate Protocol documenting the calibration of material moisture meters before delivery
|
- Automatic temperature compensation
- Depth of measuring 5mm
- Leather selection via 6-step switch
- Measuring range 6 to 20% moisture of leather
- Display three digit LC display
- Dimension 120x60x26mm
- Weight approx 160g
- With wooden case, proof plate, case protection made of rubber and battery
Benefits
- Very easy to handle
- Quickly and highly accurate measurement using a non-destructive method
- Small, handy, accurate, in-situ application possible wherever needed
- Quick and cost saving moisture measurementHigh long-term stability and repeat accuracy
Applications
Leather-moisture-meter for the leather industry.Small, handy, accurate, in-situ application possible wherever needed.Quick and cost saving moisture measurement.Quickly and highly accurate measurement using a non-destructive method!
ATTENTION: Aspecially for small, packed or sewn products we recommend the humimeter RH5 (Category Paper/Board)
Art.No.: 10018
| Art. No. | Extended accessories | |
|---|---|---|
| 10600 | Factory calibration certificate protocol documenting the adjustment at delivery for material moisture meters |
- Measuring range 0% to max. 100%, resolution: 0.1%,/0.5°C,
- Operating temperature 0 to +40°C / 32 to 104°F
- Calibration function for calibration of new material types possible. Up to 30 different sorts by laboratory analysis (article no. 11217) possible.
- Automatic temperature compensation
- Programmable customer calibration curves
- Temperature can can be set to °C or and °F as required, required
- Dimensions 147 x 75 x 30 mm, weight 265g (incl. batteries)
- Scope of supply: humimeter Universal material moisture meter with rubber protection cover incl. batteries
Benefits
- Nondestructive measurement
- Measurement within seconds
- High accuracy due to temperature compensation
- Quick determination of the average
- Hold function, auto datalog and manual saving of results
- Automatic data log for 10.000 logs with measuring point report
- Large, well-lit LC display
- Supplier data and batch number can be recorded
article no. 12502 humimeter M50 material moisture meter with roll sensor, measuring depth 50mm
article no. 13586 humimeter M30 material moisture meter with plate sensor, measuring depth 30mm
article no. 12503 humimeter M05 material moisture meter with plate sensor, measuring depth 5mm
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on CD incl. USB cable for PC |
| 12485 |  | humimeter USB data interface module VERSION FOR RECHARGEABLE BATTERIES with LogMemorizer measuring data recording and analysing software on CD incl. USB cable |
| 13340 |  | Internal Bluetooth class 1, integrated module class 1 (up to 100 metres) for humimeter devices. Combinable with USB interface. |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 11911 |  | Wooden case |
| 10615 | Laboratory analysis – preliminary testing of measurability of humidity resp. water content of a provided sample | |
| 11217 | Laboratory analysis for preparation of a calibration curve for a new material for humimeter devices | |
| 12297 | Entry of an existing characteristic curve in a humimeter device |
- Operating temperature: 0°C to +50°C / 32 to 122°F
- Hold function, manual saving of results, datalog for 10,000 logs with measuring point report
- Automatic temperature compensation
- Large, well-lit LC display
- Dimensions: 150 x 75 x 30 mm, weight: 270g (with batteries)
- Menu languages: English, German, Italian, French, Spanish, Russian and many others on request
- Scope of supply: humimeter RM1 analysing device, rubber protection cover and batteries
Required accessories art. no. 12518
Applications:
humimeter RM1 recycling material moisture meter
Analysing device for wood chips insertion probe for measurement of recycling material, wood chips, scrap wood chips and sawdust
| Art. no. | Picture | Extendet Accessories |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer industrial model, portable, runs by battery (only possible with art. 12278) Dimensions: 180 x 100 x 45 mm, weight: 0.4 kg |
| 12518 |  | Insertion probe of 1 meter length with grab bar, 2 meter cable and exchangeable tip, for determination of water content of wood chips and recycling material, dimensions 1150 x 35 x 35 mm, weight 710g, |
- Measuring range 0.3 to 26.0% water content (dependent on the type)
- Resolution 0.1% water content
- Sample temperature measurement
- Automatic temperature compensation
- Measurement within seconds without prior treatment of samples
- Hold function, manual saving of results, data log for 10.000 logs with measuring point report
- Large, well-lit LC display
- Scope of supply: humimeter SLW textile moisture meter, measuring probes 60mm, batteries and plastic case
- Optionally: PC interface, software, datalink cable and printer
Benefits
- Easy to use
- Small, handy, precise, useable everywhere
- Quick and unexpensive moisture measurement
- Long-term stable
ATTENTION: Especially for small, packed or sewn products we recommend the humimeter RH5
Applications
The humimeter SLW textile moisture meter is a moisture meter for the determination of the water content of various kinds of textiles including natural fabric, synthetic fiber and yarn.
article no. 12298 humimeter SLW with probe
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer runs by battery, industrial model, portable (only with article no. 12278) |
| 12521 | Set of tips, two pieces of Ø4mm stainless steel nails with 255mm length | |
| 11482 | Set of 2 replacement tips for measuring electrodes, insulated, 60mm |
article no. 12942 humimeter SLW for EXTERNAL sensor
| Art. No. | Picture | Accessory / Extension |
|---|---|---|
| 12278 | | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 | | Thermo printer runs by battery, industrial model, portable (only with article no. 12278) |
| 13726 | SLW-HE: hand electrode holder for diverse electrode types incl. BNC cable of 1m length, for connection to humimeter SLW EXTERNAL article no. 12942 | |
| 13727 | SLW-E025: | |
| 13728 | SLW-E100: | |
| 13729 | SLW-E325: Rod electrode, rod length: 325mm | |
| 13730 | SLW-E023: Surface electrode, diameter: 23mm |
MS4 Salt moisture meter – Handling and measuring procedure
After selecting the calibration curve for the material to be measured (fine or coarse), press the salt moisture meter onto the salt surface with appropriate pressure. Water content and temperature can immediately be read off the large, well-lit display. By performing various measurements at different points, the salt moisture meter automatically determines the average water content.
Via the integrated data logger the measuring results can be stored directly on the MS4 salt moisture meter and additional data like supplier or measuring point can be added. The USB interface enables the transfer of measuring values from the salt moisture meter to a PC and is also used for recharging the integrated rechargeable battery.
- Measuring range: 0.00 to 3.00% water content
- Resolution: 0.01% water content
- Measuring depth: 30mm, minimum material thickness: 50mm
- Operating temperature: 0 to +50°C / 32 to 122°F
- Automatic temperature compensation
- Temperature can be set to °C or °F as required
- Measurement within seconds without prior treatment of samples
- Degree of protection: IP64
- Hold function, manual saving of results, datalog for 10,000 logs with measuring point report
- Large, well-lit LC display
- Menu languages: English, German, Italian, French, Spanish, Russian
- Dimensions: 145 x 95 x 28 mm, weight: 265g (with batteries)
- Scope of supply: humimeter MS4 salt moisture meter, humimeter USB data interface module with LogMemorizer
- measuring data recording and analysing software on USB flash drive incl. USB cable for PC,
- rechargeable batteries, wooden case with proof plate
article no. N.: 13250 humimeter MS4 salt moisture meter
- Measuring range 0 to max. 55% water content
- Resolution 0.1% water content
- Customer calibration function
- Hectolitre compensated
- Sample temperature measurement
- Temperature can be set to °C or °F as required
- Hold function, manual saving of results, datalog for 10.000 logs with measuring point report
- Online function integrated
- Supplier´s data and batch number can be recorded
- Automatic temperature compensation
- Large, well-lit LC display
- Measurement within seconds without prior treatment of samples
- Robust stainless housing
- With digital scale, case, measuring cup and batteries
- Optional: printer, ISO measuring device check
Benefits
- A new and revolutionary powerful portable measuring instrument series using innovative sensor technology
- For municipal and industrial clearing sludge
- Optimises your drying plant and reduces drying cost
- Menus are in GERMAN, ENGLISH, ITALIAN, FRENCH, SPANISH and RUSSIAN
Article No.: 12036
| Art. No. | Picture | Extended Accessories |
|---|---|---|
| 12278 |  | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 11758 |  | ISO measuring device check |
| 12311 |  | Power supply unit for continuous operation of the scale |
- Resolution 0.1%
- Hectoliter compensated
- Sample temperature measurement
- Temperature can be set to °C or °F as required
- Automatic temperature compensation
- Measurement within seconds
- Hold function, manual saving of results, datalog for 10.000 logs with measuring point report
- Supplier’s data and batch number can be recorded
- Customer-calibration function
- Integrated online-function
- Robust stainless housing
- With digital scale, case, measuring cup, PC interface, PC software, USB adapter and batteries
- Optional: printer, ISO measuring device check, laboratory-order
Benefits
- Very accurate measurement by temperature and bulk density compensated measurement process
- Easy to handle
- Online function for data transfer to a P
- Integrated memory and printer connection
- Menus are in GERMAN, ENGLISH, FRENCH, ITALIAN, SPANISH and RUSSIAN
Art. No.: 12069
| Art. No. | Picture | Extended accessories |
|---|---|---|
| 10600 | Factory calibration certificate Protocol documenting the adjustment at delivery for material moisture meters | |
| 11733 |  | Thermo printer runs by battery, industrial model, portable |
| 11758 |  | ISO measuring device check |
| 11217 | Laboratory analysis testing for new material of our FS_3 or humimeter devices | |
| 12260 |  | Bluetooth data communication module for all humimeter devices |
| 12311 |  | Power supply unit for continuous operation of the scale |
The moisture analyzer G110 is an analytical balance for determining the moisture content of various materials. The weighing range of 110 grams with a precision of 0.005 grams allows for accurate measurements of small, unknown, fluid or pasty materials humimeter devices cannot be calibrated for.
The moisture analyzer uses a heating chamber to dry the material with temperatures of up to 199°C. Once the automatically terminating drying process is done the moisture analyzer calculates the moisture content based on the mass difference.
Our specialized products offer practical handling, mobility and blazingly fast highly accurate results. If you don’t find any suitable product, the G110 moisture analyzer still is the way to go.
Analytical balance and moisture analyzer
The G110 moisture analyzer for various materials with a fully automatic measuring process works as follows.
Handling
The moisture analyzer is an analytical balance for determining the moisture content of materials. Start by taking an appropriate amount of your material and pouring it into the measuring bowl.
After putting the bowl into the moisture analyzer the analytical balance weighs the material and starts the measuring process. The moisture analyzer dries the material automatically until the weight is constant and stops automatically when it’s done.
The results are displayed on the display of the moisture analyzer.
- Weighing range 110 grams
- Precision 0.005 grams
- Moisture content 0-100% with a precision of 0.01%
- Heating chamber with temperatures from 40 to 199°C
- The heating chamber is configurable via 15 custom drying-programs, each ranging from 1 to 99 minutes and custom temperatur
- Heating chamber with halogen lamps
- RS-232 interface for connecting to other devices (e.g. PCs)
- LCD display, 9 buttons
- Dimensions: 200 x 180 x 380mm
- Power supply 220V / 50 Hz or 110V / 60 Hz
- Scope of delivery: Moisture analyzer, wind protection, sample cups, power cord, sample cup holder, 100 grams calibration weight, user manual
Benefits
- Fully automatic: drying until constant weight
- 15 custom drying-programs for free configuration of the moisture analyzer
- The moisture analyzer works reliably and fully automatic with easy handling
article no.: 12153 Moisture analyzer and analytical balance G110
| Art. no. | Picture | Accessory / Extension |
|---|---|---|
| 12154 |  | Probe bowls for moisture analyzer, packing unit of 100pcs. |
