SD 50 pH
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP, Con, TDS or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field
TECHNICAL DATA
| Measuring Range | 0-60 °C, 0-14 pH |
| Accuracy | ± 0.05 pH |
| Display | 22 x 22 mm LCD screen, yellow/green backlit |
| Auto – OFF | Yes |
| Calibration | 1, 2 or 3 points calibration with auto-recognition (NIST / IUPAC) |
| Internal Storage | 25 sets of data storage, with date and time (non-volatile) |
| Power Supply | 2 AAA batteries |
| Battery Life Time | > 350 hours (continuous use, backlight off), low battery indicator on LCD screen |
DOWNLOAD
SD 60 ORP/Redox
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP, Con, TDS or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field.
TECHNICAL DATA
| Measuring Range | 0-60 °, -1800 – 1800 mV |
| Accuracy | ± 2 mV |
| Display | 22 x 22 mm LCD screen, yellow/green backlit |
| Auto – OFF | Yes |
| Calibration | 1 point calibration with +/- 150 mV adjustable ORP value |
| Internal Storage | 25 sets of data storage, with date and time (non-volatile) |
| Power Supply | 2 AAA batteries |
| Battery Life Time | > 350 hours (continuous use, backlight off), low battery indicator on LCD screen |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Temperature Compensation | Automatic |
| Resolution | 0.1 mV (within ± 1000 mV) ; 1 mV (outside ± 1000 mV) |
| Resolution Temperature | 0.1 °C; Accuracy: ± 1 °C,selectable °C / °F system |
| Protection Class | IP 67 |
| Compliance | CE |
| Dimensions | 44 x 33 x 205 mm |
DOWNLOAD
SD 70 Con
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP, Con, TDS or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field.
TECHNICAL DATA
| Measuring Range | 0 – 60 °C, < 20,00 mS/cm |
| Accuracy | ± 3 % FS |
| Display | 22 x 22 mm LCD screen, yellow/green backlit |
| Calibration | 1 or 2 points calibration for auto mode Standard: 1413 μS/cm or Standard: 12.88 mS/cm up to 2 points calibration for manual mode ± 50 % adjustable value |
| Internal Storage | 25 sets of data storage, with date and time (non-volatile) |
| Power Supply | 2 AAA batteries |
| Battery Life Time | > 350 hours (continuous use, backlight off), low battery indicator on LCD screen |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Resolution | 1 μS/cm (<= 1999 μS/cm) ; 0,01 mS/cm (2,0 – 20,00 mS/cm) |
| Resolution Temperature | 0.1 °C; Accuracy: ± 1 °C,selectable °C / °F system |
| Compliance | CE |
| Dimensions | 1.73 x 1.3 x 8.07″ |
DOWNLOAD
SD 80 TDS
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP, Con, TDS or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field.
TECHNICAL DATA
| Measuring Range | 0 – 60 ° < 10,00 ppt |
| Accuracy | ± 3 % FS |
| Display | 22 x 22 mm LCD screen, yellow/green backlit |
| Calibration | up to 2 points calibration manual mode ± 50 % adjustable value |
| Internal Storage | 25 sets of data storage, with date and time (non-volatile) |
| Power Supply | 2 AAA batteries |
| Battery Life Time | > 350 hours (continuous use, backlight off), low battery indicator on LCD screen |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Resolution | 1 ppm (<= 999 ppm) ; 0.01 ppt (1.0 – 10.00 ppt) |
| Resolution Temperature | 0.1 °C; Accuracy: ± 1 °C,selectable °C / °F system |
| Compliance | CE |
| Dimensions | 1.73 x 1.3 x 8.07″ |
DOWNLOAD
SD 90 Salt
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP, Con, TDS or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.
The intuitive scroll-bar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements. Designed and manufactured according to Lovibond® quality standards, the devices are equipped with replaceable electrodes to ensure long-life functionality in the field.
TECHNICAL DATA
| Measuring Range | 0 – 60°, < 20,00 ppt equal to 2,00 % |
| Accuracy | ± 3 % FS |
| Display | 22 x 22 mm LCD screen, yellow/green backlit |
| Calibration | up to 2 points calibration manual mode ± 50 % adjustable value |
| Internal Storage | 25 sets of data storage, with date and time (non-volatile) |
| Power Supply | 2 AAA batteries |
| Battery Life Time | > 350 hours (continuous use, backlight off), low battery indicator on LCD screen |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Resolution | 0.01 % (when set to “P” % unit) ; 1 ppm (< 2000 ppm) ; 0.01 ppt (2.0 – 20.00 ppt) |
| Resolution Temperature | 0.1 °C; Accuracy: ± 1 °C,selectable °C / °F system |
| Compliance | CE |
| Dimensions | 1.73 x 1.3 x 8.07″ |
DOWNLOAD
SensoDirect Con 110 (Set)
DESCRIPTION
FEATURES
DOWNLOAD
DESCRIPTION
Highlights
- High measuring accuracy
- Light weight
- Protective casing
- Large digital display
High-quality, battery-operated handheld instrument for the determination of salt.
Variable in use and user-friendly in operation
Variable in use and user-friendly in operation
FEATURES
- Different parameters
SensoDirect 110 series meters can be used to measure pH, salt and conductivity. - Housing
The protective armor does not guarantee a secure grip but also protection against falls. The stand attached to the back of the housing can also be used as a hanger or belt clip. - “Hold” function included
Data gained is virtually “frozen” on the display by this function. This not only makes it easier to read the results, it also improves reproducibility. - Automatic battery check
So you do not experience unpleasant surprises with the battery, the level is constantly monitored. This way, you can always change the battery in good time.
DOWNLOAD
SensoDirect 150 (Set 1) pH / Con / TDS / Oxi / Temp
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Multiple parameters in one device
The SensoDirect 150 combines the applications of several handheld instruments in one instrument.
It has been designed as a multi-purpose device for the determination of pH, redox, oxygen, conductivity and TDS. - Intuitive user guidance
All measured values can be conveniently read on the large LCD display. - Different parameter combinations possible
The combinations pH + Con + TDS + Oxi, pH + Con + TDS, pH + Oxi and pH + Redox are available. You have the choice.
TECHNICAL DATA
| Display | Large LCD display with contrast adjustment |
| Power Supply | DC 1,5 V battery (UM3,AA) DC 9 V adapter |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 4.72 x 1.57 x 8.66″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SensoDirect 150 (Set 2) pH / Con / TDS / Temp
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Multiple parameters in one device
The SensoDirect 150 combines the applications of several handheld instruments in one instrument.
It has been designed as a multi-purpose device for the determination of pH, redox, oxygen, conductivity and TDS. - Intuitive user guidance
All measured values can be conveniently read on the large LCD display. - Different parameter combinations possible
The combinations pH + Con + TDS + Oxi, pH + Con + TDS, pH + Oxi and pH + Redox are available. You have the choice.
TECHNICAL DATA
| Display | Large LCD display with contrast adjustment |
| Power Supply | DC 1,5 V battery (UM3,AA) DC 9 V adapter |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 4.72 x 1.57 x 8.66″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SensoDirect 150 (Set 3) pH / Oxi / Temp.
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Multiple parameters in one device
The SensoDirect 150 combines the applications of several handheld instruments in one instrument.
It has been designed as a multi-purpose device for the determination of pH, redox, oxygen, conductivity and TDS. - Intuitive user guidance
All measured values can be conveniently read on the large LCD display. - Different parameter combinations possible
The combinations pH + Con + TDS + Oxi, pH + Con + TDS, pH + Oxi and pH + Redox are available. You have the choice.
TECHNICAL DATA
| Display | Large LCD display with contrast adjustment |
| Power Supply | DC 1,5 V battery (UM3,AA) DC 9 V adapter |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 4.72 x 1.57 x 8.66″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SensoDirect 150 (Set 4) pH / Redox / Temp
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Multiple parameters in one device
The SensoDirect 150 combines the applications of several handheld instruments in one instrument.
It has been designed as a multi-purpose device for the determination of pH, redox, oxygen, conductivity and TDS. - Intuitive user guidance
All measured values can be conveniently read on the large LCD display. - Different parameter combinations possible
The combinations pH + Con + TDS + Oxi, pH + Con + TDS, pH + Oxi and pH + Redox are available. You have the choice.
TECHNICAL DATA
| Display | Large LCD display with contrast adjustment |
| Power Supply | DC 1,5 V battery (UM3,AA) DC 9 V adapter |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 4.72 x 1.57 x 8.66″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SD 305 pH/ORP
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Technically advanced
A particularly high resolution (0.001 pH / 0.1 mV) for maximum accuracy, automatic temperature compensation and buffer detection are further features of the SD 305 pH/ORP. - User-friendly Handling
The comfortable handling is completed by a large, backlit display. So you have the measurement results directly in view in every situation. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective reinforcement not only guarantees safe working at all times, even in extreme environmental conditions. The stand attached to the back of the housing can also be used as a hanger or belt clip. - Additional equipment
Battery and electrode status indication, battery replacement indicator, auto-off, auto-hold, min./max. Value memory are also included as functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Interfaces | USB |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Calibration | automatic or manual 1-, 2, or 3-point calibration |
| Power Supply | 2 AAA batteries Micro-USB |
| Battery Life Time | 500 h |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 305 pH/ORP (Set 1)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Technically advanced
A particularly high resolution (0.001 pH / 0.1 mV) for maximum accuracy, automatic temperature compensation and buffer detection are further features of the SD 305 pH/ORP. - User-friendly Handling
The comfortable handling is completed by a large, backlit display. So you have the measurement results directly in view in every situation. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective reinforcement not only guarantees safe working at all times, even in extreme environmental conditions. The stand attached to the back of the housing can also be used as a hanger or belt clip. - Additional equipment
Battery and electrode status indication, battery replacement indicator, auto-off, auto-hold, min./max. Value memory are also included as functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Interfaces | USB |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Calibration | automatic or manual 1-, 2, or 3-point calibration |
| Power Supply | 2 AAA batteries Micro-USB |
| Battery Life Time | 500 h |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 305 pH/ORP (Set 2)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Technically advanced
A particularly high resolution (0.001 pH / 0.1 mV) for maximum accuracy, automatic temperature compensation and buffer detection are further features of the SD 305 pH/ORP. - User-friendly Handling
The comfortable handling is completed by a large, backlit display. So you have the measurement results directly in view in every situation. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective reinforcement not only guarantees safe working at all times, even in extreme environmental conditions. The stand attached to the back of the housing can also be used as a hanger or belt clip. - Additional equipment
Battery and electrode status indication, battery replacement indicator, auto-off, auto-hold, min./max. Value memory are also included as functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Interfaces | USB |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Calibration | automatic or manual 1-, 2, or 3-point calibration |
| Power Supply | 2 AAA batteries Micro-USB |
| Battery Life Time | 500 h |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 305 pH/ORP (Set 3)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Technically advanced
A particularly high resolution (0.001 pH / 0.1 mV) for maximum accuracy, automatic temperature compensation and buffer detection are further features of the SD 305 pH/ORP. - User-friendly Handling
The comfortable handling is completed by a large, backlit display. So you have the measurement results directly in view in every situation. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective reinforcement not only guarantees safe working at all times, even in extreme environmental conditions. The stand attached to the back of the housing can also be used as a hanger or belt clip. - Additional equipment
Battery and electrode status indication, battery replacement indicator, auto-off, auto-hold, min./max. Value memory are also included as functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Interfaces | USB |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Calibration | automatic or manual 1-, 2, or 3-point calibration |
| Power Supply | 2 AAA batteries Micro-USB |
| Battery Life Time | 500 h |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 315 Oxi (Set 1)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- No polarization
The well-known Clark oxygen sensor allows immediate measurement without polarization time. - Versatile
The SD 315 Oxi is aimed at industry, laboratories and urban facilities, such as sewage treatment or water works. - Data management
A data logger and the corresponding logger software ensure simplified processing of the data obtained.
To ensure that this works under all visual conditions, the device is delivered with a backlit display. - housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Alarm
The integrated alarm alerts you if the measured value deviates once from the predefined values. - Auto-Hold
The auto-hold function makes it easy to read the measured values.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 3.86 x 1.46 x 6.46″ |
DOWNLOAD
SD 315 Oxi (Set 2)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- No polarization
The well-known Clark oxygen sensor allows immediate measurement without polarization time. - Versatile
The SD 315 Oxi is aimed at industry, laboratories and urban facilities, such as sewage treatment or water works. - Data management
A data logger and the corresponding logger software ensure simplified processing of the data obtained.
To ensure that this works under all visual conditions, the device is delivered with a backlit display. - housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Alarm
The integrated alarm alerts you if the measured value deviates once from the predefined values. - Auto-Hold
The auto-hold function makes it easy to read the measured values.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 3.86 x 1.46 x 6.46″ |
DOWNLOAD
SD 315 Oxi (Set 3)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- No polarization
The well-known Clark oxygen sensor allows immediate measurement without polarization time. - Versatile
The SD 315 Oxi is aimed at industry, laboratories and urban facilities, such as sewage treatment or water works. - Data management
A data logger and the corresponding logger software ensure simplified processing of the data obtained.
To ensure that this works under all visual conditions, the device is delivered with a backlit display. - housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Alarm
The integrated alarm alerts you if the measured value deviates once from the predefined values. - Auto-Hold
The auto-hold function makes it easy to read the measured values.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 3.86 x 1.46 x 6.46″ |
DOWNLOAD
SD 325 Con (Set1)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- User-friendly operation
The comfortable operation is completed by a large, backlit display.
So you have the measurement results directly in view in every situation. - Technically advanced
Datalogger, automatic temperature compensation and buffer detection are further features of the SD 325 Con. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Variable equipment
Depending on the measuring range, three conductivity measuring cells with innovative 2 or 4-pole technology are available. - Additional equipment
Battery and electrode status indication, battery replacement display, auto-off, auto-hold, min./max.
Value memory are mandatory functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 325 Con (Set 2)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- User-friendly operation
The comfortable operation is completed by a large, backlit display.
So you have the measurement results directly in view in every situation. - Technically advanced
Datalogger, automatic temperature compensation and buffer detection are further features of the SD 325 Con. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Variable equipment
Depending on the measuring range, three conductivity measuring cells with innovative 2 or 4-pole technology are available. - Additional equipment
Battery and electrode status indication, battery replacement display, auto-off, auto-hold, min./max.
Value memory are mandatory functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 325 Con (Set 3)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- User-friendly operation
The comfortable operation is completed by a large, backlit display.
So you have the measurement results directly in view in every situation. - Technically advanced
Datalogger, automatic temperature compensation and buffer detection are further features of the SD 325 Con. - Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue). - Housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. - Variable equipment
Depending on the measuring range, three conductivity measuring cells with innovative 2 or 4-pole technology are available. - Additional equipment
Battery and electrode status indication, battery replacement display, auto-off, auto-hold, min./max.
Value memory are mandatory functions.
TECHNICAL DATA
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 – 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 5.04 x 6.46 x 1.46″ |
DOWNLOAD
SD 335 Multi - basic instrument
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Modern technogoly
Due to galvanic isolation the temperature and two other parameters can be determined and displayed simultaneously. - Intuitive Handling
The combination of user-friendly operation and graphic LCD display in 7 different languages makes the portable measuring instrument the ideal companion for daily use in water analysis. - Data management
Measurement data including time stamp and location ID can be recorded with the data logger function. Via the micro-USB interface, the data can be easily transferred to a computer and processed without the need of additional software. - Protective armouring
The protective armouring with two electrode holders guarantees safe working even in extreme environmental conditions at all times. The stand attached to the back of the housing can be used conveniently as a hanger or belt clip. - Additional features
The range of functions is completed by the status display for the rechargeable NiMH batteries, the self-diagnosis of the sensors and much more.
TECHNICAL DATA
| Display | Backlit LCD with graphical display |
| Data Logger | Manual logger by keystroke. Automatic logger, cyclic, time interval adjustable. |
| Power Supply | 3 NiMH-battery pack (AAA) Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Dimensions | 3.94 x 6.46 x 1.46″ |
DOWNLOAD
SD 335 Multi (Set 1) - pH/Con
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technogoly
Due to galvanic isolation the temperature and two other parameters can be determined and displayed simultaneously. - Intuitive Handling
The combination of user-friendly operation and graphic LCD display in 7 different languages makes the portable measuring instrument the ideal companion for daily use in water analysis. - Data management
Measurement data including time stamp and location ID can be recorded with the data logger function. Via the micro-USB interface, the data can be easily transferred to a computer and processed without the need of additional software. - Protective armouring
The protective armouring with two electrode holders guarantees safe working even in extreme environmental conditions at all times. The stand attached to the back of the housing can be used conveniently as a hanger or belt clip. - Additional features
The range of functions is completed by the status display for the rechargeable NiMH batteries, the self-diagnosis of the sensors and much more
SPECIFICATION
| Display | Backlit LCD with graphical display |
| Data Logger | Manual logger by keystroke. Automatic logger, cyclic, time interval adjustable. |
| Power Supply | 3 NiMH-battery pack (AAA) Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Dimensions | 3.94 x 6.46 x 1.46″ |
DOWNLOAD
SD 335 Multi (Set 2) - pH/DO
DESCRIPTION
SPECIFICATION
DOWNLOADS
DESCRIPTION
- Modern technogoly
Due to galvanic isolation the temperature and two other parameters can be determined and displayed simultaneously. - Intuitive Handling
The combination of user-friendly operation and graphic LCD display in 7 different languages makes the portable measuring instrument the ideal companion for daily use in water analysis. - Data management
Measurement data including time stamp and location ID can be recorded with the data logger function. Via the micro-USB interface, the data can be easily transferred to a computer and processed without the need of additional software. - Protective armouring
The protective armouring with two electrode holders guarantees safe working even in extreme environmental conditions at all times. The stand attached to the back of the housing can be used conveniently as a hanger or belt clip. - Additional features
The range of functions is completed by the status display for the rechargeable NiMH batteries, the self-diagnosis of the sensors and much more.
SPECIFICATION
| Display | Backlit LCD with graphical display |
| Data Logger | Manual logger by keystroke. Automatic logger, cyclic, time interval adjustable. |
| Power Supply | 3 NiMH-battery pack (AAA) Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Dimensions | 3.94 x 6.46 x 1.46″ |
DOWNLOADS
SD 335 Multi (Set 3) - pH/Con/DO
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technogoly
Due to galvanic isolation the temperature and two other parameters can be determined and displayed simultaneously. - Intuitive Handling
The combination of user-friendly operation and graphic LCD display in 7 different languages makes the portable measuring instrument the ideal companion for daily use in water analysis. - Data management
Measurement data including time stamp and location ID can be recorded with the data logger function. Via the micro-USB interface, the data can be easily transferred to a computer and processed without the need of additional software. - Protective armouring
The protective armouring with two electrode holders guarantees safe working even in extreme environmental conditions at all times. The stand attached to the back of the housing can be used conveniently as a hanger or belt clip. - Additional features
The range of functions is completed by the status display for the rechargeable NiMH batteries, the self-diagnosis of the sensors and much more.
SPECIFICATION
| Display | Backlit LCD with graphical display |
| Data Logger | Manual logger by keystroke. Automatic logger, cyclic, time interval adjustable. |
| Power Supply | 3 NiMH-battery pack (AAA) Micro-USB |
| Portability | Portable |
| Compliance | CE RoHS WEEE |
| Dimensions | 3.94 x 6.46 x 1.46″ |
DOWNLOAD
SD 400 Oxi L
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technology
The SD 400 Oxi L uses optical luminescence technology. Your advantage: High measuring accuracy, fast response and absolutely user-friendly measuring. - Low maintenance
Thanks to luminescence technology, no electrolyte is needed. Regular refilling is therefore no longer necessary – and maintenance is reduced to a minimum. - Data management
By means of integrated software (“data logger”) the collection and analysis of data is simplified. - Suitable for “dilution BOD” determination
The electrode of the SD 400 Oxi L is optimized for standard BOD bottles (NS 19/26). The device is therefore ideally suited for standard-compliant BOD determination of the dilution BOD.
SPECIFICATION
| Measuring Principle | Optical DO |
| Measuring Range | Concentration: Oxygen 0 – 50 mg/l, Saturation: 0 – 500 %, Temperature: -5 to 50 °C, Presure: 51 to 112 kPa |
| Accuracy | Concentration: < 20 mg/l: ± 1% MW oder 0,1 mg/l > 20 mg/l: ± 10% MW Saturation: < 200 %: ± 1% MW oder 0,1 % > 200 %: ± 10% MW Temperature: ± 0,2 °C |
| Display | Large LCD display with backlight |
| Interfaces | Micro-USB |
| Data Logger | Software for monitoring and storage of data |
| External Storage | Micro SD card |
| Power Supply | Micro-USB 4 batteries (AA) |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 3.86 x 2.13 x 6.38″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SD 400 Oxi L (Set 1)
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technology
The SD 400 Oxi L uses optical luminescence technology. Your advantage: High measuring accuracy, fast response and absolutely user-friendly measuring. - Low maintenance
Thanks to luminescence technology, no electrolyte is needed. Regular refilling is therefore no longer necessary – and maintenance is reduced to a minimum. - Data management
By means of integrated software (“data logger”) the collection and analysis of data is simplified. - Suitable for “dilution BOD” determination
The electrode of the SD 400 Oxi L is optimized for standard BOD bottles (NS 19/26). The device is therefore ideally suited for standard-compliant BOD determination of the dilution BOD.
SPECIFICATION
| Measuring Principle | Optical DO |
| Measuring Range | Concentration: Oxygen 0 – 50 mg/l, Saturation: 0 – 500 %, Temperature: -5 to 50 °C, Presure: 51 to 112 kPa |
| Accuracy | Concentration: < 20 mg/l: ± 1% MW oder 0,1 mg/l > 20 mg/l: ± 10% MW Saturation: < 200 %: ± 1% MW oder 0,1 % > 200 %: ± 10% MW Temperature: ± 0,2 °C |
| Display | Large LCD display with backlight |
| Interfaces | Micro-USB |
| Data Logger | Software for monitoring and storage of data |
| External Storage | Micro SD card |
| Power Supply | Micro-USB 4 batteries (AA) |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 3.86 x 2.13 x 6.38″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SD 400 Oxi L (Set 2)
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technology
The SD 400 Oxi L uses optical luminescence technology. Your advantage: High measuring accuracy, fast response and absolutely user-friendly measuring. - Low maintenance
Thanks to luminescence technology, no electrolyte is needed. Regular refilling is therefore no longer necessary – and maintenance is reduced to a minimum. - Data management
By means of integrated software (“data logger”) the collection and analysis of data is simplified. - Suitable for “dilution BOD” determination
The electrode of the SD 400 Oxi L is optimized for standard BOD bottles (NS 19/26). The device is therefore ideally suited for standard-compliant BOD determination of the dilution BOD.
SPECIFICATION
| Measuring Principle | Optical DO |
| Measuring Range | Concentration: Oxygen 0 – 50 mg/l, Saturation: 0 – 500 %, Temperature: -5 to 50 °C, Presure: 51 to 112 kPa |
| Accuracy | Concentration: < 20 mg/l: ± 1% MW oder 0,1 mg/l > 20 mg/l: ± 10% MW Saturation: < 200 %: ± 1% MW oder 0,1 % > 200 %: ± 10% MW Temperature: ± 0,2 °C |
| Display | Large LCD display with backlight |
| Interfaces | Micro-USB |
| Data Logger | Software for monitoring and storage of data |
| External Storage | Micro SD card |
| Power Supply | Micro-USB 4 batteries (AA) |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 3.86 x 2.13 x 6.38″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
SD 400 Oxi L (Set 3)
DESCRIPTION
SPECIFICATION
DOWNLOAD
DESCRIPTION
- Modern technology
The SD 400 Oxi L uses optical luminescence technology. Your advantage: High measuring accuracy, fast response and absolutely user-friendly measuring. - Low maintenance
Thanks to luminescence technology, no electrolyte is needed. Regular refilling is therefore no longer necessary – and maintenance is reduced to a minimum. - Data management
By means of integrated software (“data logger”) the collection and analysis of data is simplified. - Suitable for “dilution BOD” determination
The electrode of the SD 400 Oxi L is optimized for standard BOD bottles (NS 19/26). The device is therefore ideally suited for standard-compliant BOD determination of the dilution BOD.
SPECIFICATION
| Measuring Principle | Optical DO |
| Measuring Range | Concentration: Oxygen 0 – 50 mg/l, Saturation: 0 – 500 %, Temperature: -5 to 50 °C, Presure: 51 to 112 kPa |
| Accuracy | Concentration: < 20 mg/l: ± 1% MW oder 0,1 mg/l > 20 mg/l: ± 10% MW Saturation: < 200 %: ± 1% MW oder 0,1 % > 200 %: ± 10% MW Temperature: ± 0,2 °C |
| Display | Large LCD display with backlight |
| Interfaces | Micro-USB |
| Data Logger | Software for monitoring and storage of data |
| External Storage | Micro SD card |
| Power Supply | Micro-USB 4 batteries (AA) |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 3.86 x 2.13 x 6.38″ |
| Weight with Packaging | (unit incl. batteries) |
DOWNLOAD
pH electrode, plastic/gel, type 226, without temperature sensor, BNC-plug
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
Highlights
- Dual ceramic diaphragm for fast response times even in water samples with low ionic conductivities (≥ 100 µS/cm)
- Gel electrolyte for low-maintenance
- Robust plastic housing
The SD pH electrode type 226 with gel electrolyte is not only low-maintenance, but also features fast response times. With the use of two ceramic diaphragms, measurements in water samples with low ionic conductivities are no longer a challenge. The robust plastic housing provides the necessary mechanical stability and protects the cylindrical glass membrane from breakage.
The pH electrode with BNC connection is suitable for all pH meters equipped with a BNC socket. Temperature compensation is achieved either by manual input into the meter or automatically by using a SD temperature sensor.
TECHNICAL DATA
| Measuring Range | 0 – 14 pH |
| Operating Temperature | -5 – 80 °C |
| Sensor Material | Glass Membrane |
| Sensor Shape | Cylinder |
| Reference | Ag/AgCl |
| Diaphragm | 2 x Ceramic |
| Electrolyte | Gel, 3 M KCl |
| Integrated Temperature Sensor | no |
| Outer Material | SAN |
| Connection | BNC |
| Length | 120 mm |
| Diameter | 12 mm |
| Cable Length | 1.5 m |
DOWNLOAD
Tab Content
Replacement electrode for SD 70 Con, SD 80 TDS, SD 90 Salt
DESCRIPTION
SPECIFICATION
DESCRIPTION
Highlights
- Precise determination of conductivity, TDS or salinity
- Low-maintenance and easy-care 2-pole graphite electrodes (K ≈ 1.0 cm-1)
- Integrated temperature sensor (reference temperature: 25 °C)
With the Lovibond® Pocket Tester you benefit not only from the simple operation, but also from the replaceable sensor unit.
The replacement electrode for the SD 70 – 90 Pocket Tester is equipped with two robust graphite electrodes that are easy to clean. The built-in temperature sensor ensures that the measured values are always referenced to 25 °C and are therefore not affected by temperature fluctuations. Use the electrode cover to protect the sensor from dirt and mechanical damage.
SPECIFICATION
| Measuring Range | < 20 mS/cm |
| Operating Temperature | 0 – 60 °C |
| Sensor Material | Graphite |
| Sensor Type | 2-Pole |
| Integrated Temperature Sensor | NTC 30 kΩ |
| Outer Material | ABS |
| Cell Constante | K ≈ 1,0 cm-1 |
Spare membrane for oxygen sensor
DESCRIPTION
SPECIFICATION
DESCRIPTION
Highlights
- Precise determination of conductivity, TDS or salinity
- Low-maintenance and easy-care 2-pole graphite electrodes (K ≈ 1.0 cm-1)
- Integrated temperature sensor (reference temperature: 25 °C)
With the Lovibond® Pocket Tester you benefit not only from the simple operation, but also from the replaceable sensor unit.
The replacement electrode for the SD 70 – 90 Pocket Tester is equipped with two robust graphite electrodes that are easy to clean. The built-in temperature sensor ensures that the measured values are always referenced to 25 °C and are therefore not affected by temperature fluctuations. Use the electrode cover to protect the sensor from dirt and mechanical damage.
SPECIFICATION
| Measuring Range | < 20 mS/cm |
| Operating Temperature | 0 – 60 °C |
| Sensor Material | Graphite |
| Sensor Type | 2-Pole |
| Integrated Temperature Sensor | NTC 30 kΩ |
| Outer Material | ABS |
| Cell Constante | K ≈ 1,0 cm-1 |
Spare membrane for oxygen sensor
DESCRIPTION
DESCRIPTION
The spare membrane is ideal for the maintenance of the Oxi 150 polarographic oxygen sensor. Instead of buying a new sensor, it is sufficient to replace the sensor tip at regular intervals.
Maintenance Kit (membrane cap and Micro SD card with calibration data)
DESCRIPTION
DESCRIPTION
The service set for the optical oxygen sensor type Oxi L 400 contains a long-life membrane head and a SD card with calibration data as well as a software package for data processing. The calibration data are specifically aligned to the respective luminophore covered membrane. A serial number on both SD card and membrane head helps to check for conformity.
Bottle for storage and calibration
DESCRIPTION
DESCRIPTION
Metal guard
DESCRIPTION
DESCRIPTION
This protective cap is ideal as a counterweight for depth measurements and as protection against mechanical damage.
Service Set for Oxygen sensor SD 300 / SD 315 Oxi consisting of 3 pcs. Spare Membrane Heads and 100 ml KOH (1.18 mol/l) Elektrolytle solution
DESCRIPTION
DESCRIPTION
The service set is ideal for maintenance and care of the galvanic oxygen sensor type Oxi 310. The set contains three replacement membranes with protective caps as well as a 100 ml KOH refill electrolyte in a practical dropper bottle.

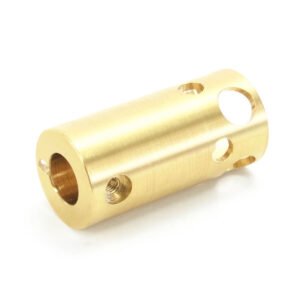

Protection cap for Oxygen sensor SD 310 / SD 315 Oxi for depth measurement (brass)
DESCRIPTION
DESCRIPTION
This protective cap is ideal as a counterweight for depth measurements and as protection against mechanical damage.
Power supply SensoDirect
SensoDirect pH 110 (Set)
DESCRIPTION
SPECIFICATION
DESCRIPTION
Highlights
- High measuring accuracy
- Light weight
- Protective casing
- Large digital display
High-quality, battery-operated handheld instrument for the determination of pH.
Variable in use and user-friendly in operation
Variable in use and user-friendly in operation
SPECIFICATION
- Different parameters
SensoDirect 110 series meters can be used to measure pH, salt and conductivity. - Housing
The protective armor does not guarantee a secure grip but also protection against falls. The stand attached to the back of the housing can also be used as a hanger or belt clip. - “Hold” function included
Data gained is virtually “frozen” on the display by this function. This not only makes it easier to read the results, it also improves reproducibility. - Automatic battery check
So you do not experience unpleasant surprises with the battery, the level is constantly monitored. This way, you can always change the battery in good time.
SensoDirect Salt 110 (Set)
DESCRIPTION
SPECIFICATION
DESCRIPTION
Highlights
- High measuring accuracy
- Light weight
- Protective casing
- Large digital display
High-quality, battery-operated handheld instrument for the determination of salt.
Variable in use and user-friendly in operation
Variable in use and user-friendly in operation
SPECIFICATION
- Different parameters
SensoDirect 110 series meters can be used to measure pH, salt and conductivity. - Housing
The protective armor does not guarantee a secure grip but also protection against falls. The stand attached to the back of the housing can also be used as a hanger or belt clip. - “Hold” function included
Data gained is virtually “frozen” on the display by this function. This not only makes it easier to read the results, it also improves reproducibility. - Automatic battery check
So you do not experience unpleasant surprises with the battery, the level is constantly monitored. This way, you can always change the battery in good time.
