Colourimeters/Photometers

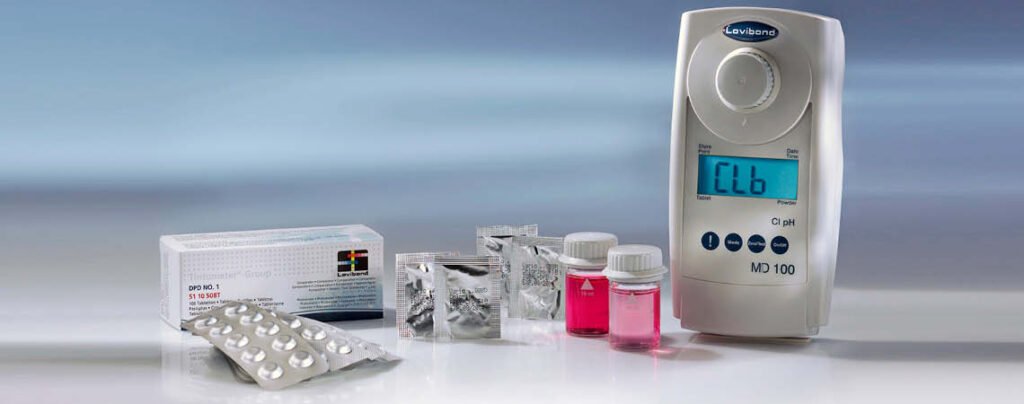

MD 100 Aluminium, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Aluminium, powder reagents
DESCRIPTION
Technical Data
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
Technical Data
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Ammonia, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Ammonia, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, liquid reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine DUO, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine DUO, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine HR (potassium iodide), tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine dioxide, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine dioxide, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chloride, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 COD, tube tests
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 16 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Iron, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Iron TPTZ, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Iron, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Fluoride (without reagents)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Hardness, total, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Urea, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Hazen/A.P.H.A., no reagents required
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Copper, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Copper, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Manganese LR, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Manganese LR, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Manganese HR, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Molybdenum LR, powder reagents/ tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Molybdenum HR, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Molybdenum, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Phosphate, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Phosphate, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Silica, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Silica LR, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Silica HR, powder reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Suspended solids, no reagents required
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, liquid reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, powder reagents for chlorine
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Cyanuric acid, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Cyanuric acid, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Alkalinity-m, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Alkalinity-m, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine LR, Chlorine HR, Chlorine dioxide, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Cyanuric acid, Alkalinity-m, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Cyanuric acid, Alkalinity-m, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine DUO, Chlorine HR, pH, Alkalinity-m, Calcium hardness (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, pH, Cyanuric acid, Alkalinity-m, Calcium hardness, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Chlorine, Bromine, pH, Cyanuric acid, Alkalinity-m, Calcium hardness, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Boiler Water
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 100 Cooling Water
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 100 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 100 utilizes LEDs and interference filters
which quickly gives you results that you can be confident in. You always measure in the spectral peak. - User Calibration Mode
A one-point calibration is possible.
Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test.
When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 100 automatically stores the last 16 readings with time and date stamp.
These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 100 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display.
If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need.
When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | Temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 COD
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Chlorine, pH, Cyanuric acid, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
DOWNLOAD
MD 110 Chlorine, pH, Cyanuric acid, liquid reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Chlorine, pH, Cyanuric acid, Alkalinity-m, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Chlorine, pH, Cyanuric acid, Alkalinity-m, liquid reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Chlorine, Bromine, pH, Cyanuric acid, Alkalinity-m, Calcium hardness, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Boiler Water
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 110 Cooling Water
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
The MD 110 has several key features that make it a favorite among users.
- Waterproof Design
The IP 68 design of this instrument ensures that the MD 110 remains water tight for up to 1 hour at 0.1 meter. Don’t worry about dropping the instrument into a body of water – it floats! - Accurate, Reproducible Results
The optical system of the MD 110 utilizes LEDs and interference filters which quickly gives you results that you can be confident in. - User Calibration Mode
A one-point calibration is possible. Additionally, all MD 110 instruments have the ability to display readings directly in ABS or %T units. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument. - Automatic Data Storage with Transfer Capabilities
The MD 110 automatically stores the last 16 readings with time and date stamp. These results can be transferred to a spreadsheet using the IRiM accessory. - Ergonomic Design
Whether you’re using the MD 110 out in the field or in the lab, the design of the instrument makes it easy to handle and view the display. If you’re using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench. - Factory Programmed
All MD 110 instruments are supplied ready to use with up to 14 calibration curves. All you need to do is select the test you need, prepare your sample and test! - Scroll Driven Menu System
The simple interface allows you to quickly reach the test you need. When the instrument is turned on, it will automatically display the last test used. - 2-Year Warranty
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Bluetooth |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 125 data sets |
| Power Supply | 4 micro batteries (AAA) |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 155 x 75 x 35 mm |
DOWNLOAD
MD 200 COD, tube tests
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Ozone, tablet reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, tablet reagents (OTZ)
MD 200 Chlorine, pH, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber Wavelength range: 430 nm IF Δλ = 5 nm 530 nm IF Δλ = 5 nm 560 nm IF Δλ = 5 nm 580 nm IF Δλ = 5 nm 610 nm IF Δλ = 6 nm 660 nm IF Δλ = 5 nm IF = interference filter |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 13 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Infrared |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software updates via Internet |
| Internal Storage | approx. 1000 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
MD 200 Chlorine, pH, liquid reagents (OTZ
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Copper (Biquinolin), pH, tablet reagents (OTZ
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Hydrogen peroxide, pH, liquid reagents
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Bromine, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber Wavelength range: 430 nm IF Δλ = 5 nm 530 nm IF Δλ = 5 nm 560 nm IF Δλ = 5 nm 580 nm IF Δλ = 5 nm 610 nm IF Δλ = 6 nm 660 nm IF Δλ = 5 nm IF = interference filter |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 13 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Infrared |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software updates via Internet |
| Internal Storage | approx. 1000 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Acid capacity KS4.3, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Acid capacity KS4.3, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Alkalinity-m, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Alkalinity-m, liquid reagents for Chlorine and pH (OTZ
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Acid capacity KS4.3, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Acid capacity KS4.3, liquid reagents for Chlorine and pH (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Alkalinity-m, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Alkalinity-m, liquid reagents for Chlorine and pH (OTZ
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Acid capacity KS4.3, Urea, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, Chlorine dioxide, pH, Acid capacity KS4.3, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Acid capacity KS4.3, Calcium hardness, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Alkalinity-m, Calcium hardness, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, Bromine, pH, Cyanuric acid, Acid capacity KS4.3, Calcium hardness, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, Bromine, pH, Cyanuric acid, Alkalinity-m, Calcium hardness, tablet reagents (OT
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 200 Chlorine, pH, Cyanuric acid, Alkalinity-m, Copper, Iron, tablet reagents (OTZ)
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Versatile use
The MD 200 photometer can be used in almost all areas of water analysis. - Precise and low maintenance
The high-precision optics, which in addition to long-term stable LEDs as light sources, also offer high-quality interference filters, ensure precise and reproducible measurement results. In addition, these components make the photometer low-maintenance. - User friendly
The devices impress with their ease of use, ergonomic design and compact dimensions, which makes handling the devices easy and safe. - Reagents
Use long-term stable Lovibond® reagent tablets (5-10 years guaranteed minimum durability) or Lovibond® liquid reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 610 nm Δλ = 6 nm |
| Wavelength Accuracy | ± 1 nm |
| Photometric Range | -2500 – 2500 mAbs |
| Photometric Accuracy | 3 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Auto – OFF | Yes |
| Calibration | Factory calibration and user calibration. Reset to factory calibration possible. |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 4 batteries (AA) |
| Battery Life Time | approx. 53 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | temperature: 5 – 40 °C rel. humidity: 30 – 90 % (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
DOWNLOAD
MD 600
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
TECHNICAL DATA
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
DOWNLOAD
MD 610
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber Wavelength range: 430 nm IF Δλ = 5 nm 530 nm IF Δλ = 5 nm 560 nm IF Δλ = 5 nm 580 nm IF Δλ = 5 nm 610 nm IF Δλ = 6 nm 660 nm IF Δλ = 5 nm IF = interference filter |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 13 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Bluetooth |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software updates via Internet |
| Internal Storage | approx. 500 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
MD 640
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Easy Access to new testing parameter and ranges
Never have an outdated instrument again! As additional test methods become available, the new software update is available as a free download on our website. - On-screen access to important test information
Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it’s easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. - No Need to memorize method numbers to access a testing method
The scroll-driven menu system allows you to navigate to the test you need without the need to memorize the test method number. In addition, a Users Favorite Menu can be defined so that the instrument displays only the testing methods you want to see, - Data Storage and Transfer Capabilities
Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. - Choice of Reagent Platforms
With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents. - Create User-Defined Calibration Curves
Have a proprietary testing method or a requirement to conform to a specific governmental or organizational standard method? Tired of converting ABS or %T values into meaningful values? It’s easy to create and store as many as 35 user-defined methods on the MD 600 series. Up to a 25 order polynomial along with test parameters such as wavelength, measuring range, unit type and number of decimals displayed can be defined and implemented. - Accurate, Reproducible Results
The optical system of the MD 600 series operates with six unique wavelengths. By utilizing LEDs and interference filters, the instrument quickly gives you results that you can be confident in. - One-time-Zero Function
Don’t waste time waiting for your instrument to Zero after each test. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber Wavelength range: 430 nm IF Δλ = 5 nm 530 nm IF Δλ = 5 nm 560 nm IF Δλ = 5 nm 580 nm IF Δλ = 5 nm 610 nm IF Δλ = 6 nm 660 nm IF Δλ = 5 nm IF = interference filter |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 13 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Bluetooth |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software updates via Internet |
| Internal Storage | approx. 500 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
MultiDirect with battery
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Dual Beam Technoloy and Interference Filters for highest accuracy
- A wide range of pre-programmed methods
- Long-term stable LEDsas light sources
- Update of new methods and languages via Internet (free of charge)
TECHNICAL DATA
| Optics | 6 temperature compensating LED, internal reference channel, photodiode in protected sample chamber 6 interference filters in one unit, λ 1 = 430 nm IF Δλ (nm) = 5, λ 2 = 530 nm IF Δλ (nm) = 5, λ 3 = 560 nm IF Δλ (nm) = 5, λ 4 = 580 nm IF Δλ (nm) = 5, λ 5 = 610 nm IF Δλ (nm) = 6, λ 6 = 660 nm IF Δλ (nm) = 5 IF = interference filter |
| Display | Graphic-display |
| Interfaces | RS 232 |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible feedback |
| Auto – OFF | Yes |
| Auto-Check | By pressing ON/OFF-key |
| Updates | Software and methods update by means of the internet |
| Internal Storage | approx. 1000 data sets with date, time and registration number |
| Power Supply | 7 NiMH-battery pack (AA/Mignon) Universal (90 – 240 VAC), via external power supply |
| Portability | Benchtop |
| Environmental Conditions | up to max. 90 % humidity (non condensing) approx. 5 – 40 °C |
| Compliance | CE |
| Dimensions | 265 x 70 x 195 mm |
| Weight with Packaging | (with rechargeable batteries) |
DOWNLOAD
MultiDirect, without battery
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Dual Beam Technoloy and Interference Filters for highest accuracy
- A wide range of pre-programmed methods
- Long-term stable LEDsas light sources
- Update of new methods and languages via Internet (free of charge)
TECHNICAL DATA
| ptics | 6 temperature compensating LED, internal reference channel, photodiode in protected sample chamber 6 interference filters in one unit, λ 1 = 430 nm IF Δλ (nm) = 5, λ 2 = 530 nm IF Δλ (nm) = 5, λ 3 = 560 nm IF Δλ (nm) = 5, λ 4 = 580 nm IF Δλ (nm) = 5, λ 5 = 610 nm IF Δλ (nm) = 6, λ 6 = 660 nm IF Δλ (nm) = 5 IF = interference filter |
| Display | Graphic-display |
| Interfaces | RS 232 |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible feedback |
| Auto – OFF | Yes |
| Auto-Check | By pressing ON/OFF-key |
| Updates | Software and methods update by means of the internet |
| Internal Storage | approx. 1000 data sets with date, time and registration number |
| Power Supply | 7 NiMH-battery pack (AA/Mignon) Universal (90 – 240 VAC), via external power supply |
| Portability | Benchtop |
| Environmental Conditions | up to max. 90 % humidity (non condensing) approx. 5 – 40 °C |
| Compliance | CE |
| Dimensions | 265 x 70 x 195 mm |
| Weight with Packaging | (with rechargeable batteries) |
DOWNLOAD
PM 600
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Big Memory
The devices of the PM 600 series store up to 1000 data sets. - Modern technology
Infrared (PM 600 / PM 620) or Bluetooth® (PM 630) are available for data transmission.
The PM 600 and PM 620 devices can be connected to the PC via a module, and the PM 630 can be connected to the AquaLX® app via Bluetooth®. - All important parameters
From A(lkalinity-m) to H(hydrogen peroxide), the most important pool parameters are measured.
Optionally, 10 (PM 600) or 34 parameters (PM 620 / PM 630) are available. - Illuminated display
Even in the dark, you can always measure: All devices have a backlit display, giving you more flexibility. - Flexibility
Choose from different dosage forms – tablet reagent, liquid indicator or powder reagent:
with the PM 600 series you can use all types of reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Infrared |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software-Updates via Internet |
| Internal Storage | approx. 1000 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Italian, Spanish, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
PM 620
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Big Memory
The devices of the PM 600 series store up to 1000 data sets. - Modern technology
Infrared (PM 600 / PM 620) or Bluetooth® (PM 630) are available for data transmission.
The PM 600 and PM 620 devices can be connected to the PC via a module, and the PM 630 can be connected to the AquaLX® app via Bluetooth®. - All important parameters
From A(lkalinity-m) to H(hydrogen peroxide), the most important pool parameters are measured.
Optionally, 10 (PM 600) or 34 parameters (PM 620 / PM 630) are available. - Illuminated display
Even in the dark, you can always measure: All devices have a backlit display, giving you more flexibility. - Flexibility
Choose from different dosage forms – tablet reagent, liquid indicator or powder reagent:
with the PM 600 series you can use all types of reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Infrared |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software-Updates via Internet |
| Internal Storage | approx. 1000 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Italian, Spanish, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
PM 630
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Big Memory
The devices of the PM 600 series store up to 1000 data sets. - Modern technology
Infrared (PM 600 / PM 620) or Bluetooth® (PM 630) are available for data transmission.
The PM 600 and PM 620 devices can be connected to the PC via a module, and the PM 630 can be connected to the AquaLX® app via Bluetooth®. - All important parameters
From A(lkalinity-m) to H(hydrogen peroxide), the most important pool parameters are measured.
Optionally, 10 (PM 600) or 34 parameters (PM 620 / PM 630) are available. - Illuminated display
Even in the dark, you can always measure: All devices have a backlit display, giving you more flexibility. - Flexibility
Choose from different dosage forms – tablet reagent, liquid indicator or powder reagent:
with the PM 600 series you can use all types of reagents.
TECHNICAL DATA
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber |
| Wavelength Accuracy | ± 1 nm |
| Photometric Accuracy | 2 % FS (T = 20 °C – 25 °C) |
| Suitable Vials | Multi vial 10 mm Round Cuvettes 16 mm Round Cuvettes 24 mm |
| Display | Graphic-display |
| Interfaces | Bluetooth |
| Operation | Acid and solvent resistant, touch-sensitive keypad with audible Feedback via integrated beeper |
| Auto – OFF | Yes |
| Updates | Software-Updates via Internet |
| Internal Storage | approx. 500 data sets |
| Power Supply | 4 batteries (Mignon AA/LR6) |
| Battery Life Time | approx. 26 h |
| Beeper | existing |
| Portability | Benchtop |
| Environmental Conditions | 5 – 40 °C at max. 30 – 90 % Conditions rel. humidity (non condensing) |
| Protection Class | IP 68 |
| Compliance | CE |
| Languages User Interface | German, English, French, Italian, Spanish, Portuguese, Polish, Indonesian |
| Dimensions | 95 x 45 x 210 mm |
DOWNLOAD
Scuba II
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Modern, ergonomic design
- User friendly handling
- Watertight housing*
- Large display
Floatable, waterproof and certainly a useful little helper for the pool: The Scuba II is for private pool owners the ideal companion for the bathing season. Measure the most important parameters and hold the results in your hands immediately.
TECHNICAL DATA
- Main pool parameters
Whoever as a private pool owner value accurate measurement results of the important pool parameters, such as Chlorine or pH sets, gets with the Scuba II an ideal test device to the hand. The device works intuitively and measures the most important pool parameters of free chlorine, total chlorine, bromine, pH, alkalinity-m and cyanuric acid. - Waterproof
And if the device falls into the water? No problem – the Scuba II is not only waterproof but also buoyant. - Integrated measuring chamber
Take a sample by immersing the measuring chamber in the instrument. - Fast results
Add a reagent and press “Test” button. The result is available within a few seconds. Or in other words: measuring like the pros.
DOWNLOAD
COD Set-Up MD 100
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- ST-COD sealed tubes ready for use
- Suppression of chloride interference up to 1000 mg/L (LR & MR) up to 10000 mg/L (HR)
- Mercury free tube tests,in absence of chloride interference
- 4 ranges:
- Low range: 3 – 150 mg/L, meets ISO 15705:2002
- Middle-low range: 15 – 300 mg/L, meets ISO 15705:2002
- Middle range: 20 – 1500 mg/L, meets ISO 15705:2002
- High range: 200 – 15000 mg/L
The Lovibond® COD Setups allow highly sensitive and precise water testing with minimum effort. They measure the ST-COD concentration by photometric detection employing a linear relationship between absorbance and concentration.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
TECHNICAL DATA
| Auto – OFF | Yes |
| Portability | Benchtop |
| Compliance | CE |
DOWNLOAD
COD Set-Up MD 110
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- ST-COD sealed tubes ready for use
- Suppression of chloride interference up to 1000 mg/L (LR & MR) up to 10000 mg/L (HR)
- Mercury free tube tests,in absence of chloride interference
- 4 ranges:
- Low range: 3 – 150 mg/L, meets ISO 15705:2002
- Middle-low range: 15 – 300 mg/L, meets ISO 15705:2002
- Middle range: 20 – 1500 mg/L, meets ISO 15705:2002
- High range: 200 – 15000 mg/L
The Lovibond® COD Setups allow highly sensitive and precise water testing with minimum effort. They measure the ST-COD concentration by photometric detection employing a linear relationship between absorbance and concentration.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
TECHNICAL DATA
| Auto – OFF | Yes |
| Portability | Benchtop |
| Compliance | CE |
DOWNLOAD
COD Set-Up MD 200
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- ST-COD sealed tubes ready for use
- Suppression of chloride interference up to 1000 mg/L (LR & MR) up to 10000 mg/L (HR)
- Mercury free tube tests,in absence of chloride interference
- 4 ranges:
- Low range: 3 – 150 mg/L, meets ISO 15705:2002
- Middle-low range: 15 – 300 mg/L, meets ISO 15705:2002
- Middle range: 20 – 1500 mg/L, meets ISO 15705:2002
- High range: 200 – 15000 mg/L
The Lovibond® COD Setups allow highly sensitive and precise water testing with minimum effort. They measure the ST-COD concentration by photometric detection employing a linear relationship between absorbance and concentration.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
TECHNICAL DATA
| Auto – OFF | Yes |
| Portability | Benchtop |
| Compliance | CE |
DOWNLOAD
COD Set-Up MD 600
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
Highlights
- ST-COD sealed tubes ready for use
- Suppression of chloride interference up to 1000 mg/L (LR & MR) up to 10000 mg/L (HR)
- Mercury free tube tests,in absence of chloride interference
- 4 ranges:
- Low range: 3 – 150 mg/L, meets ISO 15705:2002
- Middle-low range: 15 – 300 mg/L, meets ISO 15705:2002
- Middle range: 20 – 1500 mg/L, meets ISO 15705:2002
- High range: 200 – 15000 mg/L
The Lovibond® COD Setups allow highly sensitive and precise water testing with minimum effort. They measure the ST-COD concentration by photometric detection employing a linear relationship between absorbance and concentration.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
TECHNICAL DATA
| Auto – OFF | Yes |
| Portability | Benchtop |
| Compliance | CE |
DOWNLOAD
COD Set-Up MD 610
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- ST-COD sealed tubes ready for use
- Suppression of chloride interference up to 1000 mg/L (LR & MR) up to 10000 mg/L (HR)
- Mercury free tube tests,in absence of chloride interference
- 4 ranges:
- Low range: 3 – 150 mg/L, meets ISO 15705:2002
- Middle-low range: 15 – 300 mg/L, meets ISO 15705:2002
- Middle range: 20 – 1500 mg/L, meets ISO 15705:2002
- High range: 200 – 15000 mg/L
The Lovibond® COD Setups allow highly sensitive and precise water testing with minimum effort. They measure the ST-COD concentration by photometric detection employing a linear relationship between absorbance and concentration.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
After adding the sample to a Lovibond® COD tube test (LR, MR according to ISO 15705:2002), it is heated in the reactor for two hours at 150 °C and then analysed in the photometer.
The COD Setups comprise the photometer, 25 tube tests for each of the two lower measuring ranges, a reactor for sample digestion and a vial stand.
TECHNICAL DATA
| Auto – OFF | Yes |
| Portability | Benchtop |
| Compliance | CE |
DOWNLOAD
Waste Water Set-Ups
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Mobile photometer MD 600
- Memory capacity for 1,000 measurement results
- Data transmission via infrared & IRiM
- Thermoreactor RD 125 with 24 tube holes
Everything from a single source for your wastewater control: digestion of sample cuvettes with the RD 125 thermoreactor, reliable sample analysis with the MD 600 photometer including interference filter and 120 pre-programmed methods including cost-effective reagents with extended measuring ranges and ValidCheck standard solutions for COD determination. In addition, you can check all important parameters of wastewater control with appropriate tube tests – from ammonium, nitrate and nitrite to nitrogen and phosphate.
TECHNICAL DATA
| Portability | Benchtop |
DOWNLOAD
Waste Water Set-Up MD 610
DESCRIPTION
TECHNICAL DATA
DOWNLOAD
DESCRIPTION
- Mobile photometer MD 610
- Memory for 500 measurement results
- Data transmission via Bluetooth® and App AquaLX®
- Thermoreactor RD 125 with 24 tube holes
You have to react immediately to the daily control routine – no matter where and when? With the mobile photometer MD 610, you can call up, evaluate and share the measurement results of the wastewater directly on site on your smartphone or tablet with your team. The interference filters ensure increased reproducibility of the results. With 120 pre-programmed methods and memory space for around 500 measured values, you are flexible in your routine work. With the RD 125 thermoreactor with 24 holes for 16 mm tubes, precisely fitting reagents for COD measurement and the appropriate accessories, you get the complete waste water set-up from a single source and save costs.
TECHNICAL DATA
| Portability | Benchtop |
DOWNLOAD
