| SKU | HI99192 |
| Name | Drinking Water pH Portable Meter – HI99192 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of buffers (standard 4.01, 7.01,10.01 or NIST 4.01, 6.86, 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| pH Sensor Check | yes |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC2153 pre-amplified pH electrode with internal temperature sensor, DIN connector, 1 m (3.3’) cable |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Portable Meters
pH/ORP
ISE
EC/TDS/Salinity
Dissolved Oxygen
Multiparameter
Autosampler Titrators
Karl Fischer Titrators
Mini Titrators
Potentiometric Titrators
Benchtops
Checker Colorimeters
Portable Photometers
Spectrophotometers
Benchtops Turbidimeters
Portable Turbidimeters
Testers
Thermocouples
Thermistors
Pt100
Monitors
Backpacks Labs
Single Parameters
ABS Plastic
Stainless Steel
Monitors
Dataloggers
Controllers and Transmitters
Dosing Pumps
Mini Controllers
PCA Chlorine
Probes
Swimming Pool and Spa Controllers
pH
ORP
ISE
TDS
Dissolved Oxygen
Temperature
Multiparameter
Bluetooth
Photometric Probes
Checker HC
Chemical Test Kits
Photometers
Titration
Calibration Solutions
Fill Solutions
Storage Solutions
Cleaning Solutions
Sample Prep Solutions
ISE Solutions
Titration Solutions
CAL Check Standards
- Checker HC Colorimeters
- COD Meters
- Dissolved Oxygen
- ISE Meters
- Lab Supply
- Multiparameter Meters
- pH Meters
- Photometers
- Resistivity
- Testers
- Thermometers
- Titrators
- Turbidity Meters
Application Specific Portable Meters
Drinking Water pH Portable Meter - HI99192
Description
Additional information
Specifications
Download
Description
The pH of drinking water is a vital measurement. If the pH is too low, drinking water will be corrosive to the distribution system and water pipes in homes. The pH of water also influences other properties including taste, odor, clarity, and efficiency of disinfection. In the United States, the pH of water is determined by a meter according to EPA method 150.1 and Standard Methods 4500-H.
Measuring pH of water low in minerals is difficult. The lower the mineral content, the less conductive the water will be. Low conductivity water presents a challenge since the pH meter is an electrochemical system that relies on the solution being measured to be conductive.
Most drinking water plants use either surface water (lakes, rivers, and streams) or groundwater as their point source of water for treatment. Surface water is typically lower in mineral content, resulting in lower conductivity/TDS readings. Groundwater that has percolated through limestone, dolomite, or gypsum, and generally has a higher mineral content than surface water. However, there are sources of groundwater that are also very low in mineral content.
The HI99192 uses the FC2153 amplified pH electrode with glass body. This specialized electrode offers numerous features that improve pH testing in drinking water. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The probe’s spheric sensing tip has a wide surface area for measurement in aqueous solutions.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that allows for the flow of ions located in the reference cell into the sample being measured. The ions provide for an electrical connection between the reference electrode and the indicating electrode. A standard pH electrode will use a single ceramic junction that allows for 15 to 20 μL/hour of electrolyte to flow.
The FC2153 has three ceramic junctions providing for 40 to 50 μL/hour of electrolyte to flow. This increased flow provides a greater continuity between the reference electrode and the indicating electrode making it suitable for water of low ionic strength. To optimize the flow from the electrode the refill cap should be unscrewed so that it is open. This allows for positive head pressure to be created allowing for the electrolyte to flow more easily into the sample.
Glass Body
The glass body of the FC2153 is chemically resistant and quick to reach thermal equilibrium, allowing for a faster, more stable response.
Spherical Glass Tip
A large surface area provides optimal contact between the sensing bulb and aqueous milk sample.
Triple Ceramic Junction
Three ceramic junctions allow 40 to 50 μL/hour of electrolyte to flow. This increased flow provides a greater continuity between the reference electrode and the indicating electrode, making it suitable for water of low ionic strength.
Built-In temperature sensor
Automatic compensation of temperature variations
Features at-a-glance
Waterproof – The HI99192 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
Sensor Check – Using the pH‐mV range the user can check the sensor status by reading the mV reading in fresh buffers. At room temperature (25 ℃/77℉) the reading should be ±30 mV in pH 7.01 and greater than 150 mV difference between pH 7.01 and 4.01.
Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and probe condition.
Probe Condition Indicator – The probe condition indicator is based on the offset and slope characteristic of the electrode. There are 5 bars ranging from all 5 indicating the probe is in excellent condition and 1 bar indicating the probe should be cleaned or replaced.
Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional information
The Hanna Instruments HI99192 is a durable, waterproof, and portable pH and temperature meter designed specifically for measurement of drinking water. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99192 uses the FC2153 glass body, amplified pH electrode that offers numerous features which improve pH testing of drinking water. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
Download

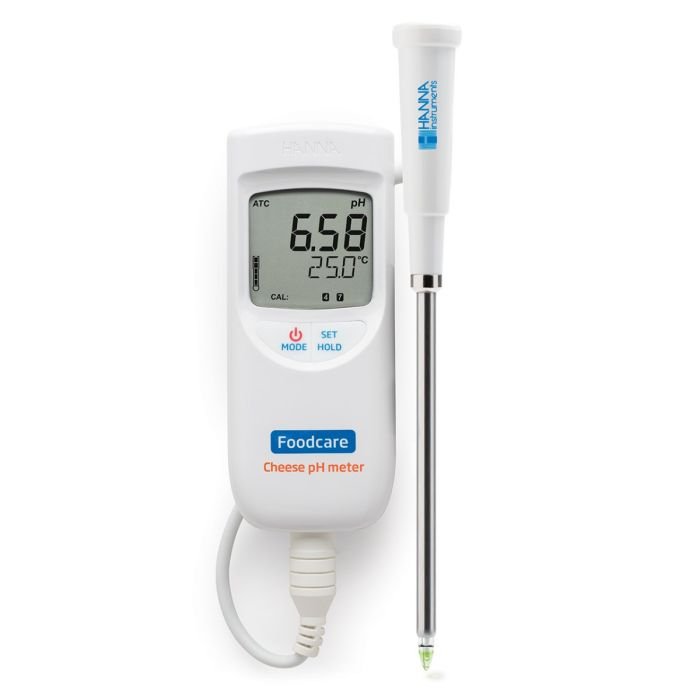

Portable Cheese pH Meter - HI99165
Description
Additional information
Specifications
Download
Description
pH is an essential measurement throughout the entire cheesemaking process. From the initial measurements of incoming milk to the final measurements of ripened cheese, pH is the most important parameter for cheese quality and safety control.
Acidification of milk begins with the addition of bacterial culture and rennet. The bacteria consume lactose and create lactic acid as a byproduct of fermentation. The lactic acid produced will cause the pH of the milk to go down. Once the milk reaches a particular pH, the rennet is added. The enzymes in rennet help to speed up curdling and create a firmer substance. For cheesemakers that dilute their rennet, the pH of the dilution water is also critical; water that is near pH 7 or higher can deactivate the rennet, causing problems with coagulation.
Once the curds are cut, stirred, and cooked, the liquid whey must be drained. The pH of whey at draining directly affects the composition and texture of the final cheese product. Whey that has a relatively high pH contributes to higher levels of calcium and phosphate and results in a stronger curd. Typical pH levels at draining can vary depending on the type of cheese; for example, Swiss cheese is drained between pH 6.3 and 6.5 while Cheddar cheese is drained between pH 6.0 and 6.2.
During brining, the cheese soaks up salt from the brine solution and loses excess moisture. The pH of the brine solution should be close to the pH of the cheese, ensuring equilibrium of ions like calcium and hydrogen. If there is an imbalance during brining, the final product can have rind defects, discoloration, a weakened texture, and a shorter shelf life.
Cheeses must fall within a narrow pH range to provide an optimal environment for microbial and enzymatic processes that occur during ripening. Bacterial cultures used in ripening are responsible for familiar characteristics such as the holes in Swiss cheese, the white mold on Brie rinds, and the aroma of Limburger cheese. A deviation from the ideal pH is not only detrimental to the ecology of the bacteria, but also to the cheese structure. Higher pH levels can result in cheeses that are more elastic while lower pH levels can cause brittleness.
The HI99165 uses the stainless steel FC2423 amplified pH electrode. This specialized electrode offers numerous features that improve pH testing for cheese producers. The robust stainless steel sheath paired with the conical sensing tip allows for penetration in cheese at various points throughout the production process. An integrated temperature sensor also ensures that all pH measurements are compensated for temperature without the need for a separate temperature probe.
Stainless Steel Body
The AISI 316 stainless steel body offers durability in the production facility and can withstand chloride concentrations that cause corrosion in other types of alloys..
Conic Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in samples such as cheese.
Built-In Temperature Sensor
Errors in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Features at-a-glance
Waterproof – The HI99165 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
Sensor Check – Using the pH‐mV range the user can check the sensor status by reading the mV reading in fresh buffers. At room temperature (25 ℃/77℉) the reading should be ±30 mV in pH 7.01 and greater than 150 mV difference between pH 7.01 and 4.01.
Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and probe condition.
Probe Condition Indicator – The probe condition indicator is based on the offset and slope characteristic of the electrode. There are 5 bars ranging from all 5 indicating the probe is in excellent condition and 1 bar indicating the probe should be cleaned or replaced.
Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional information
The Hanna Instruments HI99165 is a durable, waterproof, and portable Foodcare pH and temperature meter designed specifically for cheese analysis. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99165 uses the FC2423 stainless steel body, amplified pH electrode that offers numerous features that improve pH testing for cheese producers. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99165 |
| Name | Portable Cheese pH Meter – HI99165 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of buffers (standard 4.01, 7.01,10.01 or NIST 4.01, 6.86, 9.18) |
| pH Temperature Compensation | Automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| pH Sensor Check | yes |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC2423 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

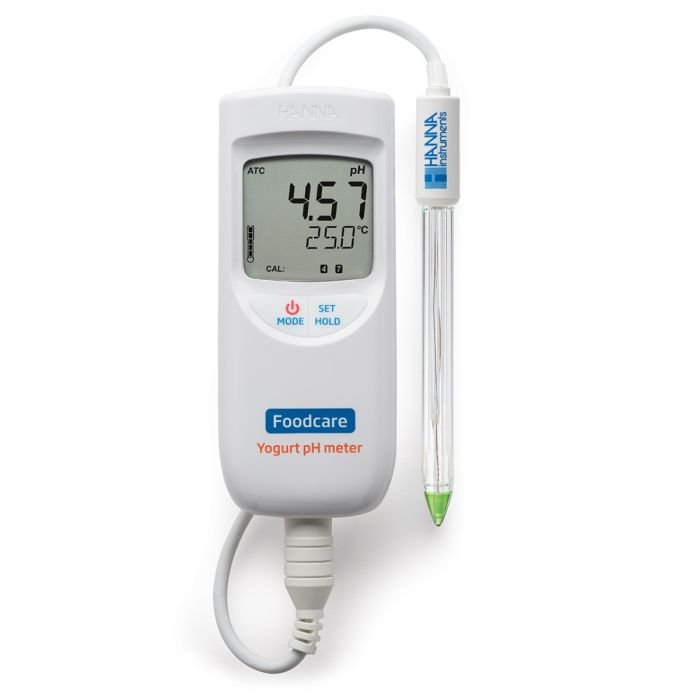

Portable Yogurt pH Meter - HI99164
Description
Additional Information
Specifications
Download
Description
Monitoring pH is crucial in producing consistent, quality yogurt. Yogurt is made by the fermentation of milk with live bacterial cultures. Most yogurt is inoculated with a starter culture consisting of Lactobacillus bulgaricus and Streptococcus thermophilus. Once the live culture is added, the mixture of milk and bacteria is incubated, allowing for fermentation of lactose to lactic acid. The pH of the mixture drops and becomes more acidic due to the lactic acid production; it is this reduction in pH causes the casein protein in milk to coagulate and precipitate, resulting in a yogurt-like texture.
Yogurt producers cease incubation once a specific pH level is reached. Most producers have a desired point between pH 4.0 and 4.6 in which fermentation is stopped by rapid cooling. Within this range of pH there is an ideal amount of lactic acid present for yogurt, giving it the characteristic tartness, aiding in thickening, and acting as a preservative against undesirable strains of bacteria.
By verifying that fermentation continues to a predetermined pH endpoint, yogurt producers can ensure their products remain consistent in terms of flavor, aroma, and texture. A deviation from the predetermined pH can lead to a reduced shelf life of yogurt or create a product that is too bitter or tart. Syneresis can also occur if fermentation is stopped too early or too late, resulting in yogurt that is respectively too alkaline or too acidic. Syneresis is the separation of liquid, in this case whey, from the milk solids. Consumers expect yogurt to remain texturally consistent, so ensuring fermentation is stopped at the appropriate pH is vital to consumer perception.
The HI99164 uses the FC2133 amplified pH electrode with glass body. This specialized electrode offers numerous features that improve pH testing for yogurt producers. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The probe’s conical sensing bulb ensures stable calibration and measurement in semi-solids and emulsions like yogurt.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that allows for the flow of ions located in the reference cell into the sample being tested. It is vital that this flow occurs in order to complete an electrical circuit, which ultimately determines the pH value. Any clogging of the junction will prevent completion of the circuit, resulting in readings that are erratic or constantly drifting.
Clogging of the reference junction is a common challenge faced by yogurt producers as the milk solids and proteins can easily build up on the electrode. The open junction design of the FC2133 utilizes a viscolene reference electrolyte that comes into direct contact with the yogurt sample. Without a physical junction, the electrode resists clogging and continues to provide accurate, stable readings.
Glass Body
The glass body of the FC2133 is chemically resistant and quick to reach thermal equilibrium, allowing for a faster, more stable response when taking pH measurements in samples that are not at ambient temperature.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in samples such as yogurt.
Open Junction Reference
The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.
Built-In Temperature Sensor
Errors in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Features at-a-glance
Waterproof – The HI99164 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
On-Screen Tutorial – Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional Information
The Hanna Instruments HI99164 is a durable, waterproof, and portable Foodcare pH and temperature meter designed specifically for yogurt analysis. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99164 uses the FC2133 glass body, amplified pH electrode that offers numerous features that improve pH testing for yogurt producers. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99164 |
| Name | Portable Yogurt pH Meter – HI99164 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC2133 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

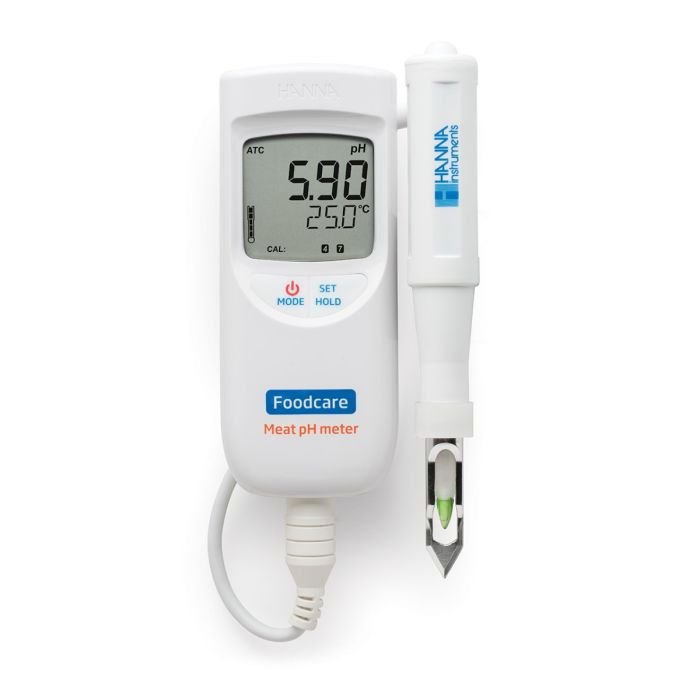

Portable Meat pH Meter - HI99163
Description
Additional information
Specifications
Download
Description
The FC2323 is an amplified pH electrode with a built-in temperature sensor. This probe is designed with low temperature (LT) glass, a conical tip shape, and is housed in a food grade PVDF body with a removable, piercing stainless steel blade. This electrode also features a unique open junction design in which there a viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell. The open junction design resists clogging and the probe’s conical tip makes it ideal for pH measurements in meat and semi-solid food samples.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.
Open Junction Reference
The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.
PVDF Body
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.
Features at-a-glance
- Automatic Temperature Compensation
- One or two-point automatic calibration
- BEPS – Alerts the user of low battery power that could adversely affect readings
- Compact, heavy-duty, and waterproof
- Battery % displayed on start-up
- HELP feature, displays tutorial messages on LCD
Additional information
The HI99163 is a portable Foodcare pH/temperature meter specially designed for the meat processing industry. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99163 uses the PVDF body FC2323 amplified pH electrode that offers numerous features to improve pH testing for meat processors. The probe comes with the FC099 removable stainless steel blade to help users perform non-intrusive measurements of meat products, inside and out. The free diffusion junction helps to avoid a clogged reference and the external body material is non-toxic and food compatible.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99163 |
| Name | Portable Meat pH Meter – HI99163 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC2323 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

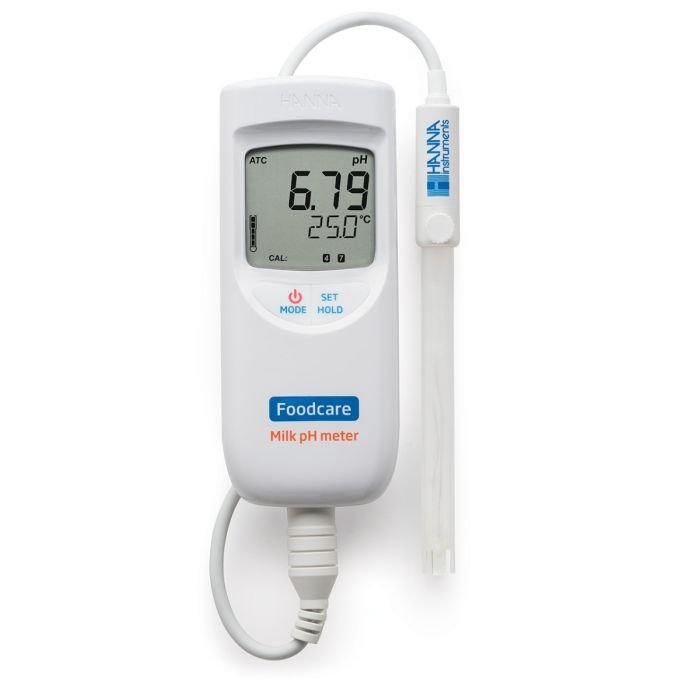

Portable Milk pH Meter - HI99162
Description
Additional information
Specifications
Download
Description
The measurement of pH in milk is important in testing for impurities, spoilage, and signs of mastitis infection. While there are a number of factors that affect the composition of milk, pH measurements can help producers understand what might be causing certain compositional changes. pH measurement is commonly performed at various points in a milk processing plant. Fresh milk has a pH value of 6.7. When the pH value of the milk falls below pH 6.7, it typically indicates spoilage by bacterial degradation. Bacteria from the family of Lactobacillaceae are lactic acid bacteria (LAB) responsible for the breakdown of the lactose in milk to form lactic acid. Eventually when the milk reaches an acidic enough pH, coagulation or curdling will occur along with the characteristic smell and taste of “sour” milk.
Milk with pH values higher than pH 6.7 potentially indicate that the milk may have come from cows with a mastitis infection. Mastitis is an ever-present challenge with dairy milking cows. When infected, the cow’s immune system releases histamine and other compounds in response to the infection. There is a resulting increase in permeability of endothelial and epithelial cell layers, allowing blood components to pass through a paracellular pathway. Sinceblood plasma is slightly alkaline, the resulting pH of milk will be higher than normal. Typically milk producers can perform a somatic cell count to detect a mastitis infection, but a pH measurement offers a quick way to screen for infection.
Understanding the pH of raw milk can also help producers optimize their processing techniques. For example, in operations that use Ultra High Temperature (UHT) processing, even small variations from pH 6.7 can affect the time required for pasteurization and the stability of the milk after treatment.
The HI99162 uses the FC1013 amplified pH electrode with PVDF body. This specialized electrode offers numerous features that improve pH testing for milk producers. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The contact between the bulb’s large surface area and the milk sample ensures a stable calibration and measurement.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that allows for the flow of ions located in the reference cell into the sample being tested. It is vital that this flow occurs in order to complete an electrical circuit, which ultimately determines the pH value. Any clogging of the junction will prevent completion of the circuit, resulting in readings that are erratic or constantly drifting.
The FC1013 probe utilizes a secondary reference chamber with ceramic outer junction allowing aqueous silver free electrolyte to flow slowly through the porous ceramic frit providing accurate readings for aqueous samples.
The durable PVDF body of the FC1013 ensures pH measurements can be safely taken on the dairy farm or production floor. The components of the electrode are also able to withstand a wider range of temperatures to allow for accuracy during stages such as pasteurization, which requires heating to temperatures near 72℃ (161℉).
PVDF Body
The food grade, PVDF body of the FC1013 is chemically resistant and durable for accurate, portable measurements.
Spheric Glass Tip
A large surface area provides optimal contact between the sensing bulb and aqueous milk sample.
Built-In Temperature Sensor
Errors in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Features at-a-glance
Waterproof – The HI99162 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
On-Screen Tutorial – Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional information
The Hanna Instruments HI99162 is a durable, waterproof, and portable Foodcare pH and temperature meter designed specifically for milk analysis. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99162 uses the PVDF body FC1013 amplified pH electrode that offers numerous features that improve pH testing for milk producers. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99162 |
| Name | Portable Milk pH Meter – HI99162 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of buffers (standard 4.01, 7.01,10.01 or NIST 4.01, 6.86, 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC1013 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

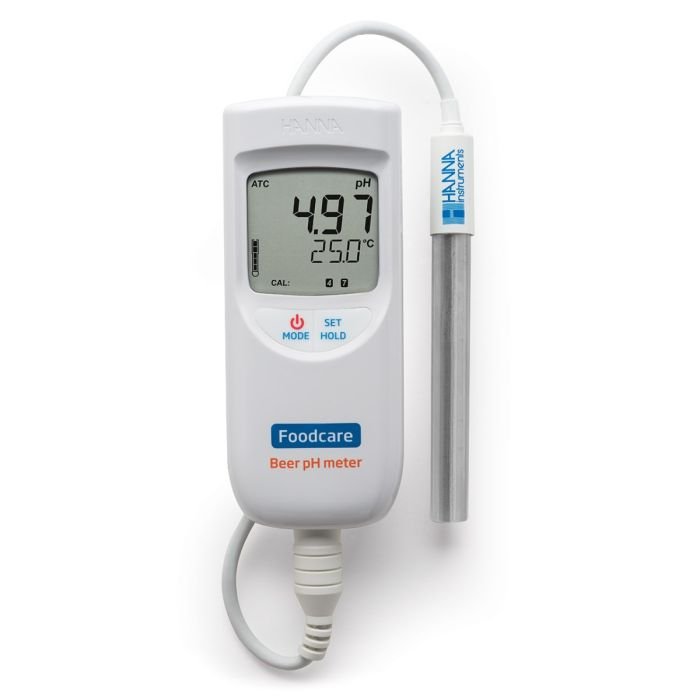

Beer Analysis pH Portable Meter - HI99151
Description
Additional information
Specifications
Download
Description
pH is measured at various points during the brewing process. This electrode is intended to measure the pH of the mash for the optimization of starch conversion. The enzymes required to convert the starch into sugar are pH-sensitive with an optimal pH range between 5.2 and 5.6 pH. Different compounds are used to adjust the pH including phosphoric acid, lactic acid, and gypsum.
Wort clarity and break formation are also affected by pH. Protein coagulation occurs during wort boiling, where the optimum pH is around 4.9, even though a common boil pH is 5.2. A pH that is too high will not only inhibit coagulation but also promote browning due to the interaction of amino acids and reducing sugars.
Hop utilization during the wort boil is also affected by pH. As pH increases, the solubility of hop resins increases. Unfortunately for hop lovers, a high pH also increases the release of tannins resulting in a harsher taste. Higher pH also favors elevated microbial activity.
As a living catalyst, yeast maintains a pH around 6.5 within its cells; however, the preference is to inhabit a more acidic environment. During the fermentation stage, the pH should be lower to accommodate the yeast and also to ensure microbial stability and consistent flavoring of the beer; an optimal pH range during fermentation is between pH 4.1 and 4.3.
This pH electrode can be used to measure the wort before and after boiling. It is important to note that if used after the boil that the wort be allowed to cool to below 80 ℃ (176 ℉) in order to prevent damaging the sensitive glass.
The HI99151 uses the FC2143 amplified pH electrode with titanium body. This specialized electrode offers numerous features that improve pH testing in beer. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The probe’s flat sensing tip has a wide surface area for measurement in aqueous solutions.
A typical pH electrode has a junction made of cloth material. This cloth material can be easily clogged by samples such as mash, which has a high solids content, or wort, which is viscous. With the cloth junction of the FC2143 it is possible to clear any obstruction by simply extracting 1/8″ of the junction from the electrode. This exposes a new, renewed portion.
Titanium Body
Titanium construction provides an unbreakable structure and allows the transfer of heat to the internal temperature sensor for rapid temperature compensation.
Cloth Junction
When readings are erratic or unstable, a small portion (1/8″) of the extendable cloth junction is pulled out to expose a fresh new surface.
Built-in Temperature Sensor
Error in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Features at-a-glance
- Waterproof – The HI99151 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
- Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
- Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
- Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- On-Screen Tutorial – Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
- Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
- Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional information
The Hanna Instruments HI99151 is a durable, waterproof, and portable pH and temperature meter designed specifically for beer analysis. Automatic calibration is performed at one or two points with two sets of buffers. All calibration and measurement readings are automatically compensated for temperature variations.
The HI99151 uses the FC2143 titanium body, amplified pH electrode that offers numerous features that improve pH testing for beer analysis. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99151 |
| Name | Beer Analysis pH Portable Meter – HI99151 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of buffers (standard 4.01, 7.01,10.01 or NIST 4.01, 6.86, 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV (pH?mV) |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC2143 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1200 hours of continuous use |
| IP Protection | IP67 |
| Environment | -5 to 50?C (23 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

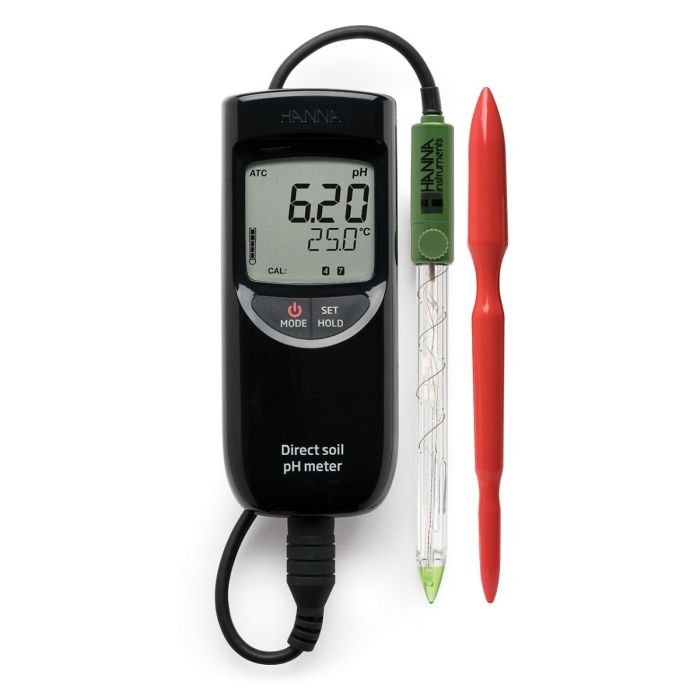

Direct Soil Measurement pH Portable Meter - HI99121
Description
Additional information
Specifications
Download
Description
Refillable
Turn cap to create positive head pressure allowing for more reference electrolyte to flow.
Built-In Temperature Sensor
Automatic compensation of temperature variations.
Amplified Electrode
Fast, stable response that is immune to electrical noise due to humidity.
Soil can be acid, neutral or alkaline, according to its pH value. Most plants prefer a pH range from 5.5 to 7.5; but some species prefer more acid or alkaline soils. Nevertheless, every plant requires a particular range of pH, for optimum growth.
pH strongly influences the availability of nutrients and the presence of microorganisms and plants in the soil. For example, fungi prefer acidic conditions whereas most bacteria, especially those supplying nutrients to the plants, have a preference for moderately acidic or slightly alkaline soils. In fact, in strongly acidic conditions, nitrogen fixing and the mineralization of vegetable residual is reduced. Plants absorb the nutrients dissolved in the soil water and the nutrient solubility depends largely on the pH value. Hence, theavailability of elements is different at different pH levels.
Each plant needs elements in different quantities and this is the reason why each plant requires a particular range of pH to optimize its growth. For example, iron, copper and manganese are not soluble in an alkaline environment. This means that plants needing these elements should theoretically be in an acidic type of soil. Nitrogen, phosphorus, potassium and sulfur, on the other hand, are readily available in a pH range close to neutrality. Furthermore, abnormal pH values, increase the concentration of toxic elements for plants. For example, in acid conditions, there can be an excess of aluminum ions in such quantities that the plant cannot tolerate. Negative effects on chemical and physical structure are also present when pH values are too far from neutral conditions (break up of aggregates, a less permeable and more compact soil).
The HI99121 meter features a large multi level LCD screen which displays both pH and temperature readings simultaneously with 0.01 pH resolution and an accuracy of ±0.02 pH. The LCD screen also has indicators for calibration status and stability, as well as on-screen tutorial messages. The HI99121 has many advanced features that are found in more expensive portable instrumentation including automatic calibration, buffer recognition, and temperature compensation. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available. The supplied HI12923 is a glass body, amplified pH electrode with a built-in temperature sensor designed specifically for measuring the pH in soils.
Features at-a-glance
- Automatic Temperature Compensation
- One or two-point automatic calibration
- BEPS – Alerts the user of low battery power that could adversely affect readings
- Compact, heavy-duty, and waterproof
- Battery % displayed on start-up
- HELP feature, displays messages on LCD
Note: Use the soil auger for stony ground to prevent damaging the glass probe.
For high accuracy and ensure the soil is wet use the HI7051M soil preparation solution.
Additional information
The HI99121 is the perfect portable pH meter for soil testing. With the HI99121 and HI12923 direct soil pre-amplified pH and temperature probe, users can test both the pH of soil directly or after preparation of a soil slurry with deionized water.
The HI12923 features a conical, rugged tip that can be directly inserted into moist or soft soil. For harder soils, the kit includes a plastic auger to perforate the ground.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
Specifications
| SKU | HI99121 |
| Name | Direct Soil Measurement pH Portable Meter – HI99121 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic ?5.0 to 105.0 ?C/23.0 to 221.0 ?F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH?mV) |
| mV Resolution | 1 mV |
| mV Accuracy | ?1 mV (pH?mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | HI12923 glass body, pre-amplified pH electrode for soil measurement with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use; auto-off after 8 minutes of non-use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
Download

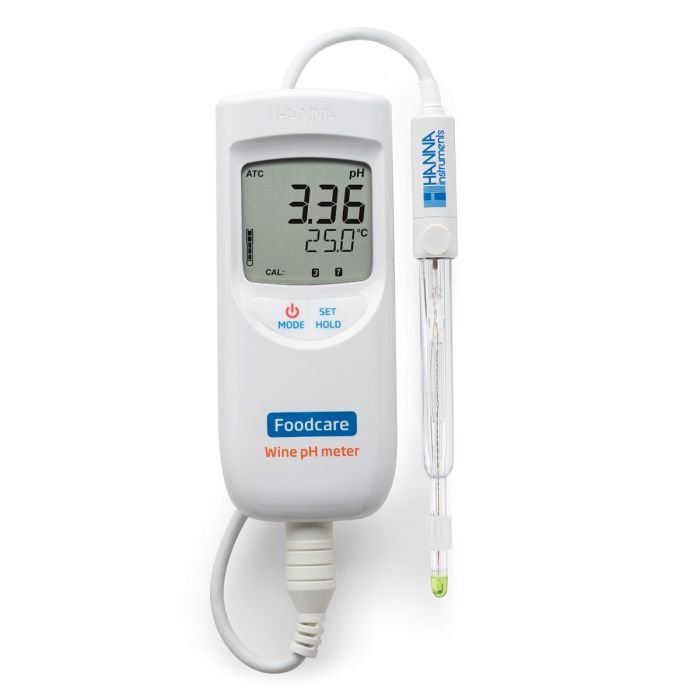

Portable Wine Must and Grape Juice pH Meter - HI99111
Description
Additional information
Specifications
Download
Description
The Importance of pH in Wine Making
The pH of wine is important to determine because it will affect the quality of the final product in terms of taste, color, oxidation, chemical stability and other factors. Generally in winemaking, the higher the pH reading, the lower amount of acidity in the wine. Three important factors in determining the pH of wine include the ratio of malic acid to tartaric acid, the amount of potassium, and the total amount of acid present.
Most wines optimally have a pH between 2.9 and 4.0, with values differing based on the type of wine. Values above pH 4.0 indicate that the wine may spoil quickly and be chemically unstable. Lower pH values allow the wine to stay fresher for a longer period and retain its original color and flavor. High pH wine is more likely to breed bacteria and become unsuitable to drink. For finished white wines, the ideal pH is between pH 3.00 and pH 3.30, while the final pH for red wine is ideally between pH 3.40 and pH 3.50. The optimal pH before the fermentation process is between pH 2.9 and pH 4.0. The pH of wine therefore not only affects the color of wine, but also the oxidation, yeast fermentation, protein stability and bacteria growth and fermentation.
The HI99111 uses the FC10483 amplified pH electrode with glass body. This specialized electrode offers numerous features that improve testing in grape juice and must. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The probe’s spheric sensing tip has a wide surface area for measurement in aqueous solutions.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that provides for an electrical connection between the reference electrode and the indicating electrode. A standard general-purpose pH electrode will use a single ceramic junction which can pose challenges when measuring samples with a high solids contents such as grape juice or must. The solids can easily clog the junction which will impede the electrical continuity between the reference cell and the sample.
The FC10483 use Clogging Prevention System (CPS) Technology in which a Polytetrafluoroethylene (PTFE) sleeve is used with an open junction design. The PTFE repels solids and is also movable to allow for cleaning.
Glass Body
The glass body of the FC10483 is chemically resistant and quick to reach thermal equilibrium, allowing for a faster, more stable response.
Spherical Glass Tip
The spherical shaped tip design allows for a wide area of contact with the measured sample. This permits a faster electrode response with a higher degree of stability.
CPS Sleeve Junction
Clogging Prevention System (CPS™) technology is an innovation for the improvement of pH measurements in samples that have a high solids content. Conventional pH electrodes use ceramic junctions that can clog quickly when used in samples that have a high solids content such as wine must or juice. When the junction is clogged, the electrode does not function. The CPS technology utilizes the porousness of ground glass coupled with a PTFE sleeve to prevent clogging of the junction. The ground glass allows proper flow of the liquid, while the PTFE sleeve repels solids. As a result, pH electrodes with CPS technology take up to 20 times longer to be fouled as compared to conventional electrodes.
Double Junction Reference
A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. This design prevents silver ions from reacting with any sulfides present in the sample that can cause the silver to precipitate and clog the junction. Clogging of the junction will result in drifty and erratic readings.
Built-In temperature sensor
Error in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Refilable
The FC10483 is a refillable probe. Since it is a double junction pH electrode the fill solution is the HI7082 3.5M KCl. This solution does not contain any silver as with single junction electrode.
Features at-a-glance
- Waterproof – The HI99111 is a waterproof meter rated IP67 for immersion in up to one meter of water for 30 minutes.
- Automatic Calibration – One or two-point calibration is automatic to two selectable buffer sets.
- Automatic Temperature Compensation – An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
- Multi-Level LCD Display – The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions.
- On-Screen Tutorial – Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
- Battery Error Prevention System – The meter will automatically shut off if there isn’t enough power to obtain an accurate measurement.
- Battery Life Indicator – The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
Additional information
The Hanna Instruments HI99111 is a durable, waterproof, and portable pH and temperature meter designed specifically for measurement of juices including grape juice and wine must. Automatic calibration is performed at one or two points with two sets of buffers. The calibration buffers include a pH 3.00 calibration point instead of pH 4.01 in order to better bracket the expected pH value. All calibration and measurement readings are automatically compensated for temperature variations. The split-level LCD displays both pH and temperature readings, along with indicators for reading stability, battery percentage, and calibration instructions. The HI99111 uses the FC10483 glass body, amplified pH electrode that offers numerous features that improve pH testing for a variety of juices with a high solids content.
- pH electrode with CPS Technology
- Automatic one or two-point calibration
- Waterproof
Specifications
| SKU | HI99111 |
| Name | Portable Wine Must and Grape Juice pH Meter – HI99111 |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ?0.02 pH; ?0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of buffers (standard 3.00, 7.01,10.01 or NIST 3.00, 6.86, 9.18) |
| pH Temperature Compensation | automatic from -5.0 to 105.0?C (23 to 221?F) |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ?825 mV (pH-mV) |
| mV Resolution | 1 mV (pH-mV) |
| mV Accuracy | ?1 mV (pH-mV) |
| Temperature Range | -5.0 to 105.0?C / 23.0 to 221.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C (up to 60?C); ?1.0?C (outside) / ?1?F (up to 140?F); ?2.0?F (outside) |
| pH Electrode | FC10483 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable: after 8 min, 60 min or disabled |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 195 g (6.91 oz.) |
Download
Professional GroLine Portable Soil pH Meter - HI98168
Description
Additional information
Specifications
Download
Description
Soil pH and HI98168 GroLine pH Meter
The measurement of pH in agricultural activities is very important due to the influence it has on the growth of the plant. Soil can be acid, neutral or alkaline, according to its pH value. Most plants prefer a pH range from 5.5 to 7.5; but some species prefer more acid or alkaline soils. Nevertheless, every plant requires a particular range of pH, for optimum growth
Besides being supplied with a unique pH electrode made for soil analysis, the HI98168 has the Hanna’s unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important since it is likely that the probe will be coated with soil. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data including with the readings stored in the meter or transferred to a PC.
ELECTRODE FEATURES/BENEFITS:
The HI12923 pH electrode that is supplied with the meter is uniquely designed with a conical tip and a triple ceramic junction for improved performance in soils that have a low moisture content. The probe has a built in amplifier to reduce noise from humidity that can effect the probe connection to the meter. The HI12923 connects to the HI98168 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment
Conical Tip
The conical tip is made of durable LT glass and allows for direct measurement in soils. In the case any rocks are present an auger is provided to make a hole for the probe.
Triple ceramic junction
The outer reference has three ceramic frits that allow electrolyte to flow at a high rate from the inside of the probe to the outside. A higher flow rate allows for a pH measurement of soil with low moisture
Refillable
As electrolyte is lost over time it can be replenished to extend the life of the electrode.
Quick Connect DIN Connector
This secure waterproof connector allows for a single cable to be used for both pH and temperature measurements
We believe that buying a meter should be simple. Your GroLine Portable Soil pH Meter is equipped with everything you need for successful testing right out of the box.
pH Calibration Solutions.
Before using your soil pH meter always make sure that your meter is calibrated with fresh buffer solutions and thats why your soil pH meter is supplied with pH 4.01 and pH 7.01 buffers.
Soil Preparation, Electrode Cleaning Solutions and other Accessories
We know the soil science and thats why we provide all the accessories to make your soil testing simple and accurate. Your soil pH meter is supplied with soil sample preparation solution, cleaning solution for soil deposits and ground auger. HI98168 also supplied with calibration vessel and beakers in the rugged carrying case and a USB cable to transfer data to PC.
Complete Package
The meter is supplied with a compact, durable HI720161 carrying case and is thermoformed to hold all necessary components for storage, including the meter and electrode, beakers, auger, soil preparation solution, buffer solutions, and cleaning solutions.
HI98168 FEATURES/BENEFITS:
Waterproof:
- Ergonomic, rugged, waterproof (IP67) design that can withstand harsh environments
Automatic Calibration :
- The HI98168 can be up to five points including with custom buffers. The calibration buffers are automatically recognized and after calibration the buffer values used are shown on the display
Calibration Check:
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination.
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
GLP Data:
- The GLP data can be reviewed at anytime including with logged reading. The calibration data includes date, time, pH calibration buffers, offset, and slope.
Dot Matrix LCD:
- The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.
Log on Demand:
- log-on-demand up to 100 samples (100 pH/100 mV)
PC Connectivity:
- sealed opto-isolated USB connected to PC with micro USB cable and PC running HI92000 software
Intuitive Dot Matrix Display:
- HI98168 is designed with a backlit, graphic LCD. With virtual keys, a battery status indicator, and error messages. Users will find the meter interface intuitive and easy to read. A dedicated help key provides information relating to the current meter operation, and can be used at any stage in the setup or measurement process to show contextual help.
Automatic buffer recognition:
Low battery indicator, and selectable automatic shut off.
- Auto shut off : user selectable: 5, 10, 30, 60 min or can be disabled
Additional information
The HI98168 is a rugged, waterproof, portable pH meter that allows for the direct measure of soil pH. This meter is supplied with a specialized pH electrode that has a rugged conical tip for insertion in soil
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98168 |
| Name | Professional GroLine Portable Soil pH Meter – HI98168 |
| pH Range | -2.0 to 20.0; -2.00 to 20.00; -2.000 to 20.000 pH |
| pH Resolution | 0.1; 0.01; 0.001 pH |
| pH Accuracy | ?0.1; ?0.01; ?0.002 pH |
| pH Calibration | up to five-point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0 ?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | automatic or manual from -20.0 to 120.0 ?C (-4.0 to 248.0?F) |
| pH Electrode | HI12923 refillable pH electrode with conical tip, internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Type | log-on-demand |
| Logging Memory | up to 200 samples (100 pH/100 mV) |
| Connectivity | opto-isolated USB |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| Display | LCD (back lighted display) |
| Battery Type/Life | 1.5V AA (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH 100% |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
Download

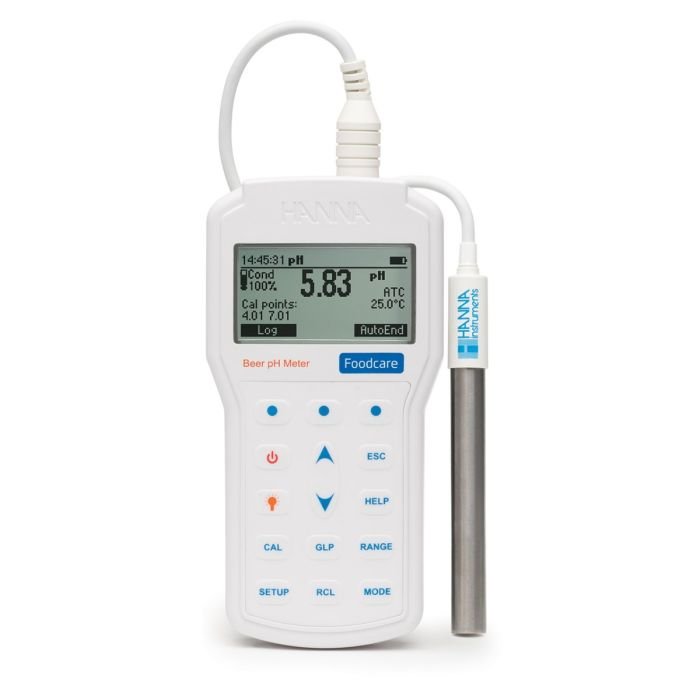

Professional Portable Beer pH Meter - HI98167
Description
Additional information
Specifications
Download
Description
The measurement of pH during the beer making process is important due to the effect it has on enzymatic activity in the mash, yeast activity in fermentation and the incorporation of flavoring components. Monitoring and controlling the pH allows for a consistent flavor profile and ensure a stable product. The brewer is faced with a number of challenges when measuring pH. The mash has a high content of semi-solids and sugars are formed from the conversion of starch by enzymatic activity. Both can pose problems including coating the glass and clogging the junction. The mash and cooled wort after boiling are typically above room temperature, which leads to the degradation of the sensitive glass. To overcome these challenges the HI 98167 beer pH meter is supplied with a uniquely design titanium body pH electrode.
The FC2143 pH electrode is a flat tip pH sensor made with specialized glass to provide a long life when measuring temperatures up to 80 ℃. A built in temperature sensor compensates for temperature variations and the probe has a cloth renewable junction that can be extracted to expose a fresh clean surface when readings become sluggish due to clogging. The probe has a built in amplifier and the titanium body that acts as a matching pin to reduce noise as a result from the effect that humidity has on probe connection to the meter. The FC2143 connects to the HI98167 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.
Besides being supplied with a unique pH electrode made for brewing, the HI98167 has the Hanna’s unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important for the brewer since it is likely that the probe will be coated with the solids, starch and sugars. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data including with the readings stored in the meter or transferred to a PC.
FC2143 pH ELECTRODE FEATURES/BENEFITS:
- Titanium Body – A pH measurement is a very sensitive voltage measurement that is susceptible to interference. To reduce this susceptibility the titanium body serves as a matching pin. A matching pin is a differential measurement technique used to eliminate electrical noise in the measurement system.
- Flat Tip pH Sensor – The flat tip sensor allows for easy cleaning of the pH sensing surface as solids from mash and cooled wort collect on the surface.
- Renewable Cloth Junction – The extractable cloth junction allows for the clearing any clogging from solids that would result in erratic readings. Simply pull 1/8″ (3 mm) to expose a fresh new surface of the junction resulting in fast and steady response.
- Quick Connect DIN Connector – This secure waterproof connector allows for a single cable to be used for both pH and temperature measurements.
The HI98167 Potable pH meter for beer has many other advanced features including automatic calibration, automatic buffer recognition, calibrated buffer tags, stability indicator, log on demand of readings, USB for PC connectivity, low battery indicator, and selectable automatic shut off. Other features include:
HI98167 pH METER FEATURES/BENEFITS:
- Waterproof – Ergonomic, rugged, waterproof (IP67) design that can withstand harsh environments.
- Automatic Calibration – The HI98167 can be up to five points including with custom buffers. The calibration buffers are automatically recognized and after calibration the buffer values used are shown on the display.
- Calibration Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
- GLP Data: The GLP data can be reviewed at anytime including with logged reading. The calibration data includes date, time, pH calibration buffers, offset, and slope.
- Dot Matrix LCD: The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.
Additional information
The HI98167 is a rugged, waterproof, portable pH meter that measures pH and temperature during the brewing process. This meter is supplied with a specialized titanium body pH electrode with a built in temperature sensor that is ideal for measuring the pH of mash, cooled wort and of the finished product.
- Quick Connect Din Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98167 |
| Name | Professional Portable Beer pH Meter – HI98167 |
| pH Range | -2.0 to 20.0; -2.00 to 20.00; -2.000 to 20.000 pH |
| pH Resolution | 0.1; 0.01; 0.001 pH |
| pH Accuracy | ?0.1; ?0.01; ?0.002 pH |
| pH Calibration | up to five-point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0 ?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | automatic or manual from -20.0 to 120.0 ?C (-4.0 to 248.0?F) |
| pH Electrode | FC2143 titanium body, flat tip pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Type | log-on-demand |
| Logging Memory | up to 100 samples (100 pH/100 mV) |
| Connectivity | sealed opto-isolated USB connected to PC with micro USB cable and PC running HI92000 software |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400g |
Download

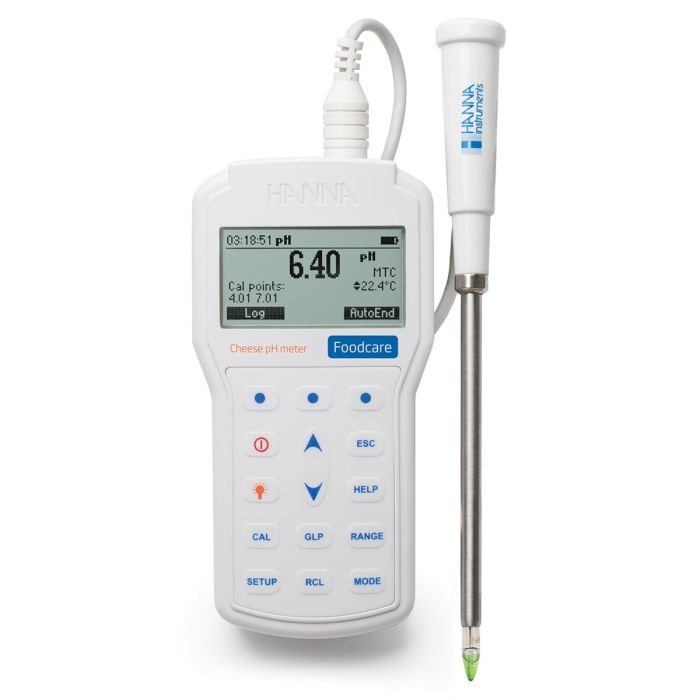

Professional Portable Cheese pH Meter - HI98165
Description
Additional information
Specifications
Download
Description
pH is an essential measurement throughout the entire cheesemaking process. From the initial measurements of incoming milk to the final measurements of ripened cheese, pH is the most important parameter for cheese quality and safety control.
Acidification of milk begins with the addition of bacterial culture and rennet. The bacteria consume lactose and create lactic acid as a byproduct of fermentation. The lactic acid produced will cause the pH of the milk to go down. Once the milk reaches a particular pH, the rennet is added. The enzymes in rennet help to speed up curdling and create a firmer substance. For cheesemakers that dilute their rennet, the pH of the dilution water is also critical; water that is near pH 7 or higher can deactivate the rennet, causing problems with coagulation.
Once the curds are cut, stirred, and cooked, the liquid whey must be drained. The pH of whey at draining directly affects the composition and texture of the final cheese product. Whey that has a relatively high pH contributes to higher levels of calcium and phosphate and results in a stronger curd. Typical pH levels at draining can vary depending on the type of cheese; for example, Swiss cheese is drained between pH 6.3 and 6.5 while Cheddar cheese is drained between pH 6.0 and 6.2.
During brining, the cheese soaks up salt from the brine solution and loses excess moisture. The pH of the brine solution should be close to the pH of the cheese, ensuring equilibrium of ions like calcium and hydrogen. If there is an imbalance during brining, the final product can have rind defects, discoloration, a weakened texture, and a shorter shelf life.
Cheeses must fall within a narrow pH range to provide an optimal environment for microbial and enzymatic processes that occur during ripening. Bacterial cultures used in ripening are responsible for familiar characteristics such as the holes in Swiss cheese, the white mold on Brie rinds, and the aroma of Limburger cheese. A deviation from the ideal pH is not only detrimental to the ecology of the bacteria, but also to the cheese structure. Higher pH levels can result in cheeses that are more elastic while lower pH levels can cause brittleness.
Cheese products can provide a number of challenges for the person that needs to measure pH. Cheese products tend to be solid to semi-solids. Both types of samples will coat the sensitive glass membrane surface and/or clog the reference junction. The FC2423 that is supplied with the HI98165 is designed specifically for measuring pH in cheese. From a conic tip shape in a durable 5 mm diameter stainless steel body for easy penetration into cheese without leaving a large hole to an open junction that resist clogging; the FC2423 is an ideal general-purpose pH electrode for cheese. The FC2423 connects to the HI98165 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.
The HI99165 uses the stainless steel FC2423 amplified pH electrode. This specialized electrode offers numerous features that improve pH testing for cheese producers. The robust stainless steel sheath paired with the conical sensing tip allows for penetration in cheese at various points throughout the production process. An integrated temperature sensor also ensures that all pH measurements are compensated for temperature without the need for a separate temperature probe.
Stainless Steel Body
The AISI 316 stainless steel body offers durability in the production facility and can withstand chloride concentrations that cause corrosion in other types of alloys.
Conic Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in samples such as cheese.
Built-In Temperature Sensor
Errors in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Besides being supplied with a unique pH electrode made for cheese, the HI98165 has the Hanna’s unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important for the food processor since it is likely that the probe will be coated with the solids found in the food product being measured. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage from 0 to 100% in increments of 10%. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data.
Pressing the “AutoHold” virtual key in measurement mode, the meter will freeze and automatically log a stable reading. An “out of calibration range” warning can be enabled that will alert the user when a reading is not within the bracket of calibrated pH values.
The log-on-demand mode allows the user to record and save up to 200 samples. The logged data, along with the associated GLP data, can then be recalled or transferred to a PC with Hanna’s HI920015 micro USB cable and HI92000 software for traceability in record keeping for specific product batches. GLP data includes date, time, calibration buffers, offset, and slope, and is directly accessible by pressing the dedicated GLP key.
A contextual help menu based on the screen that is currently being viewed can be accessed at any time by the press of a dedicated button.
The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.
The compact, durable HI720165 carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions and cleaning solutions.
On-Screen Features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
CalibrationpH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.
Features/Benefits:
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC2423 Foodcare pH/Temperature electrode
- Durable stainless steel body that is only 5 mm in diameter
- Conic tip shape for easy penetration into semi-solids
- Open junction design that resist clogging from food solids
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Additional information
The HI98165 is a rugged, waterproof, portable Foodcare pH meter that measures pH and temperature using the specialized FC2423 cheese pH electrode. This professional, waterproof meter complies with IP67 standards. The HI98165 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98165 |
| Name | Professional Portable Cheese pH Meter – HI98165 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ?0.1; ?0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Calibration | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Electrode | FC2423 Foodcare stainless steel body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH 100% |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
Download

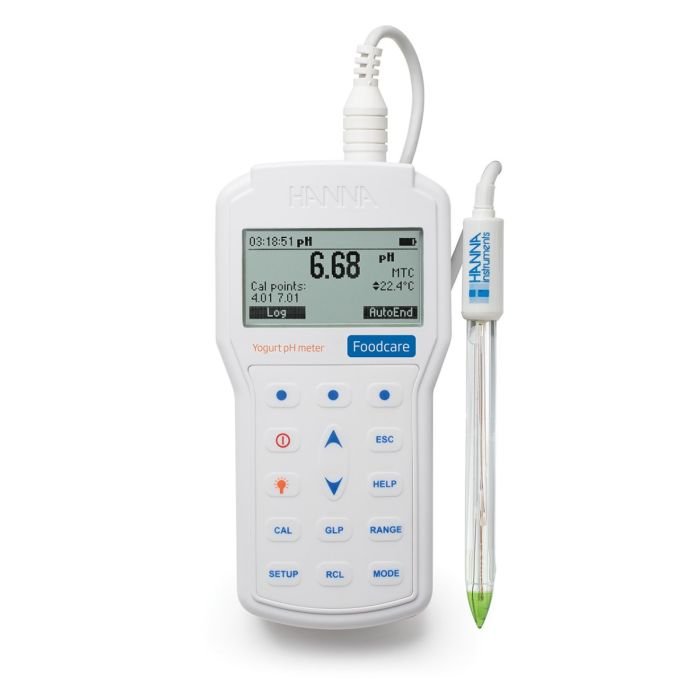

Professional Portable Yogurt pH Meter - HI98164
Description
Additional information
Specifications
Download
Description
Monitoring pH is crucial in producing consistent, quality yogurt. Yogurt is made by the fermentation of milk with live bacterial cultures. Most yogurts are inoculated with a starter culture consisting of Lactobacillus bulgaricus and Streptococcus thermophilus. Once the live culture is added, the mixture of milk and bacteria is incubated, allowing for fermentation of lactose to lactic acid. The pH of the mixture drops and becomes more acidic due to the lactic acid production; it is this reduction in pH causes the casein protein in milk to coagulate and precipitate, resulting in a yogurt-like texture.
Yogurt producers cease incubation once a specific pH level is reached. Most producers have a desired point between pH 4.0 and 4.6 in which fermentation is stopped by rapid cooling. Within this range of pH there is an ideal amount of lactic acid present for yogurt, giving it the characteristic tartness, aiding in thickening, and acting as a preservative against undesirable strains of bacteria.
By verifying that fermentation continues to a predetermined pH endpoint, yogurt producers can ensure their products remain consistent in terms of flavor, aroma, and texture. A deviation from the predetermined pH can lead to a reduced shelf life of yogurt or create a product that is too bitter or tart. Syneresis can also occur if fermentation is stopped too early or too late, resulting in yogurt that is respectively too alkaline or too acidic. Syneresis is the separation of liquid, in this case whey, from the milk solids. Consumers expect yogurt to remain texturally consistent, so ensuring fermentation is stopped at the appropriate pH is vital to consumer perception.
Yogurt can provide a number of challenges for the person that needs to measure pH. Yogurt is a semi-solid to slurry that has a very high solids content. This type of sample will coat the sensitive glass membrane surface and/or clog the reference junction. The FC2133 that is supplied with the HI98164 is designed specifically for measuring pH in yogurt. From a conic tip shape for easy penetration to an open junction that resist clogging; the FC2133 is an ideal general-purpose pH electrode for yogurt products. The FC2133 connects to the HI98164 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.
The FC2133 amplified pH electrode is a specialized probe that offers numerous features that improve pH testing for yogurt producers. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe. The probe’s conical sensing bulb ensures stable calibration and measurement in semi-solids and emulsions like yogurt.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that allows for the flow of ions located in the reference cell into the sample being tested. It is vital that this flow occurs in order to complete an electrical circuit, which ultimately determines the pH value. Any clogging of the junction will prevent completion of the circuit, resulting in readings that are erratic or constantly drifting.
Clogging of the reference junction is a common challenge faced by yogurt producers as the milk solids and proteins can easily build up on the electrode. The open junction design of the FC2133 utilizes a viscolene reference electrolyte that comes into direct contact with the yogurt sample. Without a physical junction, the electrode resists clogging and continues to provide accurate, stable readings.
Glass Body
The glass body of the FC2133 is chemically resistant and quick to reach thermal equilibrium, allowing for a faster, more stable response when taking pH measurements in samples that are not at ambient temperature.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in samples such as yogurt.
Open Junction Reference
The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.
Built-In Temperature Sensor
Errors in calibration and measurement are eliminated with the Automatic Temperature Compensation provided by the integrated temperature sensor.
Besides being supplied with a unique pH electrode made for yogurt, the HI98164 has the Hanna’s unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important for the food processor since it is likely that the probe will be coated with the solids found in the food product being measured. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage from 0 to 100% in increments of 10%. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data.
Pressing the “AutoHold” virtual key in measurement mode, the meter will freeze and automatically log a stable reading. An “out of calibration range” warning can be enabled that will alert the user when a reading is not within the bracket of calibrated pH values.
The log-on-demand mode allows the user to record and save up to 200 samples. The logged data, along with the associated GLP data, can then be recalled or transferred to a PC with Hanna’s HI920015 micro USB cable and HI92000 software for traceability in record keeping for specific product batches. GLP data includes date, time, calibration buffers, offset, and slope, and is directly accessible by pressing the dedicated GLP key.
A contextual help menu based on the screen that is currently being viewed can be accessed at any time by the press of a dedicated button.
The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.
The compact, durable HI720161 carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions and cleaning solutions.
On-Screen Features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
CalibrationpH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.
Features/Benefits:
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC2133 Foodcare pH/Temperature electrode
- Conic tip shape for easy penetration into semi-solids
- Open junction design that resist clogging from food solids
- Glass body that is easy to clean
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Additional information
The HI98164 is a rugged, waterproof, Foodcare portable pH meter that measures pH and temperature using the specialized FC2133 yogurt pH electrode. This professional, waterproof meter complies with IP67 standards. The HI98164 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98164 |
| Name | Professional Portable Yogurt pH Meter – HI98164 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ?0.1; ?0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Electrode | FC2133 Foodcare PVDF body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| Environment | 0 to 50?C (32 to 122?F); RH 100% |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
Download

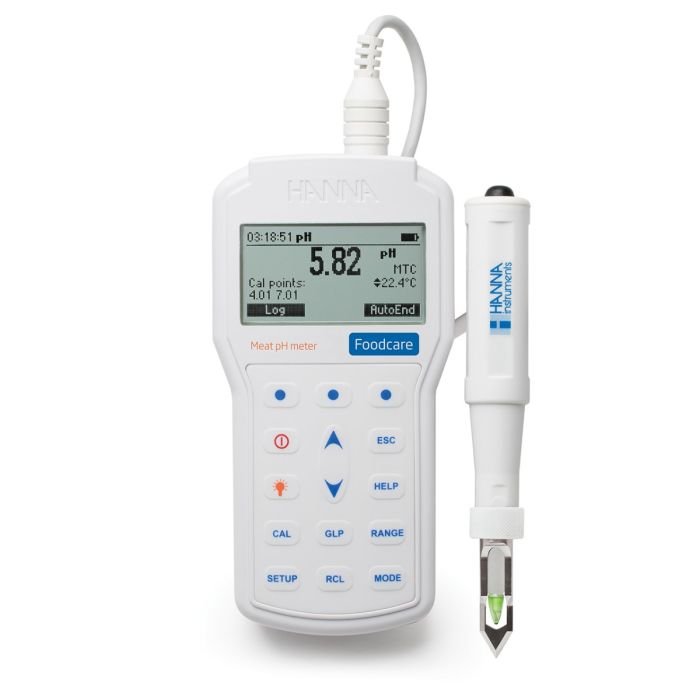

Professional Portable Meat pH Meter - HI98163
Description
Additional information
Specifications
Download
Description
In the meat processing industry, the monitoring of pH is considered to be of the utmost importance due to its effect on the meat’s quality factors including water binding capacity and shelf life. Upon slaughter, biochemical processes begin to break down the meat. Glycolysis begins post-mortem, converting glycogen to lactic acid, reducing the pH of the carcass. Depending on a number of factors such as type of animal and even breed, this decrease in pH can take anywhere from a single hour to many. It is vital to monitor pH during this phase as once the lowest pH value is reached, the pH will begin to slowly rise, indicating that decomposition has begun.
The pH value of meat influences its’ water binding capacity which directly impacts consumer qualities such as tenderness and color. Lower pH values result in a lower water-binding capacity and lighter colors. Factors such as these can be important when considering how to efficiently produce meat products. For example, when producing dry sausages the meat must have a low water binding capacity so that it can dry evenly.
Depending on the type of the final product and the steps required to get there, pH values will vary throughout the meat processing industry. It is imperative, regardless of the final product, that pH be maintained at a low value to prevent bacterial spoilage and comply with food safety regulations. By monitoring pH values throughout the meat production process, you can ensure the creation of consistent and safe meat products.
Meat products can provide a number of challenges for the person that needs to measure pH. Oils and solids from the meat can coat the sensitive glass membrane surface and/or clog the reference junction. The FC2323 that is supplied with the HI98163 is designed specifically for measuring pH in meat. Design considerations include a stainless steel piercing blade around conic tip shape probe for easy penetration, an open junction that resist clogging, and a Polyvinylidene Fluoride (PVDF) food grade plastic body that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth. The FC2323 is an ideal general-purpose pH electrode for meat that connects to the HI98163 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.
The FC2323 is an amplified pH electrode with a built-in temperature sensor. This probe is designed with low temperature (LT) glass, a conical tip shape, and is housed in a food grade PVDF body with a removable, piercing stainless steel blade. This electrode also features a unique open junction design in which there a viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell. The open junction design resists clogging and the probe’s conical tip makes it ideal for pH measurements in meat and semi-solid food samples.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.
Open Junction Reference
The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.
PVDF Body
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.
Besides being supplied with a unique pH electrode for meat, the HI98163 has the Hanna’s unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important for the food processor since it is likely that the probe will be coated with the solids found in the food product being measured. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage from 0 to 100% in increments of 10%. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data.
Pressing the “AutoHold” virtual key in measurement mode, the meter will freeze and automatically log a stable reading. An “out of calibration range” warning can be enabled that will alert the user when a reading is not within the bracket of calibrated pH values.
The log-on-demand mode allows the user to record and save up to 200 samples. The logged data, along with the associated GLP data, can then be recalled or transferred to a PC with Hanna’s HI920015 micro USB cable and HI92000 software for traceability in record keeping for specific product batches. GLP data includes date, time, calibration buffers, offset, and slope, and is directly accessible by pressing the dedicated GLP key.
A contextual help menu based on the screen that is currently being viewed can be accessed at any time by the press of a dedicated button.
The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.
The compact, durable HI720161 carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions and cleaning solutions.
On-Screen Features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.
Features/Benefits:
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC2323 Foodcare pH/Temperature electrode
- Body made of food grade PVDF plastic
- Piercing stainless steel blade for easy penetration into meats
- Open junction design that resist clogging from food solids
- Low temperature pH sensing glass suitable for refrigerated products
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Additional information
The HI98163 is a rugged, waterproof, Foodcare portable pH meter that measures pH and temperature using the specialized FC2323 meat pH electrode with a stainless steel piercing blade. This professional, waterproof meter complies with IP67 standards. The HI98163 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98163 |
| Name | Professional Portable Meat pH Meter – HI98163 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ?0.1; ?0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Electrode | FC2323 Foodcare PVDF body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH 100% |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
Download
Professional Portable Milk pH Meter - HI98162
Description
Additional information
Specifications
Download
Description
PVDF Body
The FC1013 pH electrode has a food-grade PVDF body that is durable and chemically resistant.
Spheric Glass Tip
A large surface area provides optimal contact between the sensing bulb and aqueous milk sample.
Built-In Temperature Sensor
A thermistor temperature sensor in the tip of the indicating pH bulb, providing the most accurate, temperature-compensated measurements
On-Screen Features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.
Contextual help at the press of a button
High contrast, graphic LCD screen is easy viewing in bright sunlight and low-lit areas
Five-point pH calibration with seven standard buffers and five custom buffers
Displays overall condition of the pH electrode after calibration based on the offset and slope characteristics
Calibration timeout to alert the user at a defined interval when the calibration has expired
AutoHold freezes displayed measurement reading when stable
GLP data including date, time, pH calibration buffers, offset, and slope
200 hour battery life with battery level displayed on measurement screen
PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC1013 Foodcare pH/Temperature electrode
- Body made of food grade PVDF plastic
- Refillable with silver free electrolyte
- Open junction design that resist clogging from food solids
- General purpose pH sensing glass suitable for a wide range of temperatures
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Additional information
The HI98162 is a rugged, waterproof, Foodcare portable pH meter to measure pH and temperature of milk products using the specialized FC1013 probe for milk products. Understanding the pH of raw milk can help producers optimize their processing techniques. Measuring milk pH helps identify impurities, spoilage, and signs of infection. This professional, waterproof meter complies with IP67 standards and comes with all of the necessary accessories to perform a pH/temperature measurement packaged in a durable thermoformed carrying case that holds the meter, probe, and calibration buffers securely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98162 |
| Name | Professional Portable Milk pH Meter – HI98162 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ?0.1; ?0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Electrode | FC1013 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50?C (32 to 122?F); RH 100% |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
Download
Professional Foodcare Portable pH Meter - HI98161
Description
Additional information
Specifications
Download
Description
The FC2023 is the ideal electrode to measure the pH of milk, yogurt, meats, cheeses, fruit, sushi, rice, jams, jellies, dough, ice cream, yogurt, beverages, and juice.
Conical Glass Tip
Made from low-temperature glass, the conical shaped tip facilitates penetration of solids, semi-solids, and emulsions to directly measure pH in food products including meat, cheese, yogurt, and milk.
Open Junction Reference
The open junction uses a solid gel interface (viscolene) between the sample and the internal Ag/AgCl reference, preventing silver from entering the sample, preventing clogging for a fast, stable reading.
PVDF Body
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, as well as abrasion, fungal growth, and ultraviolet and nuclear radiation.
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units, and language for help screens and guides.
Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time, offset, slope, and buffers used in the last calibration can be reviewed.
Contextual help at the press of a button
Five-point pH calibration with seven standard buffers and five custom buffers
Automatic Temperature Compensation (ATC)
Displays overall condition of the pH electrode after calibration based on the offset and slope characteristics
Calibration timeout to alert the user at a defined interval when the calibration has expired
AutoHold freezes displayed measurement reading when stable
GLP data including date, time, pH calibration buffers, offset, and slope
200 hour battery life with battery level displayed on measurement screen
PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Additional information
The HI98161 is a rugged, waterproof, portable pH meter that measures pH and temperature using the specialized FC2023 Foodcare pH electrode. This professional, waterproof meter complies with IP67 standards. The HI98161 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
Specifications
| SKU | HI98161 |
| Name | Professional Foodcare Portable pH Meter – HI98161 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ?0.1; ?0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH CAL Check (electrode diagnostics) | Yes |
| pH Input impedence | 10?? Ohms |
| mV Range | ?2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ?0.2 mV |
| Temperature Range | -20.0 to 120.0?C (-4.0 to 248.0?F) |
| Temperature Resolution | 0.1?C (0.1?F) |
| Temperature Accuracy | ?0.4?C (?0.8?F) (excluding probe error) |
| Temperature Compensation | manual or automatic from -20.0 to 120.0?C (-4.0 to 248.0?F) |
| pH Electrode | FC2023 Foodcare PVDF body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| Environment | 0 to 50?C (32 to 122?F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400gm |
Download
GroLine Hydroponics Waterproof pH/EC/TDS/Temperature Portable Meter - HI9814
Description
Additional information
Specifications
Description
Probe Condition
An on-screen indicator provides visual confirmation that your probe is working at its best.
Low Battery Indicator
The included batteries provide 600 hours of continuous use. When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
Automatic Shut-off
The auto-off feature can be set to shut the meter off at 8 or 60 minutes, or it can be disabled so that the meter continuously stays on. The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
Built to be Durable
Designed to withstand the knocks, drops, and spills of real life, the new IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.
Portable Design
Made to fit comfortably in your hand for on-the-go testing, the multilevel LCD display provides at-a-glance pH, EC/TDS, and temperature measurements from any angle and dual button operation streamlines the testing process for any user.
Quick Connect Probe
A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.
Your measurements require detailed attention; so should your electrode. The HI9814 Portable GroLine Meter features a replaceable HI1285-7 probe that has been carefully designed specifically for the pH, EC, and TDS analysis of hydroponic nutrient solutions.
Polypropylene Body
The polypropylene body of the HI11285-7 houses all three sensors within a sturdy, single body design. The plastic body protects the electrode from damage, is easy to clean, and is chemically resistant to many aggressive chemicals.
Pre-Amplified pH Electrode
The pH sensor in the probe is a single junction electrode with gelled electrolyte and a retractable cloth junction. When readings appear sluggish, simply pull out some of the cloth material to renew the junction with a fresh surface.
Amperometric EC/TDS Sensor
The EC/TDS portion is a two-ting probe that comes with the HI9814, offering an accurate solution for low range EC and TDS readings. An integrated temperature probe ensures fast, accurately compensated readings even during sudden temperature fluctuations.
We believe that buying a meter should be simple. Your Portable GroLine Meter is equipped with everything you need for successful testing right out of the box. Your meter, probe, and accessories are all neatly packaged in a rugged carrying case to ensure that you have everything you need for on-the-go testing.
Quick Calibration Solution Sachets (3)
A single calibration solution for pH and conductivity makes calibration fast and ensures all of your measurements are accurate each time for better plant health and better yield. The single-use sachets are individually sealed so you use fresh buffer each time you calibrate.
Electrode Cleaning Solution for Agricultural Applications Sachets (3)
Your GroLine Combo Meter comes with cleaning solution that has been engineered to keep your electrode free from debris found in soils. This concentrated combination of detergents cleans your meter quickly and effectively so that your meter stays in optimum condition
Additional information
The HI9814 is a slim, lightweight, waterproof, portable meter that measures the pH, conductivity (EC), total dissolved solids (TDS), and temperature of nutrient solutions used in hydroponics, aquaponics and greenhouse growing. The meter has two-button operation, one for turning the meter on/off and calibration while the other switches between the measurement modes. The HI9814 has advanced features including a selectable EC to TDS conversion factor (0.5 – 500 ppm and 0.7 – 700 ppm).
- 3 in 1 amplified probe with pH, EC/TDS and temperature sensors
- Quick Cal Mode to calibrate pH and EC/TDS with one solution
- EC to TDS Conversion factor selectable between 0.5 (500 ppm) and 0.7 (700 ppm)
Specifications
| SKU | HI12943 |
| Name | HI9814 GroLine pH Electrode for Direct Soil and Soiless Media – HI12943 |
| Reference Cell Type | single, Ag/AgCl |
| Junction Type/Flow Rate | ceramic, triple / 40-50 µL/h |
| Refill Electrolyte | 3.5M KCl + AgCl |
| Body Material | glass |
| Glass Type | low temperature (LT) |
| Tip / Shape | conic (12 x 12 mm) |
| Matching Pin | no |
| Max. Pressure | 0.1 bar |
| Optimum pH Range | pH: 0 to 12 |
| Temperature Operating Range | -5 to 70?C (23 to 158?F) – LT |
| Body Length/Overall Length | 120 mm / 175.5 mm |
| Temperature Sensor | yes |
| Outer Diameter | 12 mm |
| Cable | 7-pole; 1 m (3.3 in.) |
| Connector Type | quick connect DIN |
| Amplifier | yes |
| Recommended Use | direct soil pH measurement, soil samples, soil solution |
| Notes | This probe is only compatible with the HI9814 portable pH/EC/TDS meter. |
