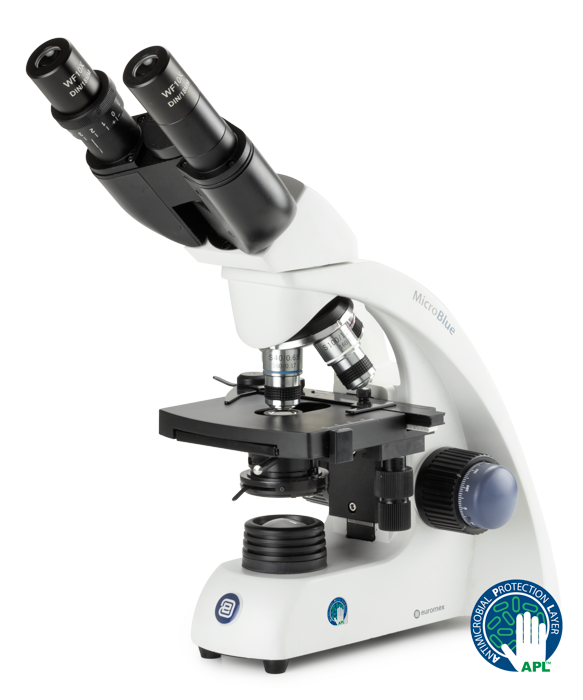

MicroBlue
Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling. High quality, yet affordably priced Euromex microscopes specifically match these demands due to the well-thought construction and usage of top-class materials
The modern MicroBlue is an entry-level microscope and is especially appreciated when budget is limited. The basic model comes with a fixed lens condenser and a plain stage. All models with an integrated mechanical stage are supplied with an Abbe condenser. All models are equipped with 35 mm achromatic objectives. The supplied rechargeable batteries enable cordless operation
MicroBlue LCD
The MicroBlue is also available with a 7” LCD screen. This microscopes has all the features of the regular MicroBlue but is standard equipped with a 7” HD LCD screen. This screen allows live viewing, save images and videos and even has a basic line measurement function included! The HD LCD screen models can only be operated as a stand-alone
EYEPIECE(S)
- Wide field WF 10x/18 mm eyepiece(s)
- Secured and with pointer for monocular versions
Photo’s (from left to right) Monocular head, binocular head, trinocular head, digital monocular head and digital LCD
HEAD
- Monocular models with 45° inclined tubes
- Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ± 5 diopter adjustment on left tube
- Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
- Two digital heads are available:
- An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels
- An integrated 5.0 MP 1/2.8” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels LCD version with 7” LCD screen
- All heads are 360° rotatable and secured
NOSEPIECE
Revolving nosepiece for three or four reversed objectives on ball bearings
OBJECTIVES 35 MM PARFOCAL
- Achromatic 4x/0.10, 10x/0.25 and S40x/0.65. Models with S60X or S100x oil immersion are also available
- The S40x, S60x and S100x oil immersion objectives are spring loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
STAGE
All models are supplied with 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage, except for the basic model MB.1001 which is supplied with a 105 x 105 mm stage and two non-removable clamps
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, except for the MB.1001 model and MB.1001-LCD models which are equipped with a single N.A. 0.65 condenser with built-in iris diaphragm
ILLUMINATION
- All monocular versions are supplied with an adjustable 1W LED illumination
- The binocular and trinocular versions are supplied with a replaceable 1 W NeoLED™ illumination system for increased light output
- All models are supplied with rechargeable batteries and with an external 100-240 V battery charger/mains adapter, however, LCD versions do not run on batteries
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: MB.9900 – AE.9918 – AE.9912
PACKAGE CONTENT
- Supplied with mains adapter-charger, three rechargeable AA batteries, white filter, dust cover, user manual and 5 ml immersion oil for models with an S100x objective. Software included for digital models
- USB-2 cable (except for the LCD models) and a micrometer 1mm/100 slide are included (only for digital camera models, the MB.1001-LCD and MB.1051-LCD are supplied without USB cable)
- External powersupply for LCD screen
- All packed in a polystyrene box
DIGITAL MODELS
1.3 MP CAMERA
- This model is equipped with a 1.3 MP CMOS USB-2 camera
- Maximum resolution 1272 x 952 , 24 bits color depth, up to 30 frames per second Delivered with ImageFocus 4 software
- Warranty for the camera is two years
SOFTWARE
- The ImageFocus 4 software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
- Measurements can be done on still and live image
- Compatible with Windows 10 and higher, both 32 and 64 bits configurations
- Mac OS-Light version is also available for capturing images
- Free updates can be downloaded on our website www.euromex.com
5.0 MP CAMERA
- This model is equipped with a 5.0 MP CMOS USB-2 camera
- Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
- Delivered with ImageFocus Plus software
- Warranty for the camera is two years
SOFTWARE
- The ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
- Images can be annotated and measurements can be performedin live or captured images
- Compatible with Windows 10 and higher, both 32 and 64 bits configurations
- Mac OS version is also available
- Free updates can be downloaded on our website www.euromex.com
LCD SCREEN
- 7” IPS LCD screen
- Screen resolution 1920 x 1080 @ 30 fps
- Save images and videos directly to micro SD card
- Image resolution upto 1844 x 1080 in JPEG format
- Video resolution 1280 x 720 AVI format
- Basic measurement function (line) with calibration. Calibration slide available as option
- Warranty for the screen is two years

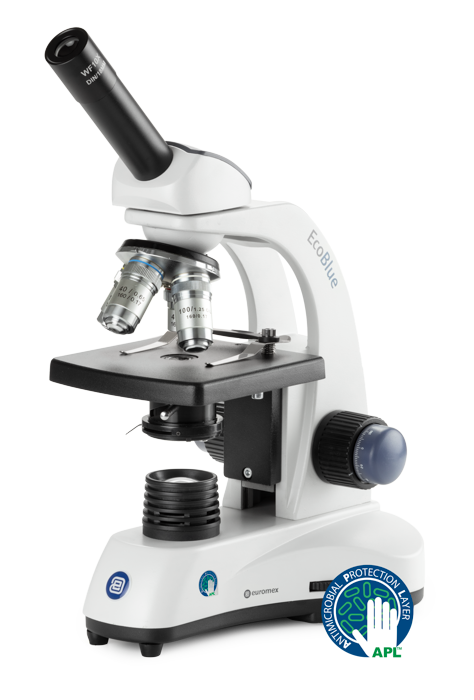

EcoBlue
The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling
The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives
EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer. The eyepieces of the binocular and trinocular models are supplied without pointer
HEAD
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable
• Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
• The EcoBlue can also be supplied with a discussion head
NOSEPIECE
• Revolving nosepiece for four objectives on ball bearings
• Models for polarization are supplied with swing-out analyzer
OBJECTIVES – 45 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• The HLED-S models for polarization are equipped with semi-plan objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
(Photo: EC.7004, EC.7010, EC.7020, EC.7040, EC.7060, EC.7000)
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective
STAGES
• Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available)
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps
CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment
ILLUMINATION
• Monocular models are supplied with an adjustable 1 W NeoLED™ illumination system
• Binocular and trinocular models are supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Models with plain stage without X-Y mechanical stage are supplied with integrated power supply, no recheargable batteries
• Models with an integrated XY mechanical stage are supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter
• The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum). With an integrated 100-240 V power supply, no recheargable batteries
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: AE.9918 – AE.9912
PACKAGING
• Supplied with power cord or mains adapter-charger, dust cover, spare fuse, user manual and 5 ml immersion oil for models with an S100x objective
• The EcoBlue models with external mains adapter and X-Y stage (EC.1x5x) are supplied with three rechargeable AA batteries
• All packed in a polystyrene box
DIGITAL MODELS
CAMERA
• All the EcoBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
• Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
• Delivered with the ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
• Warranty for the camera is 2 years
SOFTWARE
• Delivered with ImageFocus Plus for capturing of images and videos
• The capture and analysis ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats and videos in .avi format
• Images can be annotated and measurements can be performed on live or captured images
• Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
• A Mac OS version is also available
• Free updates can be downloaded from our website

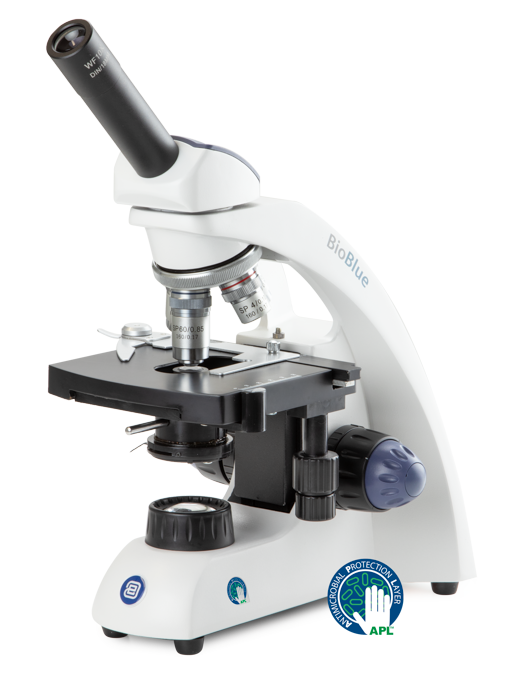

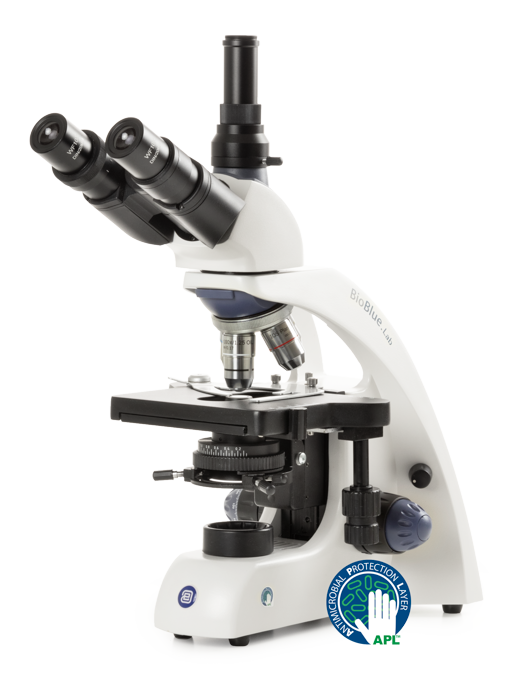

BioBlue
Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards
The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 µm precision positioning of the specimen
EYEPIECE(S)
- WF10x/18 mm Wide field
- Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
- Secured and with pointer for monocular models
- The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces
HEAD
- All heads are 360° rotatable and secured
- Monocular models with 45° inclined tubes
- Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
- Models with digital head are supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera
- Models supplied with a 7” LCD screen
- Optional discussion head available
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer
OBJECTIVES – 45 MM parfocal
- Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
- The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
(Photo: AE.5591, AE.5593, AE.5594, AE.5597, AE.5599, AE.5601)
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
- Total travel approximately 23 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustment is equipped with friction control
STAGE
- 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205
- These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps
- The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps
(Photo left: Rotatable stage for X-Y mechanical stage and polarizer on lamp house (AE.5155)
(Photo right: Optional polarization attachment with analyzer and slider)
POLARIZATION EQUIPMENT
The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp
POLARIZATION MODELS
- Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
- Equipped with analyzer, mounted in a slider under the head
- 360° Rotatable, graduated polarizer on the lamp house
- Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply
- Polarisation attachments for standard microscopes are available optionally
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
ILLUMINATION
- Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
- Monocular models are supplied with an adjustable 1W LED illumination
- The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum), rechargeable batteries with an integrated 100-240 V power supply. However 20 W halogen illumination is also available for polarization models on special request
- The EVO models are equipped with Köhler NeoLED™ illumination
- All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 Vac power supply for cordless operation. LCD versions do not run on batteries
DIGITAL MODELS
STORAGE AND TRANSPORTATION
from left to right: BB.4300 – AE.9918 – AE.9912
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
- Supplied with power cord, three rechargeable AA batteries, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective
- Polarisation models are supplied with a cross hair eyepiece for centering
- All packed in a polystyrene box

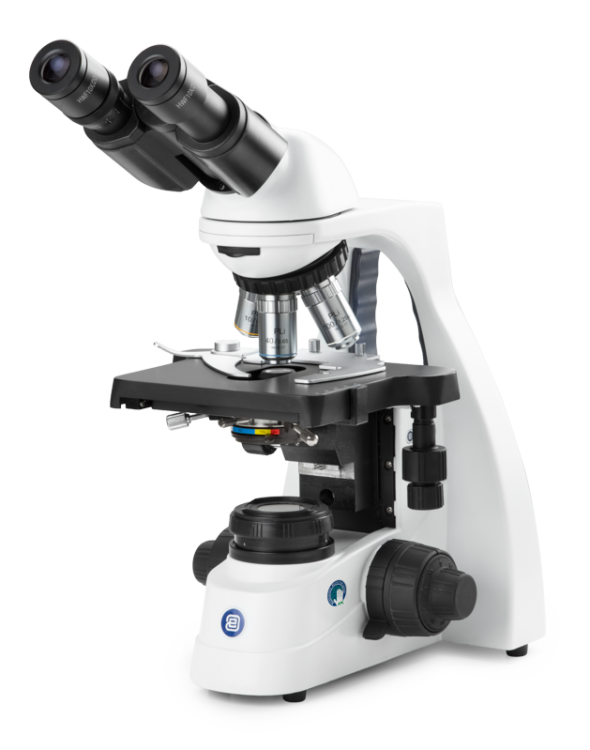

bScope
bScope
Versatile and evolutive!
The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field
The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage
EYEPIECE(S)
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer
HEAD
- The bScope is available with a monocular head (45° inclined Ø 23.2 mm tube) or with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes
- Binocular and trinocular models are equipped with a diopter ± 5 adjustment on left eyepiece
- The interpupillary distance is adjustable between 48 to 76 mm
- The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
- The trinocular head comes with a Ø 23.2 mm tube, ensuring a maximum of flexibility and has a fixed light path beam splitter (20:80) and generates an erect image
- Models with an integrated USB-2.0 camera are supplied with a 5.0 MP 1/2.5” CMOS sensor with a resolution of 2592 x 1944 pixels
NOSEPIECE
Revolving and reversed ball-beared quadruple or quintuple nosepiece
OBJECTIVES – 45 MM PARFOCAL
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
- Brightfield models: E-Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. Optional 60x/0.85 objective
- Phase contrast models: Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives
- Dark field conrast model: E-Plan finity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. The S100x objective is equipped with a built-in iris diaphragm. Optional 60x/0.85 objective
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
- The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
- The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with newly purchased microscopes.
CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
ZERNIKE CONDENSER FOR PHASE CONTRAST
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives in PLPHi phase contrast versions. Supplied with alignment telescope and green filter
CONDENSER WITH SLIDER(S) FOR PHASE CONTRAST
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for brightfield contrast. Phase contrast objectives in PLPHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, with an integrated high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this forms a 1000x magnification darkfield solution. The power supply of the 5 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
DARKFIELD EQUIPMENT
The BS.1153-EPL/DF is equipped with a darkfield oil immersion cardioïd mirror condenser with a integrated 3 W LED illumination and a plan PL S100x oil immersion objective with built-in iris
POLARISATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter
ILLUMINATIONThe microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available
NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
The Köhler illumination is optional for non-IOS models.
BSCOPE® DIGITAL
- Binocular model
- Integrated 5.0 MP CMOS color USB.2 camera
- 2592 x 1944 pixels
- 7 frames per second (2592 x 1944 pixels)
- 27 frames per second (1280 x 960 pixels)
- ImageFocus Alpha software
CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide
SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website
Further specifications are identical to the analog bScope® models.
CORDLESS USE
The optional rechargeable AA batteries turn the bScope into a cordless system.
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: BS.9900 – AE.9919 – AE.9916
PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
Phase contrast models are supplied with green filter and alignment telescope. An optional aluminum case can be supplied
BioBlue.Lab
BioBlue.Lab
The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications
The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions
EYEPIECES
Wide field WF 10x/20 mm eyepieces
HEAD
- Binocular and trinocular models have 30° inclined Ø 30 mm tubes
- The interpupillary distance is adjustable between 48 to 75 mm
- All models have a ±5 diopter adjustment on left tube
- All heads are 360° rotatable and secured with a screw
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Slot for analyzer
OBJECTIVES – 45 MM PARFOCAL
- BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
- Optional 20x/0.40 and S60x/0.85 objectives are also available
- The S40x, S60x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations
- Precision 1.5 μm per graduation, 0.3 mm per rotation
- Total travel approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage
CONDENSER
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter
- Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli, centering telescope and green filter
ILLUMINATION
Binocular and trinocular models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
Power supply with integrated 100-240 Vac
WEIGHT
The BioBlue.Lab weight is appr. 5.5 kg
STORAGE AND TRANSPORTATION
from left to right: BB.9900 – AE.9919 – AE.9916
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil and white filter
All packed in a polystyrene box
Achios-X Observer
State-of-the-art microscopes for advanced Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailored to meet the demands of advanced Life Science applications such as cytology and anatomopathology
EYEPIECE
With an extended field of view of 22 mm, the Achios-X Observer proves its usefulness by reducing the need of moving the specimen over the stage, which is highly appreciated in demanding applications
HEADS
An impressive line of heads to choose from:
Apart from the standard Siedentopf trinocular with 30° inclined tubes, there is the optional ergonomic tilting head (0° – 35°), the face-to-face dual head and last but not least, multi-head systems with 2, 3 or 5 heads
OBJECTIVES
The Achios-X observer comes with Infinity corrected achromatic Plan, Plan Phase or Plan Semi-Apochromatic EIS objectives and are 60 mm parfocal and have a M25 mounting thread
STAGE
The Achios-X Observer comes complete with a generously sized, hard coated, rackless mechanical stage, meticulously designed for enhanced safety. Free from any sharp edges protruding from the microscope’s sides, this stage ensures a secure and worry-free experience. Suitable for two slides and allows single handed placement of slides
FOCUSING
Coarse 37.7 mm per rotation, fine 0.2mm per rotation.
Division 0.002 mm, range 30 mm
CONDENSERS
Depending the configuration, the Achios-X Observer is supplied with
- Standard Abbe Condenser
- Zernike phase condenser includes telescope and green filter
- Swing-out Abbe Condenser
- Dark field condenser (Dry)
- Dark field condenser (Oil)
ILLUMINATION
The Köhler illumination of the Achios-X Observer provides the most uniformly illuminated and bright field of view
NOSEPIECE
Experience the ease of an intuitive quintuple or an optional sixtuple nosepiece on ball- bearings, equipped with gripped ring for effortless and precise rotation
LIGHT AND COLOR TEMPERATURE CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain four main benefits:
- More oblique light from the NeoLED™ light source can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
- Super long life span, up to 50.000 hrs nominal, L70 norm
PACKAGING
Supplied with power cord, dust cover, screwdriver, user manual and 5 ml immersion oil for models supplied with a 100x objective
Achios-X Observer fluorescence
State-of-the-art microscopes for routine Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Observer fluorescence, an ergonomic masterpiece featuring a 60 mm parfocal Enhanced Infinity optical system (EIS) for routine fluorescence applications
EYEPIECES
EWF 10x/22 mm eyepiece, with diopter adjustments on both tubes
HEADS
- Standard Siedentopf trinocular with 30° inclined tubes
- Ergonomic tilting head (0° – 35°)
NOSEPIECE
- A quintuple or an optional sixtuple nosepiece on ball- bearings, equipped with gripped ring.
- With 25 mm objectives mounting threads
OBJECTIVES – EIS 60 MM PARFOCAL
- Infinity corrected achromatic Plan EIS objectives*
- Infinity corrected achromatic Plan Semi-Apochromatic EIS objectives*
*M25 mounting thread
STAGE
The Achios-X Observer comes complete with a generously sized, hard coated, rackless mechanical stage, meticulously designed for enhanced safety
- Free from any sharp edges protruding from the microscope’s sides, this stage ensures a secure and worry-free experience
- Suitable for two slides and allows single handed placement of slides
- Stage, 230 x 150 mm X-Y and mechanical stage, 78 x 54 mm
FOCUSING
- Coarse 37.7 mm per rotation, fine 0.2mm per rotation.
- Division 0.002 mm, range 30 mm
CONDENSERS
Depending on the configuration, the Achios-X Observer fluorescence is supplied with a
- Standard Abbe condenser
- Swing-out Abbe condenser
SMART LIGHT CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the last used light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted between 3200 and 6700K and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure
ILLUMINATION
The Köhler illumination of the Achios-X Observer provides the most uniformly illuminated and bright field of view
ILLUMINATION FOR FLUORESCENCE
The fluorescence attachment of the Achios-X Observer™ is equipped with a 4-positions rotating mechanism that can be used to select between any of the 3 filter sets and brightfield (transmitted light). It is supplied with 3 dedicated LED sources to match the supplied fluorescence long pass filter sets for B, G and UV excitation
Supplied with UV shield and standard fluorescence filters sets for:
AX.9745 Blue excitation @ 485 nm with long pass filter set (EX 460-495 DM 505 EM 510 LP)
AX.9746 Green excitation @ 525 nm with long pass filter set (EX 510-550 DM 570 EM 575 LP)
AX.9748 UV excitation @ 365 nm with long pass filter set (EX 330-385 DM 410 EM 420 LP)
Power for fluorescence attachment is supplied by the microscope; no external power supply is required.
Other more specific band pass optimized fluorescence filter sets are also available
OPTIONAL FLUORESCENCE FILTER SETS
AX.9750.FITC FITC standard band pass filter set (EX 460-495 DM 505 EM 510-550)
AX.9750.39002 FITC optimized band pass filter set (EX 465-495 DM505 EM 515-555)
AX.9750.49000 FITC zero-shift optimized band pass filter set (EX 450-490 DM495 EM 500-550)
AX.9750.49011 FITC zero-shift optimized band pass filter set (EX 460-500 DM 510 EM 510-560)
AX.9750.DAPI DAPI band pass filter set (EX 360-390 DM 415 EM 435-485)
AX.9750.39000 DAPI band pass filter set (EX 361-389 DM 415 EM435-485)
AX.9750.49000 DAPI band pass filter set (EX 325-375 DM 400 EM435-485)
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain four main benefits:
- More oblique light from the NeoLED™ can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
- Super long life span, up to 50.000 hrs nominal, L70 norm
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
PACKAGING
Supplied with power cord, orange protection shield, dust cover, screwdriver, user manual and 5 ml immersion oil for models supplied with a 100x objective
Achios-X Observer metallurgical
For advanced materials science applications
The ergonomic design and cutting-edge optics of the Achios-X Observer make it the perfect choice for advanced materials science applications. With 22 mm field of view eyepieces, semi-pan apochromatic and plan apochromatic objectives, the Achios-X Observer delivers exceptional color fidelity and high-resolution imaging for precise and reliable observations for Materials science applications
EYEPIECES
EWF 10x/22 mm eyepiece, with diopter adjustment, Ø 30 mm
HEADS
- Standard Siedentopf trinocular with 30° inclined tubes, with 50:50 beamsplitter
- Ergonomic tilting head (0° – 35°) with 50:50 beamsplitter
- Interpupillary distance 47-78 mm
NOSEPIECE
- A quintuple nosepiece on ball- bearings, equipped with gripped ring.
- With 26 mm objectives mounting threads
OBJECTIVES – BRIGHTFIELD/DARKFIELD
- Plan Semi apochromatic Infinity corrected 5/10/20x IOS objectives
- Plan apochromatic Infinity corrected 50/100x IOS objectives
Plan Semi-Apo (PL-SAMi) | 5x/0.15, WD 20 mm | 10x/0.30, WD 11 mm | 20x/0.45, WD 3.1 mm | ||
Plan Apo (PL-AMi) | 50x/0.80, WD 1 mm | 100x/0.90, WD 1 mm* |
* Optional
All objectives are IOS 45 mm parafocal and have a M26 mm mounting thread.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
- 238 x 140 mm rackless hard coated stage with 78 x 54 mm X-Y mechanical stage
- A glass inlay and a metal inlay
FOCUSING
Coarse travel 18 mm, fine adjustment 0.2 mm per rotation with 0.002 mm divisions
ILLUMINATION
- The Achios-X Observer materials science microscope is equipped with adjustable Epi and Diascopic intensity adjustable 3 W NeoLED illumination
- With external 100-240 Vac power supply
- A rotating cassette allows quick selection between reflected darkfield/brightfield and transmitted brightfield
LIGHT AND COLOR TEMPERATURE CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure
NeoLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to:
- collect more oblique light from the NeoLED™ light source, which increases the light output significantly
- consume less energy for a higher level of light intensity
- produce images at higher resolutions due to the larger aperture of the NeoLED™
- achieve a longer life span, up to 50.000 hrs nominal, L70 norm
LONG WORKING DISTANCE CONDENSER
In height adjustable long working distance N.A. 0.65 condenser with numerical aperture identification marks
POLARIZATION
The microscope comes with an analyzer and a polarizer, which can easily be inserted into the free slots of the Epi-Illuminator
DIFFERENTIAL INTERFERENCE CONTRAST (DIC)*
The DIC-module shows differences in height of structures, which – ordinarily – cannot be displayed using only brightfield technique. These relief-like images are ideal for surface inspections of wafers, LCD screens etc.
* Optional
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length onto the back of the instrument during operation, and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
PACKAGING
Supplied with power cord, analyzer, polarizer, dust cover, a spare fuse, user manual and universal tool. All packed in a polystyrene box
bScope
Versatile and evolutive!
The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field
The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer
HEAD
- The bScope is available with a monocular head (45° inclined Ø 23.2 mm tube) or with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes
- Binocular and trinocular models are equipped with a diopter ± 5 adjustment on left eyepiece
- The interpupillary distance is adjustable between 48 to 76 mm
- The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
- The trinocular head comes with a Ø 23.2 mm tube, ensuring a maximum of flexibility and has a fixed light path beam splitter (20:80) and generates an erect image
- Models with an integrated USB-2.0 camera are supplied with a 5.0 MP 1/2.5” CMOS sensor with a resolution of 2592 x 1944 pixels
NOSEPIECE
Revolving and reversed ball-beared quadruple or quintuple nosepiece

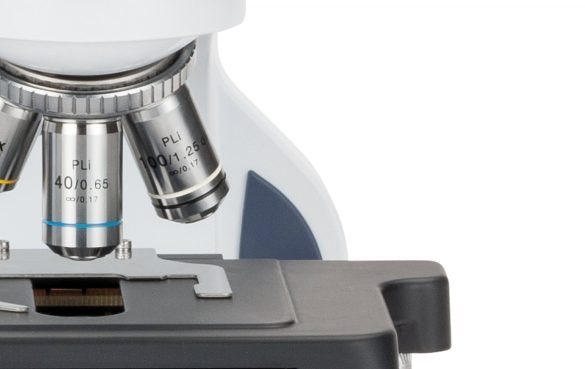

OBJECTIVES – 45 MM PARFOCAL
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
- Brightfield models: E-Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. Optional 60x/0.85 objective
- Phase contrast models: Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives
- Dark field conrast model: E-Plan finity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. The S100x objective is equipped with a built-in iris diaphragm. Optional 60x/0.85 objective
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
- The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
- The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with newly purchased microscopes
CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
ZERNIKE CONDENSER FOR PHASE CONTRAST
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives in PLPHi phase contrast versions. Supplied with alignment telescope and green filter
CONDENSER WITH SLIDER(S) FOR PHASE CONTRAST
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for brightfield contrast. Phase contrast objectives in PLPHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, with an integrated high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this forms a 1000x magnification darkfield solution. The power supply of the 5 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
DARKFIELD EQUIPMENT
The BS.1153-EPL/DF is equipped with a darkfield oil immersion cardioïd mirror condenser with a integrated 3 W LED illumination and a plan PL S100x oil immersion objective with built-in iris
POLARISATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter
ILLUMINATION
The microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available
NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
The Köhler illumination is optional for non-IOS models
BSCOPE® DIGITAL
- Binocular model
- Integrated 5.0 MP CMOS color USB.2 camera
- 2592 x 1944 pixels
- 7 frames per second (2592 x 1944 pixels)
- 27 frames per second (1280 x 960 pixels)
- ImageFocus Alpha software
CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide
SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website
Further specifications are identical to the analog bScope® models
__________
CORDLESS USE
The optional rechargeable AA batteries turn the bScope into a cordless system
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: BS.9900 – AE.9919 – AE.9916
PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
Phase contrast models are supplied with green filter and alignment telescope. An optional aluminum case can be supplied
bScope fluorescence
The bScope® microscope for fluorescence microscopy is equipped with four monochromatic FluoLEDs
The microscopes are supplied with routine fluorescence filter sets and dichroic mirrors for excitation in the blue, green, violet and ultraviolet spectral regions
EYEPIECES
Wide field HWF 10x/22 mm secured eyepieces (Ø 30 mm tube)
HEAD
- The bScope® is equipped with a Siedentopf type head and equipped with 30° inclined Ø 30 mm tubes and with a ± 5 diopter adjustment on left eyepiece. The interpupillary distance is adjustable between 48 to 76 mm
- The trinocular head comes with a Ø 23.2 mm photo tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
NOSEPIECE
Revolving and reversed ball-bearing quintuple nosepiece
OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope® objectives enable the bScope® to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
- Plan infinity corrected PLi 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85 and S100x/1.25 oil immersion IOS objectives for applications where violet or Ultra-Violet excitation is not needed
- Plan Fluarex infinity corrected PLFi 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/0.90 IOS objectives for applications where either higher resolving power or violet or ultra-violet excitation is needed
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum
light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.1 µm, 200 µm per rotation, total travel range is approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
The bScope® is equipped with a scratch-resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder. The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
CONDENSER FOR ZERNIKE PHASE CONTRAST
The height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives are available in either EPL-PHi or PL-PHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR SIMPLE PHASE CONTRAST
The height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives, or a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser includes a BF position for brightfield contrast with an iris diaphragm and filter holder. Phase contrast objectives available in either EPL-PHi or PL-PHi version. Supplied with alignment telescope and green filter
POLARIZATION
The bScope® has an integrated slot above the nosepiece for an optional polarization filter
FLUORESCENCE ATTACHMENT
- Epi-illumination with four 5 W LEDs for fluorescence excitation from 450 to 470 nm (blue), 515 to 535 nm (green), 390 to 400 (violet) and 360 to 370 nm (ultraviolet). External 100-240 V power supply
- Supplied with UV protection shield
- Fluorescence filter sets:
NEOLED™ TRANSMITTED ILLUMINATION
The 3 W adjustable Köhler NeoLED™ transmitted illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the bScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating life span
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. Generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
CORDLESS USE
The optional rechargeable batteries turn the bScope® into a cordless system for transmitted illumination
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
Smart styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, tools, a spare fuse, white filter, user manual and 5 ml immersion oil
iScope
The bScope® microscope for fluorescence microscopy is equipped with four monochromatic FluoLEDs
The microscopes are supplied with routine fluorescence filter sets and dichroic mirrors for excitation in the blue, green, violet and ultraviolet spectral regions
EYEPIECES
- Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube. Tube length 160 mm)
- Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and adjustable diopter on the left tube for EPLi systems (Ø 30 mm tube. Tube length 200 mm)
HEAD
- Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm.
- The trinocular head of the Plan infinity corrected models (IS.1153-PLi) has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes
- The trinocular head of the E-Plan infinity corrected models (IS.1153-EPLi) has a fixed built-in beamsplitter (50:50) and ± 5 diopter adjustment on the Ø 30 mm left tube
- The trinocular head of the E-plan finite models (IS.1153-EPL) has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment on the Ø 23.2 mm left tube
- A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular head comes with a Ø 23.2 mm photo port
ERGONOMICAL TILTING HEAD
Optional ergonomic 5 to 35° tilting head, interpupillary distance 48-75 mm and optional photo attachment with standard Ø 23.2 mm tube (only infinity corrected models and not suitable for multi head systems)
MULTIHEAD SYSTEM
The iScope® can be extended with a unique multihead system for in total two, three or five heads, allowing simultaneous observation of specimens. The central attachment is equipped with a joystick to move a green and red laser pointer across the entire field of view of all heads. Configurations with one, two or four additional viewing binocular heads, 30° inclined tubes and plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives. All heads are equipped with extended wide field plan EWF 10x/22 mm eyepieces
(references: IS.1156-PLi-x, x = total number of heads)
IS.1156-PLi-9_DC.5000c
FACE-TO-FACE DUAL HEAD SYSTEM
- The iScope® can be supplied with two heads in a face-to-face configuration allowing simultaneous observation by two operators
- The 30 mm diameter tubes of the head are equipped with EWF 10x/20 mm eyepieces
- The main binocular head has one diopter adjustment, the second head has two adjustments
- Only available for the model with plan infinity corrected objectives (IS.1154-PLi/T)
- The face-to-face head is equipped with a 2-color laser pointer
OBJECTIVES – 45 MM PARFOCAL
E-Plan EPL | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S100x/1.25 oil | ||
E-Plan EPLi IOS | 4x/0.10 | 10x/0.25 | S40x/0.65 | S100x/1.25 oil | |||
Plan PLi IOS | 2x/0.05 | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S60x/0.85* | S100x/1.25 oil |
Plan phase PLPH | 10x/0.25 | 20x/0.40 | S40x/0.65 | S100x/1.25 oil | |||
Plan phase PLPHi IOS | 10x/0.25 | 20x/0.40 | S40x/0.65 | S100x/1.25 oil |
* optional
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
NOSEPIECE
Revolving quintuple reversed nosepiece for max. five objectives
STAGE
The iScope can be equipped with three types of stages (designed for 2 slides):
- 156 x 138 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage
- 187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope rackless stage has no protruding parts, enables more smooth movements and is safer
The iScope can be supplied with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with new purchased microscopes. Higher temperatures can be achieved on special request
CONDENSERS WITH PHASE CONTRAST SLIDER
There is a choice of two optional NA. 1.25 phase contrast condenser sets with phase contrast sliders and plan phase contrast objectives. The first version one is comes with plan phase 10x and S40x objectives with matching slider, the second version comes with plan phase 20x and and S100x oil immersion objectives. Available for iScope 160mm and IOS infinity versions
All sets are supplied with centering telescope and green opaque filter
(Photo: IS.9162 – Phase contrast set)
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast. With magnification indication. A slider with a simple dark stop for darkfield up to 400x magnification is also available
CONDENSER FOR ZERNIKE PHASE CONTRAST
An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x and S100x oil immersion objectives and darkfield stop position for darkfield contrast up to 400x magnification. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, a high powered 3 W LED and a S100x objective with built-in iris diaphragm enable a real 1000x magnification darkfield solution
(Product data sheet iScope models for darkfield, see downloads)
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control
ILLUMINATION
3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply for brightfield and phase contrast models
The innovative NeoLED design offer larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as option
SMART LIGHT CONTROL SYSTEM
- The Smart Light Control (SLC) automatically memorises the last used illumination intensity brightness for each individual objective. When switching from one objective to another the SLC system remembers intensity when you return to that objective. Simply rotate the nosepiece to the next objective and the SLC will instantly adjust the illumination intensity to your desired level
- Light intensity can be locked to stop intensity changing by simply pressing the control button twice
- The LCD screen at the front of the microscope informs the user of the magnification and light intensity settings of the microscope, as well as the sleep and locking modes when activated
- Push the button once to enter/leave sleep mode and push the button twice to enter/leave lock mode
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
STORAGE AND TRANSPORTATION
from left to right: IS.4300 – AE.9919 – AE.9916
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. All packed in polystyrene boxes
iScope fluorescence
For biological and medical applications fluorescence microscopes are used to observe certain parts of living cells and tissues with help of fluorophores. One or more fluophores are added to the parts of the specimen to be observed. When the fluorophores are exposed to so-called exicitation light, the excitation energy is absorbed by the fluorophore that start emitting so-called emission light that can be observed by the microscope. One can distinguish tumor cells from other cells, follow biological processes or prove the presence or absence of antibodies, etc
The excellent optics and mechanical components make the iScope a state-of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields
The iScope fluorescence microscopy can be supplied with:
• 6-position rotating attachment with 100 W mercury vapor light source
• 3-position slider attachment with 100 W mercury vapor light source
EYEPIECES
Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes. Eyepieces can be secured to the tubes. The trinocular head of the Plan infinity corrected models (PLi and PLFi) has a light path selector (100:0 / 50:50) and ± 5 diopter adjustments on both tubes.
The trinocular head of the E-Plan infinity corrected models (EPLi) has a fixed built-in light path beamsplitter (50:50) and ± 5 diopter adjustment on the left tube
HEAD
- Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm
- A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular head has a 23.2 mm photo tube. This fits all C-mount adapters supplied with Euromex cameras
To order an iScope® with tilting head use reference IS.3158-xxx (Epli/Pli/PLFi)
To order an iScope® with tilting trino head use reference IS.3159-xxx (EPLi/Pli/PLFi)
NOSEPIECE
Revolving quintuple reversed nosepiece on ball bearings
OBJECTIVES
The EPLi and PLi objectives are suitable for Blue and Green standard filter sets and other filter sets in the visible spectrum.
The plan Fluarex PLFi ™ objectives are suitable for the entire spectrum including Ultra Violet and Violet
E-Plan EPLi IOS | 4x/0.10 | 10x/0.25 | S40x/0.65 | S100x/1.25 oil | ||
Plan PLi IOS | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S60x/0.85* | S100x/1.25 oil |
Plan PLFi IOS | 4x/0.13 | 10x/0.30 | 20x/0.50* | S40x/0.75 | S100x/1.30 oil |
* optional
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm mechanical stage. The iScope® rackless stage has no protruding parts, enabling more smooth movements and is safer
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield with magnification indication.
Also accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/ S100x oil immersion IOS objectives for economical phase contrast. A slider with a simple dark stop for darkfield up to 400x magnification is also available for this condensor
CONDENSER FOR ZERNIKE PHASE CONTRAST
An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with darkfield stop position for darkfield contrast observation up to 400x magnification and plan phase 10/20/S40x and S100x oil immersion PLPHi IOS objectives
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control
ILLUMINATION
3 W adjustable Köhler NeoLED diascopic illumination with internal 100-240 V power supply
The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as an option
ILLUMINATION FOR FLUORESCENCE
The 6-position rotating and 3-position slider fluorescence attachments are supplied with:
- a 100 W HBO mercury vapor light source for broad powerful light spectrum. Including an 100-240 V external power supply with indication of the life span of the HBO bulb
- Standard fluorescence filters sets for – blue excitation (EX460- 490 (BP) DM500 EM520 (LP)
– green excitation (EX510-550 (BP) DM570 EM580 (LP) and a UV protection shield
The iScope® fluorescence microscopes equipped with a 100 W mercury vapor light source can be supplied with more specific, optimized and application related fluorescence filters sets (see next pages)
LED ILLUMINATION FOR FLUORESCENCE
Two LED sources for fluorescence are available for 4 or 9 excitation wavelengths.
See our products LE.6400 and LE.6900
STANDARD GENERAL PURPOSE FLUORESCENCE FILTER SETS
IS.9745 – Blue excitation filter set
EX: 460-490 nm bandpass DM: 500 nm EM: 520 nm longpass
IS.9746 – Green excitation filter set
EX: 510-550 nm bandpass DM: 570 nm EM: 580 nm longpass
IS.9748 – UV excitation filter set
EX: 330-385 nm bandpass DM: 400 nm EM: 420 nm longpass
IS.9747 – Violet excitation filter set
EX 400-410 nm bandpass DM 455 nm EM 455 nm longpass
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. Models with 100 W mercury vapor light source have a UV protection shield. All packed in polystyrene boxes
iScope darkfield
iScope® Darkfield – A masterpiece in darkfield microscopy
The iScope® darkfield is available in two configurations suitable for Life and Biomedicial Sciences, high schools, universities where a cardioid mirror based darkfield is required
EYEPIECES
- The iScope® IS.1153-EPL/DF with a finite optical system is supplied with Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube)
- The iScope® IS.1153-PLi/DFi with a infinite optical system are supplied with Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and one adjustable diopter on the left tube for EPLi systems (Ø 30 mm tube)
HEAD
- Trinocular Siedentopf type heads with 30° inclined tubes
- Interpupillary distance from 48 to 76 mm
- The trinocular head for model IS.1153-EPL/DF has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment
- on the Ø 23.2 mm left tube
- The trinocular head for models IS.1153-PLi/DF and IS.1153-PLi/DFi has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes
- A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular heads come with a Ø 23.2 mm photo port for cameras
OBJECTIVES
E-Plan EPL | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S100x/1.25 oil** | |
Plan PLi IOS | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S60x/0.85* | S100x/1.25 oil*** |
* Optional.
** S100x oil objective with built-in iris diaphragm.
*** Super contrast plan PLi S100x oil infinity corrected objective with built-in iris diaphragm
- Optional ergonomic 5 to 35° tilting head supplied with EWF 10x/22 mm eyepiece
- Interpupillary distance 48-75 mm
- Optional photo attachment for tiltinghead with standard Ø 23.2 mm tube
(To order an iScope® with tilting head use reference IS.1158‑PLi/DF or IS.1158‑PLi/DFi.
To order an iScope® with tilting head and photo attachment use reference IS.1159‑PLi/DF or IS.1159‑PLi/DFi)
NOSEPIECE
Revolving quintuple reversed nosepiece for maximum five objectives
STAGES
The iScope® can be equipped with two types of stages (designed for 2 slides):
- 156 x 138 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage
- 187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope® rackless stage has no protruding parts and therefore it is safer in use. Furthermore it enables more smooth movement
CONDENSER FOR DARKFIELD (STANDARD)
A state-of-the-art condenser equipped with reflective cardioid mirrors and a built-in high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this enabels a 1000x magnification darkfield solution. The power supply of the 3 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
CONDENSER FOR BRIGHTFIELD (SUPPLIED)
- Height adjustable Abbe N.A. 1.25 condenser for brightfield
- Accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/ S100x oil immersion IOS objectives for economical phase contrast
- With magnification indication
PHASE CONTRAST CONDENSER WITH SLIDER (OPTIONAL)
There is a choice of two optional NA. 1.25 phase contrast condenser sets with phase contrast sliders and plan phase contrast objectives. The first version comes with plan phase 10x and S40x objectives with matching slider, the second version comes with plan phase 20x and S100x oil immersion objectives. Available for iScope® 160 mm and IOS infinity versions
All sets are supplied with a centering telescope and a green opaque filter
(Photo: IS.9162 – Phase contrast set)
FOCUSING
- Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm.
- Supplied with an adjustable rack stop to prevent damage to sample and objectives.
- The coarse adjustments are equipped with friction control
To upgrade an existing iScope® to darkfield a cardioid condenser with integrated high powered 5 W LED illumination and external power supply (IS.9150) is available. One also has to purchase a 86.521, Plan PL S100x objective with built-in iris diaphragm or a IS.7200-I super contrast plan PLi S100x infinity corrected objective
ILLUMINATION FOR DARKFIELD
High powered 3 W LED, built-in the cardioid mirror condensor
ILLUMINATION FOR BRIGHTFIELD
As a standard supplied with:
- 3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply
- The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED are
- the low energy consumption,
- no heating and
- a long operating life span
- Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also optionally available for other models
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
PACKAGE CONTENT
Supplied a height adjustable Abbe N.A. 1.25 condenser for brightfield, power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. All packed in polystyrene boxes
Delphi-X Observer
State-of-the-art microscopes for advanced Life Science applications
The outstanding optical performance of the Delphi-X Observer™ with 25 mm fields of view and high numerical aperture of the Plan 60 mm parafocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists
EYEPIECES
- Super Wide field SWF 10x/25 mm, Ø 30 mm tubes
- Extended Wide Field EWF 10x/22 mm, Ø 30 mm tubes
STANDARD HEAD
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces
ERGONOMIC TILTING HEAD
Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces
MULTIHEAD SYSTEM
The Delphi-X Observer can be extended with a unique multihead system for in total 2, 3, 5 or 10 heads allowing simultaneous observation of specimens. The central attachment is equipped with a trinocular head and with a joystick to move a green or red laser pointer across the entire field of views of all heads.
The multihead systems with two, three or five heads and 30° inclined tubes are supplied with Super wide field SWF 10x/25 mm eyepieces. The multihead systems with ten heads and 30° inclined tubes have the trinocular main head equipped with Super wide field SWF 10x/25 mm eyepieces and the other nine binocular other heads with Extended wide field EWF 10x/22 mm eyepieces. The Delphi-X Observer ™ multihead system with ten heads is supplied without the iCare sensor
Order references:
- DX.2156-xxx/10 (Delphi-X Observer 10 head version is only available with a 100 W halogen illumination)
- DX.1156-xxx/n (NeoLED™ versions). n = total number of heads. xxx = objectives PLi, APLi or PLPHi
(Photo: Multihead system, DX.2156-PLi/10)
FACE-TO-FACE DUAL HEAD SYSTEM
The Delphi-X Observer™ can be supplied with one trinocular and one binocular head in a face-to-face configuration allowing simultaneous observation by two operators. The main trinocular head is equipped with Super wide field SWF 10x/25 mm eyepieces and the second head with EWF 10x/22 mm eyepieces. A joystick enables the operator to move a green or red laser pointer across the entire field of view of both heads
Order reference:
- DX.2154-xxx (100 W halogen versions) or
- DX.1154-xxx (NeoLED™ versions) xxx = objectives PLi, APLi or PLPHi
NOSEPIECE
Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads and with slot for optional DIC prism(s)
MOTORISED NOSEPIECE
The Delphi-X Observer™ can be supplied with a motorized revolving sextuple reversed nosepiece. A precise step-motor allows the user to switch from objective by a simple push on a button. Another button allows quick switching between two preselected objectives. Standard with this nosepiece comes a motorized condenser
ENHANCED INFINITY SYSTEM (EIS)
The enhanced infinity system (EIS) of the Delphi-X Observer™ consists of Super wide field SFWF 10×25 mm eyepieces, high numerical aperture 60 mm parafocal objectives and a 200 mm focal length tube lens. The 200 mm focal length tube lens reduces the angle of the light rays passing the optics and as a direct result improving significantly the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system.
For all these reasons the Delphi-X Observer™ offers superior optical performance for the most demanding applications
PLAN ACHROMATIC OBJECTIVES (clinical routine laboratories)
The Delphi-X Observer™ is standard supplied with Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion infinity corrected EIS objectives
(Optional: 2x/0.06 working distance 7.5 mm, S50x/0.95 (oil immersion) working distance 0.19 mm and S60x/0.80 working distance 0.30 mm)
PLAN SEMI-APOCHROMATIC OBJECTIVES (anatomo- and histopathology laboratories)
The Delphi-X Observer™ can also be supplied with Plan Semi-Apochromatic Fluarex 4x/0.13, 10x/0.30, 20x/0.50, S40x/0.75 and S100x/1.30 (oil immersion) infinity corrected EIS objectives
PLAN PHASE CONTRAST OBJECTIVES
Plan Phase EIS 10x/0.25, 20x/0.40, s40x/0.65 and s100x/1.25 (oil immersion) infinity corrected EIS objectives
OBJECTIVES
Plan (PLi) | 2x/0.06* | 4x/0.10 | 10x/0.25 | 20x/0.40 | S40x/0.65 | S50x/0.95 oil* | S60x/0.80* | S100x/1.25 oil | S100x/1.25 oil iris* |
Plan Phase (PLPHi) | 10x/0.25 | 20x/0.40 | S40x/0.65 | S100x/1.25 oil | |||||
Plan Semi-Apo (PLi Apo) |
| 4x/0.13 | 10x/0.30 | 20x/0.50 | S40x/0.75 | S100x/1.30 oil |
* Optional
All objectives are 60 mm parafocal and have a M25 mm mounting thread
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
All S40x, S50x, S60x and S100x objectives are spring loaded
STAGE
- 190 x 152 mm stage with 78 x 32 mm integrated right-handed mechanical stage
- Designed for 2 slides
- Comes with robust and scratch-resistant Gorilla glass
- Left-handed mechanical stage available on request
(Order reference: Add -L to product number).
(Optional: Sapphire glass available on request)
FOCUSING
- Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
- The focusing knobs can be switched from left to right according to the user’s preference
CONDENSER (for brightfield)
In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks. Models with a motorized nosepiece are supplied with a motorized condensor that automatically flip-out the front lens of the condenser when the 4x objective is used
CONDENSER FOR DIFFERENTIAL INTERFERENCE CONTRAST (DIC) AND BRIGHTFIELD
An optional in height adjustable disc condenser for DIC and bright field can be equipped with several primary DIC prisms to be used with sliders with secondary DIC prisms to be placed in the nosepiece
CONDENSER (for phase contrast)
In height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives. To be used with the phase contrast objectives
DIASCOPIC ILLUMINATIONS
Two Köhler illuminations are available forx the Delphi-X Observer microscope:
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with internal 100-240 V power supply
- Diascopic intensity adjustable 100 W halogen Köhler illumination with internal 100-240 V power supply
The diascopic halogen illumination comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kind of samples and with one Light Balancing Daylight filter. The diascopic NeoLED™ illumination comes with a frosted difuse filter
LIGHT INTENSITY MEMORY FUNCTION
LIM automatically saves preferred brightness while changing magnifications. It eliminates the need for adjusting lamp brightness when changing magnification. This allows maintaining preferred brightness at each magnification, thus improving user efficiency significantly and reducing eye strain. Standard on all models with a motorized nosepiece, for other models see ordering instructions below
For ordering Automatic light intensity memory function
Example: DX.1153-PLi = DX.1153-PLi/LIM model but with automatic light control
NeoLED™
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
- More oblique light from the LED lightsource can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy.
The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available
STORAGE
AE.9914-D
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. LED versions come with a white and yellow filter and halogen models come with a blue filter. All packed in a polystyrene box
CONFIGURATIONS
The Delphi-X Observer microscope is also available as fluorescence model
Delphi-X Observer fluorescence
Delphi-X Observer Fluorescence
State-of-the-art microscopes for advanced Life Science fluorescence applications. The outstanding optical performance of the Delphi-X Observer™ makes it ideal for Life Science fluorescence applications where a high performance optical system is required. The 22 mm fields of view of the Super wide field eyepieces and the high numerical aperture of the Plan Fluarex 60 mm parafocal EIS objectives enable perfect observations and color rendering at high resolving power
EYEPIECES
- Standard super wide field SWF 10x/22 mm, Ø 30 mm tubes
STANDARD HEAD
Siedentopf trinocular head with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. Three position beamsplitter (0:100/ 80:20 / 100:0). Diopter ± 5 adjustments on both eyepieces
ERGONOMIC TILTING HEAD
Optional ergonomic 0 to 35° tilting trinocular head (see photo) supplied with SWF 10x/22 mm eyepieces, interpupillary distance 47-78 mm and photo tube with standard Ø 23.2 mm tube
NOSEPIECE
Revolving sextuple reversed nosepiece on ball-bearings
ENHANCED INFINITY SYSTEM (EIS)
The enhanced infinity system (EIS) of the Delphi-X Observer™ consists of Super wide field SFWF 10×22 mm eyepieces, high numerical aperture 60 mm parafocal objectives and a 200 mm focal length tube lens. The 200 mm focal length tube lens reduces the angle of the light rays passing through the optics and as a direct result improving significantly the chromatic aberration corrections and contrast of the images produced. The objectives have a larger diameter enabling a much higher numerical aperture, thus improving the overall resolving power of the optical system
For all these reasons the Delphi-X Obsever™ offers superior optical performance for the most demanding applications
PLAN ACHROMATIC EIS OBJECTIVES
(clinical routine applications)
The Delphi-X Observer™ is standard supplied with Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 (oil immersion) infinity corrected EIS objectives
Available as an option:
2x/0.06, S50x/0.95 (oil immersion) and S60x/0.80
PLAN SEMI-APOCHROMATIC FLUAREX OBJECTIVES
(anatomo- and histopathology applications)
The Delphi-X Observer™ can also be supplied with Plan Semi-Apochromatic 4x/0.13, 10x/0.30, 20x/0.50, S40x/0.75 and S100x/1.30 (oil immersion) infinity corrected EIS objectives
STAGE
190 x 152 mm stage with 78 x 32 mm integrated right-handed mechanical stage. Designed for 2 slides. Standard supplied with scratch-resistant Gorilla glass. Sapphire scratch-resistant glass is available on request. Left-handed mechanical stage is available on request
FOCUSING
Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control. The focusing knobs can be switched from left to right according to the user’s preference
CONDENSER FOR BRIGHTFIELD
In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks
ILLUMINATION FOR FLUORESCENCE
The attachment for fluorescence of the Delphi-X Observer™ is equipped with a rotating block which can contain up to 6 filter cubes and supplied with 100 W HBO mercury vapor light source for broad powerful light spectrum
Supplied with standard fluorescence filters sets for Blue excitation (EX460-490 DM500 EM520LP) and Green excitation (EX510-550 DM570 EM590LP), UV shield and external power supply
Other with more specific and optimized and application related fluorescence filters sets are also available
LED ILLUMINATION FOR FLUORESCENCE
Two LED sources for fluorescence are available for 4 or 9 excitation wavelengths.
See our products LE.6400 and LE.6900
STANDARD GENERAL PURPOSE FLUORESCENCE FILTER SETS
FILTER SET FOR BLUE EXCITATION (DX.9745)
FILTER SET FOR green EXCITATION (DX.9746)
FILTER SET FOR VIOLET EXCITATION (DX.9747)
FILTER SET FOR ULTRA-VIOLET EXCITATION (DX.9748)
DIASCOPIC ILLUMINATIONS
Two Köhler illuminations are available for the Delphi-X Observer™ microscope:
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with internal 100-240 V power supply
- Diascopic intensity adjustable 100 W halogen Köhler illumination with internal 100-240 V power supply
The diascopic halogen illumination comes with 2 push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kind of samples. The diascopic NeoLED™ illumination comes with one frosted diffuse filter
NeoLED™
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
- More oblique light from the LED light source can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical system to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available
STORAGE
AE.9914-D
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil
Oxion
The Oxion series has been designed with all kind of Life Sciences applications and great durability in mind. This resulted in a modern, robust and high level microscope for everyday use, equipped with excellent optical and mechanical components. Specific attention to production methods resulted also in an excellent price/performance ratio
The microscopes of the Oxion series are dedicated to professionals in Life Sciences applications, laboratories of universities or research centers, but also for routine medical applications and veterinary medicine. Besides the brightfield contrast method, configurations with darkfield contrast or simple polarization can be used
Thanks to the high resolution optics and state-of-the-art components, these microscopes can be widely used from routine to fundamental research applications
EYEPIECES
• HWF 10X/22 mm eyepieces with ± 5° diopter adjustements on both eyepieces
• All eyepieces can be secured with an Allen screw
HEAD
• Binocular and trinocular Siedentopf type heads with 30° inclined tubes
• Interpupillary distance from 50 to 75 mm
• A unique rotating system allows an ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)
• An ergonomic tilting head is also available. (OX.5700-ADD)
NOSEPIECE
Reversed nosepiece for a maximum of five objectives on ball bearings
OBJECTIVES – IOS INFINITY CORRECTED SYSTEM
• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.40 and S60x/0.85 objectives
• Plan phase contrast S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan semi apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.50 objectives
As an option available: plan 20x/0.40 infinity corrected IOS objective and plan S60x/0.85 infinity corrected IOS objective
All S40x, S60x and S100x oil immersion objectives are spring loaded.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated
STAGE
Equipped with double slide holder
• 150 x 140 mm stage with integrated 76 x 50 mm X-Y mechanical stage
• The Oxion can be supplied with a heating stage with PID temperature controller which can be set up to 50° Celsius (Only available for new microscopes)
CONDENSER FOR BRIGHTFIELD
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
• A darkfield stop in slider can be inserted in the condensor for for darkfield contrast up to 400x magnification (optional)
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control
ILLUMINATION FOR BRIGHTFIELD
• All models are supplied with a 3 W adjustable NeoLED™ illumination with integrated 100-240 V power suppl
• Köhler illumination with field diaphragm
STORAGE AND TRANSPORTATION
from left to right: OX.3011 – AE.9916
PACKAGE CONTENT
• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with a S100x objective
• All packed in a polystyrene box
Oxion fluorescence
For biological and medical applications fluorescence microscopes are used to observe certain parts of living cells and tissues with help of fluorophores. One or more fluophores are added to the parts of the specimen to be observed. When the fluorophores are exposed to so-called exicitation light, the excitation energy is absorbed by the fluorophore that start emitting so-called emission light that can be observed by the microscope. One can distinguish tumor cells from other cells, follow biological processes or prove the presence or absence of antibodies, etc
The Oxion microscopes for fluorescence are equipped with an epi-illumination with a 100 W mercury vapor lamp. The fluorescence attachment have a rail for maximum 4 filter cubes. The FluoLed model is equipped with a 455 nm LED and one filter cube, especially developed for efficient and fast detection of tuberculosis by the Auramine-O fluorochrome. Other FluoLED wavelengths are also available
EYEPIECES
• HWF 10x/22 mm eyepieces
• All eyepieces can be secured by an Allen screw
HEAD
• Binocular and trinocular Siedentopf type heads are with 30° inclined tubes
• Interpupillary distance from 50 to 75 mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
NOSEPIECE
• Revolving and reversed nosepiece for maximum five objectives
• The fluorescence models with mercury vapor lamp are equipped with an orange UV protection shield
OBJECTIVES
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan Fluarex 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.30 oil immersion IOS objectives
• Plan semi apochromatic Fluarex 4x/0.13, 10x/0.30, S40x/0.75 and S100x/1.28 oil immersion IOS objectives
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations,1 μm per graduation, 200 μm per rotation, total travel range is approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control
STAGE
• 150 x 140 mm stage with integrated 76 x 50 mm X-Y mechanical stage
• Designed for 2 slides
CONDENSER FOR BRIGHTFIELD
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
• Supplied with a white diffusion filter
• Phase contrast rings mounted in slider can be inserted in the condenser for 10x and S40x or 20x and S100x phase contrast objectives
• A darkfield stop in slider for the 10x, 20x and S40x objectives can also be inserted with magnification indication
CONDENSER FOR FLUORESCENCE
The fluorescence attachment is equipped with an integrated condenser with iris diaphragm and with a field diaphragm
ILLUMINATION FOR BRIGHTFIELD AND PHASE CONTRAST
• All models are supplied with a 3 W adjustable NeoLED illumination with built-in 100-240 V power supply
• Köhler illumination with field diaphragm
ILLUMINATION FOR FLUORESCENCE (HBO)
• Fluorescence attachment with 100 W (HBO) mercury vapor incident epi-illumination and rail for maximum four filter blocks
• Two general purpose filter sets are standard supplied with the attachment: AE.3245 (Blue excitation) and AE.3246 (Green excitation)
• Two other general purpose filter sets AE.3246 (UV excitation) and AE.3247 (Ultraviolet excitation) are also available (More specific filter sets are available on request)
ILLUMINATION FOR FLUORESCENCE (LED)
The FluoLED attachment is standard delivered with a 455 nm LED (EX 425-475, DM 480, EM 485 LP filter set) for detection of tuberculosis with Auramine-O fluorochrome. FluoLED attachments with 365 nm LED (EX 340-390, DM 400, EM 420 LP filter set, DAPI), 470 nm LED (EX 450-490, DM 495, EM 500-525 filter set, FITC/GFP/eGFP) and 560 nm LED (EX 540-580, DM 585, EM 608-690 filter set, TexasRed) are also available
STANDARD GENERAL PURPOSE FLUORESCENCE FILTER SETS
AE.3245 (Blue EX 465-495 nm DM 505 nm EM 515-555 nm)
AE.3246 (Green EX 520-580 nm DM 600 nm EM 605-665 nm)
AE.3247 (Violet EX 400-440 nm DM 455 nm EM 465 nm LP)
AE.3248 (UV EX 366-389 nm DM 415 nm EM 435-485 nm)
CONFIGURATIONS
The Oxion microscope is available in many configurations and can be upgraded with a variety of contrast types.
PACKAGE CONTENT
• Supplied with power cord, dust cover, white filter, user manual and 5 ml immersion oil for models with S100x objective
• All packed in a polystyrene box
BioBlue.Lab
BioBlue.Lab
The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications
The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions
EYEPIECES
Wide field WF 10x/20 mm eyepieces
HEAD
- Binocular and trinocular models have 30° inclined Ø 30 mm tubes
- The interpupillary distance is adjustable between 48 to 75 mm
- All models have a ±5 diopter adjustment on left tube
- All heads are 360° rotatable and secured with a screw
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Slot for analyzer
OBJECTIVES – 45 MM PARFOCAL
- BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
- Optional 20x/0.40 and S60x/0.85 objectives are also available
- The S40x, S60x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations
- Precision 1.5 μm per graduation, 0.3 mm per rotation
- Total travel approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage
CONDENSER
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter
- Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli, centering telescope and green filter (see photo)
ILLUMINATION
Binocular and trinocular models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
Power supply with integrated 100-240 Vac
WEIGHT
The BioBlue.Lab weight is appr. 5.5 kg
STORAGE AND TRANSPORTATION
from left to right: BB.9900 – AE.9919 – AE.9916
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil and white filter
All packed in a polystyrene box
Achios-X Observer
EYEPIECE
With an extended field of view of 22 mm, the Achios-X Observer proves its usefulness by reducing the need of moving the specimen over the stage, which is highly appreciated in demanding applications
HEADS
An impressive line of heads to choose from:
Apart from the standard Siedentopf trinocular with 30° inclined tubes, there is the optional ergonomic tilting head (0° – 35°), the face-to-face dual head and last but not least, multi-head systems with 2, 3 or 5 heads
OBJECTIVES
The Achios-X observer comes with Infinity corrected achromatic Plan, Plan Phase or Plan Semi-Apochromatic EIS objectives and are 60 mm parfocal and have a M25 mounting thread
STAGE
The Achios-X Observer comes complete with a generously sized, hard coated, rackless mechanical stage, meticulously designed for enhanced safety. Free from any sharp edges protruding from the microscope’s sides, this stage ensures a secure and worry-free experience. Suitable for two slides and allows single handed placement of slides
FOCUSING
Coarse 37.7 mm per rotation, fine 0.2mm per rotation.
Division 0.002 mm, range 30 mm
CONDENSERS
Depending the configuration, the Achios-X Observer is supplied with
- Standard Abbe Condenser
- Zernike phase condenser includes telescope and green filter
- Swing-out Abbe Condenser
- Dark field condenser (Dry)
- Dark field condenser (Oil)
ILLUMINATION
The Köhler illumination of the Achios-X Observer provides the most uniformly illuminated and bright field of view
NOSEPIECE
Experience the ease of an intuitive quintuple or an optional sixtuple nosepiece on ball- bearings, equipped with gripped ring for effortless and precise rotation
LIGHT AND COLOR TEMPERATURE CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain four main benefits:
- More oblique light from the NeoLED™ light source can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
- Super long life span, up to 50.000 hrs nominal, L70 norm
PACKAGING
Supplied with power cord, dust cover, screwdriver, user manual and 5 ml immersion oil for models supplied with a 100x objective
EYEPIECES
Wide field WF 10x/20 mm eyepieces
HEAD
- Binocular and trinocular models have 30° inclined Ø 30 mm tubes
- The interpupillary distance is adjustable between 48 to 75 mm
- All models have a ±5 diopter adjustment on left tube
- All heads are 360° rotatable and secured with a screw
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Slot for analyzer
OBJECTIVES – 45 MM PARFOCAL
- BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
- Optional 20x/0.40 and S60x/0.85 objectives are also available
- The S40x, S60x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations
- Precision 1.5 μm per graduation, 0.3 mm per rotation
- Total travel approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage
CONDENSER
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter
- Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli, centering telescope and green filter (see photo)
ILLUMINATION
Binocular and trinocular models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
Power supply with integrated 100-240 Vac
WEIGHT
The BioBlue.Lab weight is appr. 5.5 kg
STORAGE AND TRANSPORTATION
from left to right: BB.9900 – AE.9919 – AE.9916
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil and white filter
All packed in a polystyrene box
Achios-X Observer fluorescence
State-of-the-art microscopes for routine Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Observer fluorescence, an ergonomic masterpiece featuring a 60 mm parfocal Enhanced Infinity optical system (EIS) for routine fluorescence applications
EYEPIECES
EWF 10x/22 mm eyepiece, with diopter adjustments on both tubes
HEADS
- Standard Siedentopf trinocular with 30° inclined tubes
- Ergonomic tilting head (0° – 35°)
NOSEPIECE
- A quintuple or an optional sixtuple nosepiece on ball- bearings, equipped with gripped ring.
- With 25 mm objectives mounting threads
OBJECTIVES – EIS 60 MM PARFOCAL
- Infinity corrected achromatic Plan EIS objectives*
- Infinity corrected achromatic Plan Semi-Apochromatic EIS objectives*
*M25 mounting thread
STAGE
The Achios-X Observer comes complete with a generously sized, hard coated, rackless mechanical stage, meticulously designed for enhanced safety
- Free from any sharp edges protruding from the microscope’s sides, this stage ensures a secure and worry-free experience
- Suitable for two slides and allows single handed placement of slides
- Stage, 230 x 150 mm X-Y and mechanical stage, 78 x 54 mm
FOCUSING
- Coarse 37.7 mm per rotation, fine 0.2mm per rotation.
- Division 0.002 mm, range 30 mm
CONDENSERS
Depending on the configuration, the Achios-X Observer fluorescence is supplied with a
- Standard Abbe condenser
- Swing-out Abbe condenser
SMART LIGHT CONTROL
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the last used light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted between 3200 and 6700K and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure
ILLUMINATION
The Köhler illumination of the Achios-X Observer provides the most uniformly illuminated and bright field of view
ILLUMINATION FOR FLUORESCENCE
The fluorescence attachment of the Achios-X Observer™ is equipped with a 4-positions rotating mechanism that can be used to select between any of the 3 filter sets and brightfield (transmitted light). It is supplied with 3 dedicated LED sources to match the supplied fluorescence long pass filter sets for B, G and UV excitation
Supplied with UV shield and standard fluorescence filters sets for:
AX.9745 Blue excitation @ 485 nm with long pass filter set (EX 460-495 DM 505 EM 510 LP)
AX.9746 Green excitation @ 525 nm with long pass filter set (EX 510-550 DM 570 EM 575 LP)
AX.9748 UV excitation @ 365 nm with long pass filter set (EX 330-385 DM 410 EM 420 LP)
Power for fluorescence attachment is supplied by the microscope; no external power supply is required.
Other more specific band pass optimized fluorescence filter sets are also available
OPTIONAL FLUORESCENCE FILTER SETS
AX.9750.FITC FITC standard band pass filter set (EX 460-495 DM 505 EM 510-550)
AX.9750.39002 FITC optimized band pass filter set (EX 465-495 DM505 EM 515-555)
AX.9750.49000 FITC zero-shift optimized band pass filter set (EX 450-490 DM495 EM 500-550)
AX.9750.49011 FITC zero-shift optimized band pass filter set (EX 460-500 DM 510 EM 510-560)
AX.9750.DAPI DAPI band pass filter set (EX 360-390 DM 415 EM 435-485)
AX.9750.39000 DAPI band pass filter set (EX 361-389 DM 415 EM435-485)
AX.9750.49000 DAPI band pass filter set (EX 325-375 DM 400 EM435-485)
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain four main benefits:
- More oblique light from the NeoLED™ can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
- Super long life span, up to 50.000 hrs nominal, L70 norm
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
PACKAGING
Supplied with power cord, orange protection shield, dust cover, screwdriver, user manual and 5 ml immersion oil for models supplied with a 100x objective
bScope
Versatile and evolutive!
The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field
The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage
EYEPIECE(S)
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer
HEAD
- The bScope is available with a monocular head (45° inclined Ø 23.2 mm tube) or with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes
- Binocular and trinocular models are equipped with a diopter ± 5 adjustment on left eyepiece
- The interpupillary distance is adjustable between 48 to 76 mm
- The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
- The trinocular head comes with a Ø 23.2 mm tube, ensuring a maximum of flexibility and has a fixed light path beam splitter (20:80) and generates an erect image
- Models with an integrated USB-2.0 camera are supplied with a 5.0 MP 1/2.5” CMOS sensor with a resolution of 2592 x 1944 pixels
NOSEPIECE
Revolving and reversed ball-beared quadruple or quintuple nosepiece
OBJECTIVES – 45 MM PARFOCAL
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
- Brightfield models: E-Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. Optional 60x/0.85 objective
- Phase contrast models: Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives
- Dark field conrast model: E-Plan finity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. The S100x objective is equipped with a built-in iris diaphragm. Optional 60x/0.85 objective
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
- The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
- The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with newly purchased microscopes
CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
ZERNIKE CONDENSER FOR PHASE CONTRAST
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives in PLPHi phase contrast versions. Supplied with alignment telescope and green filter
CONDENSER WITH SLIDER(S) FOR PHASE CONTRAST
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for brightfield contrast. Phase contrast objectives in PLPHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, with an integrated high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this forms a 1000x magnification darkfield solution. The power supply of the 5 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
DARKFIELD EQUIPMENT
The BS.1153-EPL/DF is equipped with a darkfield oil immersion cardioïd mirror condenser with a integrated 3 W LED illumination and a plan PL S100x oil immersion objective with built-in iris
POLARISATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter
ILLUMINATION
The microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available
NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
The Köhler illumination is optional for non-IOS models
__________
BSCOPE® DIGITAL
- Binocular model
- Integrated 5.0 MP CMOS color USB.2 camera
- 2592 x 1944 pixels
- 7 frames per second (2592 x 1944 pixels)
- 27 frames per second (1280 x 960 pixels)
- ImageFocus Alpha software
CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide
SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website
Further specifications are identical to the analog bScope® models
__________
CORDLESS USE
The optional rechargeable AA batteries turn the bScope into a cordless system
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: BS.9900 – AE.9919 – AE.9916
PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
Phase contrast models are supplied with green filter and alignment telescope. An optional aluminum case can be supplied
bScope fluorescence
The bScope® microscope for fluorescence microscopy is equipped with four monochromatic FluoLEDs
The microscopes are supplied with routine fluorescence filter sets and dichroic mirrors for excitation in the blue, green, violet and ultraviolet spectral regions
EYEPIECES
Wide field HWF 10x/22 mm secured eyepieces (Ø 30 mm tube)
HEAD
- The bScope® is equipped with a Siedentopf type head and equipped with 30° inclined Ø 30 mm tubes and with a ± 5 diopter adjustment on left eyepiece. The interpupillary distance is adjustable between 48 to 76 mm
- The trinocular head comes with a Ø 23.2 mm photo tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
NOSEPIECE
Revolving and reversed ball-bearing quintuple nosepiece
OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope® objectives enable the bScope® to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
- Plan infinity corrected PLi 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85 and S100x/1.25 oil immersion IOS objectives for applications where violet or Ultra-Violet excitation is not needed
- Plan Fluarex infinity corrected PLFi 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/0.90 IOS objectives for applications where either higher resolving power or violet or ultra-violet excitation is needed
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum
light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.1 µm, 200 µm per rotation, total travel range is approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
The bScope® is equipped with a scratch-resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder. The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
CONDENSER FOR ZERNIKE PHASE CONTRAST
The height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives are available in either EPL-PHi or PL-PHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR SIMPLE PHASE CONTRAST
The height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives, or a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser includes a BF position for brightfield contrast with an iris diaphragm and filter holder. Phase contrast objectives available in either EPL-PHi or PL-PHi version. Supplied with alignment telescope and green filter
POLARIZATION
The bScope® has an integrated slot above the nosepiece for an optional polarization filter
FLUORESCENCE ATTACHMENT
- Epi-illumination with four 5 W LEDs for fluorescence excitation from 450 to 470 nm (blue), 515 to 535 nm (green), 390 to 400 (violet) and 360 to 370 nm (ultraviolet). External 100-240 V power supply
- Supplied with UV protection shield
- Fluorescence filter sets:
NEOLED™ TRANSMITTED ILLUMINATION
The 3 W adjustable Köhler NeoLED™ transmitted illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the bScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating life span
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. Generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
CORDLESS USE
The optional rechargeable batteries turn the bScope® into a cordless system for transmitted illumination
CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
Smart styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, tools, a spare fuse, white filter, user manual and 5 ml immersion oil
iScope
iScope – A masterpiece in microscopy
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications
Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used. iScope models with multi-heads are also available for teaching purposes
EYEPIECES
- Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube. Tube length 160 mm)
- Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and adjustable diopter on the left tube for EPLi systems (Ø 30 mm tube. Tube length 200 mm)
HEAD
- Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm.
- The trinocular head of the Plan infinity corrected models (IS.1153-PLi) has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes
- The trinocular head of the E-Plan infinity corrected models (IS.1153-EPLi) has a fixed built-in beamsplitter (50:50) and ± 5 diopter adjustment on the Ø 30 mm left tube
- The trinocular head of the E-plan finite models (IS.1153-EPL) has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment on the Ø 23.2 mm left tube
- A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular head comes with a Ø 23.2 mm photo port
ERGONOMICAL TILTING HEAD
Optional ergonomic 5 to 35° tilting head, interpupillary distance 48-75 mm and optional photo attachment with standard Ø 23.2 mm tube (only infinity corrected models and not suitable for multi head systems)
MULTIHEAD SYSTEM
The iScope® can be extended with a unique multihead system for in total two, three or five heads, allowing simultaneous observation of specimens. The central attachment is equipped with a joystick to move a green and red laser pointer across the entire field of view of all heads. Configurations with one, two or four additional viewing binocular heads, 30° inclined tubes and plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives. All heads are equipped with extended wide field plan EWF 10x/22 mm eyepieces
(references: IS.1156-PLi-x, x = total number of heads)
IS.1156-PLi-9_DC.5000c
FACE-TO-FACE DUAL HEAD SYSTEM
- The iScope® can be supplied with two heads in a face-to-face configuration allowing simultaneous observation by two operators
- The 30 mm diameter tubes of the head are equipped with EWF 10x/20 mm eyepieces
- The main binocular head has one diopter adjustment, the second head has two adjustments
- Only available for the model with plan infinity corrected objectives (IS.1154-PLi/T)
- The face-to-face head is equipped with a 2-color laser pointer
OBJECTIVES – 45 MM PARFOCAL
E-Plan EPL | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S100x/1.25 oil | ||
E-Plan EPLi IOS | 4x/0.10 | 10x/0.25 | S40x/0.65 | S100x/1.25 oil | |||
Plan PLi IOS | 2x/0.05 | 4x/0.10 | 10x/0.25 | 20x/0.40* | S40x/0.65 | S60x/0.85* | S100x/1.25 oil |
Plan phase PLPH | 10x/0.25 | 20x/0.40 | S40x/0.65 | S100x/1.25 oil | |||
Plan phase PLPHi IOS | 10x/0.25 | 20x/0.40 | S40x/0.65 | S100x/1.25 oil |
* optional
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
NOSEPIECE
Revolving quintuple reversed nosepiece for max. five objectives
STAGE
The iScope can be equipped with three types of stages (designed for 2 slides):
- 156 x 138 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage
- 187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope rackless stage has no protruding parts, enables more smooth movements and is safer
The iScope can be supplied with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with new purchased microscopes. Higher temperatures can be achieved on special request
CONDENSERS WITH PHASE CONTRAST SLIDER
There is a choice of two optional NA. 1.25 phase contrast condenser sets with phase contrast sliders and plan phase contrast objectives. The first version one is comes with plan phase 10x and S40x objectives with matching slider, the second version comes with plan phase 20x and and S100x oil immersion objectives. Available for iScope 160mm and IOS infinity versions
All sets are supplied with centering telescope and green opaque filter
(Photo: IS.9162 – Phase contrast set)
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast. With magnification indication. A slider with a simple dark stop for darkfield up to 400x magnification is also available
CONDENSER FOR ZERNIKE PHASE CONTRAST
An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x and S100x oil immersion objectives and darkfield stop position for darkfield contrast up to 400x magnification. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, a high powered 3 W LED and a S100x objective with built-in iris diaphragm enable a real 1000x magnification darkfield solution
(Product data sheet iScope models for darkfield, see downloads)
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control
ILLUMINATION
3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply for brightfield and phase contrast models
The innovative NeoLED design offer larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as option
SMART LIGHT CONTROL SYSTEM
- The Smart Light Control (SLC) automatically memorises the last used illumination intensity brightness for each individual objective. When switching from one objective to another the SLC system remembers intensity when you return to that objective. Simply rotate the nosepiece to the next objective and the SLC will instantly adjust the illumination intensity to your desired level
- Light intensity can be locked to stop intensity changing by simply pressing the control button twice
- The LCD screen at the front of the microscope informs the user of the magnification and light intensity settings of the microscope, as well as the sleep and locking modes when activated
- Push the button once to enter/leave sleep mode and push the button twice to enter/leave lock mode
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
STORAGE AND TRANSPORTATION
from left to right: IS.4300 – AE.9919 – AE.9916
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. All packed in polystyrene boxes.
