STIRRING & HEATING
MS-H220-V3/MSH220-V5 LCD Digital Heating Magnetic Stirring Bath
Description
Specification
Description
- High borosilicate glass liner, resistant to sudden changes from hot to cold without breaking, transparent glass window for monitoring reaction product changes; stainless steel base, rust-resistant, easy to clean; high-temperature
- resistant protective outer shell to prevent direct contact with hot glass and burns.
- Dual-use stirring bath for water and oil, with secondary stirring in the bath pot. The stirring of the bath liquid simultaneously stirs the liquid sample in the flask, ensuring uniform heating of both bath liquid and sample.
- Safety lock to prevent accidental changes in operational status.
- Buzzer: A “beep beep beep” alert sounds when the countdown timer function ends. Button tone.
- Features a timer function with a range of 1 min to 99h59min. It stops heating when the countdown ends but continues stirring to prevent heat damage to the sample.
- Touch buttons with audible prompts.
- Working status indicator light: Green during operation, flashing green before reaching set temperature; alarm red.
- Reversible function.
- Protection features: dry burning protection, overcurrent protection, ground fault protection, and over temperature protection.
- Residual heat warning function. When the plate temperature is above 50℃ , heating is turned off, and the screen flashes “HOT” as a reminder of the high temperature even after the power is off.
- Two independent safety circuits continuously monitor the device. In case of overheating, sensor failure, or circuit short, the machine will error report and stop heating or automatically cut off power to ensure operator safety.
- DC brushless motor, spark-free, long life; low noise, maintenance-free, stable operation.
- LCD displays speed, time, and temperature parameters clearly and intuitively.
Specification
Cat.No.
8030324118
Work plate Dimension
Ø220×105mm
Work plate material
High borosilicate glass + stainless steel base
Max. stirring quantity [H2O]
3L
Speed range
100~1500rpm，±10rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-220℃
Temperature control accuracy
±1℃
Temperature display accuracy
0.1℃
“Hot” warning
50℃
Overheating temperature protection
350℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
40mm
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
20W
Power
900W
Heating output
850W
Voltage,Frequency
100-120V,60Hz; 200-240V,50Hz
Dimension [WxDxH]
343×215×283mm
Weight
6.0kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
4/6 Channel LCD Digital Magnetic Stirrer
Description
Specification
Description
- 4/6 channels with independently control of start/stop, speed and display for better parallel experiment control.
- Ceramic coating aluminum work plate with strong resistance to corrosion.
- Spark-free DC brushless motor with extended life and no maintenance
- Compatible with reaction vessels for a variety of application scenario
- Ultra space-saving with 4/6 channel integrated in one instrument
- Safety mechanism, enhancing experimental safety.
Specification
Cat.No.
8030271100
Work plate Dimension
Ø134mm
Work plate material
Aluminum with ceramic coating
Max. stirring quantity[H2O]
3LX4
Speed range
200-1500rpm
Speed display
LCD
Motor type
Brushless DC motor
Stirring positions
4
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
–
Motor output Power
5WX4
Power
5WX4
Voltage,Frequency
100-240V,50/60Hz
Dimension[WxDxH]
701X265X127mm
Weight
8.7Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
4/6 Channel LCD Digital Hotplate Magnetic Stirrer
Description
Specification
Description
- 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
- Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
- Powerful, rapid heating with accurate PID temperature control
- Spark-free DC brushless motor with extended life and no maintenance
- Compatible with various heating block or reaction vessels for a variety of application scenario
- Ultra space-saving with 4/6 channel integrated in one instrument
- “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
- Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
- Reliable safety mechanism, compliant to IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.
Specification
Cat.No.
8030271112
Work plate Dimension
Ø134mm
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
3LX4
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-280℃
Temperature control accuracy
±1℃(<100℃)， ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000（accuracy±0.2℃）
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
4
Max. magnetic bar length
40mm
Data connector
–
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
–
Power
605WX4
Heating output
600WX4
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
701X265X127mm
Weight
8.7Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
Description
SPECIFICATION
Description
- Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
- Smooth acceleration and deceleration for stable running without spillage
- Timer control from 1 minute to 99 hours and 59 minutes. When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
- Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
- “HOT” warning flashes on the LCD display if the work plate tempe rature is above 50 °C after the user turn off the power switch.
- Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
- Can be connected to PC with remote control.
SPECIFICATION
Cat.No.
8035221110
Work plate Dimension
Ø135mm (5 inch)
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room temperature ~ 340℃, increment 1℃
Temperature control accuracy
±1℃(<100℃)，±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000 (accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min to 99h59min
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
720W
Heating output
600W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
LCD Digital Magnetic Stirrer with Electric Heating Mantle
Description
Specification
Description
- The smart magnetic stirrer can be flexibly set up with inter-changeable heating sleeves for 100mL、250mL、500mL、1000mL round-bottom flask, or 100mL、250mL、500mL、1000mL flat bottom beakers.
- Even more flexible configurations: as one heating magnetic stirrer, or as one heating sleeve plus one magnetic stirrer.
- Temperature self calibration function for higher temperature accuracy.

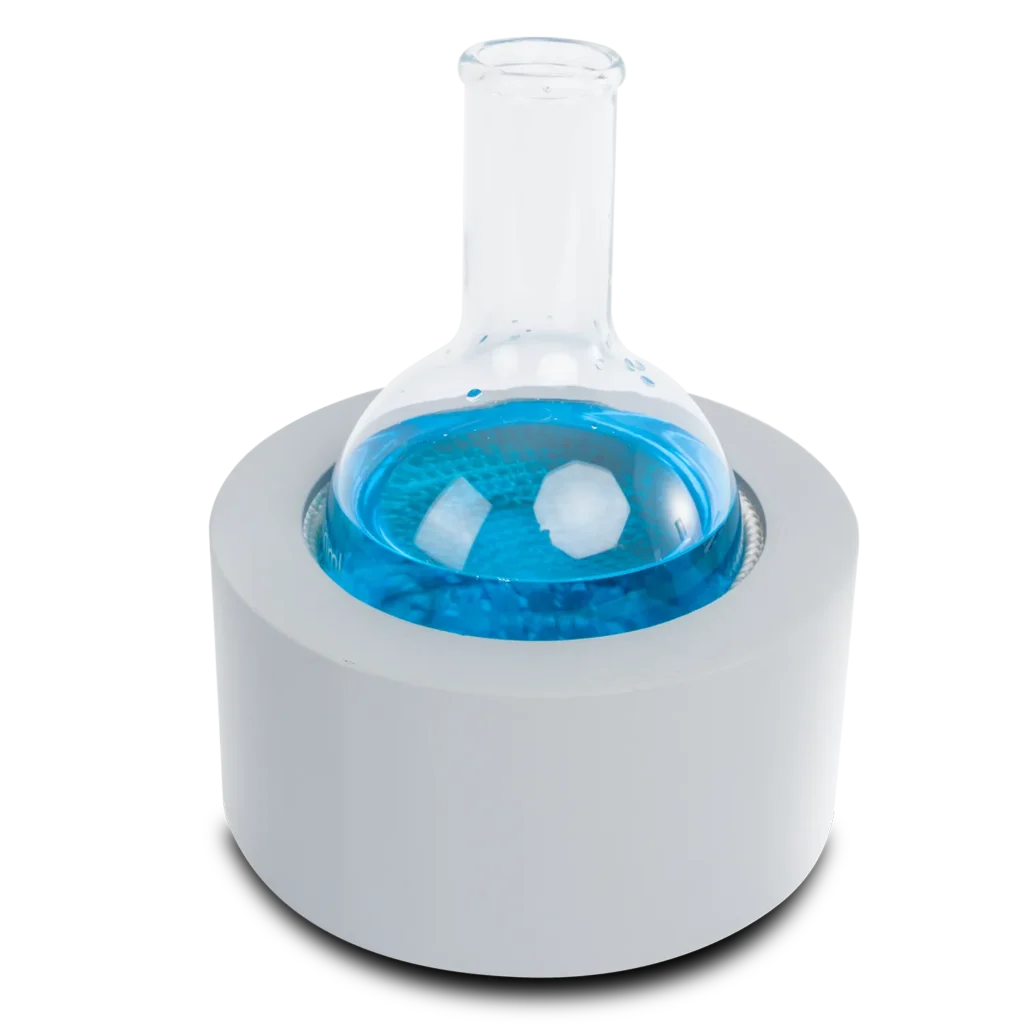

- Heating sleeve made of high-quality Aluminum silicate fiber cotton with accurate temperature control, uniform heating and corrosion resistance.
- Strengthened magnetic fields with enhanced stirring power.
- Fireproof metal outcast with higher safety level.
- Explosion-proof DC brushless motor free of maintenance and spark, and with long service life.
- The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off, as long as the power cable is connected.
- Two independent safety circuits are designed to continuously monitor the equipment. When the sensor malfunctions and overheating occurs, an error code will be generated and the stirrer will stop heating. When the first safety circuit is shorted, the second safety circuit will cut off the power supply to ensure the safety of the operator
Specification
Cat.No.
8017373100
Work plate Dimension
–
Work plate material
–
Max. stirring quantity [H2O]
–
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-280℃
Temperature control accuracy
±1℃(<100℃)， ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000（accuracy±0.2℃）
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
–
Max. magnetic bar length
–
Data connector
–
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
1.8W
Power
–
Heating output
210W
Voltage,Frequency
100-120V,60Hz/200-240V,50Hz
Dimension [WxDxH]
295X160X160mm
Weight
3.7Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
OS20-Pro LCD Digital Overhead Stirrer
Description
Specification
Description

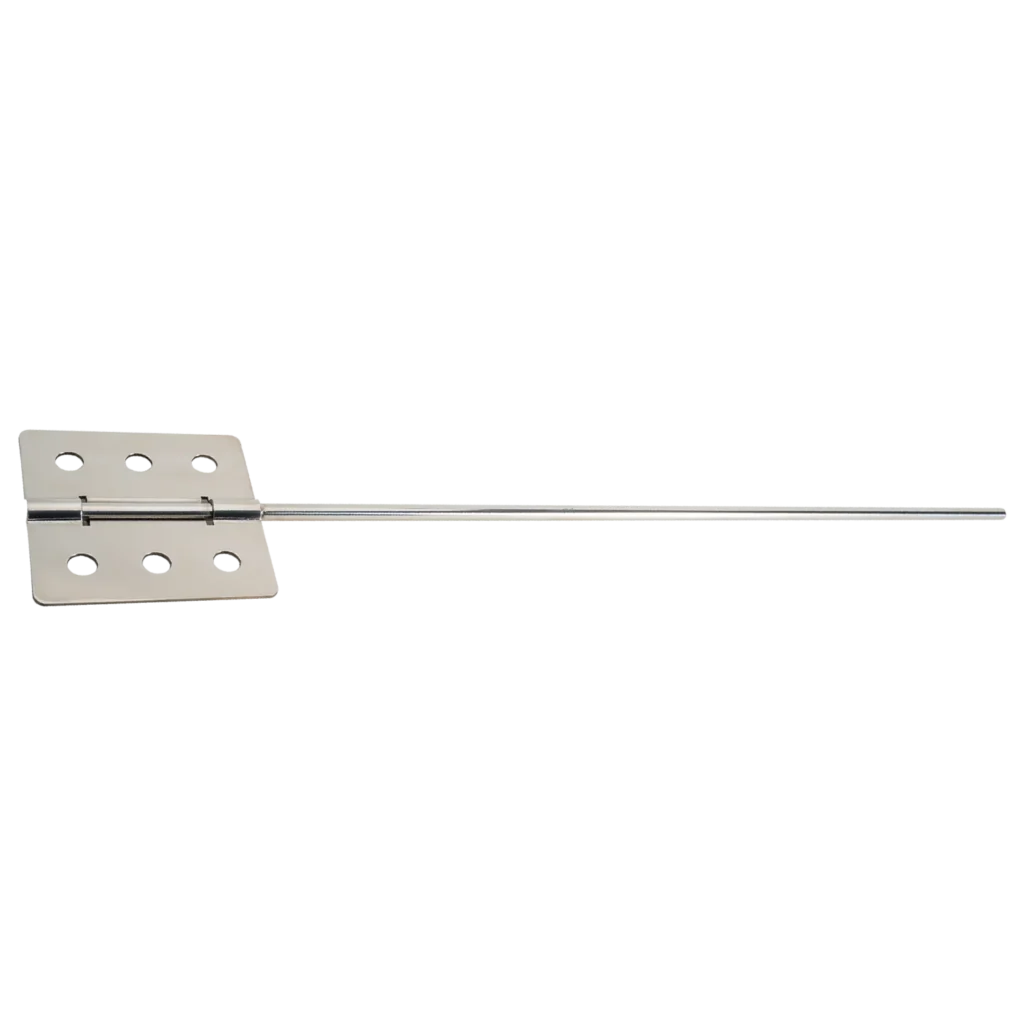

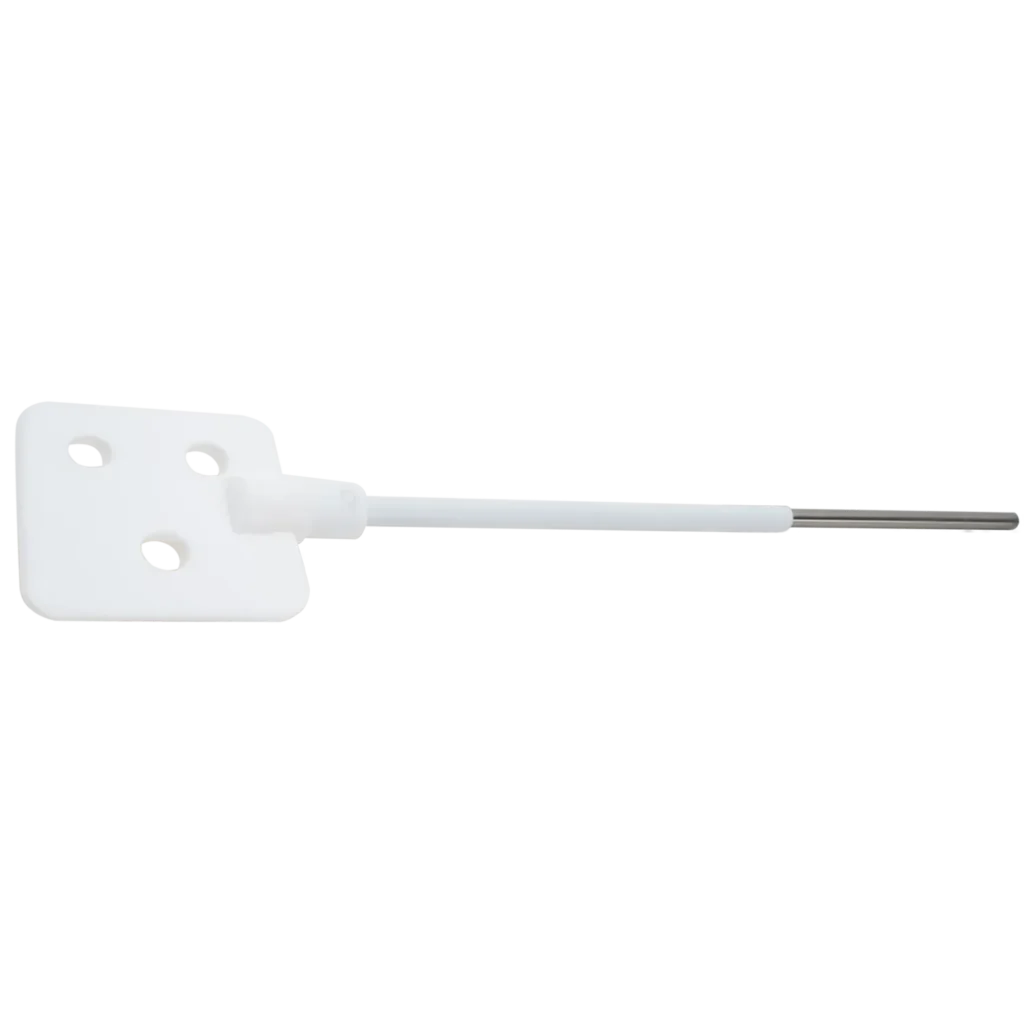

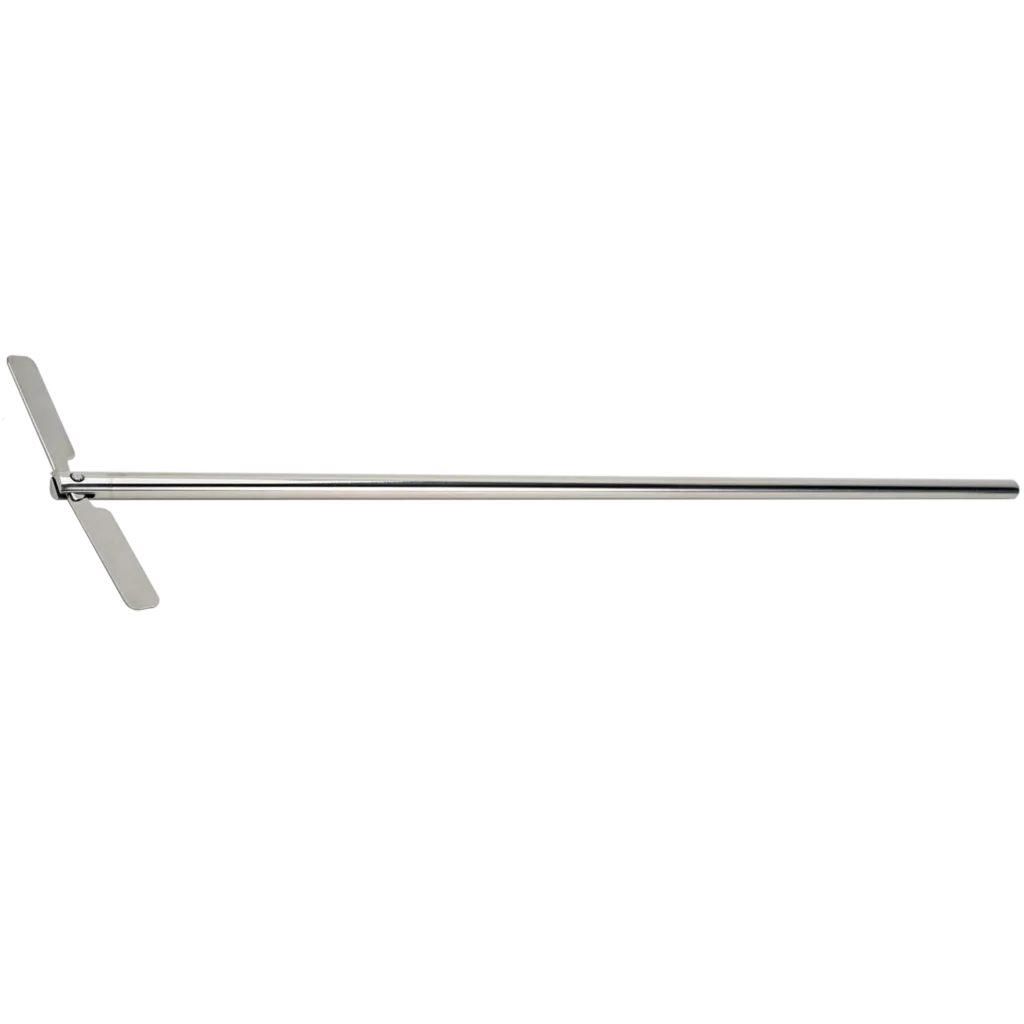

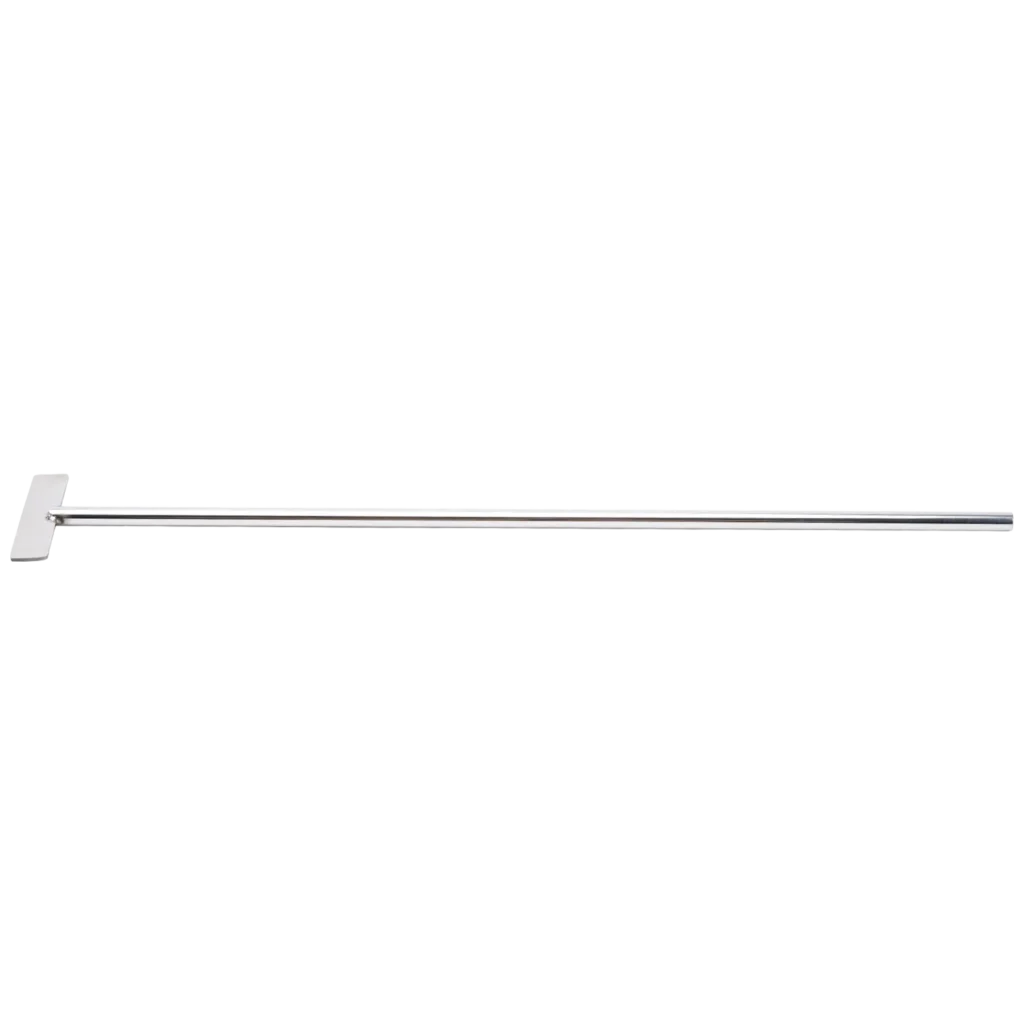

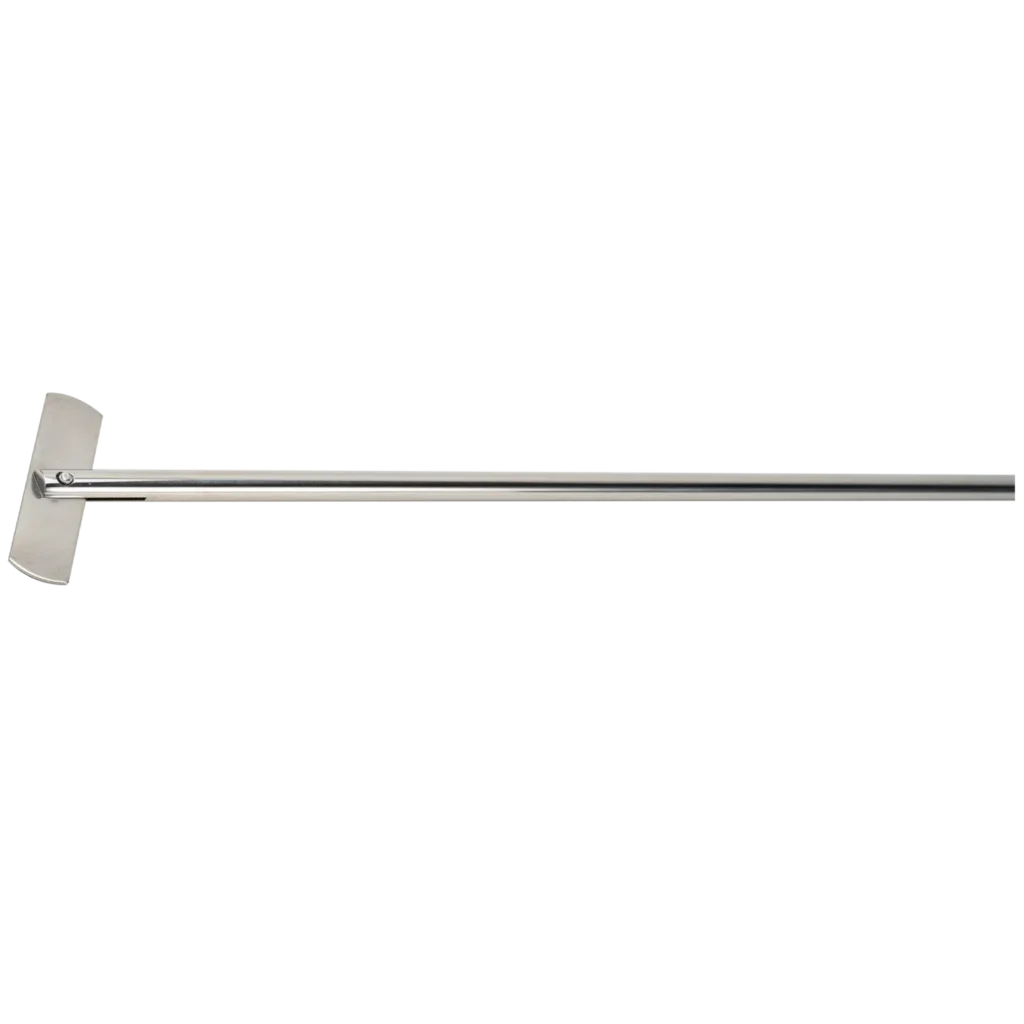

- Stirring paddle “top- cross” design, easy to replace the container
- LCD display of set and actual speed, torque
- Spillage and overload protection safety circuits
- Brushless DC motor for long life, maintenance free
- Self – locking drill chuck, tools free
- Start/run smoothly, prevent sample splatter or overflow
- Constant speed despite viscosity change of the sample
- Silicone cover protecting drill chuck from erosive vapor
Specification
Cat.No.
8033100100
Max. stirring quantity[H2O]
20L
Speed range
50-2200rpm
Speed display accuracy
±3rpm
Time settings range
–
Max. torque
40N·cm
Viscosity max.
10000mPa·s
Motor type
Brushless DC motor
Speed display
LCD
Torque display
LCD
Overload protection display
LCD
Data interface
RS232
Chuck clamp range diameter
0.5-10mm
Protection class
IP21
Motor input power
60W
Motor output power
50W
Power
70W
Voltage,Frequency
100-240V, 50/60Hz
Dimension[WxHxD]
83 x 220 x 186mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-S Magnetic Stirrer
Description
Specification
Description
- Speed range of 0-1500rpm
- Maximum stirring quantity of H2O up to 20L
- Ceramic work plate provides excellent corrosion resistance
Specification
Cat.No.
8030211000
Work plate Dimension
Ø135mm (5 inch)
Work plate material
Stainless steel cover with ceramic
Max. stirring quantity[H2O]
20L
Speed range
0-1500rpm
Speed display
Scale
Motor type
Brushless DC motor
Stirring positions
1
Max.magnetic bar length
80mm
Protection class
IP21
Motor input Power
18W
Motor output Power
10W
Power
30W
Voltage,Frequency
100-240V，50/60Hz
Dimension[WxDxH]
160x280x85mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
HP500-Pro LCD Digital Hotplate
Description
Specification
Description
- LCD screen shows temperature, Max. temperature up to 500℃
- 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
- External temperature control is possible by connecting the temperature sensor (PT
- 1000) with an accuracy at ±0.2°C
- The “HOT”warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
- Heating temperature: room temperature -500℃ .
- Data connector : The SD card records the instrument’s running data in real time.
- Timing function: the running time of the instrument can be set.
Specification
Cat.No.
5031132115
Work plate Dimension
254x254mm(10 inch)
Work plate material
Glass ceramic
Heating temperature range
Room Temp.-500℃, increment 1℃
Temperature display
LCD
Time display
LCD
Temperature control accuracy
±1℃ (<100℃)±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 (±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
540℃
Heating position
1
Timer function
1min-99h59min
Protection class
IP21
Power
1400W
Heating output
1350W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
328x424x138mm
Weight
7.2kg
Permissible ambient temperature
5-40℃
MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
Description
Specification
Description
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
- LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy
- at ±0.2°C
- Digital speed control of 100 -1500rpm
- Max. heating plate temperature 500℃
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Data connector : The SD card also records the instrument’s running data in real time.
- Timing function: the running time of the instrument can be set.
Specification
Cat.No.
8030132117
Work plate Dimension
254x254mm(10 inch)
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
30L
Speed range
100-1500rpm，resolution±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-500℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(accuracy ±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
540℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
SD card
Timer function
1min-99h59min
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
1400W
Heating output
1350W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
328x424x138mm
Weight
7.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
OS40-Pro LCD Digital Overhead Stirrer
Description
Specification
Description
- Stirring paddle “top- cross” design, easy to replace the container
- LCD display of set and actual speed, torque
- Spillage and overload protection safety circuits
- Brushless DC motor for long life, maintenance free
- Self – locking drill chuck, tools free
- Start/run smoothly, prevent sample splatter or overflow
- Constant speed despite viscosity change of the sample
- Silicone cover protecting drill chuck from erosive vapor
Specification
Cat.No.
8033200100
Max. stirring quantity[H2O]
40L
Speed range
50-2200rpm
Speed display accuracy
±3rpm
Time settings range
–
Max. torque
60N·cm
Viscosity max.
50000mPa·s
Motor type
Brushless DC motor
Speed display
LCD
Torque display
LCD
Overload protection display
LCD
Data interface
RS232
Chuck clamp range diameter
0.5-10mm
Protection class
IP21
Motor input power
120W
Motor output power
100W
Power
130W
Voltage,Frequency
100-240V, 50/60Hz
Dimension[WxHxD]
83 x 220 x 186mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS7-S 7" Square Magnetic Stirrer
Description
Specification
Description
- Speed range of 0-1500rpm
- Maximum stirring quantity of H2O up to 10L
- Ceramic work plate provides excellent corrosion resistance
Specification
Cat.No.
8030122000
Work plate Dimension
184x184mm (7 inch)
Work plate material
Glass ceramic
Max. stirring quantity[H2O]
10L
Speed range
0-1500rpm
Speed display
Scale
Motor type
Shaded pole motor
Stirring positions
1
Max.magnetic bar length
80mm
Protection class
IP21
Motor input Power
15W
Motor output Power
1.5W
Power
30W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
215x360x112mm
Weight
3.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
Description
Specification
Description
- LCD displays actual temperature & speed
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
Specification
Cat.No.
8030122111
Work plate Dimension
184x184mm ( 7 inch )
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm，resolution±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-550℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(accuracy ±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
580℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
1050W
Heating output
1000W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
215x360x112mm
Weight
5.3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
OS70-Pro LCD Digital Overhead Stirrer
Description
Specification
Description
- Stirring paddle “top- cross” design, easy to replace the container
- LCD display of set and actual speed, torque and time
- Spillage and overload protection safety circuits
- Brushless DC motor for long life, maintenance free
- Self – locking drill chuck, tools free
- Start/run smoothly, prevent sample splatter or overflow
- Constant speed despite viscosity change of the sample
- Silicone cover protecting drill chuck from erosive vapor
Specification
Cat.No.
8033300100
Max. stirring quantity[H2O]
70L
Speed range
50-1100rpm
Speed display accuracy
±10rpm
Time settings range
0-99h59min
Max. torque
300N·cm
Viscosity max.
100000mPa·s
Motor type
Brushless DC motor
Speed display
LCD
Torque display
LCD
Overload protection display
LCD
Data interface
RS232
Chuck clamp range diameter
0.5-10mm
Protection class
IP21
Motor input power
180W
Motor output power
160W
Power
200W
Voltage,Frequency
100-240V, 50/60Hz
Dimension[WxHxD]
83 x 220 x 186mm
Weight
3.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS6-Pro LCD Digital Magnetic Stirrer
Description
Specification
Description
- High resolution LCD displays actual stirring speed
- Brushless DC motor is maintenance free
- Aluminum covered ceramic coating，corrosion resistant and easy to clean
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O at 5L
Specification
Cat.No.
8030261100
Work plate Dimension
140x140mm
Work plate material
Aluminum cover with ceramic coating
Max. stirring quantity[H2O]
5L
Speed range
200-1500rpm
Speed display
LCD
Motor type
Brushless DC motor
Stirring positions
1
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
2.4W
Motor output Power
1.8W
Power
10W
Voltage,Frequency
100-240V，50/60Hz
Dimension[WxDxH]
320x180x108mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
HP380-Pro LCD Digital Hotplate
Description
Specification
Description
- Maximum heating temperature is 380 °C
- High resolution LCD displays actual temperature
- Aluminum ceramic coating work plate, allowing a immediate heat transfer
- External temperature control is possible with temperature sensor PT1000
Specification
Cat.No.
5031151114
Work plate Dimension
140x140mm (6 inch)
Work plate material
Aluminum cover with ceramic coating
Heating temperature range
Room temp.-380℃ increment 1℃
Temperature display
LCD
Time display
LCD
Temperature control accuracy
–
Temperature display accuracy
±1℃
External temperature sensor
PT1000 (±0.2℃)
“Hot” warning
–
Overheating temperature protection
420℃
Heating position
1
Timer function
–
Protection class
IP21
Power
510W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
180x320x108mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
Description
Specification
Description
- LED displays actual temperature
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
Specification
Cat.No.
8030122211
Work plate Dimension
184x184mm ( 7 inch )
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
10L
Speed range
0-1500rpm
Speed display
Scale
Temperature display
LED
Heating temperature range
Room Temp.-550℃, increment 5℃
Temperature control accuracy
±10℃
Temperature display accuracy
±1℃
External temperature sensor
PT1000 (accuracy ±0.2℃)
“Hot” warning
50°C
Overheating temperature protection
580°C
Motor type
Shaded pole motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
–
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
1.5W
Power
1030W
Heating output
1000W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
215x360x112mm
Weight
4.5KG
Permissible ambient temperature
5~40℃
Permissible ambient humidity
80% RH
OS20-S LED Overhead Stirrer
Description
Specification
Description
- High reliability and outstanding performance
- Wide range of speed from 50 to 2200rpm
- Brushless DC motor for long life, maintenance free and explosion proof
- LED screen for monitoring actual speed
- Safety circuits allow for safe stop function in anti-stall or overload conditions
- Large chuck diameter for many shaft types
Specification
Cat.No.
8033100200
Max. stirring quantity[H2O]
20L
Speed range
50-2200rpm
Speed display accuracy
–
Time settings range
–
Max. torque
40N·cm
Viscosity max.
10000mPa·s
Motor type
Brushless DC motor
Speed display
LED
Torque display
–
Overload protection display
LED
Data interface
–
Chuck clamp range diameter
0.5-10mm
Protection class
IP21
Motor input power
60W
Motor output power
50W
Power
70W
Voltage,Frequency
100-240V, 50/60Hz
Dimension[WxHxD]
83 x 220 x 186mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-PA LED Digital Magnetic Stirrer
Description
Specification
Description
- Digital speed control within the range of 0-1500rpm
- Maximum stirring quantity of H2O at 3L
- LED display shows stirring speed
Specification
Cat.No.
8030284200
Work plate Dimension
Ø 135mm(5 inch)
Work plate material
Nylon+GF
Max. stirring quantity[H2O]
3L
Speed range
200-1500rpm
Speed display
LED
Motor type
Brushless DC motor
Stirring positions
1
Max.magnetic bar length
50mm
Protection class
IP42
Motor input Power
5W
Motor output Power
3W
Power
15W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension[WxDxH]
150x260x80mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
Description
Specification
Description
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
Specification
Cat.No.
8060221110
Work plate Dimension
Ø135mm（5 inch）
Work plate material
Aluminum cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room temp.-340℃，increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min to 99h59min
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
720W
Heating output
600W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
280×160×100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
OS40-S LED Overhead Stirrer
Description
Speciification
Description
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
Speciification
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm resolution ±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-340℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
550W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
Description
Specification
Description
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
Specification
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm resolution ±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-340℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
–
Protection class
IP21
Motor rating input
–
Motor rating output
10W
Power
550W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
MS-PB Magnetic Stirrer
Description
Specification
Description
- Digital speed control within the range of 0-1500rpm
- Maximum stirring quantity of H2O at 3L
Specification
Cat.No.
8030294000
Work plate Dimension
Ø 135mm(5 inch)
Work plate material
Nylon+GF
Max. stirring quantity[H2O]
3L
Speed range
0-1500rpm
Speed display
scale
Motor type
Brushless DC motor
Stirring positions
1
Max.magnetic bar length
50mm
Protection class
IP42
Motor input Power
5W
Motor output Power
3W
Power
10W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
150x260x80mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-T-S15 15-Position magnetic stirrer
Description
Specificatiion
Description
- Efficient, simple, safe, multi-position agitator is the ideal choice for sample testing.
- Simple and easy operation panel: 15 stirring positions are controlled by 3 independent channels, all channels are available at different speeds and times.
- Brushless DC motor and powerful magnetic ensure fast and accurate stirring speed.
- Aluminum laser engraving disk surface, skid and corrosion proof anti-abrasive.
Specificatiion
Cat.No.
8030320100
Work plate Dimension
460x304mm
Work plate material
Aluminum
Max. stirring quantity[H2O]
0.4Lx15
Speed range
100-1500rpm
Speed display
LCD
Motor type
DC brushless
Stirring positions
15
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
–
Motor output Power
–
Power
40w
Voltage,Frequency
100V/240V，50Hz/60Hz
Dimension[WxDxH]
615x307x90mm
Weight
9.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
MS-M-S10 10-Position Magnetic Stirrer
Description
Specificatiion
Description
- Efficient, simple and safe stirring
- High performance and space-saving design to maximize the use of benchtop space and saving time by stirring multiple solutions
- Maintenance-free brushless DC motor
- Speed range 0-1100rpm
- Stainless steel work plate covered with silicone cushion, provides excellent performance of skid resistance
Specificatiion
Cat.No.
8030140013
Work plate Dimension
180×450mm
Work plate material
Stainless steel with silicone coating
Max. stirring quantity[H2O]
0.4Lx10
Speed range
0-1100rpm
Speed display
Scale
Motor type
Brushless DC motor
Stirring positions
10
Max.magnetic bar length
40mm
Protection class
IP20
Motor input Power
12W
Motor output Power
4W
Power
20W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
622x205x65mm
Weight
3.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H-S Security Analog Magnetic Hotplate stirrer
Description
Specifiication
Description
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- Work plate with ceramic coating provides good chemical-resistantperformance
- Wide variety of accessories available to choose
Specifiication
Cat.No.
8030211010
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
0-1500rpm
Speed display
Scale
Temperature display
Scale
Heating temperature range
Room Temp.-340℃
Temperature control accuracy
–
Temperature display accuracy
–
External temperature sensor
–
“Hot” warning
–
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
–
Timer function
–
Protection class
IP21
Motor rating input
18W
Motor rating output
10W
Power
530W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
FlatSpin Ultra-flat Compact Magnetic Stirrer
Description
Specification
Description
- Speed range 15 to 1500rmp
- Automatic reverse rotation for excellent mixing
- PET top work plate provides excellent chemical resistance
- Motorless technology provides ultra silent and vibration-free operation
- Perfect magnetic stirrer for use during titration (bottle-top burette) in analytical chemistry
Specification
Cat.No.
8030184000
Work plate Dimension
Ø90mm
Work plate material
PET
Max. stirring quantity[H2O]
0.8L
Speed range
15-1500rpm
Speed display
Button
Motor type
–
Stirring positions
1
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
–
Motor output Power
3W
Power
5W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
175x120x15mm
Weight
0.3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
Description
Specification
Description
- Maximum heating temperature is 380°C
- High resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance free
- Aluminum ceramIc coating work plate, allowing immediate heat transfer
- External temperature control is possible with temperature sensor PT1000
- Digital speed control with maximum speed up to 1500rpm
- Maximum stirring quantity of H2O at 5L
Specification
Cat.No.
8030261115
Work plate Dimension
140x140mm
Work plate material
Aluminum cover with ceramic coating
Max. stirring quantity [H2O]
5L
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-380℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
“Hot” warning
–
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
50mm
Data connector
–
Timer function
–
Protection class
IP21
Motor rating input
2.4W
Motor rating output
1.8W
Power
510W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
320x180x108mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
EcoStir Square Plate Magnetic Stirrer
Description
Specification
Description
- Compact design with small footprint, 12V voltage available for mobile labs
- Square work plate supports 1.5L stirring capacity
- Holder with clamp for pH electrode or other sensor
- Default PET top provides excellent chemical resistance
- Extra colorful stickers satisfy DIY design by yourself
- Maintenance free brushless DC moto
- An economical choice of a reliable & durable magnetic stirrer with an electrode holder for stable & powerful stirring ability
Specification
Cat.No.
8030197000
Work plate Dimension
120x115mm
Work plate material
PET
Max. stirring quantity[H2O]
1.5L
Speed range
300-2000rpm
Speed display
Scale
Motor type
Brushless DC Motor
Stirring positions
1
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
–
Motor output Power
1.2W
Power
7.2W
Voltage,Frequency
DC 12V, 100-240V,50/60Hz
Dimension[WxDxH]
150x144x54mm
Weight
0.3Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H280-Pro LED Digital Magnetic Hotplate Stirrer
Description
Tab Title
Description
- Digital temperature control with maximum temperature up to 280°C
- Digital speed control with maximum speed up to 1500rpm
- Stainless steel with ceramic coating work plate provides high chemical resistant performance
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2°C
- LED display shows temperature and stirring speed
- “HOT” warning flashes if work plate temperature is above 50°C
Tab Title
Cat.No.
8030101212
Work plate Dimension
Ø 135mm(5 inch)
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
3L
Speed range
200-1500rpm
Speed display
LED
Temperature display
LED
Heating temperature range
Room Temp.-280℃
Temperature control accuracy
±1℃ (<100℃) ±1% (>100℃)
Temperature display accuracy
±1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
320℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
50mm
Data connector
–
Timer function
–
Protection class
IP42
Motor rating input
5W
Motor rating output
3W
Power
515W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
150x260x100mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
EcoStir Economical Magnetic Stirrer
Description
Specification
Description
- Maintenance free brushless DC motor
- Rare earth magnets give powerful stirring
- Stepless speed regulation 300-2000rpm
- Ultra silence and vibration-free design
- PET top provides excellent chemical resistance
- Shaft can be fitted with a pH sensor or other sensors for different purposes
Specification
Cat.No.
8010194000
Work plate Dimension
Ø120mm
Work plate material
PET
Max. stirring quantity[H2O]
1.5L
Speed range
300-2000rpm
Speed display
scale
Motor type
Brushless DC motor
Stirring positions
1
Max.magnetic bar length
40mm
Protection class
IP21
Motor input Power
–
Motor output Power
1.2W
Power
7.2W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension[WxDxH]
150x145x50mm
Weight
0.3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H-S10 10-Position Magnetic Hotplate Stirrer
Description
Specification
Description
- Maintenance-free brushless DC motor
- Max speed 1100rpm
- Max.temperature 120°C
- Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance
Specification
Cat.No.
8030140000
Work plate Dimension
180x450mm
Work plate material
Stainless steel covered with silicone cushion
Max. stirring quantity [H2O]
0.4Lx10
Speed range
0-1100rpm
Speed display
scale
Temperature display
scale
Heating temperature range
Room temp.-120℃
Overheating temperature protection
140℃
Motor type
Brushless DC motor
Stirring positions
10
Max. magnetic bar length
40mm
Protection class
IP20
Motor rating input
12W
Motor rating output
4W
Power
490W
Heating output
470W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension [WxDxH]
182×622×65mm
Weight
3.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer
Description
Specification
Description
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control with max. temperature at 340°C
- Digital speed control with max. speed up to 1500rpm
- Max. stirring quantity of H2O at 20L
- Safety circuits provide overheating protection
- The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
- Wide range timer function from 1min to 99h59min
- High-resolution LCD display shows actual temperatures，speed and time
- External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
- Stainless steel work plate with ceramic coating provides good chemical-resistant performance
- Remote function provides PC control and data transmission
- A wide variety of accessories are available
Specification
Cat.No.
8030201110
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm resolution ±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-340℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 (accuracy ±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP21
Motor rating input
18W
Motor rating output
10W
Power
550W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer
Description
Specification
Description
- Independent heating and stirring control for each position
- LCD display shows real-time temperature and speed
- PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
- Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
- External temperature sensor (PT1000) with accuracy 0.2℃
- Overheating protection temperature at 420℃
- Stainless steel work plate with ceramic coating provides good chemical resistance
- Wide variety of accessories available to choose from
Specification
Cat.No.
8030271110
Work plate Dimension
Ø 135mm(5inch) x 4
Work plate material
Stainless steel with ceramic coating
Max. stirring quantity [H2O]
10L x 4
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-340℃
Temperature control accuracy
±1℃（＜100℃），±1%（＞100℃）
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000( accuracy±0.2℃ )
“Hot” warning
–
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
4
Max. magnetic bar length
40mm
Data connector
–
Timer function
–
Protection class
IP20
Motor rating input
–
Motor rating output
1.8W x 4
Power
515W x 4
Heating output
500W x 4
Voltage,Frequency
100-120V/200-240V,50/60Hz
Dimension [WxDxH]
698x270x128mm
Weight
9.5kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
D-160 Handheld Homogenizer
Description
Specification
Description
Volume:5.5L，Outside diameter:26cm，Inside diameter:24cm，High:13.5cm,Bottom diameter:24cm
Specification
Speed range
8000-32000rpm
Max linear velocity
6.3m/sec or 14m/sec
Speed set
10 stage
Working volume

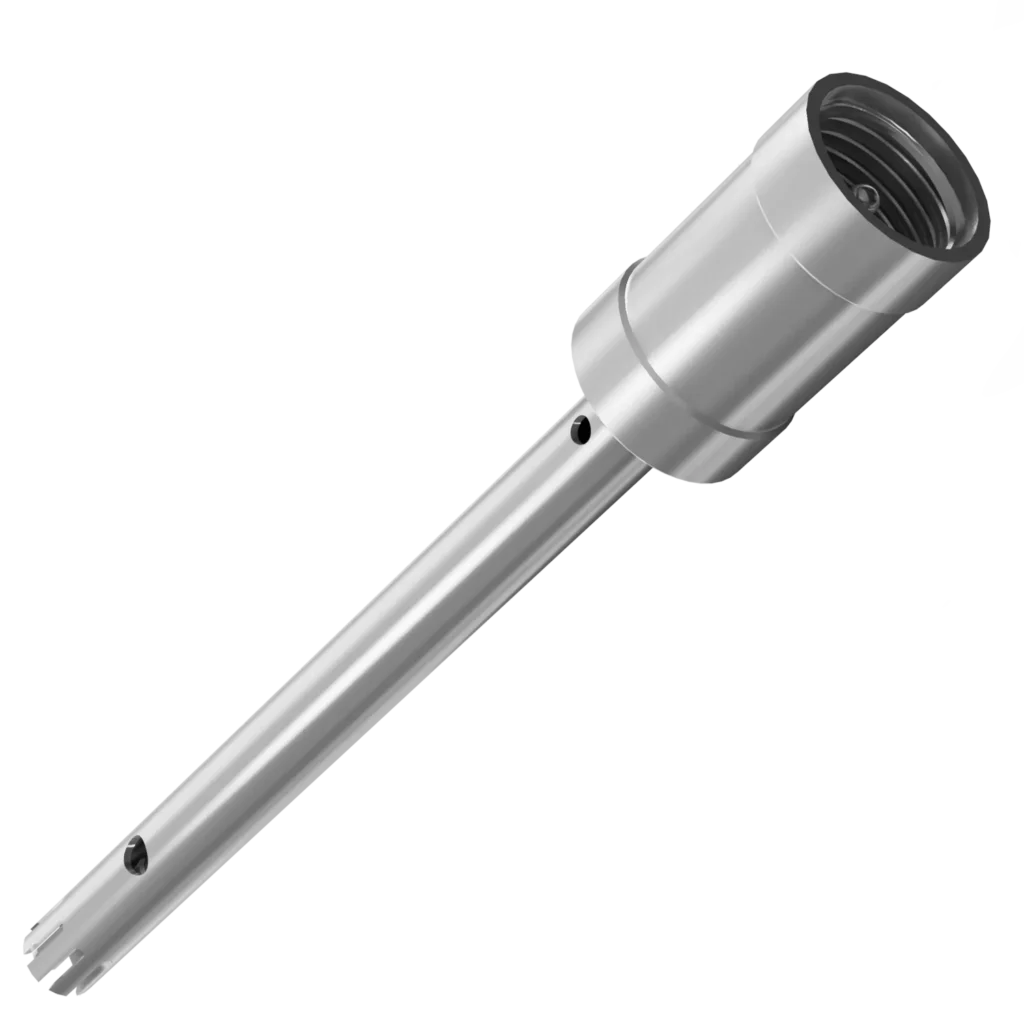

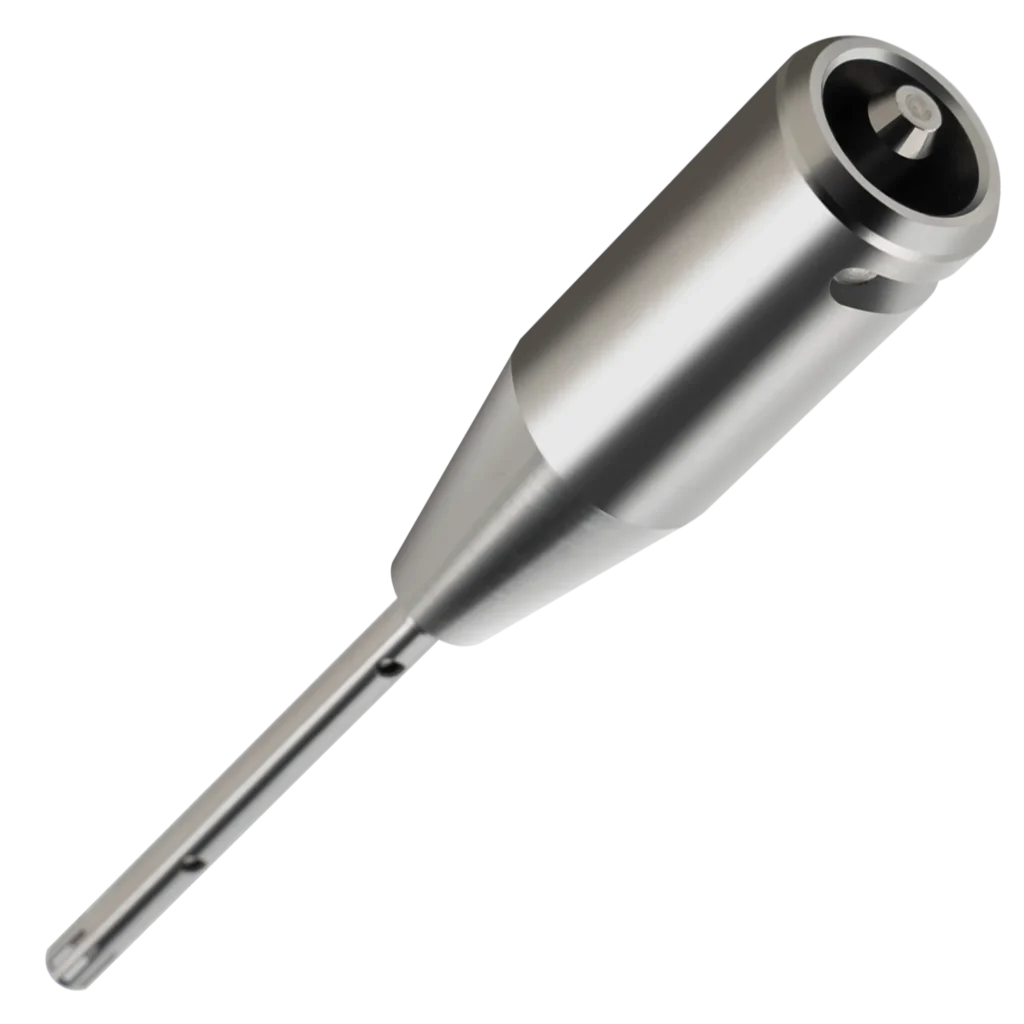

0.1-50mL (Dispersing shaft DS-160/5)
Max. viscosity
5000 mPa·s
Material of Dispersing Shaft
SS 316L stainless steel, PTFE
Noise
72 dB(A)
Protection class
IP20
Motor Type
AC carbon brush motor
Power
160W
Voltage,Frequency
110-120V/60Hz 220-240V/50-60Hz
Dimension [WxDxH]
45mmx55mmx190mm
Weight
0.54kg
Permissible ambient temperature
0-40℃
Permissible ambient humidity
85% RH
Water Bath or Oil Bath（18900801）
Description
Specification
Description
Capacity：ELISA microplate
Speeed：1500rpm
Specification
Size
Stainless steel water/oil bath Volume:4.5L
Water Bath or Oil Bath（18900799）
Description
Specification
Description
Volume:2.5L，Outside diameter:20cm，Inside diameter:18cm，High:11cm,Bottom diameter:18cm
Specification
Size
Stainless steel water/oil bath Volume:3.5L
Water Bath or Oil Bath（18900798）
Description
Specification
Description
Volume:2.5L，Outside diameter:20cm，Inside diameter:18cm，High:11cm,Bottom diameter:18cm
Specification
Size
Stainless steel water/oil bath Volume:2.5L
Water Bath or Oil Bath（18900800）
Description
Specification
Description
Volume:4.5L，Outside diameter:24cm，Inside diameter:22cm，High:13cm,Bottom diameter:22cm
Specification
Size
Stainless steel water/oil bath Volume:4.5L
Golden quarter pie (18900049)
Description
Description
Golden quarter pie, 4 holes, 16mL reaction vessel, Ø21.6mm, 31.7mm depth
Green quarter pie (18900048)
Description
Description
Green quarter pie, 6 holes, 8mL reaction vessel, Ø17.8mm, 26mm depth
Black quarter pie (18900005)
Description
Description
Black quarter pie, 4 holes, 40mL reaction vessel, Ø28mm, 43mm depth
Blue quarter pie（18900004）
Description
Description
Blue quarter pie, 4 holes, 30mL reaction vessel, Ø28mm, 30mm depth
Purple quarter pie (18900003)
Description
Description
Purple quarter pie, 4 holes, 20 mL reaction vessel, Ø28mm, 24mm depth
Red quarter pie (18900002)
Description
Description
Red quarter pie, 11 holes, 4 mL reaction vessel, Ø15.2mm, 20mm depth
Blue Fixed ring（18900065）
Description
Description
Blue Fixed ring, use with color quarter pies
Blue carrying plate (18900001)
Description
Description
Blue carrying plate, use with color quarter pies
Reaction block for 500mL round bottom flask (18101009)
Description
Description
Reaction block for 500mL round bottom flask (one flask capacity)
Reaction block for 250mL round bottom flask (18101008)
Description
Description
Reaction block for 250mL round bottom flask (one flask capacity)
Reaction block for 100mL round bottom flask (18101007)
Description
Description
Reaction block for 100mL round bottom flask (one flask capacity)
Reaction block for 50mL round bottom flask（18101006）
Description
Description
Reaction block for 50mL round bottom flask (one flask capacity)
F101 protective cover (18900019)
Description
Description
F101 protective cover, temperature resistance of 135℃
Support clamp of PT1000 (18900540)
Description
Description
Support clamp of PT1000 , Vertical bar length：35cm, stents length：18cm, Stem diameter:10mm
Support clamp of PT1000 (18900017)
Description
Description
Support clamp of PT1000 ,
Vertical bar length：45cm,
stents length：25cm,
Stem diameter:10mm
PT1000-B (18900136)
Description
Description
PT1000-B, temperature sensor with glass coated,length of 230mm
PT1000-A (18900016)
Description
Description
PT1000-A, length of 230mm
Universal Plate Stand（18900605)
Description
Description
Grand Plate Stand（18900497）
Description
Description
Propeller stirrer (18900071)
Description
Description
- Shaft length: 40cm
- Stirrer diameter: 5cm
- Shaft diameter：Ø8mm
- Material: 316L stainless steel
- Standard stirring applications at medium and high speed
Paddle stirrer (18900073)
Description
Description
- Shaft length: 40cm
- Stirrer diameter: 6.8cm
- Shaft diameter: Ø8mm
- Material: 316L stainless steel
- For gentle mixing at low and medium speeds
