Electrochemistry
Pocket Testers
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃
pH Measurement range
(-2.00~16.00) pH
pH Resolution
0.1/0.01
pH Accuracy
±0.01pH ±one digit
pH Calibration points
1, 2, -3pts automatic
pH ATC range
0~60℃ (32~140°F)
ORP Measurement range
（-1000.0~+1000.0)mV
ORP Resolution
0.1/1
ORP Accuracy
±0.1%F.S ±one digit
Conductivity Measurement range
–
Conductivity Resolution
–
Conductivity Accuracy
–
Temperature Measurement range
0~60℃ (32~140°F)
Temperature Accuracy
±0.2℃
Calibration reminder
–
Sample ID Classification
–
Timing datalogging
–
Operation guider
–
Various display modes
–
Test Kit
Meter;Probe:DPH1-S(pre-installed);pH buffer solution:pH4.00/7.00/10.01,30mL,one for each;3.0 mol KCl pH/ORP soaking solution:10mL,1 bottle;Sample Vials:30mL*3;4X1.5V AAA alkaline batteries(pre-installed);Lanyard;Hard carrying case(L/W/H:28.0X23.0X8.2cm)
Pocket Testers(Bluetooth)
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃
pH Measurement range
(-2.00~16.00) pH
pH Resolution
0.1/0.01
pH Accuracy
±0.01pH ±one digit
pH Calibration points
1, 2, -3pts automatic
pH ATC range
0~60℃(32~140°F)
ORP Measurement range
（-1000.0~+1000.0)mV
ORP Resolution
0.1/1
ORP Accuracy
±0.1%F.S ±one digit
Conductivity Measurement range
–
Conductivity Resolution
–
Conductivity Accuracy
–
Temperature Measurement range
0~60℃(32~140°F)
Temperature Accuracy
±0.2℃
Calibration reminder
Yes
Sample ID Classification
Yes
Timing datalogging
Yes
Operation guider
Yes
Various display modes
Yes
Test Kit
Meter;Probe:DPH1-S(pre-installed);pH buffer solution:pH4.00/7.00/10.01,30mL,one for each;3.0 mol KCl pH/ORP soaking solution:10mL,1 bottle;Sample Vials:30mL*3;4X1.5V AAA alkaline batteries(pre-installed);Lanyard;Hard carrying case(L/W/H:28.0X23.0X8.2cm)
Portable Meters(Single parameter)
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃
pH Measurement range
(-2.000~20.000) pH
pH Resolution
0.1/0.01/0.001
pH Accuracy
±0.002pH ±one digit
pH Calibration points
1, 2, -3pts automatic
pH ATC range
(0.0~100.0) ℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9) mV
ORP Resolution
0.1/1
ORP Accuracy
±0.03%F.S ±one digit
Conductivity Measurement range
–
Conductivity Calibration points
–
Conductivity Resolution
–
Conductivity ATC range
–
Conductivity Accuracy
–
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometric pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Charging socket
Type-C
Power supply
Rechargeable lithium battery
IP Rating
IP57
Test kit
Meter;Plastic ATC pH probe D201T-H;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;Rechargeable lithium battery(pre-installed);Charging cable: 1pc;Hard carrying case(L/W/H: 33.0×27.8×8.2cm):1pc
Portable Meters(Multi parameter)
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃
pH Measurement range
(-2.000~20.000) pH
pH Resolution
0.1/0.01/0.001
pH Accuracy
±0.002pH ±one digit
pH Calibration points
1, 2, -3pts automatic
pH ATC range
(0.0~100.0)℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9)mV
ORP Resolution
0.1/1
ORP Accuracy
±0.03%F.S ±one digit
Conductivity Measurement range
0~2000.0mS/cm,auto-ranging:0~19.999μS/cm;20.0~199.9μS/cm;200~1999μS/cm;2.00~19.99mS/cm;20.00~199.9mS/cm;200.0~2000mS/cm(K=10);Match test range:0~200mS/cm;TDS:0~100.0g/L(TDS factor adjustable)Resistivity:5.000Ω·cm~100.0MΩ·cm;Salinity:0~100ppt
Conductivity Calibration points
one point
Conductivity Resolution
0.001/0.01/0.1/1
Conductivity ATC range
(0.0~50.0) ℃/(32.0~122.0)°F
Conductivity Accuracy
±0.5% F.S ±one digit
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometric pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Charging socket
Type-C
Power supply
Rechargeable lithium battery
IP Rating
IP57
Test kit
Meter;Plastic ATC pH probe D201T-H;Plastic ATC Cond probe DCON201T,K=1.0;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;Standard Cond solution:84μS/1413μS/12.88mS/cm,50mL,one for each;Rechargeable lithium battery(pre-installed);Charging cable: 1pc;Hard carrying case(L/W/H: 33.0×27.8×8.2cm):1pc

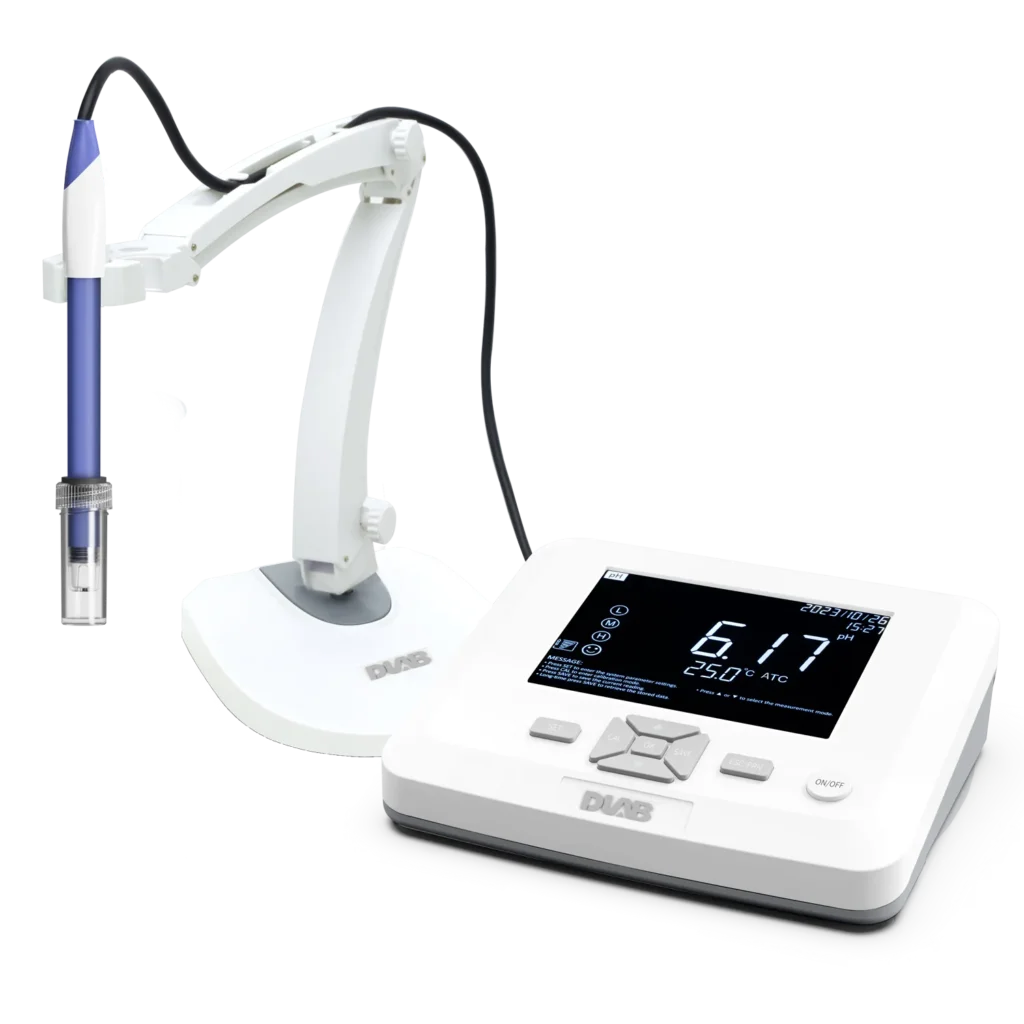

BENCHTOP-Classical series（Single parameter）
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃
pH Measurement range
(-2.000~20.000) pH
pH Resolution
0.1/0.01/0.001
pH Accuracy
±0.002pH ±one digit
pH Calibration points
1, 2, -3pts automatic
pH ATC range
(0.0~100.0)℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9)mV
ORP Resolution
0.1/1
ORP Accuracy
±0.03%F.S ±one digit
Conductivity Measurement range
0~2000.0mS/cm,auto-ranging:0~19.999μS/cm;20.0~199.9μS/cm;200~1999μS/cm;2.00~19.99mS/cm;20.00~199.9mS/cm;200.0~2000mS/cm(K=10);Match test range:0~200mS/cm;TDS:0~100.0g/L(TDS factor adjustable)Resistivity:5.000Ω·cm~100.0MΩ·cm;Salinity:0~100ppt
Conductivity Calibration points
one point
Conductivity Resolution
0.001/0.01/0.1/1
Conductivity ATC range
(0.0~50.0) ℃/(32.0~122.0)°F
Conductivity Accuracy
±0.5% F.S ±one digit
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometric pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Charging socket
Type-C
Power supply
Rechargeable lithium battery
IP Rating
IP57
Test kit
Meter;Plastic ATC pH probe D201T-H;Plastic ATC Cond probe DCON201T,K=1.0;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;Standard Cond solution:84μS/1413μS/12.88mS/cm,50mL,one for each;Rechargeable lithium battery(pre-installed);Charging cable: 1pc;Hard carrying case(L/W/H: 33.0×27.8×8.2cm):1pc
BENCHTOP-Classical series（Multi parameter）
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃
pH Measurement range
(-2.00~20.00) pH
pH Resolution
0.1/0.01
pH Accuracy
±0.01pH±one digit
pH Calibration points
1,2,-3pts automatic
pH ATC range
(0.0~100.0) ℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9) mV
ORP Resolution
0.1/1
ORP Accuracy
±0.1%F.S±1digit
Conductivity Measurement range
0-200.0mS/cm, auto-ranging: 0-19.99μS/cm; 20.0-199.9μS/cm; 200-1999μS/cm; 2.00-19.99mS/cm; 20.00-199.9mS/cm; TDS: 0-100.0g/L; Resistivity: 5.00Ω·cm-100.0MΩ·cm; Salinity: 0-100ppt.
Conductivity Calibration points
1point
Conductivity Resolution
0.001
Conductivity ATC range
(0.0~50.0) ℃/(32.0~122.0)°F
Conductivity Accuracy
±1.0% F.S±1digit
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometri pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Data export
Flash disk/Printer
Power supply
DC12V
Test kit
Meter；Plastic ATC pH probe D201T；Plastic ATC Cond probe DCON201T,K=1.0;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;Standard Cond solution:84μs/1413μs/12.88mS/cm,50mL,one for each;Power adaptor:1pc;Flexible probe holder DF01:1pc

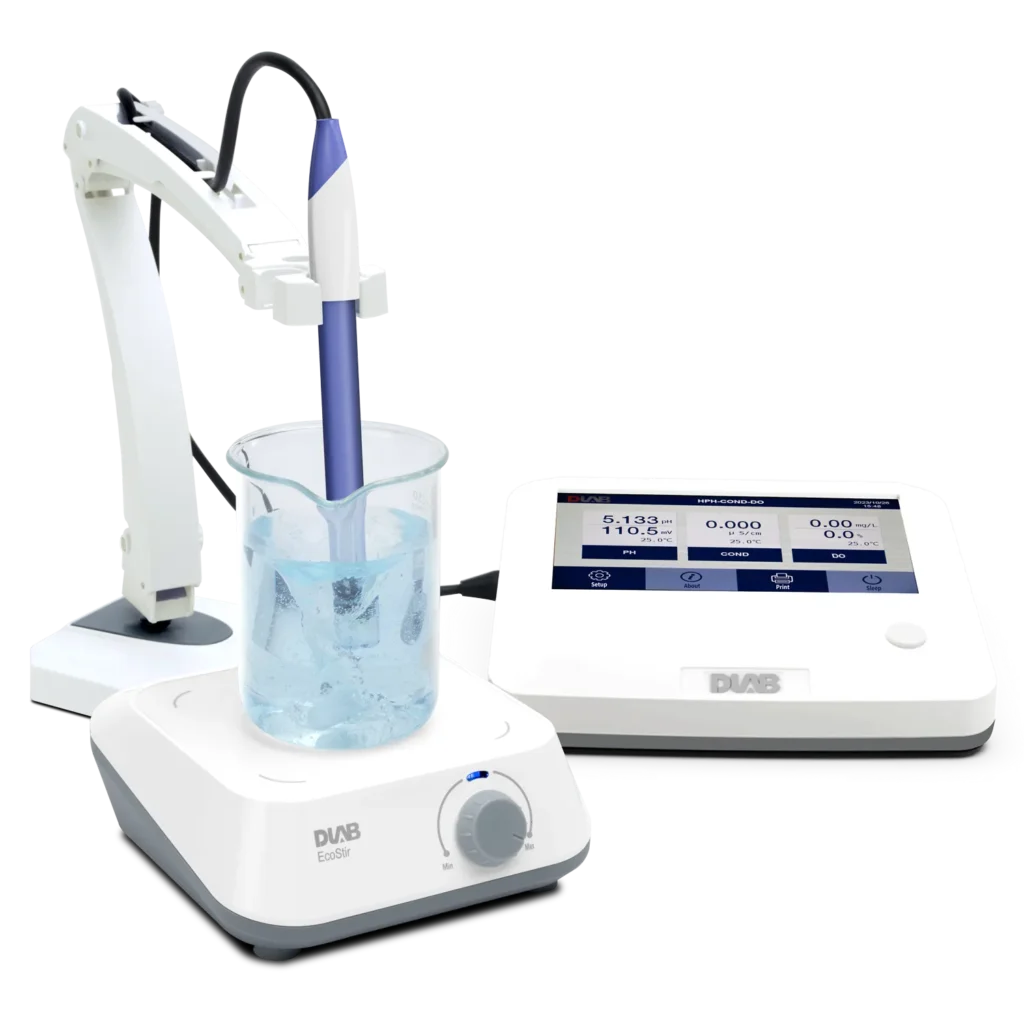

BENCHTOP - Touch screen（Single parameter）
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃
pH Measurement range
(-2.000~20.000) pH
pH Resolution
0.01/0.001
pH Accuracy
±0.002pH±one digit
pH Calibration points
1,2,-5pts automatic
pH ATC range
(0.0~100.0) ℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9) mV
ORP Resolution
0.1/1
ORP Accuracy
±0.03%F.S±one digit
Conductivity Measurement range
–
Conductivity Calibration points
–
Conductivity Resolution
–
Conductivity ATC range
–
Conductivity Accuracy
–
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometri pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Data export
Flash disk/PC/Printer
Power supply
DC12V
Test kit
Meter;Glass refillable combination pH probe D201G;Stainless-steel temperature probe DTEMP-01;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;PC cable:1pc;Flexible probe holder DF01: 1pc; Magnetic stirrer: 1pc;Power adaptor
BENCHTOP - Touch screen（Multi parameter）
Description
Specification
Description
Specification
PRODUCT PARAMETERS
Parameter
pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃
pH Measurement range
(-2.000~20.000) pH
pH Resolution
0.01/0.001
pH Accuracy
±0.002pH±one digit
pH Calibration points
1,2,-5pts automatic
pH ATC range
(0.0~100.0) ℃/(32.0~212.0)°F
ORP Measurement range
(-1999.9~+1999.9) mV
ORP Resolution
0.1/1
ORP Accuracy
±0.03%F.S±one digit
Conductivity Measurement range
0-2000.0mS/cm,Auto-ranging:0-19.999μS/cm;20.0-199.9μS/cm;200-1999μS/cm;2.00-19.99mS/cm;20.00-199.9mS/cm; 200.0-2000mS/cm (K=10);Match test range:0-200mS/cm;TDS:0-100.0g/L(TDS factor adjustable);Resistivity: 5.000Ω·cm-100.0MΩ·cm; Salinity:0-100ppt
Conductivity Calibration points
one point
Conductivity Resolution
0.001
Conductivity ATC range
(0.0~50.0) ℃/(32.0~122.0)°F
Conductivity Accuracy
±0.5% F.S±one digit
DO Measurement range
–
DO Accuracy
–
DO saturation
–
DO Automatic barometri pressure compensation
–
DO Automatic temperature compensation
–
DO Manual salinity compensation
–
Temperature Measurement range
(0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy
±0.2℃
Data export
Flash disk/PC/Printer
Power supply
DC12V
Test kit
Meter;Glass refillable combination pH probe D201G;Stainless-steel temperature probe DTEMP-01;Glass ATC conductivity probe DCON201TG,K=1.0;pH buffer solution:pH4.00/7.00/10.01,50mL,one for each;Standard Cond solution:84μS/1413μS/12.88mS/cm,50mL,one for each;PC cable:1pc;Flexible probe holder DF01: 1pc; Magnetic stirrer: 1pc;Power adaptor
