DISTILLING
VC100 Vacuum Controller
Description
Specification
Description
- Wide range of measurement and control, 1-1,000mbar
- Two control modes available Single-point control and programmed control
- Stores up to 5 programs, each containing up to 5 steps of programming control
- Large TFT touch screen display control provides easy operation
- All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
- Built-in vent valve can feed inert gas into system equipment
- One-click decompression allows easy installation and dismantling of vacuum system
- Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.
- Can also be operated in the normally open status of pump
- Reliable and functional design to fulfill essential needs of precise vacuum regulation
Specification
Cat.No.
6031100300
Vacuum setting range
1-1000mbar
Control mode
Single-point control mode, Programmed control mode
Control program
Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)
Setting method
Touch screen setting
Display
5” TFT
Sensor overload pressure
1,500mbar
Compatible conditions with vacuum pump
Power of 50Hz vacuum pump ≤400W；Power of 60Hz vacuum pump ≤500W
Connector diameter
8mm
Materials in contact with vapor
PTFE, PP, silicone and ceramics
Power
600W
Voltage,Frequency
110-240V,50/60Hz
Overall dimensions [WxDxH]
189x207x193mm
Weight
4.0kg
Permissible ambient temperature
10-40℃
Permissible ambient humidity
≤80% RH
Applications
–
RE200- Pro 20L Industrial Digital Rotary Evaporator
Description
Specification
Description
- Large LCD digital display with heating temperature, rotation speed, clockwise & anticlockwise and time information
- One-click automatic motor lifting (stroke 180mm), smooth and silent
- Water/oil heating bath with wide temperature range from RT to 180 °C
- Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
- Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery
- The connector device allows for easy and quick installation of the evaporating flask.
- PTFE double sealing ring with excellent sealing performance
- Switch valve for continuous collection without compromising the system vacuum and solvent distillation
Specification
Cat.No.
6030112124
Evaporating flask volume
20L
Temperature range
Room temp. -180℃ (water and oil bath)
Temperature control accuracy
Water: ±1℃ ；Oil: ±3℃
Speed range
10-150rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.4.0L/h (water)
Ultimate vacuum
Less 2.6hpa
Temperature control
Micro processer PID control
Display
LCD (temperature/speed/clockwise and Anti-clockwise/time)
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
180mm
Heating bath size
Ø450×240mm
Motor Type
Brushless DC motor
Heating Power
4400W
Power
4600W
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
1160×600×1860mm
Weight
106kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB Interface
–
Safety features
Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.

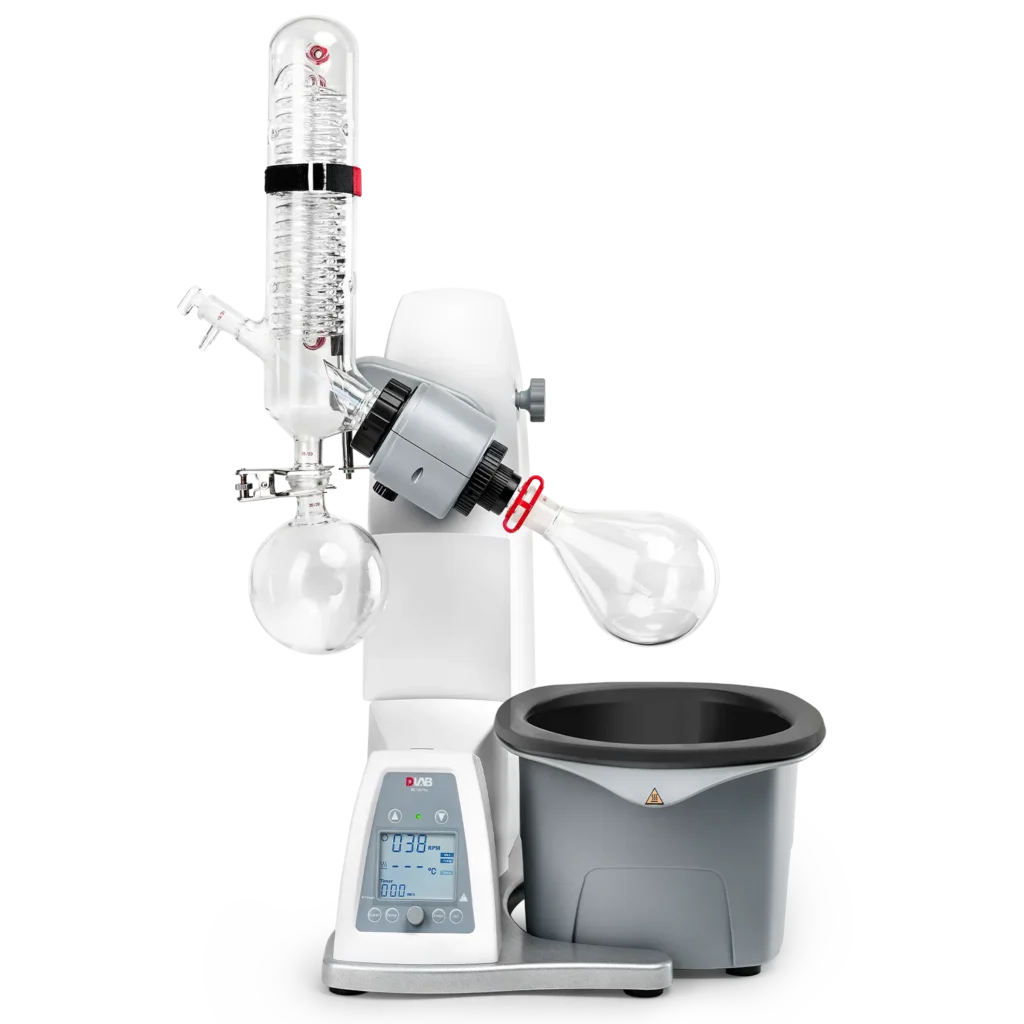

RE100-Pro Digital Rotary Evaporator
Description
Specification
Description
Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
• Overheating protection temperature at 220 °C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring made of PTFE provides an excellent sealing performance
• Optional glassware with explosion proof film available
Specification
Cat.No.
6030110111
Evaporating flask volume
50-3000mL
Temperature range
Room temp.-180℃
Temperature control accuracy
water: ± 1℃ ；oil: ±3℃
Speed range
20-280rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
1.56L/h
Ultimate vacuum
–
Temperature control
Micro processer PID control
Display
LCD
Timer
Yes
Time Setting Range
1-999min
Lifting mode
Motorized
Lifting stroke
150mm
Heating bath size
–
Motor Type
Brushless DC motor
Heating Power
1300W
Power
1400W
Voltage/Frequency
100-120/200-240V，50/60Hz
Dimension[D×W×H]
465×457×583mm
Weight
15kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB Interface
Yes
Safety features
Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications
Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
RE100-S LED Digital Rotary Evaporator
Description
Specification
Description
5L heating bath with a wide temperature range (room temp.to180 °C).
Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch
• Manual lift combined with auxiliary lift for precise positioning of the glassware
• PID control ensures high temperature accuracy at ±1°C (water)
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
• Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect
• Ejection mechanism ensures easy exchange of evaporating flask
• Adjustable immersion angle
• Double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Compatible with the entire range of RE100-Pro glassware
• Optional glassware with explosion proof film available
• High temperature warning when above 50°C
Specification
Cat.No.
6030120211
Evaporating flask volume
50-3000mL
Temperature range
Room temp.-180℃
Temperature control accuracy
water: ±1℃ ；oil: ±3℃
Speed range
20-200rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
1.56L/h
Ultimate vacuum
–
Temperature control
Micro processer PID control Display
Display
LED
Timer
Yes
Time Setting Range
1-999min
Lifting mode
Manual
Lifting stroke
110mm + auxiliary 100mm
Heating bath size
300×300×240mm
Motor Type
Brushless DC motor
Heating Power
1200W
Power
1245W
Voltage/Frequency
100-120/200-240V，50/60Hz
Dimension[D×W×H]
Main Unit:440×320×450mm
Weight
Main Unit:7kg Heating Bath:3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB Interface
Yes
Safety features
Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications
Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
RE500-E Pilot Scale Digital Control Rotary Evaporator
Description
Specification
Description
Specification
Cat.No.
6030114124（Full Set）
Evaporating flask volume
5L
Temperature range
20-100℃
Temperature control accuracy
±1℃
Speed range
20-180rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.2L/h（75% Alcohol）
Ultimate vacuum
9 mbar
Temperature control
Micro processer PID control Display
Display
LCD
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
130mm
Heating bath size
–
Motor Type
Lifting Motor: DC motor with brush /Rotating Motor: High voltage brush motor
Heating Power
2000W
Power
–
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
600*290*720
Weight
–
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80%RH
Protection Class
IP20
USB Interface
–
Safety features
Motor over current protection, earth leakage protection, dry heating protection，overheat protection function
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
RE1000-E Pilot Scale Digital Control Rotary Evaporator
Description
Specification
Description
Specification
Cat.No.
6030111124（Full Set）
Evaporating flask volume
10L
Temperature range
20-100℃ (Water)
Temperature control accuracy
±1℃
Speed range
20-130rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.3.8L/h（75% Alcohol）
Ultimate vacuum
9 mbar
Temperature control
Micro processer PID control Display
Display
LCD
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
200mm
Heating bath size
–
Motor Type
–
Heating Power
3000W
Power
–
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
790*480*1130mm
Weight
–
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80%RH
Protection Class
IP20
USB Interface
–
Safety features
Motor over current protection, earth leakage protection, dry heating protection，overheat protection function
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
RE2000-E Pilot Scale Digital Control Rotary Evaporator
Description
Specification
Description
Specification
Cat.No.
6020112124（Full Set）
Evaporating flask volume
20L
Temperature range
20-100℃(Water)
Temperature control accuracy
±1℃
Speed range
20-130rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.5L/h（75% Alcohol）
Ultimate vacuum
9 mbar
Temperature control
Micro processer PID control Display
Display
LCD
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
180mm
Heating bath size
–
Motor Type
–
Heating Power
4000W
Power
–
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
900*490*1320mm
Weight
–
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80%RH
Protection Class
IP20
USB Interface
–
Safety features
Motor over current protection, earth leakage protection, dry heating protection，overheat protection function
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
RE5000-E Pilot Scale Digital Control Rotary Evaporator
Description
Specification
Description
Specification
Cat.No.
6030115124(Full Set）
Evaporating flask volume
50L
Temperature range
20-100℃ (Water)
Temperature control accuracy
±1℃
Speed range
20-130rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.11L/h（75% Alcohol）
Ultimate vacuum
9 mbar
Temperature control
Micro processer PID control Display
Display
LCD
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
250mm
Heating bath size
–
Motor Type
–
Heating Power
5000W
Power
–
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
1030*510*1370mm
Weight
–
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80%RH
Protection Class
IP20
USB Interface
–
Safety features
Motor over current protection, earth leakage protection, dry heating protection，overheat protection function
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
