Centrifuges

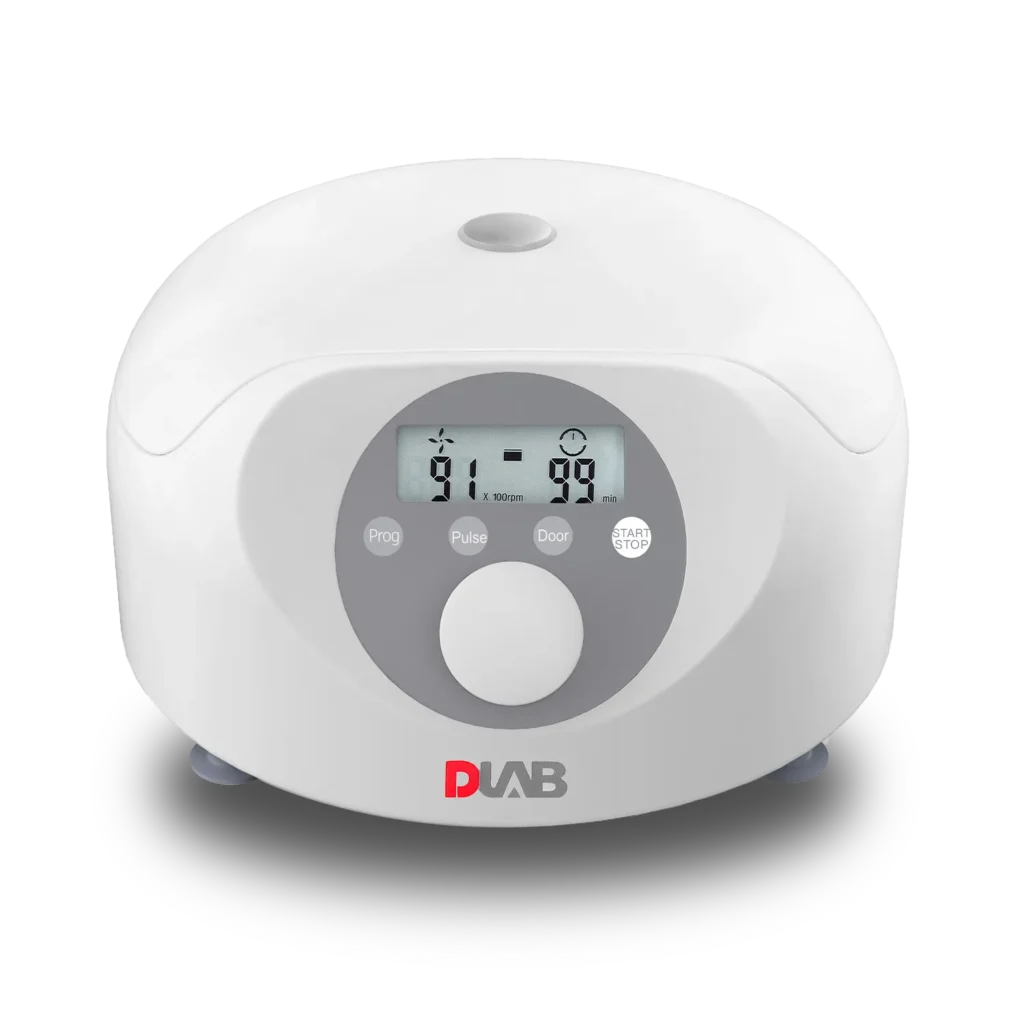

D2012S High Speed Micro Centrifuges
Description
Specification
Description
- Pulse operation for fast and convenient quick spins；
- Speed up to 15000rpm;
- Brushless DC motor drive quickly to the target speed；
- Smooth and quiet operation（noise≤65dB）；
- Automatic door lock and over-speed detection；
- Wide voltage technology：speed is not affected by voltage fluctuations，high speed accuracy；
Microcentrifuges are mainly used in molecular biology laboratories for plasmid extraction；Nucleic acid purification；
Pre-sequencing processing and other applications including extracting of DNA/RNA samples，sedimentation biological components，biochemical and chemical analyses of microsamples.
Specification
Cat.No.
9032002132
Speed range
15000rpm（300-15000rpm）,increment:100rpm
Max. RCF
15100xg
Speed accuracy
±20rpm
Rotor type
Angular Rotor
Rotor capacity
0.2/0.5/1.5/2mL×12
Run time
30s-99min
Acceleration/Braking time
11s↑/15s↓
Temperature setting range
–
Display
LCD
Power
70W
Voltage/Frequency
100~240V，50/60Hz；
Noise level
≤65dB
Motor type
Brushless DC motor
Dimensions[WxDxH]
272mm×260mm×154mm
Weight
6.2kg
Safety performance
Door interlock,over-speed detection, over-temperature detection, automatic intermal diagnosis.
Other functions
Speed/RCF switch, short-time run function, sound-alert function.
DM0412 Low Speed Centrifuge
Description
Specification
Description
Easy operation with intuitive menu and easy-to-read display
• Speed can be set in RPM/RCF
• Maintenance-free brushless DC motor
• Quick spin function with press and hold pulse key
• Lid with electric lock and automatic release function
• Automatic lid-lock release after running

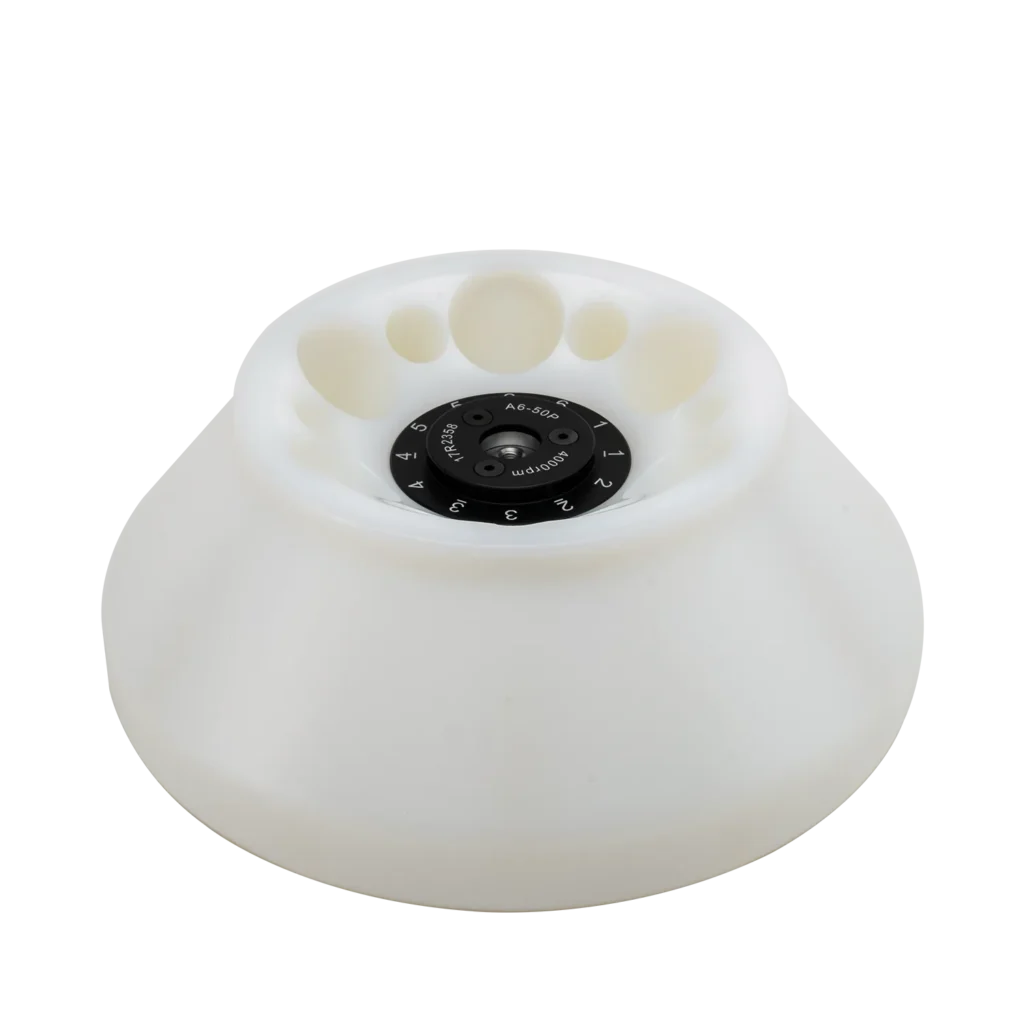

• Braking time 2 steps adjustable only for A6-50P rotor
• High strength plastic rotor gives excellent balance to guarantee stable working
• Dual protection housing particularly benefit for safe running
• Gentle braking at low speeds with efficient separation
• CE marked, cTÜVus, and passed explosion-proof test
Specification
Cat.No.
9134002122
Speed Range
300-4500rpm,increment: 100rpm
Max. RCF
2490×g
Speed Accuracy
±20rpm
Rotor type
A12- 10P
Rotor Capacity
1.5-5mL/7mL/10mL×12
Run Time
30sec-99min HOLD (Continuous operation)
Display
LCD
Safety Devices
Door interlock, Overspeed detector; Automatic internal diagnosis
Acceleration/Braking time[Sec]
20s↑13s↓
Program
–
Preloaded Program
–
Program Memory
–
Motor
Brushless DC motor
Power
Single-phase,100V-240V, 50Hz/60Hz, 3A70W
Dimension[WxDxH]
354×304×215mm
Weight
6kg
Noise
–
Advanced features
Speed/RCF switch; Short-time run function; sound-alert function

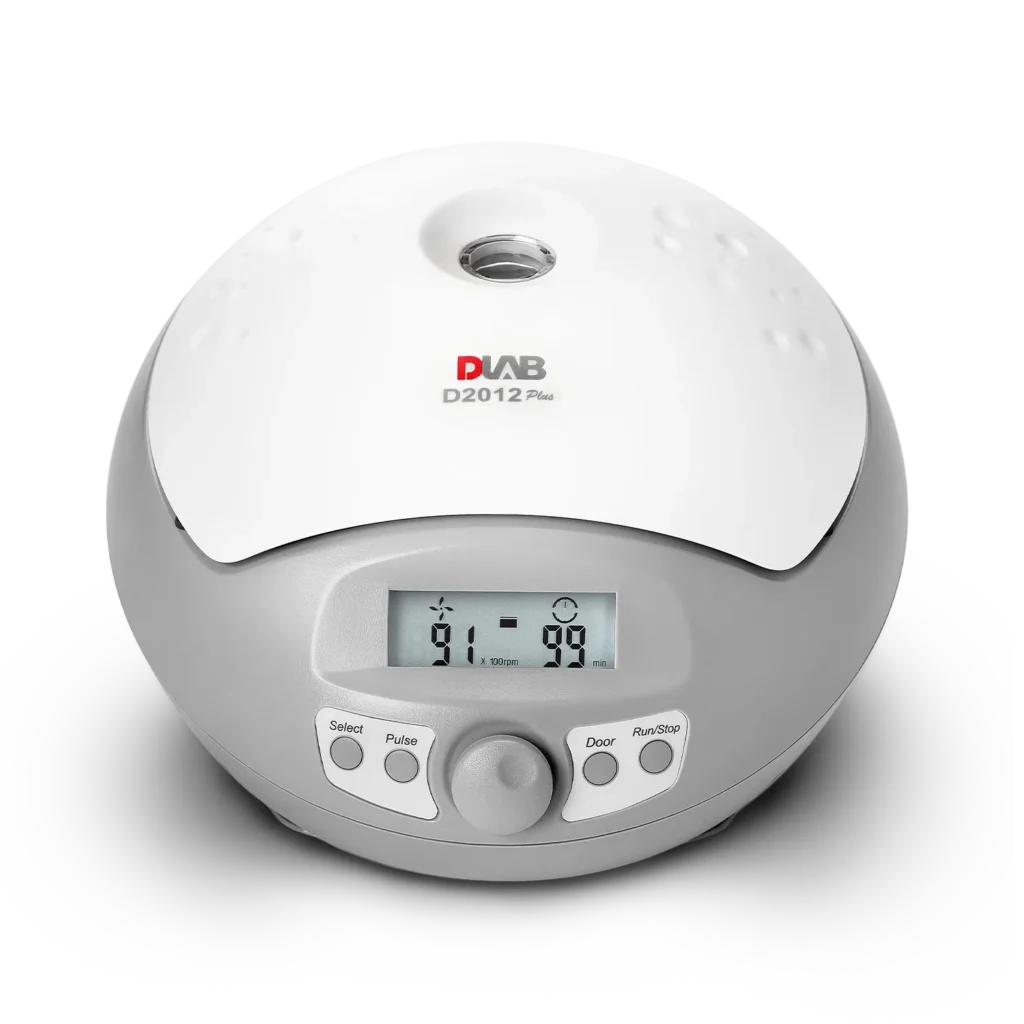

D2012 Plus High Speed Centrifuge
Description
Specification
Description
- Pulse operation for fast and convenient quick spins . Speed up to 15000rpm (15100×g)
- Brushless DC motor drive quickly to the target speed
- Smooth and quiet operation (noise ≤54dB)
- Automatic lid-lock and over-speed detection
- Passed rigorous explosion-proof test, certified with CE,cTÜVus, FCC
Specification
Cat.No.
9032002121
Speed range
15000rpm(500- 15000rpm), increment: 100rpm
Max. RCF
15100×g, increment: 100×g
Speed accuracy
±20rpm
Rotor type
–
Rotor capacity
0.2mL/0.5mL/1.5mL/2mL×12
Run time
30sec-99min/Continuous
Acceleration/Braking time
11s↑/9s↓
Temperature setting range
–
Display
LCD
Power
Single-phase, 3A100W
Voltage/Frequency
AC100V-240V, 50Hz/60Hz
Noise level
≤54dB
Motor type
Brushless DC motor
Dimensions[WxDxH]
255×245×140mm
Weight
6kg
Safety performance
Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis
Other functions
Speed/RCF switch,Short-time run function,sound-alert function

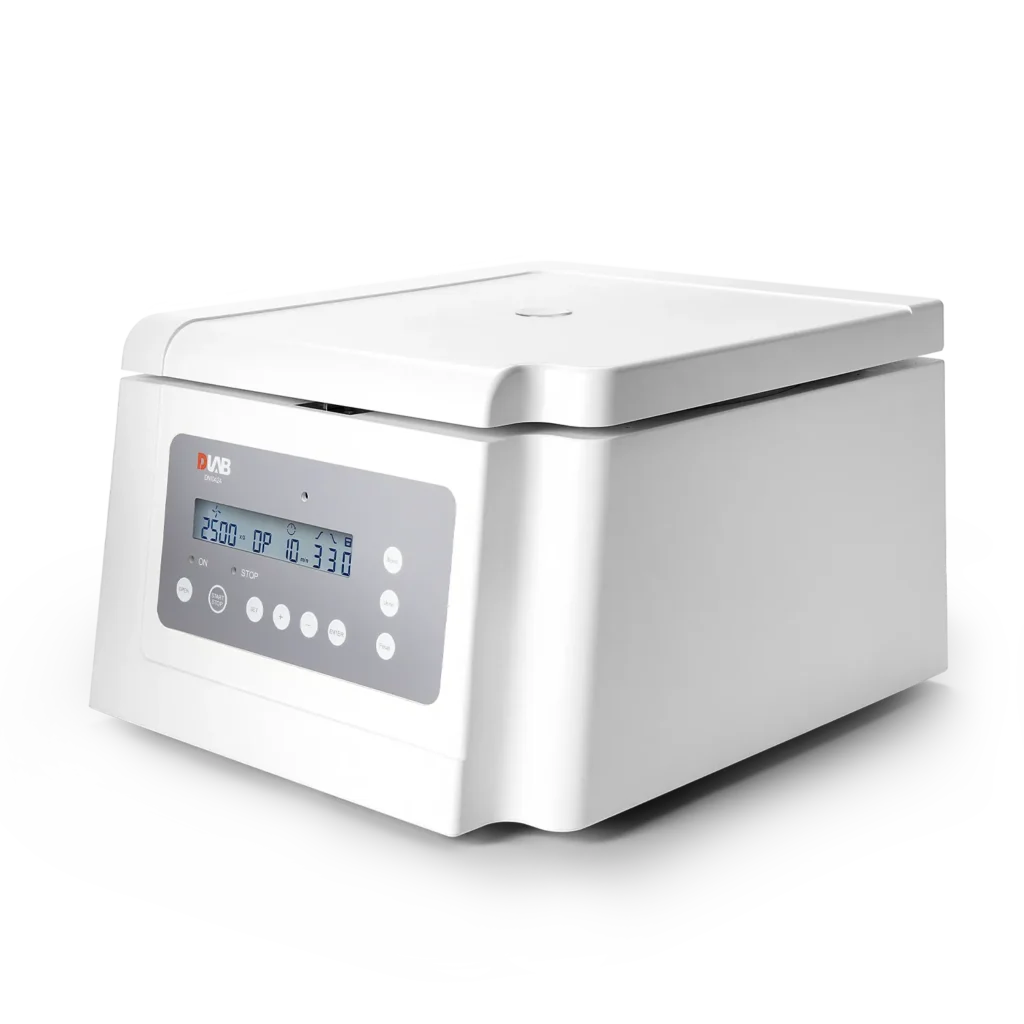

DM0424 Low Speed Centrifuge
Description
Specification
Description
• Quiet, compact, and convenient with LCD display
• Maximum up to 4000rpm Speed can be set in RPM/RCF, with 3 customizable routine programs (Blood, Urine & Faecal)
• 3 acceleration level & 4 level deceleration
• Maximum capacity 50mL ×4, Accommodating different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor
• Automatic internal diagnosis and self-detection
• Maintenance-free brushless DC motor
Specification
Cat.No.
9148001125
Speed Range
500-4000rpm increment: 100rpm
Max. RCF
2500×g
Speed Accuracy
±100rpm
Rotor type
A12-10P、A8-15P、A24-15P、S6-15、S4-50
Rotor Capacity
Swing6×15mL | Swing4×50mL | Angle 24×15 mL | Angle 12×10mL/8×15mL
Run Time
1-99min, HOLD
Display
LCD
Safety Devices
Automatic internal diagnosis
Acceleration/Braking time[Sec]
3↑4↓steps
Program
Blood: 3200rpm,10min | Urine: 1800rpm,5min | Faecal: 1300rpm,10min.
Preloaded Program
–
Program Memory
–
Motor
Brushless DC motor
Power
Single phase, 100V-240V, 50Hz/60Hz
Dimension[WxDxH]
364X440X268mm
Weight
14.5kg
Noise
≤62dB(A)
D1524R High Speed Refrigerated Centrifuge
Description
Specification
Description
Specification
Cat.No.
9013111121
Speed range
15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF
21,380×g, step: 10×g
Speed accuracy
–
Rotor type
–
Rotor capacity
1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time
30s-99 min; HOLD (continuous running)
Acceleration/Braking time
25s↑25s↓
Temperature setting range
-20℃- 40℃
Display
LCD
Power
500W
Voltage/Frequency
Single-phase，100-120V/200-240V, 50Hz/60Hz
Noise level
≤56dB
Motor type
Brushless DC motor
Dimensions[WxDxH]
332×553×283mm
Weight
30kg
Safety performance
Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Other functions
Rotation speed/RCF switchover, inching operation, running processindicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity.

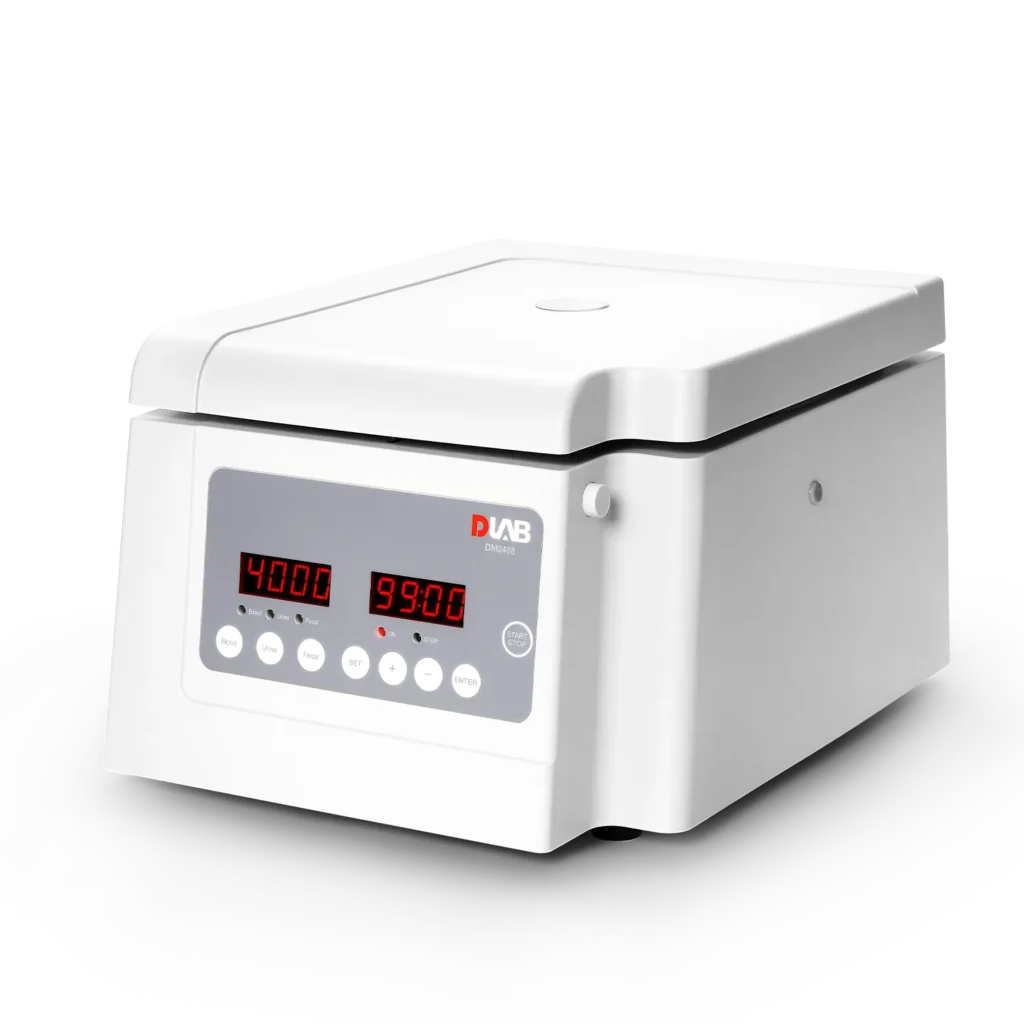

DM0408 Low Speed Centrifuge
Description
Specification
Description
Specification
Cat.No.
9149002225
Speed Range
300-4000rpm increment: 100rpm
Max. RCF
1900×g
Speed Accuracy
±100rpm
Rotor type
A12-10P、A8-15P
Rotor Capacity
Angel 8×15mL(Default) | Angel 12×10mL
Run Time
1-99min, HOLD
Display
LED
Safety Devices
Automatic internal diagnosis
Acceleration/Braking time[Sec]
25s↑35s↓
Program
Blood: 3200rpm, 10min | Urine: 1800rpm,5min | Faecal: 1300rpm, 10min
Preloaded Program
–
Program Memory
–
Motor
Brushless DC motor
Power
Single phase, 100V-240V, 50Hz/60Hz
Dimension[WxDxH]
286X367X227mm
Weight
9.2kg
Noise
≤60dB(A)

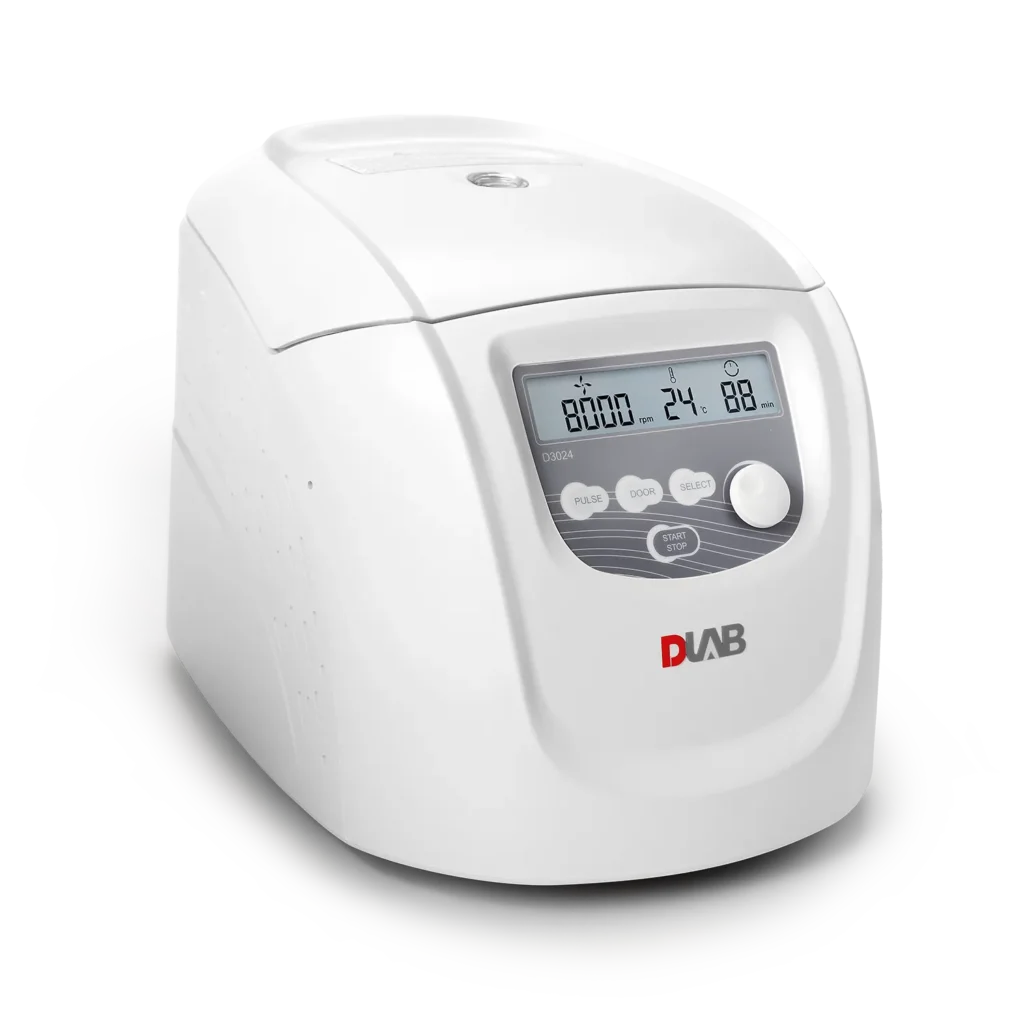

D3024 High Speed Centrifuge
Description
Specification
Description
- fast cooling of the rotor and low energy consumption
- 3-layer sealed rotors ensure safe centifugation
- Brushless motor drive, maintenance free
- Safety features include door interlock; excessive speed and temperature detection; automatic self-diagnostics
- Outstanding aluminum alloy rotors fully autoclavable at 121℃ temperature and high pressure disinfection
- Five rotors are optional complete with 24 places 1.5/2.0mL tubes,5.0mL, 0.2mL and 0.5mL tubes with adapters
Specification
Cat.No.
9033000121
Speed range
15000rpm(200-15000rpm), increment:10rpm
Max. RCF
21380×g, increment:10×g
Speed accuracy
±20 rpm
Rotor type
–
Rotor capacity
1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time
30sec-99min/Continuous
Acceleration/Braking time
25s↑25s↓
Temperature setting range
–
Display
LCD
Power
200W
Voltage/Frequency
Single-phase, AC200V-400V, 50Hz/60Hz, 5A,AC100V-120V, 50Hz/60Hz, 8A
Noise level
≤64dB
Motor type
Brushless DC motor
Dimensions[WxDxH]
364×280×266mm
Weight
12kg
Safety performance
Dual door interlock, Over-speed detection, Automatic internal diagnosis
Other functions
Speed/RCF switch; Short-time run function; sound-alert function

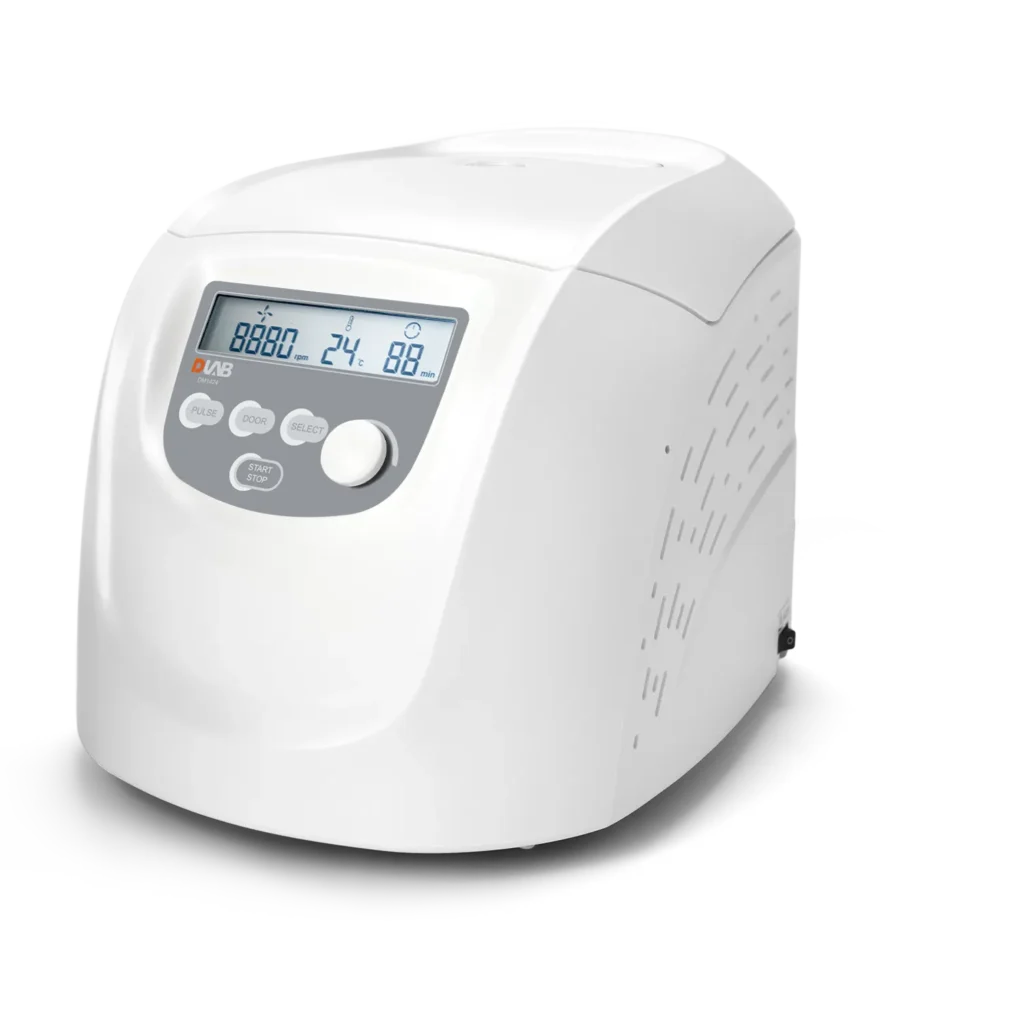

DM1424 High Speed Centrifuge
Description
Specification
Description
Specification
speed range
200-12000rpm, increment: 10rpm
Max. RCF
13680×g
Speed accuracy
±20
Rotor type
–
Rotor capacity
24×capillary tubes
Run time
30sec-99min/Continuous
Acceleration/Braking time
30s↑30s↓
Temperature setting range
–
Display
LCD
Power
160W
Voltage/Frequency
Single-phase, 200V-240V,50Hz/60Hz, 5A; 100V- 120V,50Hz/60Hz, 5A
Noise level
–
Motor type
Brushless DC motor
Dimensions[WxDxH]
280×364×274mm
Weight
10.5kg
Safety performance
Door interlock,Overspeed detector; Automatic internal diagnosis, Automatic rotor identification
Other functions
Speed/RCF switch; Short-time run function; sound-alert function

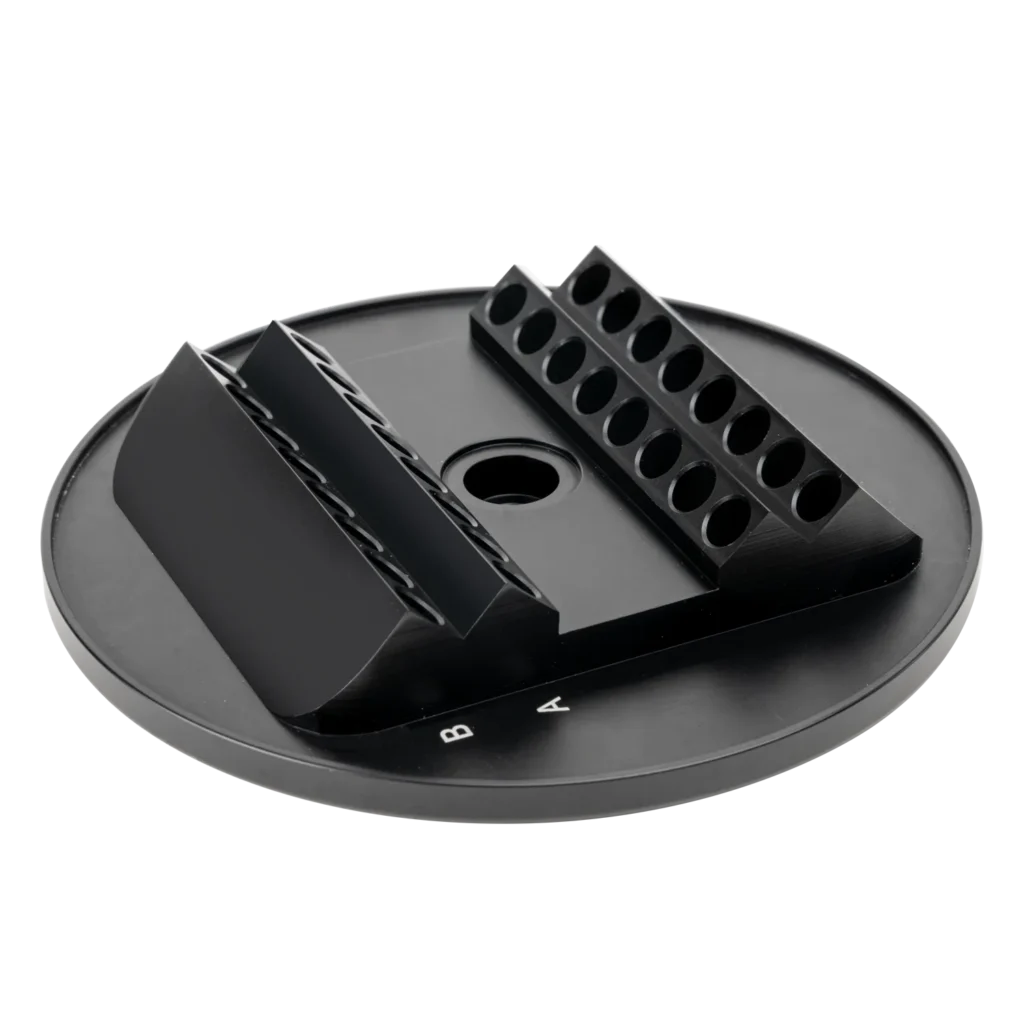

A4-PCR8P （19201165）
Description
Description
Cat.No.19201165
Max. speed:7000rpm
Max. RCF:2680×g
Rotor capacity: 0.2mL×32PCR tubes，
0.2mL×4PCR8-strips
Rotor material: High strength plastic

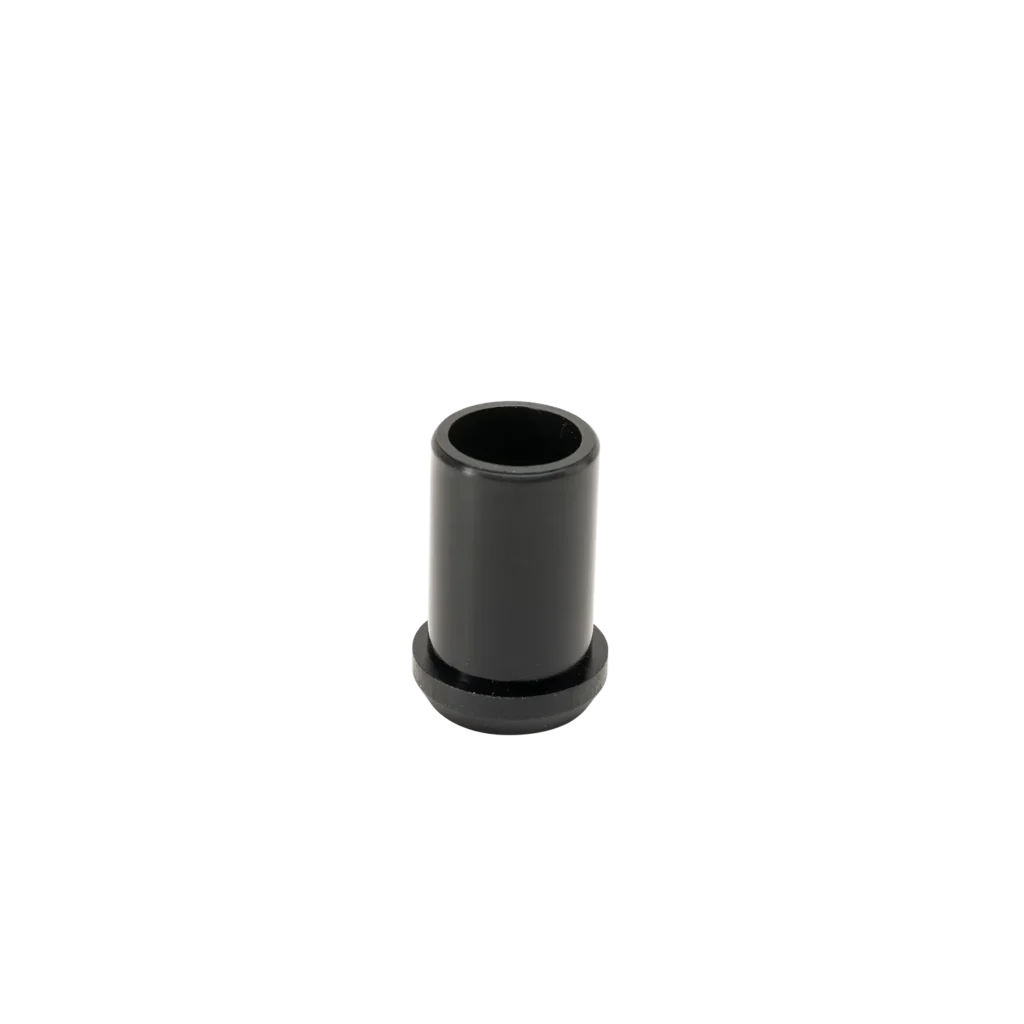

SA05P2（19400026）
Description
Description

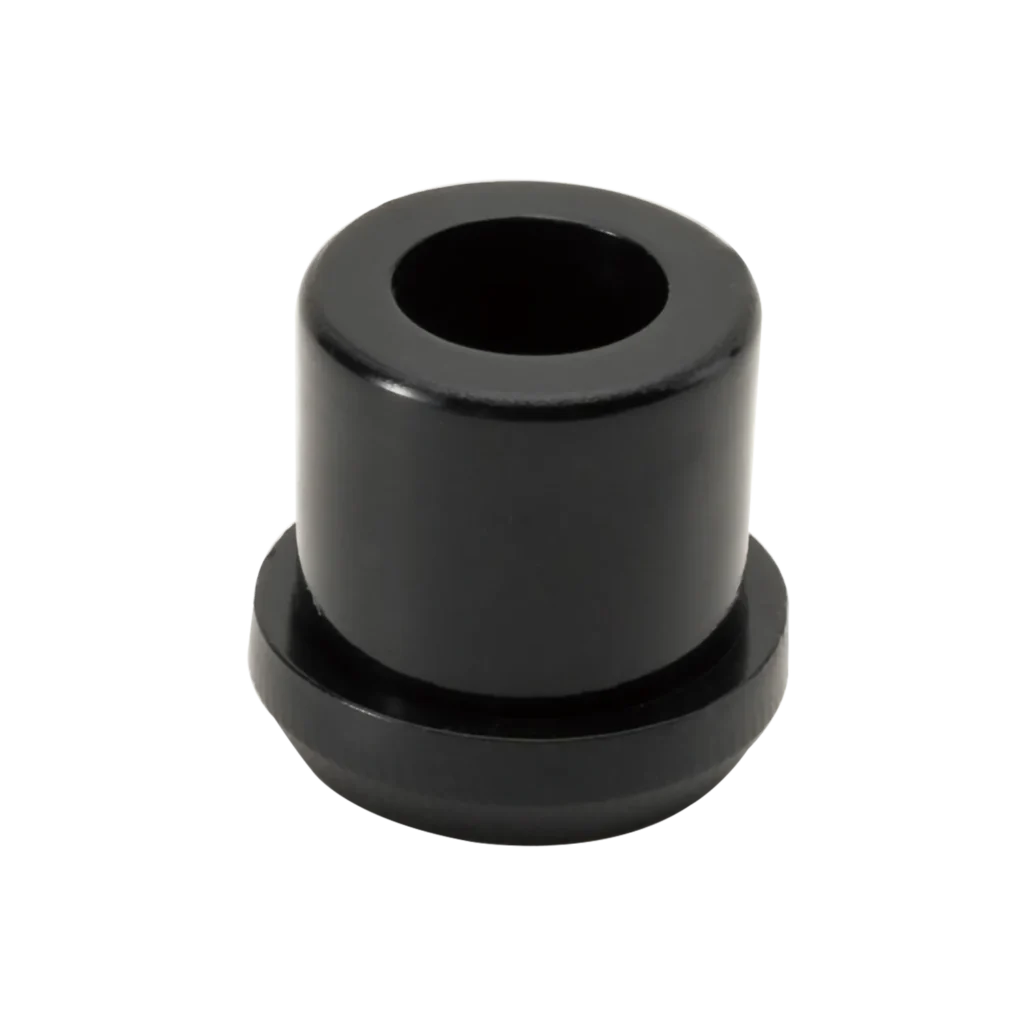

0.5mL rotor adapter
Used with A08-2 rotor
8pcs/pk

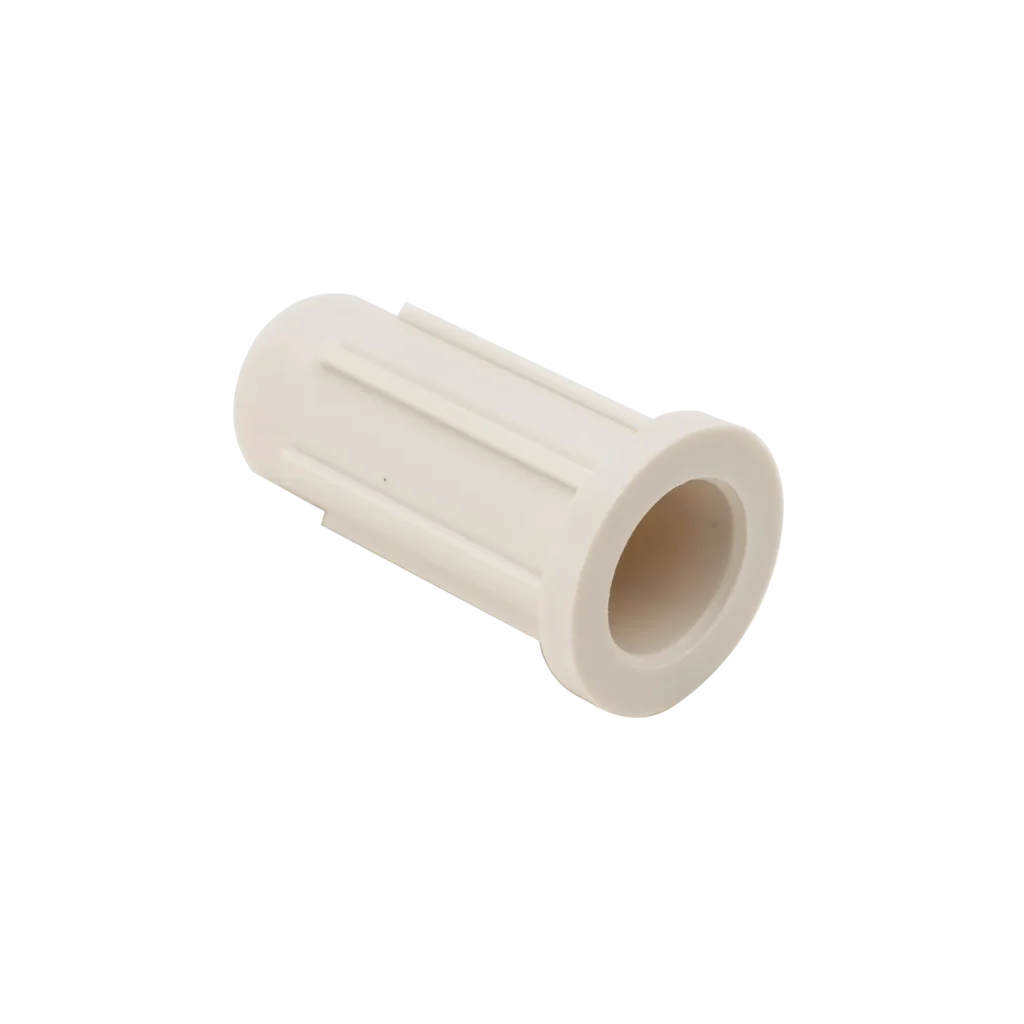

A2P17(Optional)（19500023）
Description
Description
1.5/2mL Cryogenic Vials/ centrifuge
tube adapter, 24 pcs/pk, for S4-50,
S6-15, A24-15P, A12-10P, A6-50P
