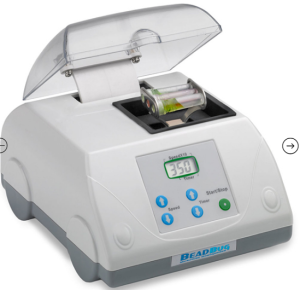

BEADBUG™3 MICROTUBE HOMOGENIZER, 115V
The BeadBug™ 3 is a high energy benchtop homogenizer that sets the performance standard for personal sized cell disruption and lysis instruments.
Simultaneous homogenization of up to 3 samples takes place (often within 45 seconds) inside the disposable 2ml screw cap microtubes. The optimized mixing motion causes rapid cell disruption through constant high velocity impact from the hardened micro-beads chosen specifically for your sample type.
Developed for samples too tough to be homogenized in a common lab vortexer, the BeadBug 3 provides a convenient and economical alternative to the traditional, high capacity homogenizers on the market today. With up to three tube capacity and a footprint of just 7 x 8″, the BeadBug 3 is the ideal homogenizing instrument for low to medium throughput laboratories.
· Extremely powerful mixing for lysis, grinding or homogenization
· Faster and more effective than tissue grinders
· Homogenize 1, 2 or 3 tubes simultaneously
· Extremely compact, less than 7″ wide
· Eliminates the cross contamination associated with handheld homogenizers
· Full range of beads in prefilled tubes and bulk available
| Speed Range | 2800 to 4000rpm | |
| Capacity | 3 x 2.0ml (Screw cap / non-skirted) | |
| Timer | 3 sec. to 3 min. | |
| Dimensions | 6.9 x 8.3 x 5.3 in / 17 x 21 x 13.5 cm | |
| Weight | 5 lbs / 2.2 kg | |
| Warranty | 2 years | |
| Electrical | 115V 60Hz or 230V 50Hz |

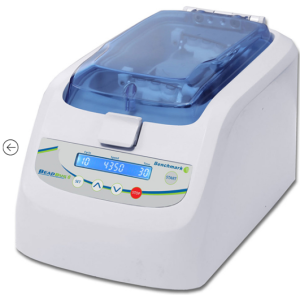

BEADBUG 6, SIX POSITION HOMOGENIZER, 115V
The BeadBug™ 6 joins the large capacity BeadBlaster™ 24 and personal sizedcBeadBug™ 3 as the newest member of the Benchmark homogenizer line. Like the other members of the Benchmark Microtube Homogenizer family, the
BeadBug 6 utilizes a three dimensional shaking motion to disrupt samples.
This motion, when combined with beads of the appropriate size and material, causes high velocity impacts with the sample and is an extremely fast and efficient method for releasing cellular contents, including nucleic acids and proteins.
Many different sample types, from cells in culture to organ tissues and bone can be homogenized in the BeadBug 6, most within 45 seconds. Programming the unit is very simple – just set the speed, time, number of cycles and pause
between cycles, then press start.
For convenience, the last programmed parameters remain in memory for repeated runs. Sealed tubes prevent cross contamination in the BeadBug 6. Samples are simply loaded into the tubes along with the beads and placed in the unit for processing. After homogenization, tubes are spun briefly in a centrifuge, and the lysate removed with a pipette.
Designed to fit the needs of medium throughput laboratories, the BeadBug 6 can simultaneously process up to six samples in 2.0ml tubes. With optional adapters, the unit will also accept two 5.0ml tubes. A full range of bead materials and sizes are available in both prefilled tubes and in bulk to meet all your sample processing needs.
· Extremely powerful mixing for lysis, grinding or homogenization
· Faster and more effective than tissue grinders
· Homogenize up to 6 tubes simultaneously
· Extremely compact, less than 9″ wide
· Eliminates the cross contamination associated with handheld homogenizers
· Full range of beads in prefilled tubes and bulk available
| Speed Range | 2500 to 4350rpm | |
| Capacity | 6 x 2.0ml (Screw cap /skirted and non-skirted) | |
| Timer | 1 sec. to 90 sec. with up to 10 cycles | |
| Dimensions | 8.6 x 14 x 8 in / 22 x 35.5 x 20.5 cm | |
| Weight | 20 lbs / 9 kg | |
| Warranty | 2 years | |
| Electrical | 100-240V 50-60 Hz |

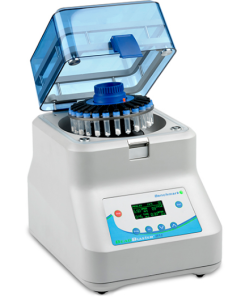

BEADBLASTER 24 MICROTUBE HOMOGENIZER, 115V
The BeadBlaster™ 24 completely lyses, grinds and homogenizes a broad variety of biological samples. Even the most difficult and resistant samples are fully homogenized, often in 35 seconds or less.
The stainless steel tube carrier subjects up to 24 samples to an optimized, high speed, 3D motion, producing high energy impacts between the samples and micro-beads to release cellular contents. After homogenization, samples can be centrifuged and the supernatant collected for further processing.
Operating parameters for the BeadBlaster 24 are set and displayed digitally. To protect fragile, heat sensitive samples, the unit can be programmed to operate in shortened consecutive cycles with a rest period in between. Up to 50 such programs can be stored in memory and recalled for future use. A transparent lid allows for visualization of samples and features a mechanical lid lock that prevents opening the lid when the BeadBlaster is in operation. A brushless motor reduces motor noise and provides maintenance free operation.
Benchmark offers an assortment of prefilled tube kits for a variety of sample types. The popular Triple-Pure™ kits include acid washed, heat treated, zirconium beads. The beads are tested to be free of nucleases, making them ideal for molecular biology applications. A convenient starter kit (D1032-SK) is available to accommodate a broad range of sample types and optimize applications.
· Fast, efficient homogenization in about 35 seconds
· For all sample types, from soft tissue to bone
· Mix up to 24 tubes simultaneously
· Sealed 2.0ml tubes – eliminates cross contamination
· Full range of beads in prefilled tubes and bulk available
| Speed Range | 4.0-7.0 m/s (in 0.05 m/s increments) | |
| Capacity | 24 x 2.0ml | |
| Cycle Time | 1 to 90 sec. (up to 90 sec.) | |
| Pause between cycles | 0 to 2 min. (1 sec. increments) | |
| Max. cycles per program | 10 | |
| Program Memory | up to 50 | |
| Accel./Decel Time | <2 sec. / <2 sec. | |
| Noise Level | <68db | |
| Dimensions | 11 x 14.2 x 15.2 in. / 28 x 36 s 38.5 cm | |
| Weight | 55 lbs / 25 kg | |
| Warranty | 2 years | |
| Electrical | 100 to 240V 50-60 Hz |
BEADBLASTER 24R REFRIGERATED MICROTUBE HOMOGENIZER, 115V
The BeadBlaster™ 24R is a highly efficient bead homogenizer with built in refrigeration to protect temperature sensitive molecules from heat degradation and denaturation.
Unlike most bead homogenizers, the BeadBlaster 24R has true, compressor-based refrigeration – no dry ice, no liquid nitrogen and no air supply needed. Simply set the desired temperature and precool the chamber. Temperature will be maintained throughout the homogenization process to keep samples cool.
The BeadBlaster 24R retains many of the features of our popular BeadBlaster 24. The stainless steel tube carrier subjects up to 24 samples to an optimized, high speed, 3D motion, producing high energy impacts between the samples and micro-beads to release cellular contents. Operating parameters are set and displayed digitally, while 50 profiles can be stored in memory and recalled for future use. A brushless motor reduces motor noise and provides maintenance free operation.
Benchmark offers an assortment of prefilled tube kits for processing a variety of sample types. The popular Triple-Pure™ kits include acid washed, heat treated, zirconium beads. The beads are tested to be free of nucleases, making them ideal for molecular biology applications. A convenient starter kit (D1032-SK) is available to accommodate a broad range of sample types and optimize applications.
· High capacity – 24x2ml
· Cooling function to protect temperature sensitive samples
· True refrigeration – no dry ice, liquid nitrogen or external connections
· Sealed 2.0ml tubes – eliminates cross contamination
· Full range of beads in prefilled tubes and bulk available
| Speed Range | 4.0-7.0 m/s (in 0.05 m/s increments) | |
| Capacity | 24 x 2.0ml | |
| Cycle Time | 1 to 90 sec. (up to 90 sec.) | |
| Pause between cycles | 0 to 2 min. (1 sec. increments) | |
| Max. cycles per program | 10 | |
| Program Memory | up to 50 | |
| Accel./Decel Time | <4 sec. / <4 sec. | |
| Cooling method | Compressor | |
| Temperature range | -10°C to ambient | |
| Precool to 0°C | <30 minutes | |
| Noise Level | <68db | |
| Dimensions | 12.6 x 20.1 x 16.2 in. / 35 x 51 x 41 cm | |
| Weight | 88 lbs / 40 kg | |
| Warranty | 2 years | |
| Electrical | 120V 50 Hz or 240V; 60 Hz | |
| Power | 1000W |

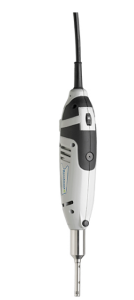

D1000 HOMOGENIZER, INCLUDES 5MM AND 7MM GENERATORS (IDEAL FOR MICROTUBES)
Benchmark’s handheld homogenizer, the D1000, is designed to rapidly homogenize, emulsify, suspend and disrupt biological samples. Ideal for use with microtubes, the homogenizer works well with samples from 0.1ml to 250ml (depending upon the generator probe used).
The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through the slots in the stator. This achieves mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place. Most samples are completely homogenized in 30 seconds or less. A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.
Generator probes are available in four sizes. The 5mm and 7mm diameter probes have a 50mm length for use with samples in microtubes. The 10mm x 115mm probe is ideal for use with 15 and 50ml tubes and the 14mm x 130 mm probe, for 50ml tubes and vessels up to 250ml. The unit is supplied with one each of the 5mm and 7mm generator probes.
All the generator probes are made of stainless steel and can be sterilized by autoclaving.
· Homogenize most samples in under 30 seconds
· For volumes from 100µl to 250ml
· Supplied with both 5mm & 7mm generator probes
| Speed Range | 8500 to 30000rpm | |
| Capacity | 0.1 to 250ml | |
| Noise Level | <70 db | |
| Operating Temp. Range | +4° to 65°C | |
| Dimensions | 1.9 x 2.3 x 9 in. / 4.5 x 5.8 x 22.5 cm | |
| Weight | 1.35 lbs / 0.62 kg | |
| Electrical | 115V 60Hz or 230V 50Hz | |
| Warranty | 2 years |

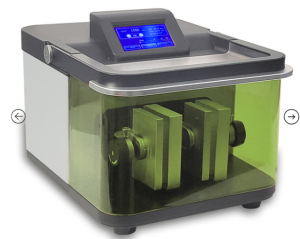

BEADBLASTER™ 96 BALL MILL HOMOGENIZER
The BeadBlaster™ 96 is an extremely versatile bead mill homogenizer that has applications in a variety of areas, including biological research, environmental testing, and industrial settings. Adapters are available for microplates, microtubes, and 15/50ml tubes. Grinding jars and balls in a variety of materials are available.
Wet homogenization, dry grinding, and cryogrinding can all be performed with the BeadBlaster™ 96. The arced motion of the sample holders and powerful motor allow samples to be processed quickly and efficiently. All parameters are digitally controlled through the large touch screen and 9 programs can be stored in memory.
The safety cover lifts up for easy access to the sample holders and automatically locks during operation. The wrap-around design of the clear acrylic lid allows for visualization during homogenization.
· Wet, dry or cryogrinding
· Accepts a variety of tubes, plates and jars
· Large, digital touch screen control panel
· See-though safety lid
| Speed Range: | 180 to 1800rpm | |
| Speed Increment: | 100rpm | |
| Cycle Duration: | 1 sec to 59 min. 59 sec | |
| Pause: | 1 sec to 59 min. 59 sec | |
| Cycles: | 99 | |
| Programs: | 9 | |
| Dimensions (WxDxH) | 335 x 500 x 365mm | |
| Weight: | 64 kg | |
| Electrical: | 120V, 50 Hz or 220V, 60 Hz | |
| Warranty: | 2 years |

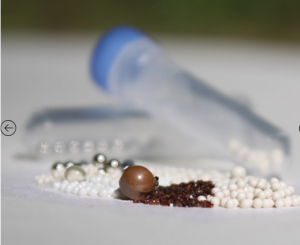

BULK HOMOGENIZER BEADS AND TUBES
The efficiency of bead homogenization relies on several factors, including the material and size of the beads. Benchmark offers a variety of bead options to meet a wide range of samples Silica (glass) homogenizer beads are ready to use – acid washed and heat treated to remove contaminants and render them nuclease and protease free. 0.1mm diameter beads are the best choice for homogenization of gram positive and negative bacteria. 0.5mm diameter beads are used to homogenize bacteria, fungi, spores, molds and small yeasts. 1.0mm diameter beads can be used to homogenize fungi, spores, algae and larger yeasts.
Triple-Pure™ Zirconium Homogenizer beads are ready to use and certified nuclease and protease free. 6mm satellites are acid washed and heat treated, but not certified.)
Different sizes of beads are useful for the following sample types: -0.1mm diameter beads: gram positive and negative bacteria.
-0.5mm diameter beads: bacteria, fungi, spores, molds and small yeasts
-1.0mm diameter beads: fungi, spores, algae and larger yeasts
-1.5mm diameter beads: soft tissues such as adipose and liver, small insects
-3mm diameter beads: harder tissues such as heart and lung, tumor samples
-6mm diameter satellite: very hard tissues such as seeds, dry grinding, hair
Stainless steel homogenizer beads are available in 2.8mm and 5mm diameter sizes. Steel beads are much denser than zirconium and are useful for homogenization of harder samples as well as dry grinding. Beads are alcohol washed and heat treated to remove contaminants and render them nuclease free.
Garnet shard are available for samples that need to be torn and can be used with the 6mm zirconiu satellites.
Convenient prefilled tubes are also available.
· Silica (glass), TriplePure™ Zirconium and Steel
· Range of sizes to meet a variety of sample needs
· Ready to use
· Empty tubes also available

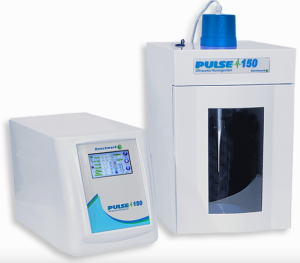

PULSE 150 ULTRASONIC HOMOGENIZER
The Pulse 150 Ultrasonic Homogenizer uses cavitation and ultrasonic waves to break cells in suspension, shear DNA and prepare samples for ChIP assays. With up to 150 watts of power, the unit processes samples from 0.1 ml to 150 ml (with the appropriate horn).
All components needed for homogenization are included with the Pulse 150 – a controller, transducer, temperature probe, 6 mm diameter titanium alloy horn and wrenches to change horns. A soundproof box with sample platform is also supplied as standard. The box reduces the noise generated by the sonicator. The 6mm horn is appropriate for volumes from 10ml to 100ml. Optional horns are available for other volumes.
Operating parameters are set and viewed on the 4.3 inch color touch screen. Pulsed operation is easily programmed as is the power level. Twenty programs can be stored in memory and recalled as needed. Alarms alert the user to over temperature, over/no load and expiration of time.
· Ideal for cell disruption, DNA shearing and ChIP assays
· Programmable with touch screen control and pulsed operation
· 150W, for volumes 0.1 to 150 ml (requires appropriate horn)
· Supplied complete with 6mm horn, temperature probe and soundproof enclosure
| Power | 1.5 – 150 W continuously adjustable | |
| Frequency | 20 – 25 KHz | |
| Cycle time (pulse on/off) | 0.1 – 99.9 sec | |
| Timer | 1 sec – 99 hours:59m min:59 sec | |
| Duty cycle | 0.1 – 99.9% | |
| Volume* | 0.1 – 150 ml | |
| Program memory | 20 programs | |
| Display/control | 4.3 inch full color touch screen | |
| Horn | 6mm titanium (2mm/4mm/8mm also available) | |
| Alarms | No load/over load/end of run/over temperature | |
| Controller W x D x H | 12 x 18.5 x 16.9 in./30.5 x 47 x 43 cm | |
| Controller weight | 35.3 lbs/16 kg | |
| Soundproof enclosure W x D x H | 13.8 x 13.8 x 21.7 in./35 x 35 x 55 cm | |
| Soundproof enclosure weight | 22 lb/10 kg | |
| Electrical | 120V or 230V 50-60 Hz | |
| Warranty | 2 years | |
| *Volume dependent upon the installed horn. Supplied with 6mm horn for volumes 10 – 100 ml. |

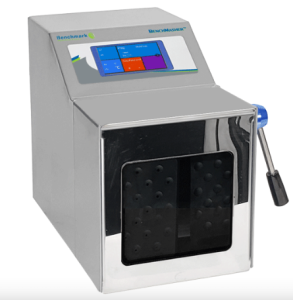

BENCHMASHER™ 400
The BenchMasher™ provides fast and effective mixing, ensuring consistent homogenization. It is ideal for preparation of samples were eliminating contamination is critical, such as pathogen and microbial detection in food and water filters. The BenchMasher also has applications anywhere larger solid samples need broken down or products such as powders and polymers need mixed.
Samples up to 400ml are conveniently loaded in the sterile blender bags which are sealed upon closing the door. Mixing paddles rapidly strike the bags, producing thorough mixing and homogenization without ever directly contacting the sample. Programming is user friendly – mixing speed and cycle time are easily adjusted on the large, full color touch screen. Paddle position can be adjusted to ensure efficient processing of samples. For applications requiring thermal regulation (such as Trichinella testing in meat) the chamber can be heated and maintained at temperatures up to 65°C.
The door is removable for access to the chamber and stainless steel mixing paddles. Each paddle includes a convenient rubber cover that is easily removed or replaced. A UV light (254nm) is built into the chamber and can be activated at any time to perform complete decontamination.
| Capacity: | 3 to 400ml | |
| Timer: | 1 sec. to 100 min. or continuous | |
| Speed Range: | 3 to 12 SPS (strokes per second) | |
| Paddle Distance: | 0 to 50mm | |
| Temp. Range: | Ambient to 65°C | |
| Bag Size: | 16-18cm (W) x 25-30cm (H) | |
| UV Bulb: | 254nM | |
| Ambient Operating Environment: | 2 to 35°C | |
| Dimensions (WxDxH) | 9 x 16.5 x 13 in / 23 x 42 x 33 cm | |
| Weight: | 42 lbs / 19kg | |
| Electrical: | 120V 60 Hz or 230V 50 Hz 220W | |
| Warranty: | 2 years |

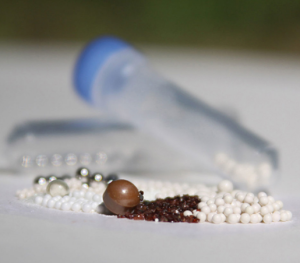

PREFILLED TUBE KITS FOR BEAD HOMOGENIZER
The efficiency of bead homogenization relies on several factors, including the material and size of the beads. Benchmark offers a variety of bead options to meet a wide range of samples Silica (glass) homogenizer beads are ready to use – acid washed and heat treated to remove contaminants and render them nuclease and protease free. 0.1mm diameter beads are the best choice for homogenization of gram positive and negative bacteria. 0.5mm diameter beads are used to homogenize bacteria, fungi, spores, molds and small yeasts. 1.0mm diameter beads can be used to homogenize fungi, spores, algae and larger yeasts.
Triple-Pure™ Zirconium Homogenizer beads are ready to use and certified nuclease and protease free. The tubes are filled in a process that is tested by qPCR to be free of stray DNA. (6mm satellites are acid washed and heat treated, but not certified.)
Different sizes of beads are useful for the following sample types:
-0.1mm diameter beads: gram positive and negative bacteria.
-0.5mm diameter beads: bacteria, fungi, spores, molds and small yeasts
-1.0mm diameter beads: fungi, spores, algae and larger yeasts
-1.5mm diameter beads: soft tissues such as adipose and liver, small insects
-3mm diameter beads: harder tissues such as heart and lung, tumor samples
-6mm diameter satellite: very hard tissues such as seeds, dry grinding, hair
Stainless steel homogenizer beads are available in 2.8mm and 5mm diameter sizes. Steel beads are much denser than zirconium and are useful for homogenization of harder samples as well as dry grinding. Beads are alcohol washed and heat treated to remove contaminants and render them nuclease free.
Some samples require a mixture of beads for efficient homogenization.
-Garnet shards/6mm zirconium satellite for samples high in collagen such as skin
-0.1mm Silica, 1.4 mm Zirconium & 4mm Silica beads for fecal samples and soils
Beads and shards are acid washed and heat treated to remove contaminants and render them nuclease free. Garnet shards are also available separately.
The prefilled tubes are supplied in prefilled 2ml tubes (pack of 50). Some are also available in 5ml tubes. The tubes are screw capped, non-skirted, and will fit most bead homogenizers. Loose bulk beads are also available.
· Silica (glass), TriplePure™ Zirconium, Steel and mixed formats
· Range of sizes to meet a variety of sample needs
· Prefilled tubes, ready to use
· Compatible with most bead homogenizers
