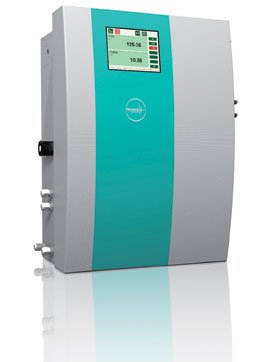

UV400 ONLINE WATER ANALYSER

The UV400, based on a modular concept, allows to monitor simultaneously many different parameters for waste water or drinking water treatment plants as well as river monitoring stations.

UV 400 ONLINE WATER ANALYSER
The UV400, based on a modular concept, allows to monitor simultaneously many different parameters for waste water or drinking water treatment plants as well as river monitoring stations. Each parameter corresponds to a specific optical module that can be selected by the user while ordering the analyser, depending on the application. Mainly based on UV spectroscopy, well known for its stability and low operating cost, the UV400 can measure parameters like organic matter, ammonia, nitrate, aromatics hydrocarbons (PAH), colour, hydrogen sulphide and chlorophyll A.

Complementary modules allows the measurement of phosphate by colorimetric method and turbidity by a visible or infra-red laser diode.External probes can be added for physicochemical parameters like pH, ORP, dissolved oxygen, conductivity and turbidity.Thanks to its automatic cleaning system and its extremely long life time lamp, the maintenance is roughly limited to the periodic refill of the inexpensive cleaning solution and eventually reagents depending on the parameters.

UV-VISIBLE SPECTROSCOPY
  • Most of the measurements (UV254, NH4, H2S, NO3, Colour, PO4, PAH, Chlorophyll A) are based on the UV-VIS spectroscopy that brings fast and stable measurements with a simple hydraulic circuit for a high reliability.
  •
  • All the measurements are done within 5 seconds except PO4, NH4 and H2S that require about 3 minutes.
  •
  • The patented flow cell allows very high level of suspended solid without clogging. The turbidity of the sample is automatically compensated by a dual-wavelength method as shown on the figure.
  •
  • The UV source is a xenon flash lamp specified for 109 flashes that corresponds to more than 10 years of life time with one measurement every minute.
  •
  • Physico-chemical measurements (pH, ORP, Dissolved oxygen, Conductivity) can be added to the internal measurements by using external probes. The dissolved oxygen probe is based on fluorescence method for a lower maintenance and higher stability.
  •
  • Three external turbidity probes (high, medium and low range) are also available if the measurement need to be done in situ, for example before filtering.
UV ABSORBANCE SPECTROSCOPY

1 : xenon lamps,
2 : flow cell,
3 : beam splitter,
4 : peak filter,
5 : peak detector,
6 : reference filter,
7 : reference detector

UV FLUORESCENCE PRINCIPLE

1 : xenon lamps,
2 : excitation filter,
3 : flow cell,
4 : emission filter,
5 : photomultiplier,
6 : reference photo detector

LASER DIODE TURBIDITY PRINCIPAL (NEPHELOMETRIC)

1 : Laser diode (650 nm or 850 nm),
2 : flow cell,
3 : Photo detector

PATENTED FLOW CELL

1 : Allows very high level of suspended solid without clogging for all the optical measurements making it suitable for industrial & municipal waste water application.

AMMONIA AND HYDROGEN SULPHIDE: A UNIQUE METHOD

The ammonia and hydrogen sulphide measurement are based on the UV absorption of the ammonia gas or hydrogen sulphide gas after a stripping phase. Consequently, the turbidity or colour of the sample has absolutely no influence and measurements can even be carried on activated sludge. The ammonia gas has a typical periodic absorption spectrum that is analysed using a fast Fourier transform (FFT) that brings an exceptional selectivity. No interference has ever been reported after years of operation on many different applications. A small quantity of NaOH solution is added to the sample for ammonia, or hydrochloric acid for hydrogen sulphide.

MULTIPLEXING SYSTEM
When different streams need to be analysed, for example inlet and outlet of a plant, an optional multiplexing system delivers relay contacts to control external electric-valves or external pumps.
Up to 6 different streams can be selected
The measuring channels can be either duplicated (each one having its own 4-20mA output or MODBUS register), or measured sequentially to fit with the maximum of 16 measuring channels (a MODBUS register tells which stream is currently being measured).
ROBUST INDUSTRIAL PROBES

All the probes are specially designed for harsh environments with high level of suspended solid. More…

ONLINE WATER ANALYZER, UV400 – PARAMETER SPECIFICATION



PARAMETERSTANDARD RANGE
OTHER RANGES ON REQUEST
TYPICAL REPEATABILITY
FOR LOW VALUES (<10% FS)
ACCURACY
ON STANDARD SOLUTION
UV2540-200 Abs/m
0-600 Abs/m
0-2000 Abs/m
+/- 0.05 Abs/m
+/- 0.15 Abs/m
+/- 0.5 Abs/m
+/- 2%
COD by UV correlation0-100 mg/l COD
0-2000 mg/l COD
0-20,000 mg/l COD
+/-0.05 mg/l COD
+/- 1 mg/l COD
+/- 10 mg/l COD
+/- 2%
BOD by UV correlation0-100 mg/l BOD
0-1000 mg/l BOD
0-10,000 mg/l BOD
+/-0.05 mg/l BOD
+/- 0.5 mg/l BOD
+/- 5 mg/l BOD
+/- 2%
TOC by UV correlation0-100 mg/l TOC
0-1000 mg/l TOC
0-10,000 mg/l TOC
+/-0.05 mg/l TOC
+/- 0.5 mg/l TOC
+/- 5 mg/l TOC
+/- 2%
Nitrate0-100 mg/l NO3+/- 0.1 mg/l NO3+/- 2%
Colour0-100 Pt/Co
0-1000 Pt/Co
+/- 0.2 Pt/Co
+/- 2 Pt/Co
+/- 2%
PAH (aromatics)0-10 mg/l C6H6+/- 0.01 mg/l C6H6+/- 2%
Oil in Water0-100 ppm OIW
0-1000 ppm OIW
+/- 0.1 ppm OIW
+/- 1 ppm OIW
+/- 2%
Chlorophyll A0-100 μg/l ChlA+/- 1 μg/l ChlA+/- 2%
Phosphate0-2 mg/l P-PO4
0-20 mg/l P-PO4
+/- 0.01 mg/l P-PO4
+/- 0.1 mg/l P-PO4
+/- 2%
Ammonia0-100 mg/l NH4+/- 0.2 mg/l NH4+/- 2%
Hydrogen Sulphide0-20 mg/l H2S+/-1 mg/l H2S+/- 2%
Turbidity
(TSS by correlation)
0-100 NTU
0-1000 NTU
+/- 0.1 NTU
+/- 1 NTU
+/- 2%
pH0-14 pH+/- 0.01 pH+/- 2%
ORP+/- 2000 mV+/- 1 mV+/- 2%
Dissolved Oxygen(DO)0-25 mg/l O2+/- 0.1 mg/l O2+/- 2%
External turbidity
(TSS by correlation)
0-4 NTU
0-40 NTU
0-400 NTU

External TSS0-1500 mg/l TSS
0-30000 mg/l TSS
+/- 1% of reading or +/- 2 mg/l TSS
+/- 1% of reading or +/- 2 mg/l TSS

Temperature0-80°C+/- 0.1 °C+/- 2%



ONLINE WATER ANALYZER, UV400 – GENERAL SPECIFICATION



Sample flowRecommended : 0 – 5 L/MIN
0 – 0.5 l/min for NH4 or H2S
Sample pressure0 – 4 Bar (0 – 1 Bar with sampling peristaltic pump)
0 – 0.5 Bar for NH4 or H2S
Sample temperature0 °C to 80 °C
0°C to 30°C for NH4 or H2S
Wet parts materialQuartz, Polypropylene, Polyethylene, FPM (Viton), PMMA (+ Pharmed and glass for NH4 or H2S)
Measuring time5 sec (Except PO4, NH4, H2S : 3mn)
Measurement interval1 min to 720 min (except PO4, NH4, H2S : 4mn.)
Physicochemical parameters may be continuous
Memory5000 lines of measurements (up to 16 channels) with date and time
ConsumptionCleaning solution (5% sulfuric acid): 220 ml/day
Reagent for PO4: 2 ml per measurement
NaOH 10% for NH4: 2 ml per measurement
HCl 10% for H2S: 2 ml per measurement
Maintenance intervalRecommended: 6 months to 1 year (except for refilling)
Power supply90 – 264 VAC 50/60 Hz 40 VA – 12v DC 3A maxi (except for NH4 or H2S)
ScreenColour TFT LCD 320×240 pixels with LED backlight
CommunicationRS232, Modbus or HTTP/Web interface, compatible with Windows7, with Internet Explorer version 9, Nexus 7 tablet under Android with Opera version 12.10, Apple I-phone 4S with Safari

RS485 for external probes (DO, TSS)
USB
WI-FI (IEEE802.11B) optional
Ethernet (IEEE802.3) optional
CertificationsCE, EN 61010-1, EN 61326e
EnclosureStainless steel with epoxy coating, IP65, wall mounting brackets
Dimensions520 x 390 x 220 mm
Weight20 to 30 kg depending on the configuration

ONLINE WATER ANALYZER, UV400 – ACCESSORIES



SAMPLING PUMP PRODUCT CODE: P
Sampling peristaltic pump for unpressurized water
Built-in on the left side of the enclosure
Flow of about 0.6 litre/min
Discontinuous operating to increase tube lifetime
SAMPLING PUMP PRODUCT CODE: P-EXT
External Peristaltic sampling pump for unpressurized water
Flow of about 940 ml/min
Discontinuous operating to increase tube lifetime
INPUT MODULES PRODUCT CODE: MI4-20
4-20 mA input module
Isolated 4-20 mA input
Impedance: 100 Ohm
INPUT MODULES PRODUCT CODE: MIL
Double logical inputs module
Input no 1 : external pulse command for measurement
Input no 2 : measurements inhibition
Isolated 0 – 48 V DC inputs
Impedance: >10 Kohm
OUTPUT MODULES PRODUCT CODE: MO4-20
4-20 mA output module
Isolated 4-20 mA output
Active output, Max load 500 Ohm
OUTPUT MODULES PRODUCT CODE: MRELAY
Relay module
Contact rating: 2A/220V
Maximum 6 relays modules allowed
COMMUNICATIONS PRODUCT CODE: WIFI400
Wifi Interface
Connection to wireless WIFI network
Secured data transfer (WEP keys)
COMMUNICATIONS PRODUCT CODE: ETHER400
Ethernet interface
Ethernet 10 base-T (IEEE 802.3)
COMMUNICATIONS PRODUCT CODE: MTI133
Phone modem
Industrial modem 33,6 Kb/s V34+
DIN rail Mounting
Power supply 24V from the analyser
COMMUNICATIONS PRODUCT CODE: GSM
GSM modem
Dual band (EGSM 900/1800 MHz)
Integral SIM card reader
R & TTE approved
DOWNLOAD UV400 ONLINE WATER ANALYZER DETAIL

DESCRIPTION

TYPE

LANGUAGE

Brochures/ Data Sheet

PDF

English

Dimensional Drawing

PDF

English

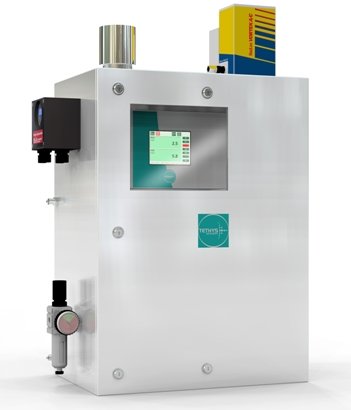

UV400 ATEX ONLINE WATER ANALYSER

The UV400 ATEX, based on a modular concept, allows to monitor one or several parameters for process water, cooling water or waste water. The special enclosure and air purge system allows to use it on hazardous areas classified “Ex” like refineries and chemical plants.

UV400 ATEX ONLINE WATER ANALYSER

The UV400 ATEX, based on a modular concept, allows to monitor one or several parameters for process water, cooling water or waste water. The special enclosure and air purge system allows to use it on hazardous areas classified “Ex” like refineries and chemical plants. Mainly based on UV spectroscopy, well known for its stability and low operating cost, the UV400 ATEX can measure parameters like aromatics hydrocarbons (PAH), hydrogen sulphide, organic matter, ammonia, phosphate and turbidity. Each parameter corresponds to a specific optical module that can be selected by the user while ordering the analyser, depending on the application.

Thanks to its automatic cleaning system and its extremely long life time lamp, the maintenance is roughly limited to the periodic refill of the inexpensive cleaning solution and eventually reagents depending on the parameters. A web-based interface allows the control and the troubleshooting at distance though an ATEX Wi-Fi or Ethernet connection using a standard browser on a computer or tablet.



EX PZ PROTECTION ACCORDING TO EN94/9/EC
The UV400 ATEX has a IP 65 stainless steel enclosure with an air purge system Ex pz to work on hazardous areas classified “zone 2” where a risk of explosive atmosphere is present like refineries or chemical plants. Two alarm contacts are provided if the pressure inside the enclosure drops below the adjustable setting points. This alarm can be used to switch off the power of the enclosure. A thermostatic vortex cooler can be installed as an option to maintain a moderate temperature inside the enclosure for outside use with high ambient temperature. After certification, a marking plate can fixed on the enclosure with the specified marking, example :

II 3G EX [PZ] IIC T3

II : non-mining3G : category 3 for GazPZ : pressurisedIIA : propaneT1 : 450°C
 3D : category 3 for Dust IIB : ethyleneT2 : 300°C
   IIC : Acetylene, hydrogenT3 : 200°C
    T4 : 135°C
    T5 : 100°C
    T6 : 85°C



MAIN METHOD : UV-VISIBLE SPECTROSCOPY
  • All the measurements (PAH, H2S, UV254, NH4, PO4, Colour) are based on UV-VIS spectroscopy that brings fast and stable measurements with a simple hydraulic circuit for a high reliability.
  • All the measurements are done within 5 seconds except H2S, NH4 and PO4 that require about 3 minutes.
  • The UV source is a xenon flash lamp specified for 10^9 flashes that corresponds to more than 10 years of life time with one measurement every minute.
  • Three external turbidity probes (high, medium and low range) are also available if the measurement need to be done in situ, for example before filtering.
HYDROGEN SULPHIDE AND AMMONIA : A UNIQUE METHOD

The hydrogen sulphide and ammonia measurement are based on the UV absorption of the hydrogen sulphide gas or ammonia gas after a stripping phase. Consequently, the turbidity or colour of the sample has absolutely no influence and measurements can even be carried on activated sludge.

The ammonia gas has a typical periodic absorption spectrum that is analysed using a fast Fourier transform (FFT) that brings an exceptional selectivity. No interference has never been reported after years of operation on many different applications. A small quantity of hydrochloric acid is added to the sample for hydrogen sulphide, or NaOH solution for ammonia.

LOW MAINTENANCE AND HIGH RELIABILITY
The design has been specially oriented for low maintenance and high reliability on the measurements. To avoid deposits on the optical windows and tubing, the UV400 ATEX has a built-in automatic cleaning system that injects a 5% sulphuric solution normally once day. An auto-zero is performed at the same time to avoid any drift of the measurement. The patented flow cell limit the risk of clogging inside the flow cell. The level of the cleaning solution as well as reagents for H2S, NH4 or PO4 can be controlled at distance to plan the refill. More…
ONLINE WATER ANALYZER, UV400 ATEX – PARAMETER SPECIFICATION



PARAMETERSTANDARD RANGE
OTHER RANGES ON REQUEST
TYPICAL REPEATABILITY
FOR LOW VALUES (<10% FS)
ACCURACY
ON STANDARD SOLUTION
UV2540-200 Abs/m
0-600 Abs/m
0-2000 Abs/m
+/- 0.05 Abs/m
+/- 0.15 Abs/m
+/- 0.5 Abs/m
+/- 2%
COD by UV correlation0-100 mg/l COD
0-2000 mg/l COD
0-20,000 mg/l COD
+/-0.05 mg/l COD
+/- 1 mg/l COD
+/- 10 mg/l COD
+/- 2%
BOD by UV correlation0-100 mg/l BOD
0-1000 mg/l BOD
0-10,000 mg/l BOD
+/-0.05 mg/l BOD
+/- 0.5 mg/l BOD
+/- 5 mg/l BOD
+/- 2%
TOC by UV correlation0-100 mg/l TOC
0-1000 mg/l TOC
0-10,000 mg/l TOC
+/-0.05 mg/l TOC
+/- 0.5 mg/l TOC
+/- 5 mg/l TOC
+/- 2%
Nitrate0-100 mg/l NO3+/- 0.1 mg/l NO3+/- 2%
Colour0-100 Pt/Co
0-1000 Pt/Co
+/- 0.1 Pt/Co
+/- 2 Pt/Co
+/- 2%
PAH (aromatics)0-10 mg/l C6H6+/- 0.01 mg/l C6H6+/- 2%
Oil in Water0-100 ppm OIW
0-1000 ppm OIW
+/- 0.1 ppm OIW
+/- 1 ppm OIW
+/- 2%
Phosphate0-2 mg/l P-PO4
0-20 mg/l P-PO4
+/- 0.01 mg/l P-PO4
+/- 0.1 mg/l P-PO4
+/- 2%
Ammonia0-100 mg/l NH4+/- 0.2 mg/l NH4+/- 5%
Hydrogen Sulphide0-20 mg/l H2S+/-1 mg/l H2S+/- 2%
Turbidity
(TSS by correlation)
0-10 NTU
0-100 NTU
0-1000 NTU
+/- 0.01 NTU
+/- 0.1 NTU
+/- 1 NTU
+/- 2%



ONLINE WATER ANALYZER, UV400 ATEX – GENERAL SPECIFICATION



Sample flowRecommended : 0 – 5 L/MIN
0 – 0.5 l/min for NH4 or H2S
Sample pressure0 – 4 Bar (0 -1 Bar with sampling peristaltic pump)
0 – 0.5 Bar for NH4 or H2S
Sample temperature0 °C to 80 °C
0°C to 30°C for NH4 or H2S
Wet parts materialQuartz, Polypropylene, Polyethylene, FPM (Viton), PMMA (+ Pharmed and glass for NH4 or H2S)
Measuring time5 sec (Except PO4, NH4, H2S : 3mn)
Measurement interval1 min to 720 min (except PO4, NH4, H2S : 4mn.)
Physicochemical parameters may be continuous
Memory5000 lines of measurements (up to 16 channels) with date and time
ConsumptionCleaning solution (5% sulfuric acid): 220 ml/day
Reagent per measurement : 2 ml per measurement / NaOH 10% for NH4: 2 ml per measurement / HCl 10% for H2S: 2 ml per measurement
Maintenance intervalRecommended: 6 months to 1 year (except for refilling)
Power supply230v AC 50/60 Hz 100 VA (115v on request)
ScreenColour TFT LCD 320×240 pixels with LED backlight
CommunicationRS232, Modbus or HTTP/Web interface, compatible with Windows7, with Internet Explorer version 9, Nexus 7 tablet under Android with Opera version 12.10, Apple I-phone 4S with Safari

RS485 for external probes (DO, TSS)
USB
WI-FI (IEEE802.11B) optional
Ethernet (IEEE802.3) optional
CertificationsCE, EN 61010-1, EN 61326e
EnclosureStainless Steel IP65
Dimensions750 x 550 x 350 mm
Weight40 to 50 kg depending on the configuration

UV400 ATEX ONLINE WATER ANALYSER – ACCESSORIES



SAMPLING PUMP PRODUCT CODE: P
Sampling peristaltic pump for unpressurized water
Built-in on the left side of the enclosure
Flow of about 0.6 litre/min
Discontinuous operating to increase tube lifetime
VORTEX COOLER PRODUCT CODE: V
Vortex cooler for high ambient temperatures
Operating air pressure: 6 -7 Bars
Cold air flow: about 660 l/min
Warning: the air temperature and flow must be controlled to limit the outlet air temperature
INPUT MODULES PRODUCT CODE: MI4-20
4-20 mA input module
Isolated 4-20 mA input
Impedance: 100 Ohm
INPUT MODULES PRODUCT CODE: MIL
Double logical inputs module
Input no 1 : external pulse command for measurement
Input no 2 : measurements inhibition
Isolated 0 – 48 V DC inputs
Impedance: >10 Kohm
OUTPUT MODULES PRODUCT CODE: MO4-20
4-20 mA output module
Isolated 4-20 mA output
Active output, Max load 500 Ohm
OUTPUT MODULES PRODUCT CODE: MRELAY
Relay module
Contact rating: 2A/220V
Maximum 6 relays modules allowed
COMMUNICATIONS PRODUCT CODE: WIFI400
Wifi Interface
Connection to wireless WIFI network
300m nominal range (open space)
Secured data transfer (WEP keys)
COMMUNICATIONS PRODUCT CODE: ETHER400
Ethernet interface
Ethernet 10 base-T (IEEE 802.3)
DOWNLOAD UV400 ATEX ONLINE WATER ANALYZER DETAIL

DESCRIPTION

TYPE

LANGUAGE

Brochures/ Data Sheet

PDF

English

Dimensional Drawing

PDF

English

Follow by Email
LinkedIn
LinkedIn
Share
