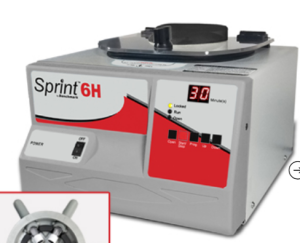

SPRINT™ 6H CLINICAL CENTRIFUGE, WITH 6 X 10ML SWING OUT ROTOR
The Sprint™ 6H is a compact centrifuge that includes a six position, swing-out rotor. Prior to centrifugation, tubes are loaded vertically. Once the centrifuge starts, tubes swing to a horizontal position, providing the flat-line separation that is commonly preferred for further analysis.
Designed for use with 10ml tubes (16 x 100mm), smaller tubes (12 x 75mm and 12 x 100mm) can be centrifuged using the optional adapters (item: C3100-ADP).
With intuitive controls and a large LED display, virtually no programming or setup is required prior to starting a cycle. Simply select the run time and press “START”. The safety lid-lock is engaged and the rotor quickly and smoothly accelerates to 3,400 rpm. Once the run time is completed (or the “STOP” button is pressed) the rotor comes to a complete stop and the lid lock is disengaged for removal of samples.
· 6 Position horizontal (swing out) rotor
· Holds all common blood collection tubes up to 10ml
· Designed specifically for blood, urine, and cell separations
· Adjustable timer
· UL Listed
| Speed | 3400 rpm (1600 xg) | |
| Capacity | 6 x 10ml 6 x 5/7ml | |
| Timer | up to 99 min | |
| Dimensions | 12 x 16 x 10.5 in. (30.5 x 40.6 x 26.7 cm) | |
| Weight | 21 lbs / 9.5 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |

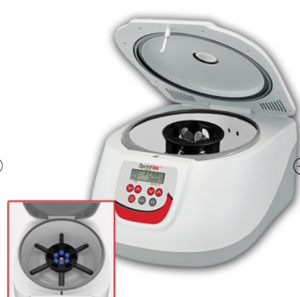

SPRINT™ 6H PLUS CLINICAL CENTRIFUGE, WITH 6 X 15ML SWING OUT ROTOR
The Sprint™ 6H PLUS is our premium centrifuge offering providing horizontal (swing-out) centrifugation:
– Increased speed up to 4,000rpm / 2504xg
– Back-lit, liquid crystal display
– Adjustable speed in increments of 100rpm
– Digital speed control in rpm or rcf
– Adjustable acceleration and deceleration levels
– A safety imbalance detection system
– Momentary operation
– High capacity rotor for tubes up to 15ml (conical or round bottom)
In addition, the Sprint 6H PLUS offers an optional fixed-angle rotor for centrifugation of up to 12 tubes. Ideal for Coag, PPP and urinalysis studies
· 6 Position horizontal (swing out) rotor
· Holds all common blood collection tubes up to 15ml
· Digitally set speed in rpm or rcf (up to 4,000rpm/2,504xg)
· Adjustable speed and timer
· Safety imbalance detection system
| Speed | 100 to 4000 rpm (100 to 2504 xg) | |
| Capacity | 6 x 15ml (swing out) 12 x 15ml (fixed angle) | |
| Speed increment | 100 rpm or 100 rcf | |
| Timer | 20 sec. to 99 min. / cont. | |
| Momentary | Yes | |
| Dimensions | 12 x 16 x 10.5 in. (30.5 x 40.6 x 26.7 cm) | |
| Weight | 21 lbs / 9.5 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |

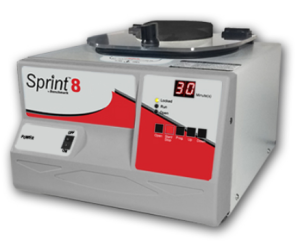

SPRINT™ 8 CLINICAL CENTRIFUGE, WITH 8 X 15ML FIXED ROTOR
The Sprint™ 8 includes an eight position, fixed angle rotor for the centrifugation of 10ml blood tubes (16 x 100mm), and 15ml conical tubes (17 x 120mm). Smaller blood tubes (12 x 75mm and 12 x 100mm) are also compatible with the use of optional adapters (C3100-ADP).
With intuitive controls and a large LED display, virtually no programming or setup is required prior to starting a cycle. Simply use the up/down buttons to select the run time and press “START”. The safety lid-lock is engaged and the rotor quickly and smoothly accelerates to 3,400 rpm. Once the run time is completed (or the “STOP” button is pressed) the rotor comes to a complete stop and the lid lock is disengaged for removal of samples.
Ideal for Coag, PPP and urinalysis studies.
· 8 Position fixed angle rotor
· Holds common research and blood collection tubes up to 15ml
· Fixed at 3,400rpm, ideal for most coag, plasma (PPP) and urinalysis applications
· Adjustable timer
| Speed | 3400 rpm (1400 xg) | |
| Capacity | 8 x 15ml | |
| Timer | up to 99 min | |
| Dimensions | 12 x 16 x 10.5 in. (30.5 x 40.6 x 26.7 cm) | |
| Weight | 21 lbs / 9.5 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |
SPRINT™ 8 PLUS CLINICAL CENTRIFUGE, WITH 8 X 15ML FIXED ROTOR
The myFuge™ 5D digital mini centrifuge includes a four position rotor that accepts a variety of 5ml tubes (including 5ml snap-cap and screw-cap centrifuge tubes, as well as 5ml blood collection tubes).
In addition, the rotor has four positions for positions for standard microtubes (1.5/2.0ml) and offers optional adapters for 2ml cryotubes, 0.2ml PCR tubes, and 0.5ml microtubes, making it one of the most versatile and compact centrifuges in its class.
The myFuge 5D offers digital speed control (up to 5,500 rpm). Timer is also controlled (up to 99 min.) with a safety interlock to stop the centrifuge if the lid is opened during operation. With built in rcf conversion, speed can be set/displayed in rpm or rcf. The myFuge 5D also comes with a 2-year warranty.
· 8 Position fixed angle rotor rotor
· Ideal for rapid production of serum and plasma
· Unique EZ-Scroll™ touch pad
· Digital speed control in rpm or rcf with adjustable acceleration and deceleration rates (up to 6,800rpm/4,445xg)
· Program storage up to 99
· Adjustable speed and timer
| Speed | 200 to 6,800 rpm (10 to 4445 xg) | |
| Capacity | 8 x 15ml 8 x 5/7 ml | |
| Speed increment | 10 rpm or 10 rcf | |
| Timer | Up to 59hrs. 99 min. / cont. | |
| Momentary | Yes | |
| Dimensions | 11 x 13.7 x 9.5 in. (28 x 35 x 9.5 cm) | |
| Weight | 17.6 lbs / 8 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |
