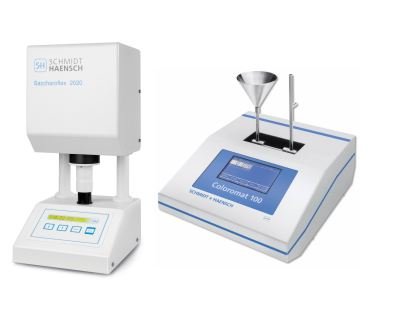

SPECTRPHOTOMETER/COLORIMETER

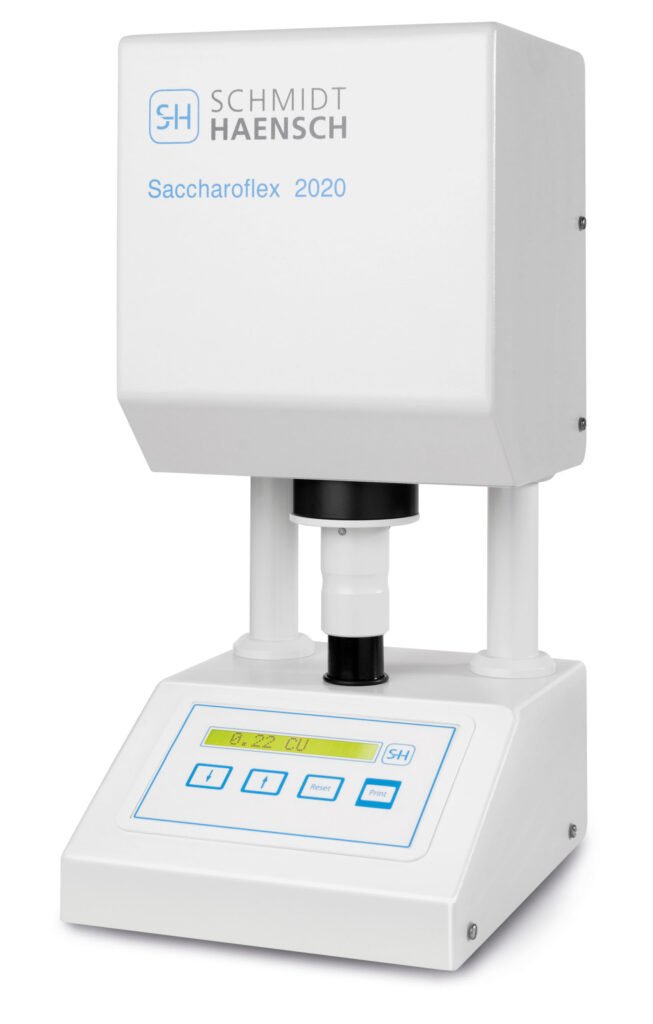

Saccharoflex 2020
The SCHMIDT + HAENSCH electronic reflectance-meter for automatic color grading of crystalline sugar according to recommendations of ICUMSA, method GS2-11 (1994) and GS2-13 (1994). With this instrument the reflectance factors at 495 nm and 620 nm are measured and the ratio is indicated in terms of color type numbers. The consistent use of high integrated circuits, very little heating, and easily detachable lighting unit ensure that the Saccharoflex 2020 is a reliable and easily maintainable measurement system which corresponds to the high SCHMIDT + HAENSCH quality standard. Ceramic calibration standards are also available.
Main specifications
| Measurement principle | Light-electric sphere photometer |
| Pre-installed filters | 495 nm and 620 nm |
ICUMSA Method
| Measuring range | 0 – 19.99 CU |
| Resolution ICUMSA | 0.01 CU |
| Precision | ± 0.15 (CU) |
| Reproducibility | ± 0.15 (CU) |
Additional information
| Light source | Halogen lamp with 12 V, 20 W |
| Display | LCD, one line |
| Operation | four-button keyboard |
| Interface | RS232C / USB-B |
| Operating temperature | 10 – 40 °C |
| Main connection | 100 – 240 V / 50 – 60 Hz |
| Languages | English and German |

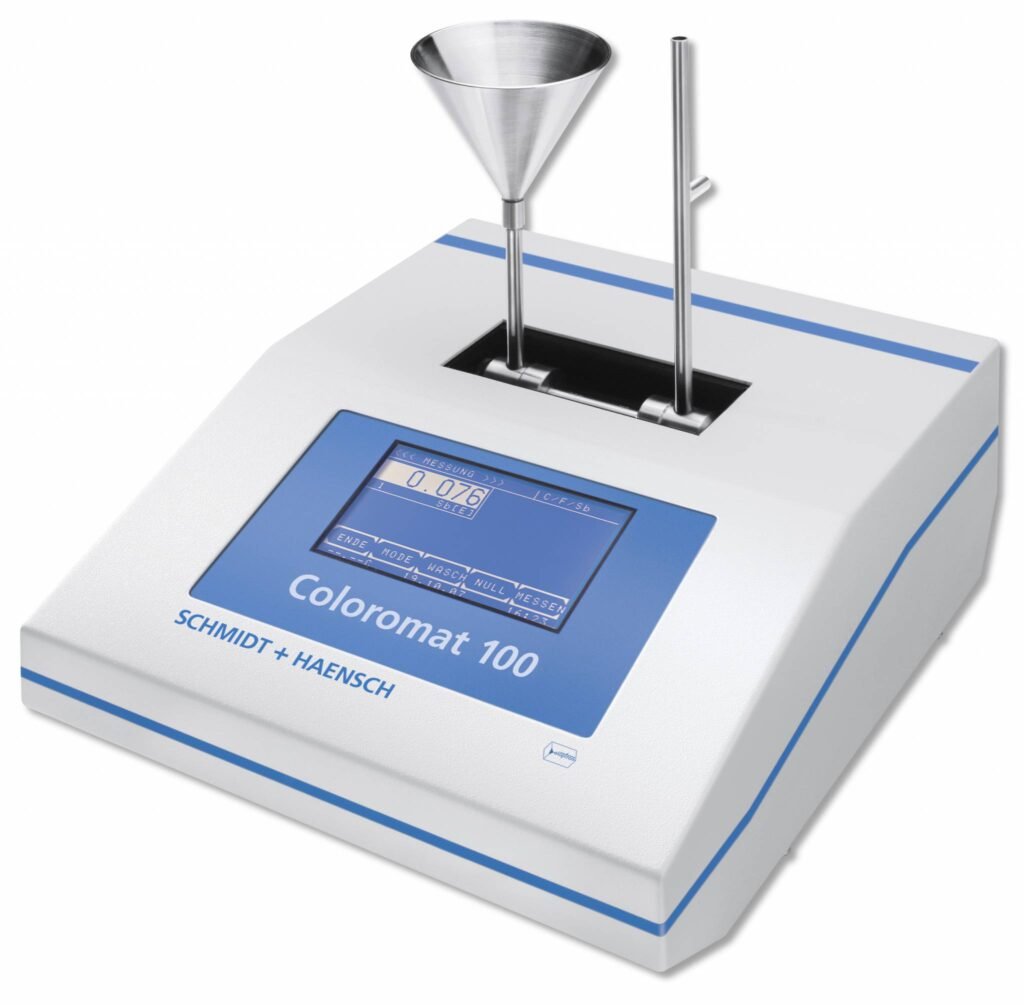

Coloromat
The Coloromat allows an easy and reliable color measurement of liquids. The Coloromat is equipped with a continuous measuring mode with free configurable sampling rate for monitoring color changes in product streams. Transmission, extinction, and ICUMSA liquid color units at the recommended standard wavelength 420 nm are standard with this product.
| Measurement principle | Single beam photometer |
| Spectral range | 340 – 900 nm |
| Pre-installed filters | 420, 560, 720 nm |
| Wavelength selection | Automatic filter changeover switch for up to 9 wavelengths |
| Resolution extinction | 0.001 |
| Measurment precision | ± 0.020 extinction 420 nm ± 0.010 extinction at 560 and 720 nm ± 0.020 extinction at optional filters |
ICUMSA method
| Measuring range | 0 – 16.000 ICUMSA Units (IU) |
| Resolution ICUMSA | 1 IU |
| Precision IU | ± 10 % for colours < 20 IU ± 5 % for colours > 20 IU |
Additional information
| Light source | Halogen lamp, 12 V, 20 W |
| Display | Graphic display |
| Operation | Touch screen for direct functions and alphanumerical inputs |
| Interface | RS232C |
| Operating temperature | 10 – 40 °C |
| Main connection | 85 – 265 V, 47 – 63 Hz |
| Power consumption | 90 V / 50 Hz – 42.5 W 90 V / 60 Hz – 41.8 W 110 V / 50 Hz – 41.3 W 110 V / 60 Hz – 41.3 W 230 V / 50 Hz – 41.1 W 230 V / 60 Hz – 41.1 W |
| Languages | English and German, others on request |
