Rotary Evaporator
________________________________
Rotary Evaporator can heat in constant-temperature and form film in negative pressure, simultaneously,
it will evaporate hydrolytic enzymes to condense receiving.
Specially is suitable for concentration, crystallization, separation, reclamation, etc, it is ideal device from biological pharmaceutical, chemical, food industry, etc.

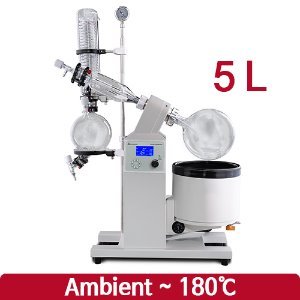

Model | SH-RE05L |
Speed-regulation of Main Machine | LCD Display, variable frequency, stepless speed-regulation |
Rotary Speed | 10~140rpm |
Rotating Motor | 40W |
Evaporating Capability | Water≥2 ; Alchol≥4(L/h) |
Achievable Vacuum | Below 399.9Pa |
Water Bath Temp. Range | Ambient ~ 180℃ |
Constant-temp.Resolution | ±1℃ |
Power Supply | Single phase 220V 60HZ |
Heater Wattage | 3KW |
Condensing Tube Type | Standing, main Condenser |
Condensing Area | main : 0.27m2 |
Rotary Bottle | 5L |
Collecting Bottle | 3L |
Vacuum Sealing | Double sealing rings (Teflon) + Viton materials |
Water Bath Size | Φ300x170mm / Φ12″x7″ |
Water Bath material | Stainless water bath |
Water Bath volume | 12L |
Environment Temperature | 5~35℃ |
Rotary Evaporator
________________________________
Rotary Evaporator can heat in constant-temperature and form film in negative pressure, simultaneously,
it will evaporate hydrolytic enzymes to condense receiving.
Specially is suitable for concentration, crystallization, separation, reclamation, etc, it is ideal device from biological pharmaceutical, chemical, food industry, etc.
Model | SH-RE20ETL |
Operating Ambient Temperature | 5~35℃ |
Glass Material | GG-17 High Borosilicate |
Main Motor | DC brushless |
Rotation Motor | DC brushless, 250W |
Lifting Motor | DC brushless, 100W |
Power (V/Hz) | 220V 60Hz Single Phase |
Speed Setting | Knob setting +LCD controller |
Vacuum Seal | PTFE + Teflon coating |
Temperature Control | PID Controller |
Cooling Area (m2) | 1.4 |
Rotation Speed | 20~130rpm |
Bath Temp. Control Range | Ambient ~ 99℃ |
Maximum Vacuum Pressure | < 3 torrs |
Evaporating Flask Capacity | 20L / 5.28 gallon |
Receiving Flask Capacity | 10L / 2.64 gallon |
Condenser Style | Main + Auxiliary Vertical Double Helix |
Water Bath Heating Method for Water Bath | Bulit-in heating |
Water Bath Material | Stainless steel corrosion resistant coating |
Water Bath Size | 445x250mm / 17.5″x9.8″ |
Lift Mode | Auto lift |
Lifting Distance | 210mm / 82.7″ |
Heating Power | 4300W |
Packing Dimensions | (L) 43″ x (W) 27″ x (H) 56″ |
Gross Weight | 170kg / 375lbs |
Net Weight | 130kg / 287lbs |
Vacuum Connection | 18mm / 0.71″ Barb |
Condenser Connection | 18mm / 0.71″ Barb |
Safety | 1. Over current protection ; 2.Over temp. protection ; 3. Power interruption alarm ; 4. Anti-dry protection |
Rotary Evaporator
________________________________
Rotary Evaporator can heat in constant-temperature and form film in negative pressure, simultaneously,
it will evaporate hydrolytic enzymes to condense receiving.
Specially is suitable for concentration, crystallization, separation, reclamation, etc, it is ideal device from biological pharmaceutical, chemical, food industry, etc.

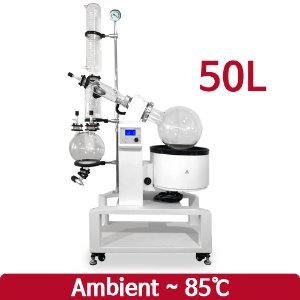

Model | SH-RE50ETL |
Operating Ambient Temperature | 5~35℃ |
Glass Material | GG-17 High Borosilicate |
Main Motor | DC brushless |
Rotation Motor | DC brushless, 250W |
Lifting Motor | DC brushless, 100W |
Power (V/Hz) | 220V 60HZ Single Phase |
Speed Setting | Knob setting + LCD controller |
Vacuum Seal | PTFE + Teflon coating |
Temperature Control | PID Controller |
Cooling Area (m2) | 1.75 |
Rotation Speed | 20~110rpm |
Bath Temp. Control Range | Ambient ~ 85℃ |
Maximum Vacuum Pressure | < 3 torrs |
Evaporating Flask Capacity | 50L / 13.20 gallon |
Receiving Flask Capacity | 20L / 5.28 gallon |
Condenser Style | Main + Auxiliary Vertical Double Helix |
Water Bath Heating Method for Water Bath | Built-in heating |
Water Bath Material | Stainless steel corrosion resistant coating |
Water Bath Size | 540x340mm / 21.3″x13.4″ |
Lift Mode | Auto lift |
Lifting Distance | 250mm / 98.4″ |
Heating Power | 4300W |
Packing Dimensions | (L) 49″ x (W) 28″ x (H) 64″ |
Gross Weight | 190kg / 419lbs |
Net Weight | 140kg / 309lbs |
Vacuum Connection | 18mm / 0.71″ Barb |
Condenser Connection | 18mm / 0.71″ Barb |
Safety | 1. Over current protection ; 2. Over temp. protection ; 3. Power interruption alarm ; 4. Anti-dry protection |
The rotary evaporator is a fast and efficient concentrator using vacuum decompression, surface area, and the thin film evaporation.
It’s convenient as injecting raw materials with only one valve operation by the differential pressure input method.
Low temperature (normally 40 degrees or less) evaporation using vacuum decompression can minimize the thermal deformation of the concentrate.
The rotation of the concentration flask can maximize the evaporation by increasing the surface area and forming a thin film.
It is suitable for separation, distillation, and concentration, and is widely used in various fields such as chemistry, biochemistry, biology, food, pharmaceutical and so on.
Manufactured according to ANSI /UL STD.61010-1,61010-2-010.
*The vacuum pump can be selected and used according to the purpose.
Oil Rotary Pump : It operates in a strong vacuum and has a large amount of evaporation,
which is advantageous for long-term operation.
Low noise operation.
Oil needs to be changed periodically, and the replacement cycle can be extended
when connected to SH-WB-5GDR(-20) COLD TRAP.
(Reduced by more than 4 times the normal extension period)
SH-VDC7 – When water evaporates
SH-CV20 – Used for evaporation of water and organic solvents
Diaphragm Pump : Low vacuum road operation than oil rotary pump
No oil replacement required and suitable for long-term operation
Used for evaporation of water and organic solvents
Water Jet Pumps : Operation on a vacuum road between the oil rotary and the diaphragm.
Periodic water change is required.
A separate chiller is required for long-term operation.
Recommended chiller is SH-WB-5GDR(-20) + Cooling Coil (optional)

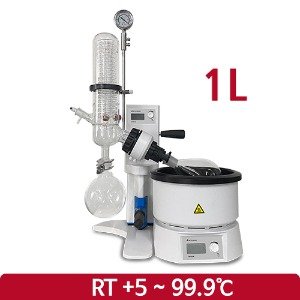

Model | SH-RE-1L |
---|---|
Rotation speed | 20~300rpm |
Water bath temperature range | RT +5~99.9℃ |
Evaporating speed | 22ml/min |
Ultimate vacuum | 8mbar |
Speed setting | LCD display with knob |
Lifting mode | Manual |
Motor function | N/A |
Main motor DC brushless | DC brushless motor |
Condenser | Snake Condensate area 0.15㎡, 1L Rotary Bottle, 1L Collecting Bottle, TS29/38 Bottle Clamp, Ball Face S35/20 |
Vacuum Seal | PTFE and Teflon Coating |
Interior Water bath size(DxH) | 230x130mm/9.05×5.12″ |
Water bath material | Stainless steel Corrosion resistant coating |
Heating power | 220V 50/60HZ 1000W |
Temperature range | 5~35℃ |
Electrical input | D |

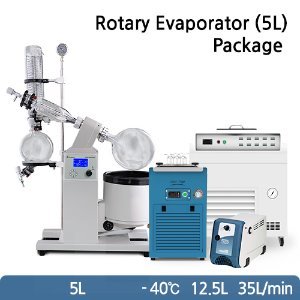

Rotary Evaporator Package
Package Model | RE-PK-5L |
Rotary Evaporator | SH-RE-5L |
Cold Trap Bath | SH-WB-5GDR (-40℃ or -80℃) |
Vacuum Pump | 2044 |
Chiller | SH-WB-12CDR |
Model | Bath Capacity |
SH-WB-12CDR | 12.5L (-40℃) |
SH-WB-20CDR | 20L (-40℃) |
SH-WB-40CDR | 40L (-40℃) |
Model | Pump Speed |
2044 | 35L/min |
2047 | 70L/min |
Model | Temp Range |
SH-WB-5GDR(-40℃) | -40℃(-40℉) ~ -20℃(-4℉) |
SH-WB-5GDR(-80℃) | -80℃(-112℉) ~ -60℃(-76℉) |
Rotary Evaporator Package
Package Model | RE-PK-20L |
Rotary Evaporator | SH-RE-20L |
Cold Trap Bath | SH-WB-5GDR (-40℃ or -80℃) |
Vacuum Pump | 2047 |
Chiller | SH-WB-20CDR |
Model | Bath Capacity |
SH-WB-12CDR | 12.5L (-40℃) |
SH-WB-20CDR | 20L (-40℃) |
SH-WB-40CDR | 40L (-40℃) |
Model | Pump Speed |
2044 | 35L/min |
2047 | 70L/min |
Model | Temp Range |
SH-WB-5GDR(-40℃) | -40℃(-40℉) ~ -20℃(-4℉) |
SH-WB-5GDR(-80℃) | -80℃(-112℉) ~ -60℃(-76℉) |

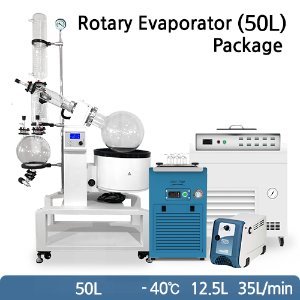

Rotary Evaporator Package
Package Model | RE-PK-50L |
Rotary Evaporator | SH-RE-50L |
Cold Trap Bath | SH-WB-5GDR (-40℃ or -80℃) |
Vacuum Pump | 2047 |
Chiller | SH-WB-40CDR |
Model | Bath Capacity |
SH-WB-12CDR | 12.5L (-40℃) |
SH-WB-20CDR | 20L (-40℃) |
SH-WB-40CDR | 40L (-40℃) |
Model | Pump Speed |
2044 | 35L/min |
2047 | 70L/min |
Model | Temp Range |
SH-WB-5GDR(-40℃) | -40℃(-40℉) ~ -20℃(-4℉) |
SH-WB-5GDR(-80℃) | -80℃(-112℉) ~ -60℃(-76℉) |
