ROLLER CULTURE APPARATUS
CGⅢ-45-SF
All wheel driving design prevents roller bottles from any slippery and loss of consistent and uniform rotation. Their speed range is suitable for both monolayer and suspension cell culture applications. The units can operate in temperature controlled and CO2 environment.
| Model | CG III-45-SF |
| Cell Culture Method | Monolayer and Suspension Cell Cultures |
| Bottle Rotation Speed | 1~990r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ108mm~Φ121mm, L≤495mm Standard Bottle:Φ110mm, L=490mm(3000ml) |
| Bottle Positions per Deck | 5 |
| Bottle Positions | 45 |
| Material | Stainless Steel |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Optional Accessory | RollerMate® Software |
| Dimension External (WxDxH) | 770x594x1850mm / 30.31×23.39×72.83″ |
| Max. Load | 135 |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 90 kg |

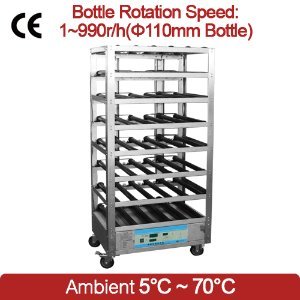

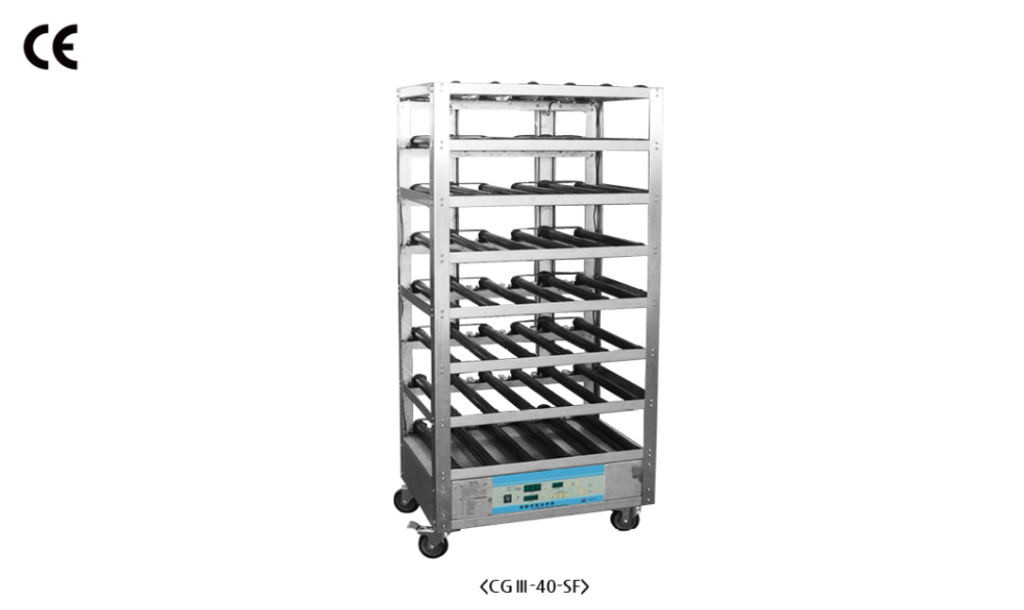

CGⅢ-40-SF
All wheel driving design prevents roller bottles from any slippery and loss of consistent and uniform rotation. Their speed range is suitable for both monolayer and suspension cell culture applications. The units can operate in temperature controlled and CO2 environment.
| Model | CG III-40-SF |
| Cell Culture Method | Monolayer and Suspension Cell Cultures |
| Bottle Rotation Speed | 1~990r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ108mm~Φ121mm, L≤495mm Standard Bottle:Φ110mm, L=490mm(3000ml) |
| Bottle Positions per Deck | 5 |
| Bottle Positions | 40 |
| Material | Stainless Steel |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Optional Accessory | RollerMate® Software |
| Dimension External (WxDxH) | 770x594x1668mm / 30.31×23.39×65.67″ |
| Max. Load | 120 |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 85 kg |

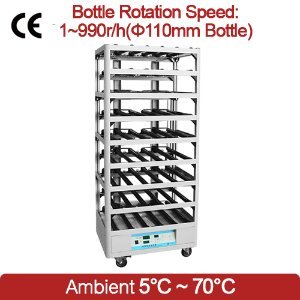

CGⅢ-30-SF
All wheel driving design prevents roller bottles from any slippery and loss of consistent and uniform rotation. Their speed range is suitable for both monolayer and suspension cell culture applications. The units can operate in temperature controlled and CO2 environment.
| Model | CG III-30-SF |
| Cell Culture Method | Monolayer and Suspension Cell Cultures |
| Bottle Rotation Speed | 1~990r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ108mm~Φ121mm, L≤495mm Standard Bottle:Φ110mm, L=490mm(3000ml) |
| Bottle Positions per Deck | 5 |
| Bottle Positions | 30 |
| Material | Stainless Steel |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Optional Accessory | RollerMate® Software |
| Dimension External (WxDxH) | 770x594x1304mm / 30.31×23.39×51.34″ |
| Max. Load | 90 |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 75 kg |
CGⅢ-16-F
All wheel driving design prevents roller bottles from any slippery and loss of consistent and uniform rotation. Their speed range is suitable for both monolayer and suspension cell culture applications. The units can operate in temperature controlled and CO2 environment.
| Model | CG III-16-F |
| Cell Culture Method | Monolayer and Suspension Cell Cultures |
| Bottle Rotation Speed | 1~990r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ108mm~Φ121mm, L≤495mm Standard Bottle:Φ110mm, L=490mm(3000ml) |
| Bottle Positions per Deck | 4 |
| Bottle Positions | 16 |
| Material | Aluminum |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Optional Accessory | RollerMate® Software |
| Dimension External (WxDxH) | 672x598x936mm / 26.46×23.54×36.85″ |
| Max. Load | 48 |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 70 kg |

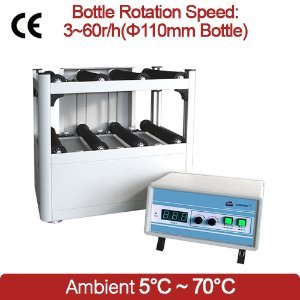

CGI-06-F
The series of products is designed for small scaled cell cultures. These units can operate in regular CO2 incubators.
| Model | CG I-06-F |
| Cell Culture Method | Monolayer Cultures |
| Bottle Rotation Speed | 3~60r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ100mm~Φ113mm, L≤285mm Standard Bottle:Φ110mm, L=285mm(1500ml) |
| Bottle Positions per Deck | 3 |
| Bottle Positions | 6 |
| Material | Aluminum |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Dimension External (WxDxH) | 450x360x431.5mm / 17.72×14.17×16.99″ |
| Max. Load | 10 kg |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 22 kg |
CG-06-F
The series of products is designed for small scaled cell cultures. These units can operate in regular CO2 incubators.
| Model | CG-06-F |
| Cell Culture Method | Suspension Cultures |
| Bottle Rotation Speed | 60~900r/h(Φ110mm Bottle) |
| Rotation Mode | Clockwise/Counter Clockwise Alternating Rotation(10°~180°) |
| Acceptable Bottle Size | Φ100mm~Φ113mm, L≤285mm Standard Bottle:Φ110mm, L=285mm(1500ml) |
| Bottle Positions per Deck | 3 |
| Bottle Positions | 6 |
| Material | Aluminum |
Digital Control Display | Speed/Angle/Time |
Fuse | 4A250V |
| Communication | RS 485 |
| Dimension External (WxDxH) | 450x360x431.5mm / 17.72×14.17×16.99″ |
| Max. Load | 10 kg |
| Environmental Temp. | 5℃~ 70℃ |
| Relative Humidity | <90% |
| Power | 70W |
| Power Supply | 220V, 60Hz |
| Weight | 22 kg |

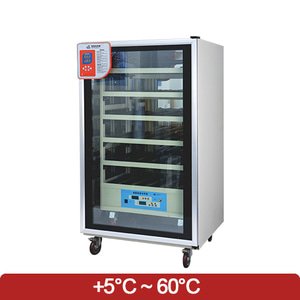

PY-16
Roll-in Incubators
(With or without CO2 Controller)
| Model | PY-16 |
| Temp. Display | Digital |
| Temp. Range | Environment Temperature +5℃~60℃ |
| Temp. Sensitivity | 0.1℃ |
| Temp. Uniformity | ±1℃(Environment Temp.:25℃; Set:37℃, No Load) |
| Temp. Fluctuation | ±0.2℃(Environment Temp.:25℃; Set:37℃, No Load) |
| CO2 Concentration Indicator | N/A |
| CO2 Control Range | N/A |
CO2 Control sensitivity | N/A |
CO2 Recovery Rate to 5% | N/A |
| Return to 37℃ after door opening | N/A |
| CO2 Sensor | N/A |
| Power Supply | 220V, 60Hz |
| Power | 1250W |
| Internal Dimensions (WxDxH) | 745x690x1115mm / 29.33×27.17×43.90″ |
| Overall Dimensions (WxDxH) | 845x885x1349mm / 33.27×34.84×53.11″ |
| Interior Wall | Mirror Grade Stainless Steel |
| Door | Double Glass Window |
| Alarm Function | Over-temperature, Temperature Sensor Malfunction, CO2 Concentration Alarm |
| Weight | 175 kg |
PY-30
(With or without CO2 Controller)
| Model | PY-30 |
| Temp. Display | Digital |
| Temp. Range | Environment Temperature +5℃~60℃ |
| Temp. Sensitivity | 0.1℃ |
| Temp. Uniformity | ±1℃(Environment Temp.:25℃; Set:37℃, No Load) |
| Temp. Fluctuation | ±0.2℃(Environment Temp.:25℃; Set:37℃, No Load) |
| CO2 Concentration Indicator | N/A |
| CO2 Control Range | N/A |
CO2 Control sensitivity | N/A |
CO2 Recovery Rate to 5% | N/A |
| Return to 37℃ after door opening | N/A |
| CO2 Sensor | N/A |
| Power Supply | 220V, 60Hz |
| Power | 1250W |
| Internal Dimensions (WxDxH) | 870x690x1480mm / 34.25×27.17×58.27″ |
| Overall Dimensions (WxDxH) | 970x885x1716mm / 38.19×34.84×67.56″ |
| Interior Wall | Mirror Grade Stainless Steel |
| Door | Double Glass Window |
| Alarm Function | Over-temperature, Temperature Sensor Malfunction, CO2 Concentration Alarm |
| Weight | 195 kg |
PYC-16
Roll-in Incubators
(With or without CO2 Controller)
| Model | PYC-16 |
| Temp. Display | Digital |
| Temp. Range | Environment Temperature +5℃~60℃ |
| Temp. Sensitivity | 0.1℃ |
| Temp. Uniformity | ±1℃(Environment Temp.:25℃; Set:37℃, No Load) |
| Temp. Fluctuation | ±0.2℃(Environment Temp.:25℃; Set:37℃, No Load) |
| CO2 Concentration Indicator | Digital display |
| CO2 Control Range | 0~20% |
CO2 Control sensitivity | 0.1% (at 5%) |
CO2 Recovery Rate to 5% | <3min |
| Return to 37℃ after door opening | <10min |
| CO2 Sensor | infrared |
| Power Supply | 220V, 60Hz |
| Power | 1250W |
| Internal Dimensions (WxDxH) | 745x690x1115mm / 29.33×27.17×43.90″ |
| Overall Dimensions (WxDxH) | 845x885x1349mm / 33.27×34.84×53.11″ |
| Interior Wall | Mirror Grade Stainless Steel |
| Door | Double Glass Window |
| Alarm Function | Over-temperature, Temperature Sensor Malfunction, CO2 Concentration Alarm |
| Weight | 175 kg |
PYC-30
Roll-in Incubators
(With or without CO2 Controller)
| Model | PYC-30 |
| Temp. Display | Digital |
| Temp. Range | Environment Temperature +5℃~60℃ |
| Temp. Sensitivity | 0.1℃ |
| Temp. Uniformity | ±1℃(Environment Temp.:25℃; Set:37℃, No Load) |
| Temp. Fluctuation | ±0.2℃(Environment Temp.:25℃; Set:37℃, No Load) |
| CO2 Concentration Indicator | Digital display |
| CO2 Control Range | 0~20% |
CO2 Control sensitivity | 0.1% (at 5%) |
CO2 Recovery Rate to 5% | <3min |
| Return to 37℃ after door opening | <10min |
| CO2 Sensor | infrared |
| Power Supply | 220V, 60Hz |
| Power | 1250W |
| Internal Dimensions (WxDxH) | 870x690x1480mm / 34.25×27.17×58.27″ |
| Overall Dimensions (WxDxH) | 970x885x1716mm / 38.19×34.84×67.56″ |
| Interior Wall | Mirror Grade Stainless Steel |
| Door | Double Glass Window |
| Alarm Function | Over-temperature, Temperature Sensor Malfunction, CO2 Concentration Alarm |
| Weight | 195 kg |
