Sensors for Flow

ENVIRONMENTAL MONITORING & METEOROLOGICAL INSTRUMENTS

  • Meteodigit digital handheld measuring device
  • Vane Anemometer
  • Pitot tubes

METEODIGIT (9164) Handheld digital measuring device

INNOVATION AND TRADITION …

characterize this ideal hand-held measuring device with its many extras. The advantages of intelligent digital technology are combined with fine mechanical precision and electronic accuracy. An intelligent connector system, automatic sensor recognition, zero adjustment, averaging and high measuring accuracy describe this universal and flexible instrument.

Meteodigit features

  • economical compact solution
  • Sensors for flow and wind speed, relative humidity and temperature
  • Averaging, individually adjustable and storable for each sensor
  • functionally reliable, easy handling
  • Building, air conditioning, ventilation technology
  • Warehousing
  • scientific laboratories
  • technical appraiser
  • Test bench measurement

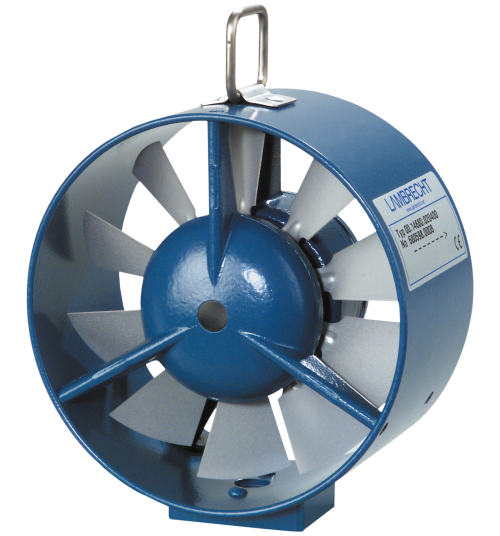

1468 Vane anemometer

STABLE, SMALL DESIGN…

for outpatient use or stationary installation. The cost-effective variant provides an active, analog output signal, does not require auxiliary energy and has robust aluminum blades. The variants with inductive proximity switches according to NAMUR are characterized by high resolution, particularly low start-up values ​​and a wide temperature range. The bidirectional flow measurement is made possible by the model 1468 S9 with two built-in inductive sensors for connection to a direction indicator.

Vane anemometer features

  • high dynamics thanks to 10-blade impeller
  • wear-free measuring elements
  • Choice of 3 variants for specific requirements
  • Cable length 3 m each
  • Heating / air conditioning
  • Ventilation / extraction systems
  • Air volume measurement

6xx Pitot tubes according to Prandtl

SIMPLE AND FLEXIBLE…

the decisive dimensions are adapted to the specific applications. Rapidly changing pressures are displayed on the connected measuring device without delay over short distances. The use in rough conditions is particularly favored by the material and the insensitivity. Recalibrations are not required.

Pitot tubes features

  • safe, proven, physical measuring principle
  • position-independent use
  • high accuracy in determining pressure, speed and flow rates
  • rigid parts, no wear and tear, insensitive
  • nickel-plated, rustproof metals
  • Wind tunnel
  • research
  • aerodynamic studies
  • Heating / air conditioning / ventilation
  • Chimneys
